Steel Winch Cable 3/16 Inch × 50 Feet | 15103.51 Yamaha Rhino

3/16-inch steel winch cable with a formed eye

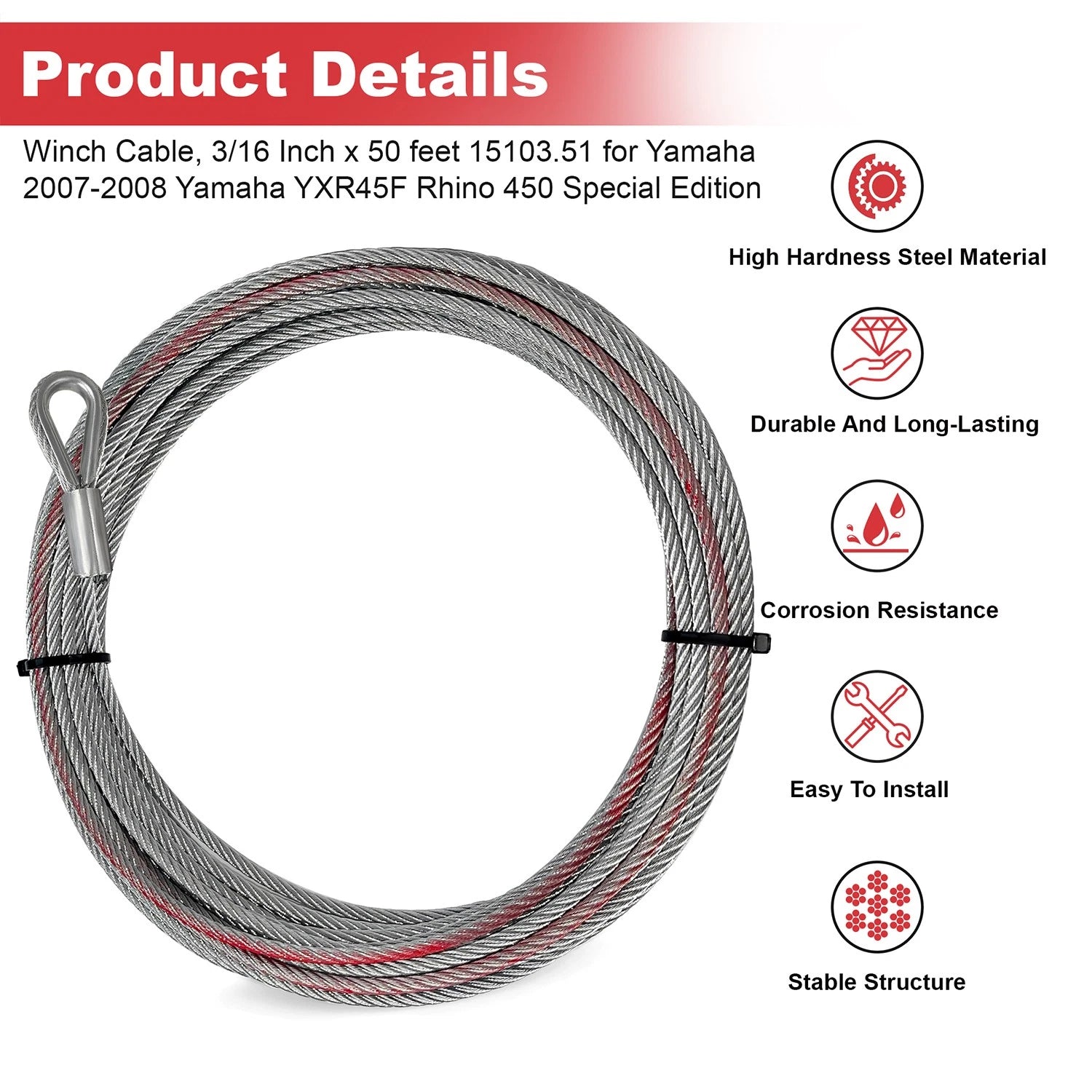

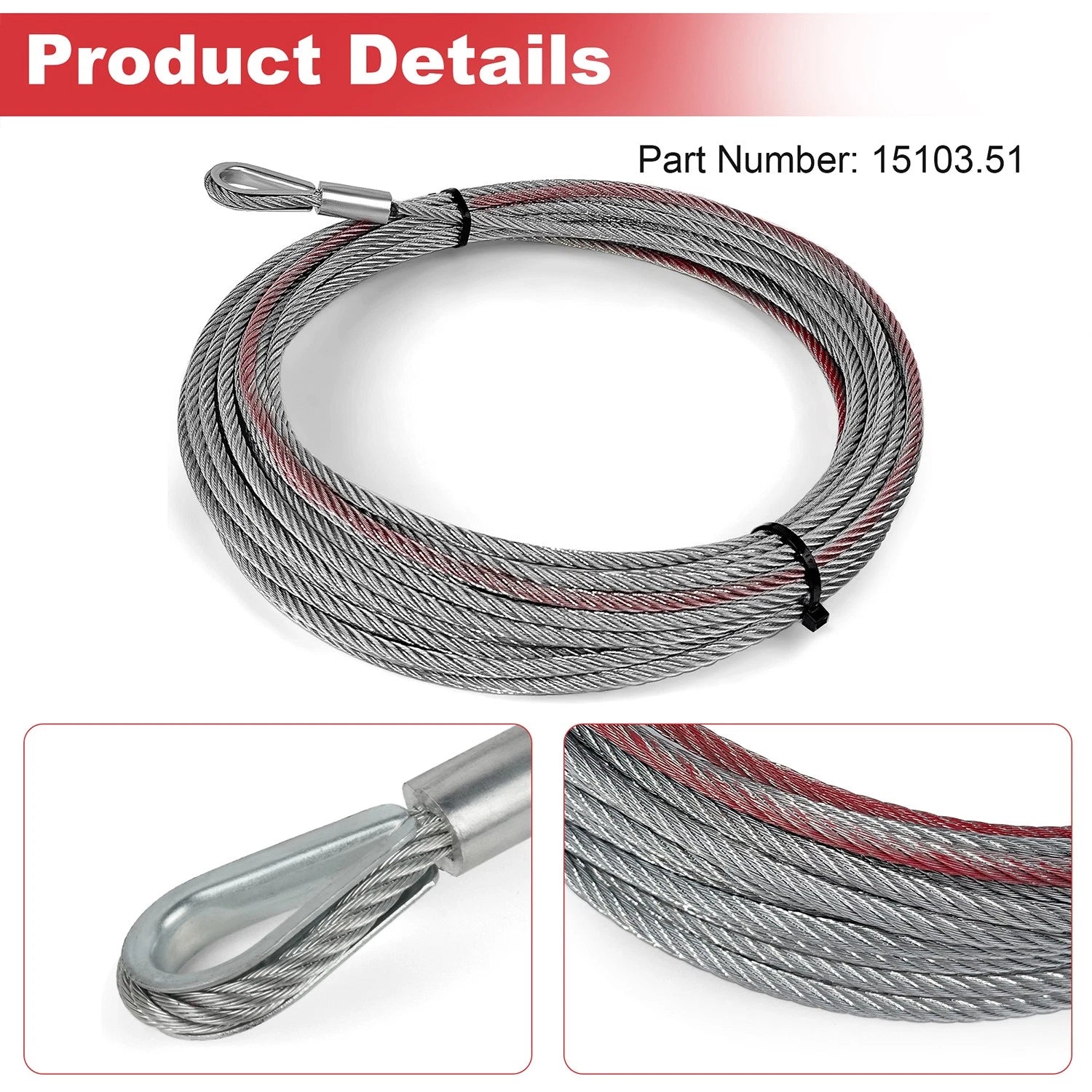

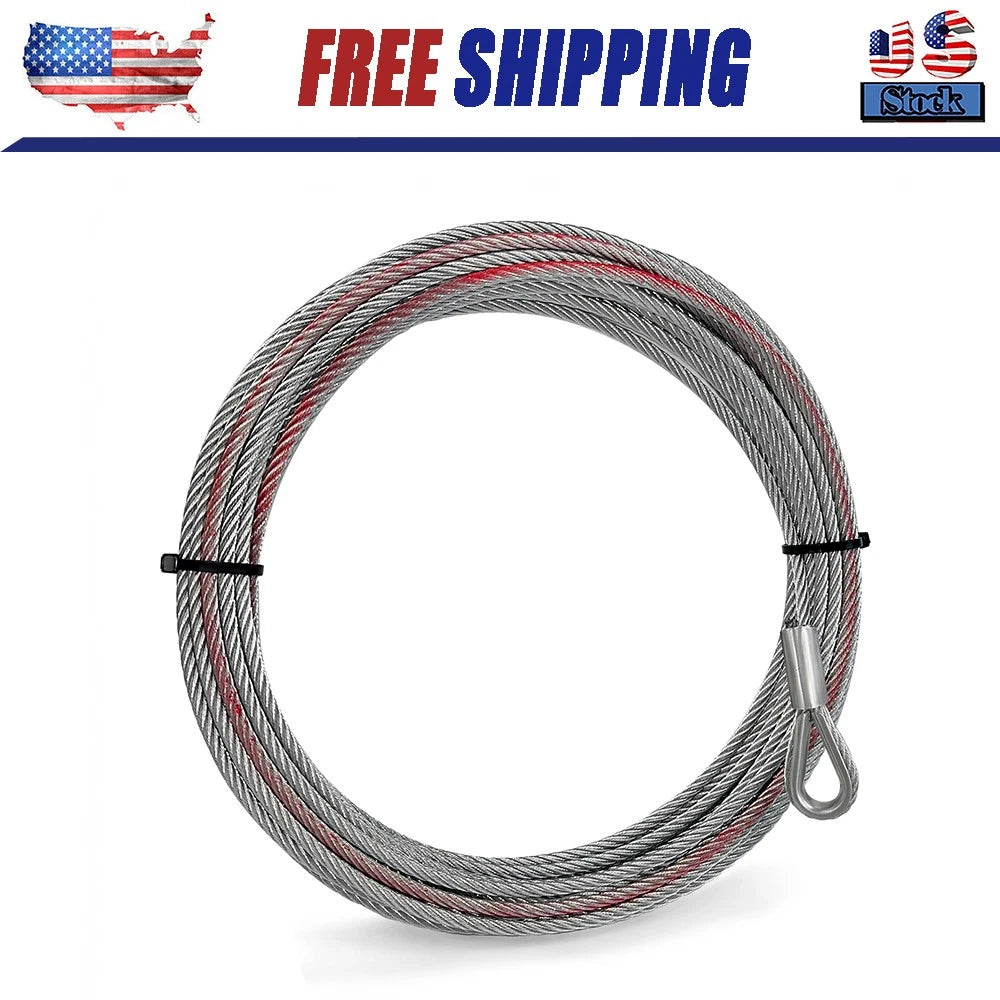

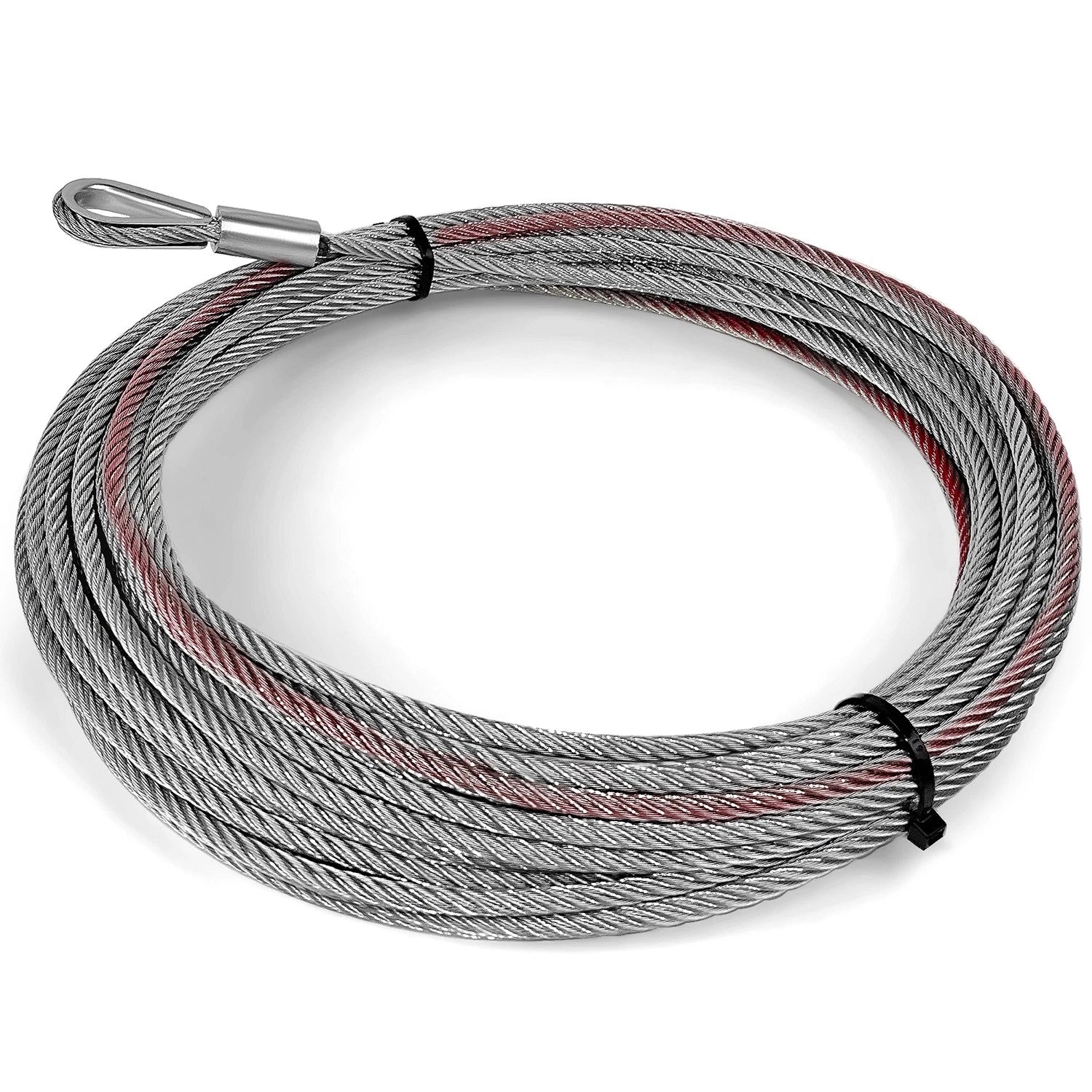

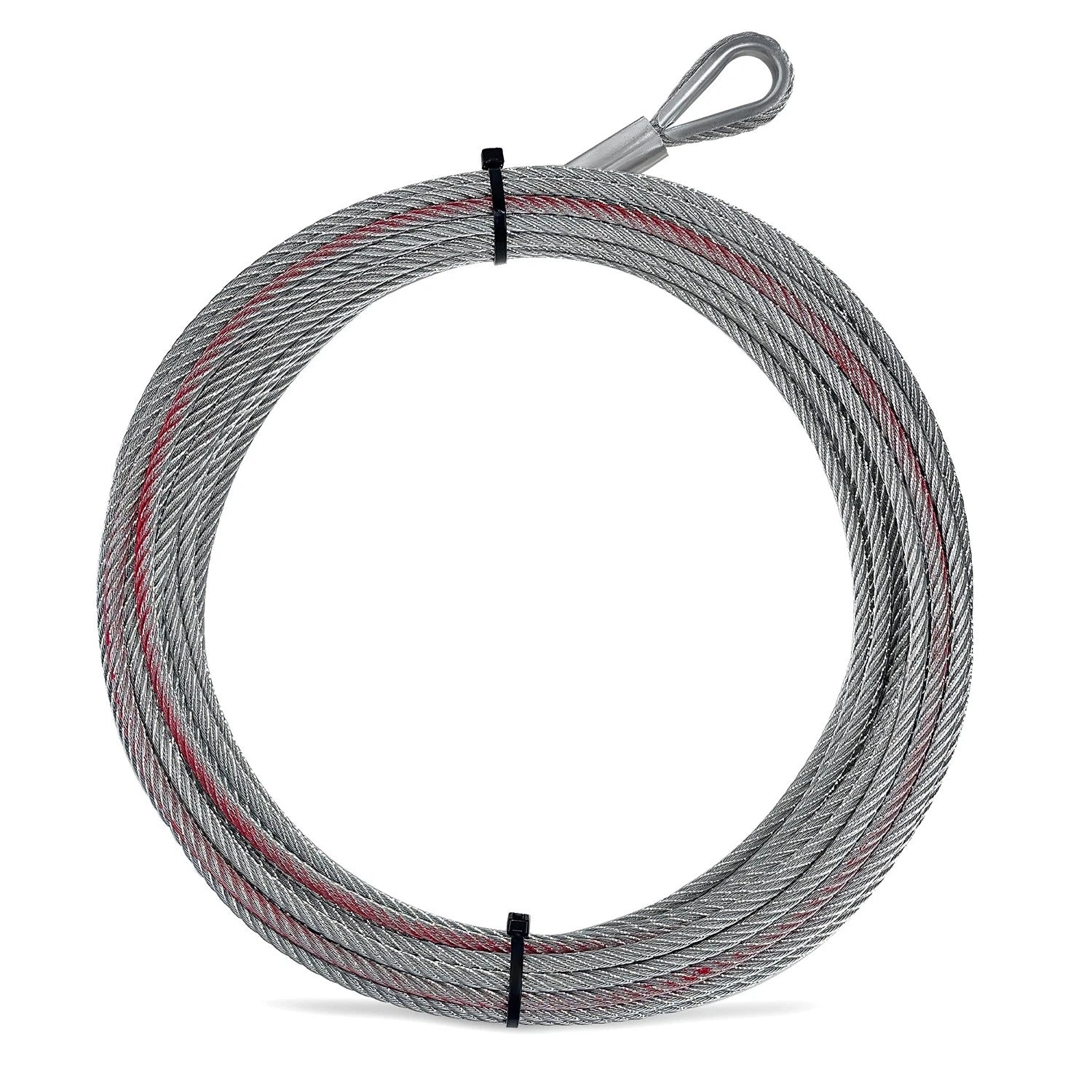

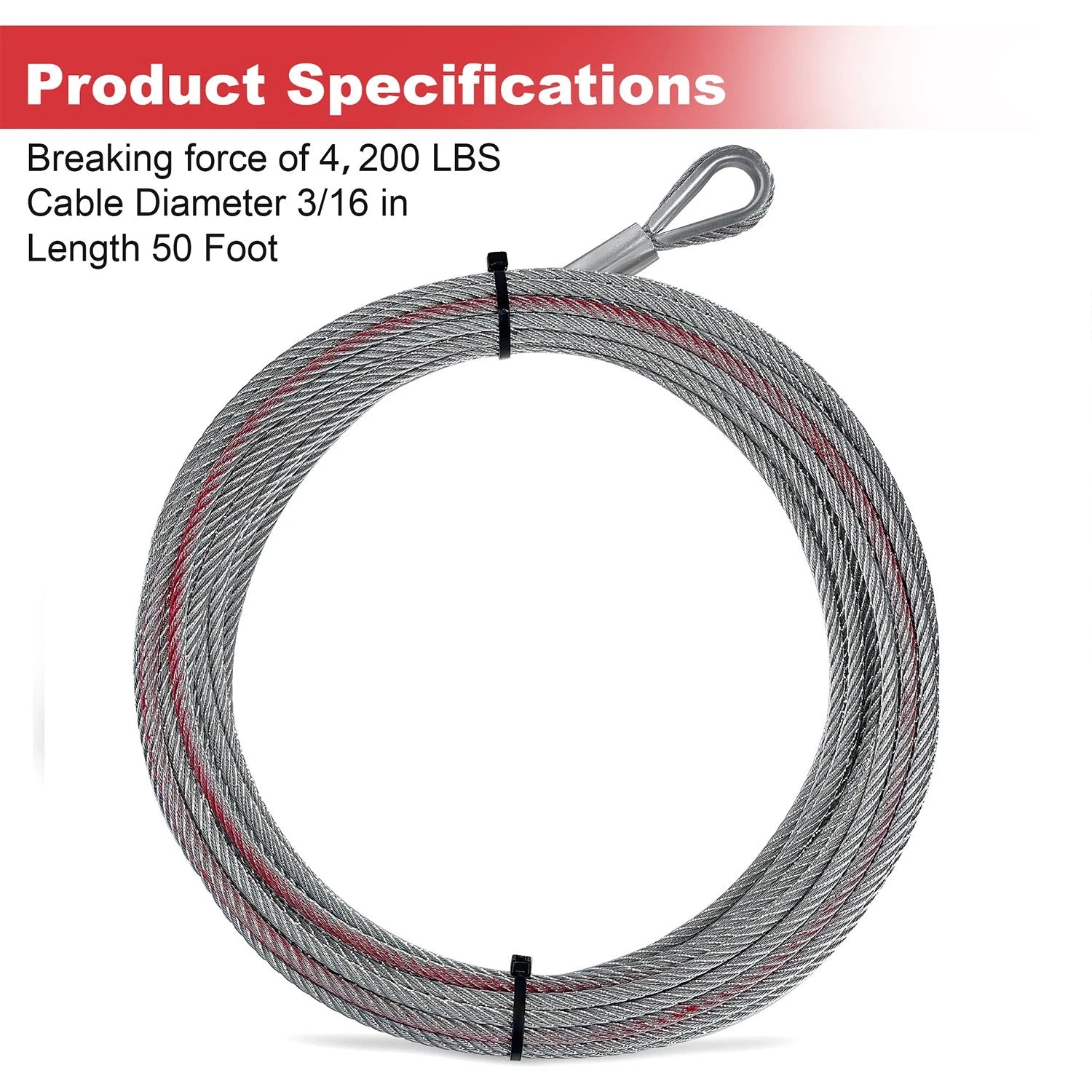

This aftermarket winch cable is listed as 3/16 inch in diameter and 50 feet long, with replacement reference 15103.51. It is supplied as one coiled steel cable. The visible attachment end has a thimble-lined eye secured by a crimped sleeve; a hook and separate drum fasteners are not shown as supplied.

Check the installed winch before ordering

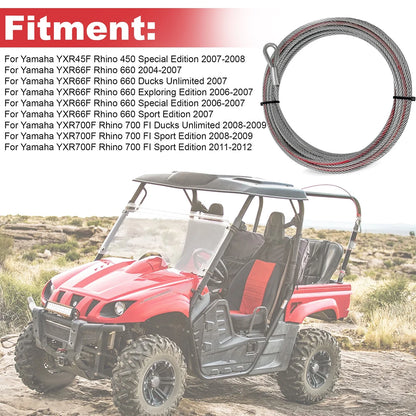

The listed Yamaha Rhino applications are below. Confirm the actual winch model as well as the vehicle: the drum must accept this cable size and length, and its anchor must match the cable's drum end. Details of that end connection are not specified in the listing.

Reference

15103.51

Cable size

3/16 inch diameter × 50 feet long

Material

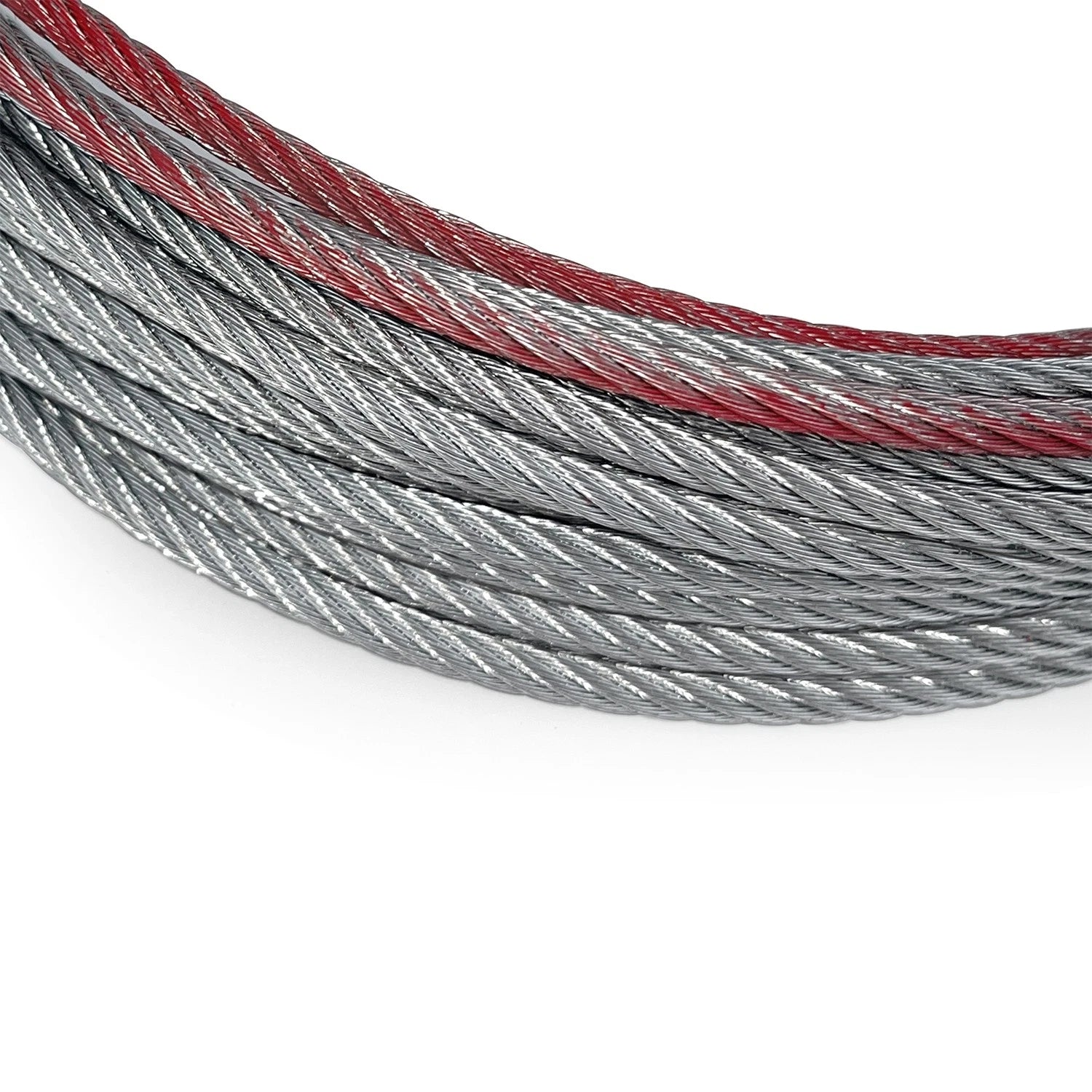

Stranded steel cable; steel grade and coating unspecified

Eye termination

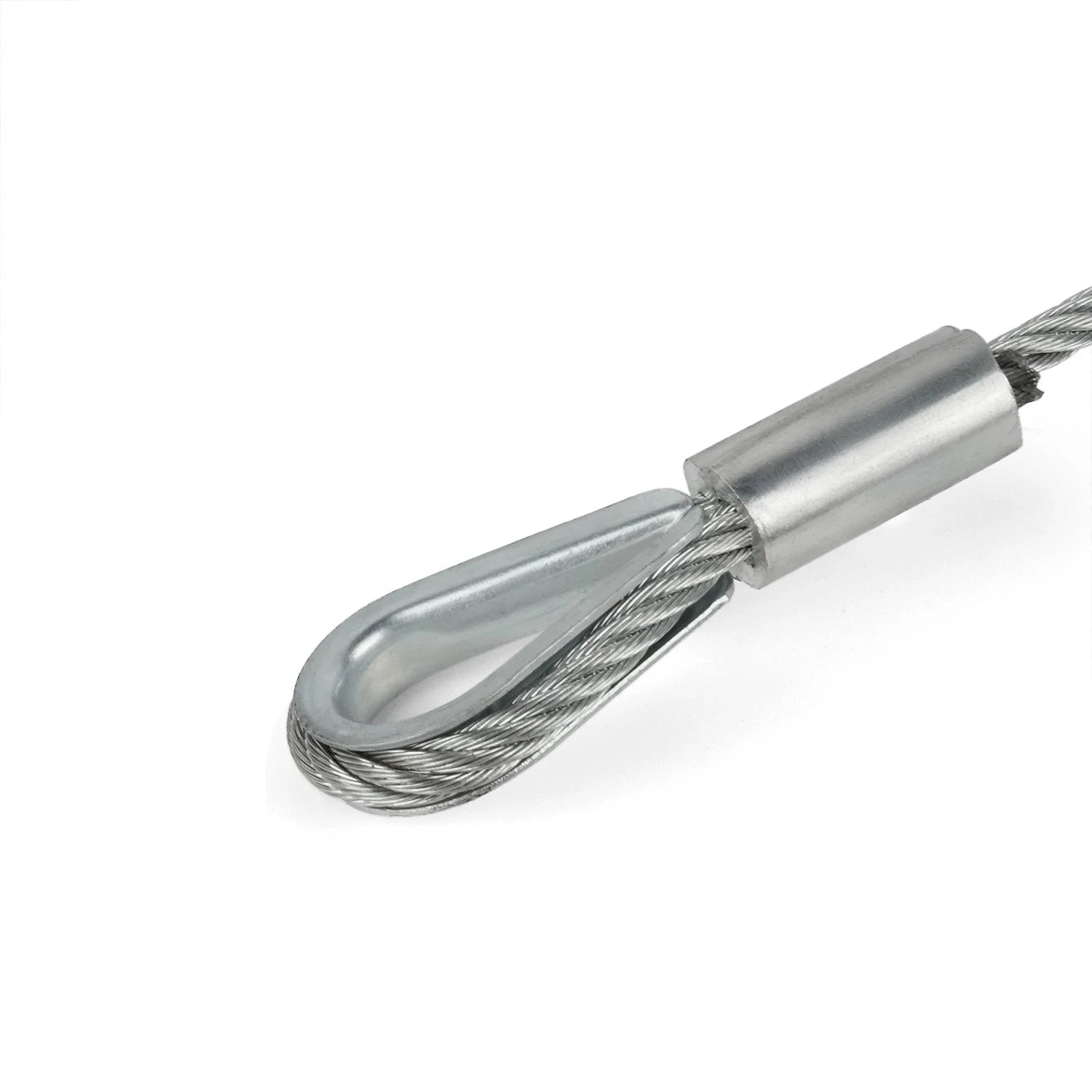

Metal thimble and crimped sleeve

Listed breaking force

4,200 lb; no working-load rating or test certificate is supplied

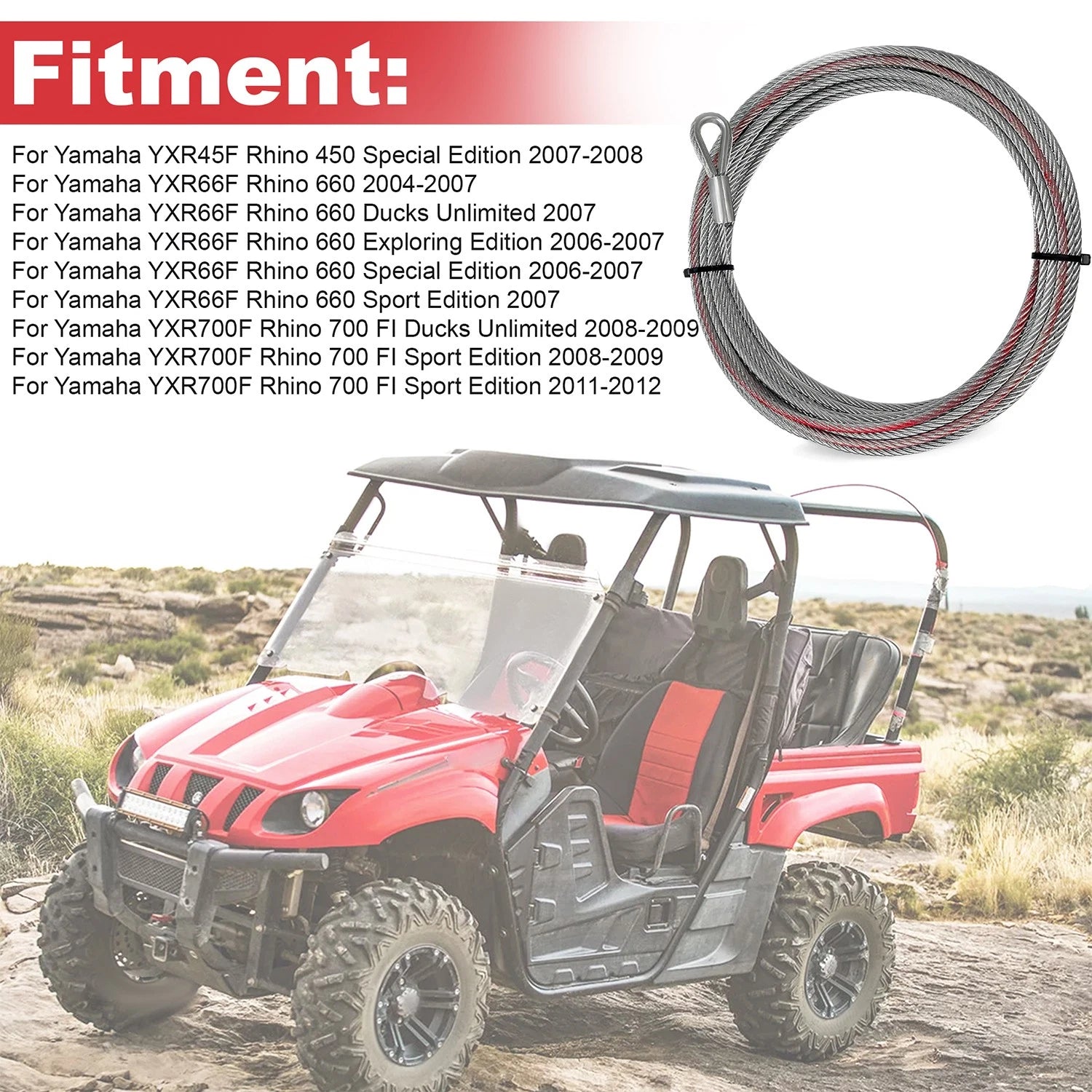

YXR45F Rhino 450

Special Edition, 2007-2008

YXR66F Rhino 660

2004-2007; Ducks Unlimited 2007; Exploring Edition and Special Edition 2006-2007; Sport Edition 2007

YXR700F Rhino 700 FI

Ducks Unlimited 2008-2009; Sport Edition 2008-2009 and 2011-2012

Match the cable, hook and fairlead as a system

The 4,200 lb figure is the supplier's listed breaking force. It does not establish an allowable working load or increase the installed winch's capacity. Confirm the required rope rating, drum attachment and eye-to-hook connection against the winch manufacturer's instructions. Eye opening dimensions, strand construction and drum anchor dimensions are not provided.

Inspect the fairlead and drum before fitting a replacement cable. Follow the winch's procedure for attachment, winding direction, initial spooling and the minimum wraps to retain on the drum. Wear suitable gloves when handling steel wire and check the cable for broken strands, kinks or damage before use. Use it within a compatible winching system; vehicle towing and overhead hoisting require different equipment.
