40 mm Wheel Balancer Large Cone for Ford F450 / F550, Silver

Large centering cone for a 40 mm balancer shaft

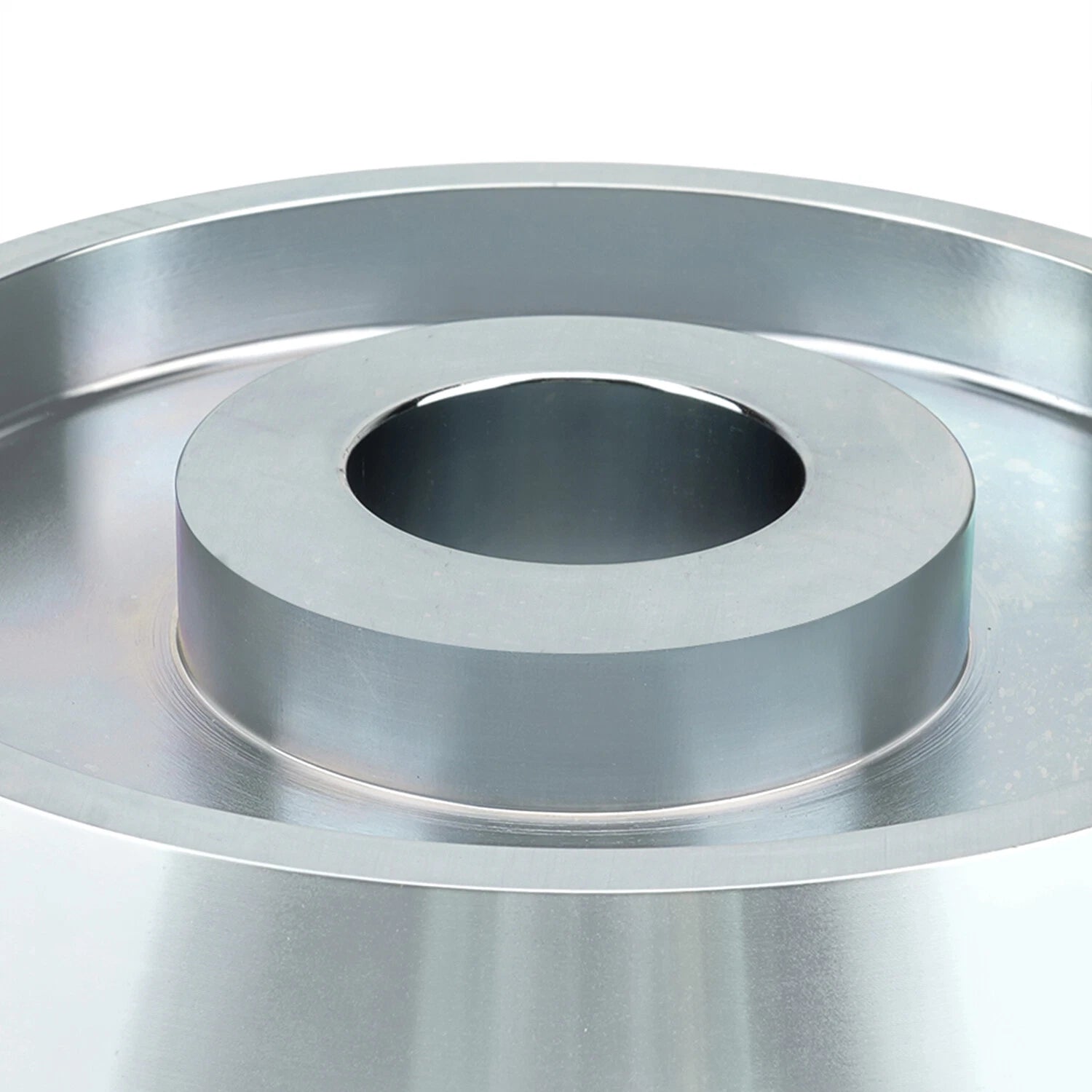

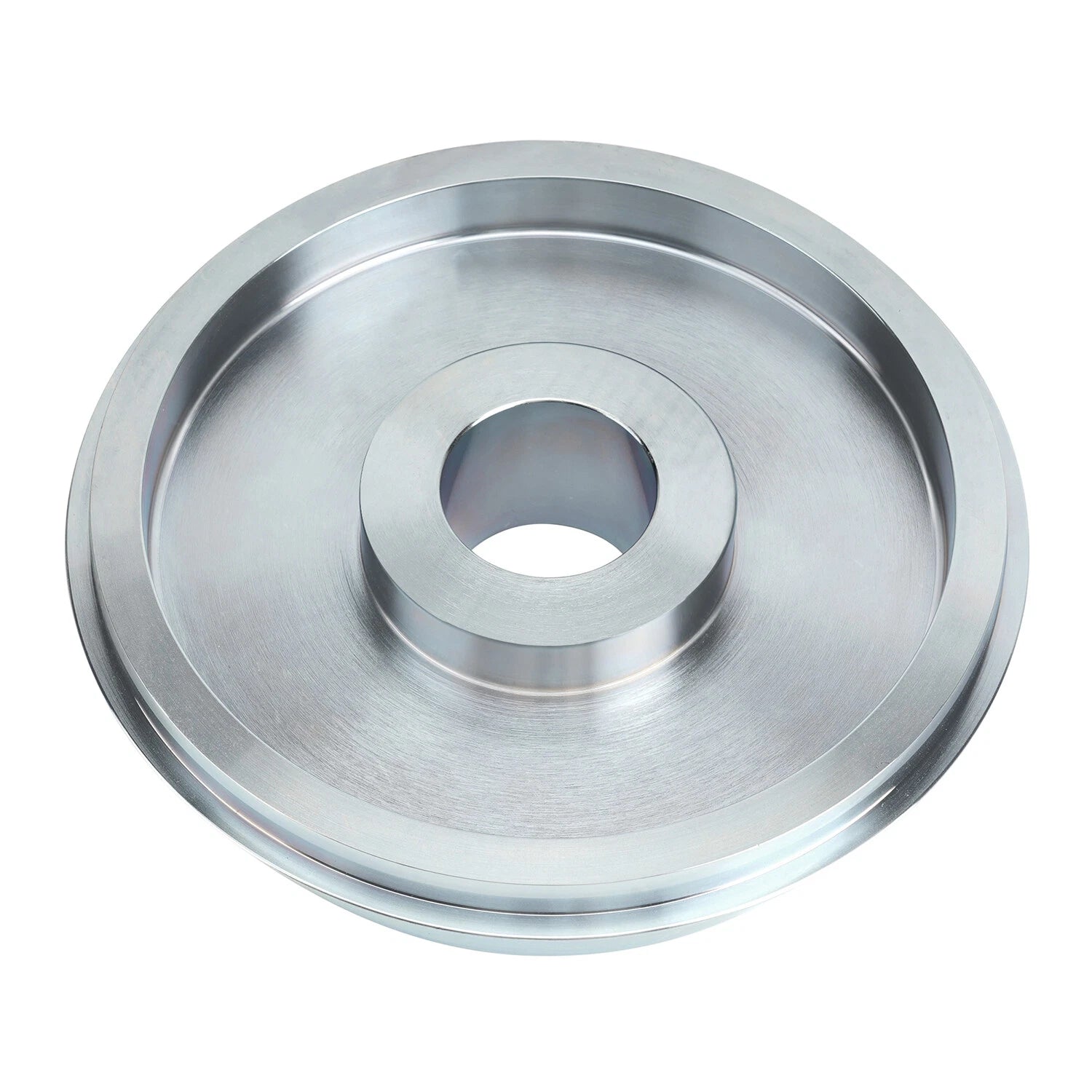

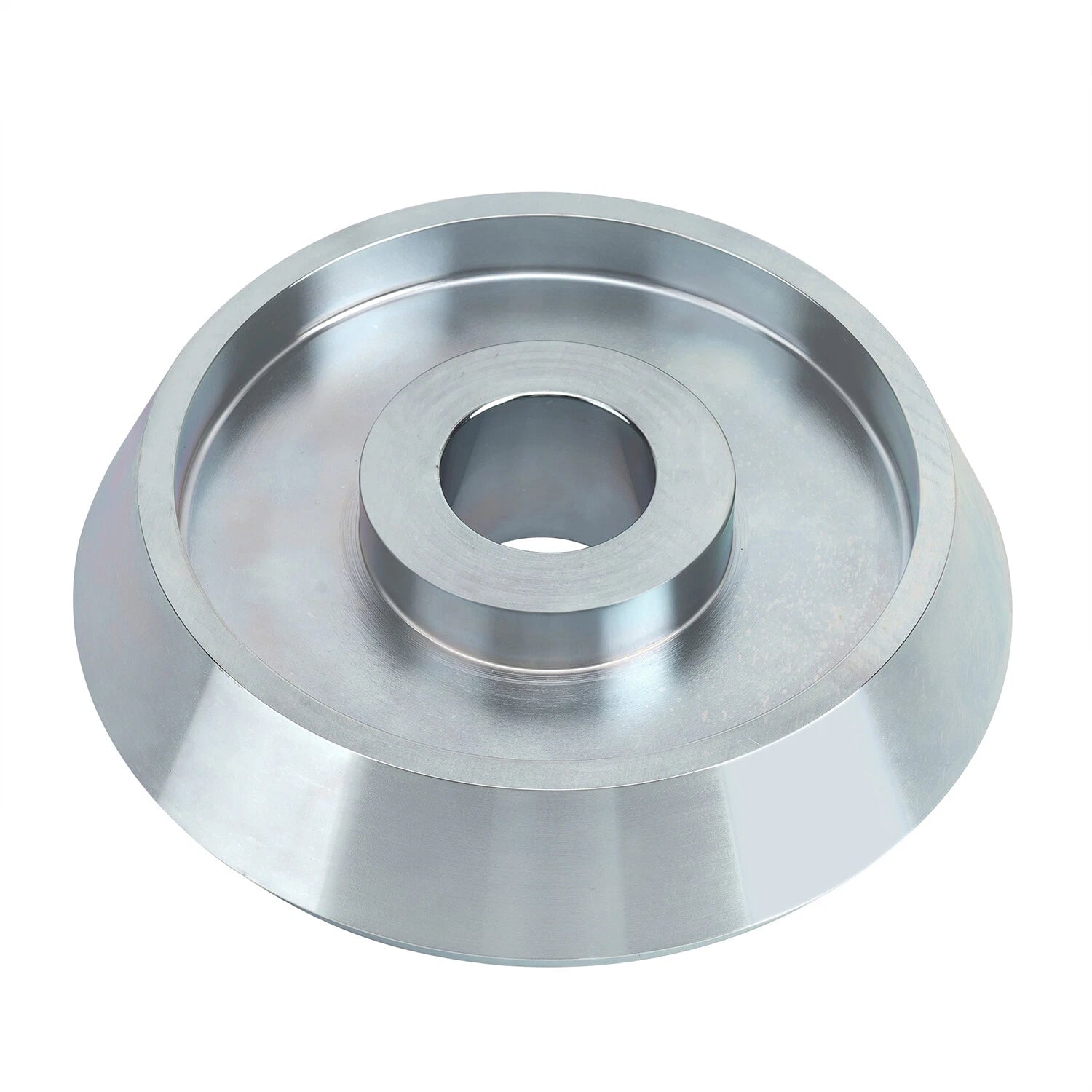

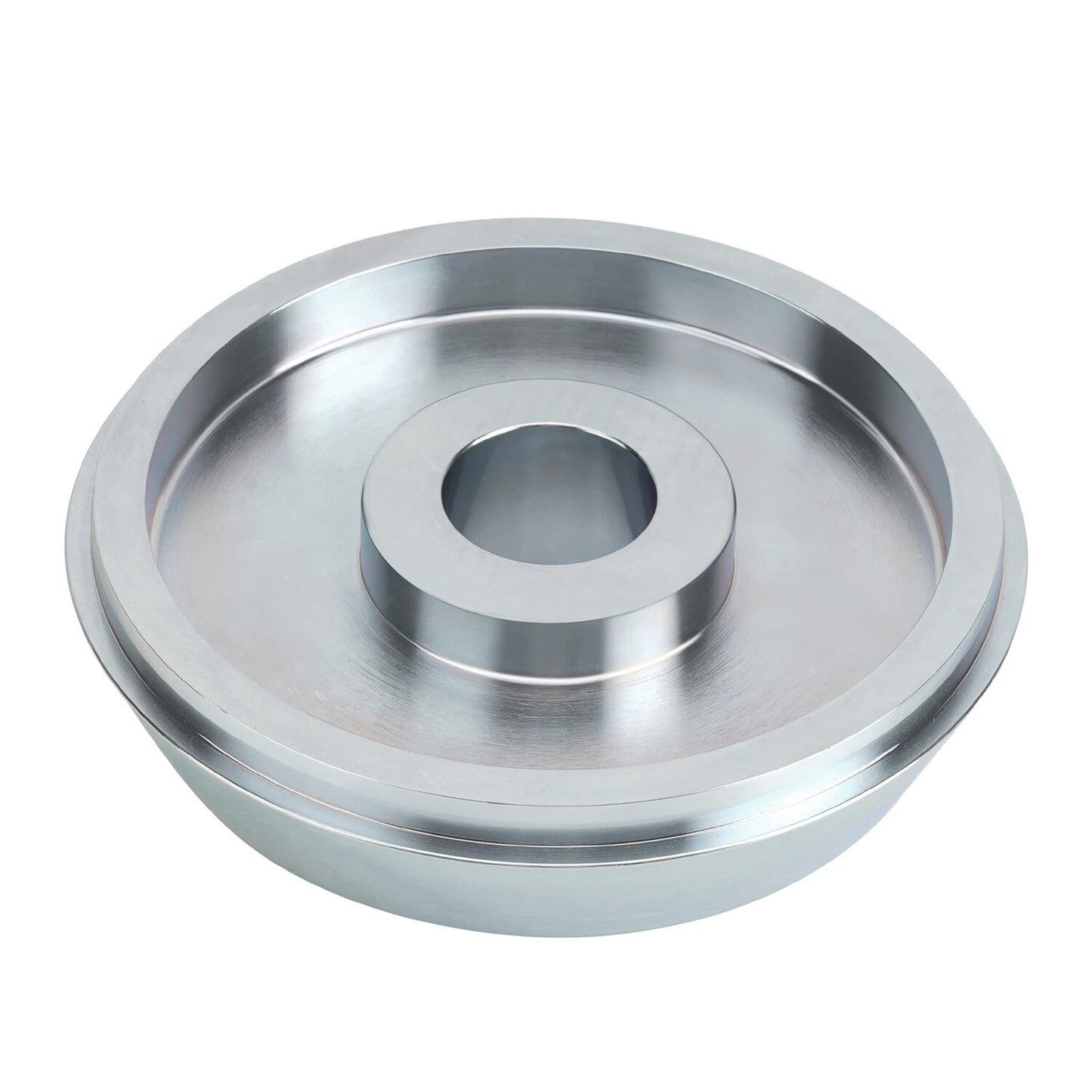

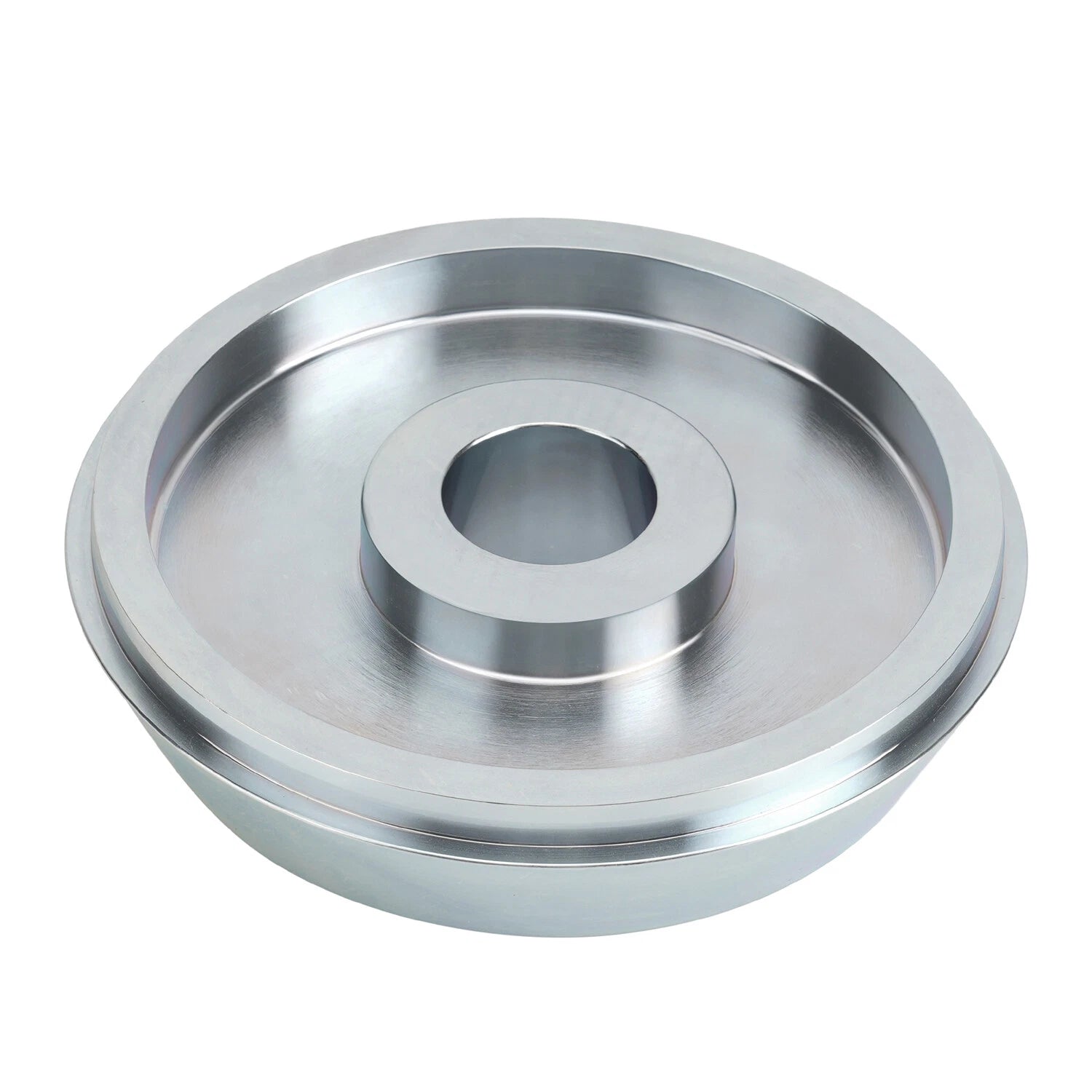

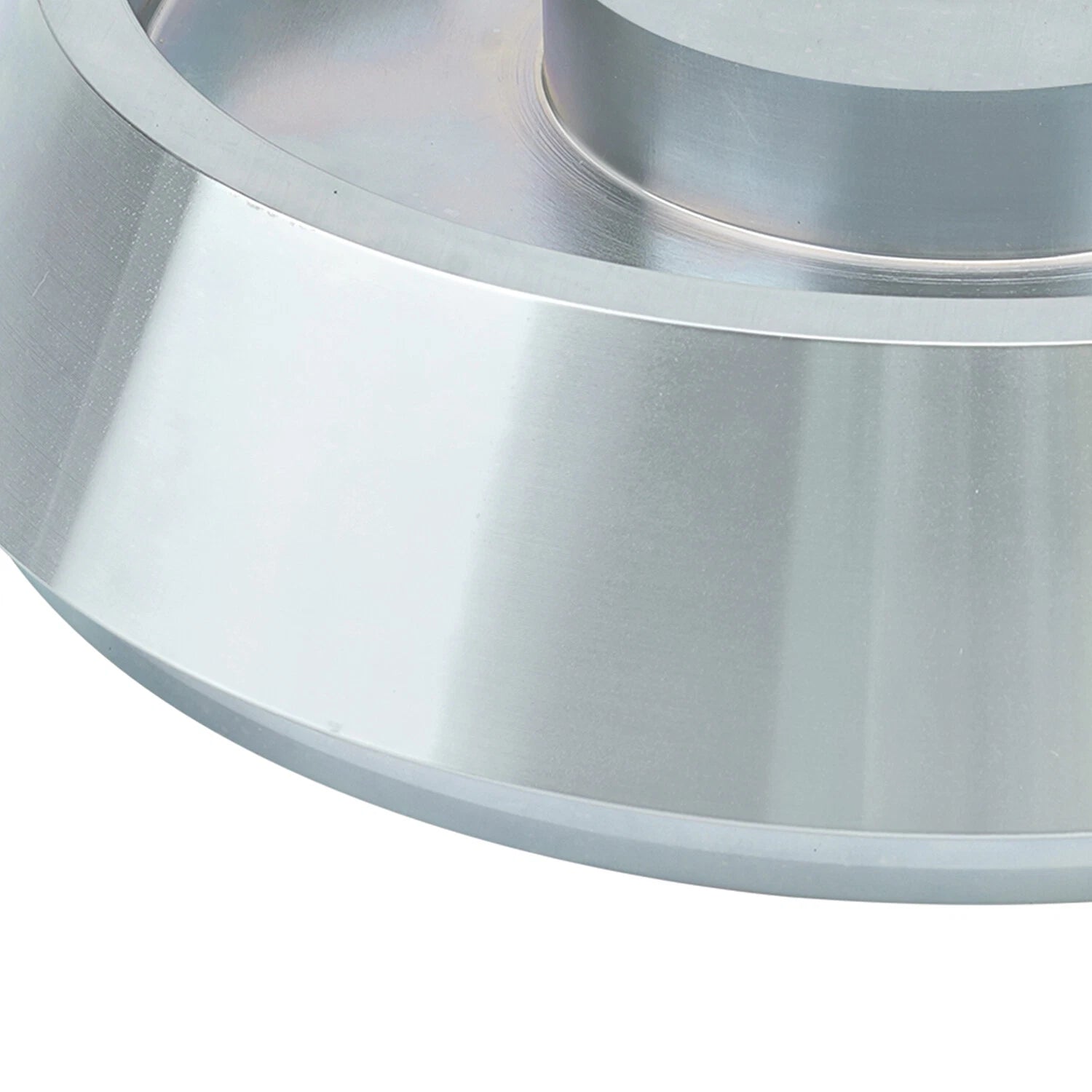

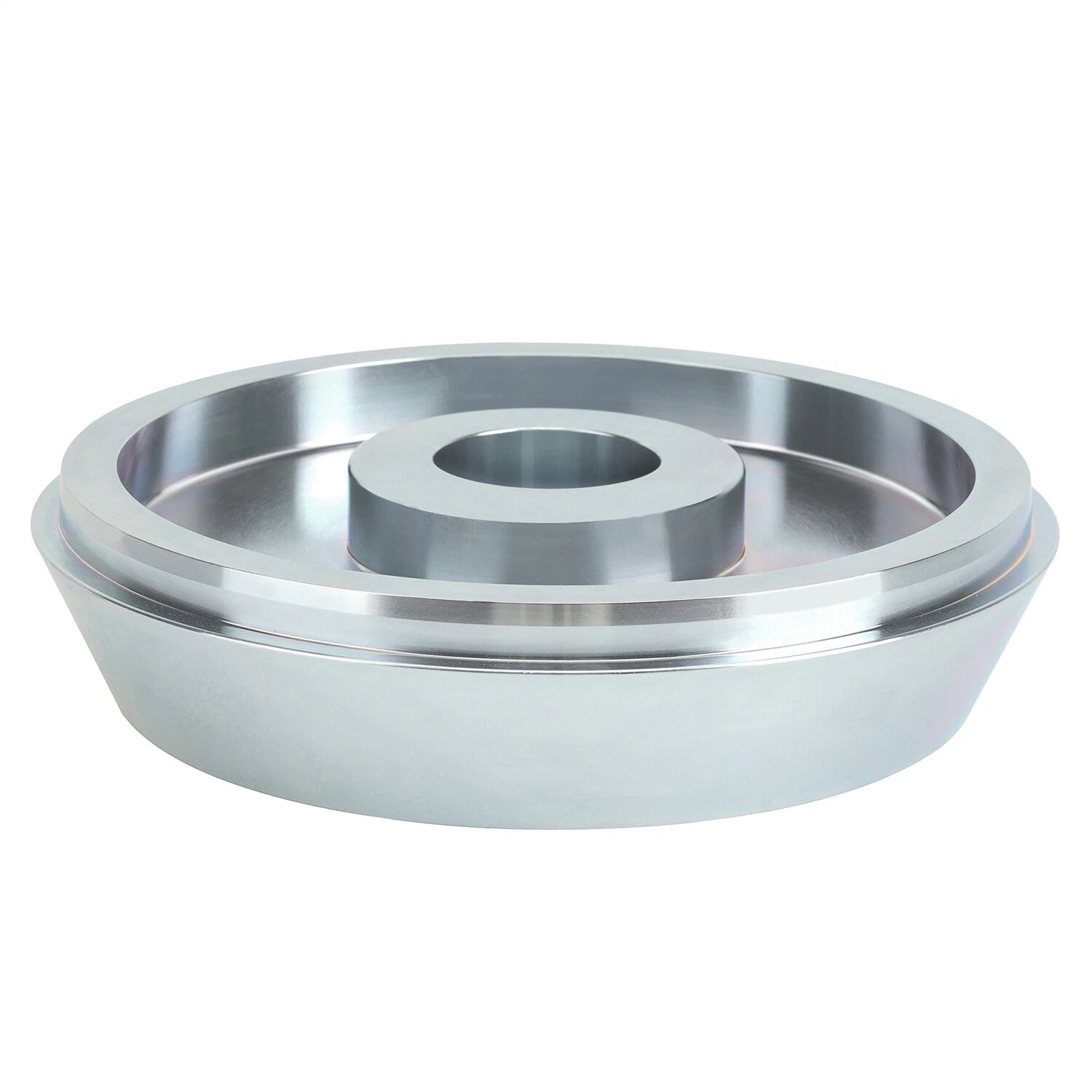

This silver-colored wheel balancer cone has a tapered outer surface and a raised central boss with a through-hole. One cone is supplied. The recessed face and rim profile are shown from several angles so you can compare them with your existing mounting accessories.

Check the machine shaft and wheel separately

The listing identifies a nominal 40 mm shaft application for Ford F450 and F550 wheel service. Coats and Hunter balancers are named in the listing, but compatibility depends on the actual shaft and mounting arrangement. Confirm your machine's shaft diameter, usable length and required backing or clamping accessories.

Also measure the wheel's center opening and check its seating profile. The verified wheel-center-hole range for this particular cone is not specified. F450 or F550 identification alone does not confirm that the cone seats correctly in the wheel being balanced.

Pictured cone details

Quantity

1 wheel balancer cone

Listed shaft size

40 mm nominal

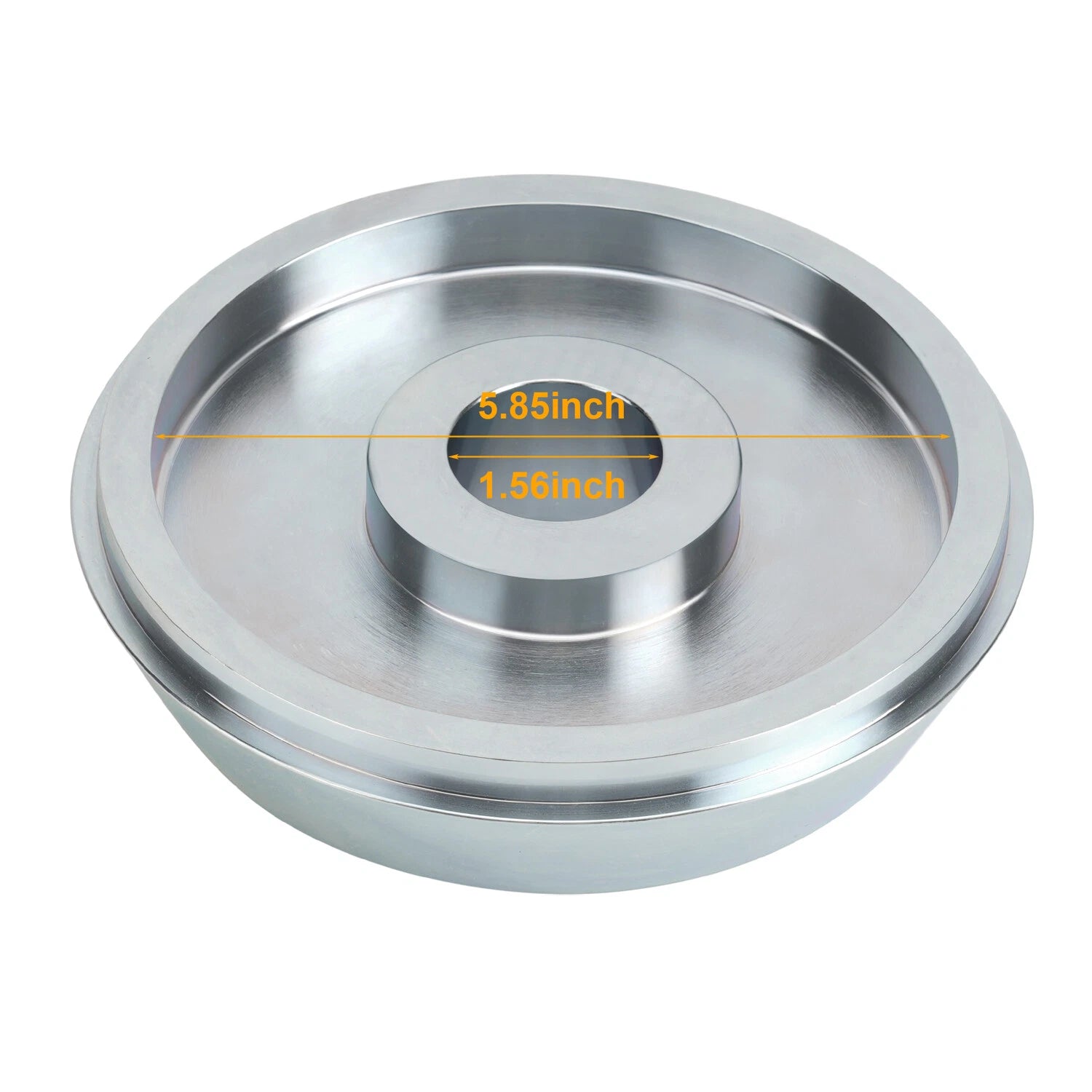

Central hole in size diagram

Approximately 1.56 inches across

Recessed-face span in diagram

Approximately 5.85 inches between the indicated inner rim edges

Appearance

Silver-colored, with a tapered outer surface and raised central boss

Listed vehicle applications

Ford F450 / F550, subject to wheel and balancer measurements

The 5.85-inch arrow crosses the recessed face; it does not define the cone's full wheel-bore coverage. Cone height, taper angle, machining tolerances and material grade are unspecified.

Mounting equipment required

The photos show the cone by itself. No balancer shaft, hub nut, backing plate, spacer or wheel is supplied. Follow the balancer's mounting procedure to select any additional accessories and check that the wheel is centered and securely clamped before running a balance cycle.
