Water pump pulley tool kit for Ford 3.0L Duratec, 8069/7483A

Water pump pulley removal and installation kit

This kit is listed for the water pump pulley service on selected Ford Fusion and Escape 3.0L Duratec engines, using comparison references 8069 and 7483A. Confirm the engine code and pulley arrangement on the vehicle before ordering. The Fusion or Escape name alone does not establish tool fit.

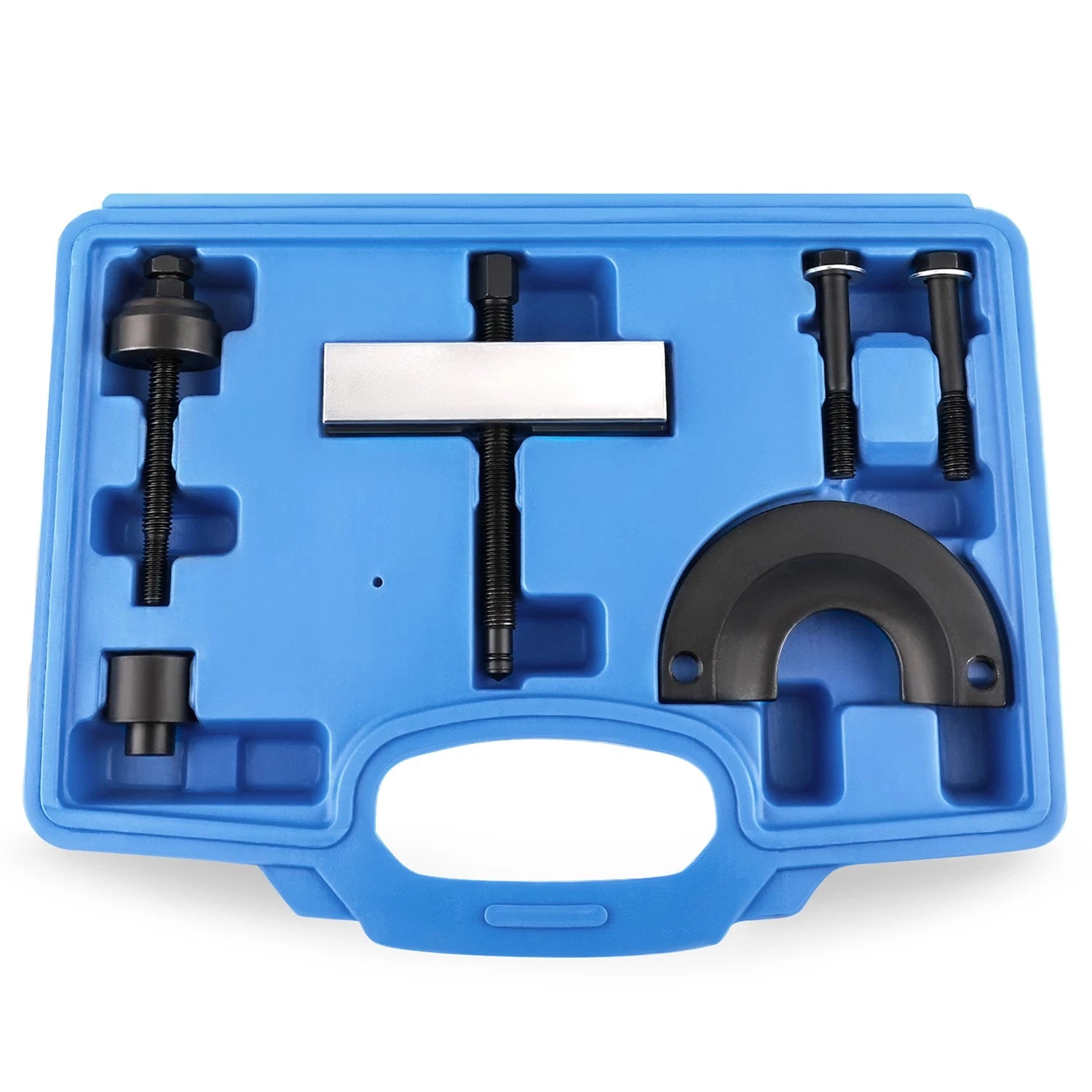

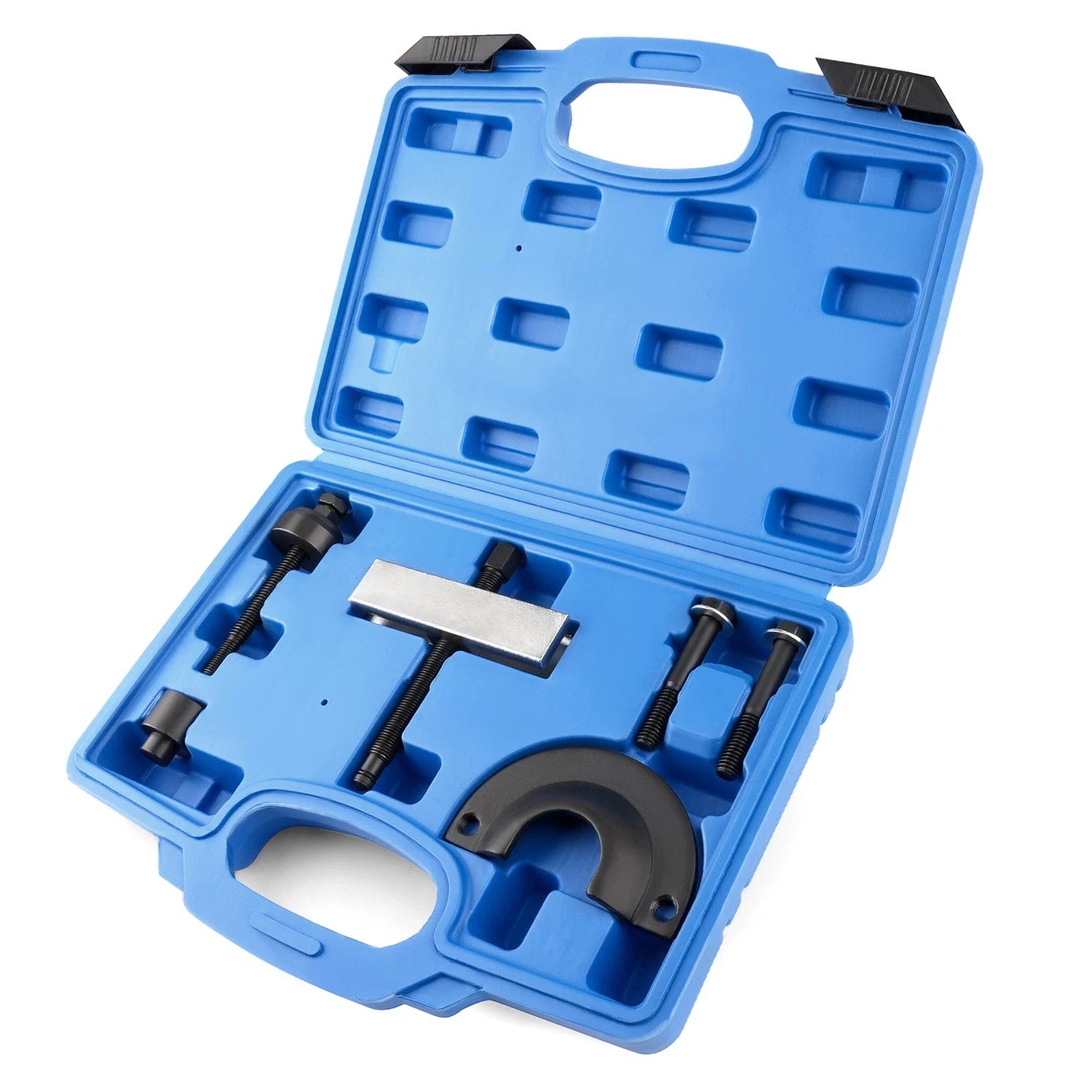

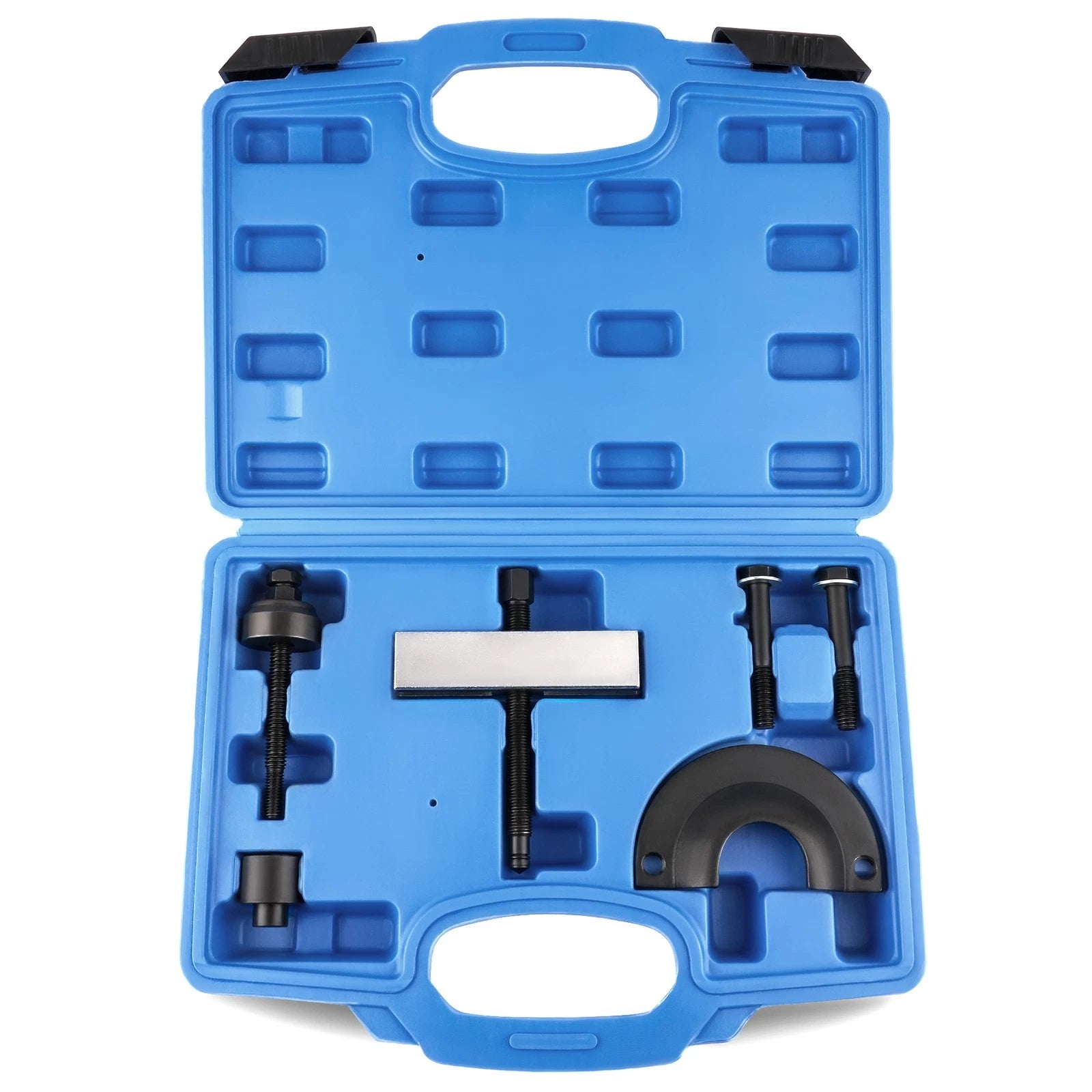

Tools arranged in a blue case

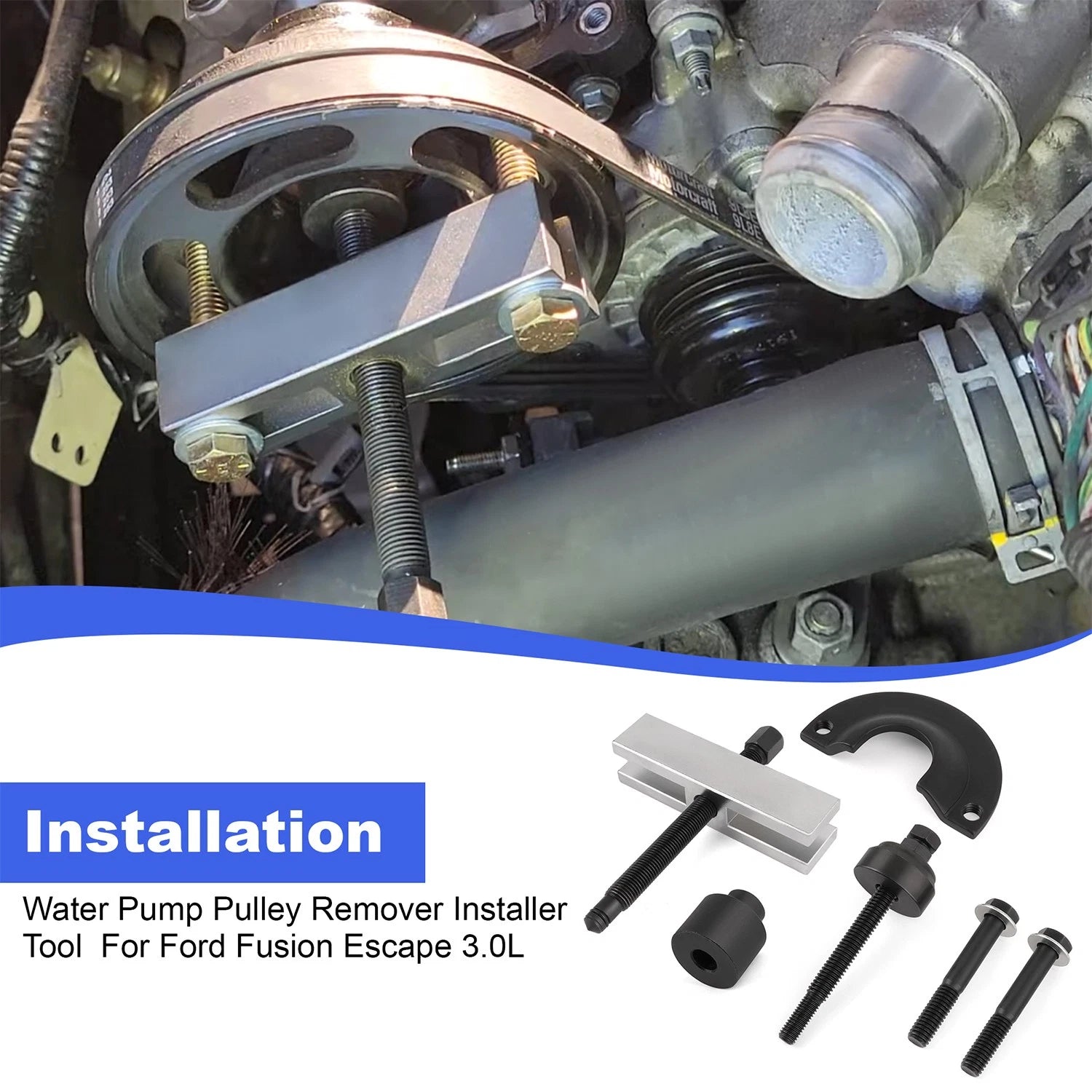

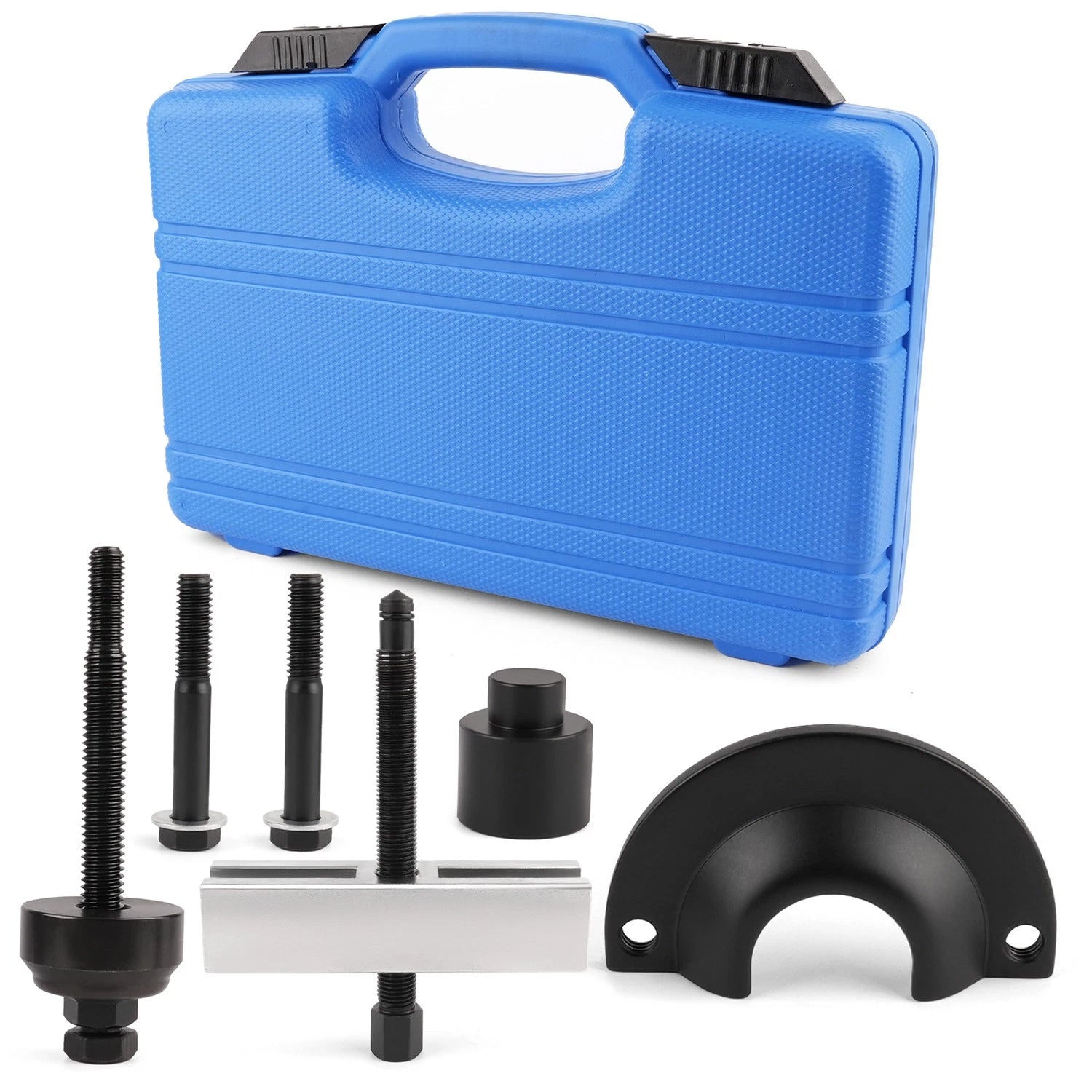

The first product photo shows a threaded T-puller with a rectangular crossbar, a curved removal plate with two bolt holes, two bolts with washers, a separate threaded screw assembly and a small stepped cylindrical piece. A blue molded case keeps the pictured components together. A replacement water pump, pulley and belt are separate service parts.

Service task

Removal and installation of a matching water pump drive pulley

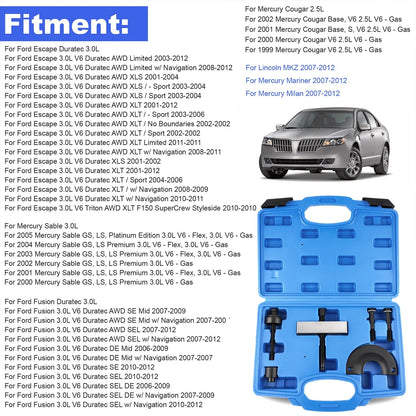

Listed engine application

Selected Ford Fusion and Escape 3.0L Duratec engines

Primary comparison references

8069 and 7483A

Additional listed comparisons

303-S455, 303-009, 303-456, 303-457 and 303-459

Visible pulling components

Crossbar with threaded screw, curved plate and two bolts with washers

Other visible components

Separate threaded screw assembly and stepped cylindrical piece

Storage

Blue molded carrying case

Match the shaft and pulley interface

Check the pulley engagement area, shaft end and installation thread against the tool required by the vehicle's service instructions. Forcing-screw thread sizes, plate opening, bolt spacing and load capacity are unspecified for this kit. The reference numbers describe the listing's tool comparisons; this is an unbranded kit, with no confirmed CTA, OTC or Ford manufacture.

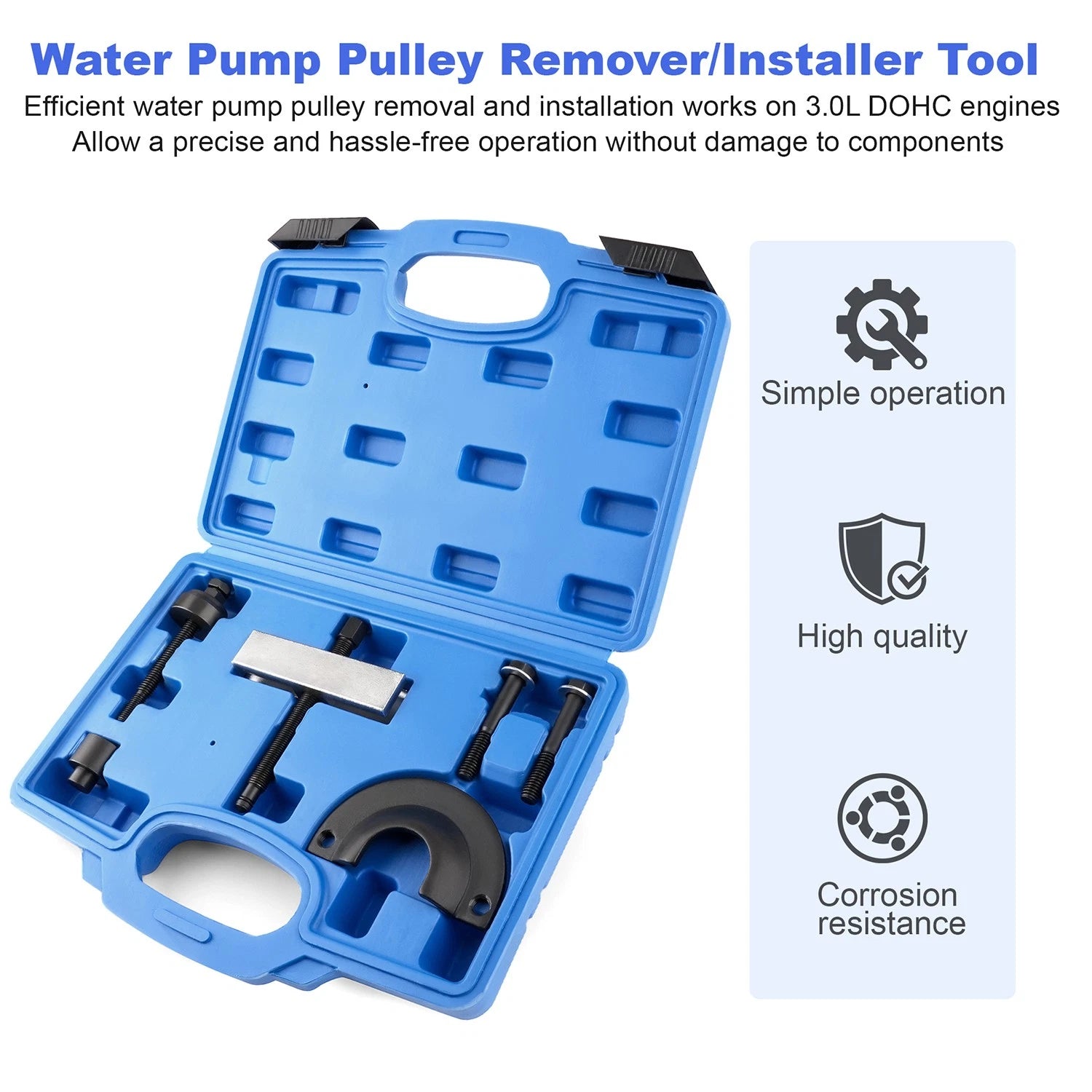

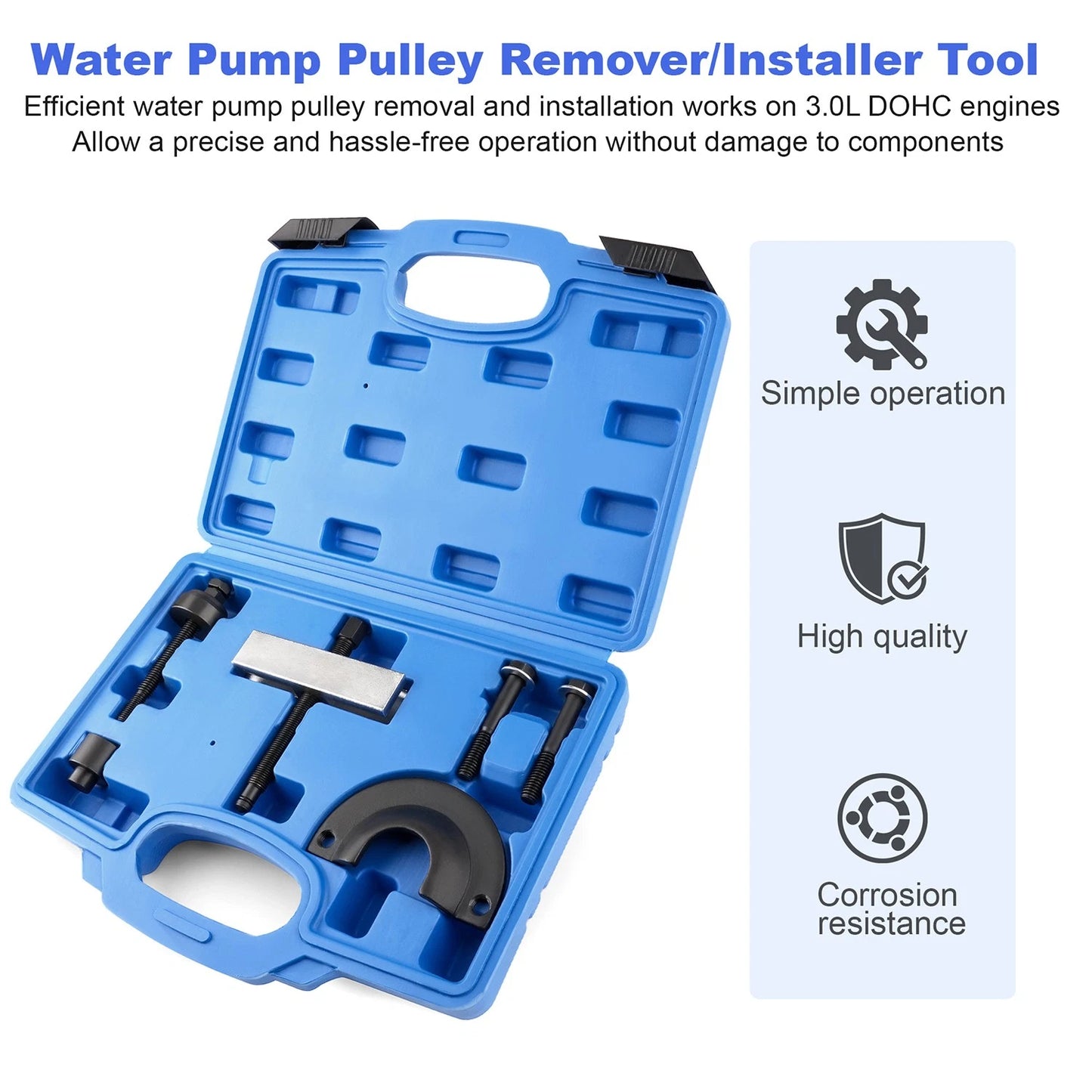

The relevant 3.0L DOHC service layout uses a camshaft-mounted coolant pump drive pulley. Other engines and pulley layouts need their own tools. Exact vehicle years, hybrid applications and modified engines are not confirmed for this kit.

Check engagement before applying force

Follow the exact engine's procedure for access, shaft protection, removal and installation depth. Identify the purpose of each adapter and ensure the plate and screws engage correctly before loading the tool. Inspect threads and contact faces for wear or damage. Tightening values and permission to use impact tools are unconfirmed; obtain the appropriate instructions before use.
