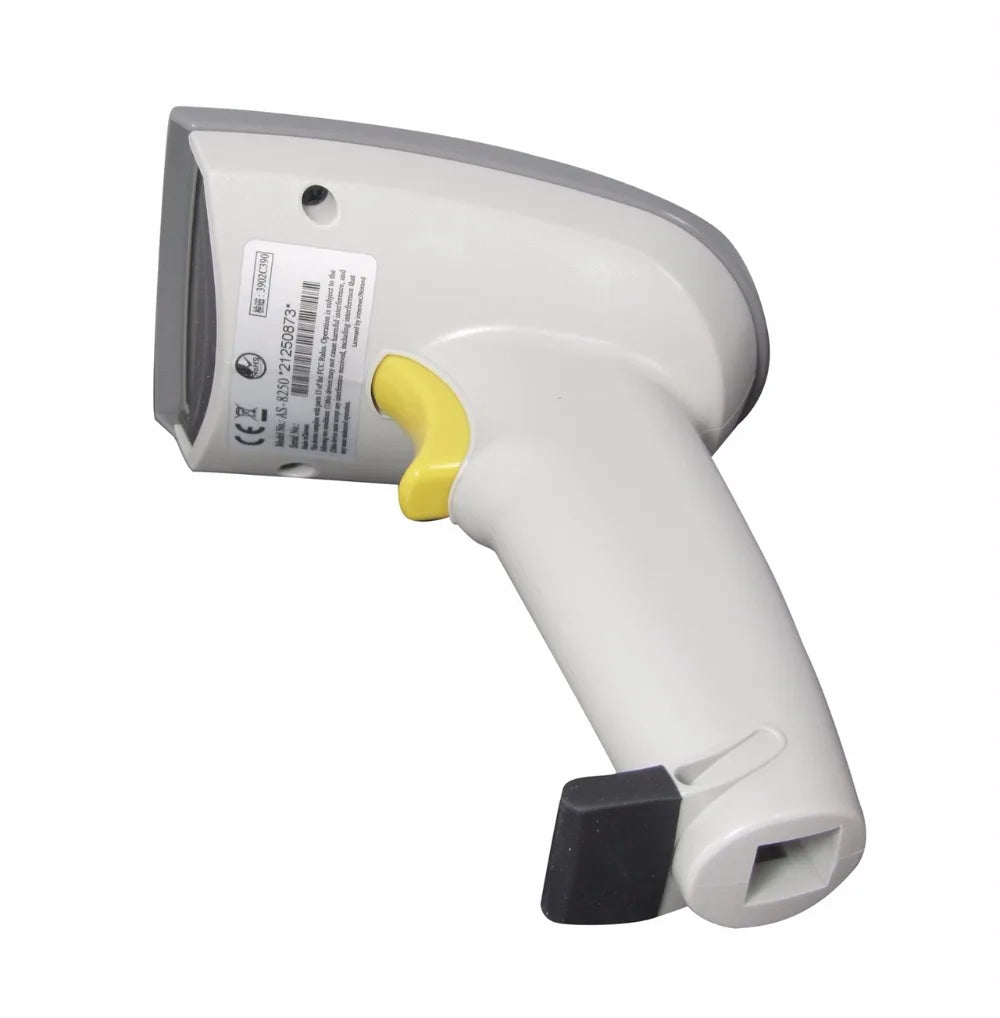

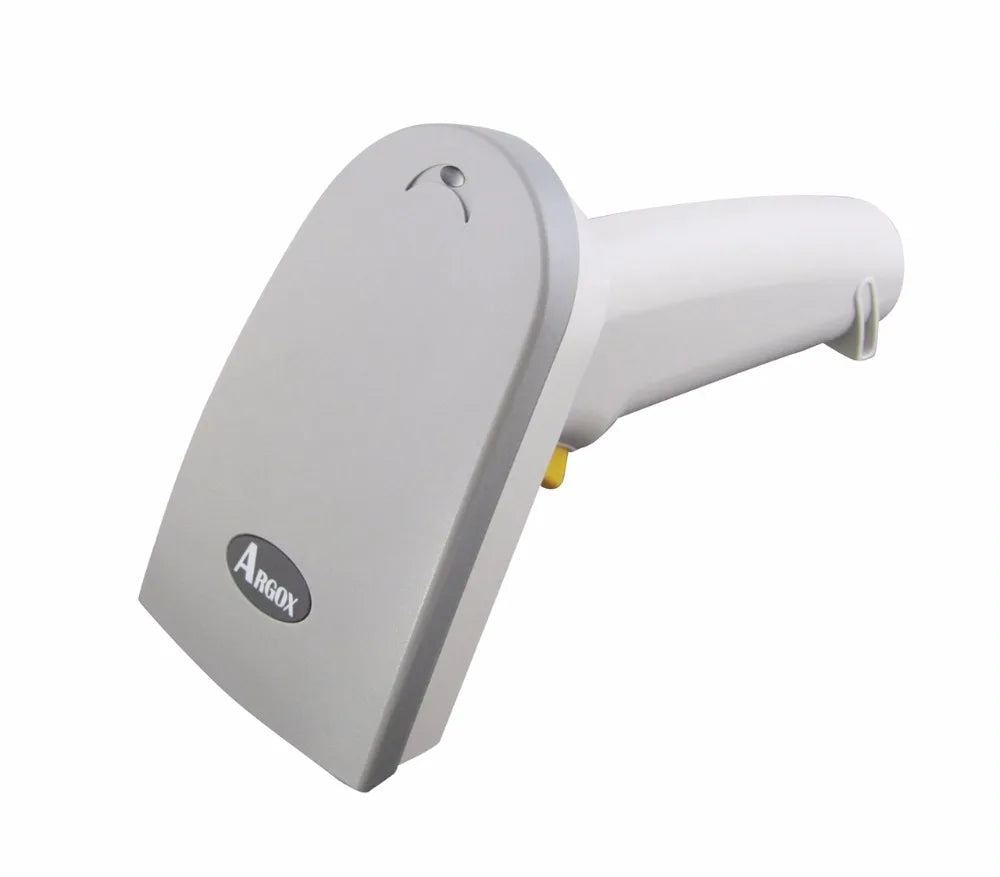

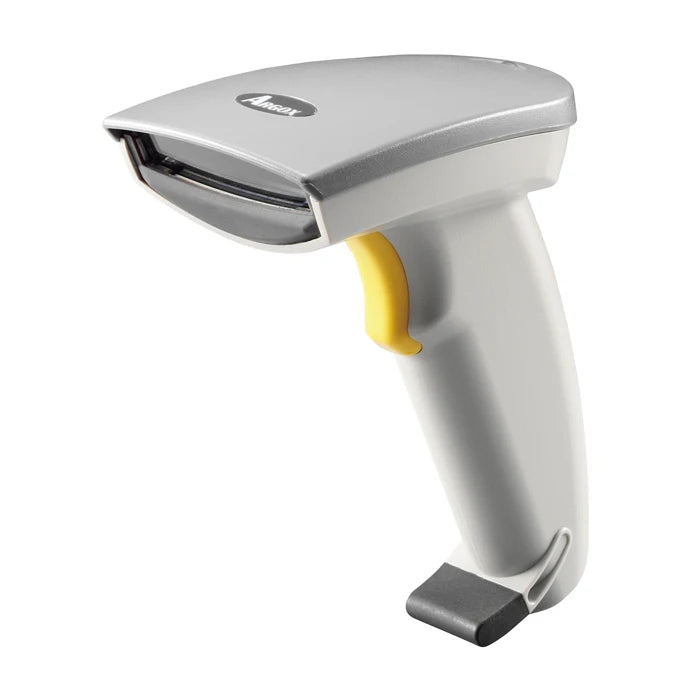

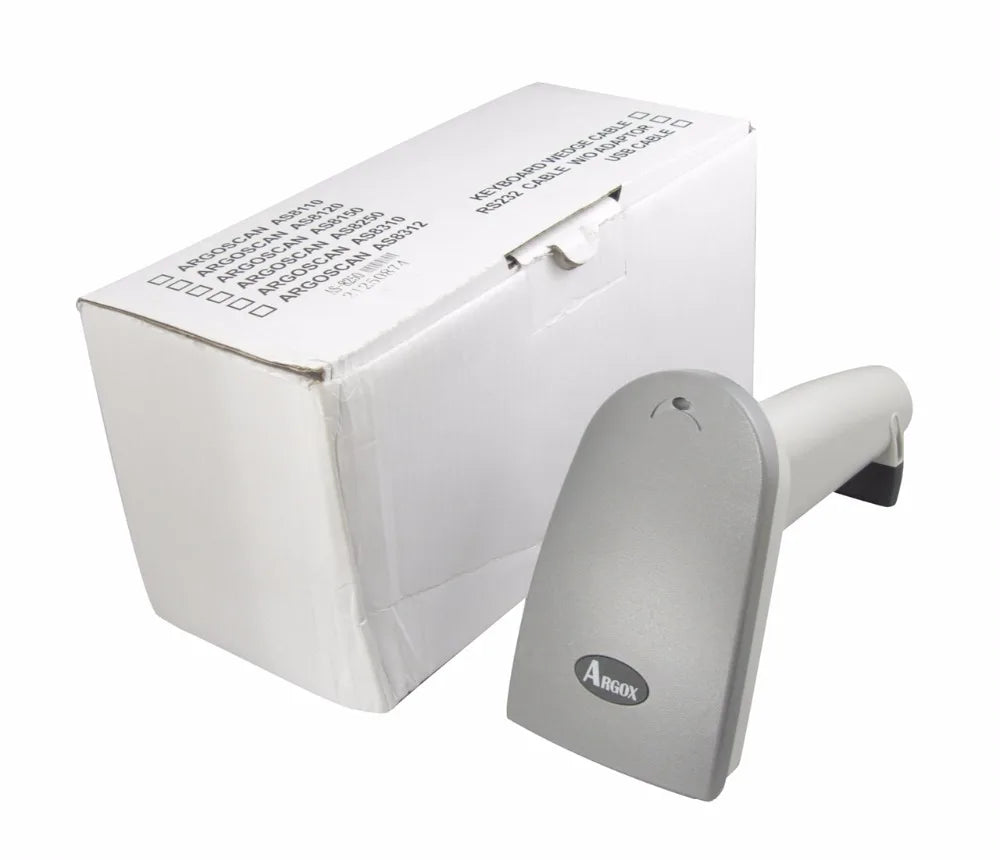

USB Interface 2D Barcode Scanner AS8250 Handheld QR Code Scanner Barcode Reader Medical PDF-417 Code for Argox AS-8250

AS-8250 Barcode Scanner Performance Parameters

Light

660 nm Red LEDs

Optical Systems

2048 pixel CCD (charge-coupled device)

Scan distance

0-200 mm

Scan width

mm

Scan speed

Scans/sec

Resolution

0.1mm (4mils)-Code, pcs=45%, Contact

Printing contrast

>=30%

Scanning angle

before : 60° after : 60° Deflection : 5°

Decoding ability

read all standard one-dimensional codes , Special code to select ( Way to discuss)

Beep

7 Type or Mute

Scan Head Width

74mm

Scan Head Thickness

35mm

Weight

g ( excluding cables)

Keyboard interface Cable

2.0 m

Length of cable Connection

2.3m

Interface

RS232

Shell material

ABS Plastic

Input voltage

5 vdc±0.25v

Working power

750 MW

Standby power

275 MW

Working current

MA @ 5 VDC

DC Transformer

Class 2; 5VDC @ 450 MA

Electromagnetic standard

FCC Class A

Operating temperature

0 ℃ To ℃ (℉℉ to)

Mixing degree

Relative Humidity gros to 90%, No Frost

Brightness of illumination

Up to 50000 Lux

Seismic capacity

Affordable 1.5 meter height free fall to cement ground impact

Programming method

M Use this manual through RS232 receive Windows software Settings ( Optional)

Software upgrades

through RS232 downloaded from computer to Flash Memory Medium ( software selection)

Setting attributes

Barcode Type Options , Checksum bit options , Decoding Options , Transfer Character delay , suffix character , volume and tone of the beep that is common sense read , Trigger Options , keyboard emulation Type ( message delay , keyboard type , keyboard language ) Serial Port Parameters (Ack/nak, Xon, RTS, OK read LED control, start/stop bits)
