Upper and Lower Driveshaft Carrier Seal Pair for Johnson Evinrude, 0329922 / 0329923

Upper and lower driveshaft carrier seals for Johnson and Evinrude

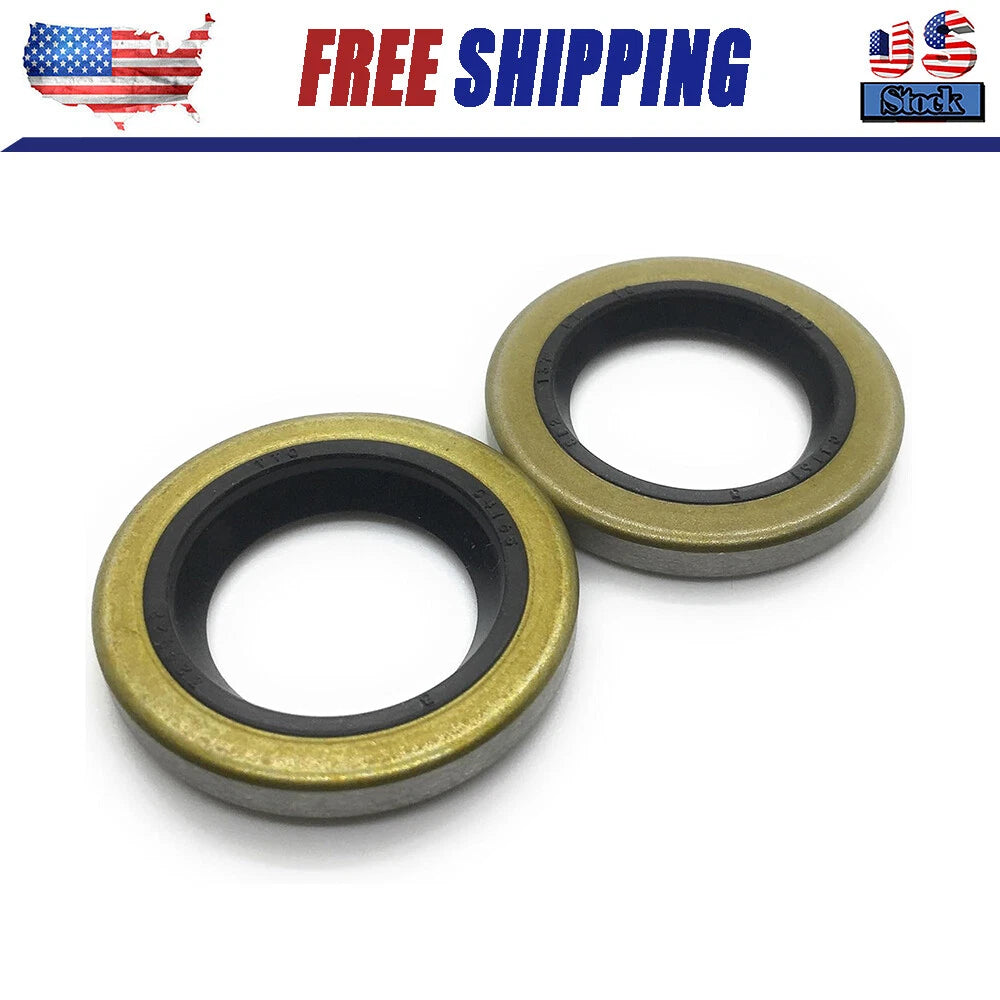

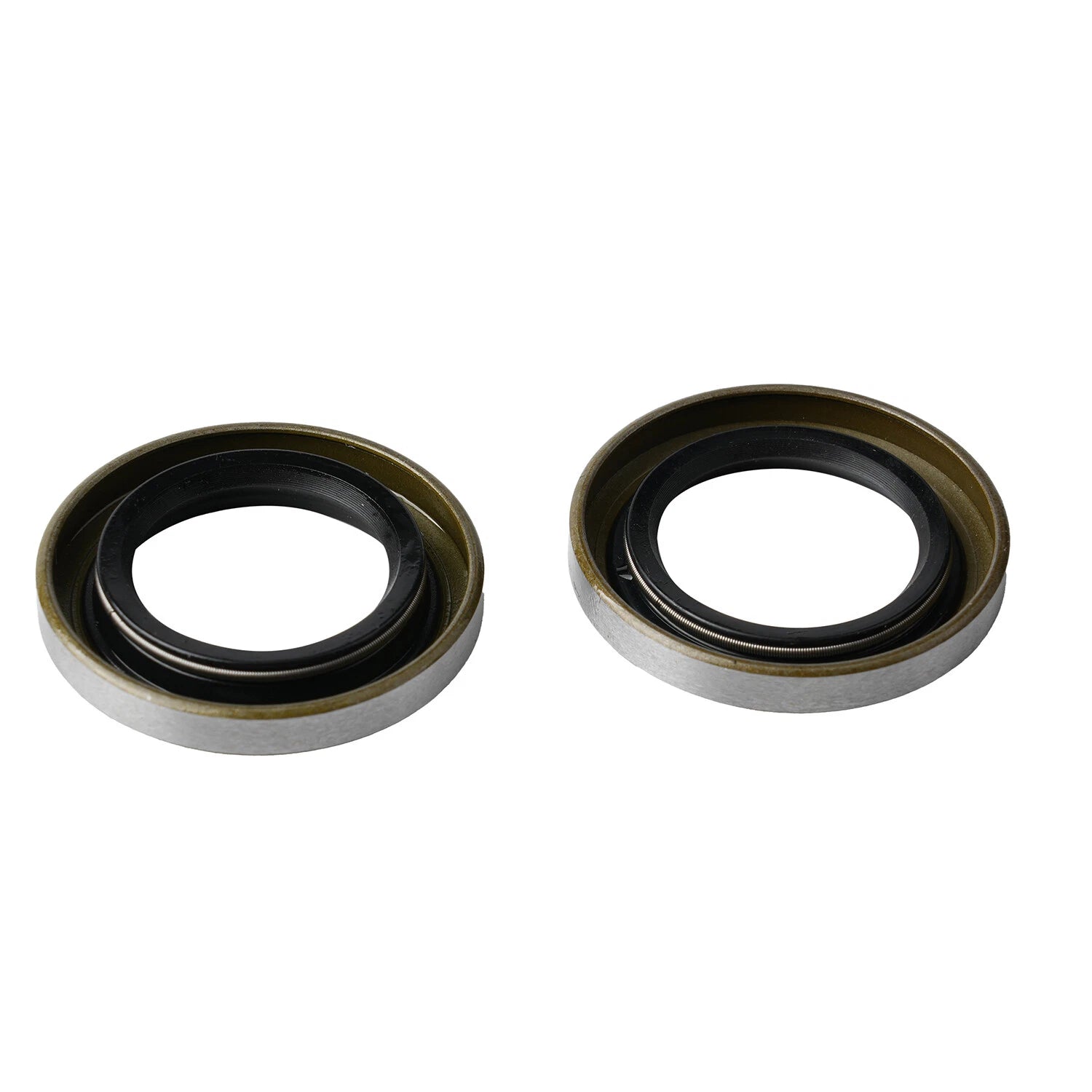

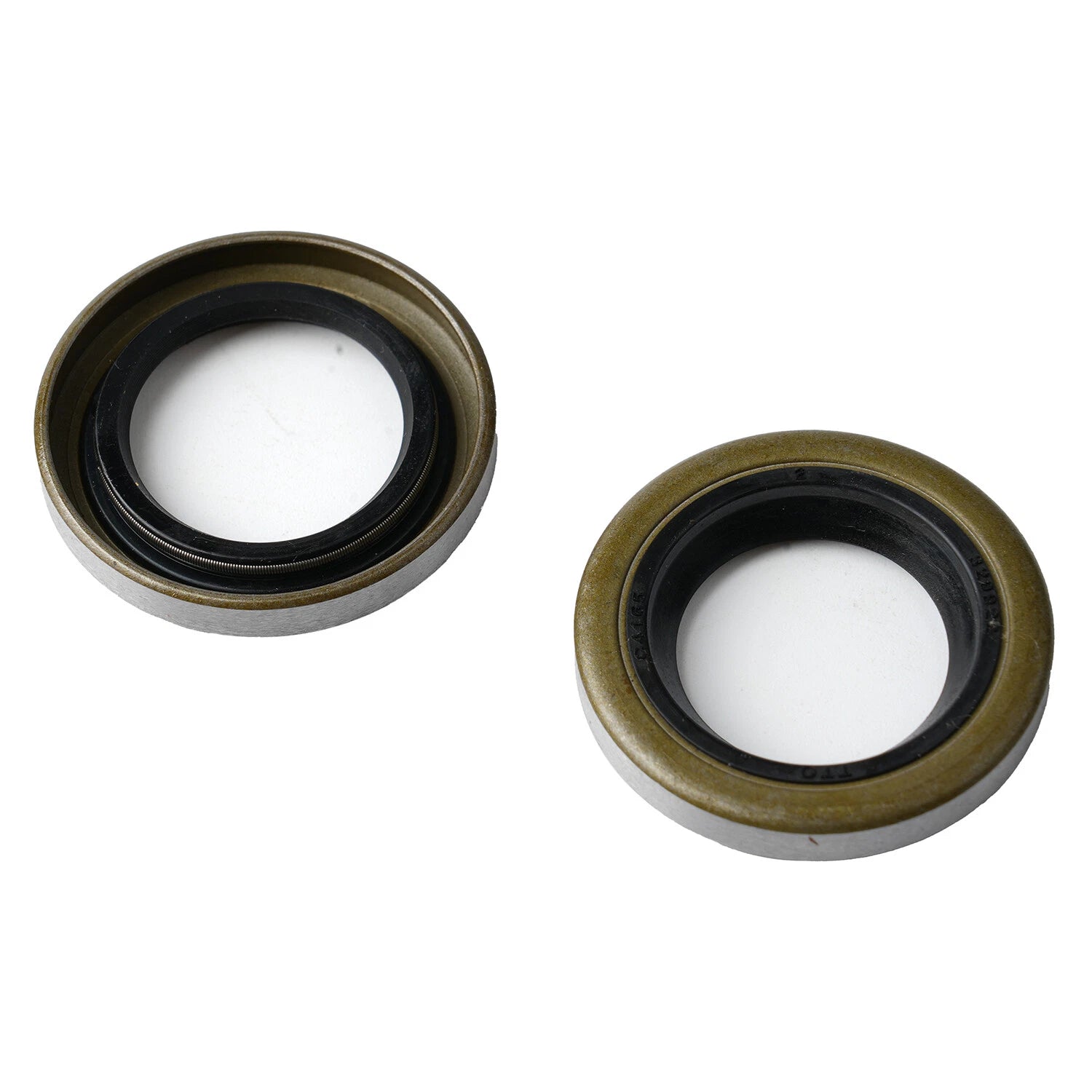

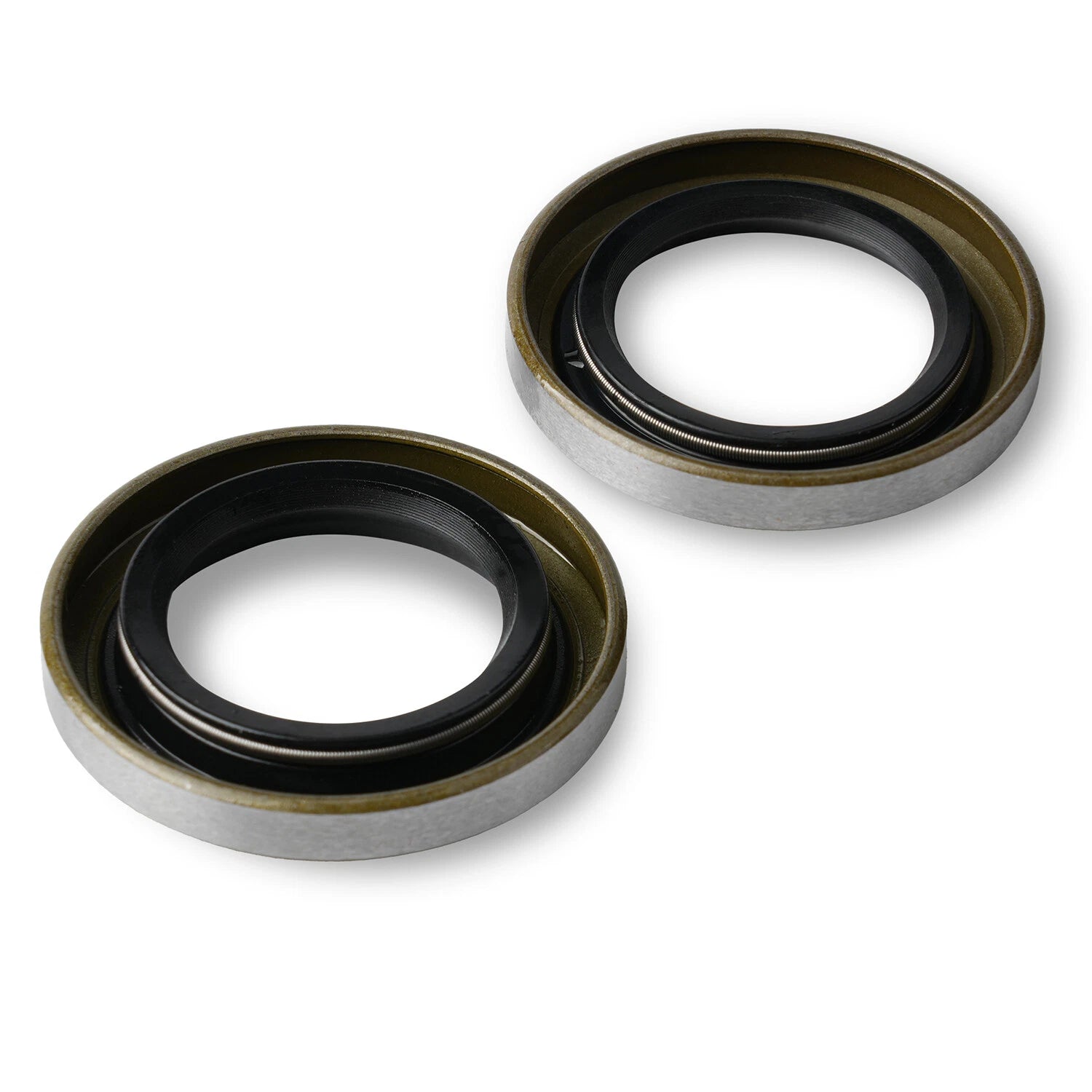

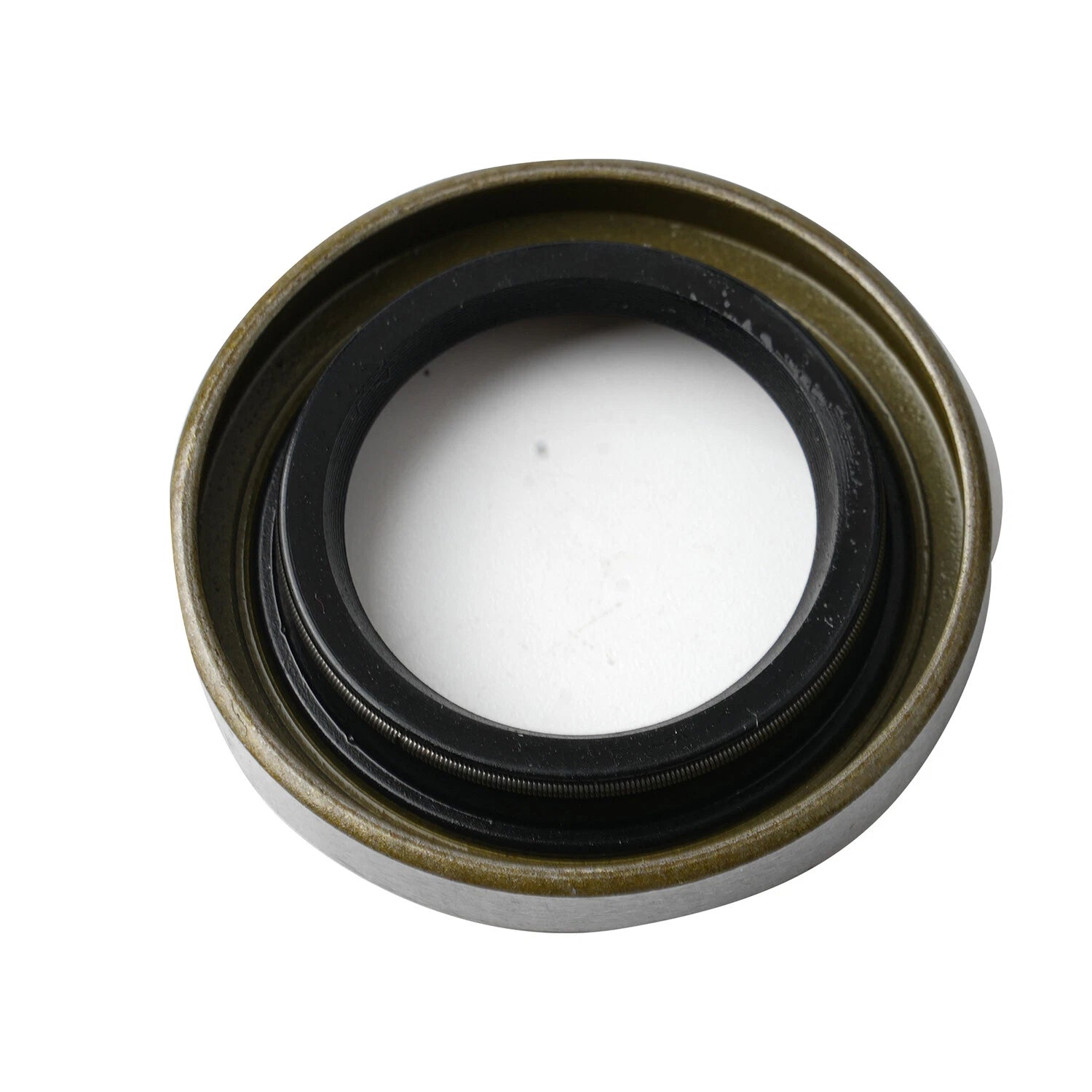

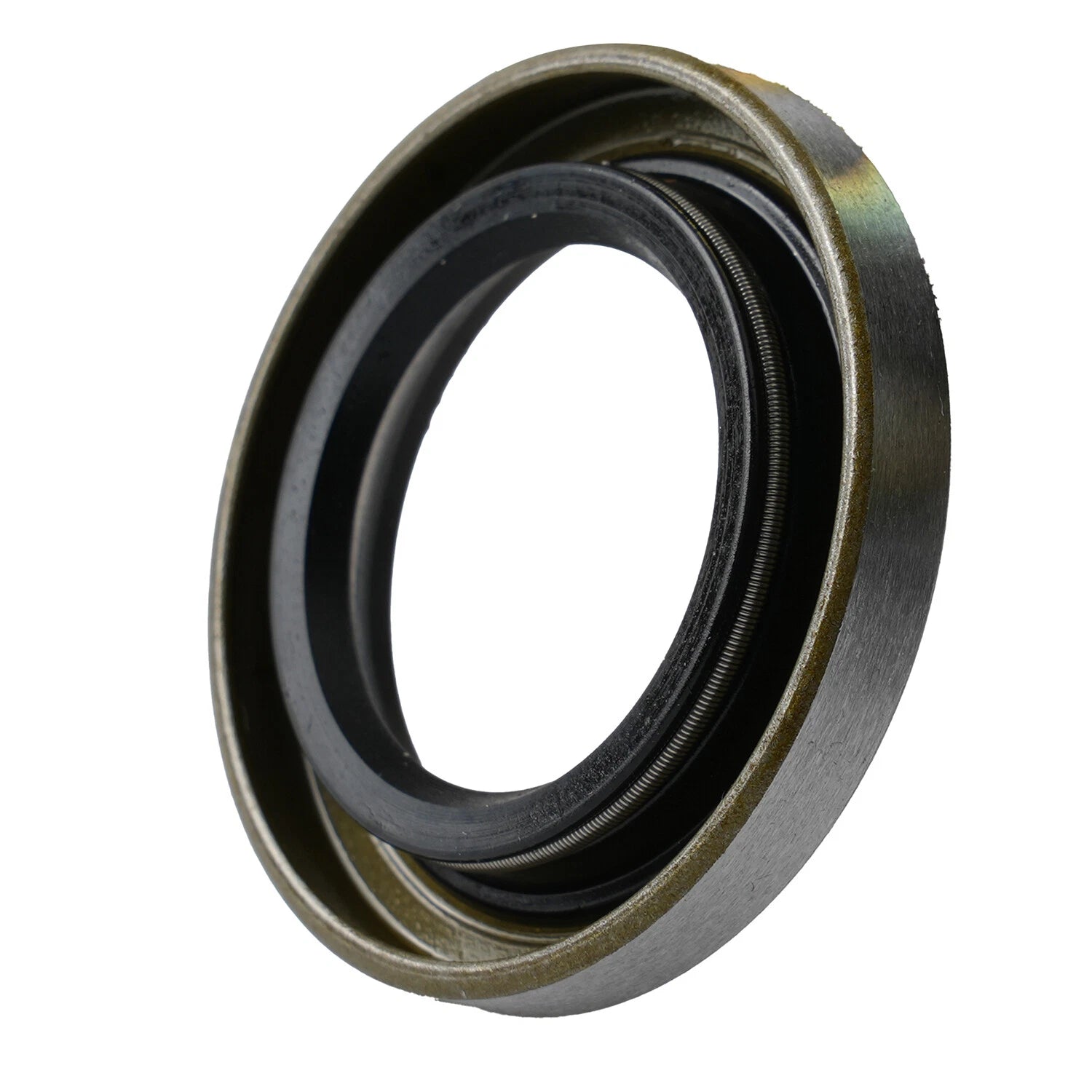

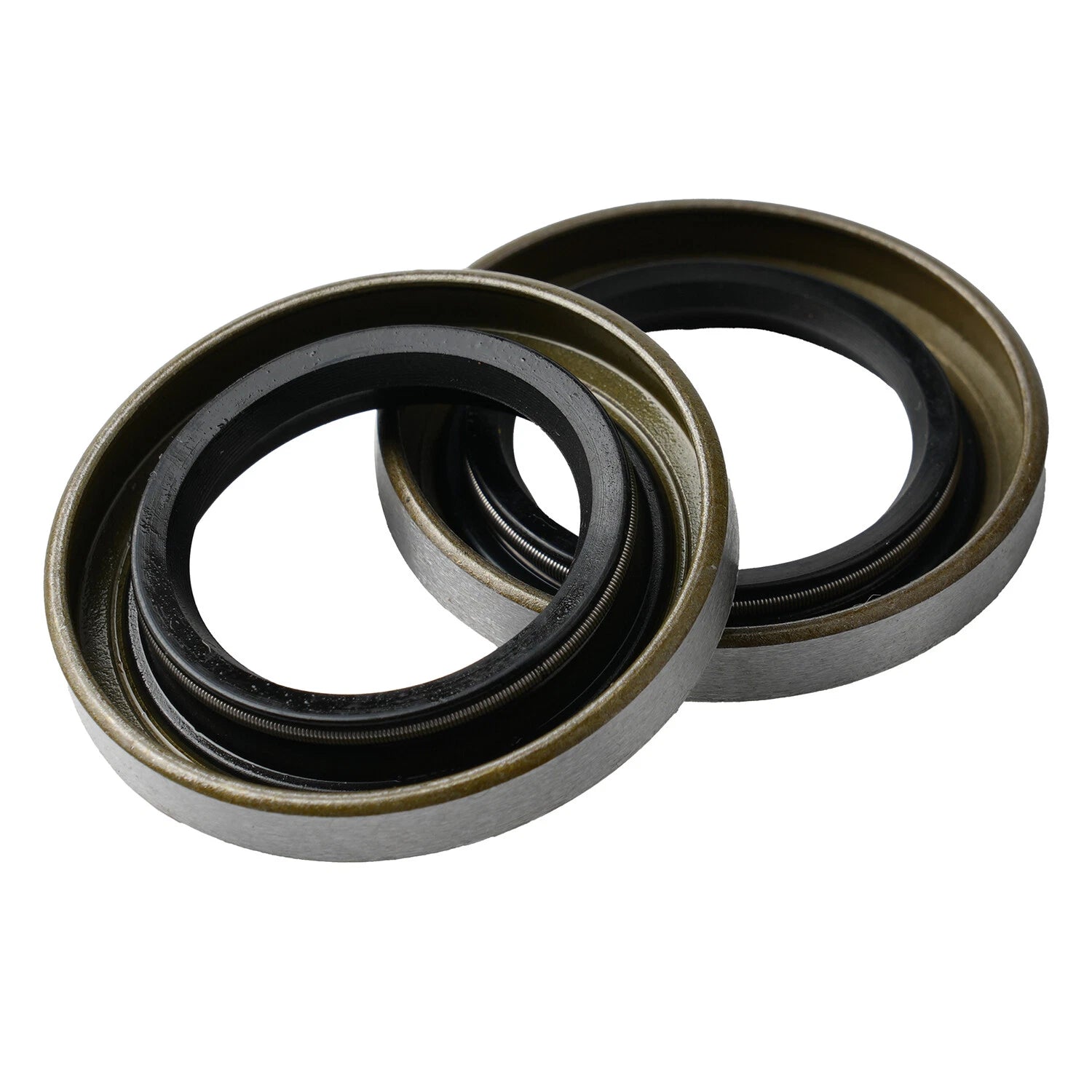

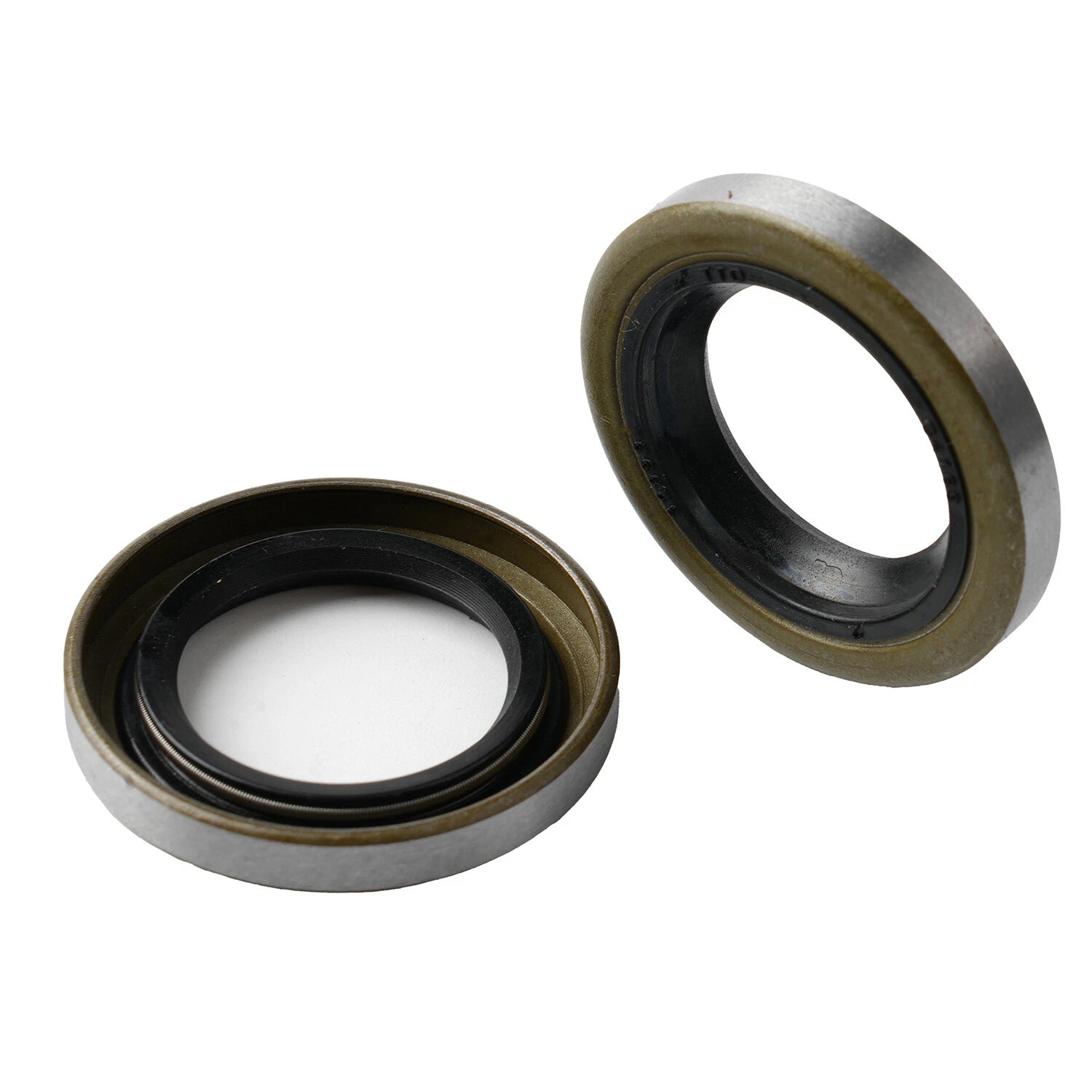

This two-piece replacement set contains an upper driveshaft carrier seal using reference 0329922 and a lower seal using reference 0329923. Each seal has a metal outer case and a black inner sealing lip. The set is for matching Johnson and Evinrude outboard gearcase applications that specify these two references.

Keep the upper and lower seals identified

Check both references in the gearcase parts catalog for the engine's full model number. Upper and lower identify separate seal positions in the driveshaft carrier; the two parts should be matched to their respective positions during installation.

Compare each removed seal's markings, outside diameter, shaft opening and thickness with its replacement. No measured dimensions are supplied for this set, and the Johnson or Evinrude brand name alone does not establish compatibility with a particular gearcase.

Upper seal reference

0329922

Lower seal reference

0329923

Quantity supplied

Two seals: one upper and one lower

Application to check

Johnson / Evinrude outboard driveshaft carrier specifying both references

Visible construction

Metal outer cases with black inner sealing lips

Dimensions

Outside diameter, inside diameter and thickness not specified

Material specifications

Case alloy and sealing-lip compound not specified

Other parts

Carrier housing, bearings, O-rings and other gearcase seals are not included

Follow the gearcase's seal installation procedure

Use the service manual for the exact gearcase to determine each seal's direction, seating depth and installation method. Inspect the driveshaft sealing surfaces and carrier bore while the seals are removed. Use the specified installation tools and lubricants, and complete the manual's sealing checks before returning the lower unit to service.
