150-Inch Enclosed Trailer Ramp Door Replacement Cables, Pair

Two 150-inch cables for an enclosed trailer ramp door

This pair of replacement cables is listed for an enclosed cargo trailer's ramp-door spring system. Each cable is listed at 150 inches, or 12.5 feet, with reference CAB1-8CB150. The package supplies two cables with their attached end fittings; springs, drums and a complete door-assist assembly are not included.

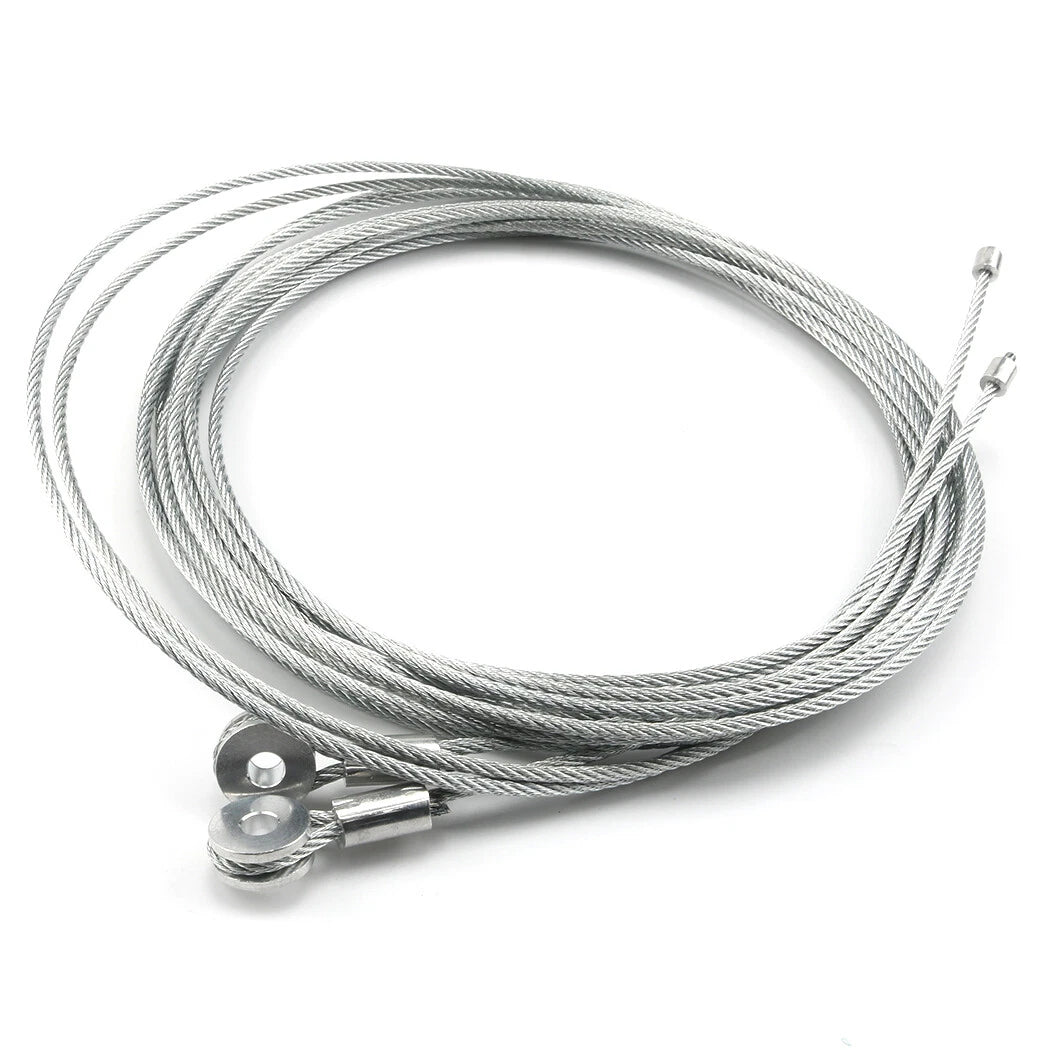

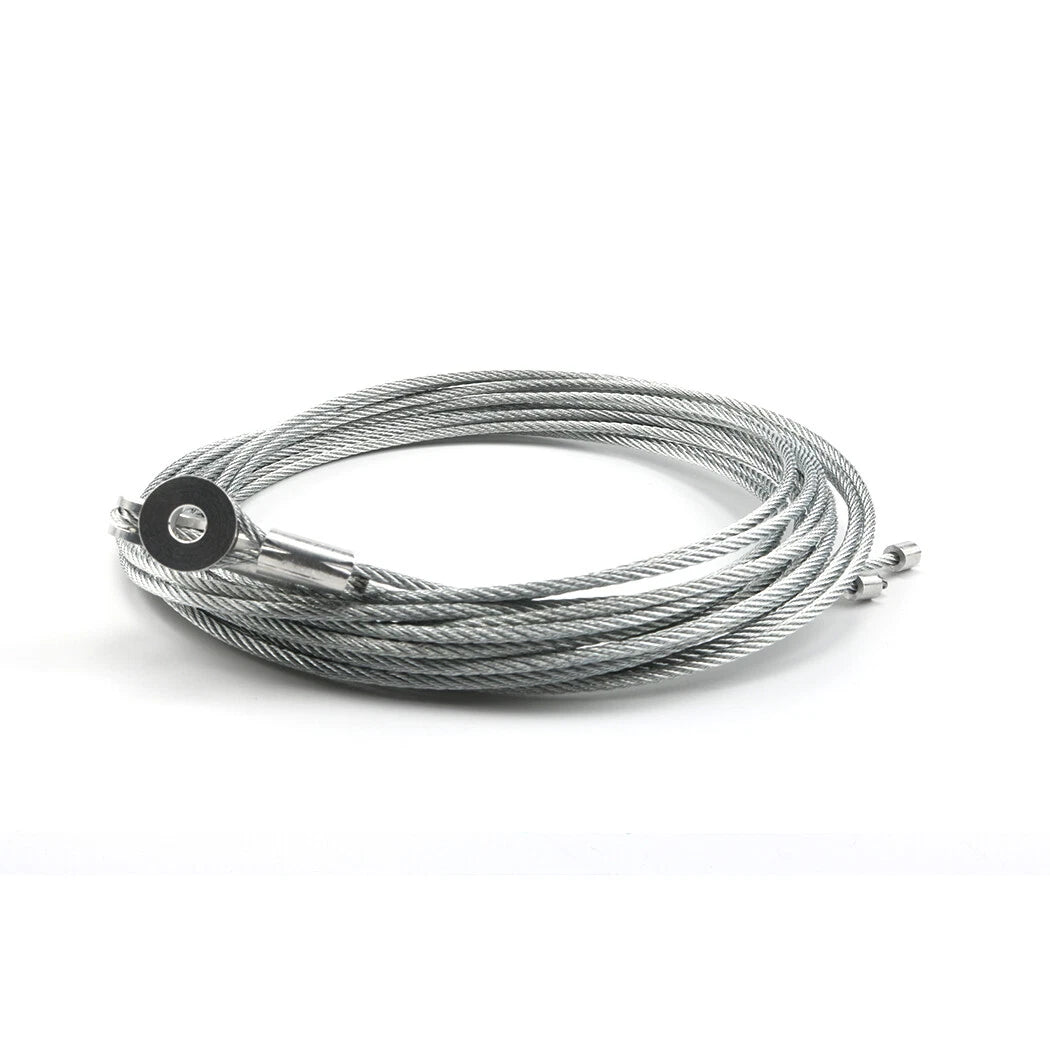

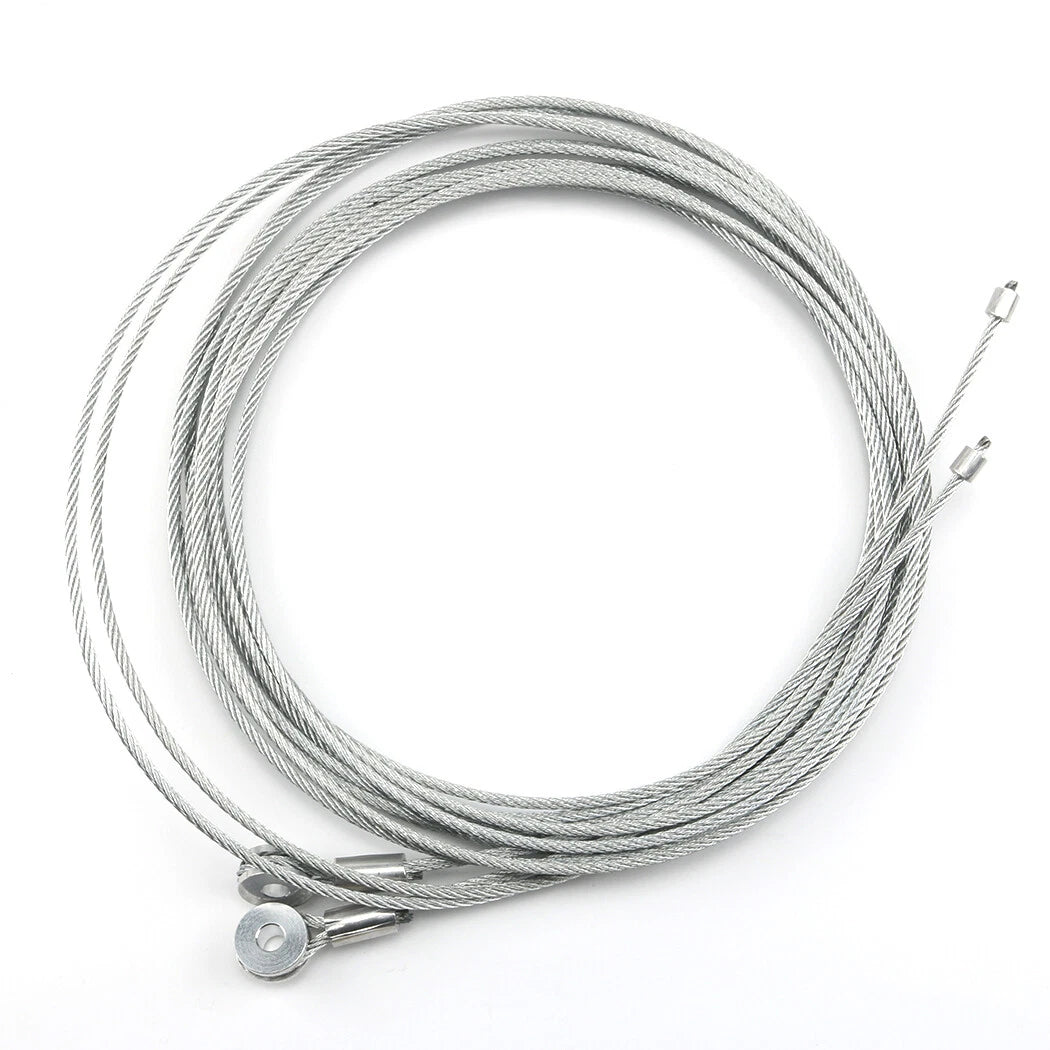

Each pictured cable has a round eye fitting secured by a metal sleeve at one end and a small cylindrical stop at the other. Check both connections against your door anchor and cable drum. The silver-colored stranded wire is visible in the photo, but cable diameter and load rating are not verified for this pair.

Cable and connection details

Application

Enclosed cargo trailer ramp-door spring system

Listed reference

CAB1-8CB150

Quantity

Two replacement cables

Listed length

150 inches / 12.5 feet per cable

Eye end

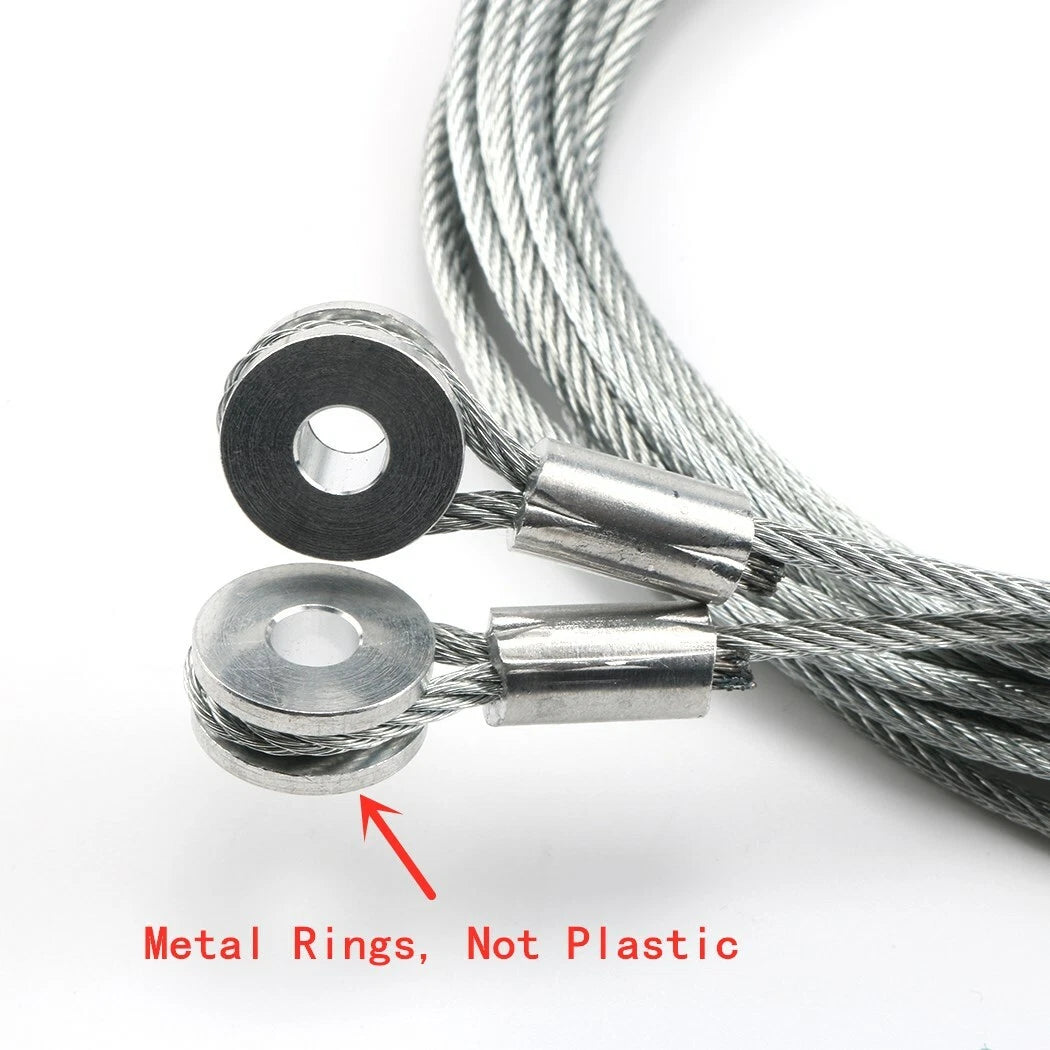

Round eye fitting with a metal retaining sleeve

Opposite end

Small cylindrical cable stop

Pictured supply

Two cables with attached end fittings; no separate mounting hardware

Measurements to confirm

Required cable length, diameter, eye opening and stop dimensions

Check the existing ramp-door mechanism

Confirm the required cable length and the manufacturer's measuring points before ordering. A 150-inch cable does not establish the door height or trailer width it will fit. The drum connection, door attachment and cable route must also match the original system.

Ramp-door spring mechanisms store tension. Have an experienced door-service technician replace the cables using the instructions for the exact spring system. The technician should inspect the drums, anchors and springs and check door balance and cable tracking before the door returns to use.
