1/8-inch Bellhousing Spacer Plate for Chevy SBC, BBC, LS1, LT1

1/8-inch bellhousing spacer plate for Chevy engines

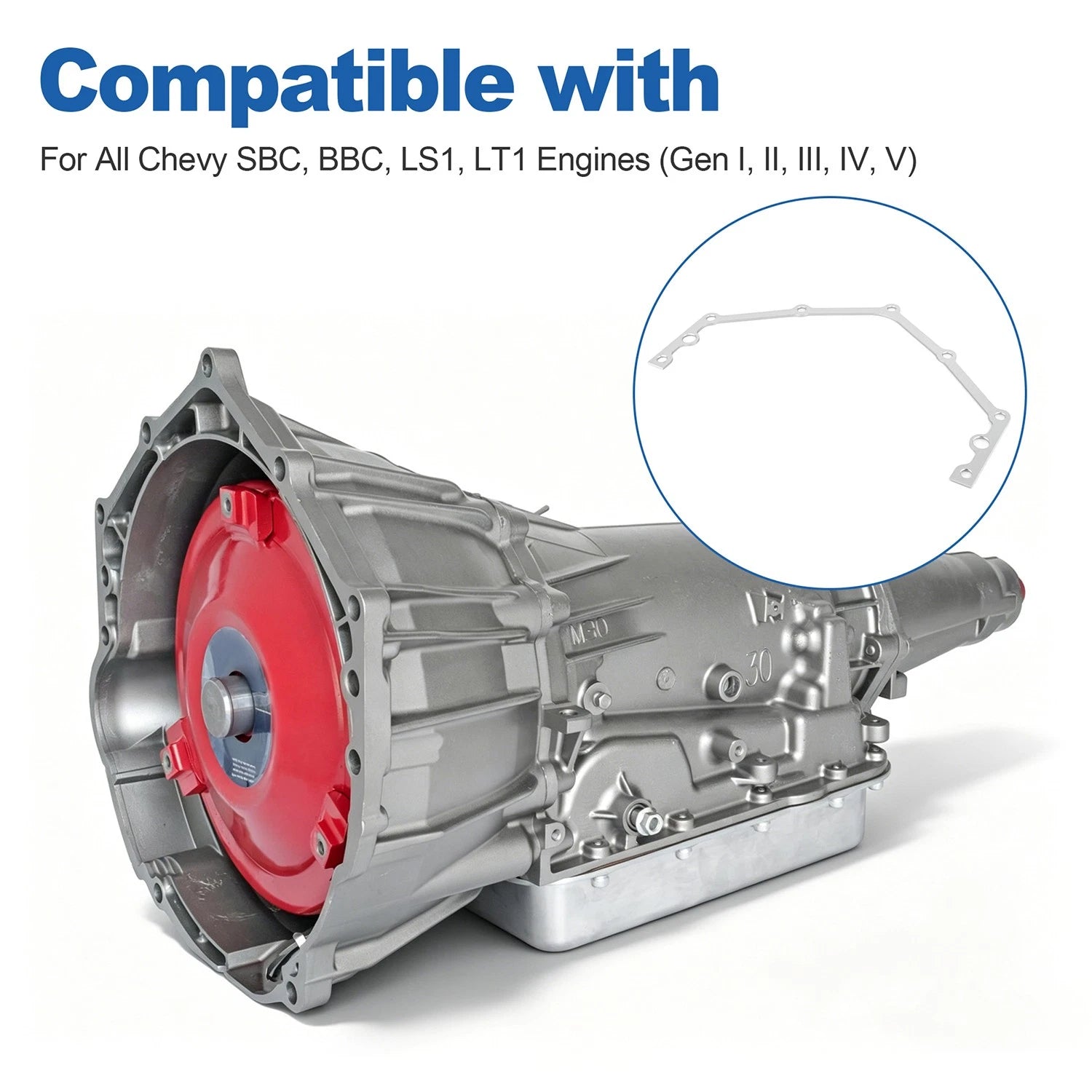

This aluminum plate adds 1/8 inch of spacing between the engine block and transmission bellhousing. It is listed for Chevy SBC, BBC, LS1 and LT1 engines, with reference 551820-125. Select it when your particular engine and transmission combination requires that added spacing and the plate matches the mating pattern.

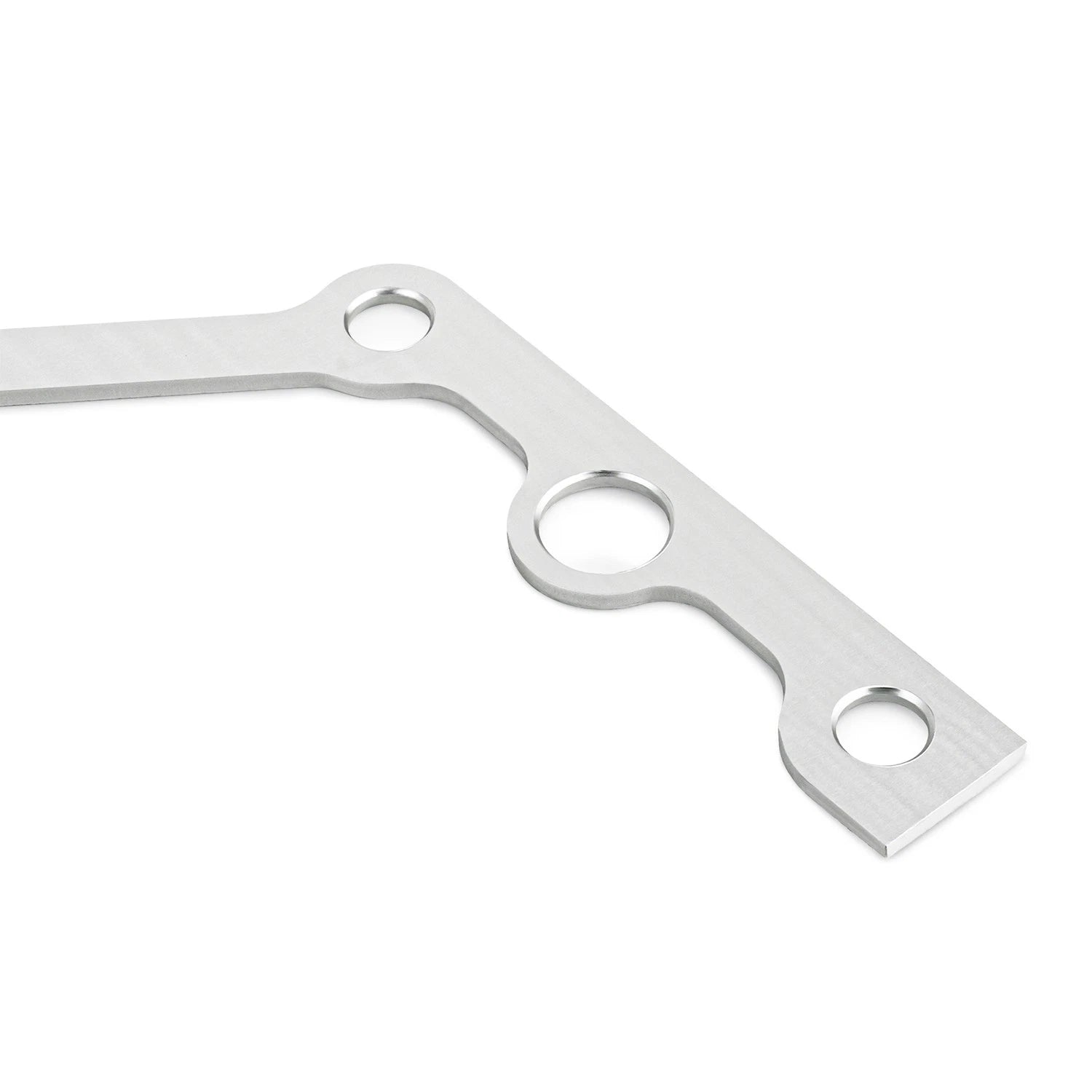

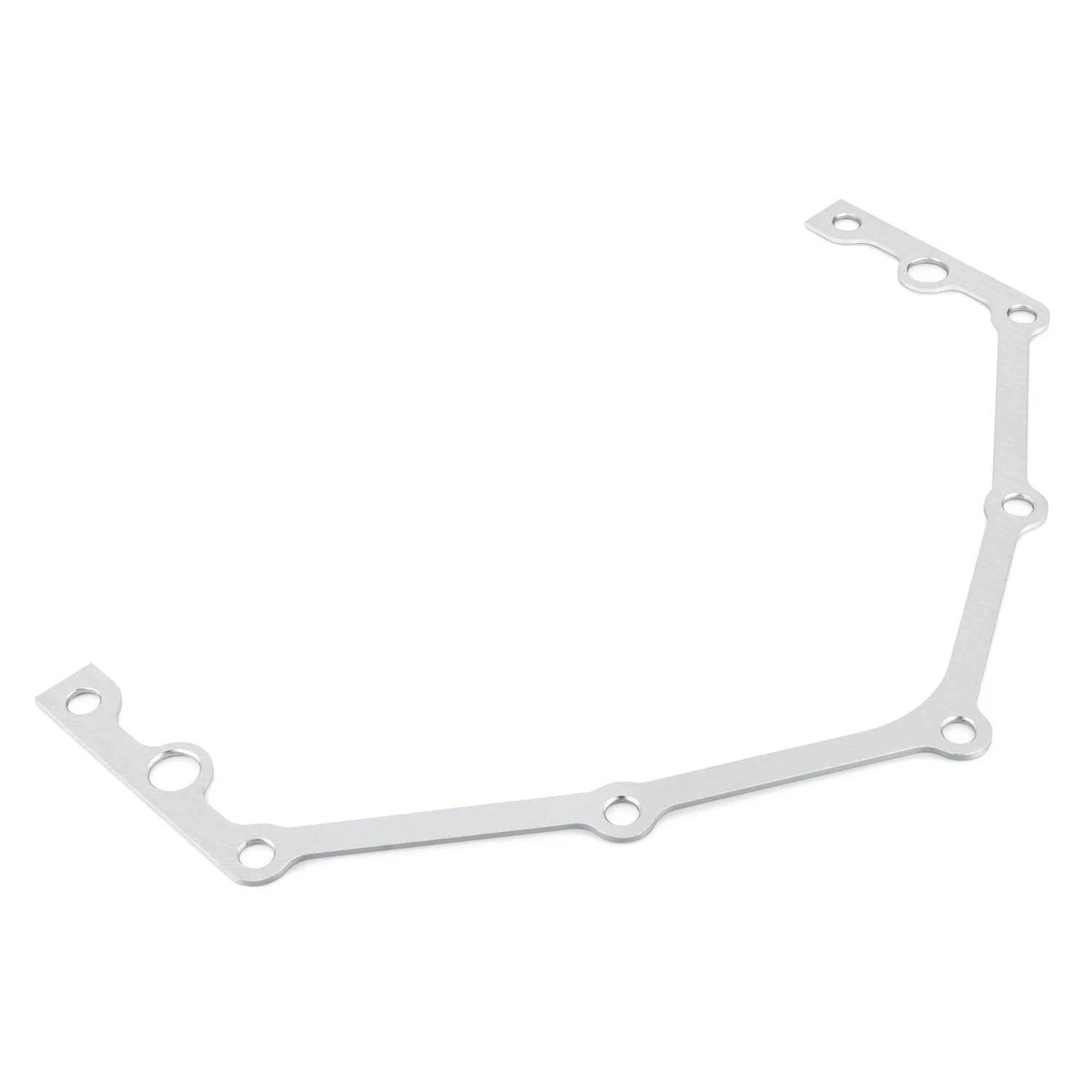

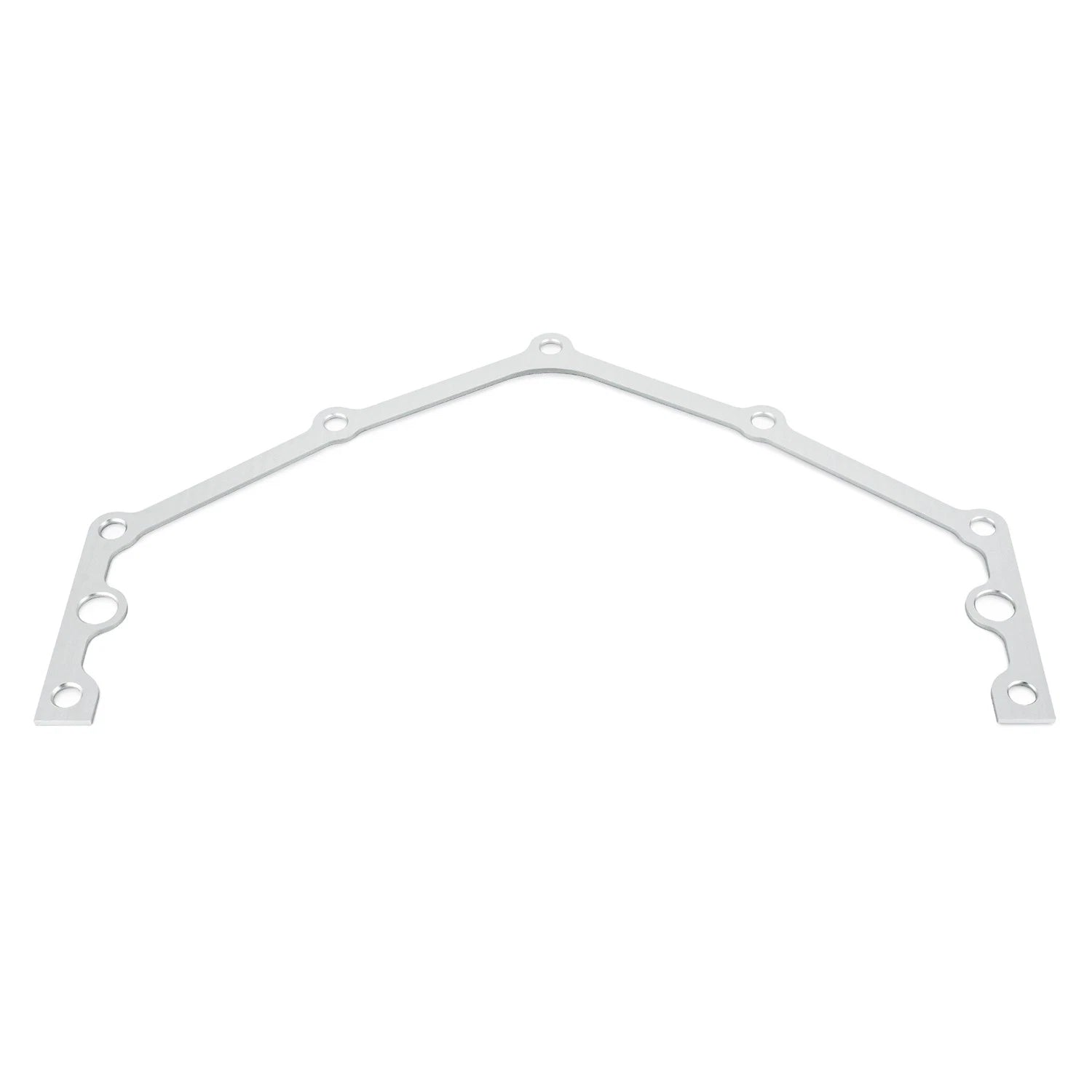

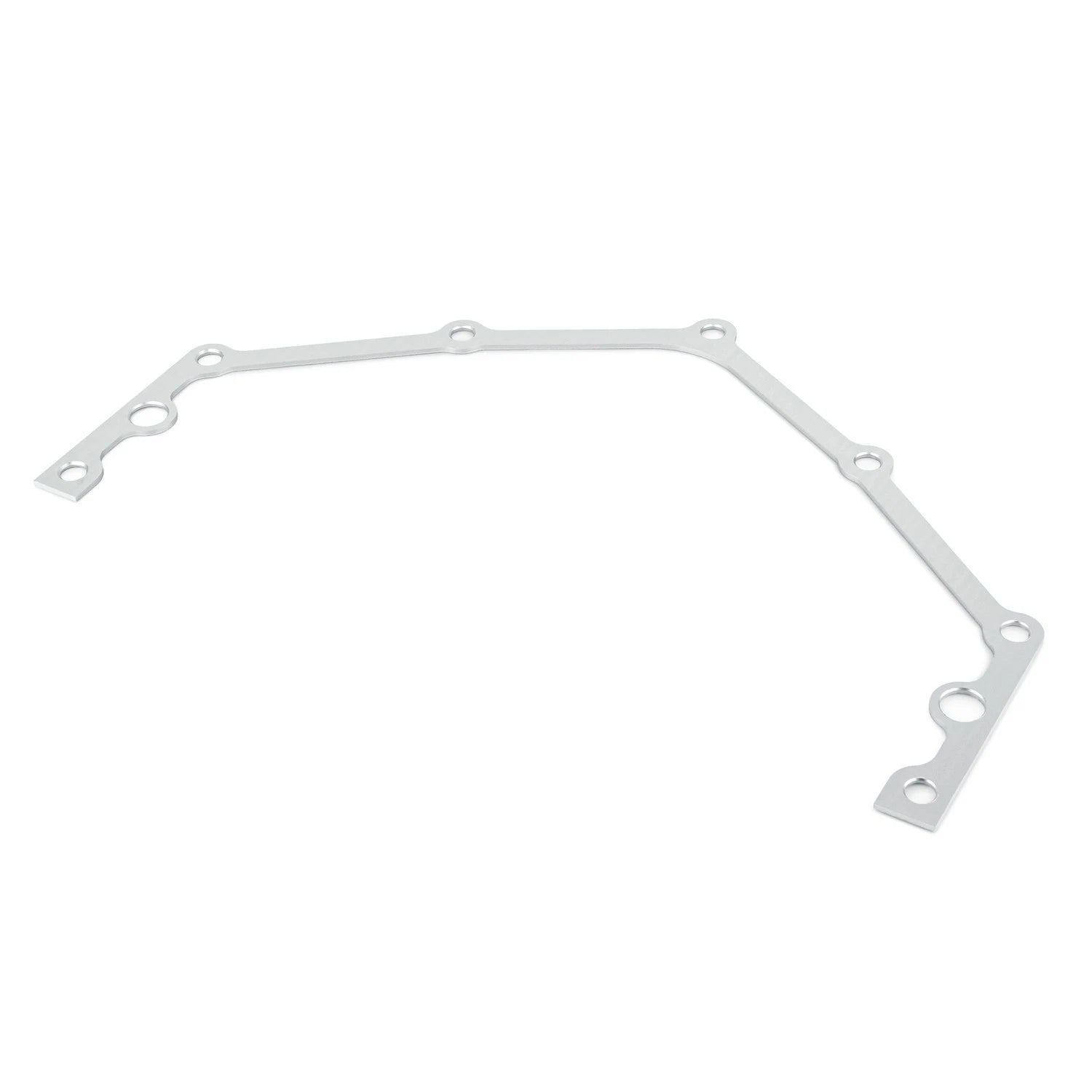

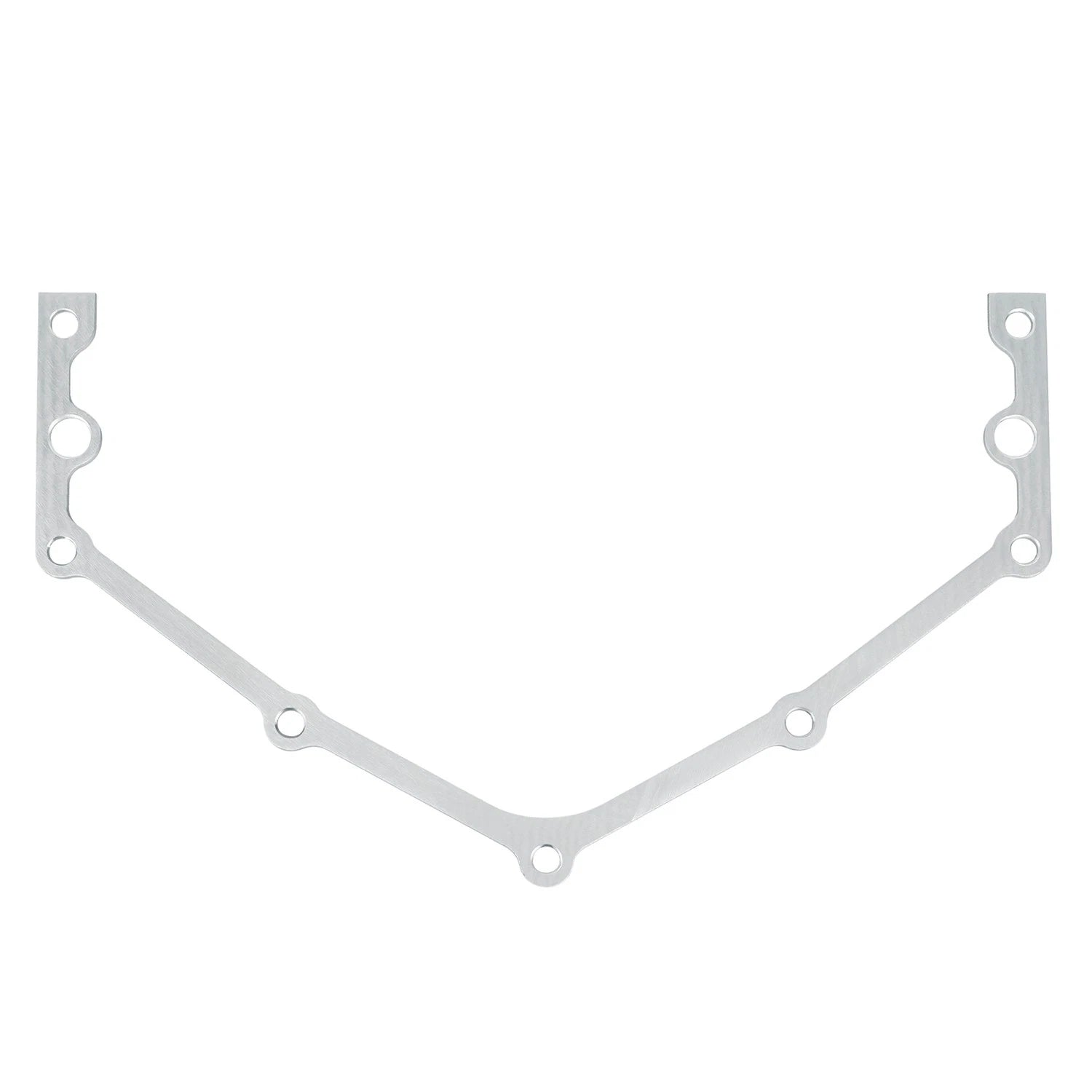

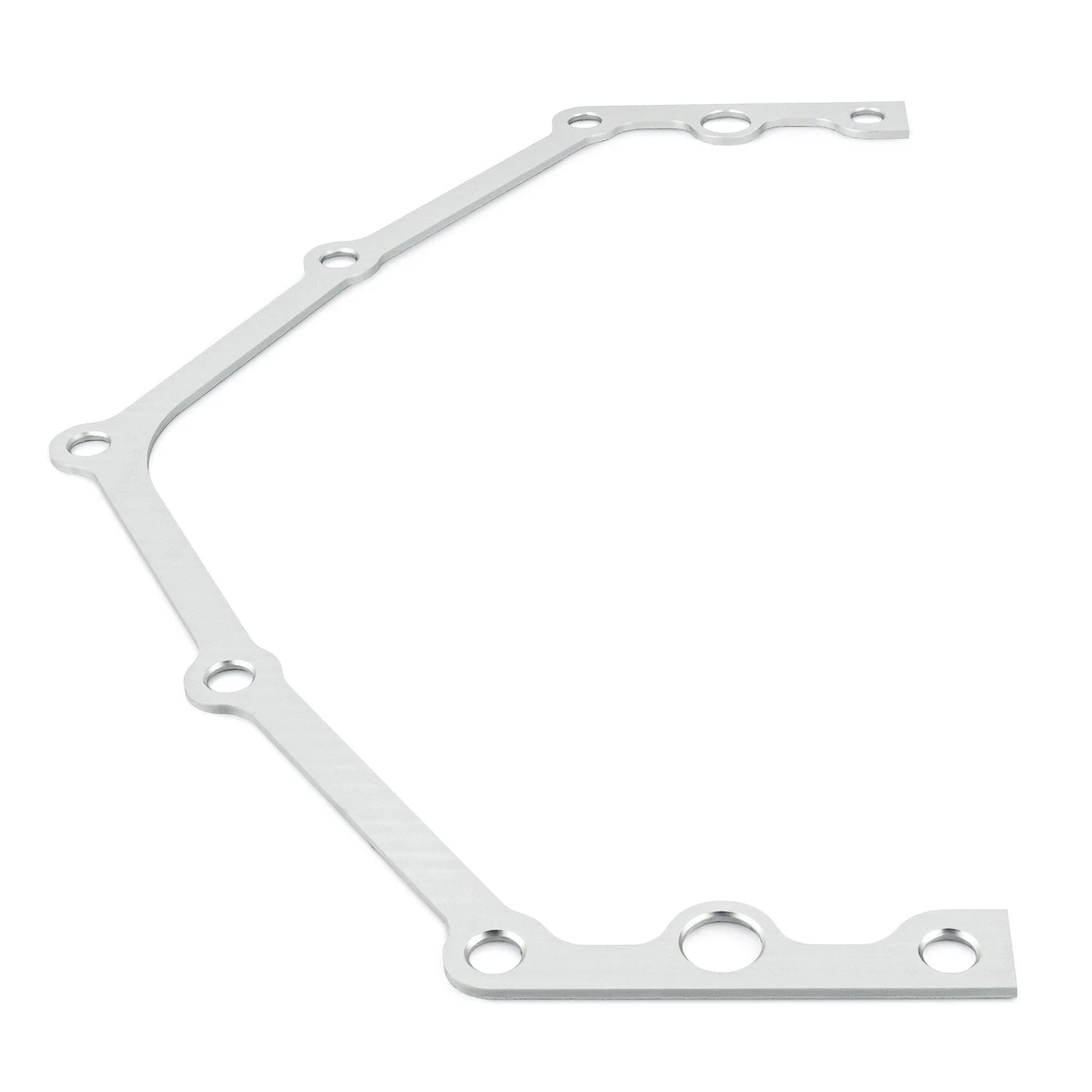

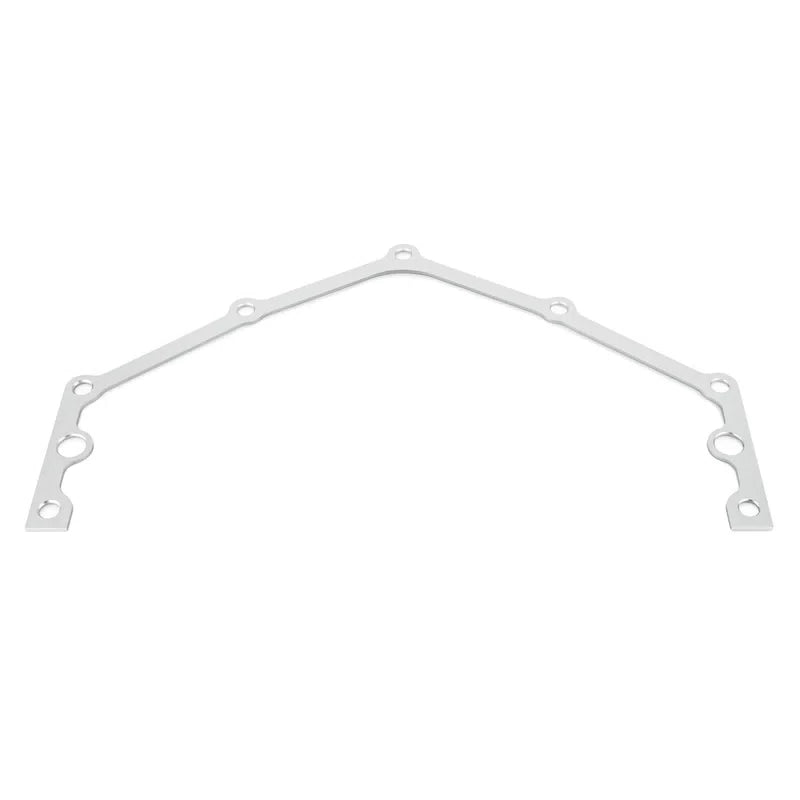

The single plate has an open-bottom outline, seven smaller holes and two larger side openings. Check that outline against the engine and bellhousing before ordering. The reference number identifies the replacement application; this is an unbranded part.

Plate specifications

Part type

Engine-to-bellhousing spacer plate

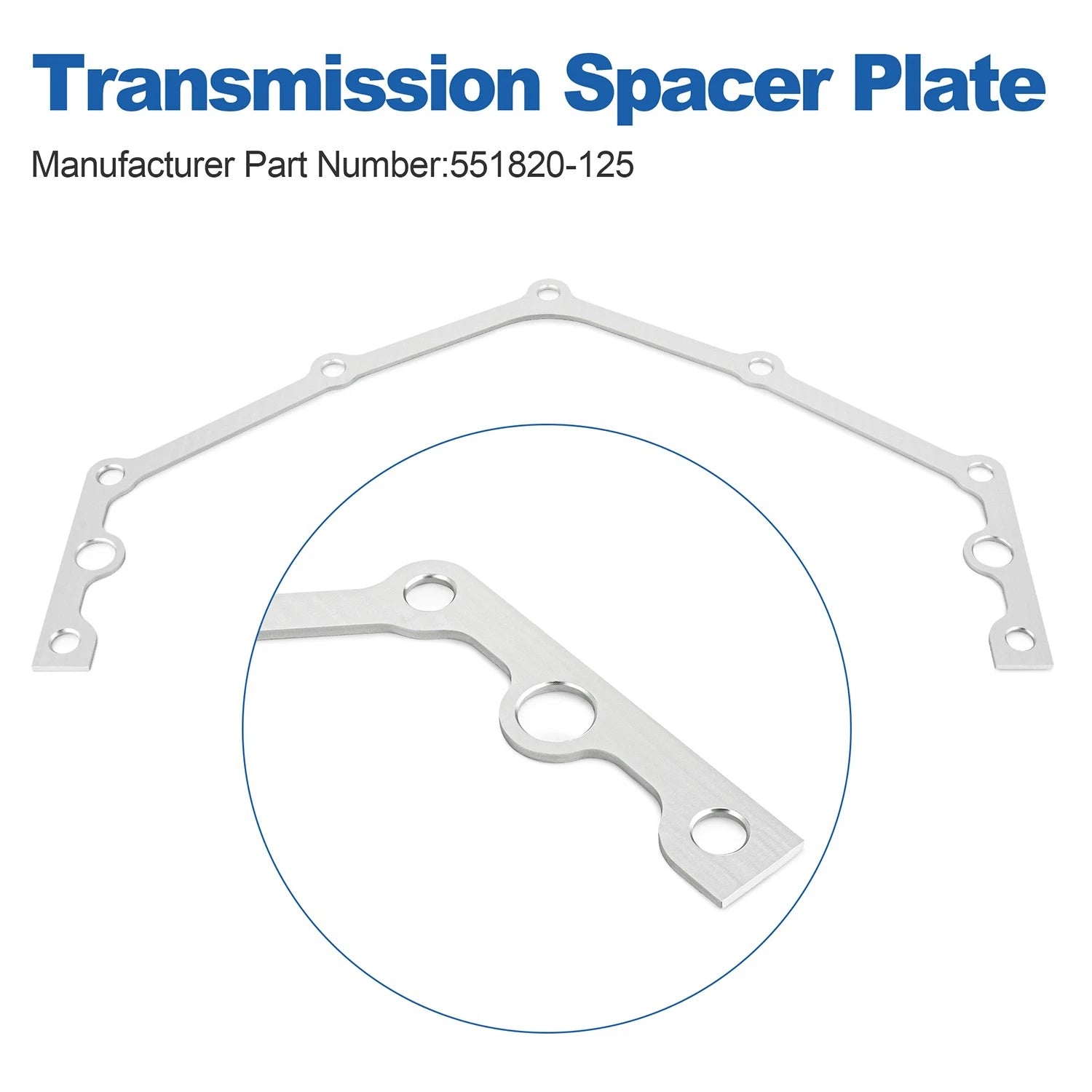

Reference number

551820-125

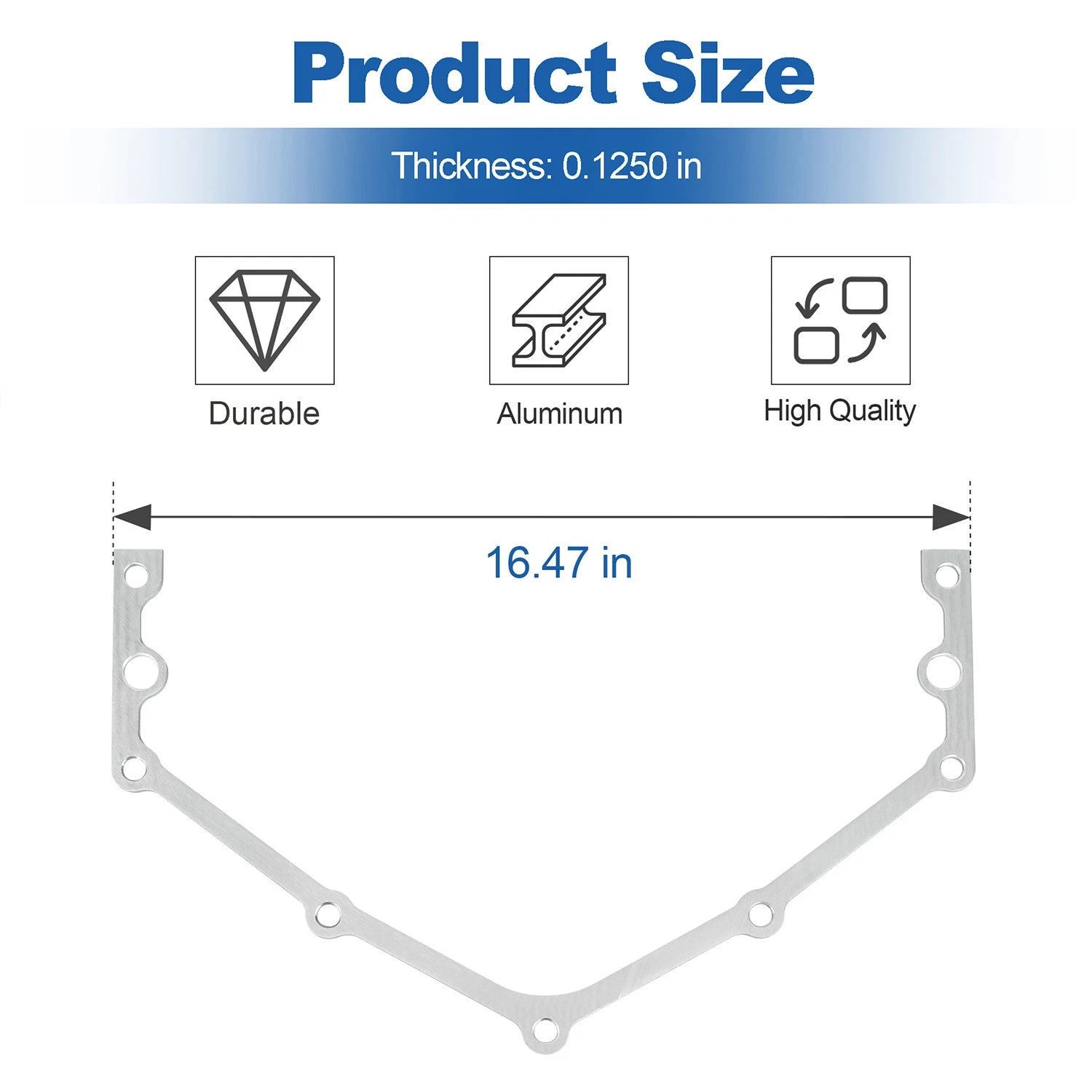

Listed thickness

1/8 inch / 0.125 inch

Material

Aluminum

Listed engine families

Chevy SBC, BBC, LS1 and LT1; confirm the engine and transmission mating pattern

Quantity

One spacer plate

Pictured outline

Open bottom, seven smaller holes and two larger side openings

Pictured hardware

Plate only; no bolts, dowel pins or converter spacers shown

Check the complete mating arrangement

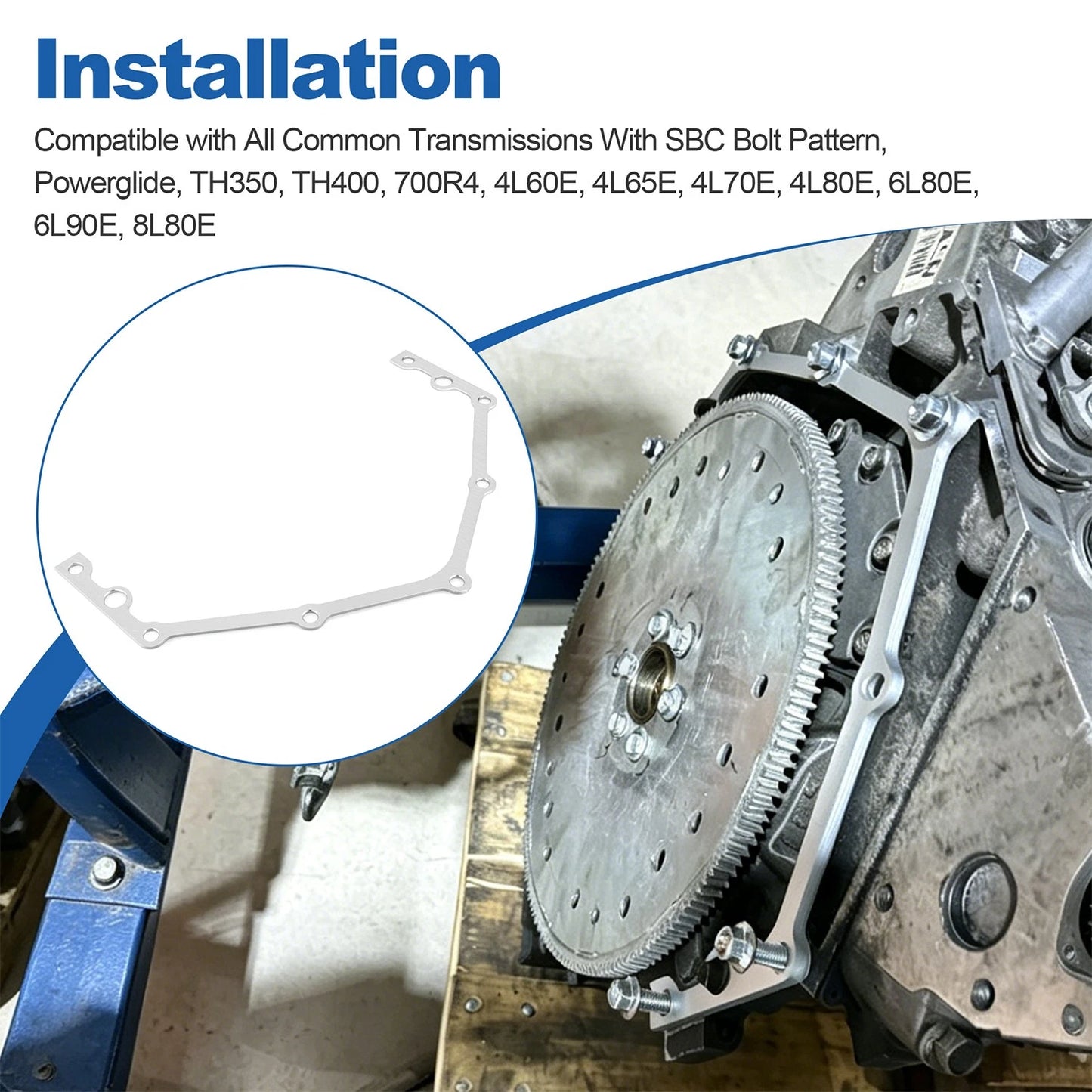

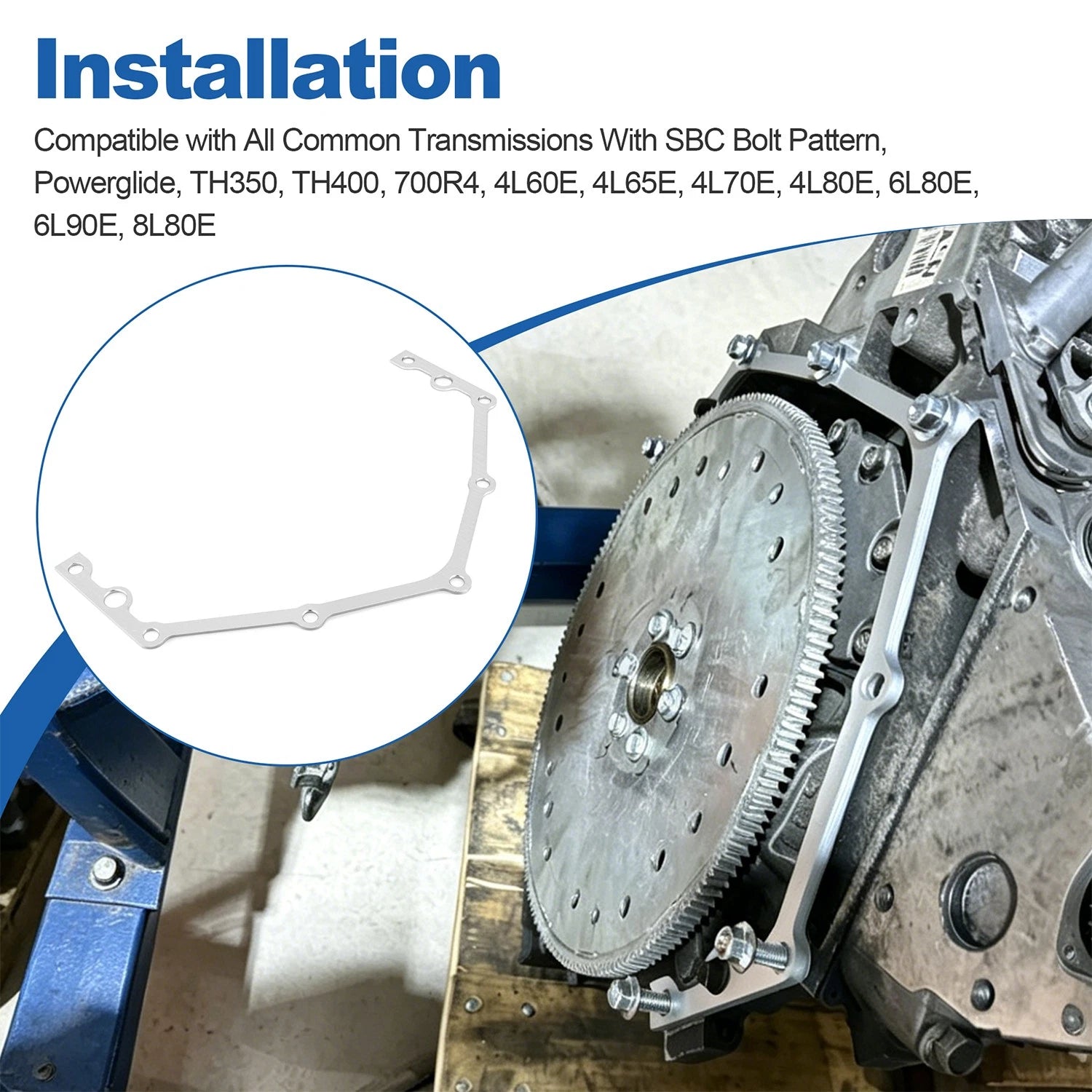

Adding a plate changes the distance between the engine and transmission. Confirm the required spacing, fastener thread engagement and locating-dowel engagement for your assembly. A matching engine-family name alone does not establish transmission compatibility.

For an automatic transmission, check torque-converter seating, pilot engagement and converter-to-flexplate clearance against the transmission manufacturer's instructions. Do not use the bellhousing bolts to pull an unseated transmission into place. This plate occupies the block-to-bellhousing joint; it does not provide a crankshaft or flexplate spacer, longer fasteners or a complete conversion kit.
