15017377 external transfer case shift control rod for GM / Chevrolet, 2001-2010

15017377 external transfer case shift control rod

This replacement linkage is listed for GM and Chevrolet applications from 2001-2010 using reference 15017377. It connects the external shift-control mechanism to the transfer case. Check the required rod reference against the vehicle's VIN, transmission and transfer case configuration before ordering.

One assembled rod with an offset section

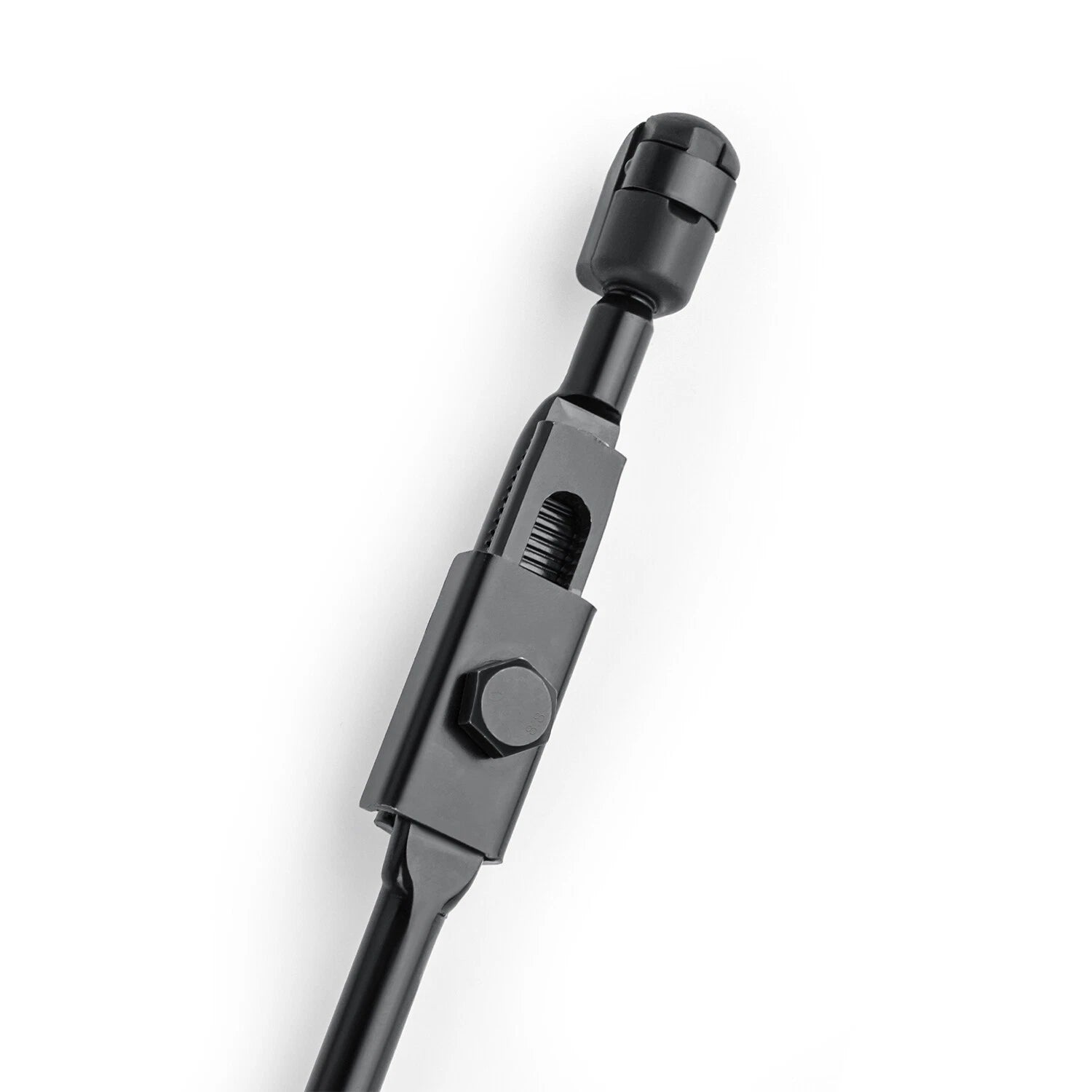

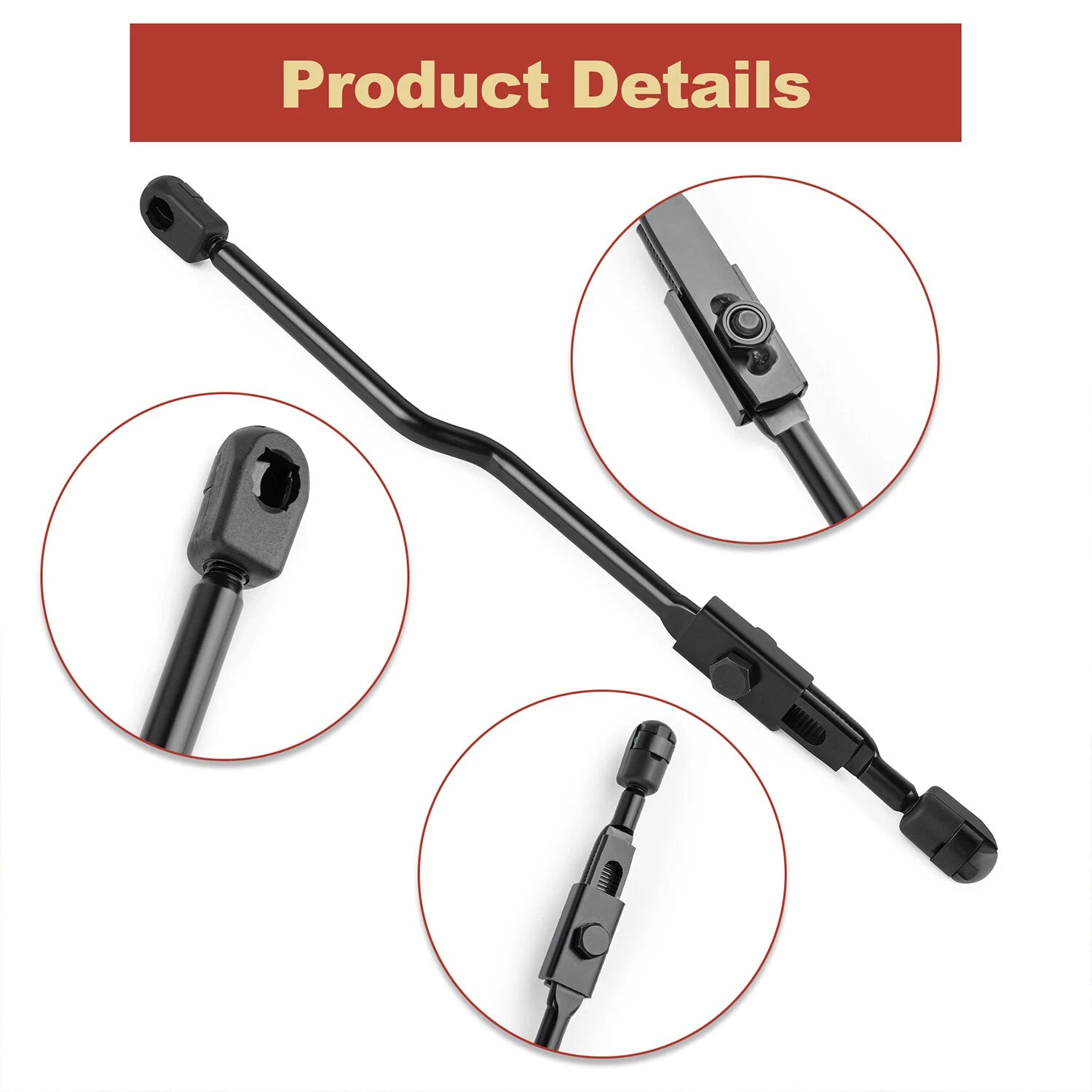

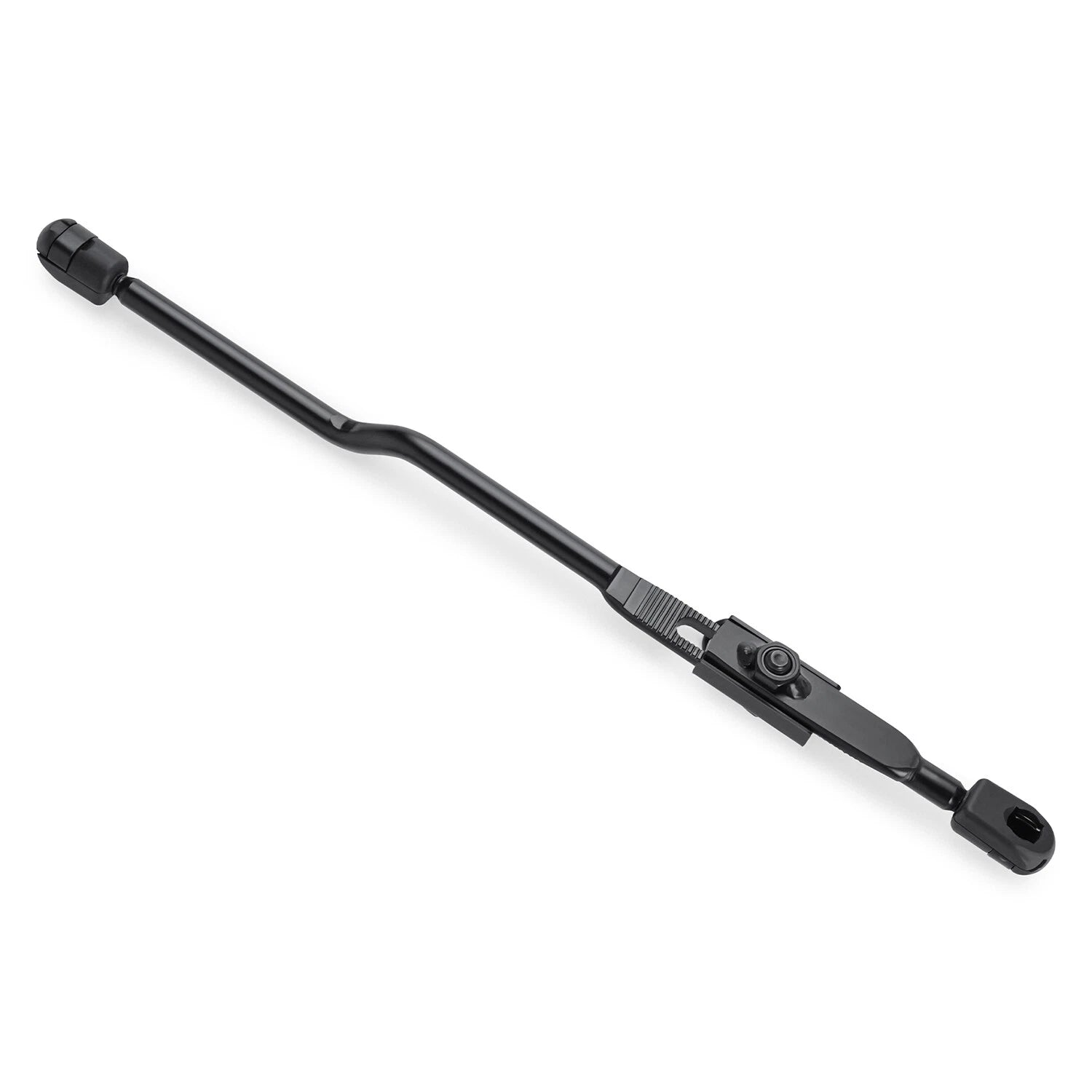

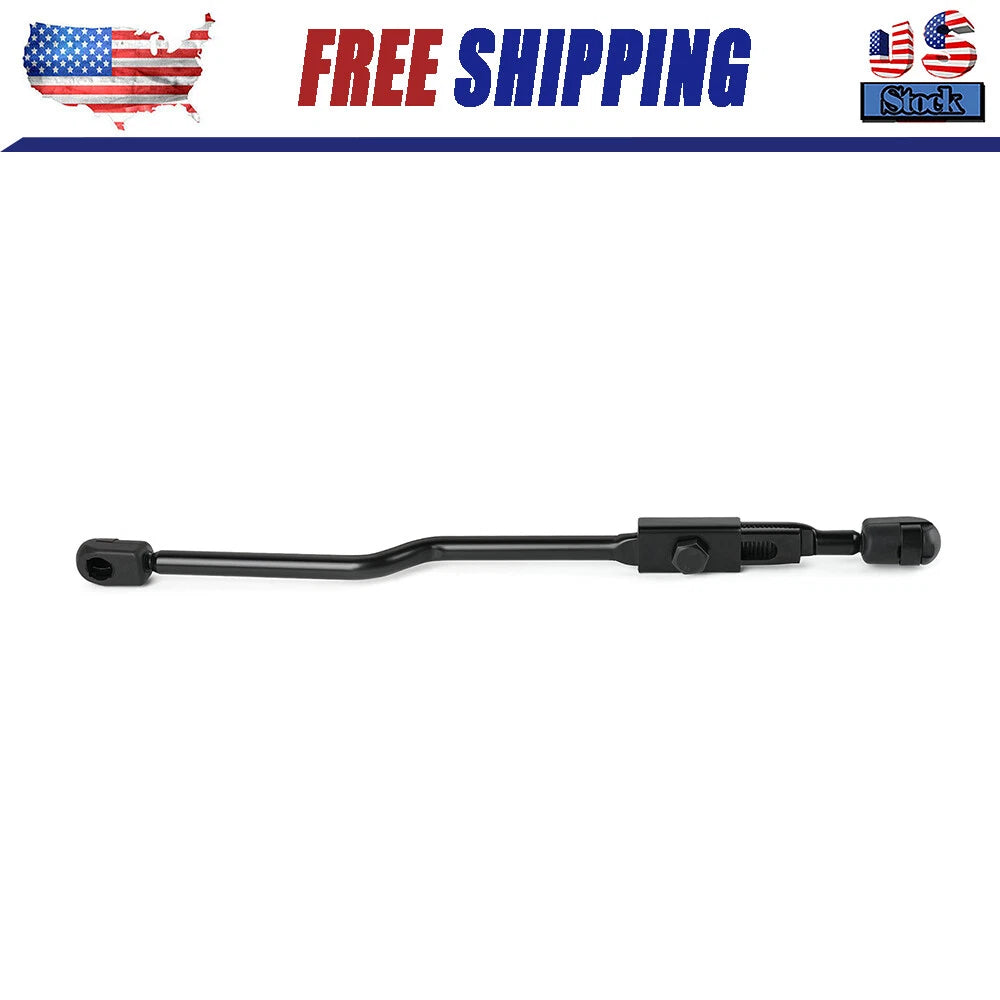

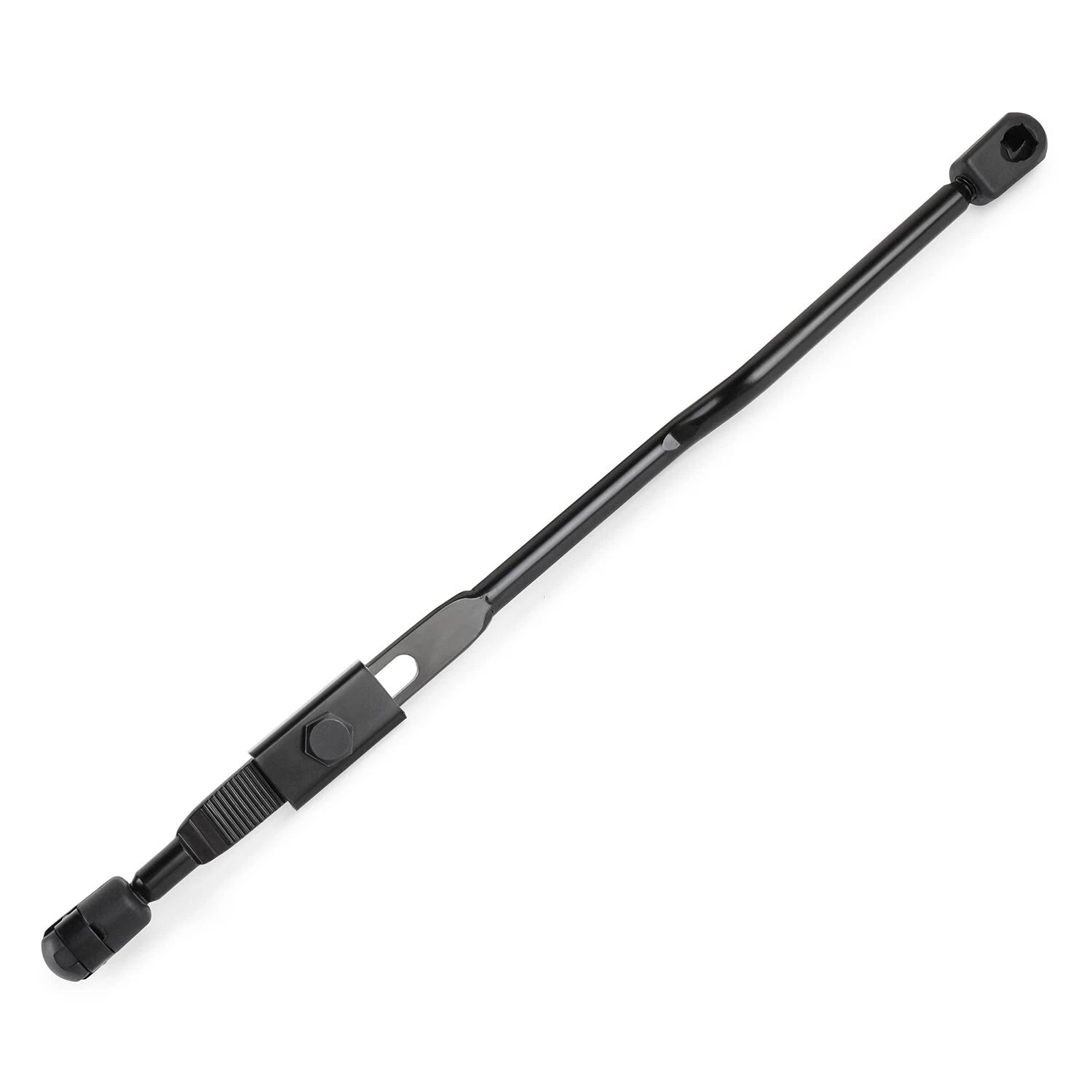

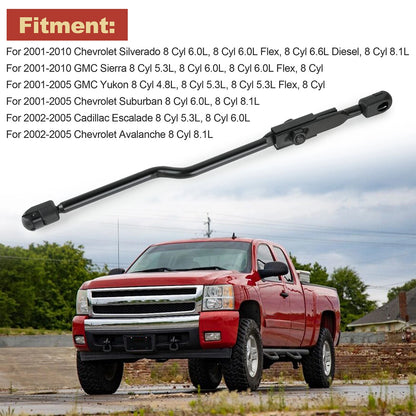

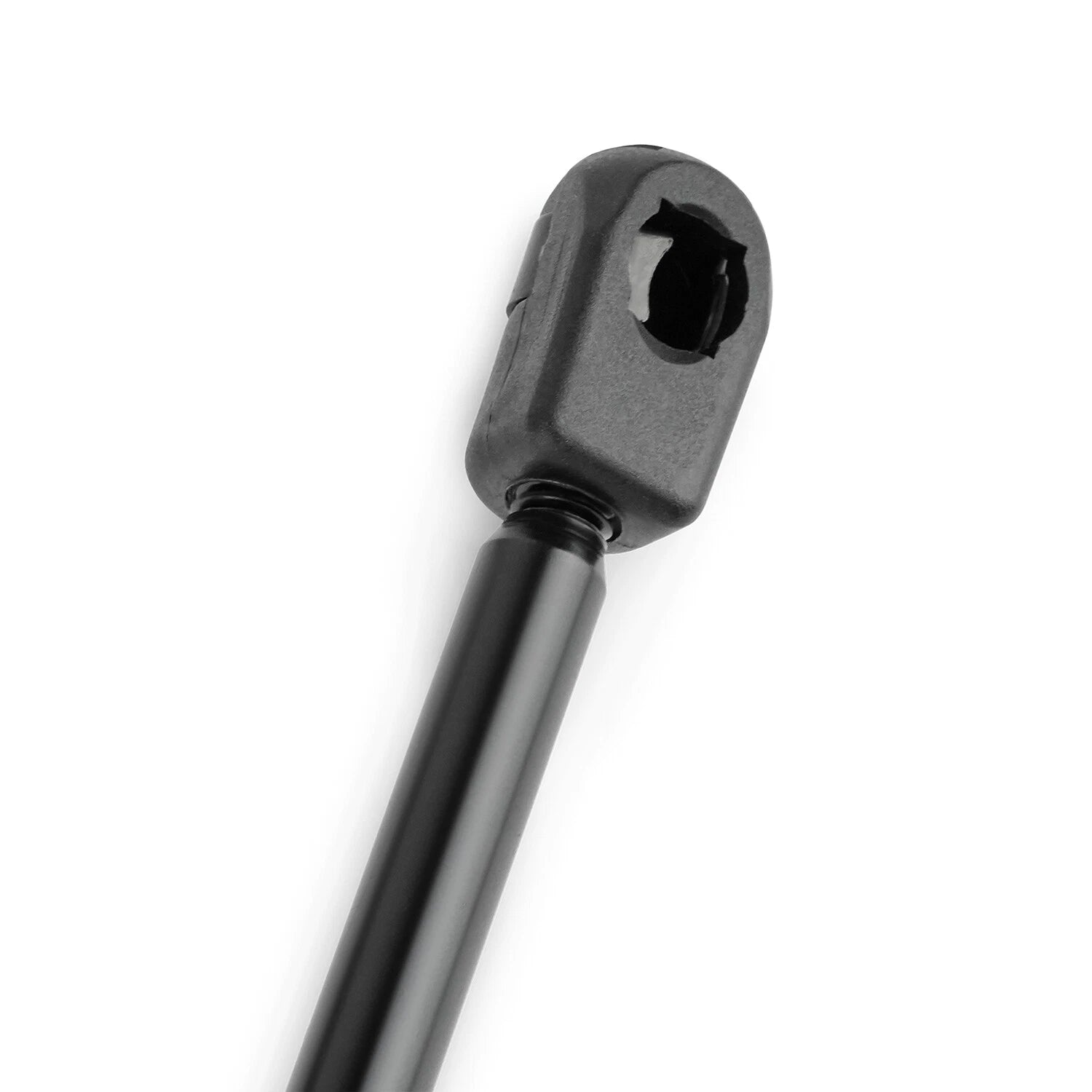

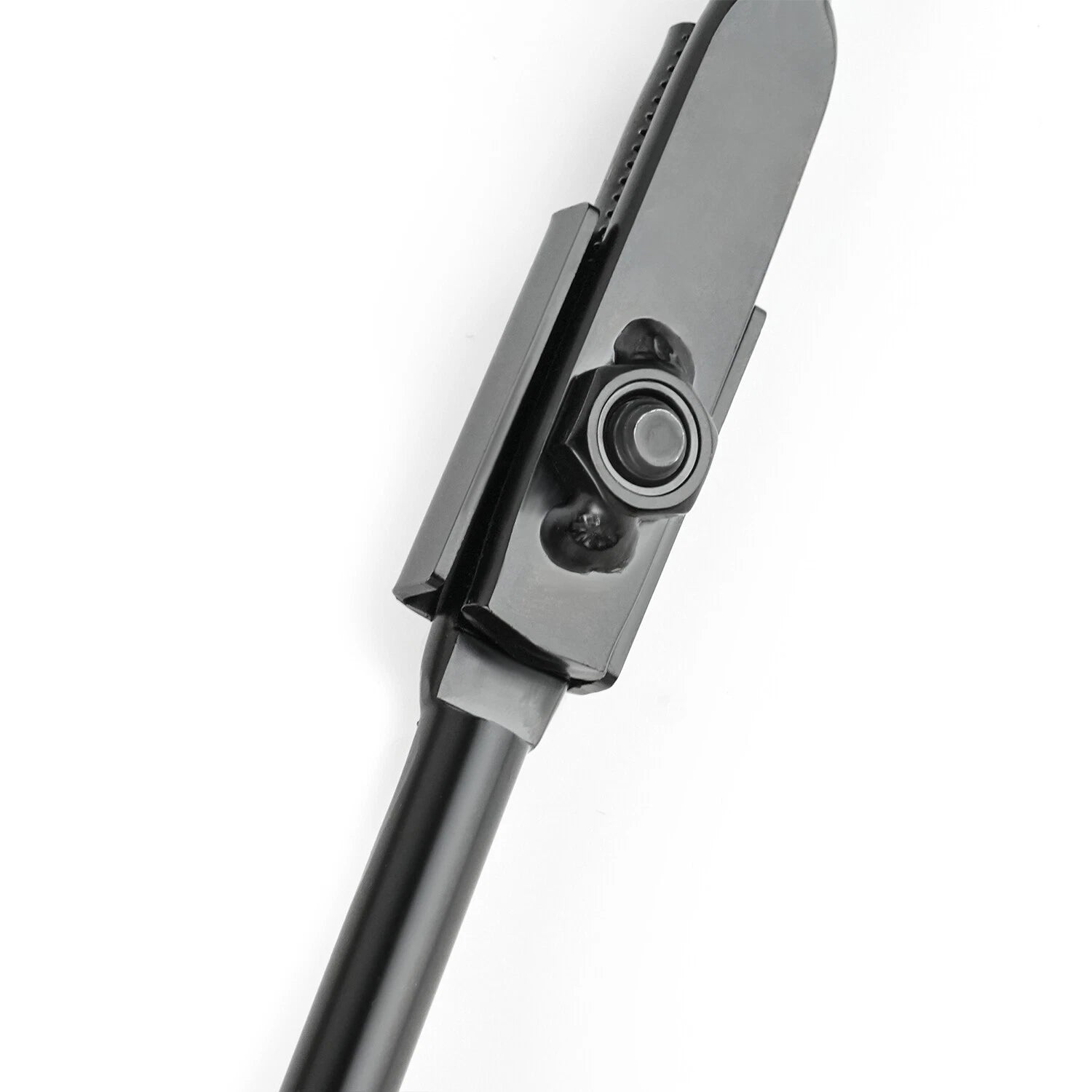

The product photo shows one black linkage assembly with a bend along the longer rod section and a fitting at each end. A rectangular clamp with a hex-head bolt joins the rod sections near one end. The end fittings have different profiles, so compare each connection and its orientation with the existing linkage.

Replacement reference

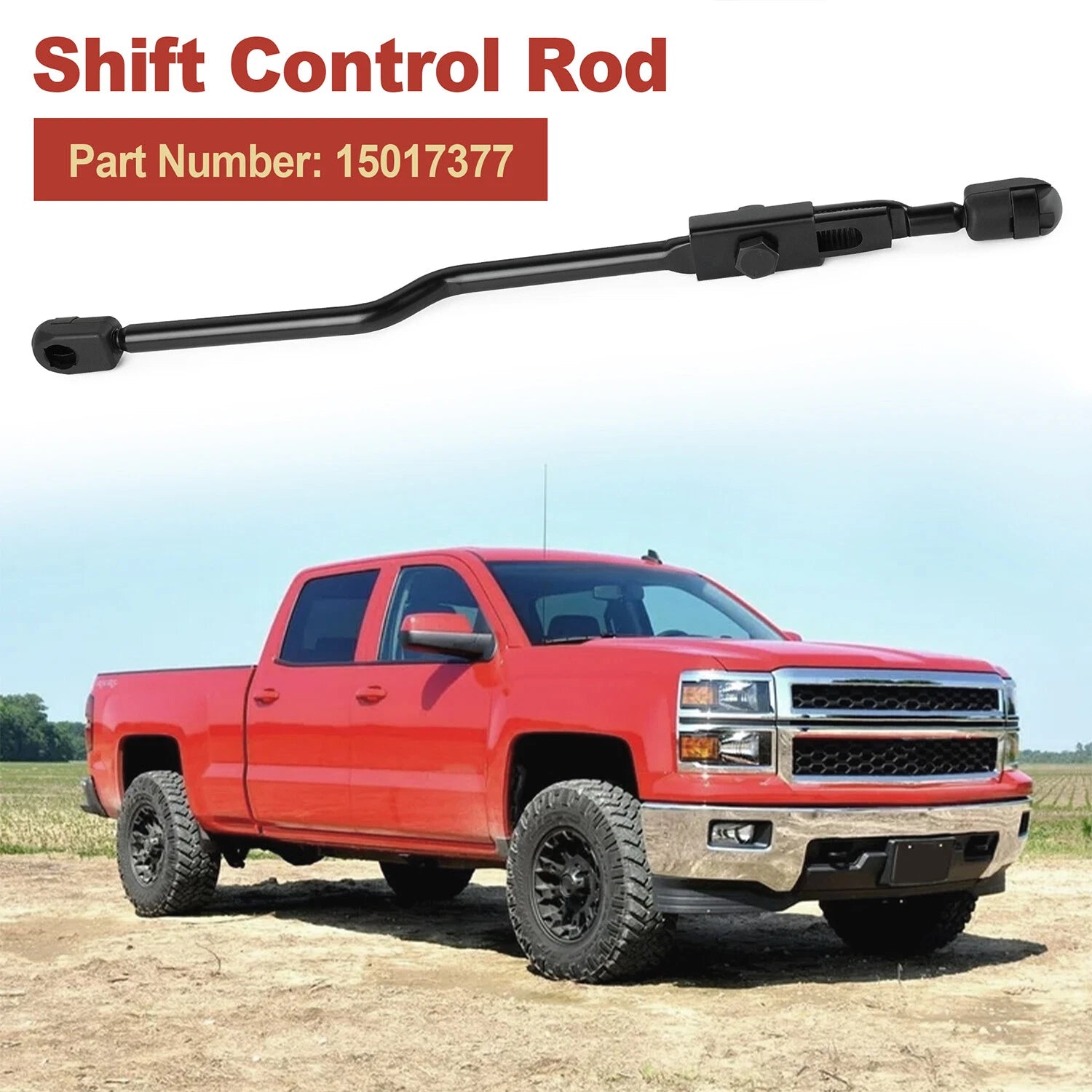

15017377

Listed application

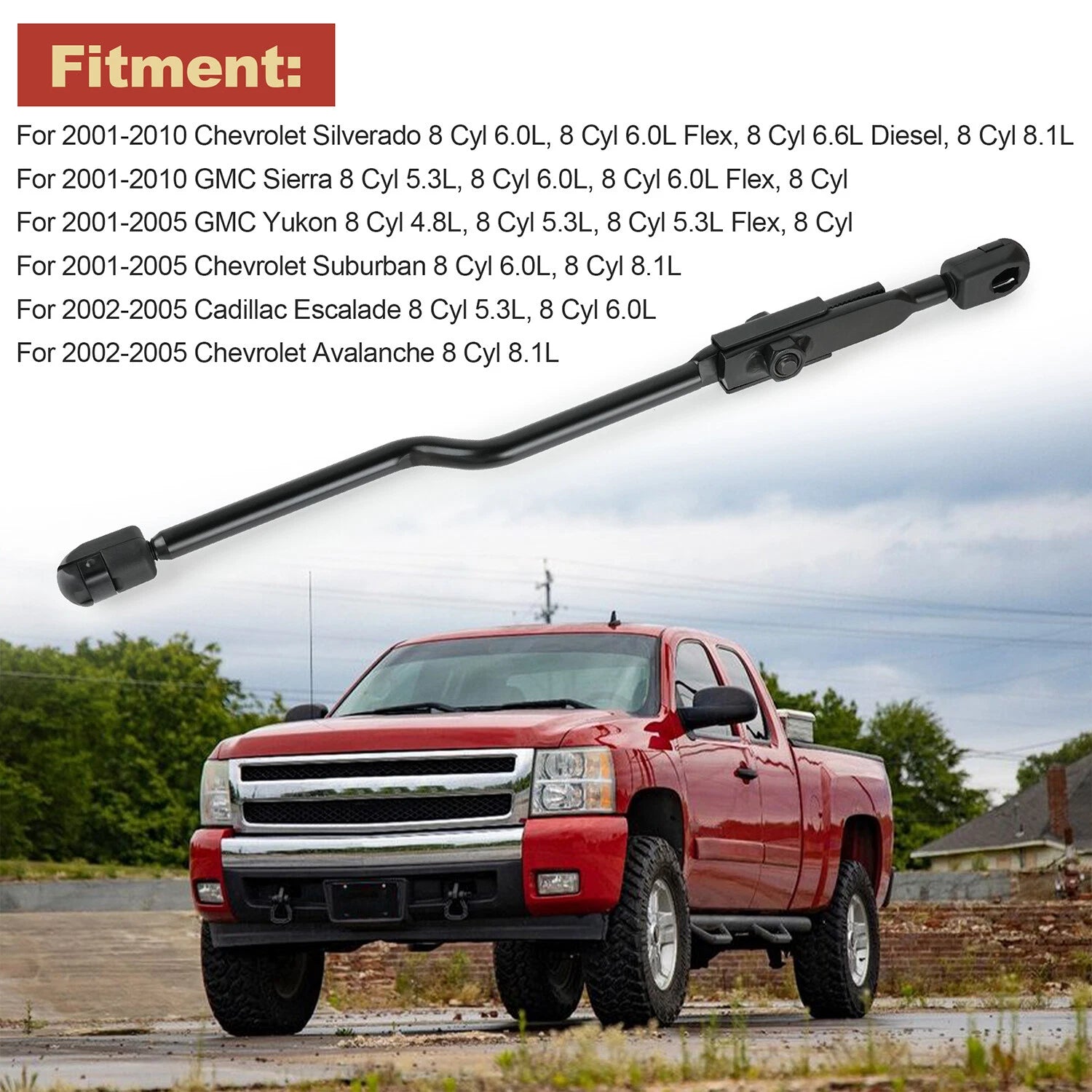

GM / Chevrolet, 2001-2010; confirm the specific vehicle and transfer case configuration

Component

External transfer case shift control rod

Pictured quantity

One assembled linkage rod

Rod profile

Offset bend in the longer section

Pictured connections

Two end fittings and a clamp with a hex-head bolt

Color

Black

Match the linkage before adjusting it

External shift-control rods vary with the transmission and transfer case combination, so matching the year is only part of the fitment check. Compare the rod's bend, end-fitting openings and distance between connection points with the part being replaced.

Overall length, end-fitting bore sizes and the adjustment range are not specified for this replacement. Have the linkage fitted and adjusted using the service procedure for the vehicle's exact transfer case. Check that the connections are retained and the linkage moves through the required positions without binding before returning the vehicle to use.
