Trailer tow connector 82824-0C150 for Toyota Tacoma 2016-2022

Trailer tow connector for Toyota Tacoma

This replacement connector is listed for selected 2016-2022 Toyota Tacoma trucks with factory-installed tow-hitch wiring. It uses reference 82824-0C150 and provides 7-way spade and 4-pin flat trailer connections. Confirm the existing truck-side harness and mounting arrangement before ordering.

A replacement socket for existing tow wiring

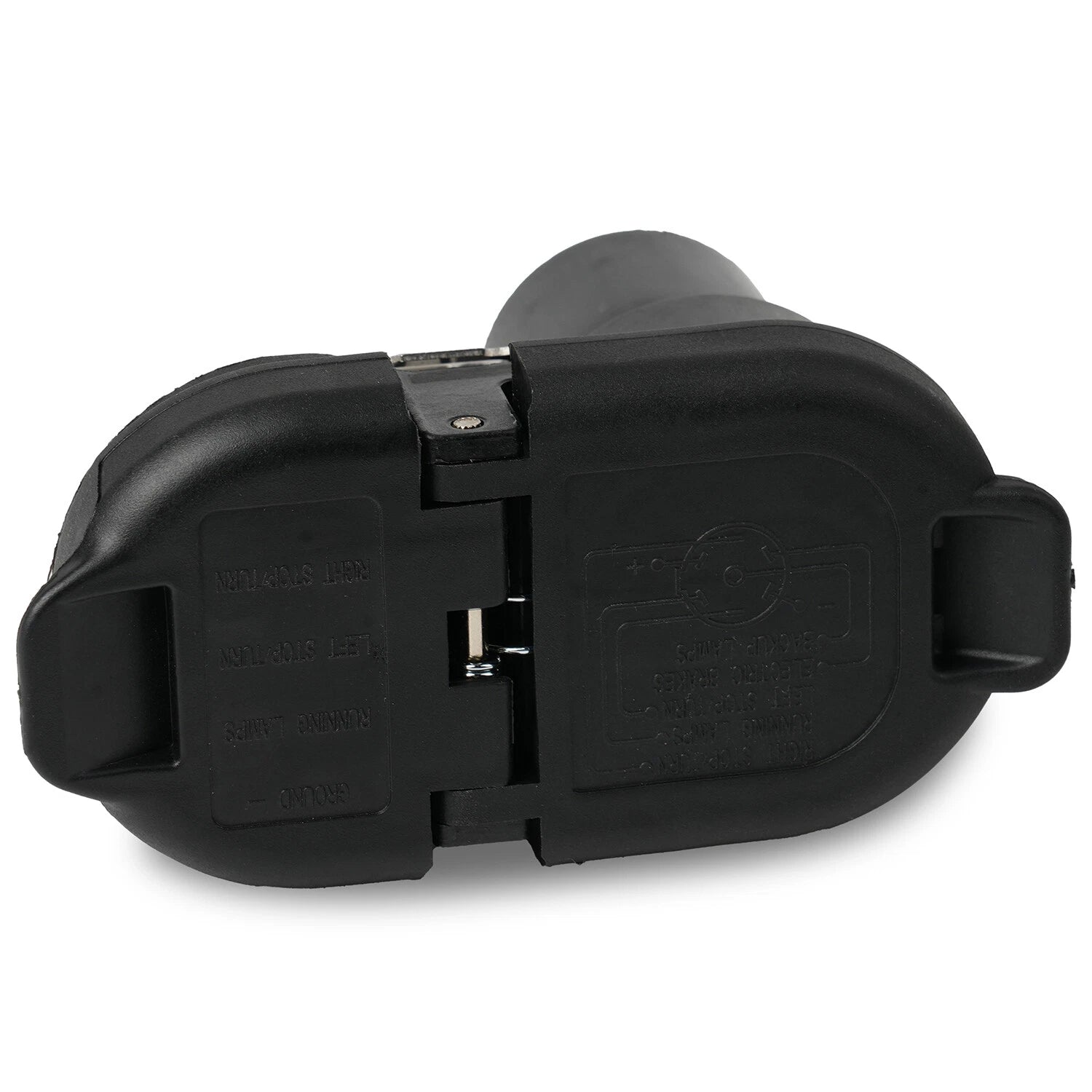

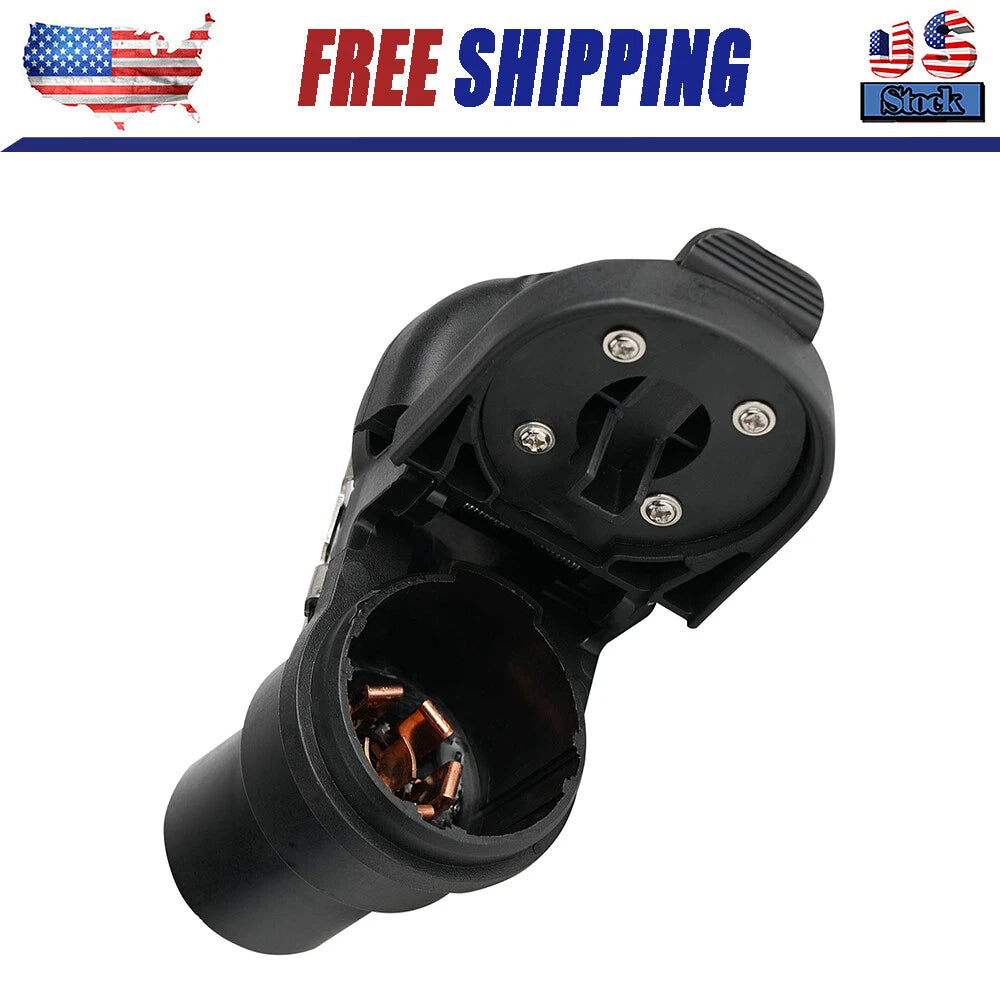

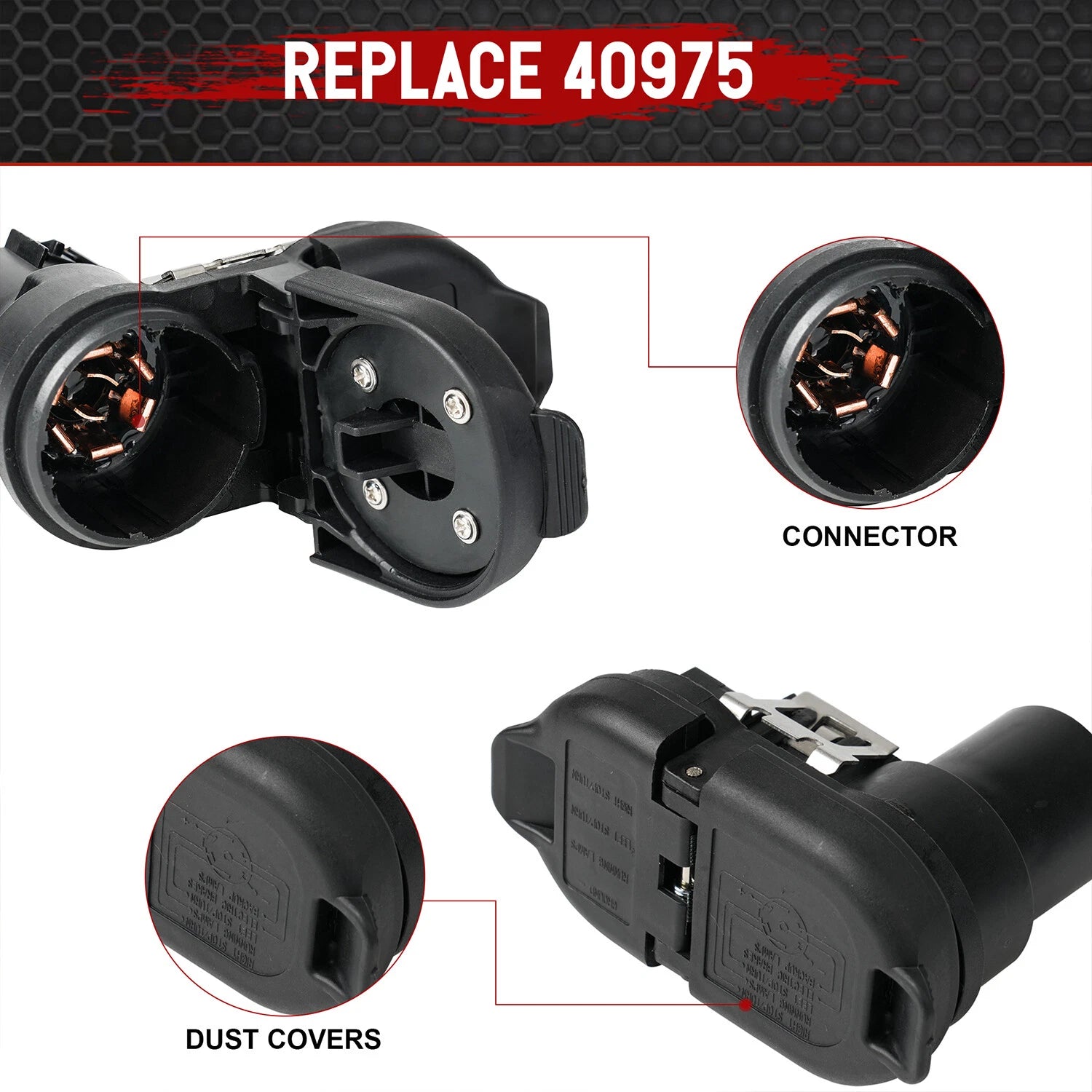

The package contains one black connector assembly with a hinged protective cover. The listed construction is ABS with brass contacts. It replaces the matching tow connector; a complete vehicle wiring harness, mounting bracket and trailer brake controller are not supplied.

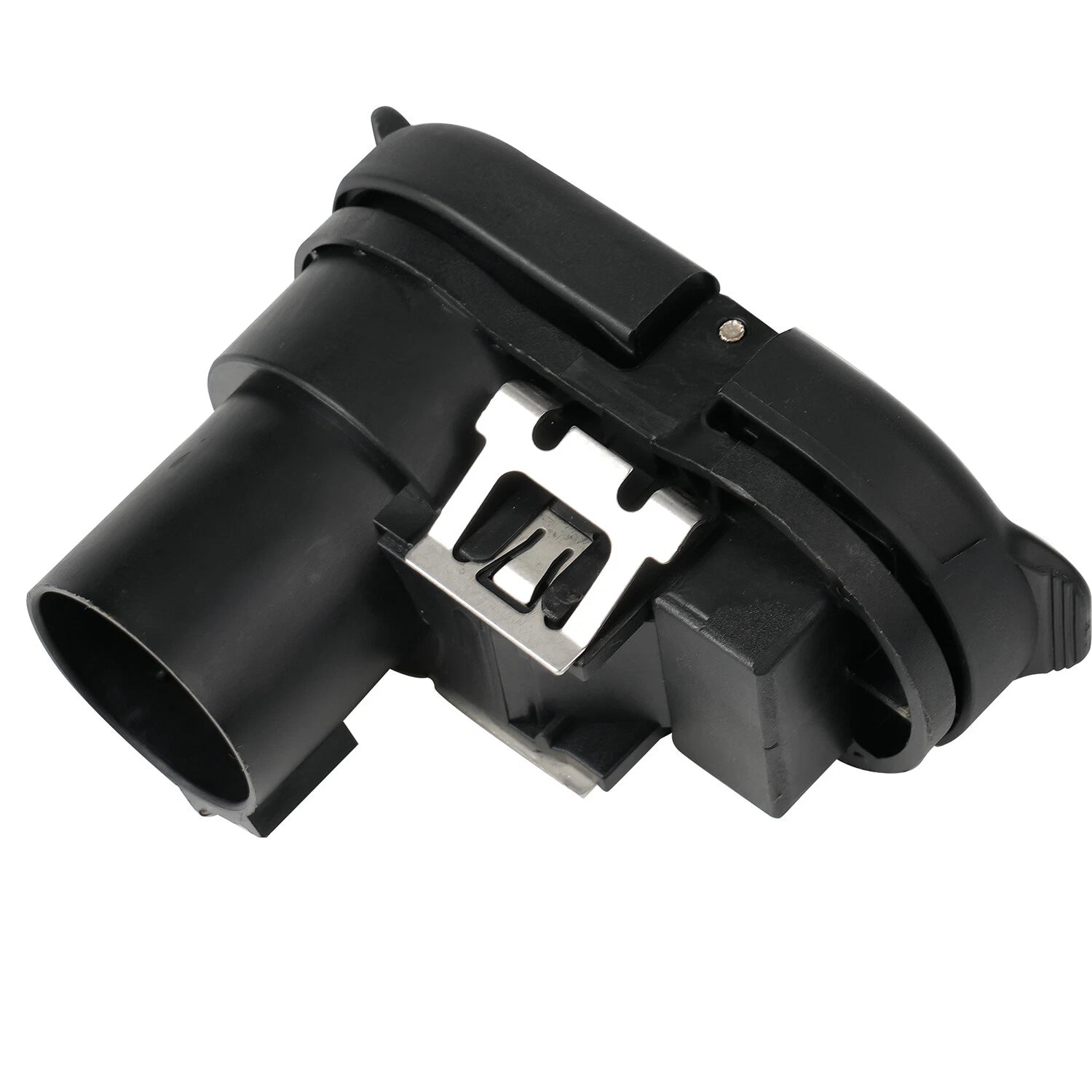

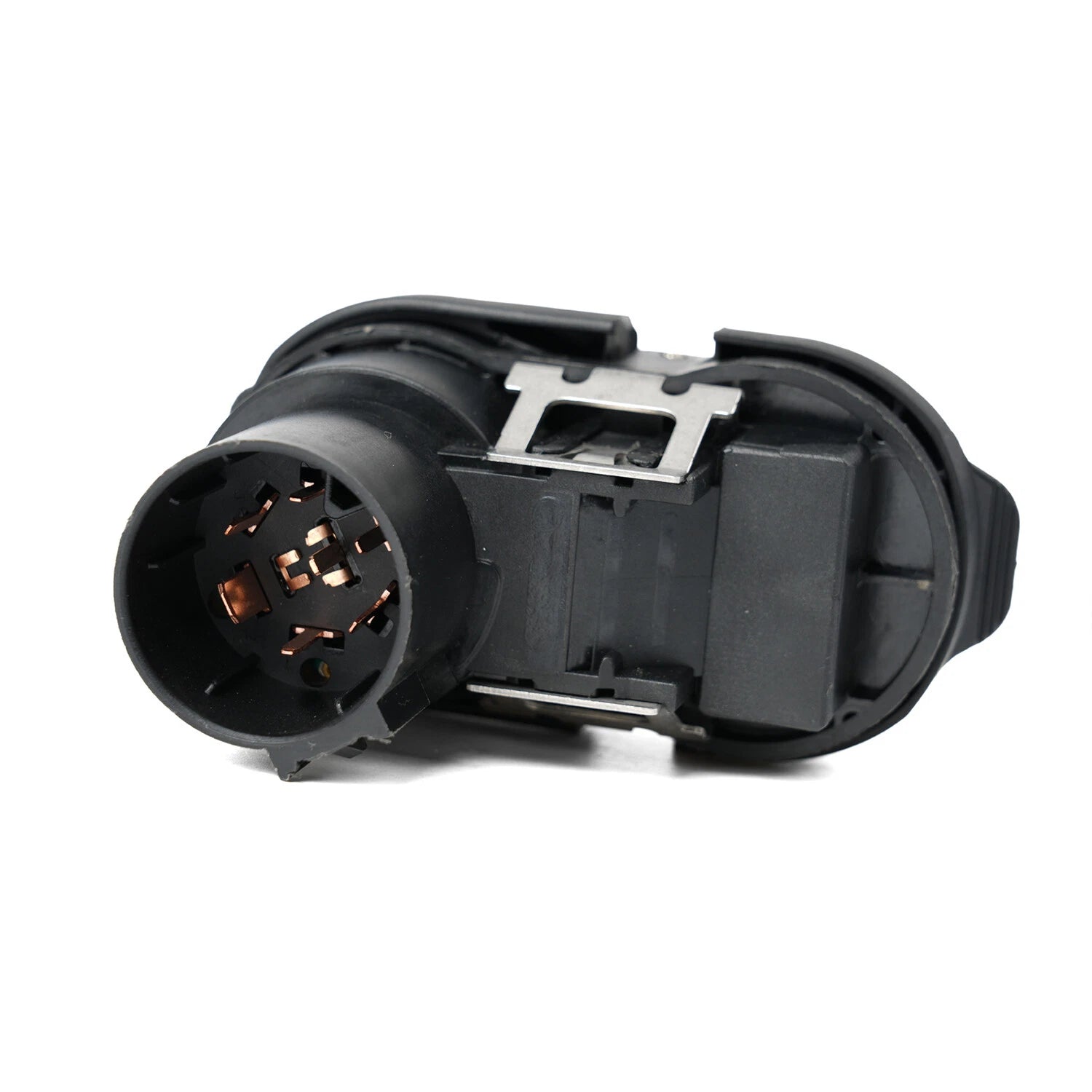

Check the original socket's mounting features and the plug behind it. Compare the harness connector's shape, keying and terminal arrangement with this part. A truck that has no factory tow wiring needs additional components that are outside this listing.

Replacement reference

82824-0C150

Listed vehicle

Selected 2016-2022 Toyota Tacoma models

Required wiring arrangement

Matching factory-installed tow-hitch wiring

Trailer connections

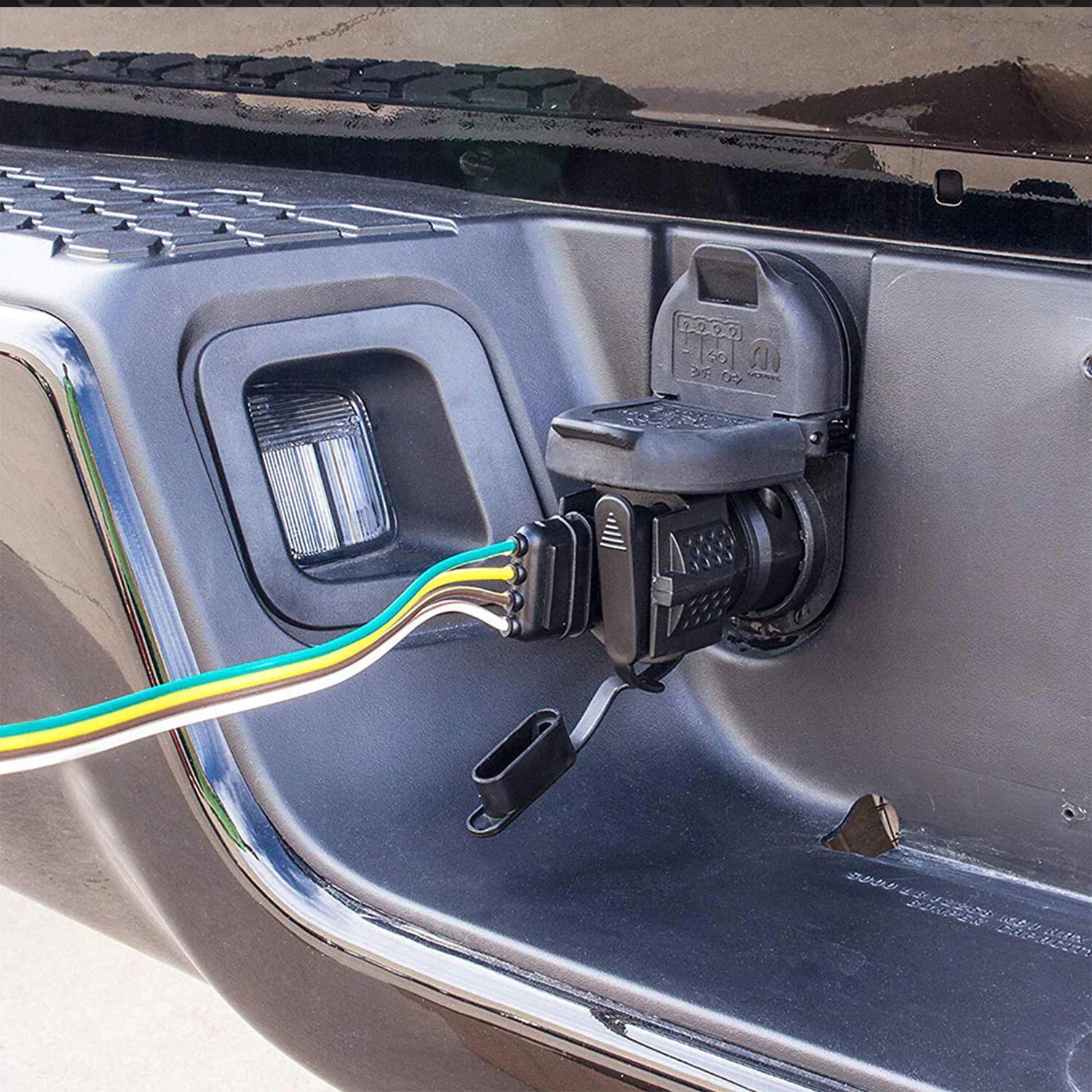

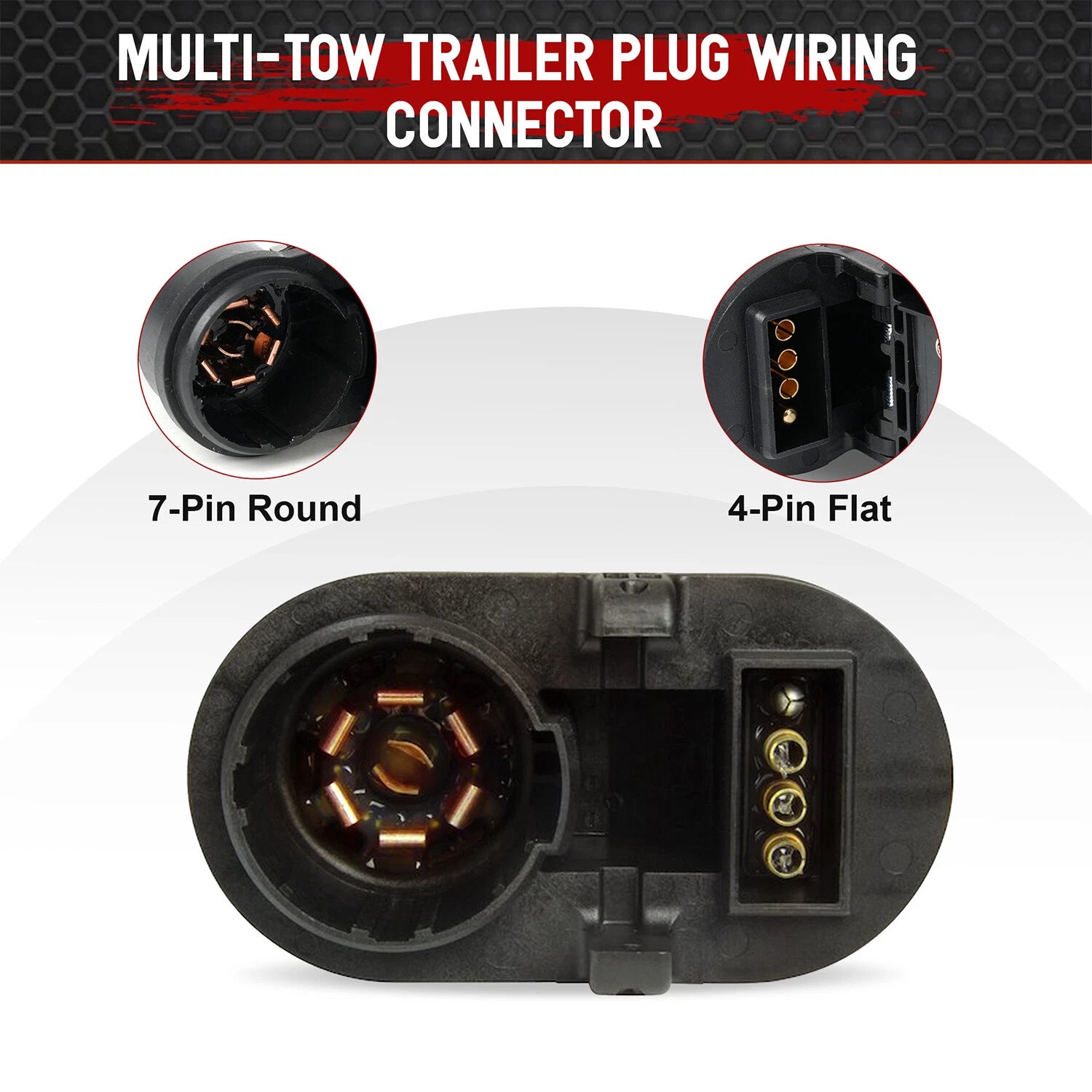

7-way spade and 4-pin flat

Quantity supplied

One replacement connector assembly

Materials

ABS housing with brass contacts

Cover

Black hinged protective lid

Check the harness and trailer circuits

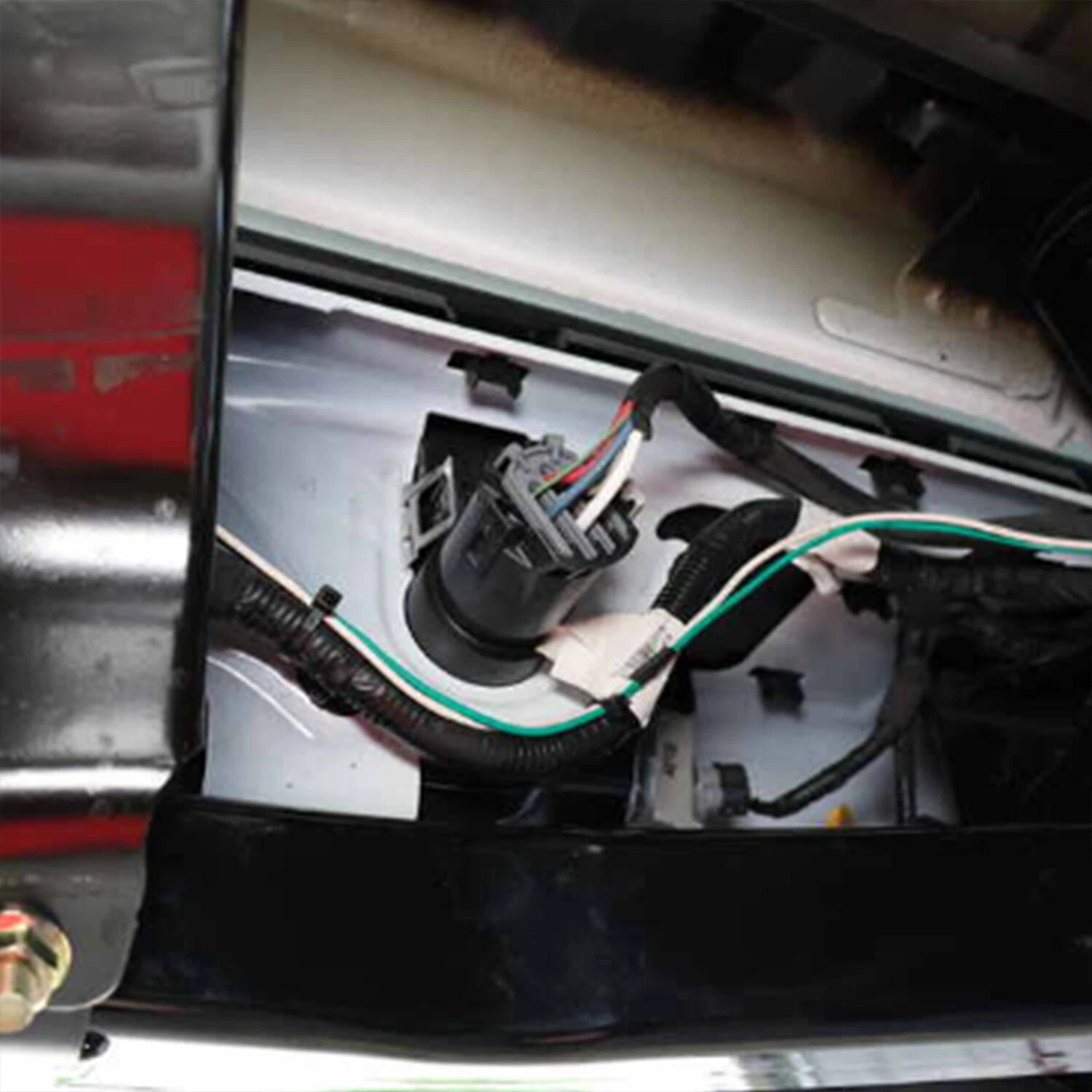

Use the truck's VIN and towing-system parts diagram to confirm the connector reference. Inspect the existing harness plug for corrosion, damaged terminals or loose connections. Replacing the socket alone will not repair faults elsewhere in the wiring.

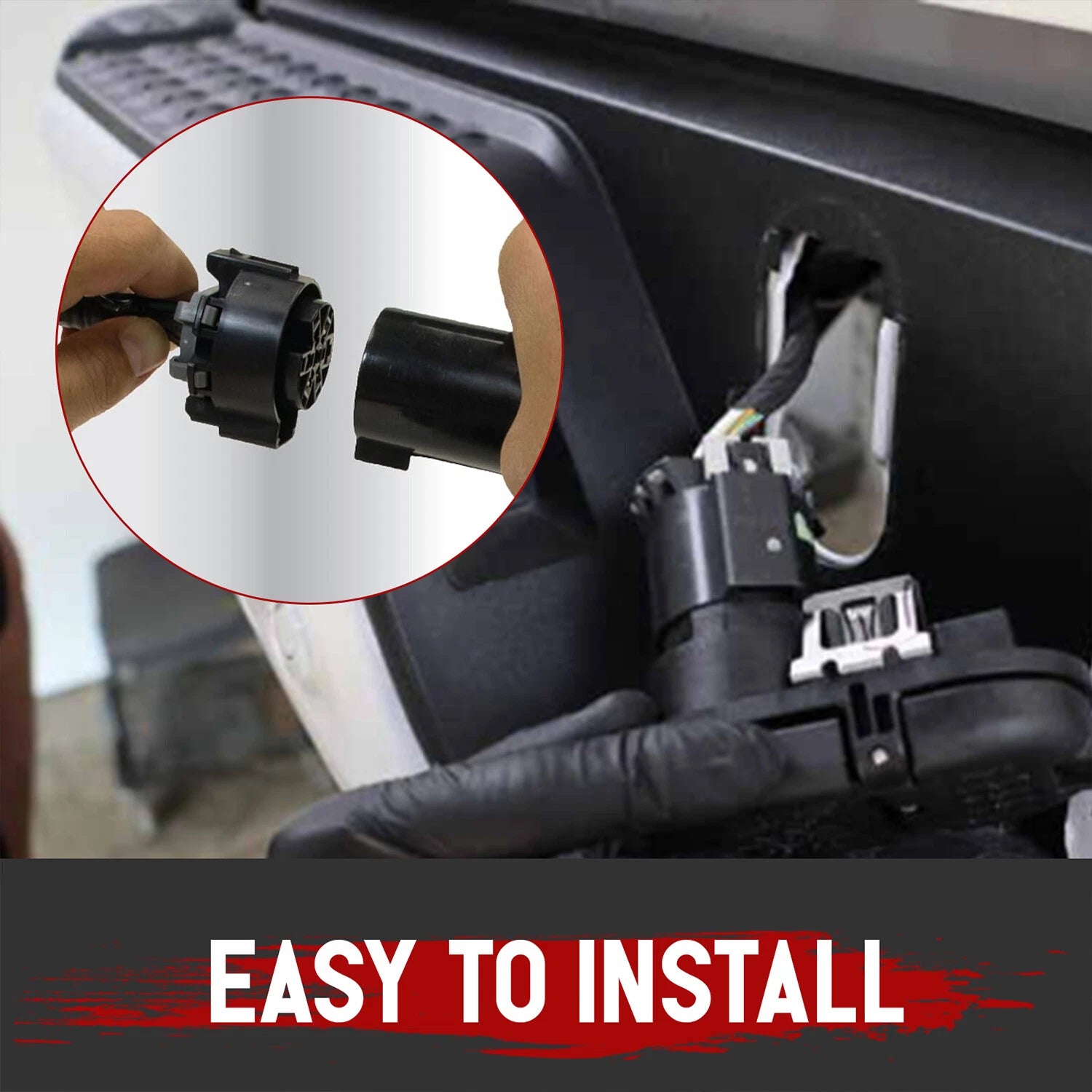

Follow the truck's service procedure for fitting the connector and securing the harness. Test the trailer circuits provided by your vehicle's towing system after installation. Current ratings, weatherproof ratings and mounting dimensions are not specified for this replacement.
