Right tailgate hinge bushing insert for Toyota Tundra 2000-2006

Right-side tailgate hinge insert with fixing hardware

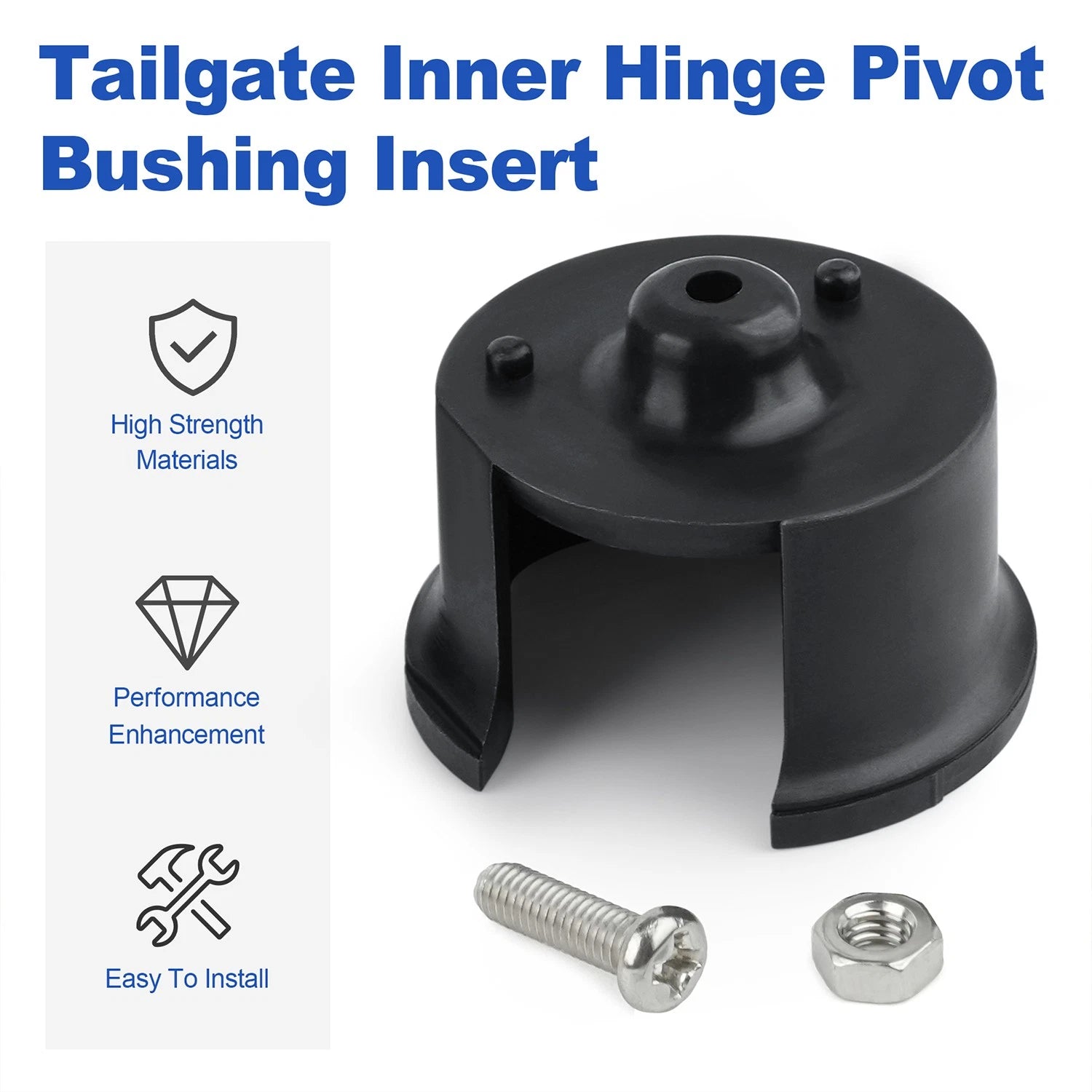

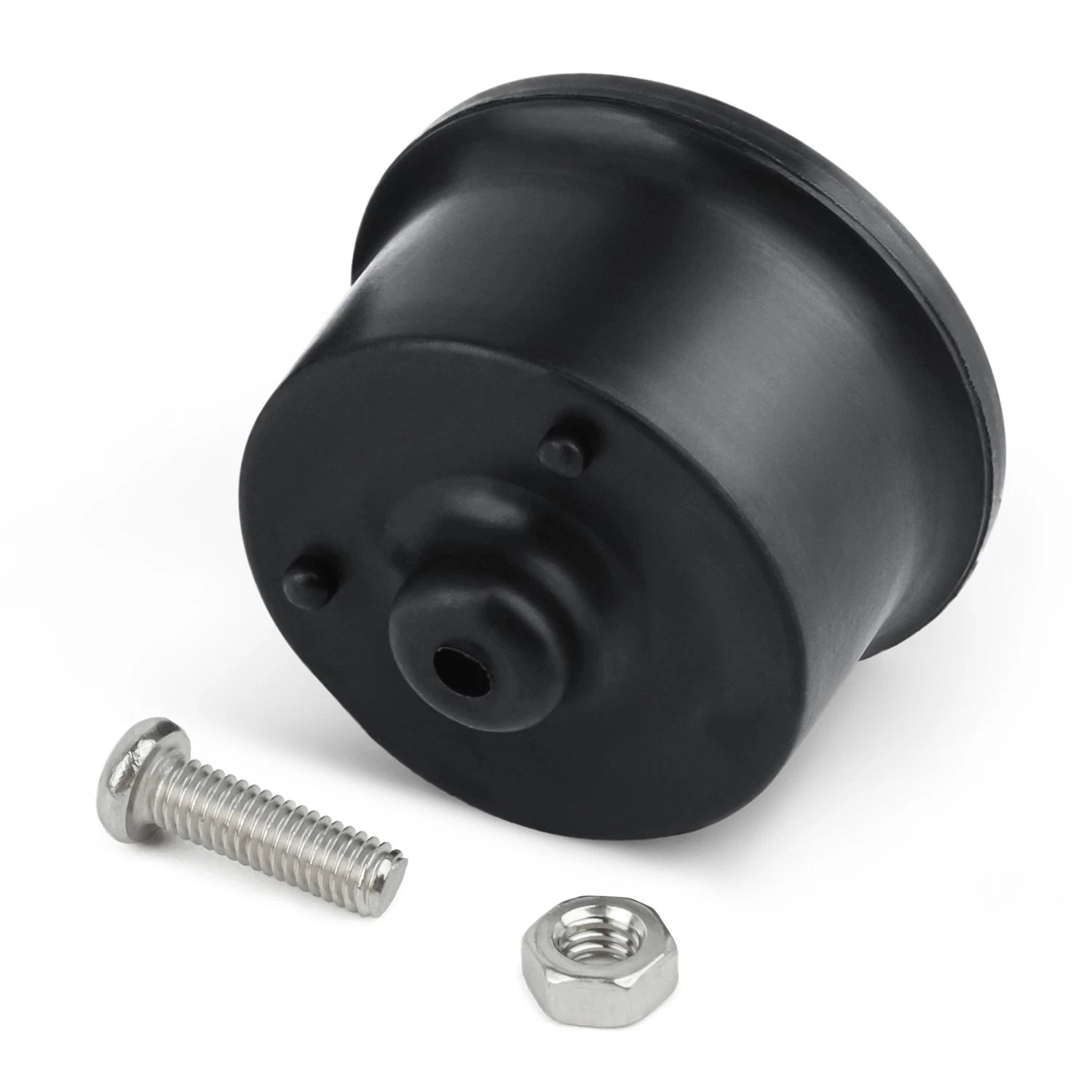

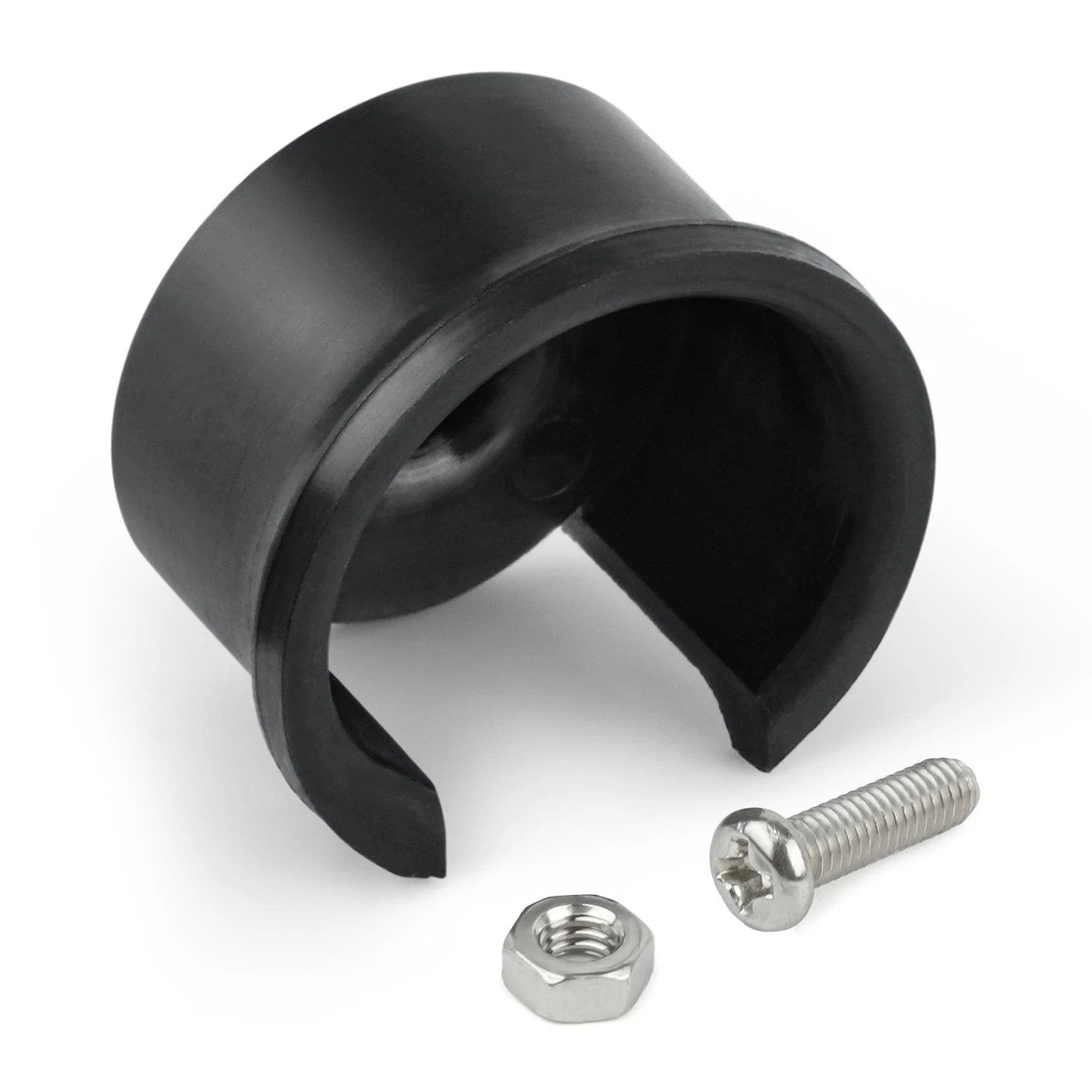

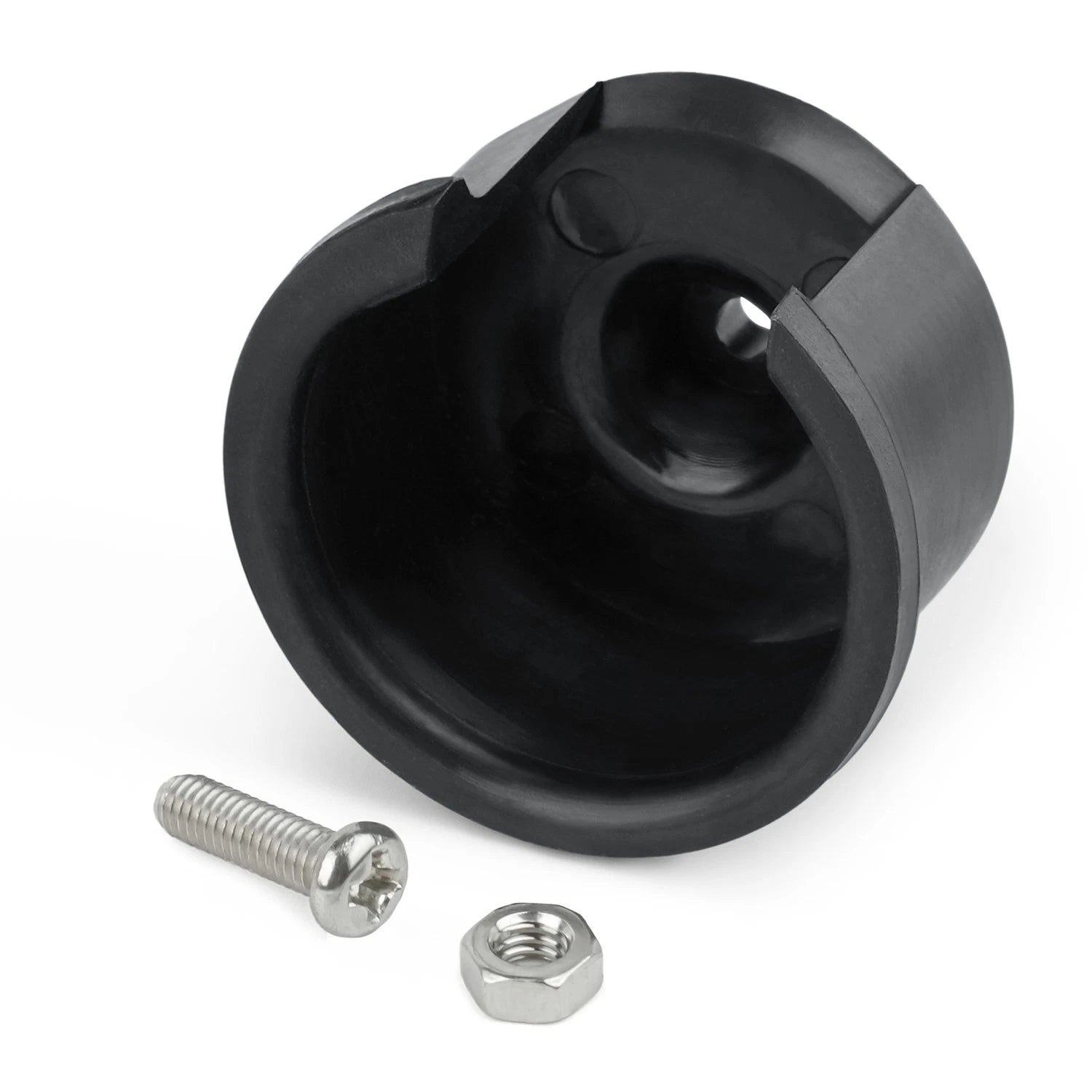

This black plastic insert is listed for the right-hand tailgate hinge on matching 2000-2006 Toyota Tundra trucks. The package contains one hinge bushing insert, one screw and one hex nut. Its open-sided cup shape, flanged rim and raised center distinguish it from a plain cylindrical sleeve.

Insert and listed application

Listed vehicle

Toyota Tundra, 2000-2006; compare the existing right-hand hinge

Position

Right-hand tailgate hinge pivot

Part supplied

1 black plastic inner pivot bushing insert

Fixing hardware

1 screw and 1 hex nut

Visible features

Open side, flanged lower rim, raised central hole and two small locating projections

Associated hinge reference

66110-0C012

Check the insert separately from the hinge assembly

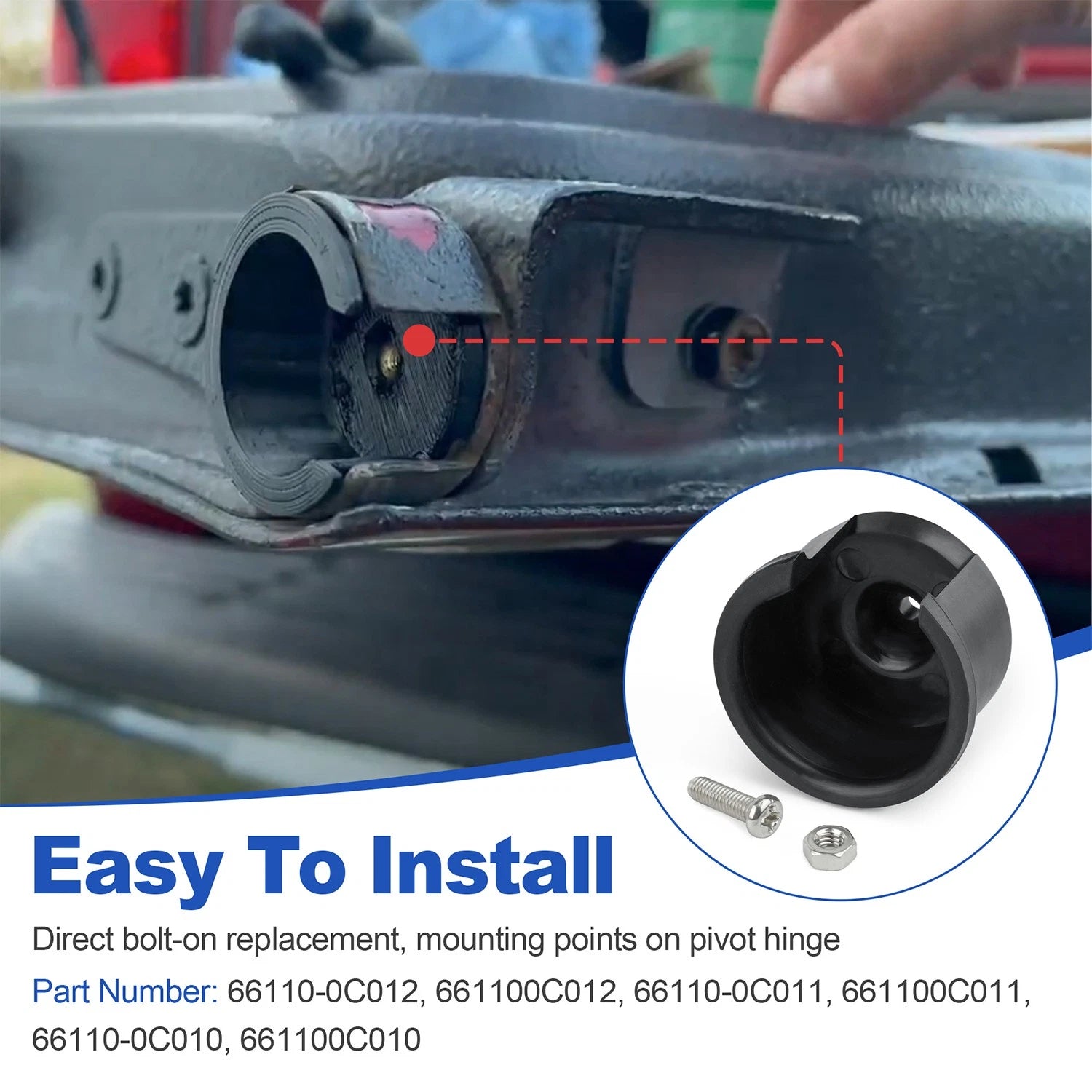

Toyota lists 66110-0C012 as a right-hand tailgate hinge assembly. This offer is an aftermarket insert with its pictured fixing hardware, rather than the complete Toyota hinge assembly. Check the insert's seat, opening orientation, center hole and locating projections against the hinge you are repairing.

Insert dimensions and the supplied screw's thread and length have not been specified. Confirm the fit before tightening the hardware. The original tailgate hinge and its metal pivot must remain suitable for reuse; replacing the plastic insert will not correct a bent or damaged hinge.

Support the tailgate during removal and refitting, using the procedure for your truck. After assembly, check the pivot engagement, both support cables and latch operation before using the tailgate.
