Right steering drag link 747-05425A for Cub Cadet XT3-GSX

Right steering drag link for XT3-GSX

This replacement drag link is listed for the right-hand steering linkage on a Cub Cadet XT3-GSX tractor, under reference 747-05425A. Check the tractor's complete model number against its steering parts diagram before ordering. The right-hand designation identifies the required side of the linkage.

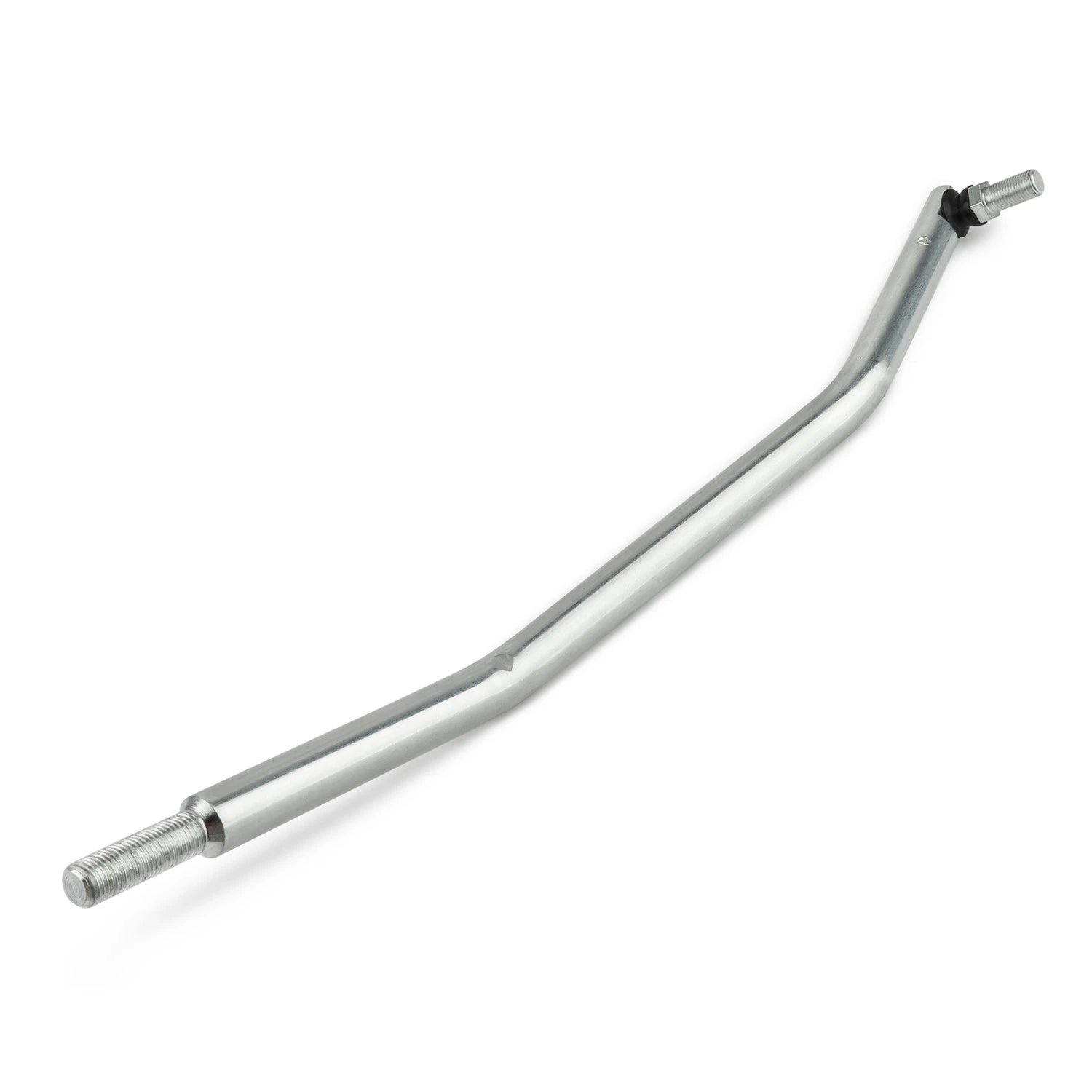

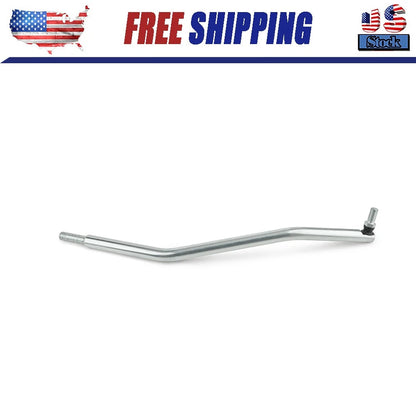

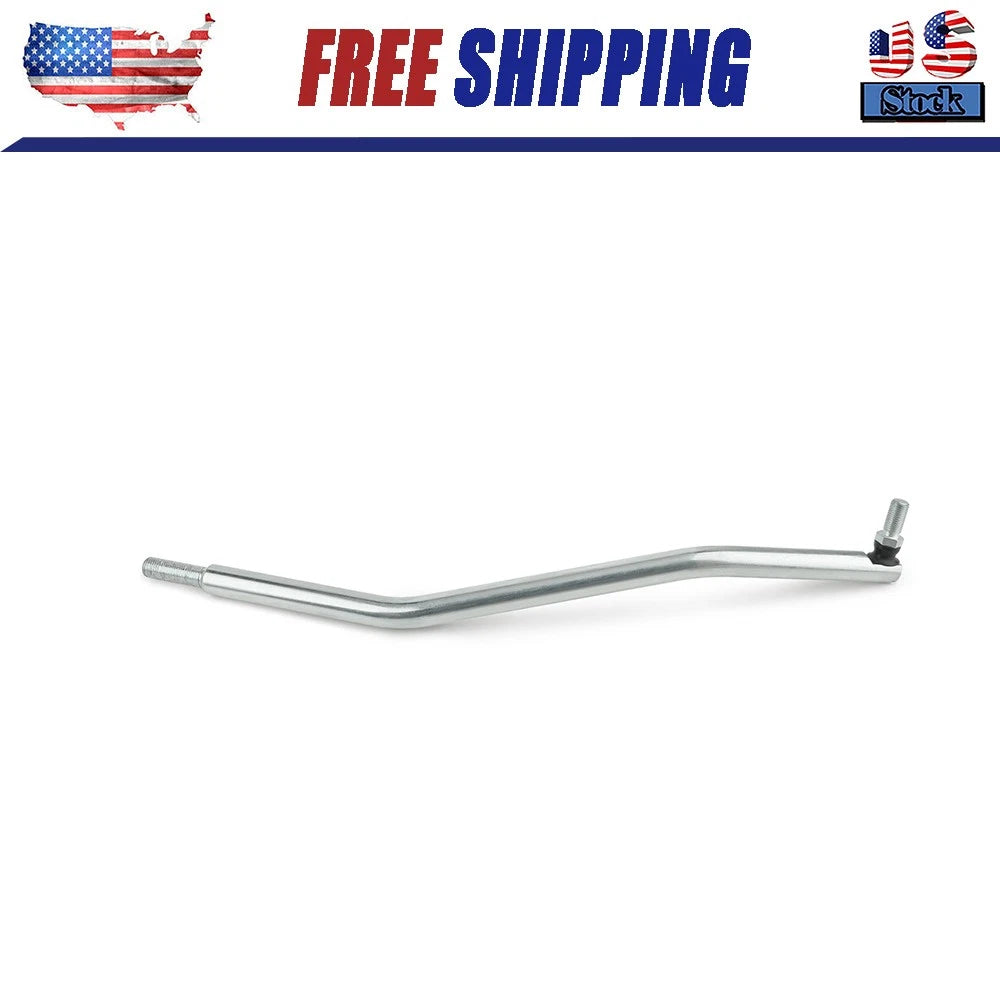

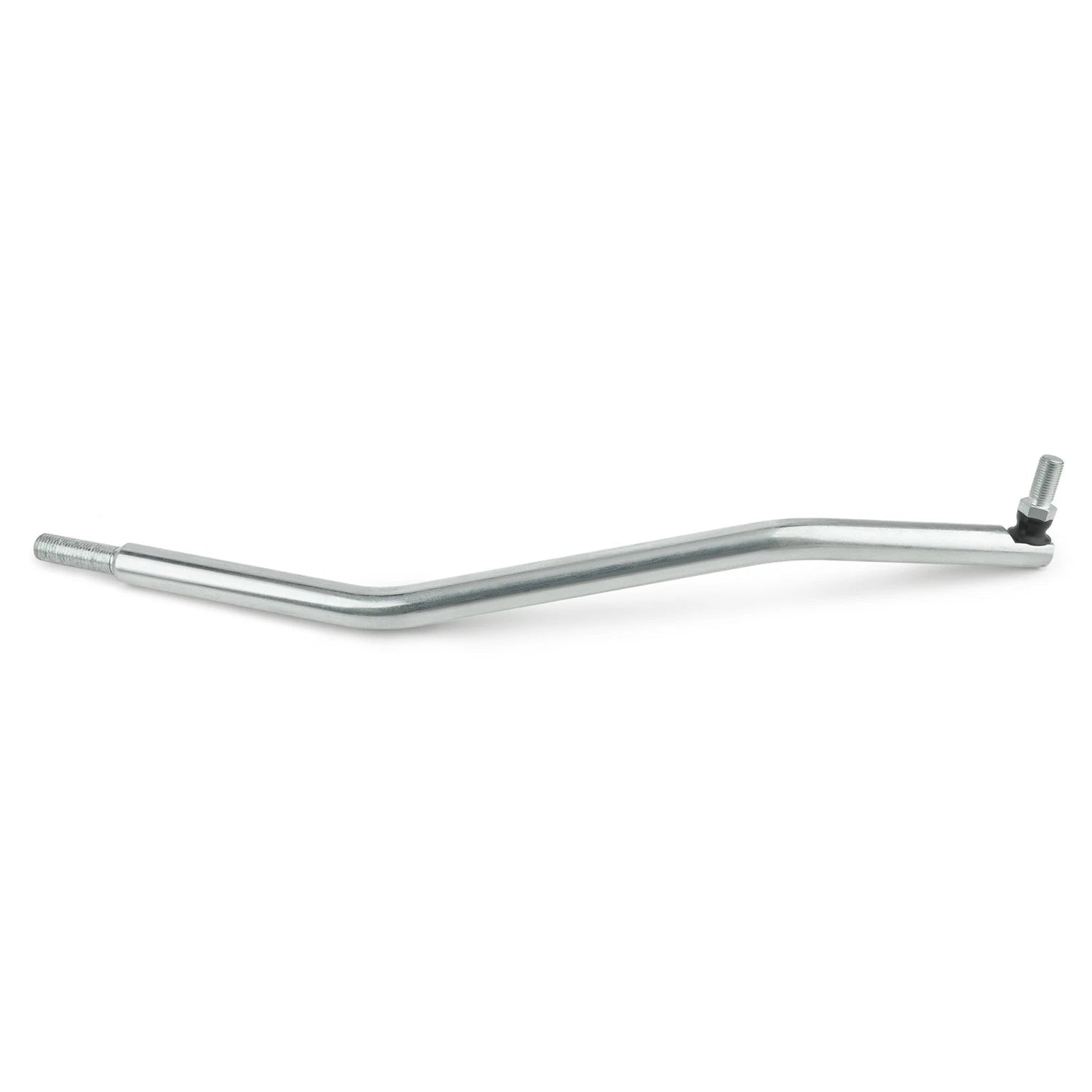

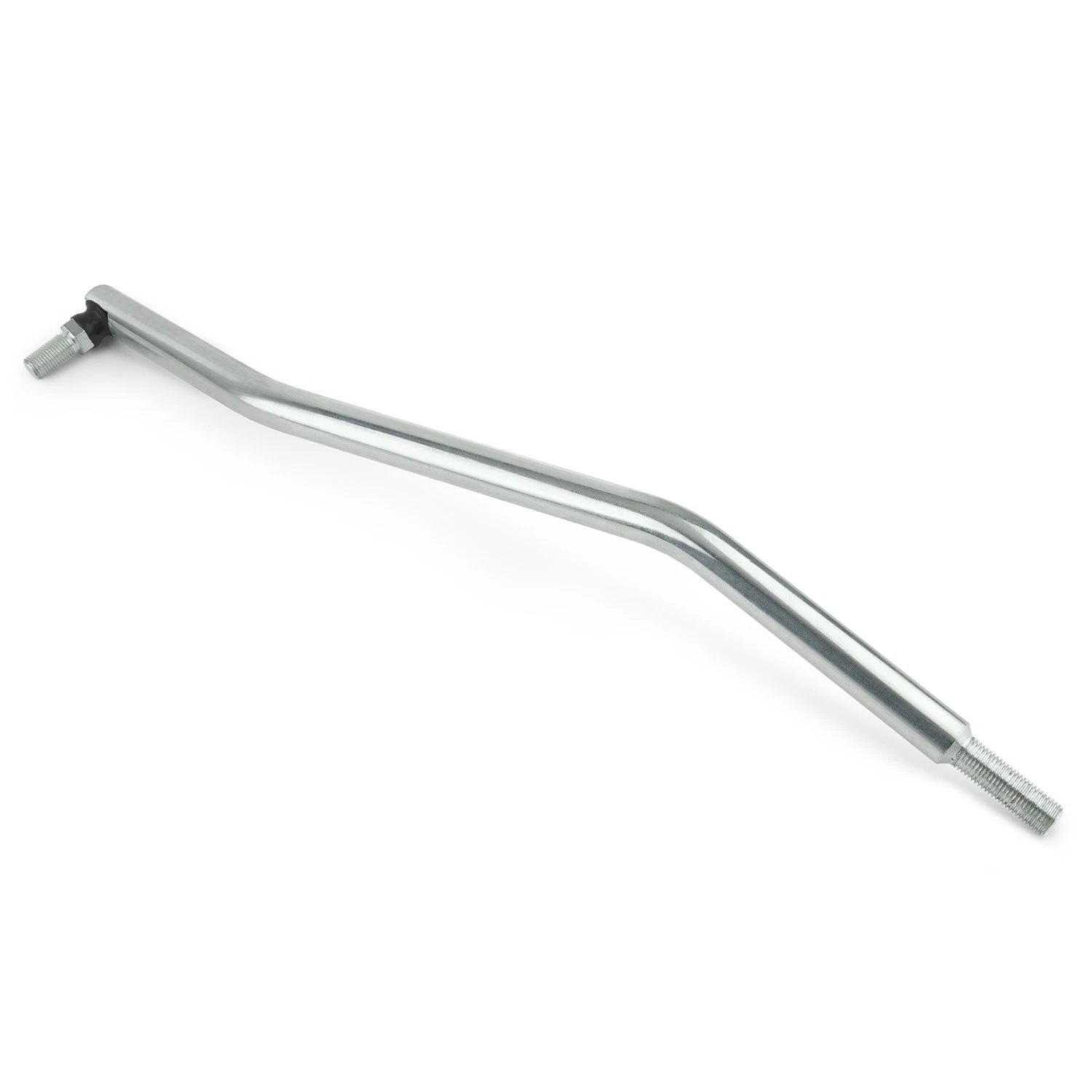

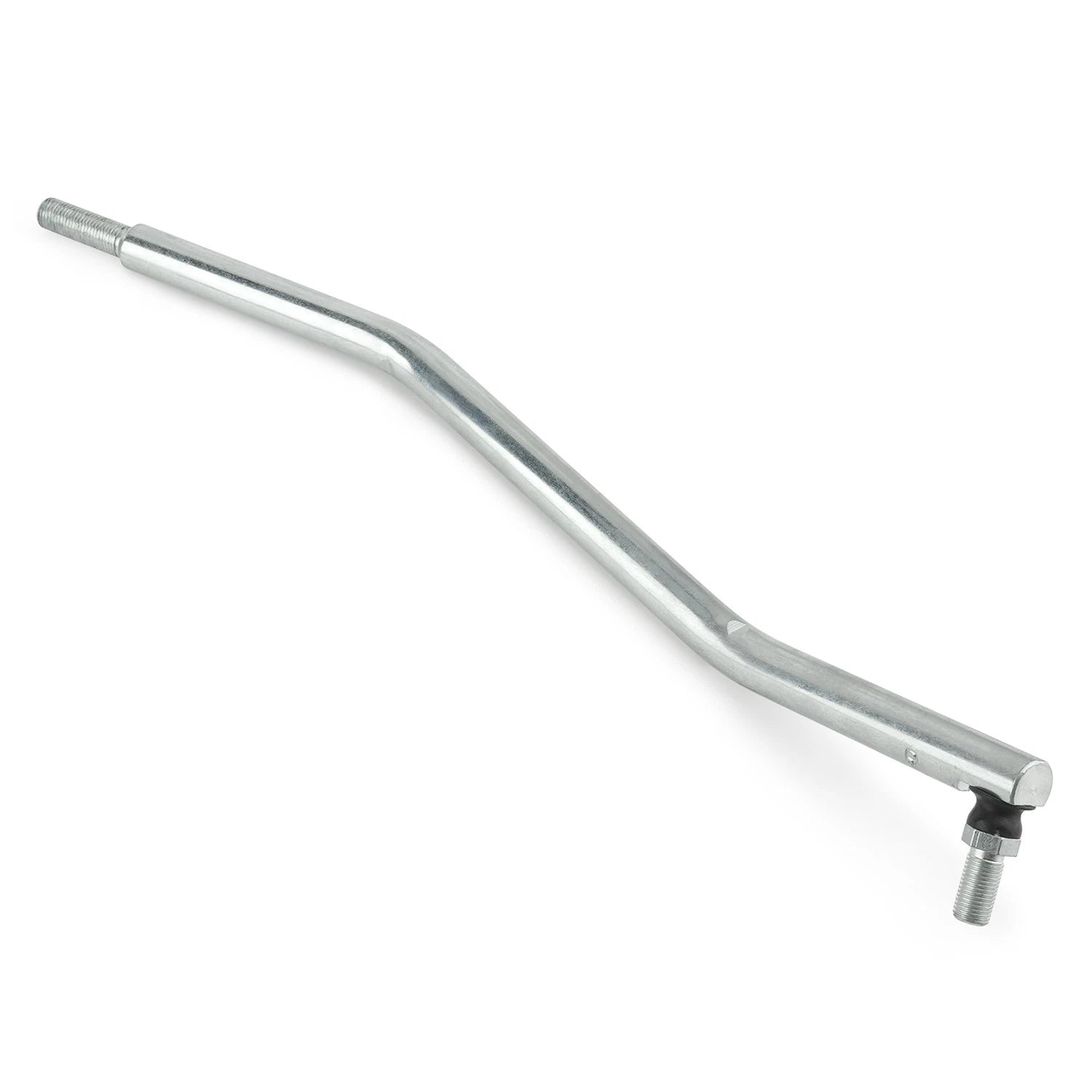

One silver-colored rod is pictured. Its body has offset bends, with a threaded rod end on one side and an upright threaded stud at the opposite joint. A hex nut and black covering are visible at that stud. No second drag link or steering gear is shown.

Rod and connection details

Listed reference

747-05425A

Listed tractor

Cub Cadet XT3-GSX; verify the complete model number

Steering position

Right-hand (RH)

Pictured quantity

One steering drag link

Rod shape

Long rod with offset bends

Rod end

External threads aligned with the rod

Opposite joint

Upright threaded stud with a visible nut and black covering

Appearance

Silver-colored rod; material and coating grades unspecified

Compare the offset and end fittings

Match the original reference and right-hand location, then compare the rod's bends and the orientation of both connections. Check the condition of the mating steering fittings as well. A replacement rod will not address wear in a separate joint or steering component.

Overall length, connection-center distance and thread sizes are unspecified. Confirm these dimensions against the installed linkage and identify which mating parts are retained. The listed XT3-GSX name does not establish fit for every production version or for other XT3 models.

Steering service and final checks

Follow the tractor's service instructions for linkage removal, adjustment and fastening. After installation, check the steering alignment and movement through its full range, including clearance around the rod's bends. Resolve loose connections or binding before returning the tractor to use.
