Springer front end riser adapter handlebar converter full kit

Springer riser spacing converter with mounting hardware

This aftermarket adapter converts a 4.75 in Springer riser mounting spread to a 3.5 in spread for compatible risers or handlebars. The kit includes one adapter plate and four mounting bolts. Handlebar risers, handlebars and the front end are not included.

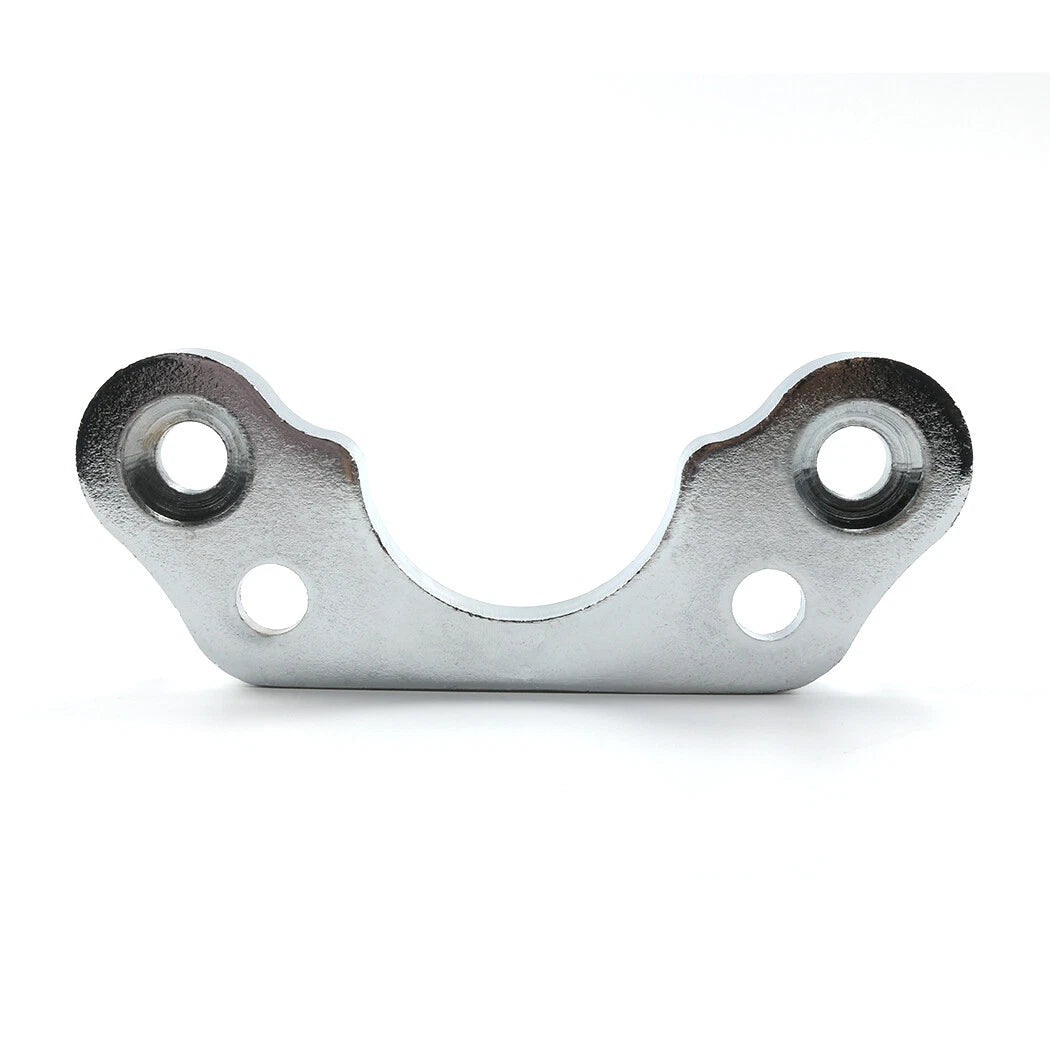

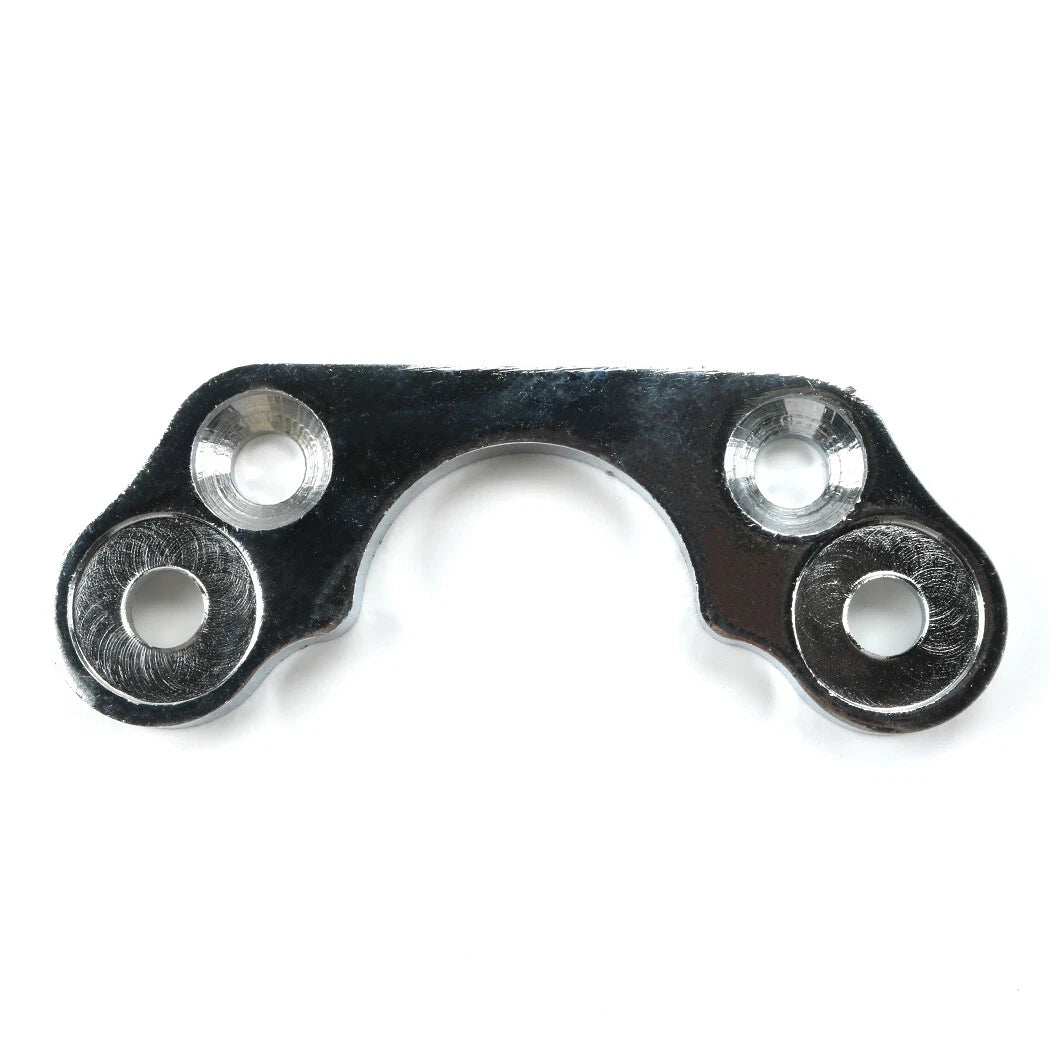

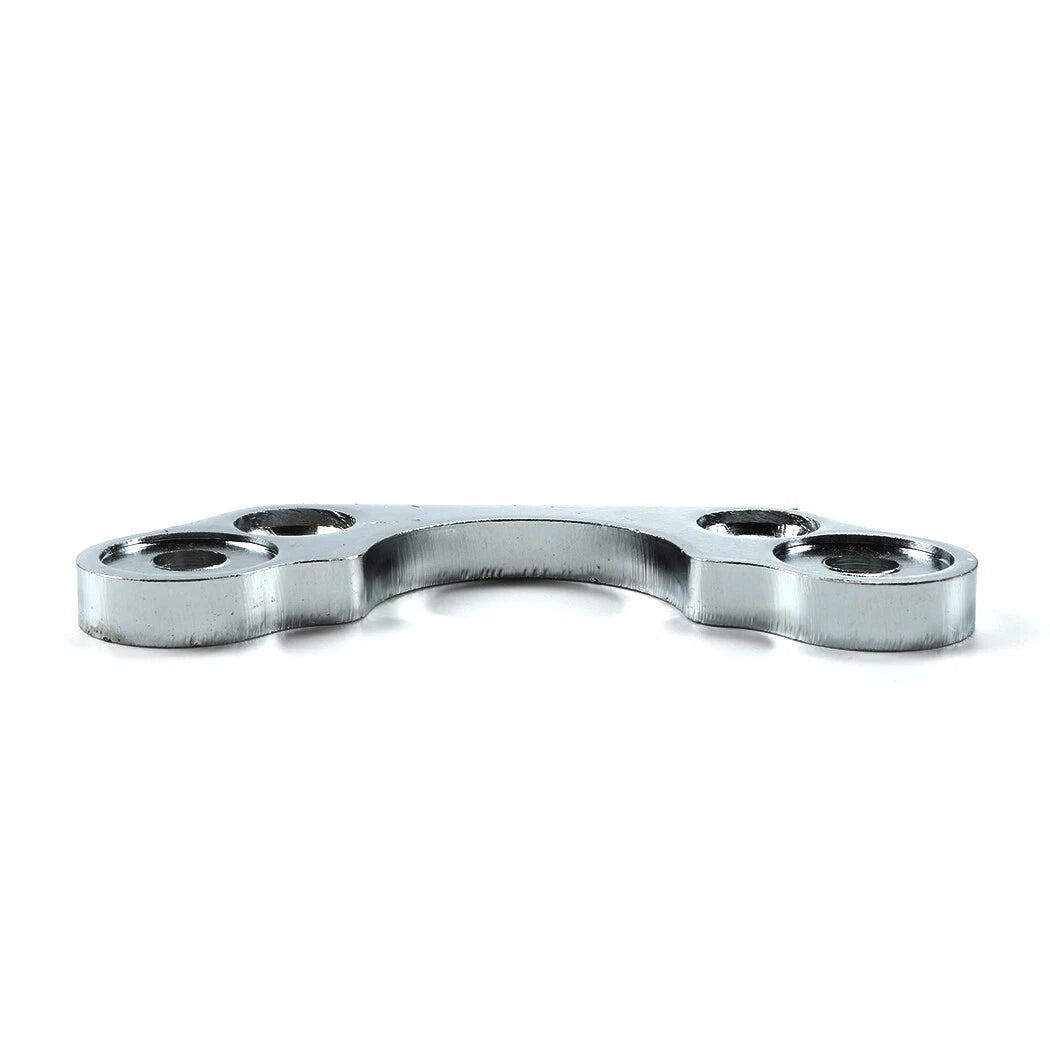

The plate has countersunk mounting holes on both sides to seat the supplied flat-head bolts flush. Two bolts have coarse threads and two have fine threads, all with a nominal 1/2 in diameter.

Kit details

Application

Aftermarket Springer riser spacing conversion

Springer mounting spread

4.75 in, center to center

Riser or handlebar mounting spread

3.5 in, center to center

Mounting holes

Countersunk on both sides

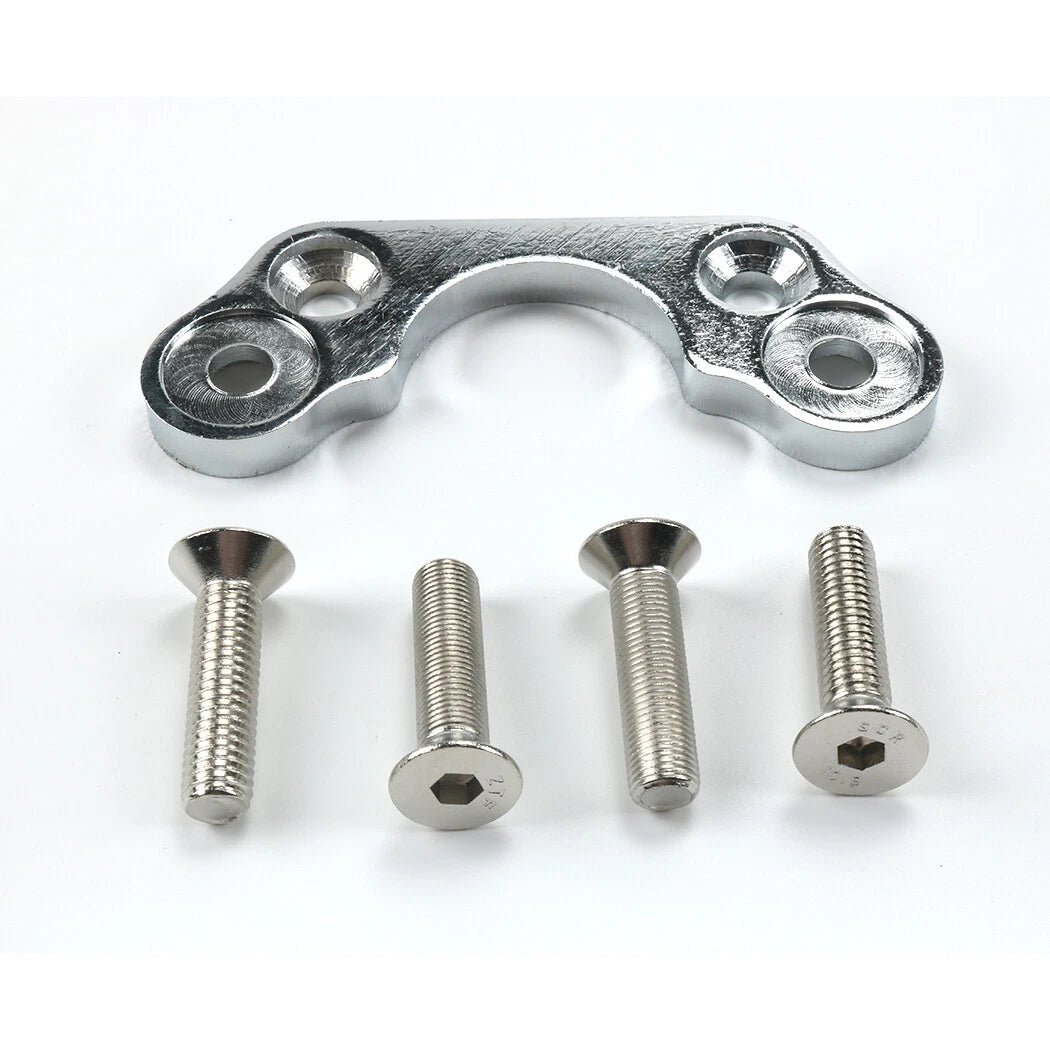

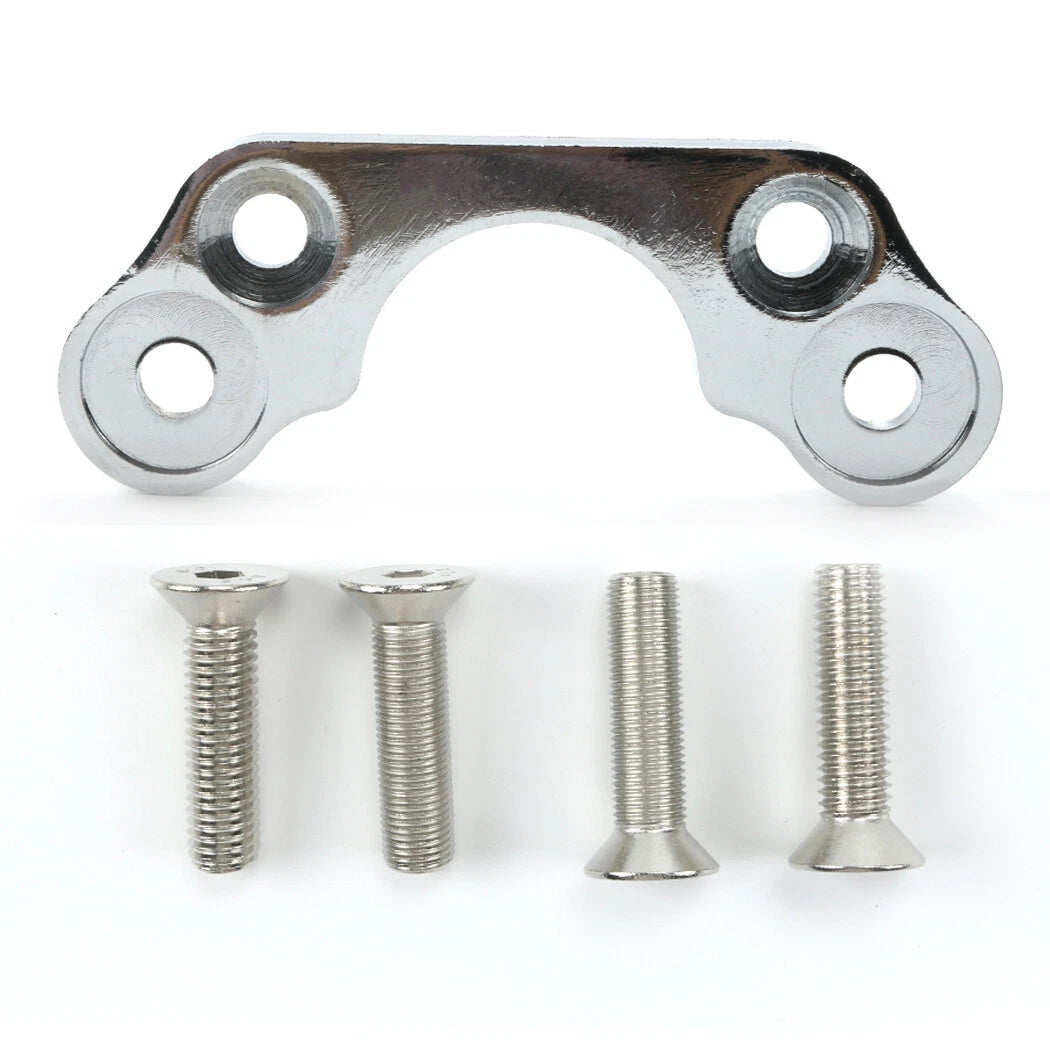

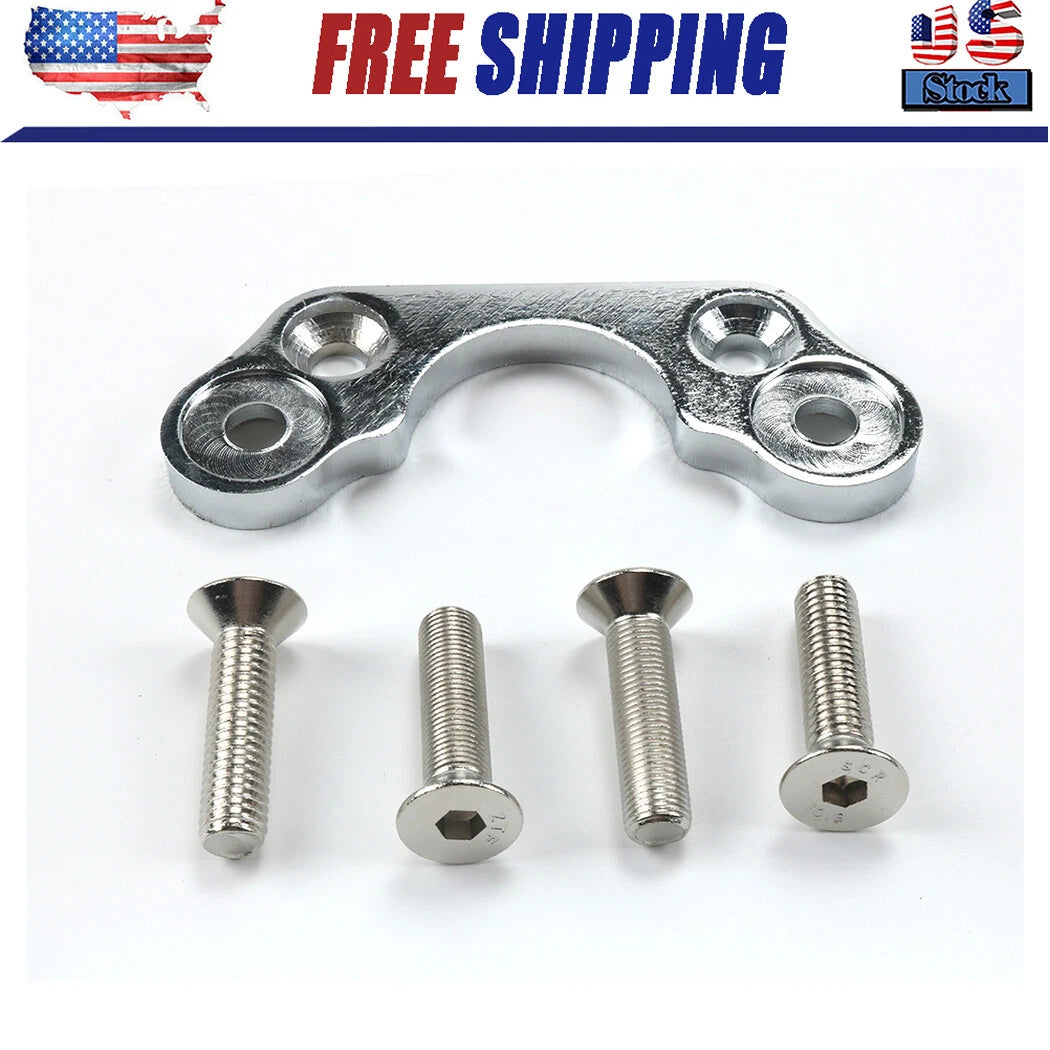

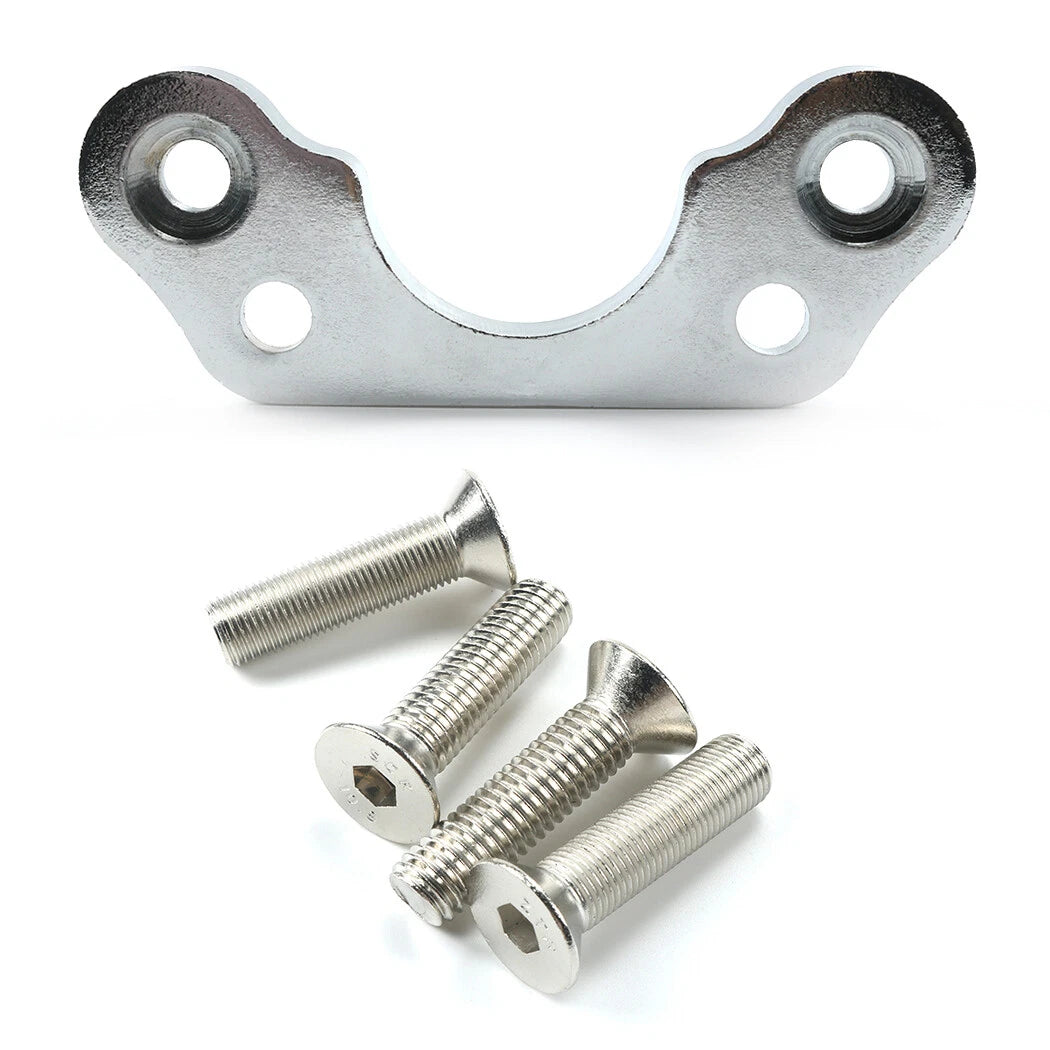

Supplied hardware

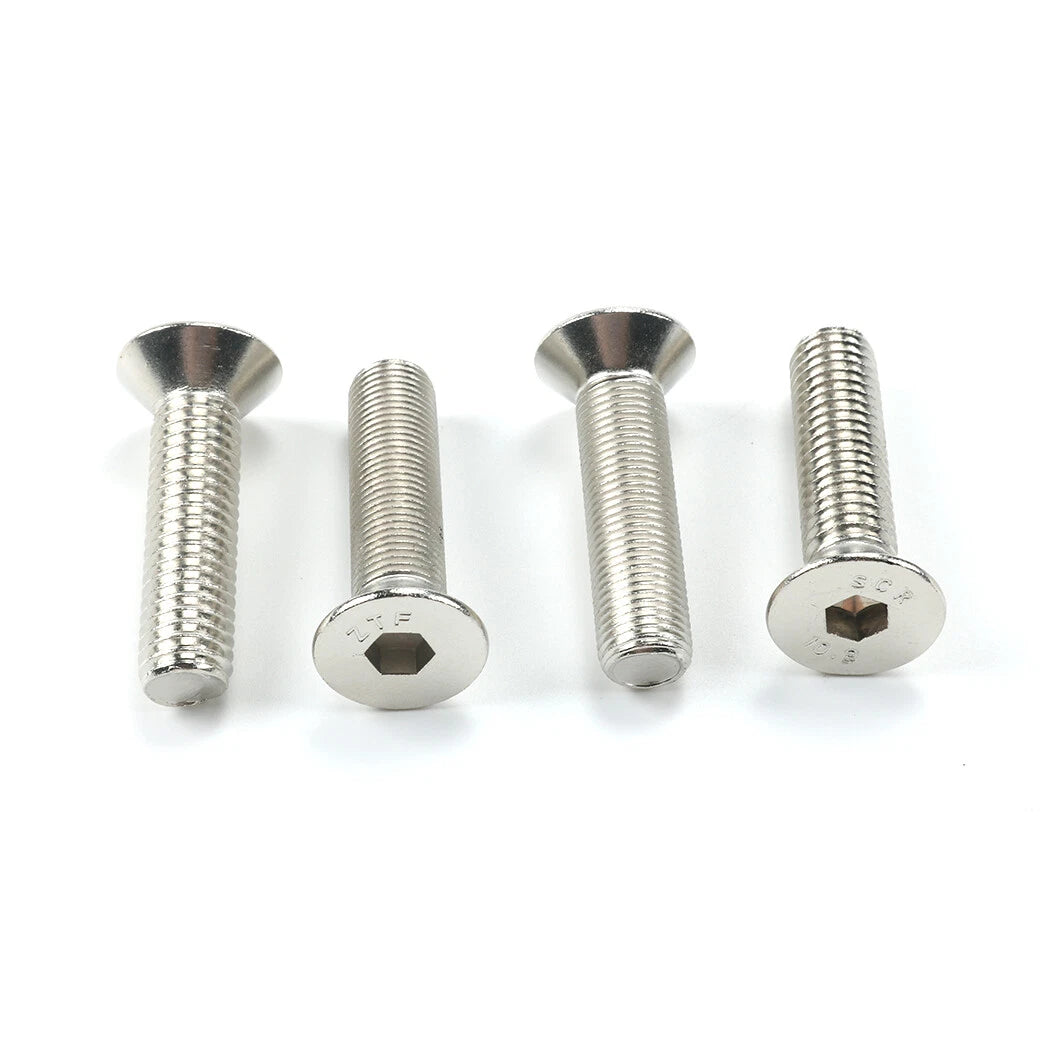

Four 1/2 in bolts: two coarse thread and two fine thread

Package

One adapter plate and four bolts

Check the fork and riser connections

Measure the mounting centers on your fork and risers before ordering. Check the receiving thread diameter and pitch against the supplied hardware, along with bolt length and clearance around the plate. The coarse and fine thread labels alone do not establish a match.

Compatibility with factory Harley-Davidson Springer front ends and bolt-through risers has not been confirmed for this kit. Aftermarket Springer designs also vary, so a motorcycle model name or the word Springer is not enough to establish fitment. Confirm the complete mounting arrangement before purchase.
