Aluminum Bottom Wall Bracket for Sunchaser II RV Awning

Bottom mounting bracket for Sunchaser II RV awnings

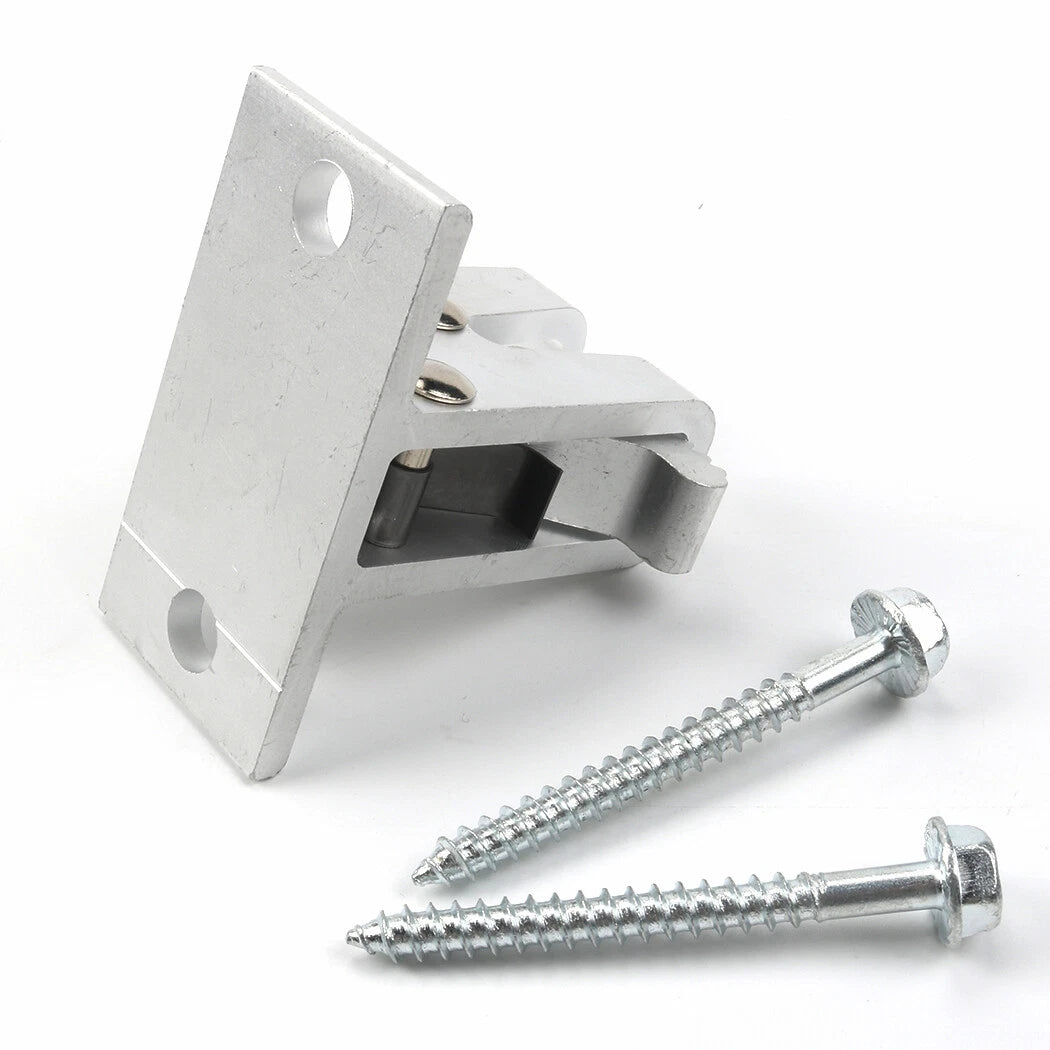

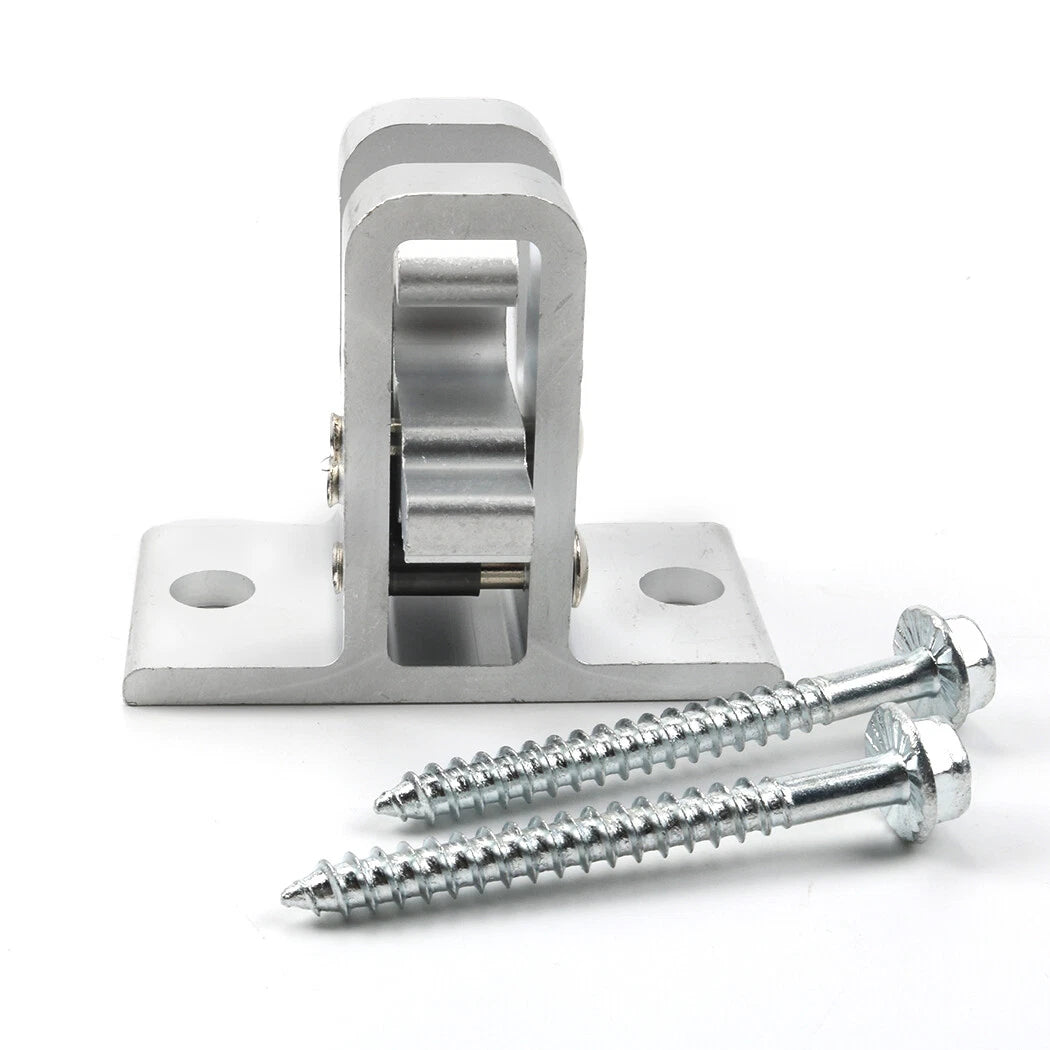

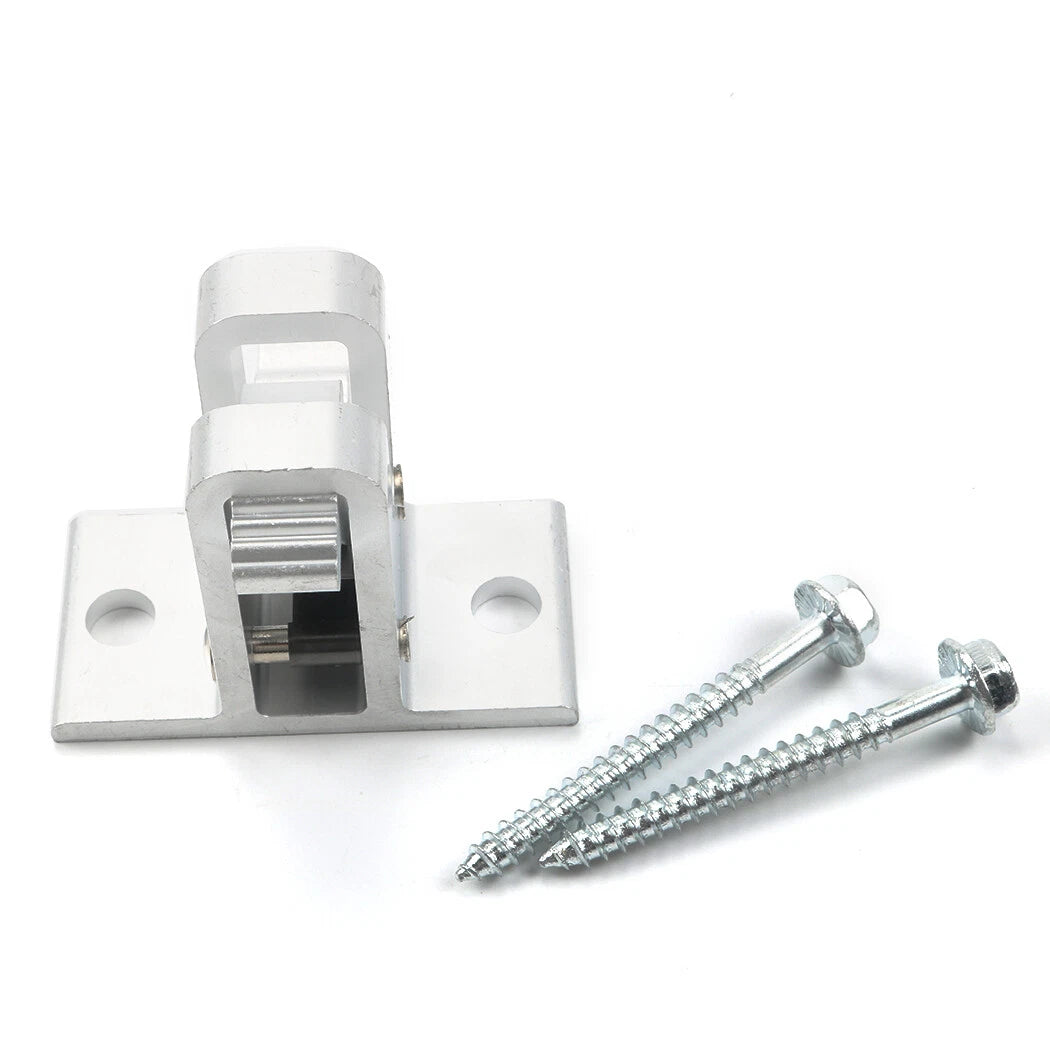

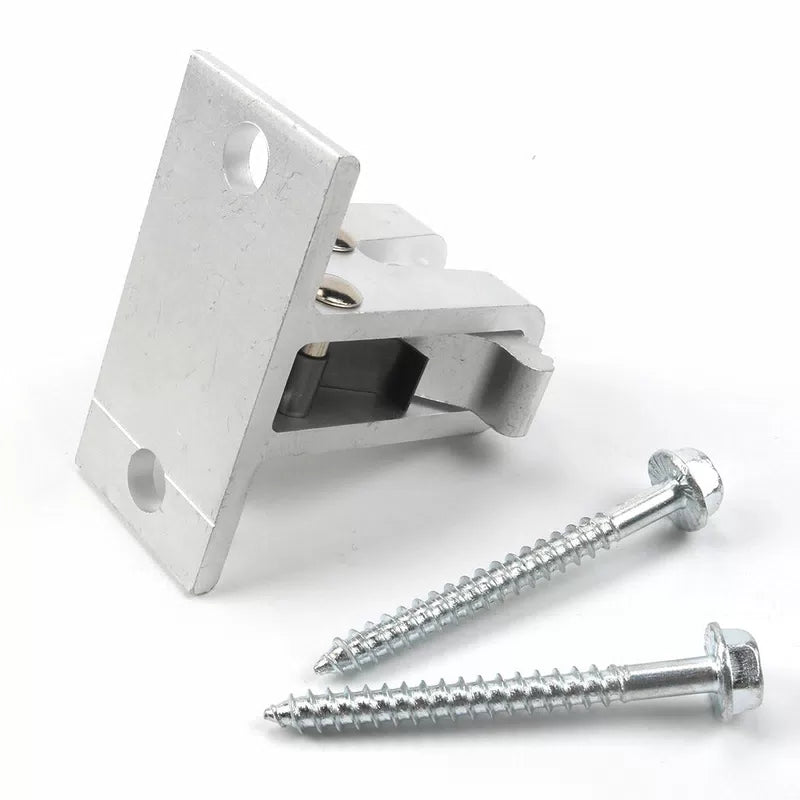

This aluminum replacement bracket holds the lower awning arm foot against the RV wall on a matching Sunchaser II setup. The package contains one assembled bracket and two mounting screws. Its flat backplate has a mounting hole at each end, while the projecting latch receives the arm's patio foot.

One bracket with an assembled latch

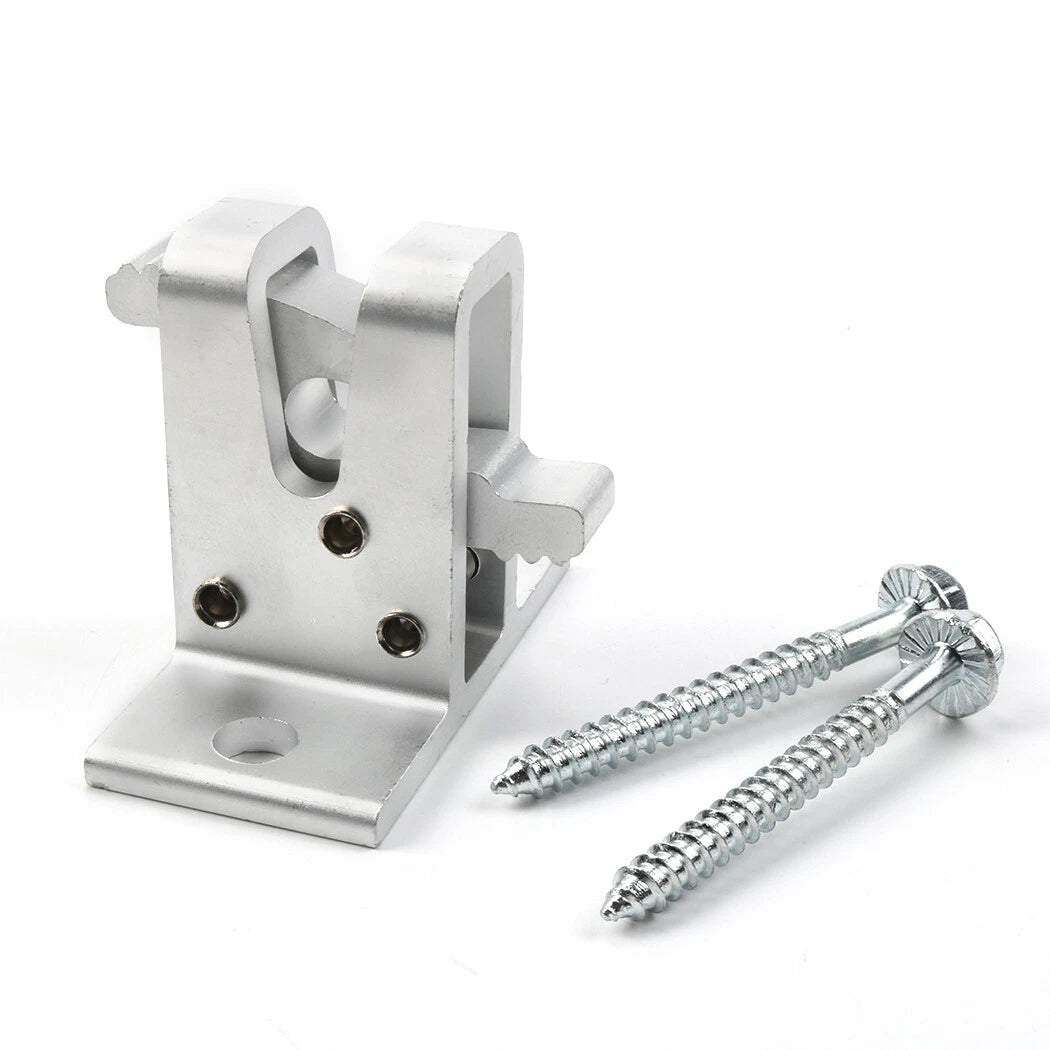

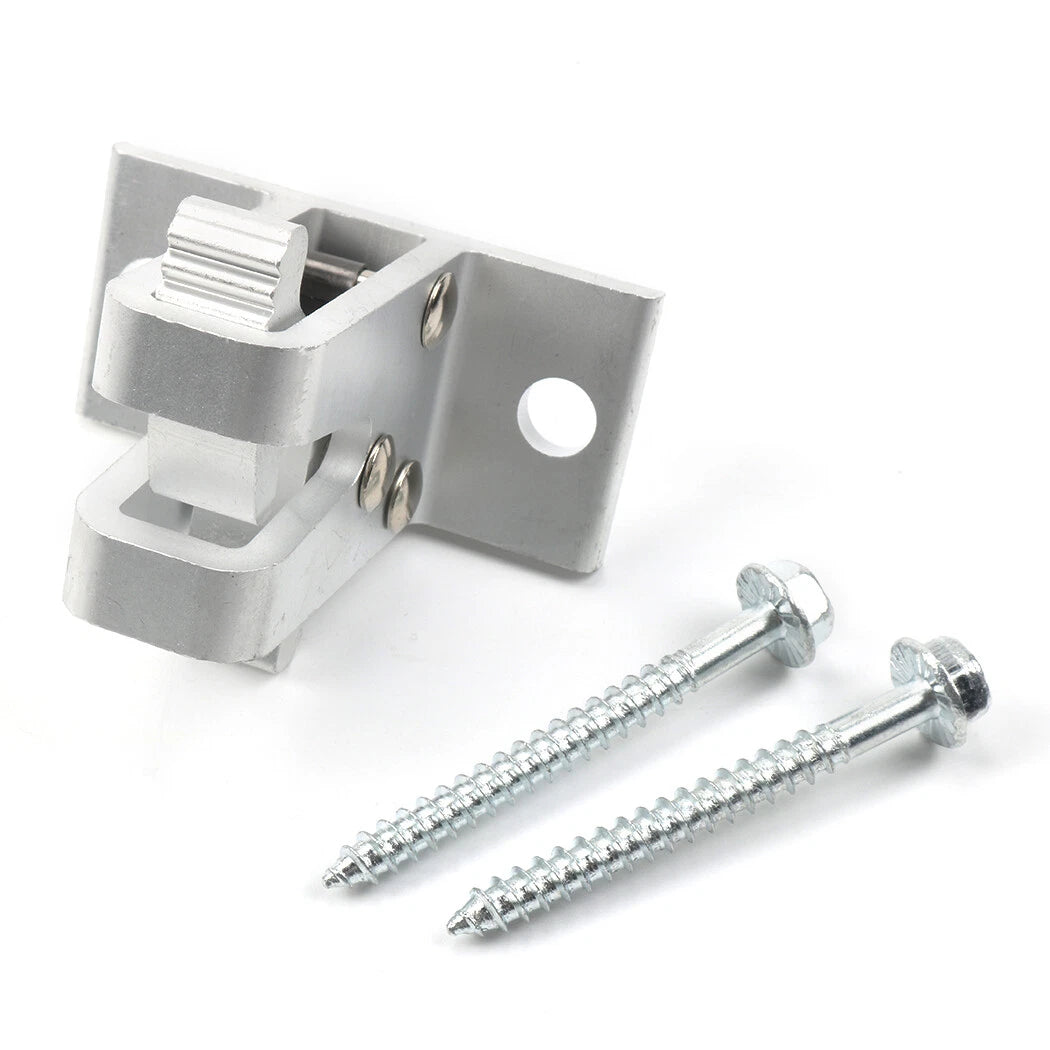

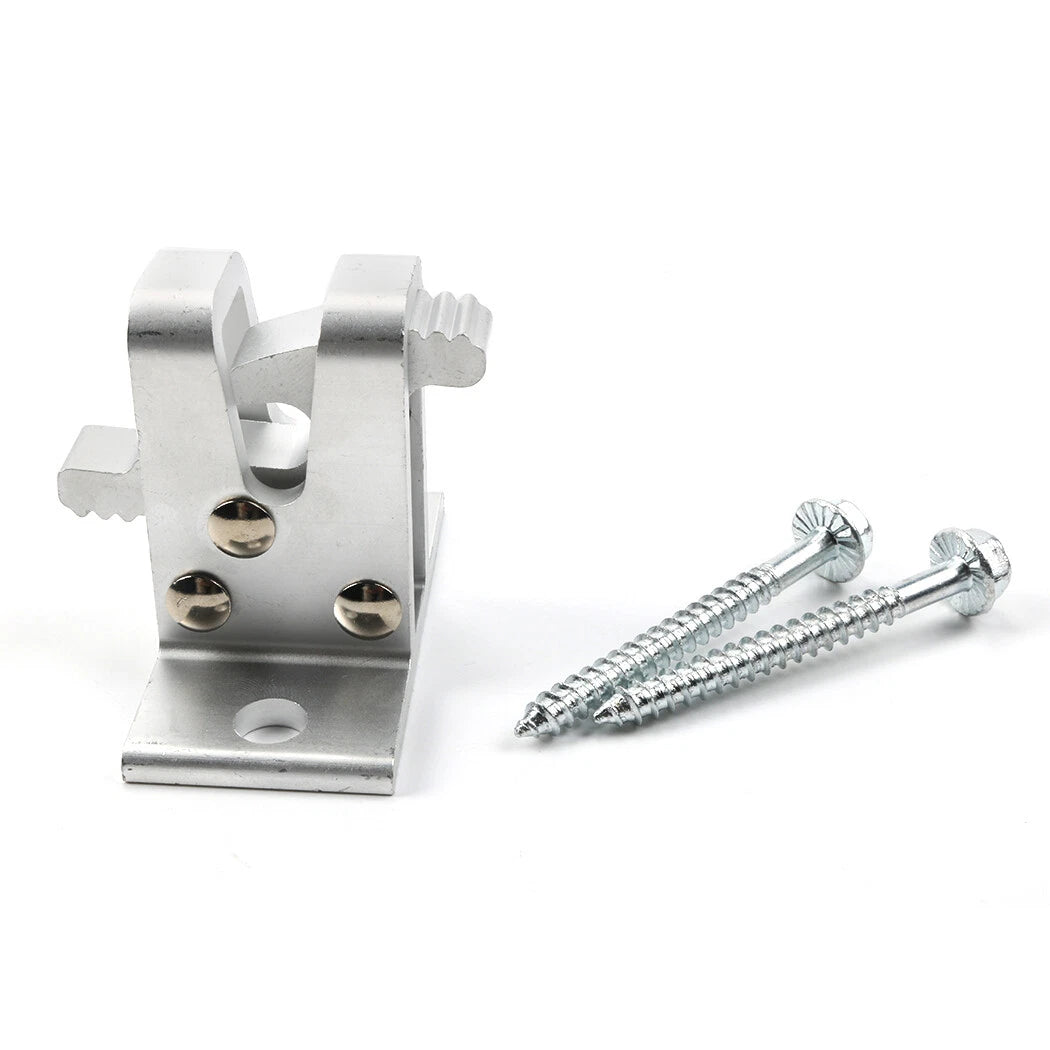

The silver-colored bracket has a pivoting latch with ribbed release tabs and attached pivot hardware. Compare the backplate, latch opening and foot connection with the bracket being replaced. These details matter as much as the awning name: a wall bracket must match the foot on the installed arm.

Application

Matching Sunchaser II RV awning bottom mount

Bracket quantity

One assembled bottom wall bracket

Included fasteners

Two pointed hex-head mounting screws

Bracket material

Aluminum

Appearance

Silver-colored bracket and fasteners

Wall attachment

Flat backplate with two mounting holes

Arm connection

Assembled latch for a matching patio foot

Other components

Awning arm, patio foot and wall spacer are not included

Check the wall mount and arm foot

Before ordering, confirm that the awning is a Sunchaser II and compare both mounting-hole centers and the latch shape with the existing part. Hole spacing and bracket dimensions are not specified, so the photos should not be used as a scale drawing.

Dometic's Sunchaser II installation manual places this bottom bracket on the coach wall, with the patio foot at the bottom of the inner arm snapping into it. Follow the manual for the installed awning when replacing the bracket, including suitable structural backing and sealing the mounting penetrations. If wall molding creates a gap behind the bracket, check the required spacer arrangement before fastening it.
