Reverse control cable for Yamaha FX, F1B-6149C-02-00 / 01-00

Reverse control cable for Yamaha FX watercraft

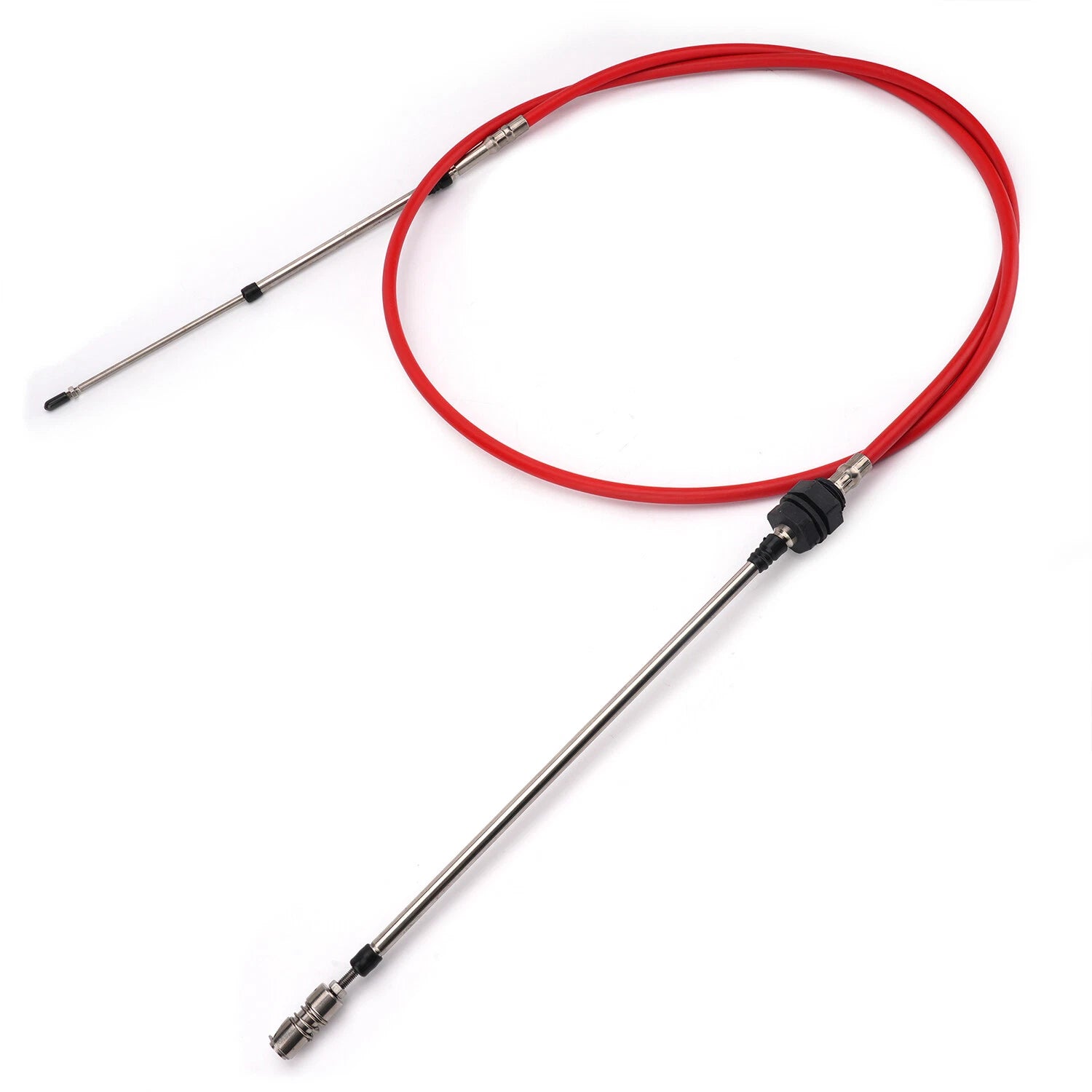

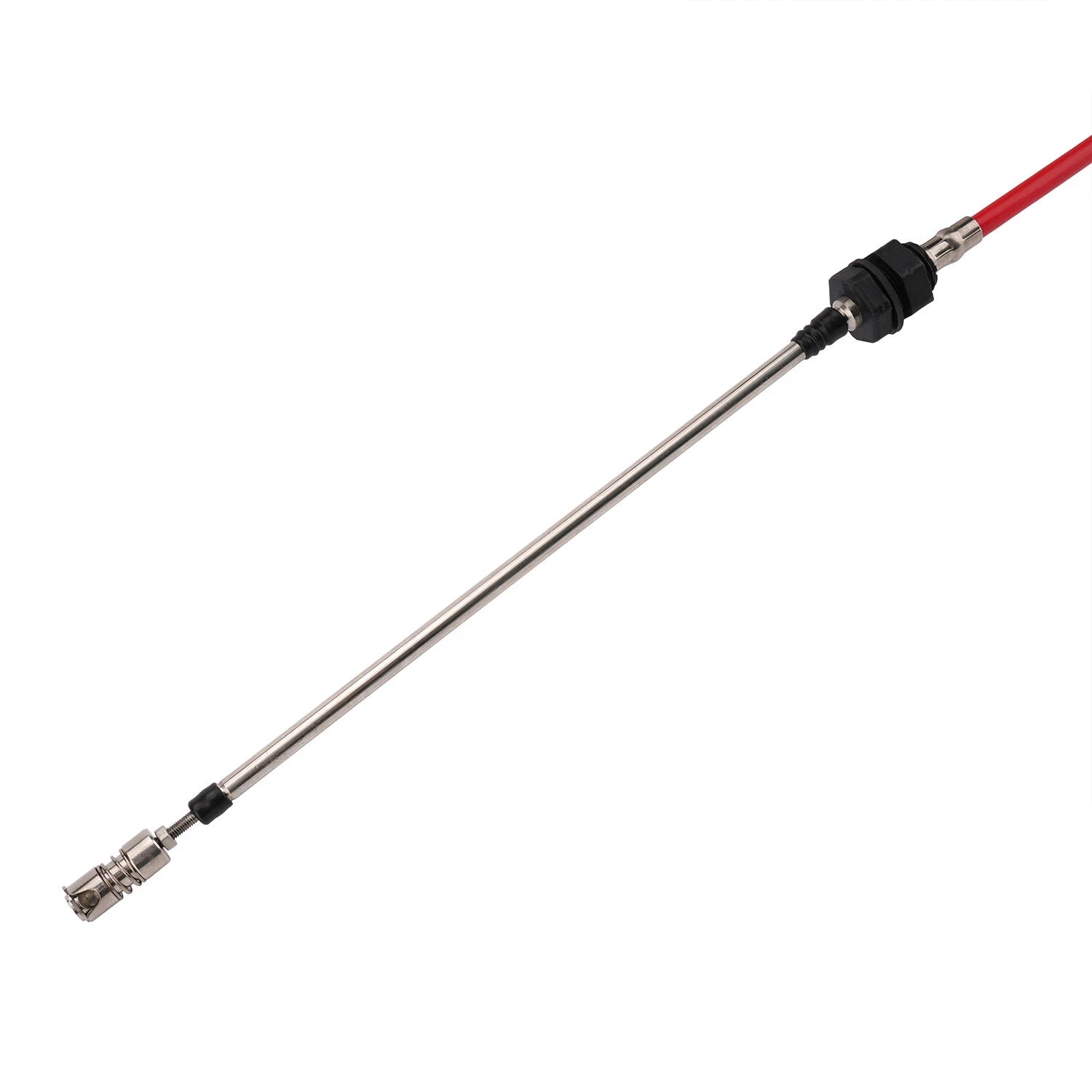

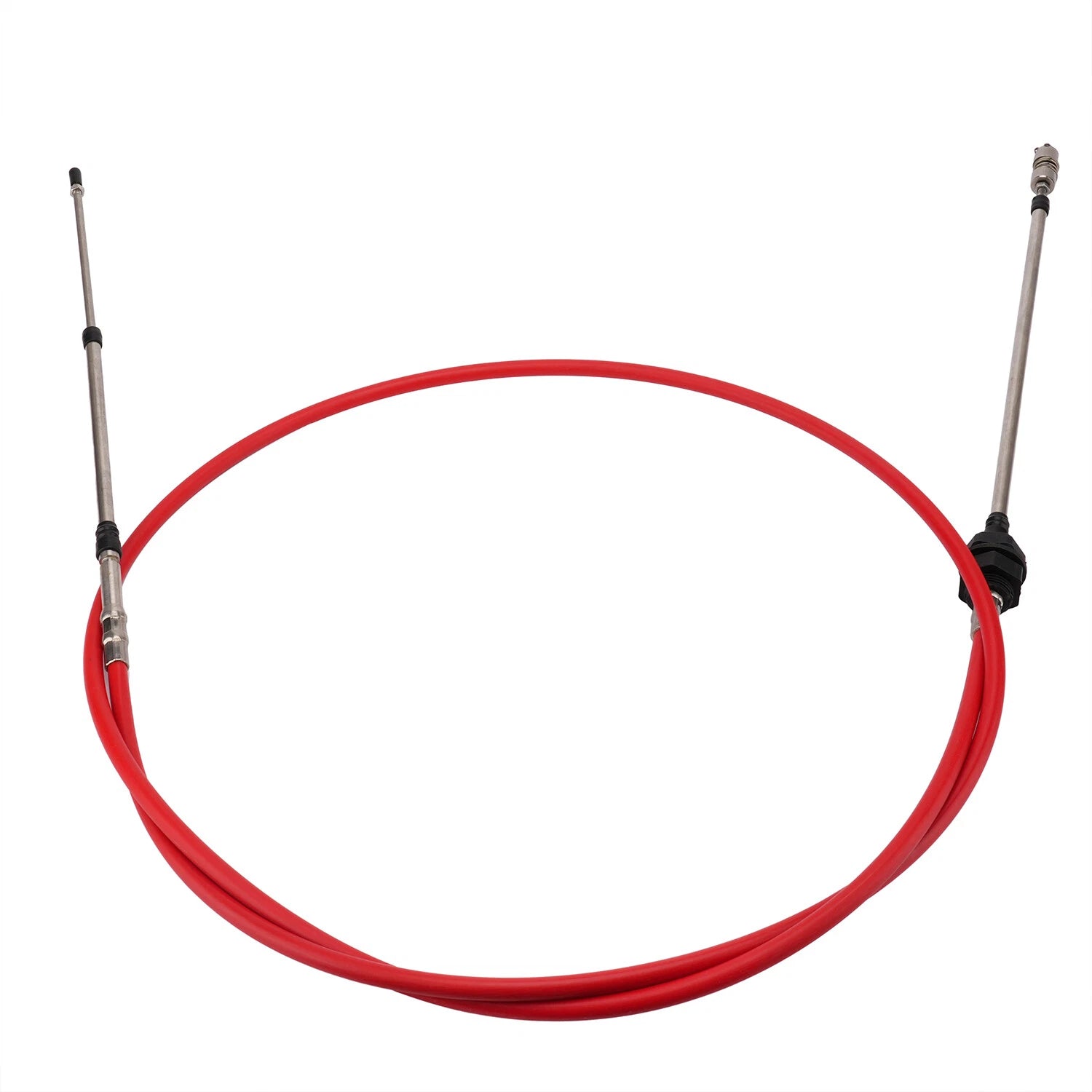

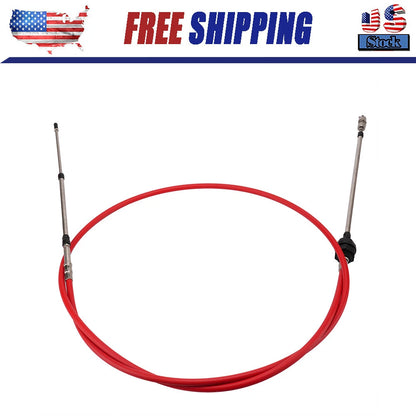

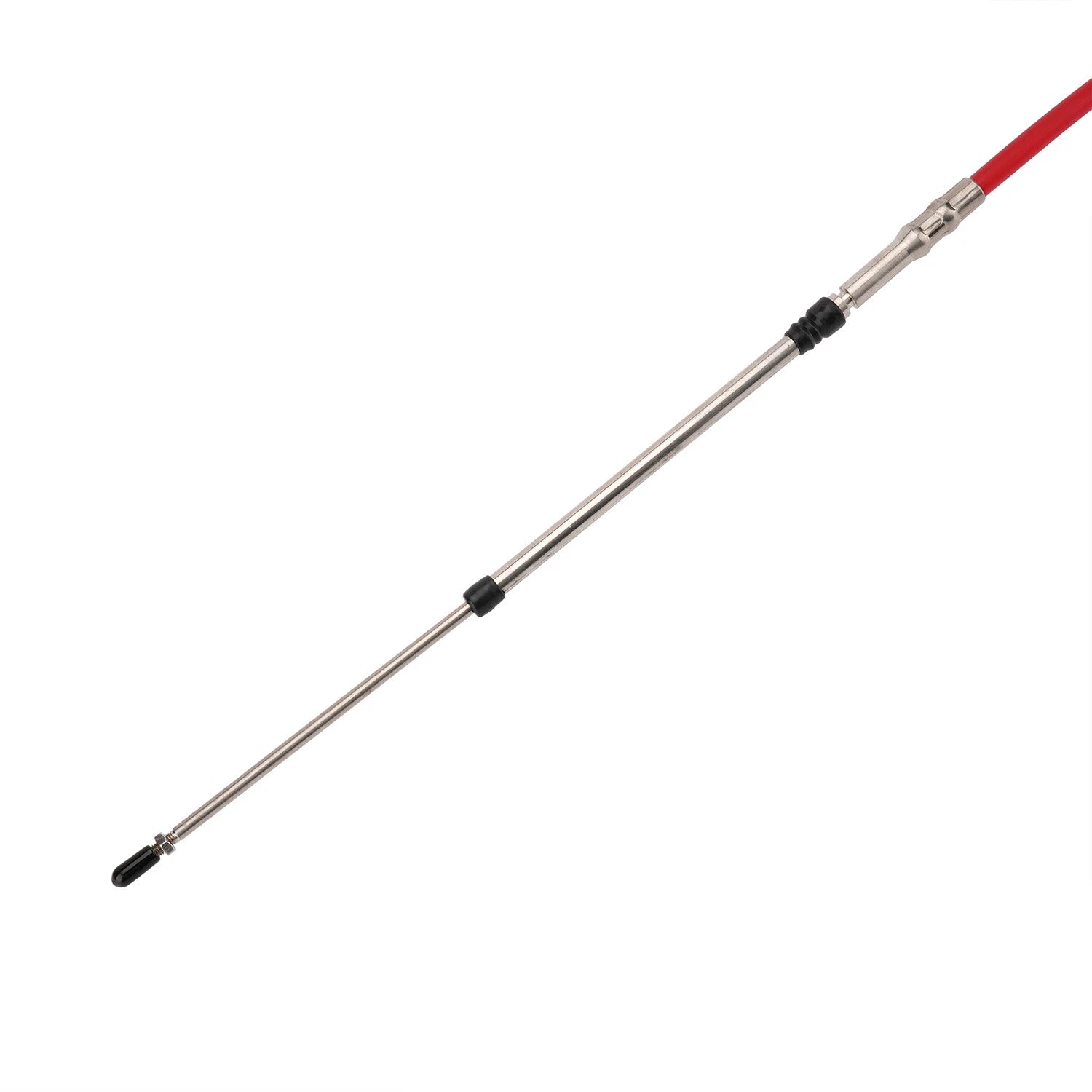

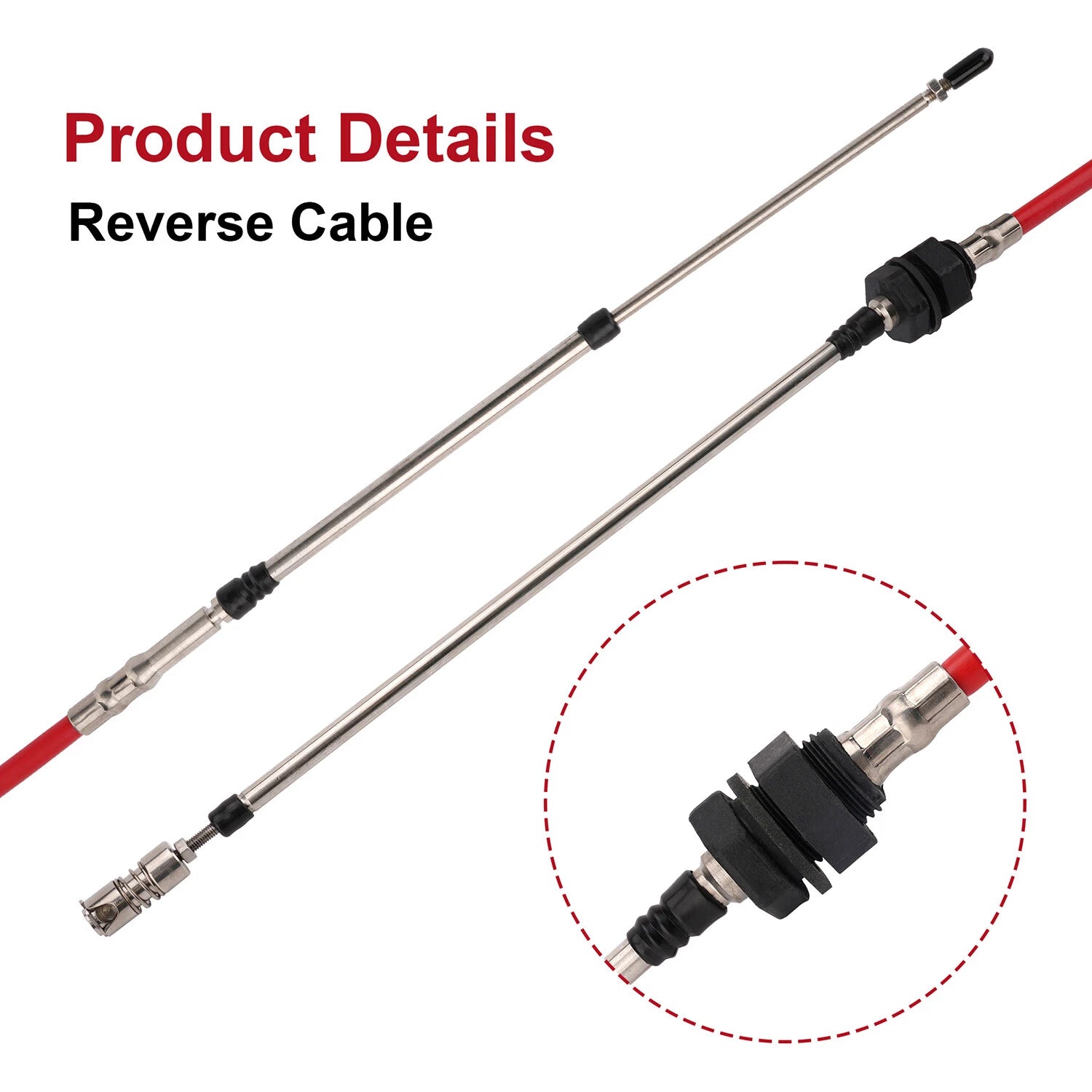

This red-sheathed replacement cable has long metal end sections, a black eyelet at one end and a metal coupling with a spring collar at the other. A large black threaded mounting body is fitted near the coupling end. Compare both connections and that mounting body with your existing reverse cable.

Dimensions and connections

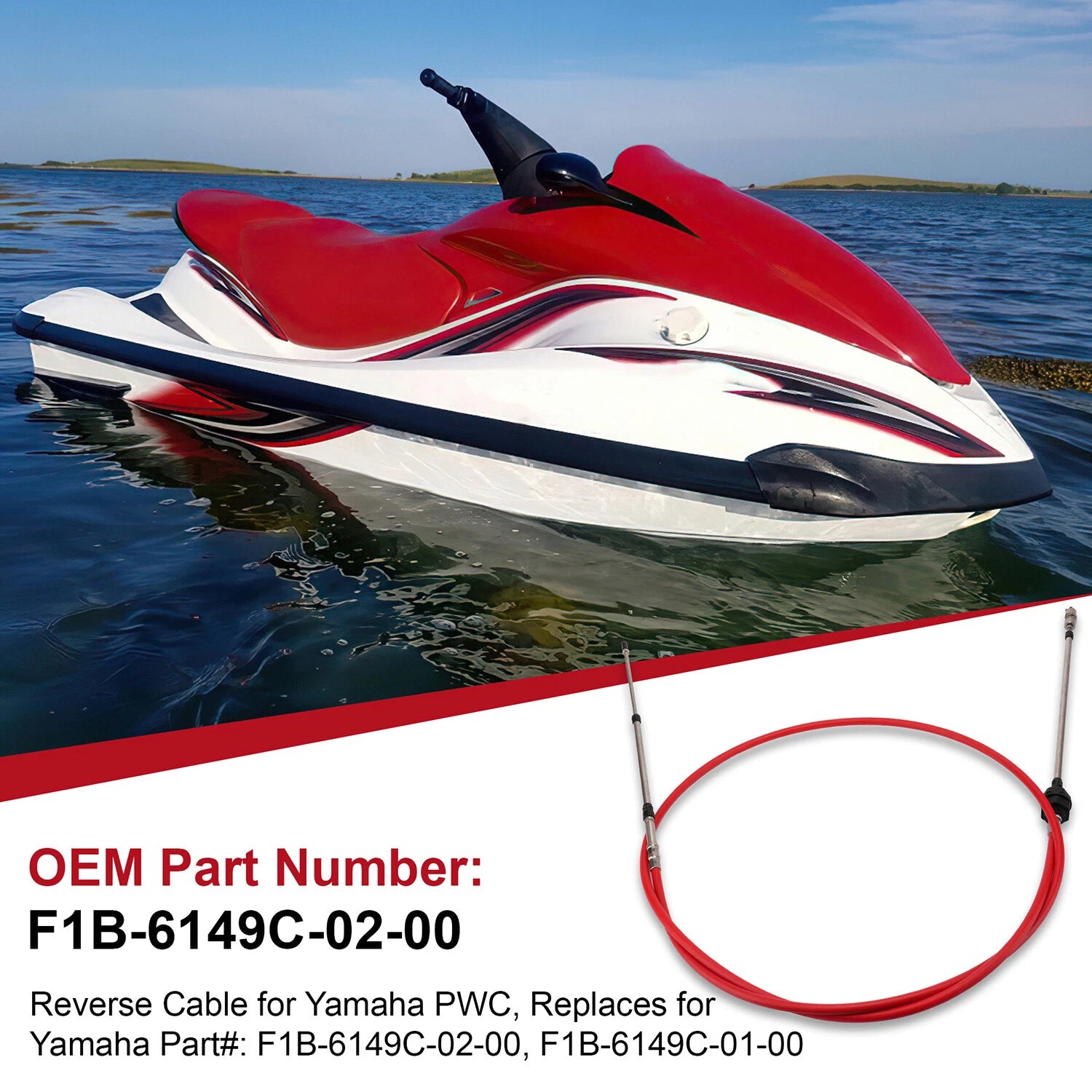

Replacement references

F1B-6149C-02-00; F1B-6149C-01-00

Listed length

100 in

Listed throw

4.5 in

Outer sheath color

Red

End connections

Black eyelet; metal coupling with spring collar

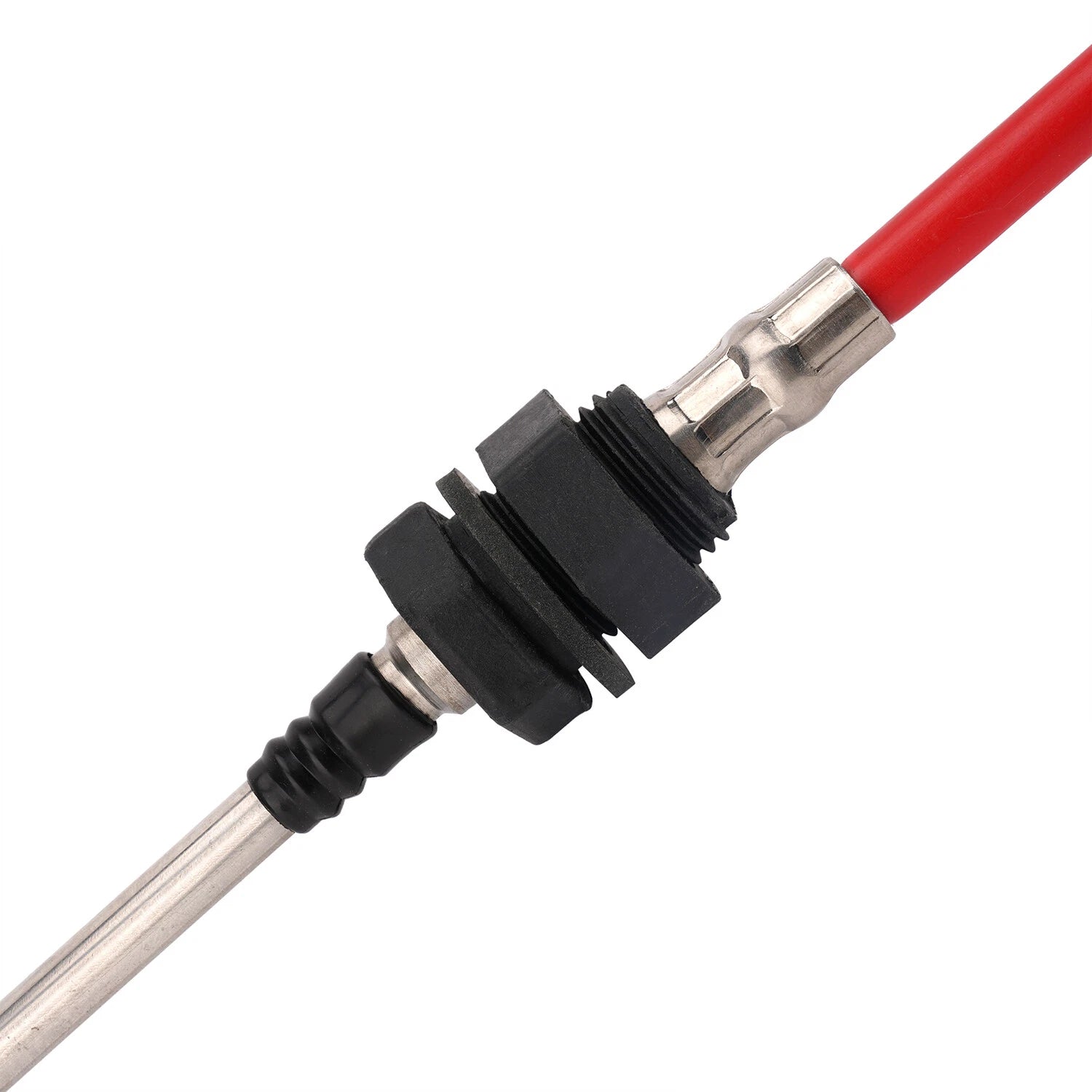

Mounting feature

Black threaded body with fitted nut and ring hardware

Pictured supply

One cable assembly with attached end fittings

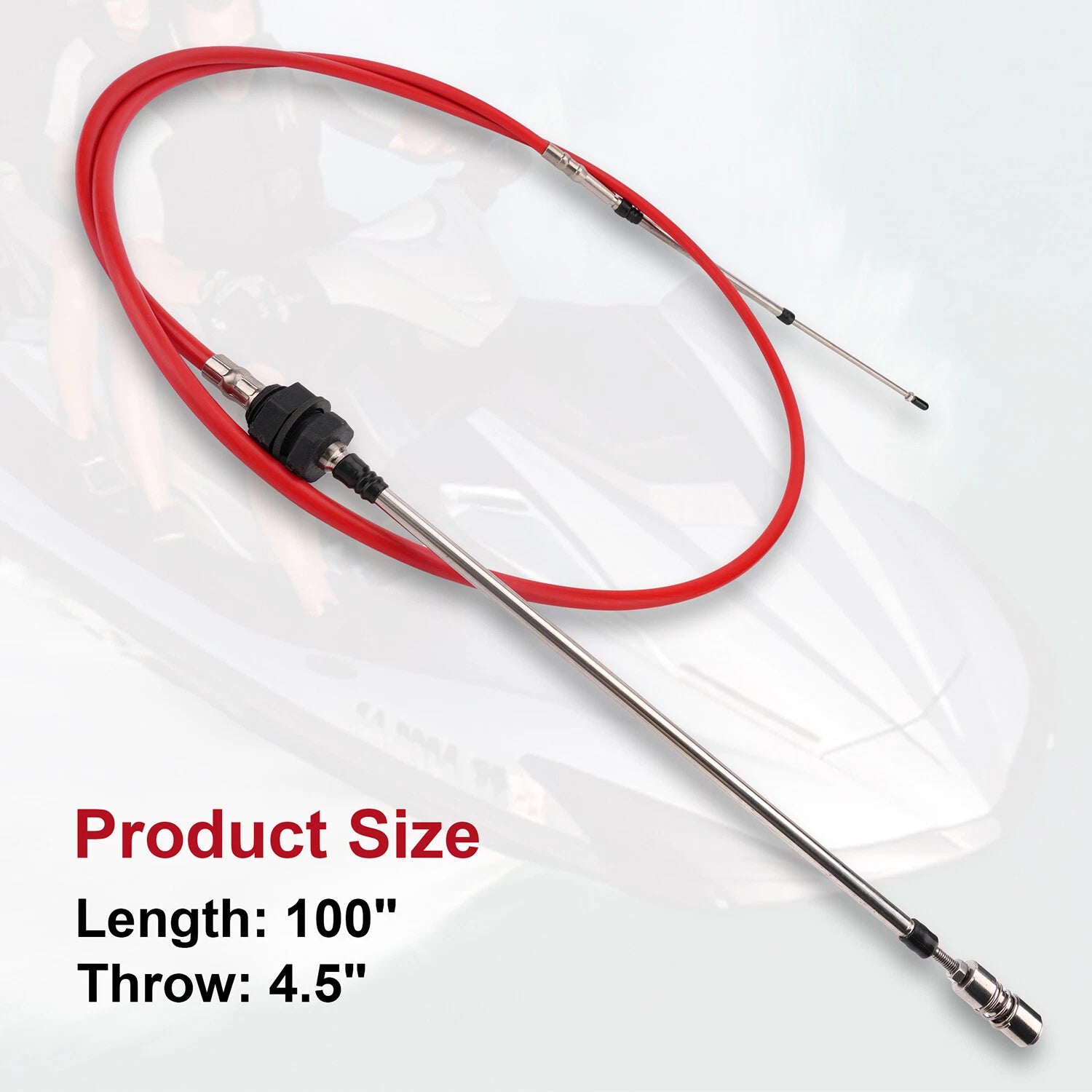

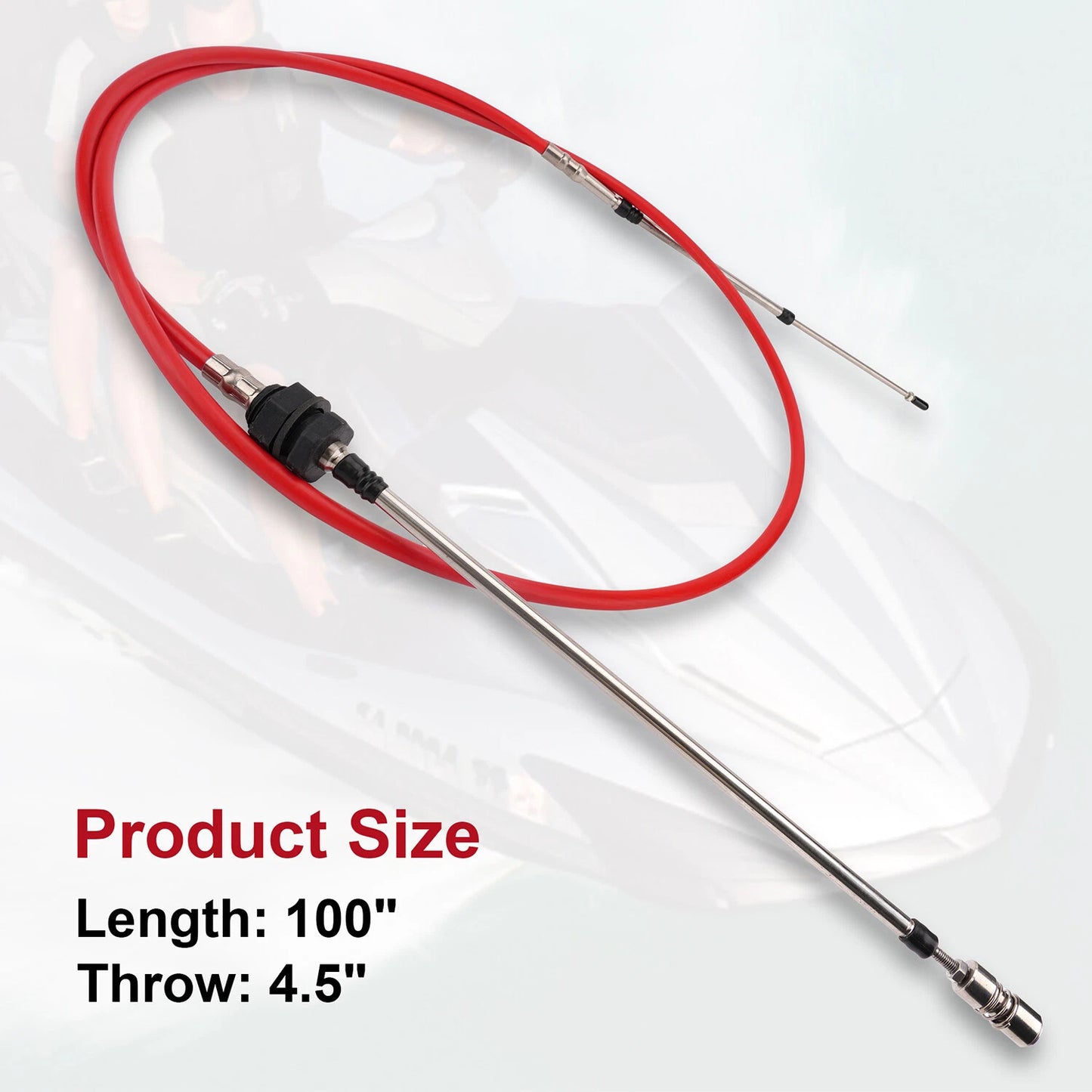

The length and throw are separate values in the product graphic. The graphic does not mark the length measurement endpoints or give the outer casing length. Do not use the 4.5-inch throw as a mounting dimension.

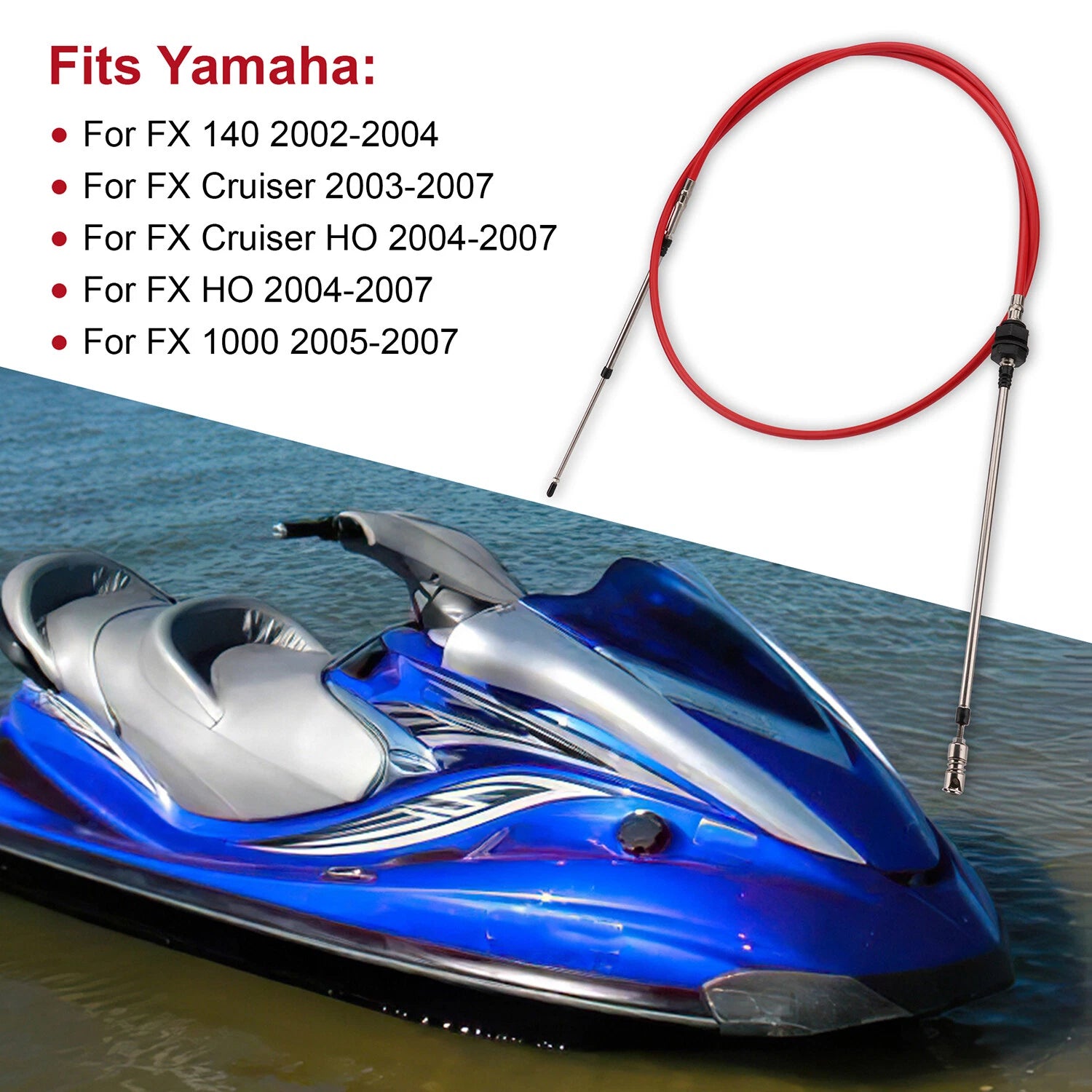

Applications listed in the product graphic

Yamaha FX 140

2002-2004

Yamaha FX Cruiser

2003-2007

Yamaha FX Cruiser HO

2004-2007

Yamaha FX HO

2004-2007

Yamaha FX 1000

2005-2007

Confirm the required cable reference using the full model code and year on your watercraft. The FX family name alone is insufficient: compare the end fittings, mounting position and routing length as well. These listed applications do not establish interchange with later FX models or VX watercraft.

Check the fittings before assembly

Inspect the existing linkage and cable supports for damage. Follow the model's service procedure for routing, securing the mounting body and adjusting the reverse linkage, then check its full movement before use. Thread sizes, eyelet opening dimensions, sealing specifications and adjustment settings are not provided for this replacement.
