Volvo Penta front propeller nut tool, reference 23161623

Front propeller nut tool, reference 23161623

This replacement tool is listed for Volvo Penta DuoProp DPH, DPI and DPR applications under references 23161623 and 21318669. Its purpose is to engage the front propeller nut during service. Confirm the drive version and installed nut arrangement before choosing the tool.

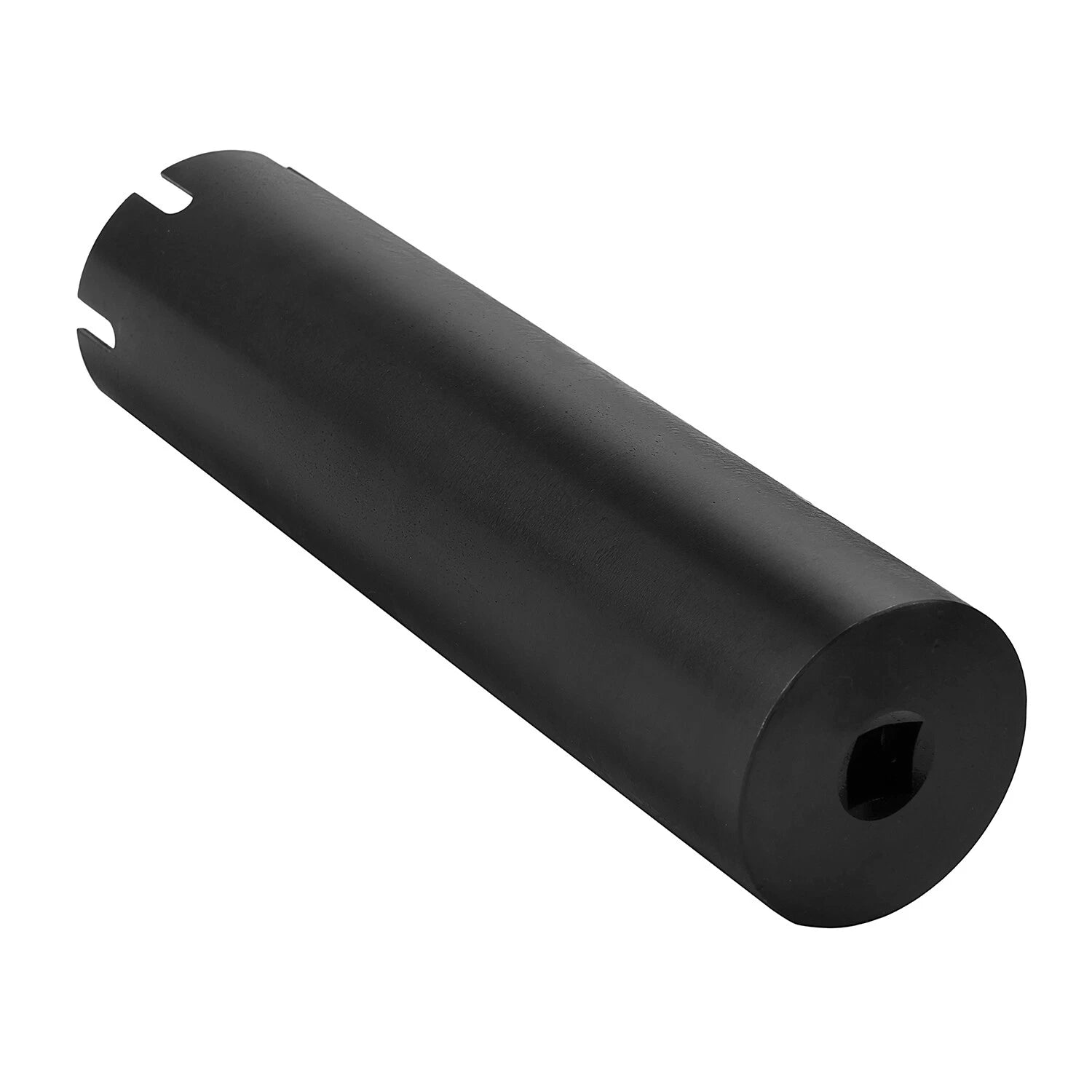

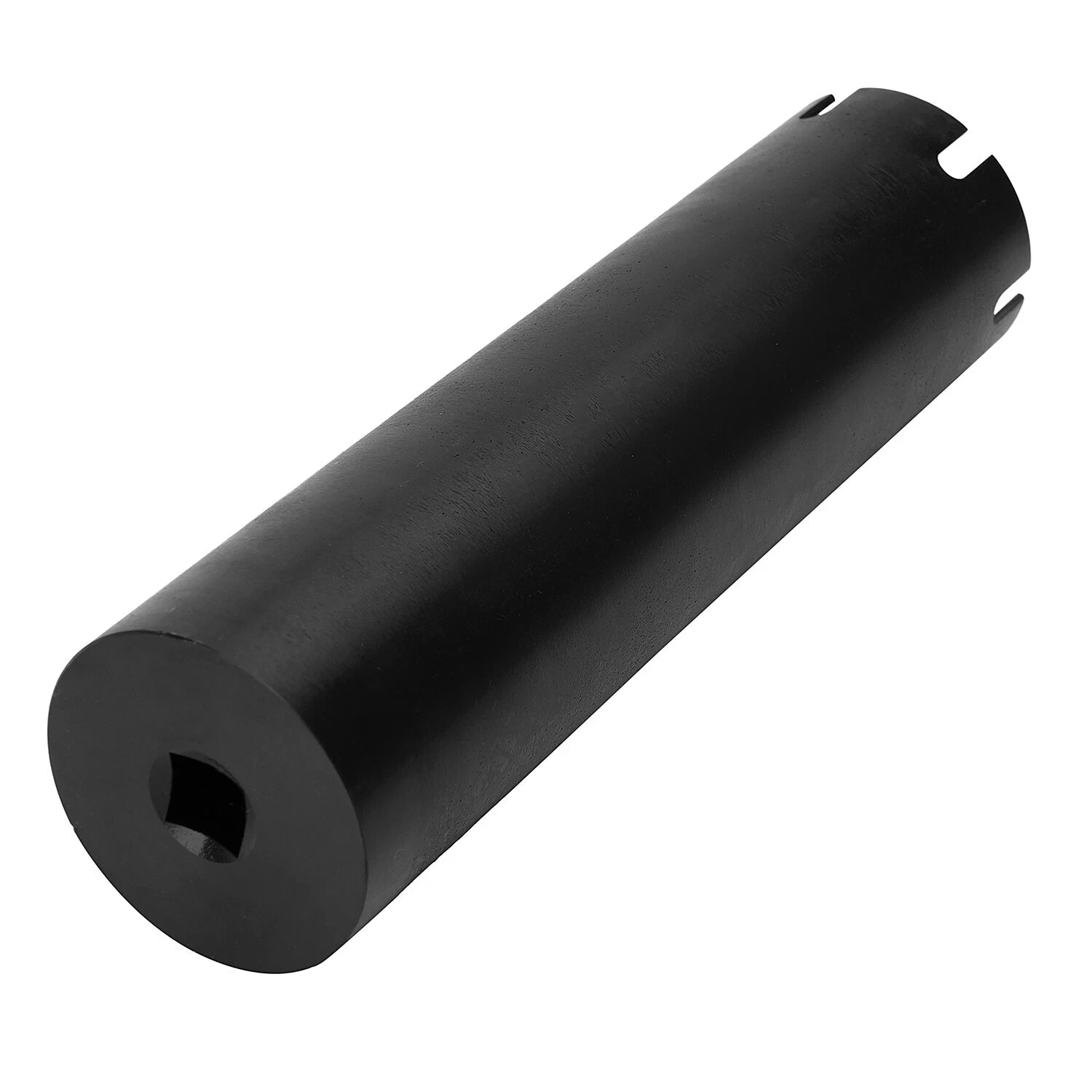

One long cylindrical tool is pictured. It has a black exterior, a square drive opening at the top and cutouts around the opposite rim. The listed material is steel. No ratchet, propeller nut, cone or other loose accessory is shown with it.

Tool details

Primary listed reference

23161623

Additional listed reference

21318669

Pictured quantity

One propeller nut tool

Listed drive families

DPH, DPI and DPR; verify the specific front-nut interface

Body

Long cylindrical body with black exterior

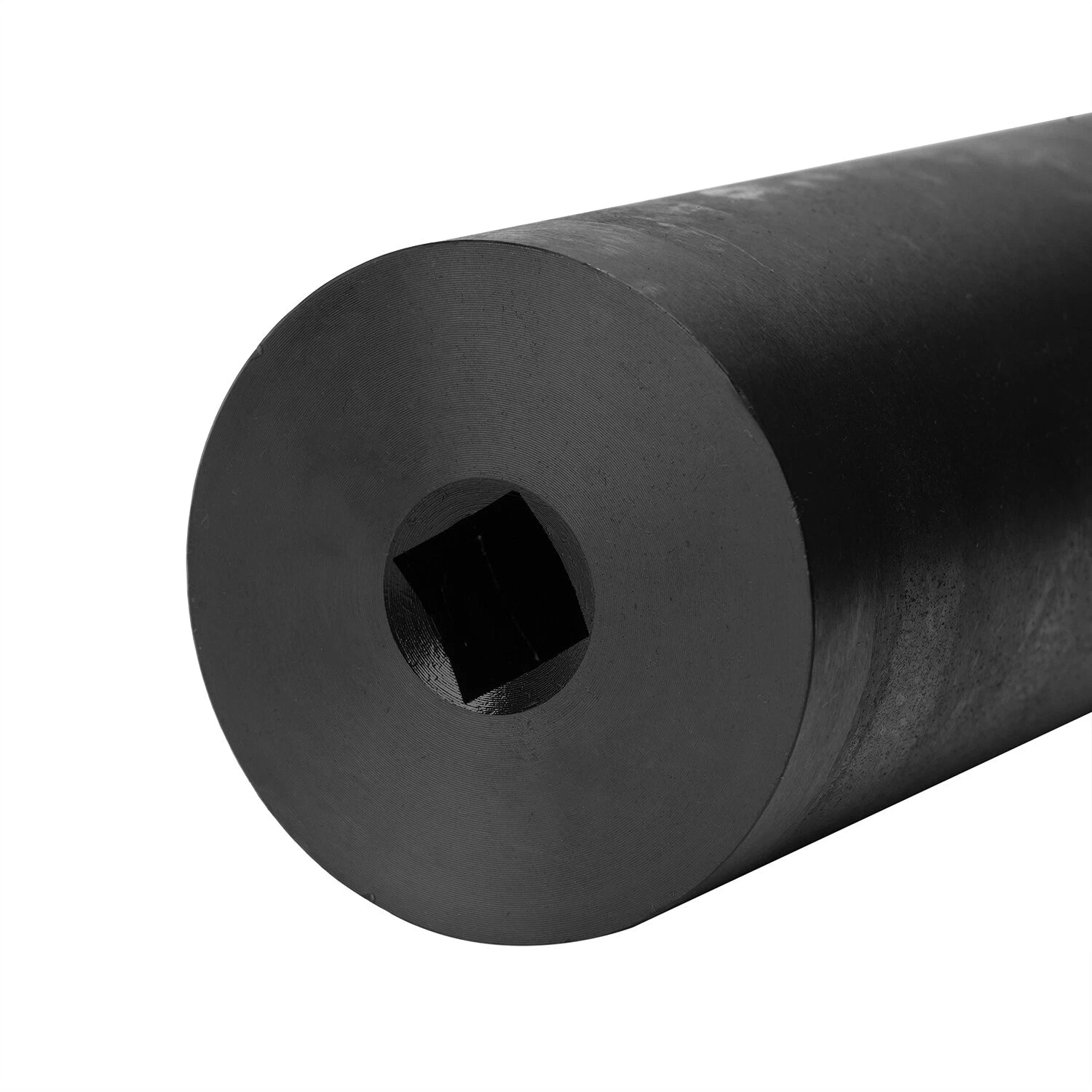

Drive end

Square opening; drive size unspecified

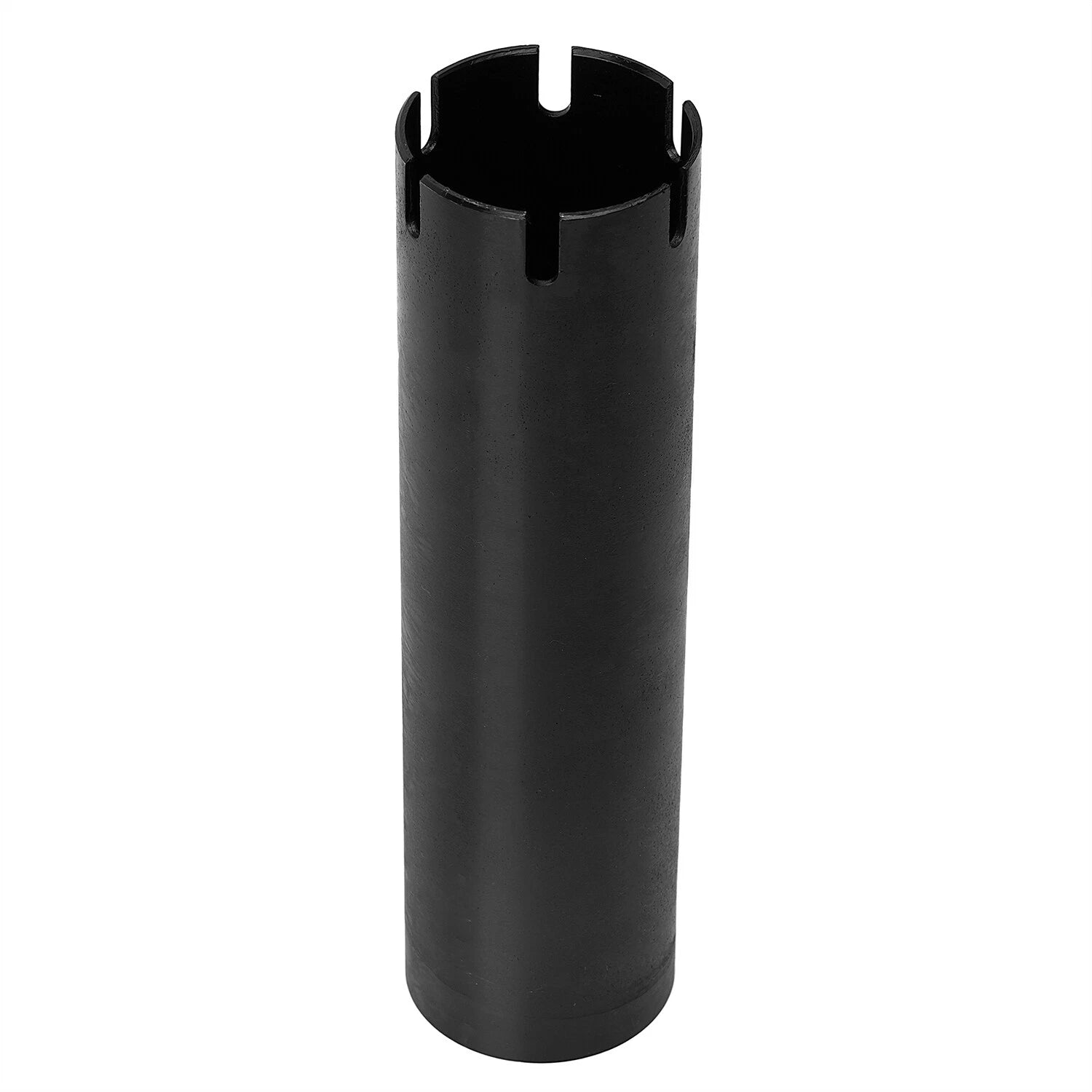

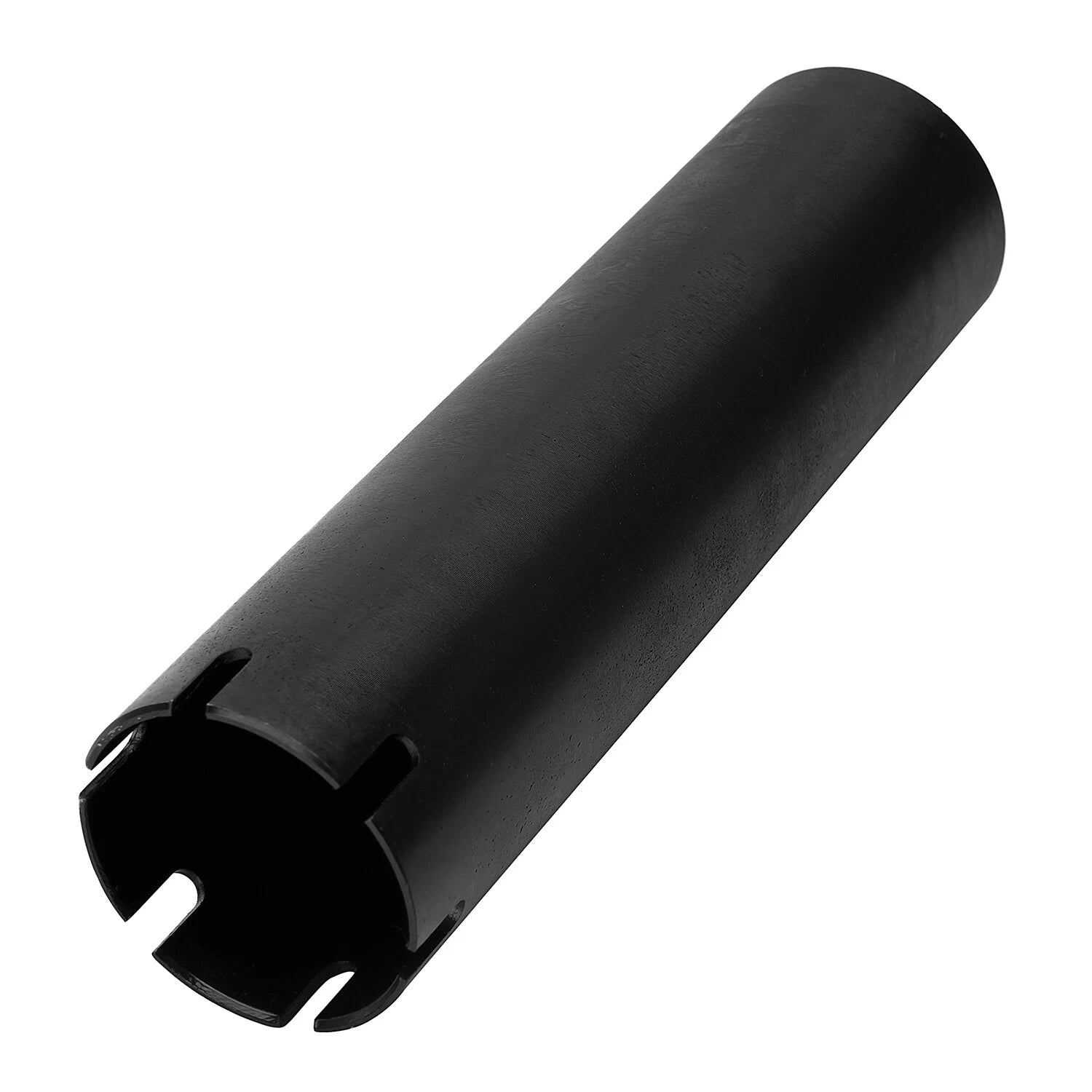

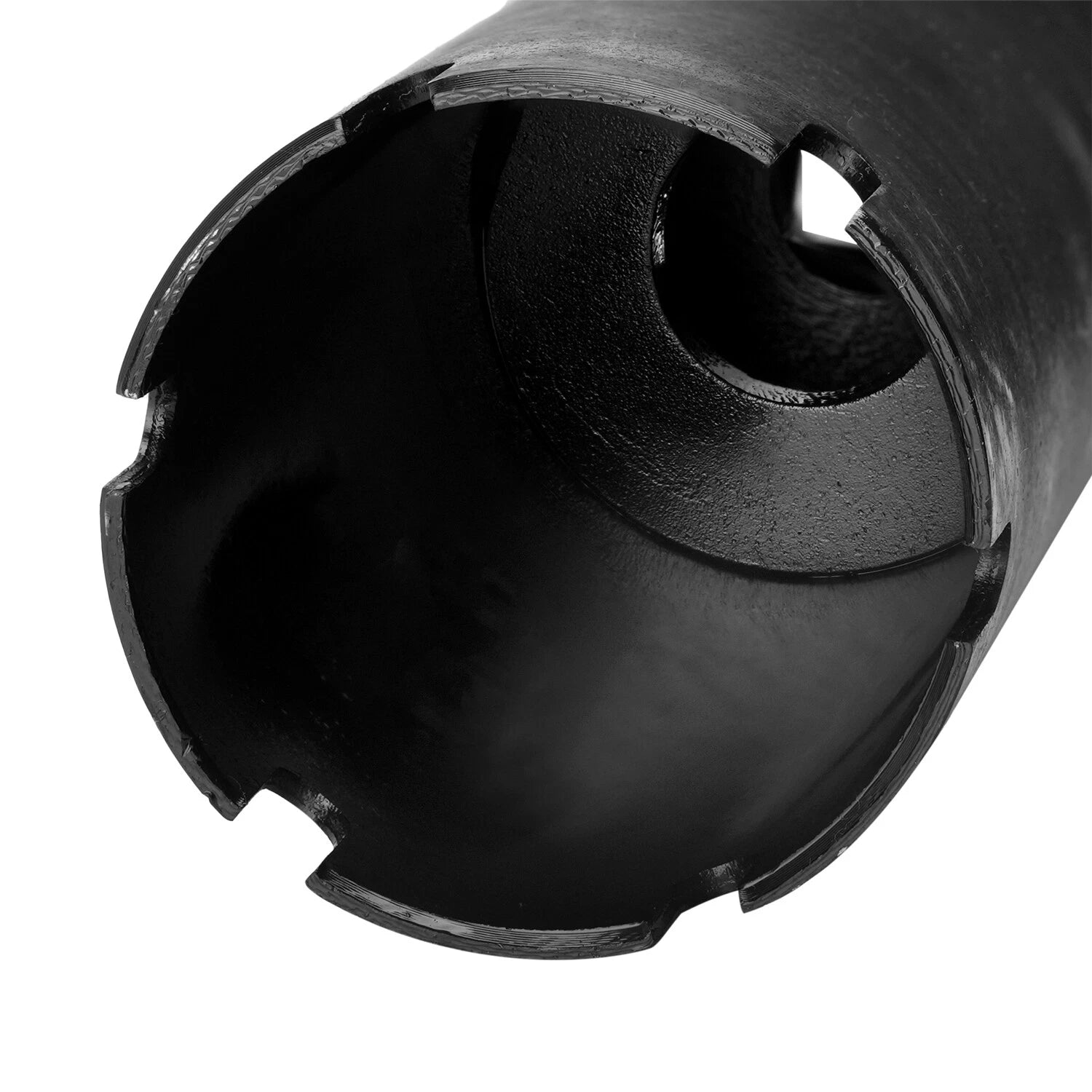

Engagement end

Notched rim at the opposite end

Listed material

Steel; alloy grade and load rating unspecified

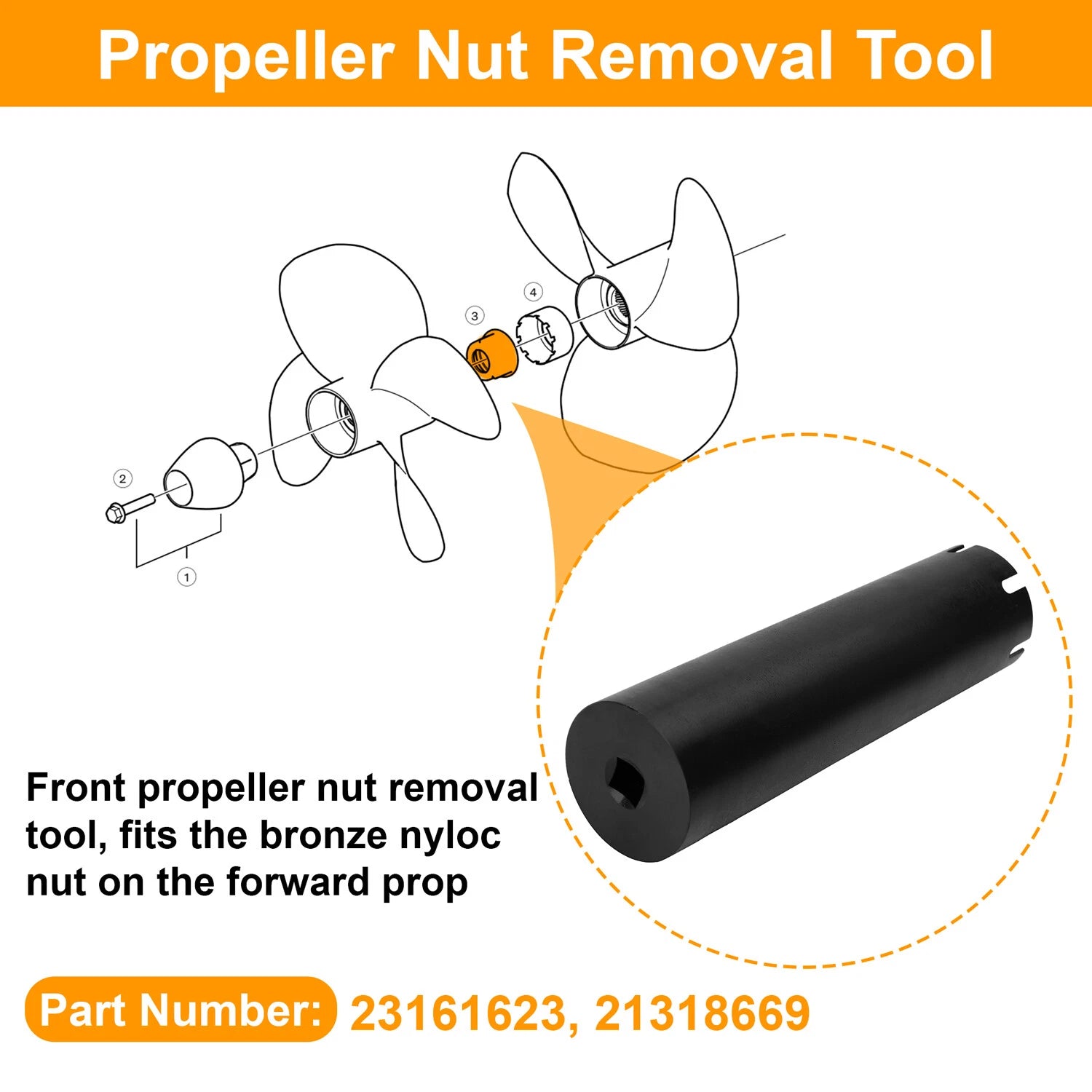

Identify the front nut and drive version

Check the drive identification, propeller type and front nut against the required tool reference. Front and rear propeller fasteners can use different arrangements, and this listing does not establish that the tool serves every nut on the drive. Confirm DPR applications against the installed hardware and the listed 21318669 reference as well.

Compare the nut's engagement features with the tool rim and check clearance over the surrounding shaft and hardware. Confirm the square-drive size before selecting a handle. Tool length, outside diameter, bore and notch dimensions are unspecified. Fit for SX or other DuoProp drive families has not been established.

Use the drive's propeller-service instructions

Follow the drive manufacturer's instructions for access, nut removal and reassembly, including the required tightening value and locking components. Check that the tool seats fully on the correct nut before applying force. It serves the nut-engagement step; extracting a seized propeller may require separate equipment. Inspect the tool's drive opening and rim for damage before use.
