White 3.2-gallon fuel tank for Suzuki DR-Z400E/S 2000-2017

White 3.2-gallon tank for DR-Z400E and DR-Z400S

This aftermarket plastic fuel tank is listed for Suzuki DR-Z400E and DR-Z400S motorcycles from 2000 to 2017. The stated capacity is 3.2 gallons; usable fuel volume and reserve volume have not been separately specified.

Tank, cap and mounting pieces

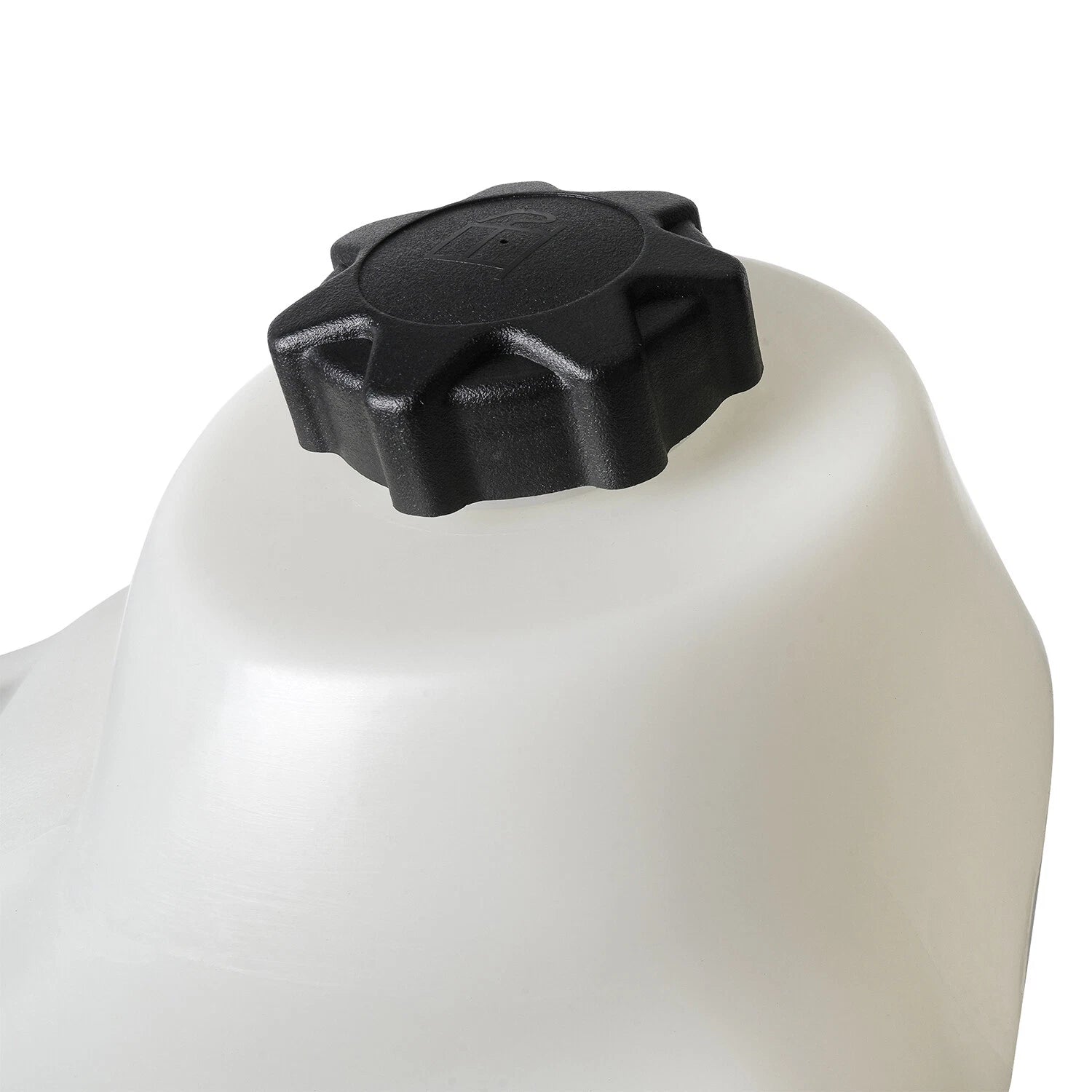

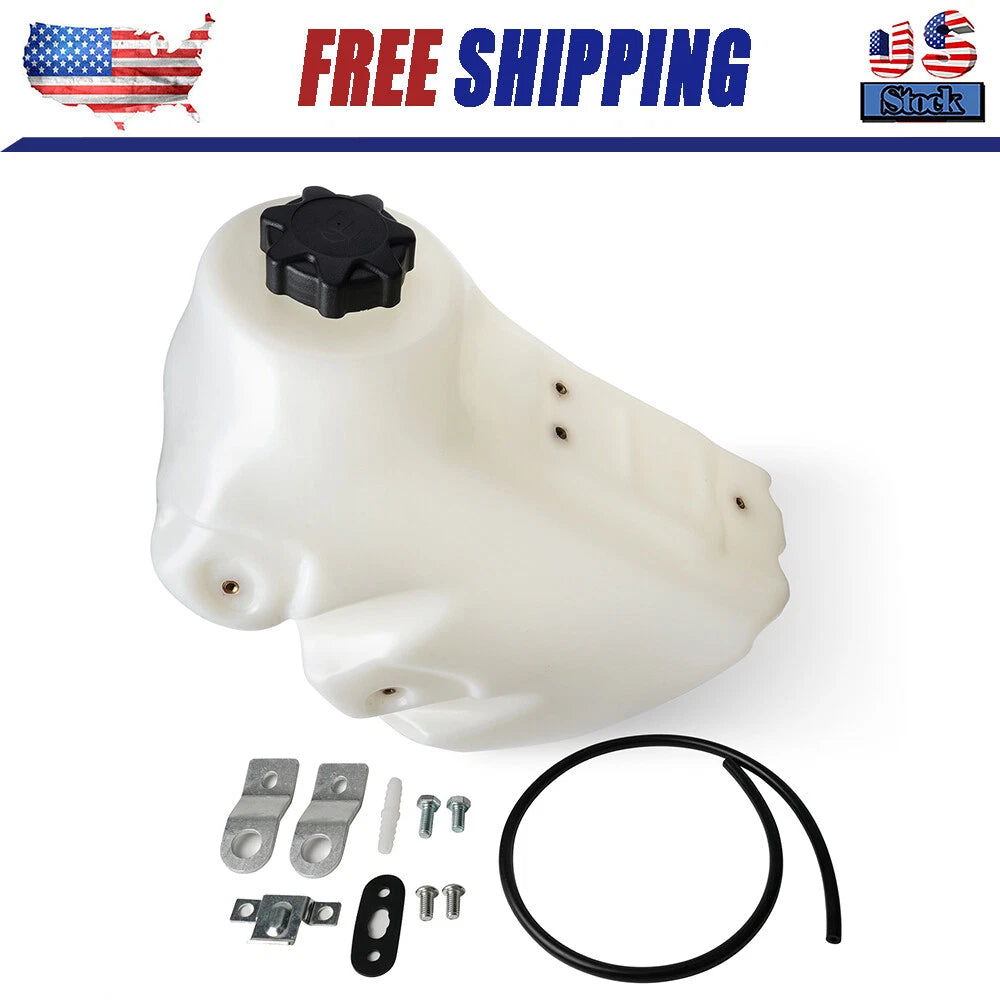

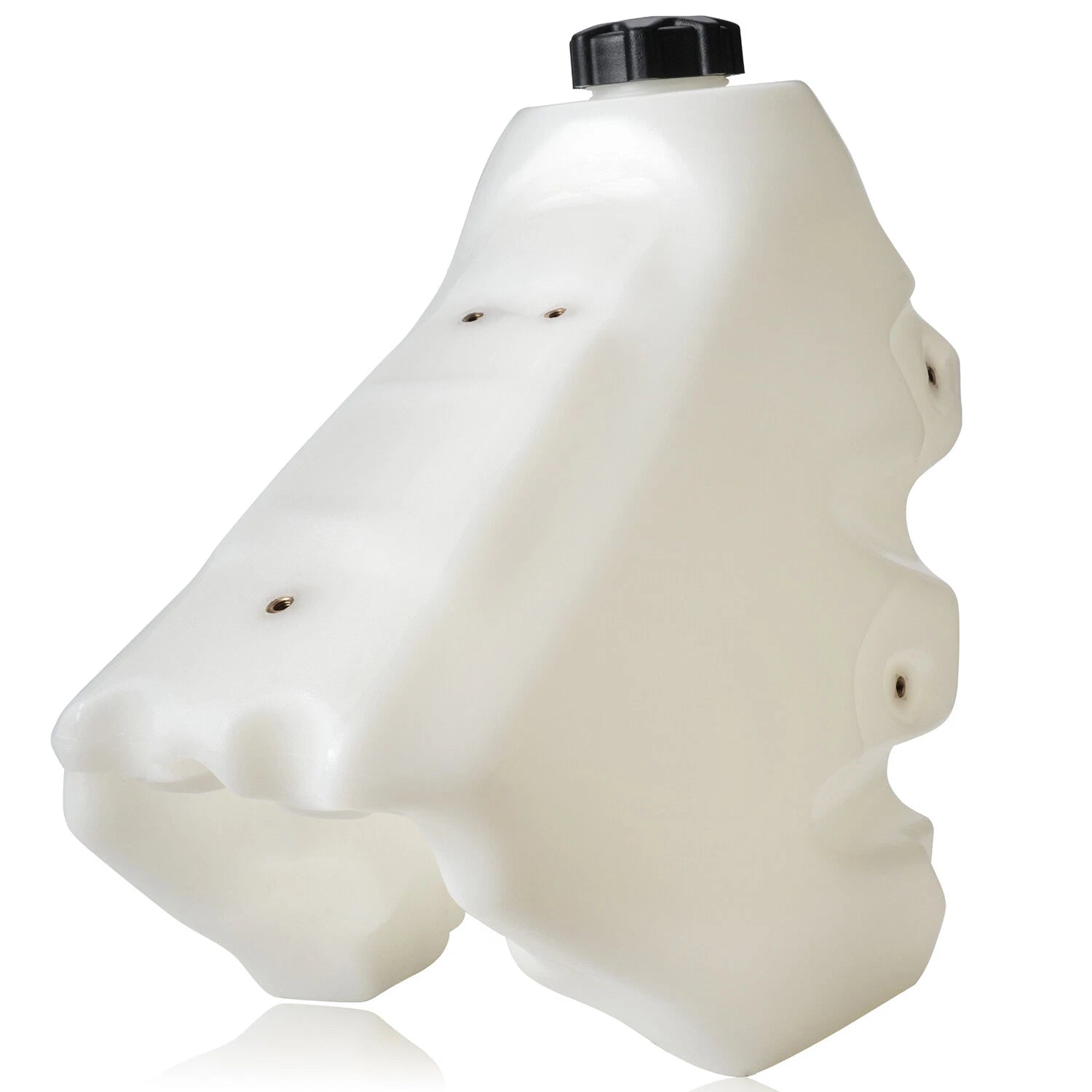

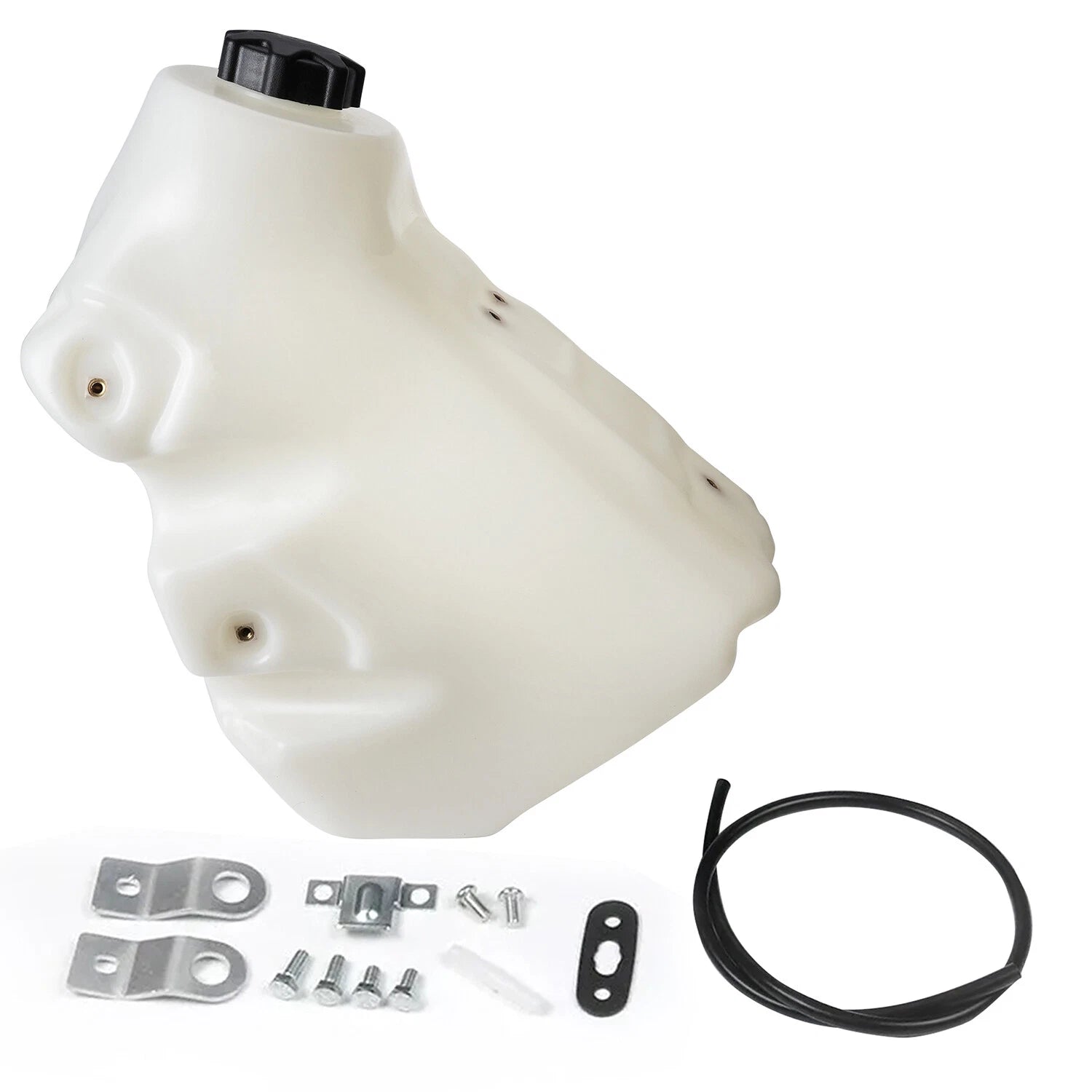

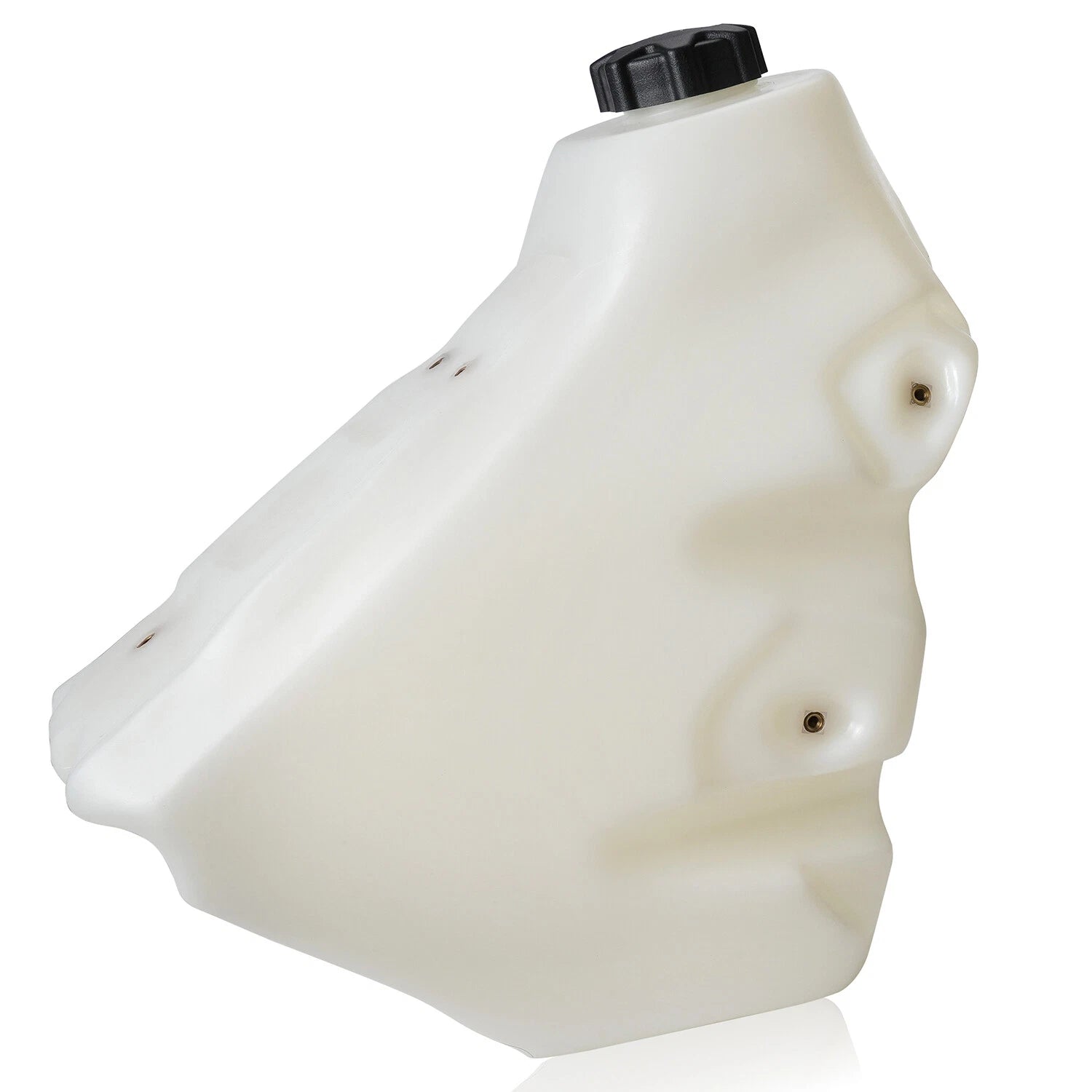

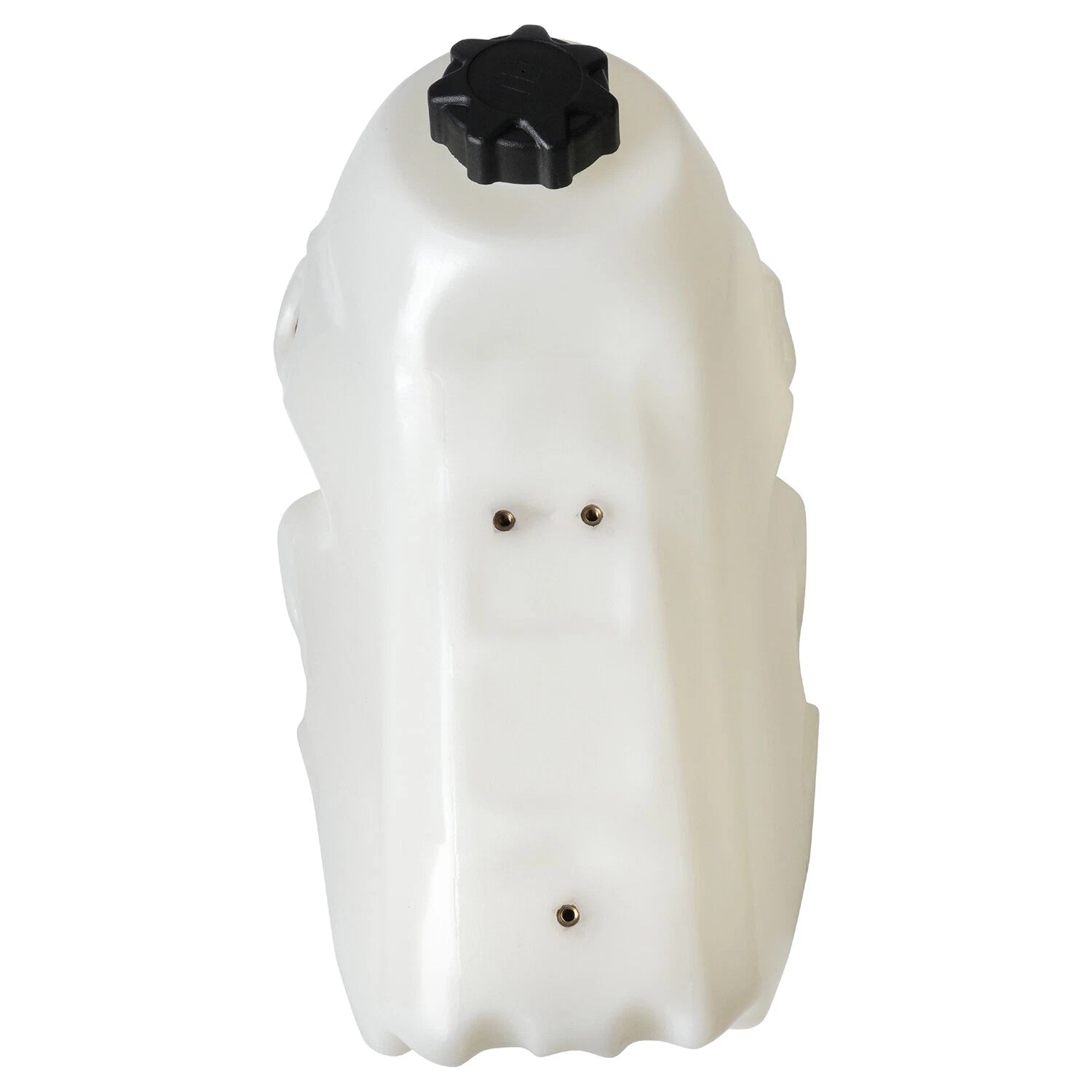

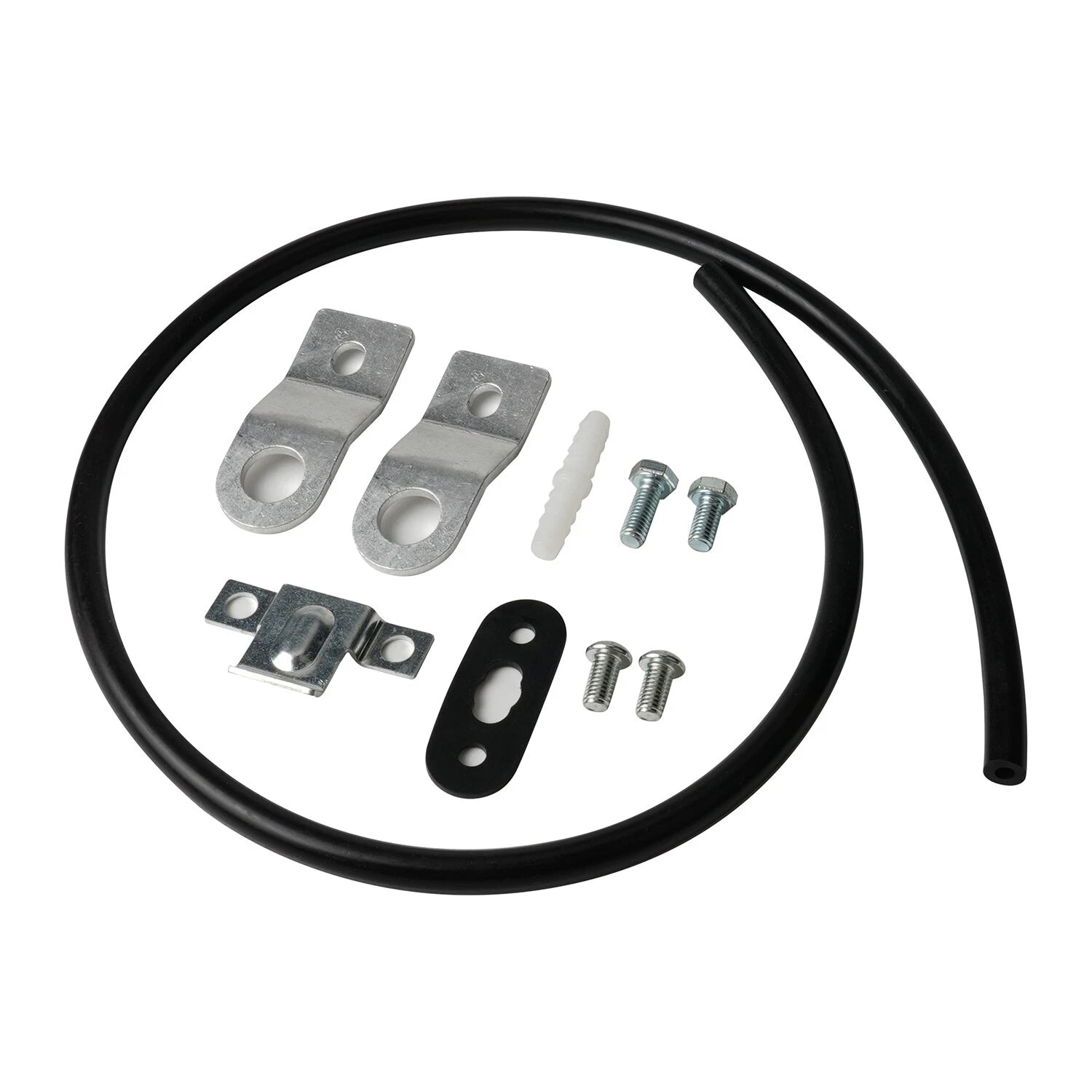

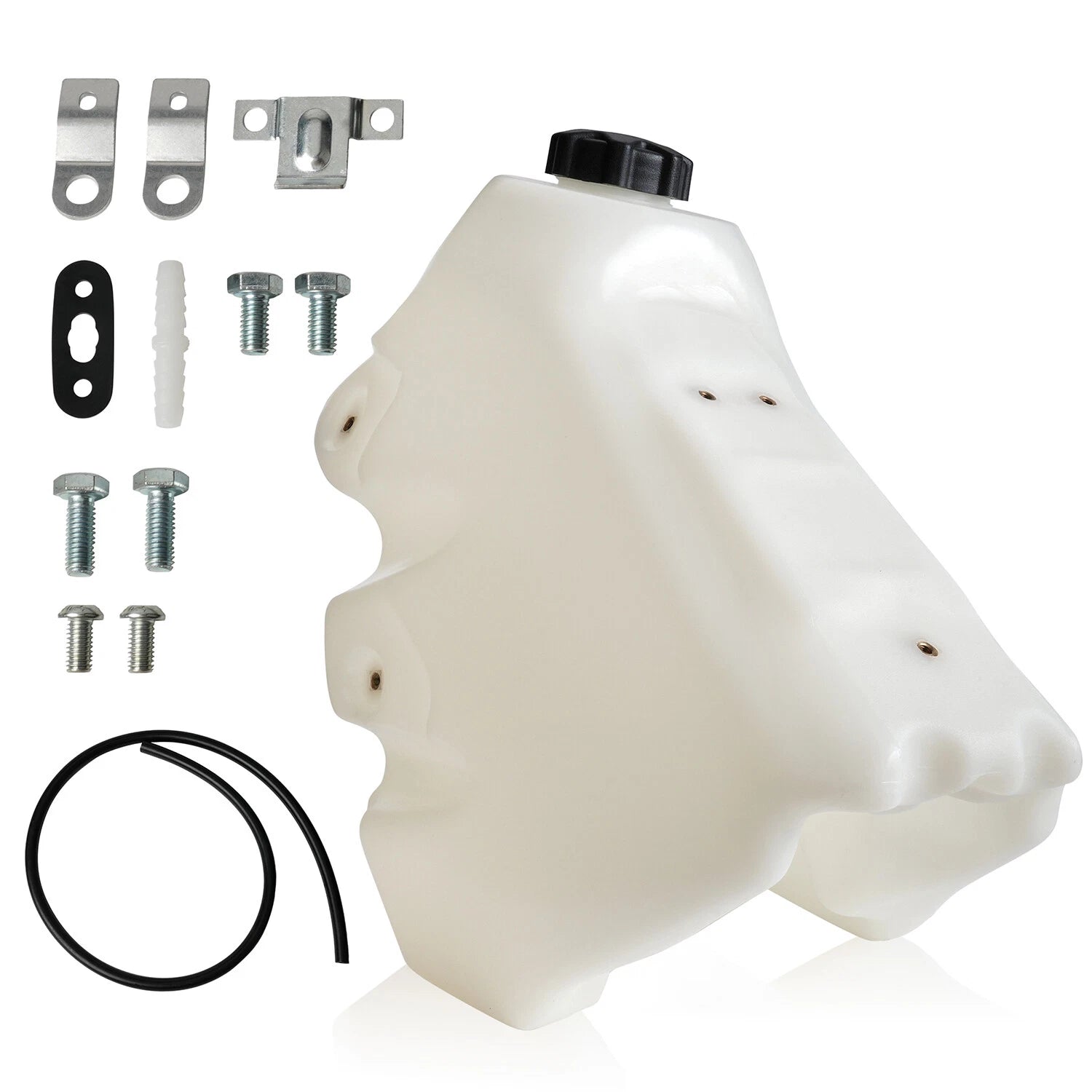

The white tank is pictured with a black cap fitted at the raised filler neck. Its body has recessed mounting points and inserts. The loose hardware comprises two angled metal brackets, one smaller slotted metal piece and four fasteners. A black hose, a white barbed connector and a black oval seal with two bolt holes and an elongated center opening are also shown. A fuel valve is not pictured.

Listed models

Suzuki DR-Z400E and DR-Z400S

Listed years

2000-2017; confirm mounts and fuel connections for the exact model

Stated capacity

3.2 gallons

Tank material and color

Plastic, white

Pictured main assembly

One tank with one black cap

Pictured mounting hardware

Three metal pieces and four fasteners

Other pictured pieces

One black hose, one white barbed connector and one black oval seal

Part origin

Aftermarket

Check the E or S installation before ordering

Compare the tank's mounting points with your bike's frame supports, seat attachment and radiator shroud fixings. Check that the seat and bodywork can sit in their normal positions without putting pressure on the tank. Before retaining the original brackets, cap or fuel valve, confirm that their interfaces match this tank.

Confirm the fuel valve flange, bolt spacing, seal shape and hose routing against the existing system. Valve compatibility and the hose's bore and intended connection are not specified. The cap and vent arrangement also need to suit the installation; use model-specific service information to check the fuel and vent connections.

After fitting, check the cap, valve joint and hose connections for seepage before riding.
