40975 replacement 7-blade / 4-flat trailer socket kit

7-blade and 4-flat trailer socket kit

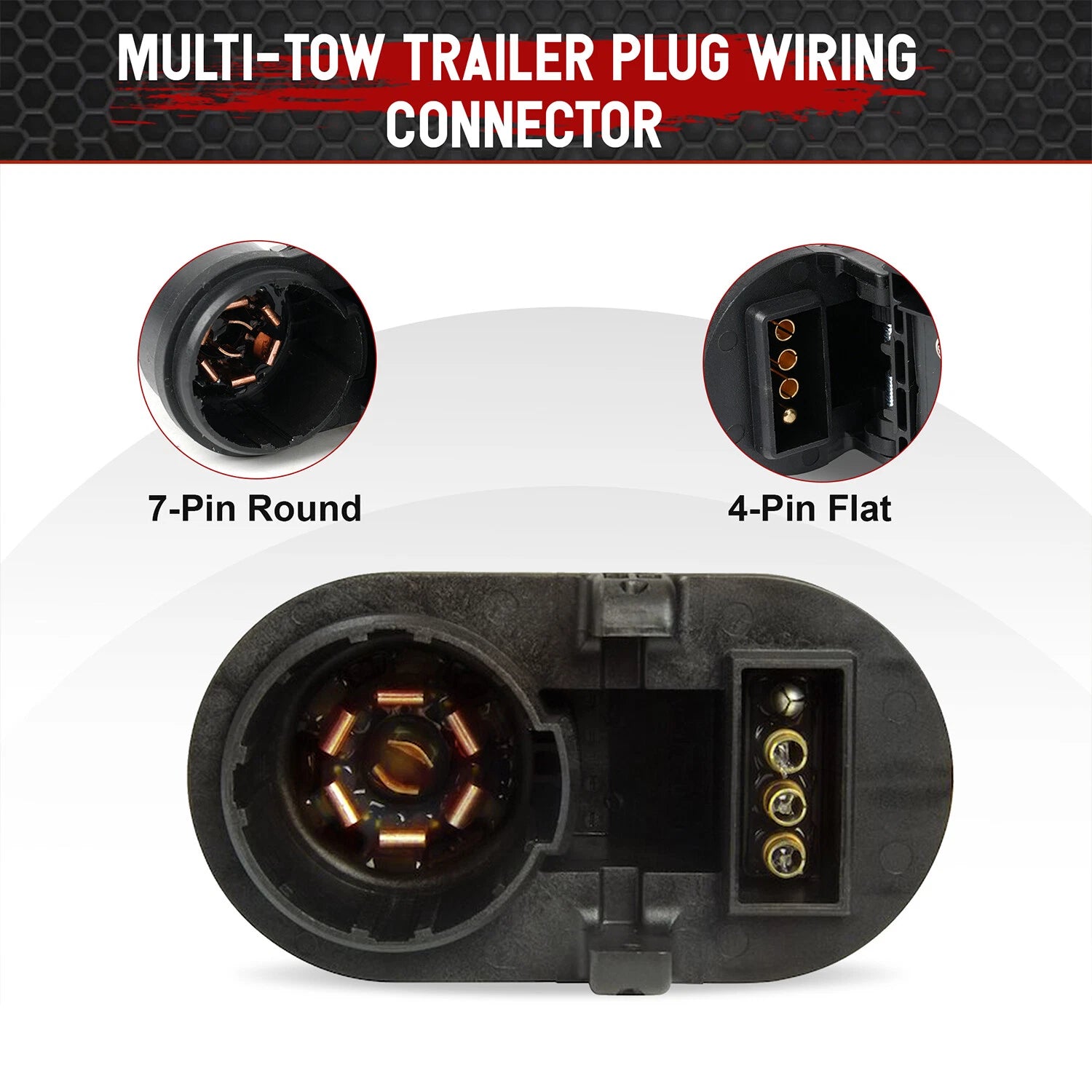

This replacement trailer receptacle combines a 7-blade RV socket and a 4-flat connector in one housing. It is listed for Ford, Ram and Chevrolet applications that have a matching vehicle-side harness connection. The product images identify replacement reference 40975.

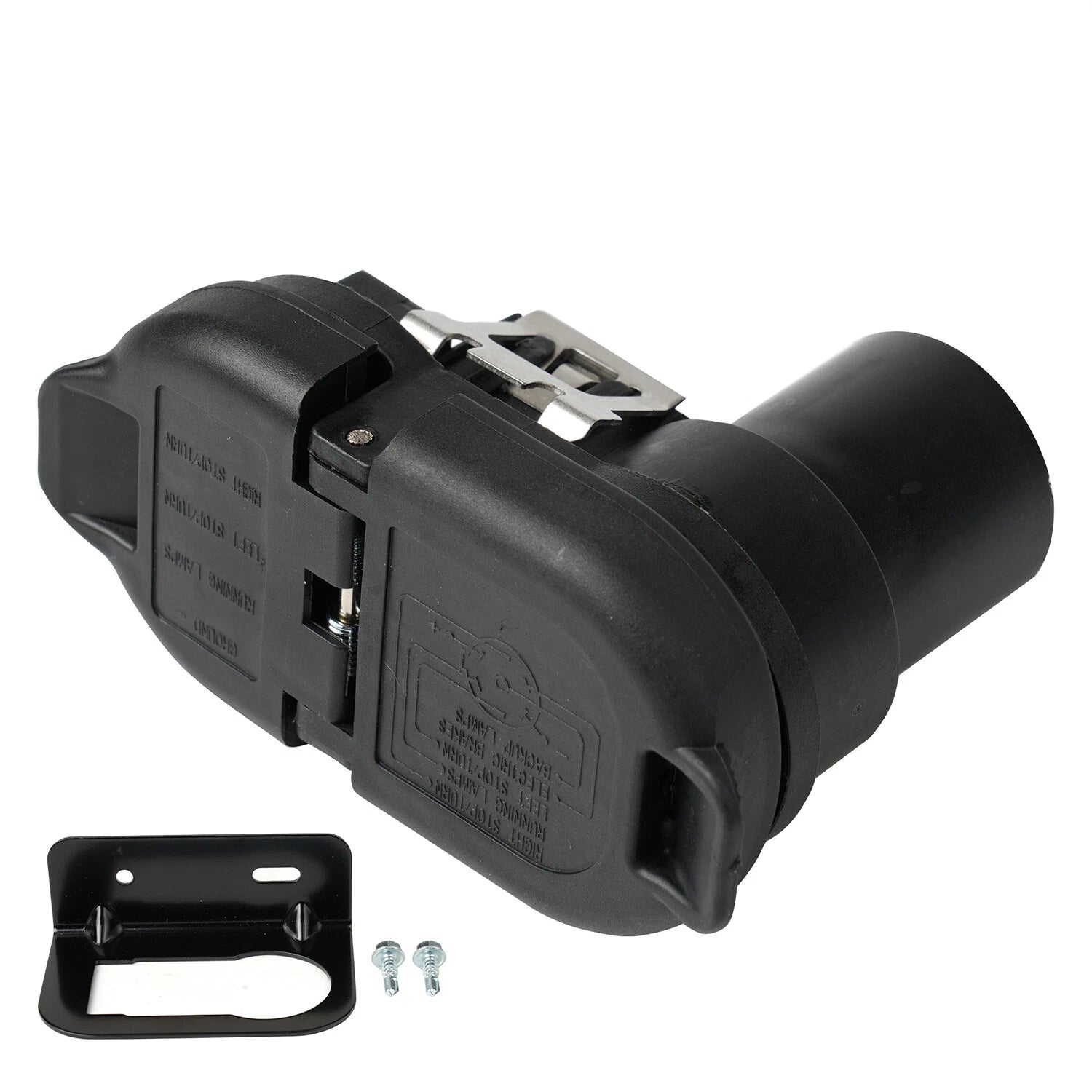

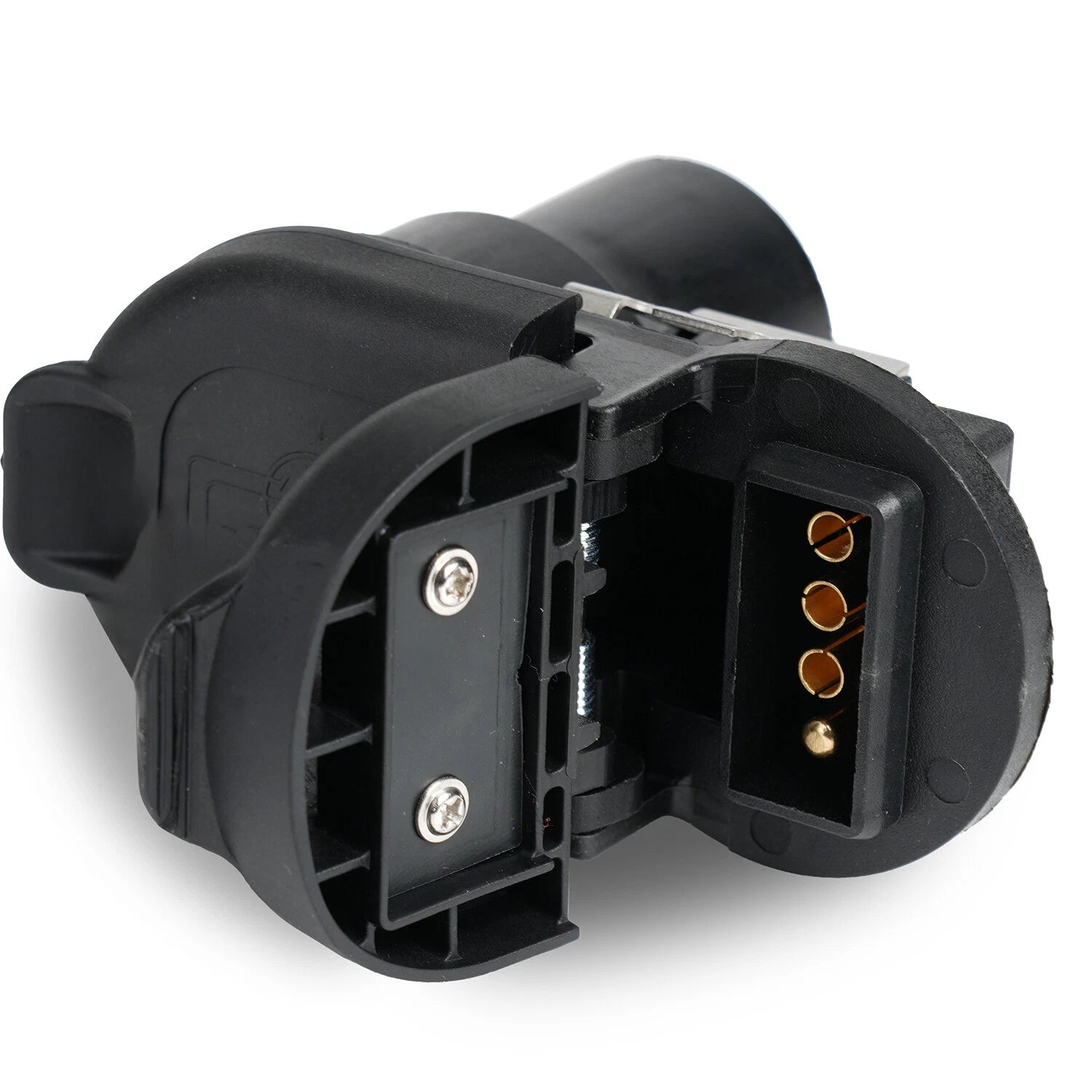

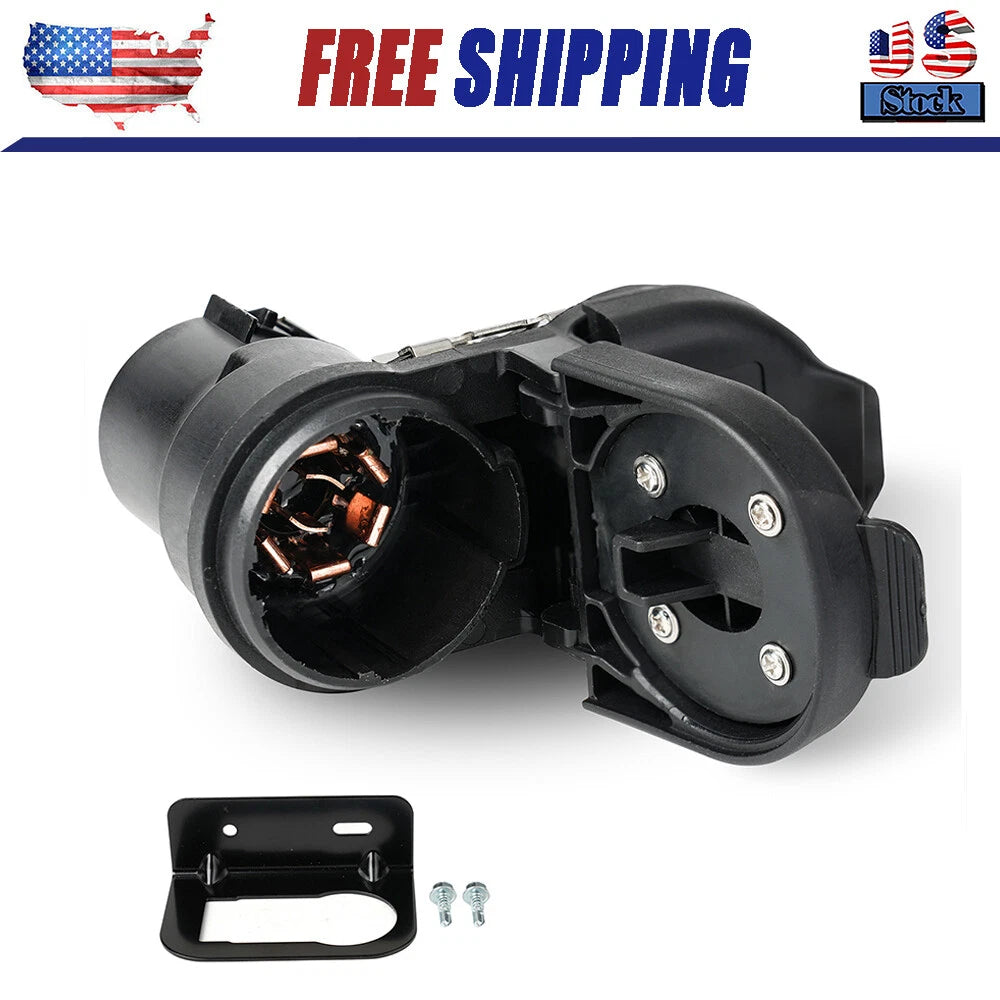

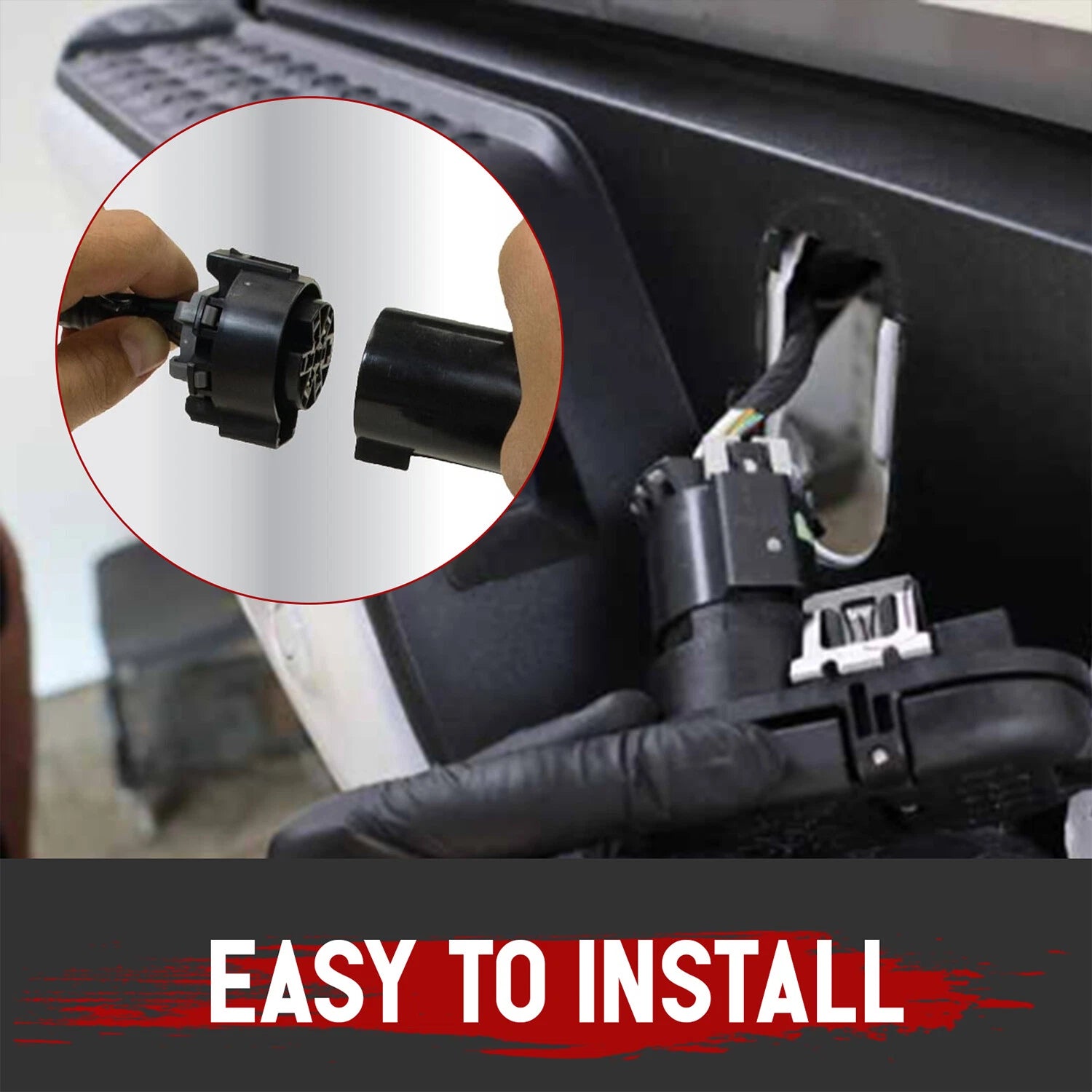

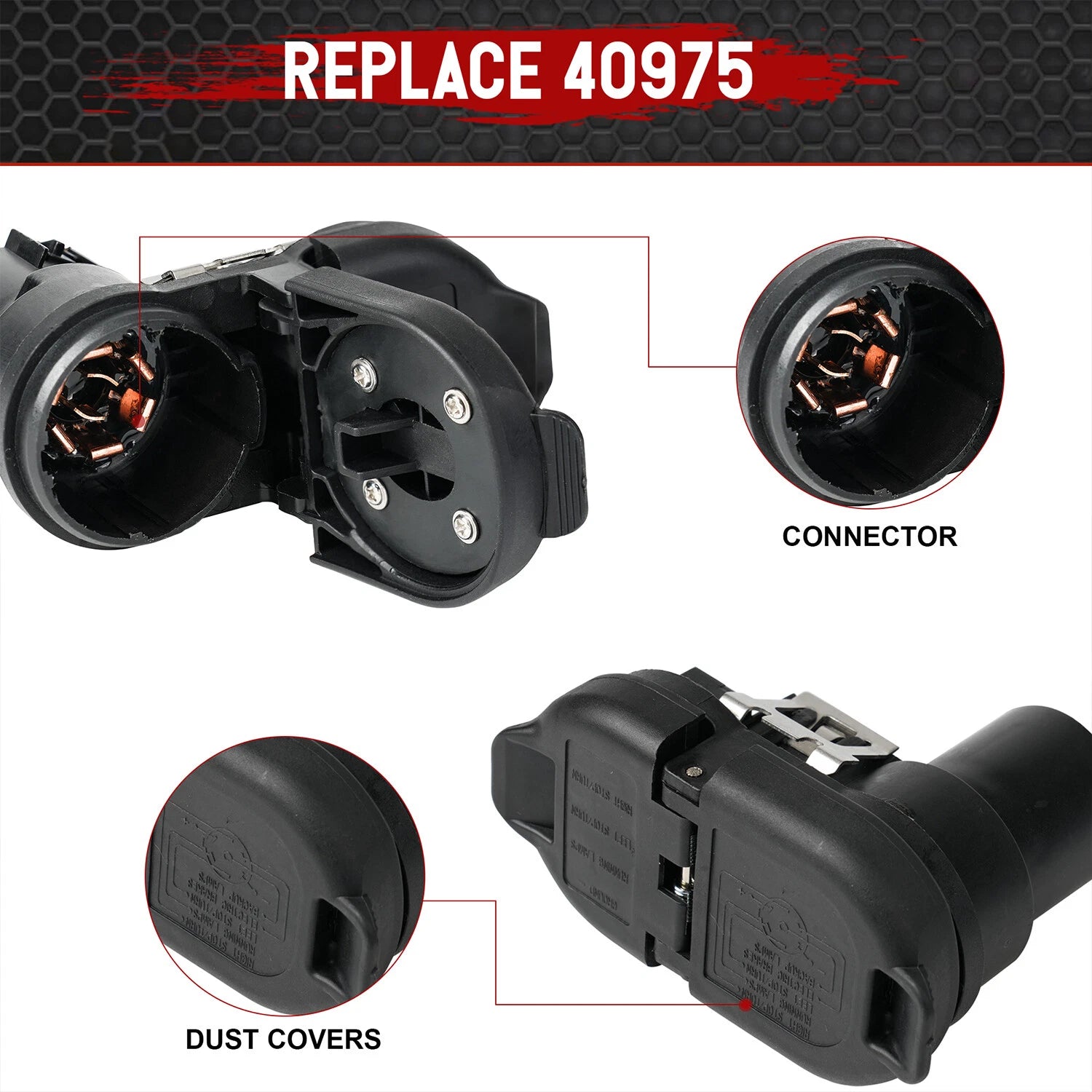

Each outlet has its own hinged cover, so you can uncover the connector needed for your trailer. The black housing is supplied with a separate mounting bracket and two pictured mounting screws. An existing rear harness plug connects to the back of the receptacle.

Connector and mounting details

Replacement reference shown

40975

Trailer-side connections

7-blade RV and 4-flat

Listed vehicle makes

Ford, Ram and Chevrolet; matching harness and mounting arrangement required

Housing material

ABS

Contact material

Brass

Outlet covers

Separate hinged covers for the two connectors

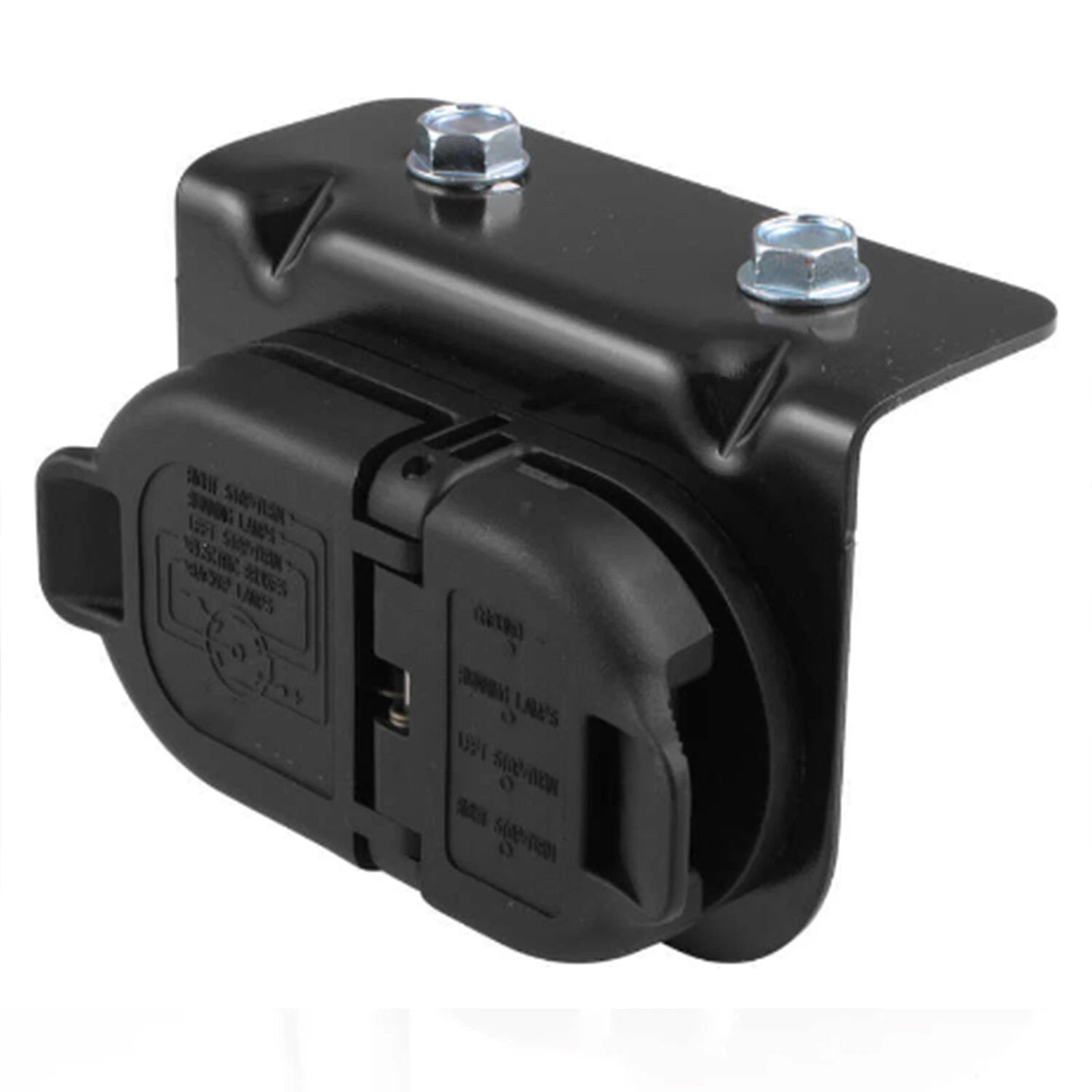

Mounting

Separate bracket with round and slotted mounting holes

Contents pictured

One dual-outlet receptacle, one bracket and two mounting screws

Confirm the vehicle connection before ordering

Compare your rear harness plug, its locking features and the existing socket mount with the photos. Vehicle make alone does not establish fit: exact model, year and tow-package requirements are not specified for this replacement.

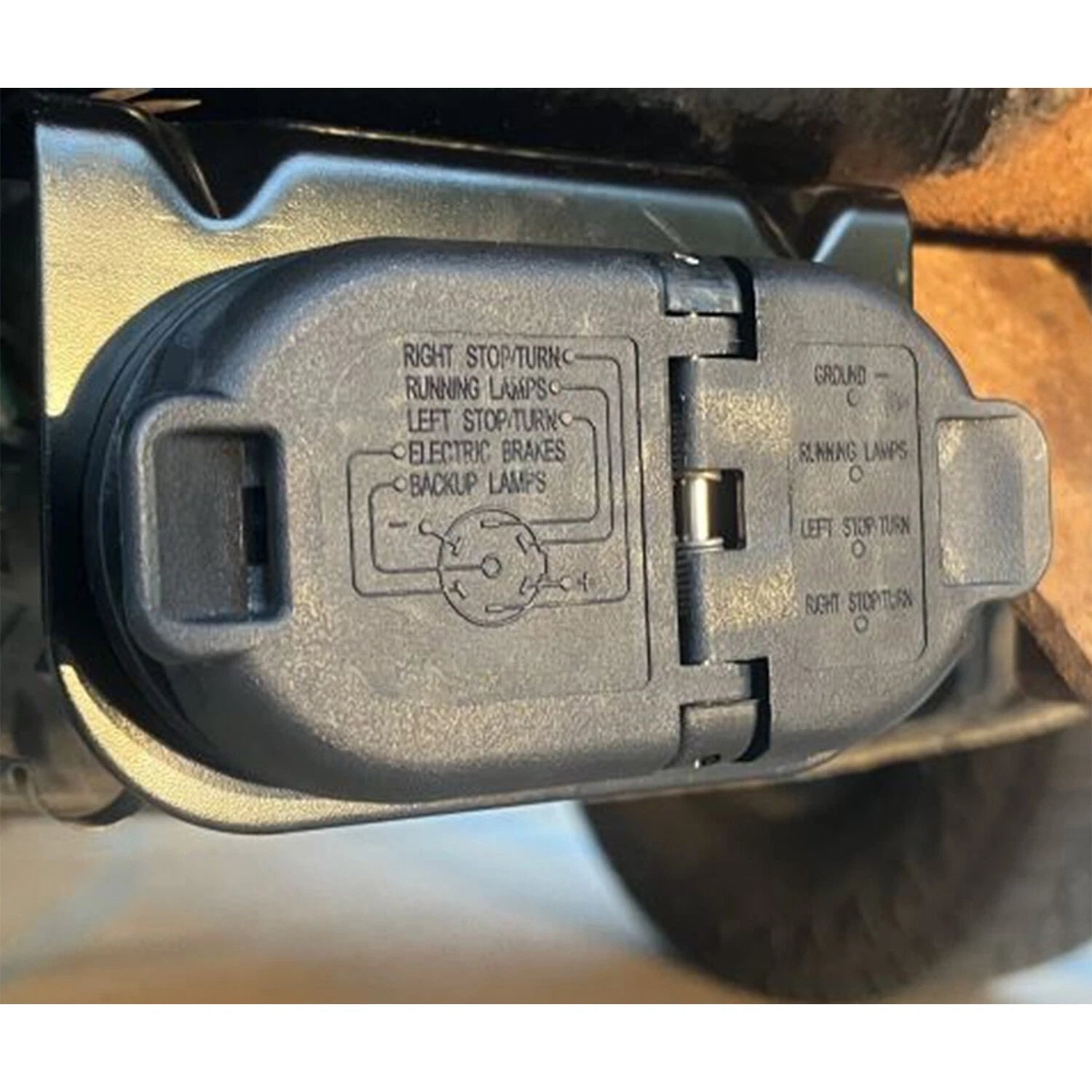

The larger socket uses blade-style contacts. Confirm that your trailer plug is the 7-blade RV type when using that outlet. Available lighting, auxiliary power and electric-brake functions depend on the vehicle's wiring and equipment; the socket does not add missing circuits or a brake controller.
