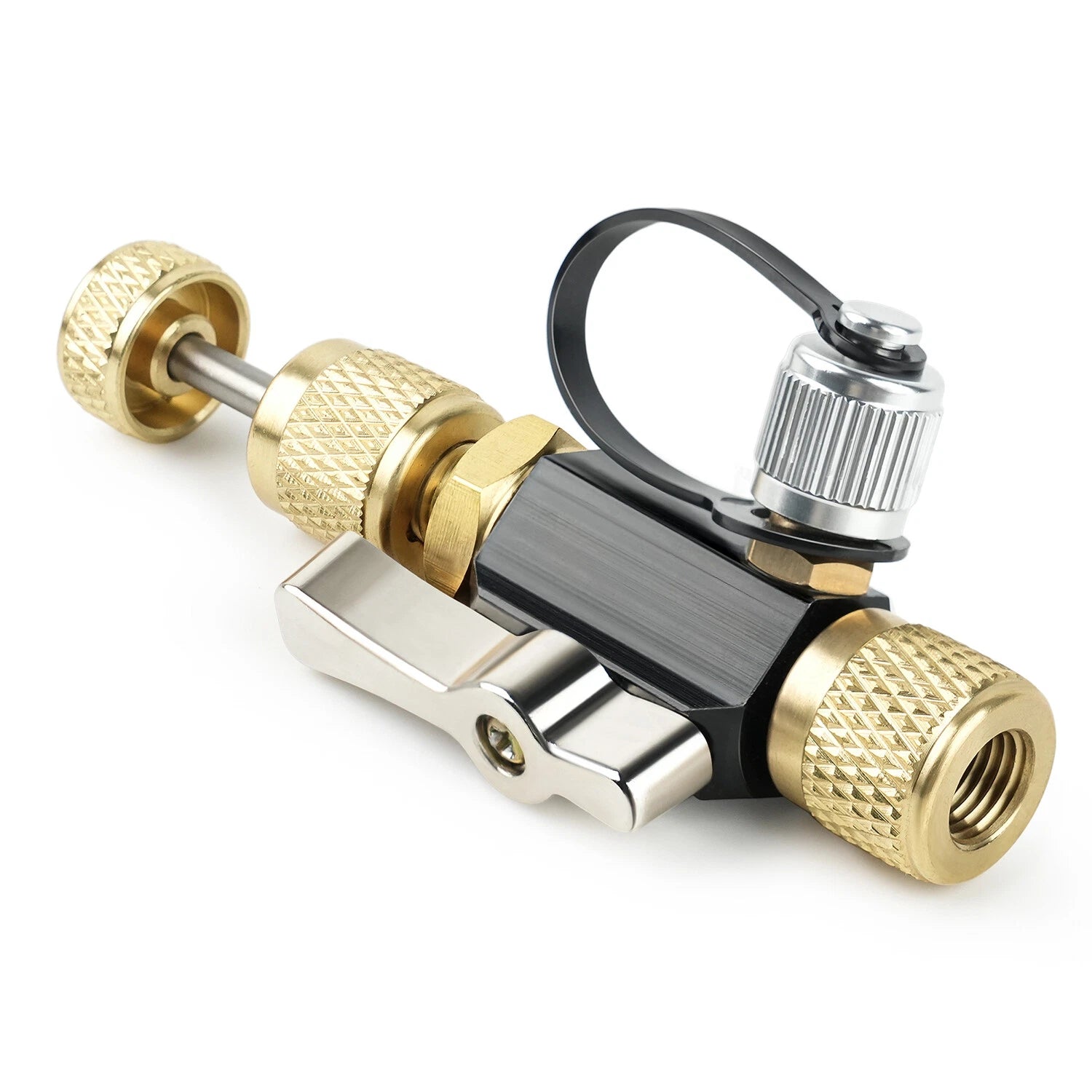

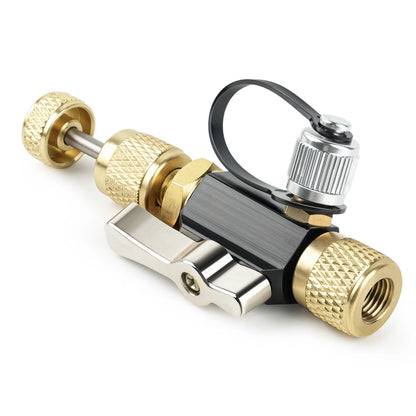

Mega Flow vacuum rated valve core removal tool, 1/4" flare

What this tool does

This valve core removal tool takes the access core out of a refrigerant service port, or seats a new one, without venting the charge. With the core out, refrigerant moves through the port at full, unrestricted flow instead of squeezing through the core opening, which speeds up evacuation and recovery work.

The tool is vacuum rated to 20 microns and designed for high pressure refrigerants including R410a. The 1/4" male flare end threads onto the service port, and the 1/4" side port accepts your vacuum gauge or pump connection.

• Vacuum rated to 20 microns

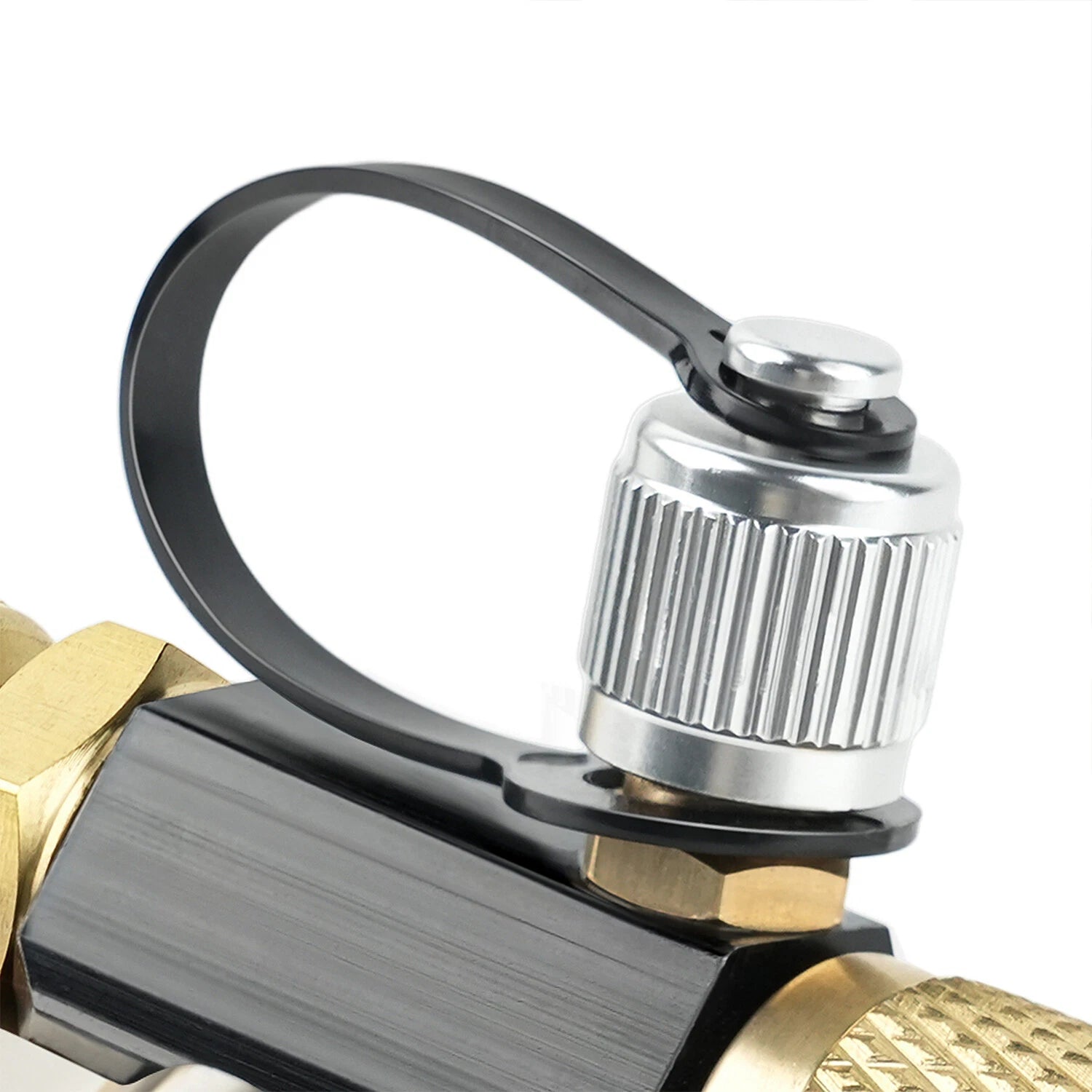

• 1/4" side port for vacuum gauges
• Full, unrestricted flow with the core removed

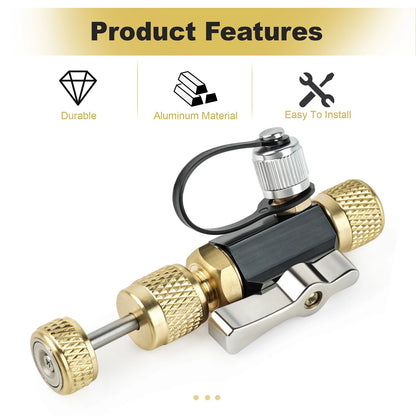

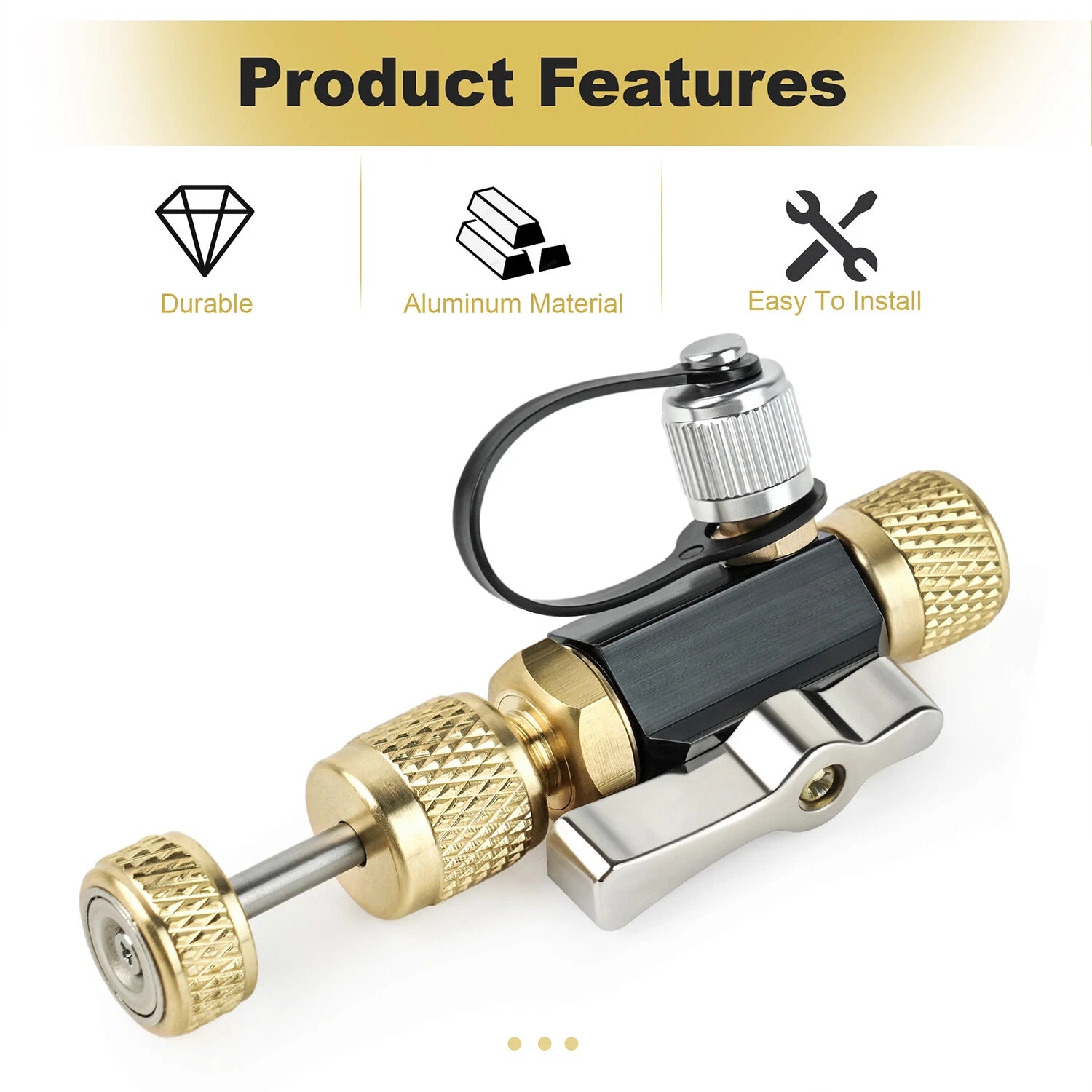

• Aluminum body with knurled flare fittings

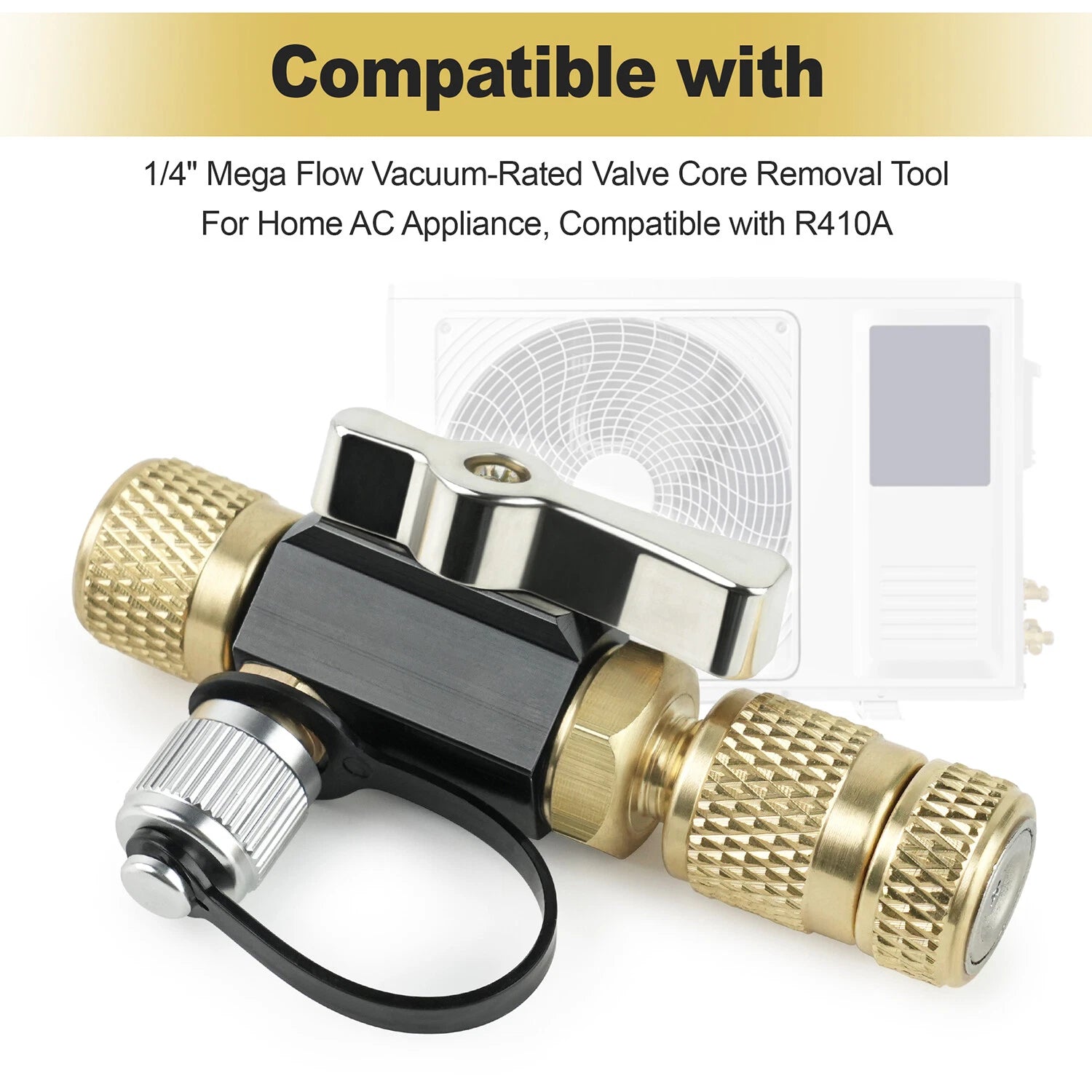

• For high pressure refrigerants including R410a

Specifications

Product type

Valve core removal tool

Product name

Mega Flow

System connection

1/4" male flare

Fitting ports

1/4" female flare

Side port

1/4", for vacuum gauges

Vacuum rating

20 microns

Refrigerant service

High pressure refrigerants including R410a

Body material

Aluminum

Condition

New

SKU

297299300011

The photo shows the side port fitted with a short hose that ends in a swivel flare nut.

How to use it

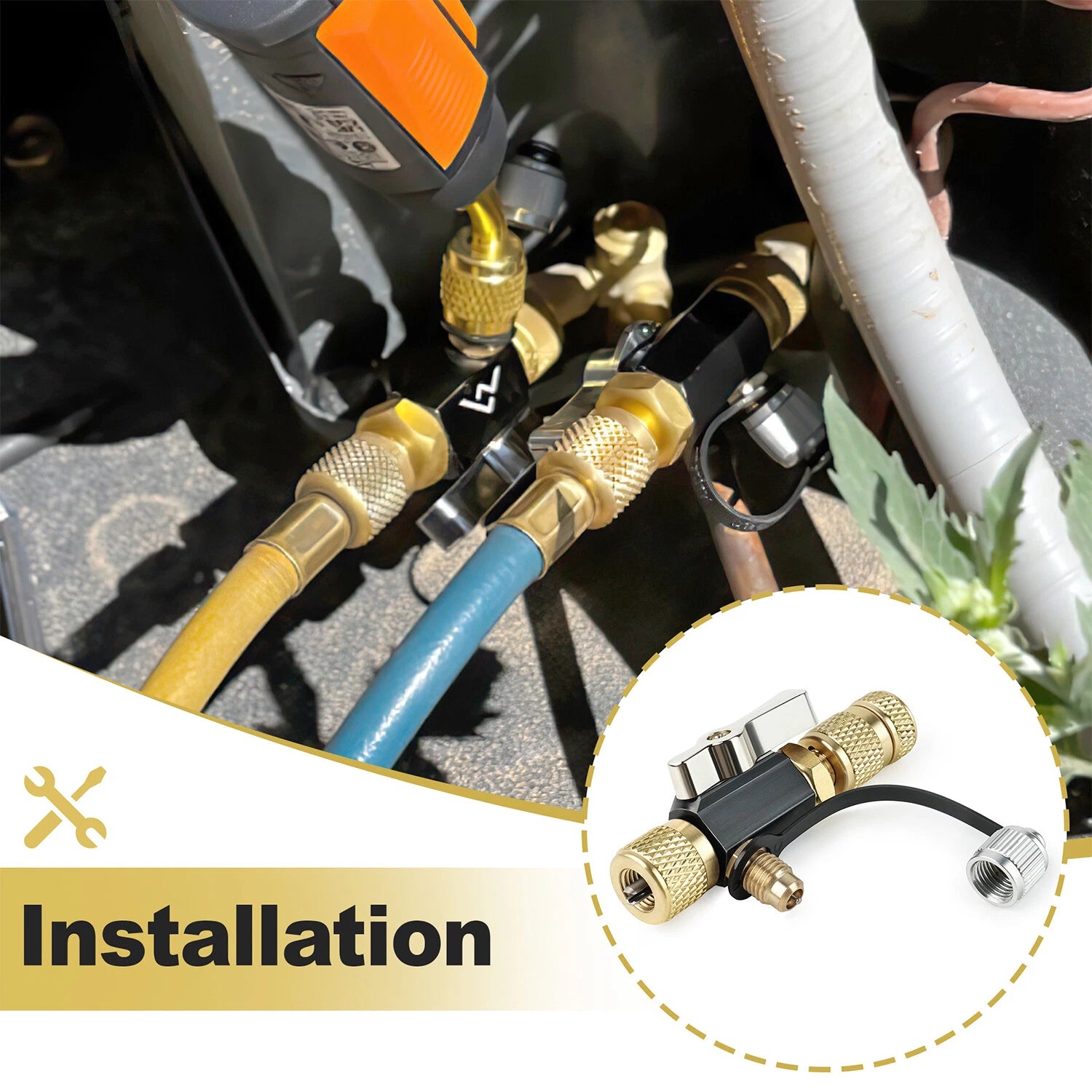

1. Thread the male flare end onto the 1/4" flare service port.
2. Remove the access valve core through the tool, or seat a new core, while the system stays sealed.
3. Connect your vacuum gauge or pump line to the 1/4" side port.
4. Run evacuation, recovery or charging with the core out and full flow through the port.

Check that your ports use 1/4" flare fittings before ordering. The listing brands this tool as unbranded; Mega Flow is the seller's product name and no manufacturer is stated.
