VEARTER magnetic drill chuck set, 1.5-13mm, 19mm Weldon
VEARTER magnetic drill chuck set, 1.5-13mm, 19mm Weldon
SKU:1005007473637151
Low stock: 10 left
Couldn't load pickup availability
Check the part details and order terms before buying. Need a specification confirmed? Contact Keyead.
- Product type
- Drill chucks and adapters

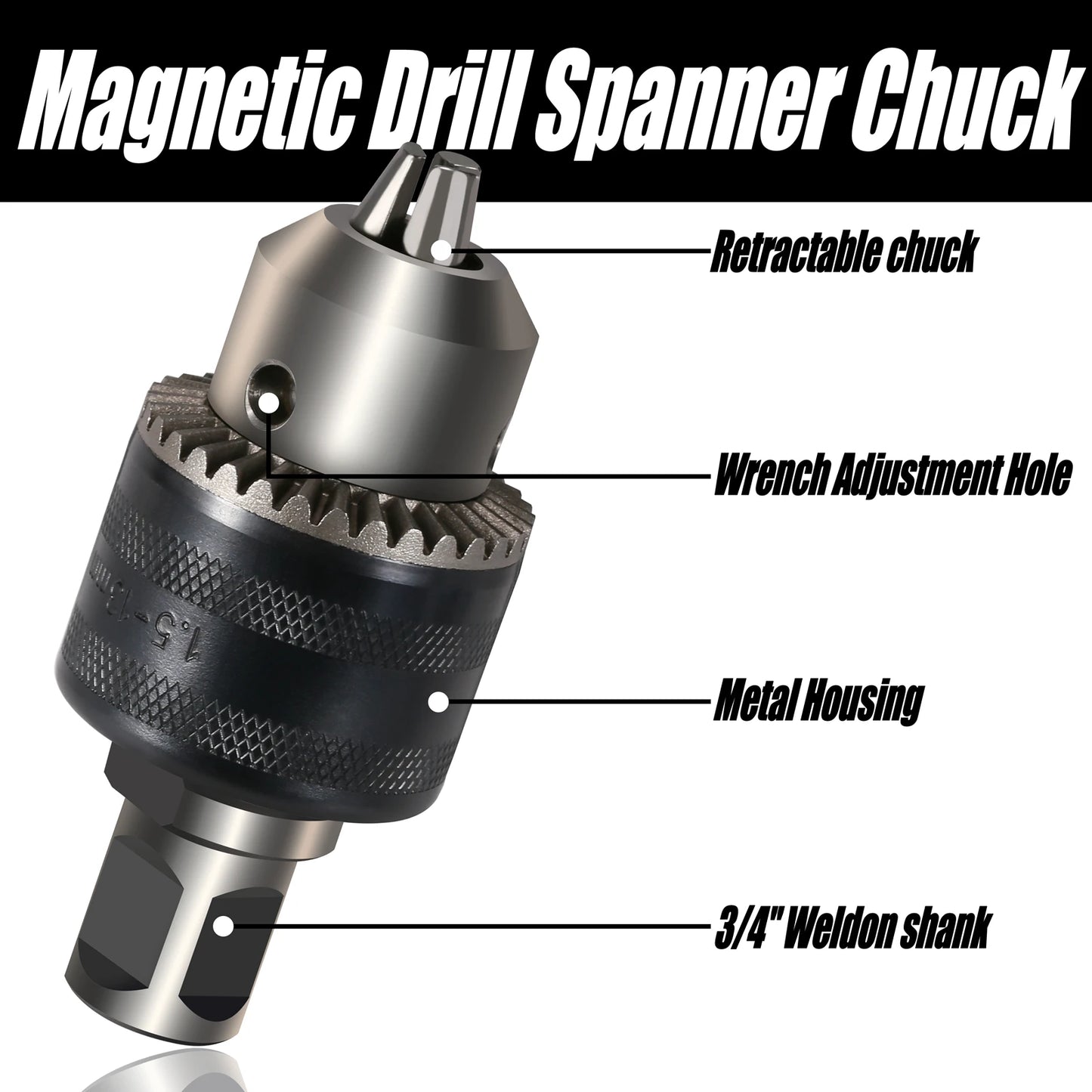

Keyed chuck for a magnetic drill

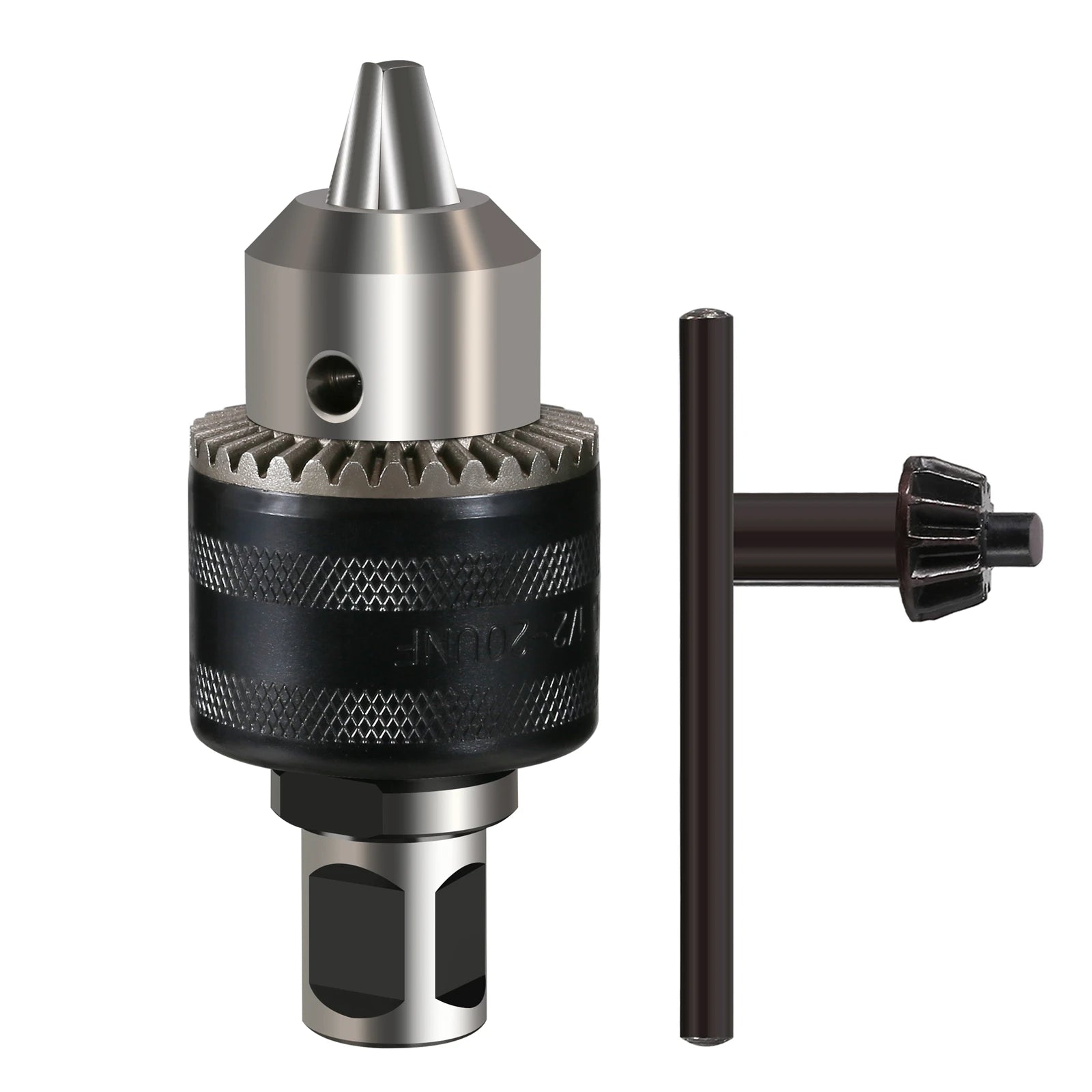

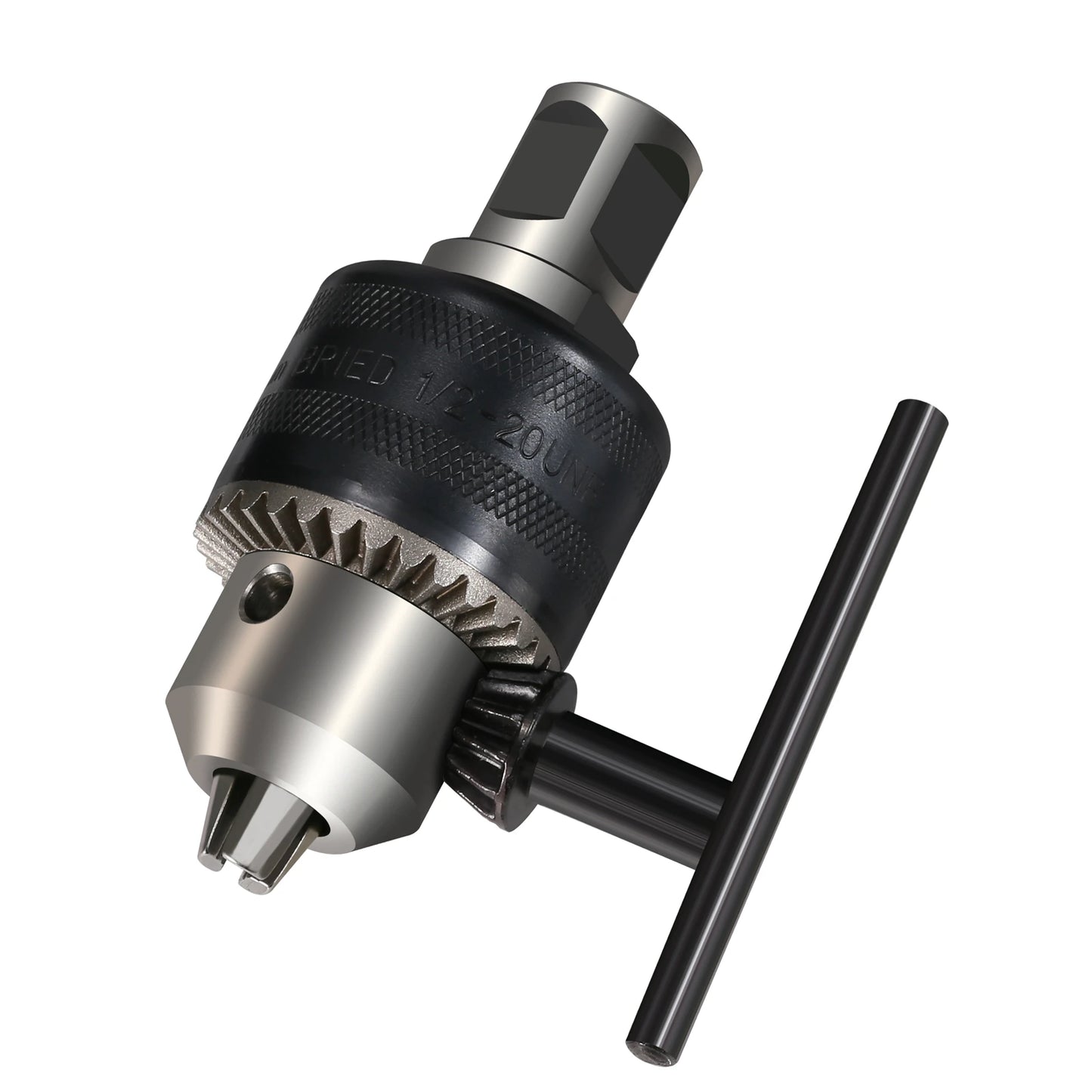

This VEARTER set includes a keyed drill chuck, a Weldon shank adapter and a chuck key. The chuck grips shanks from 1.5 to 13 mm for drilling with a compatible magnetic drill.

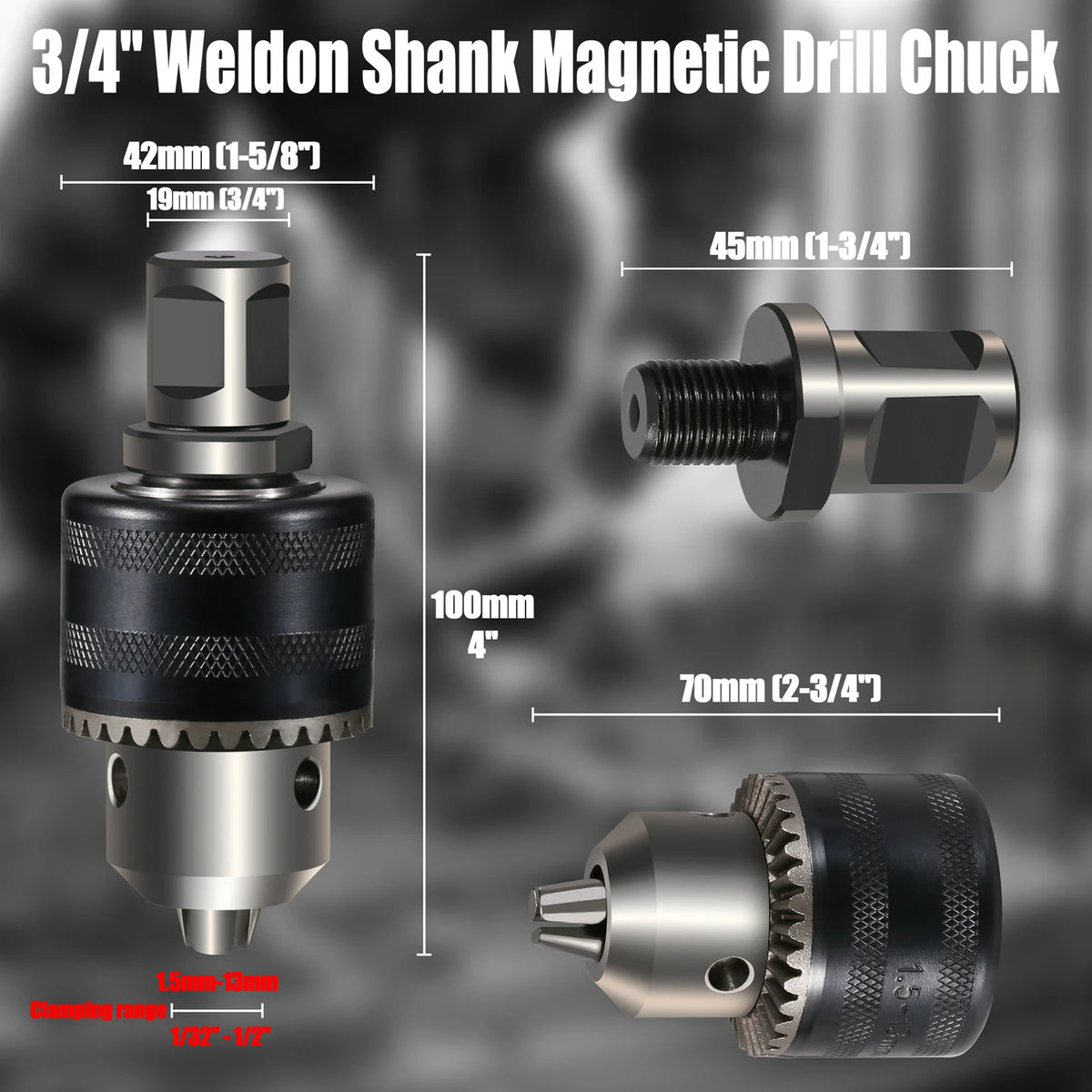

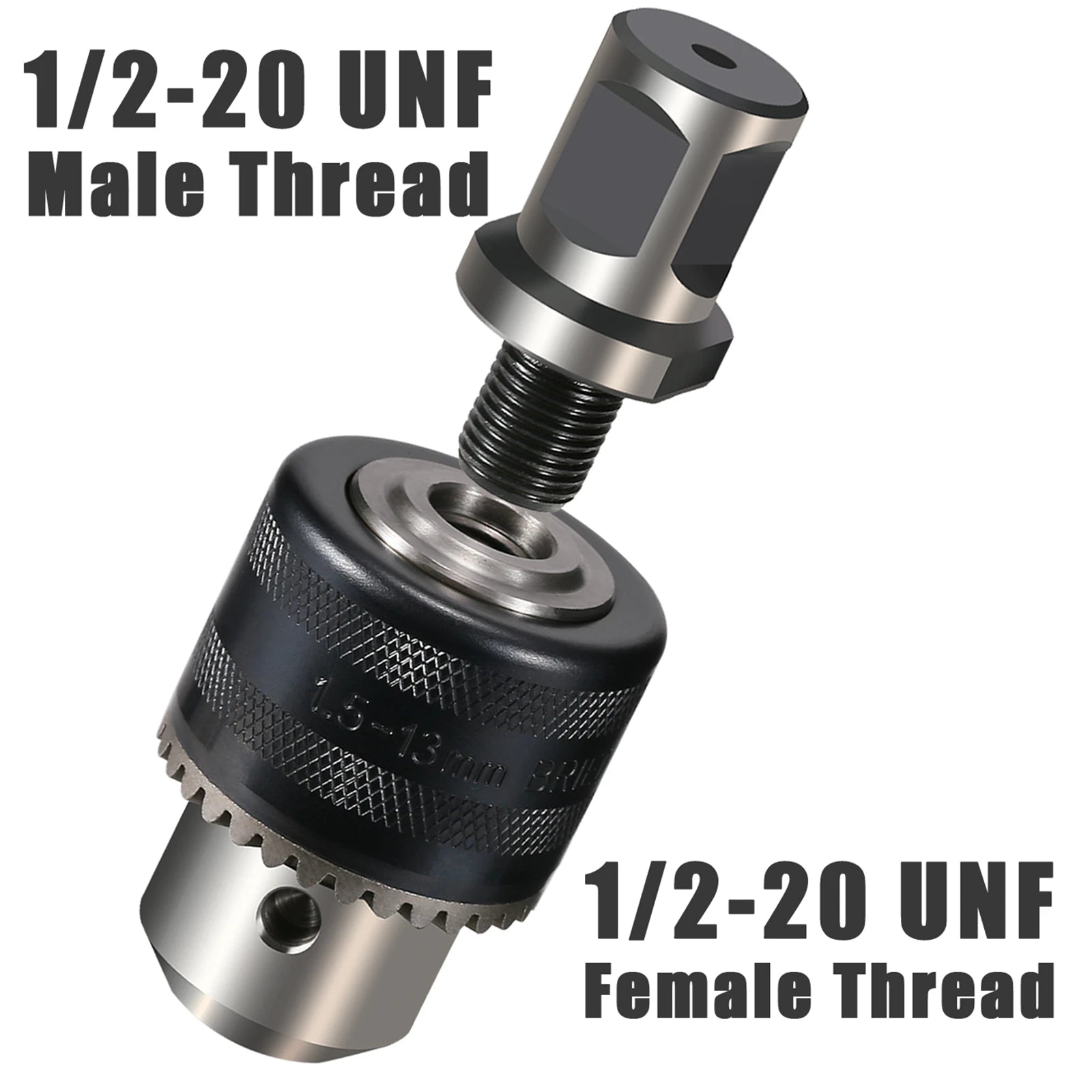

The 19 mm Weldon shank connects to the machine's holder. The 1/2-20 UNF screw thread joins the adapter to the chuck. The 1.5-13 mm figure is the chuck's clamping range.
Specifications
- Brand
- VEARTER
- Chuck type
- Keyed drill chuck

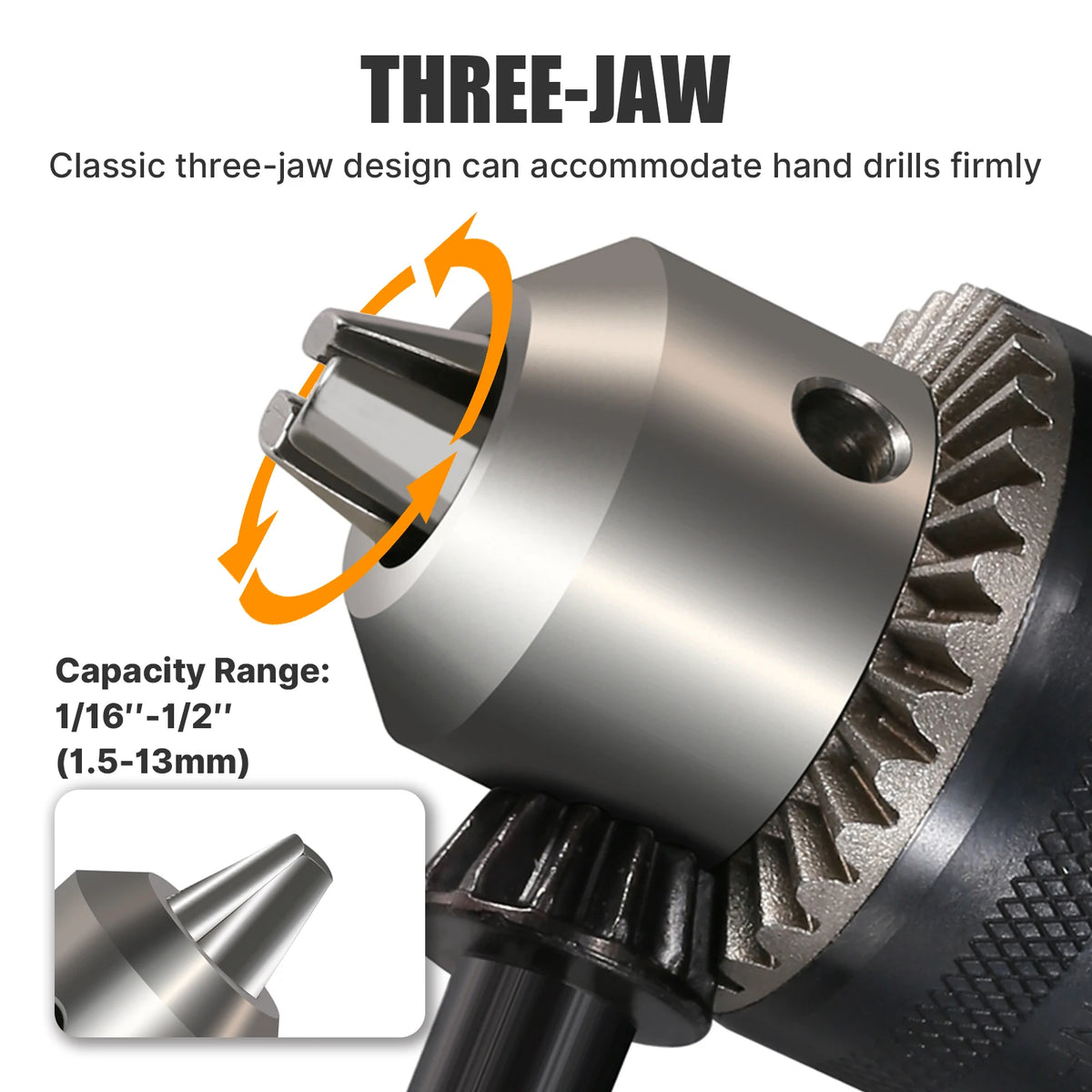

- Clamping range
- 1.5-13 mm
- Machine-side shank
- 19 mm Weldon, listed as 3/4 in.
- Chuck mounting thread
- 1/2-20 UNF, screw type
- Material
- Alloy steel
Included in the set
- 1 drill chuck
- 1 Weldon shank adapter
- 1 chuck key
Check the mounting arrangement
Compare the 19 mm shank and its retaining flats with your drill's holder. Check that your machine permits a chuck adapter and has clearance for the assembled chuck and drill bit. A matching nominal shank size alone does not confirm fit with every magnetic drill.
Do not run counterclockwise. Suitability for impact drivers or high-torque work is unconfirmed. Follow your drill manufacturer's approved accessory and operating requirements.
