Gold low-range shift linkage rod 5020824 for Polaris Sportsman 400 and 500

Gold low-range linkage rod, reference 5020824

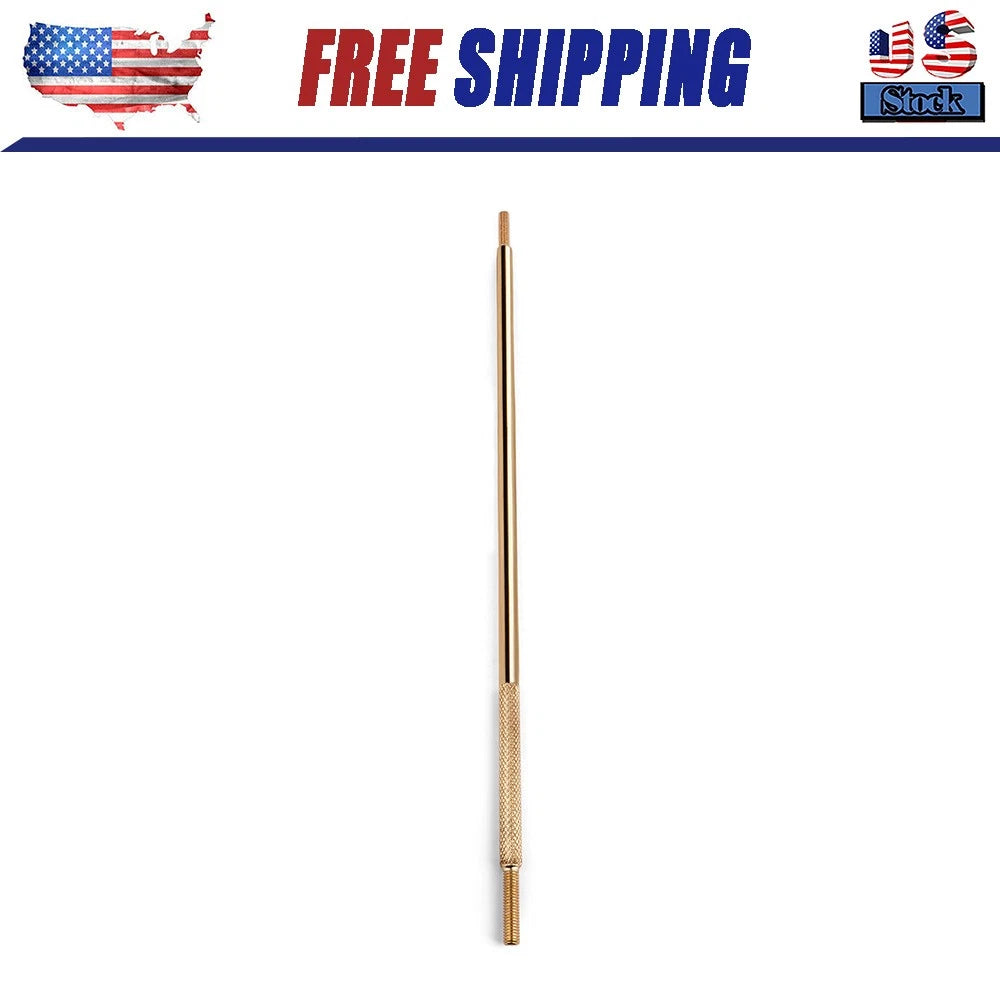

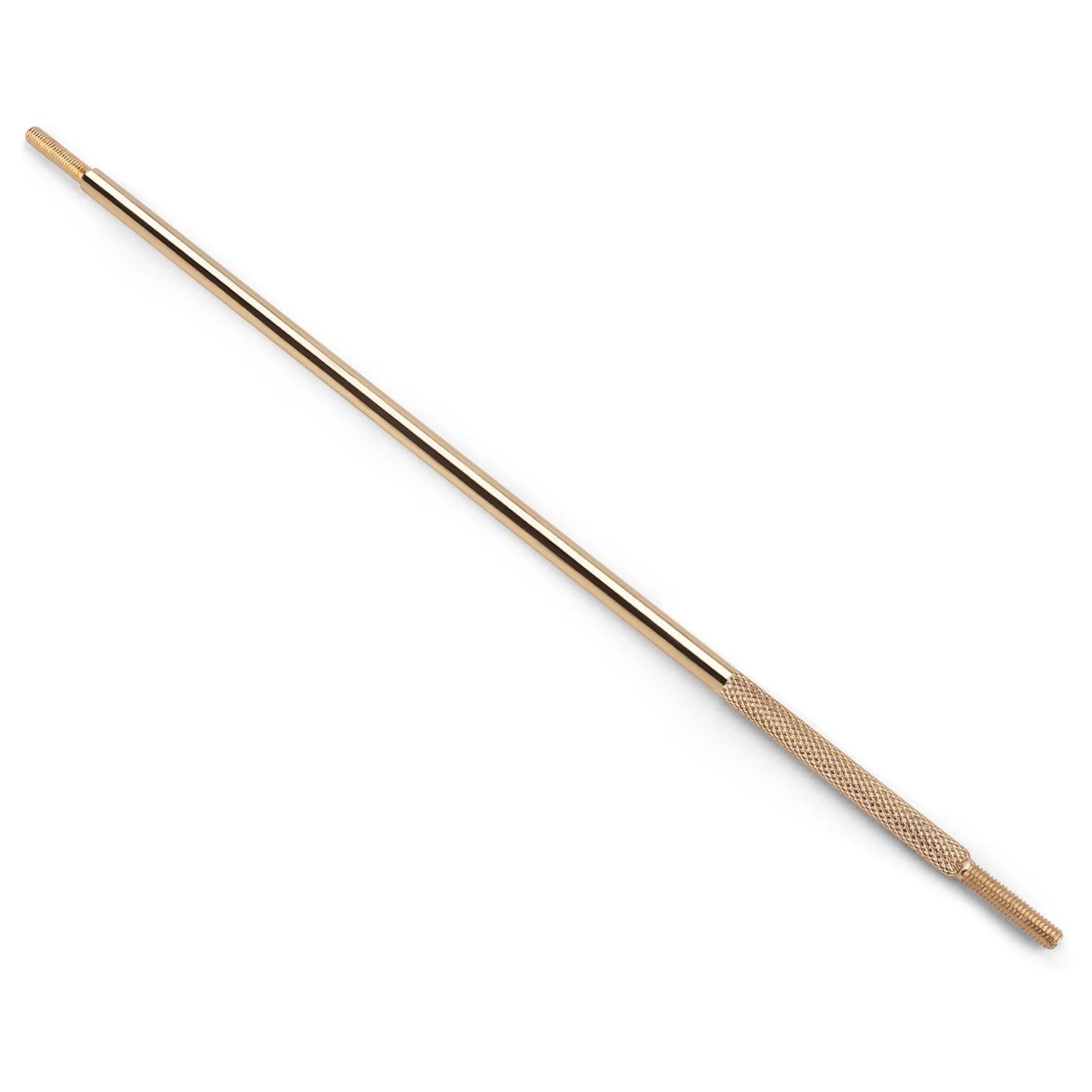

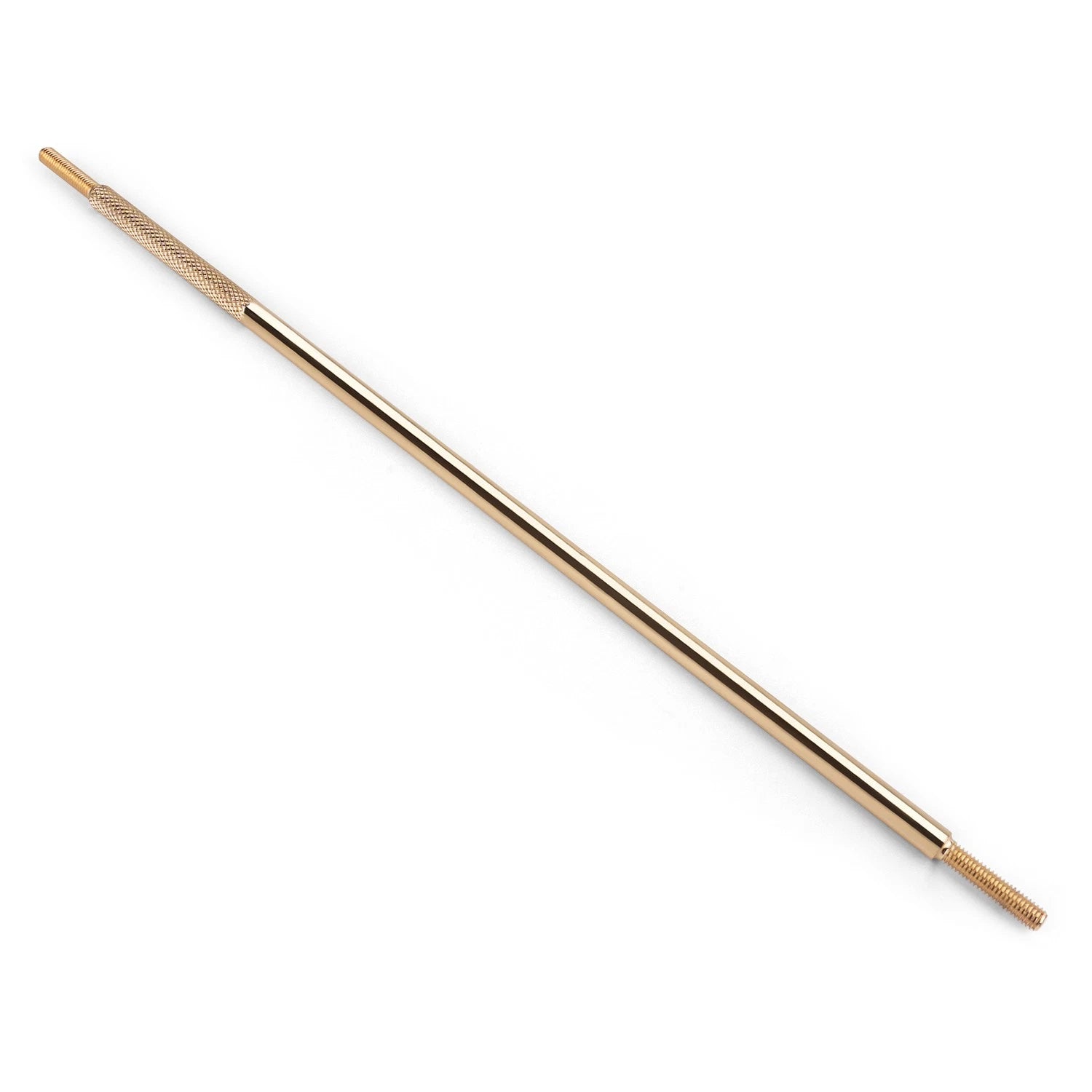

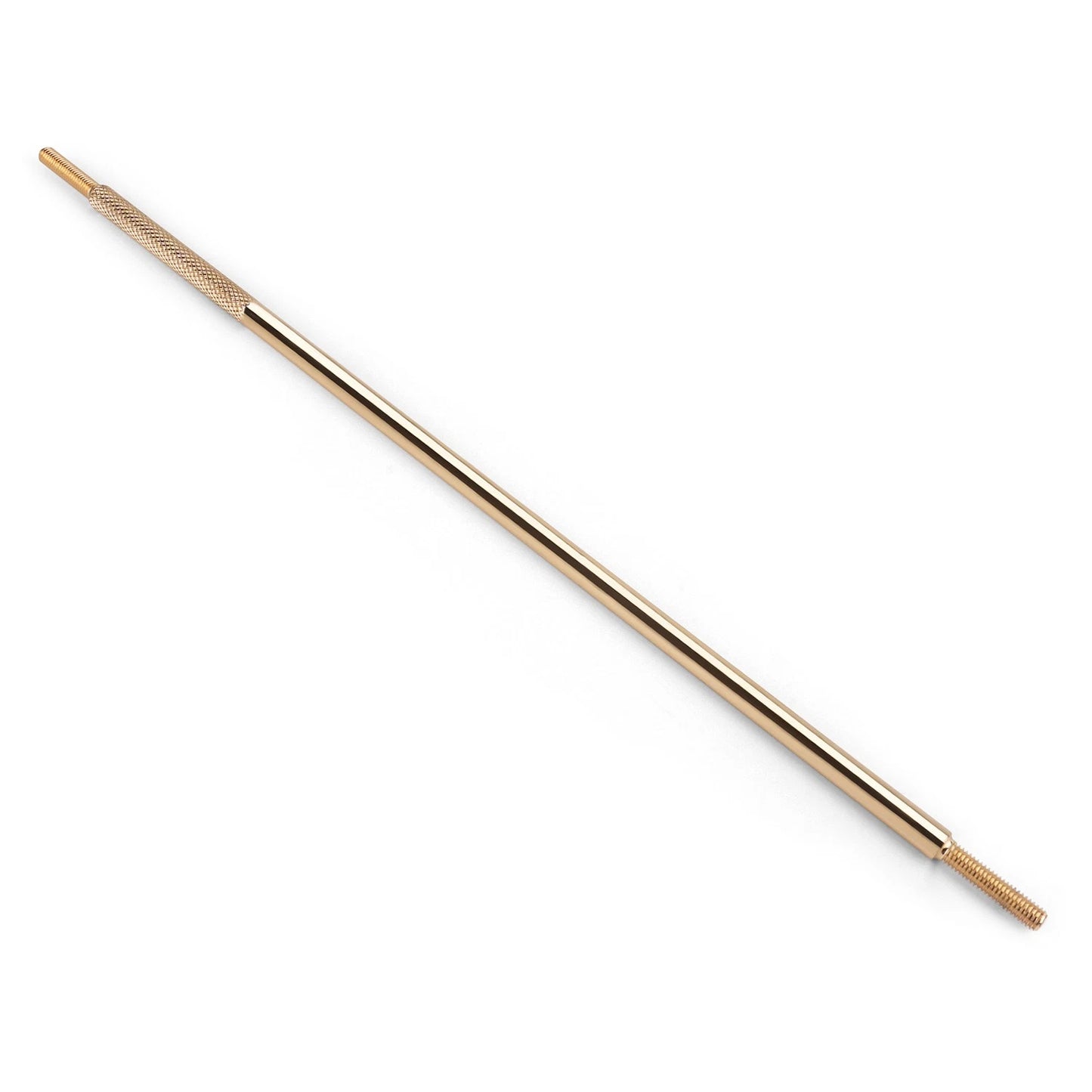

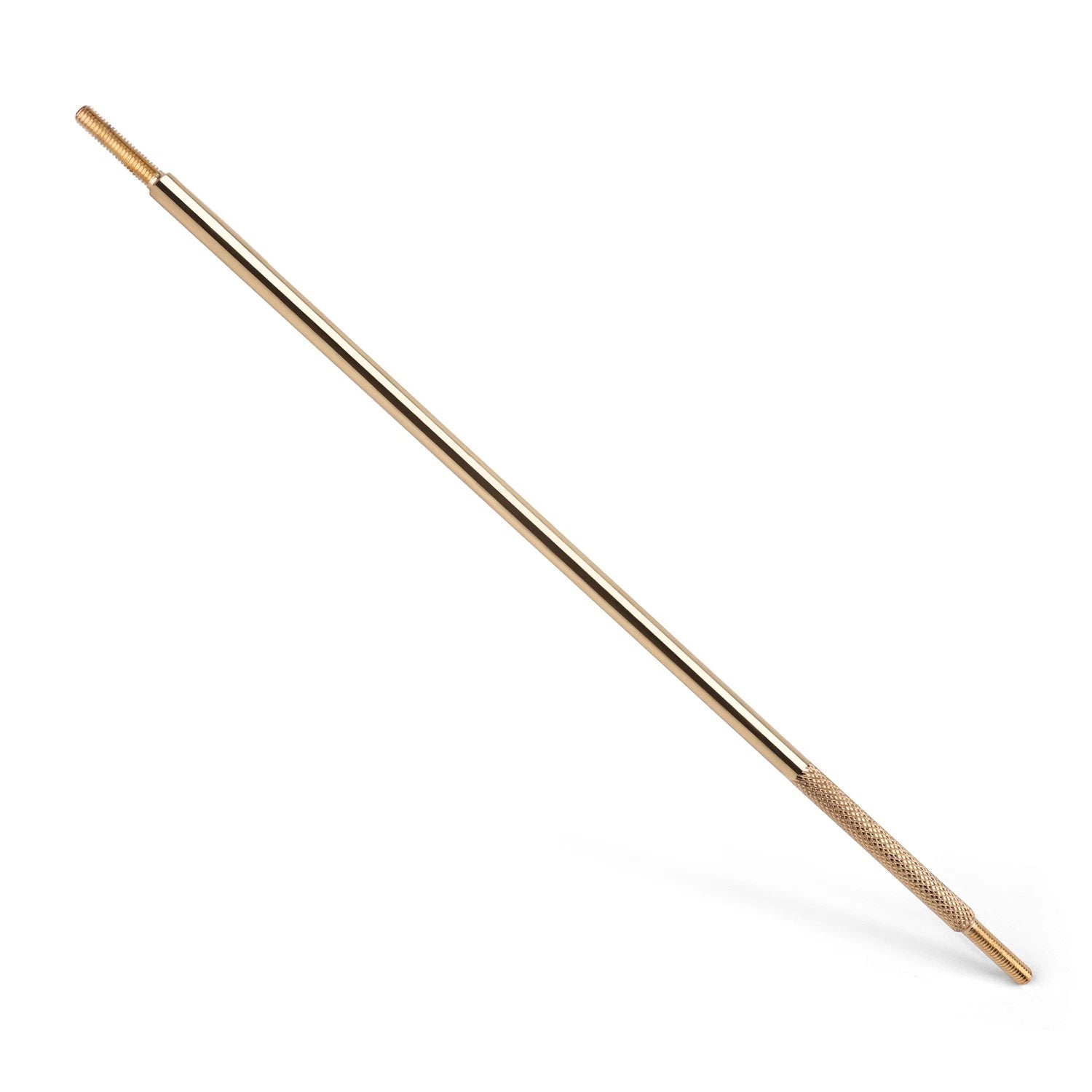

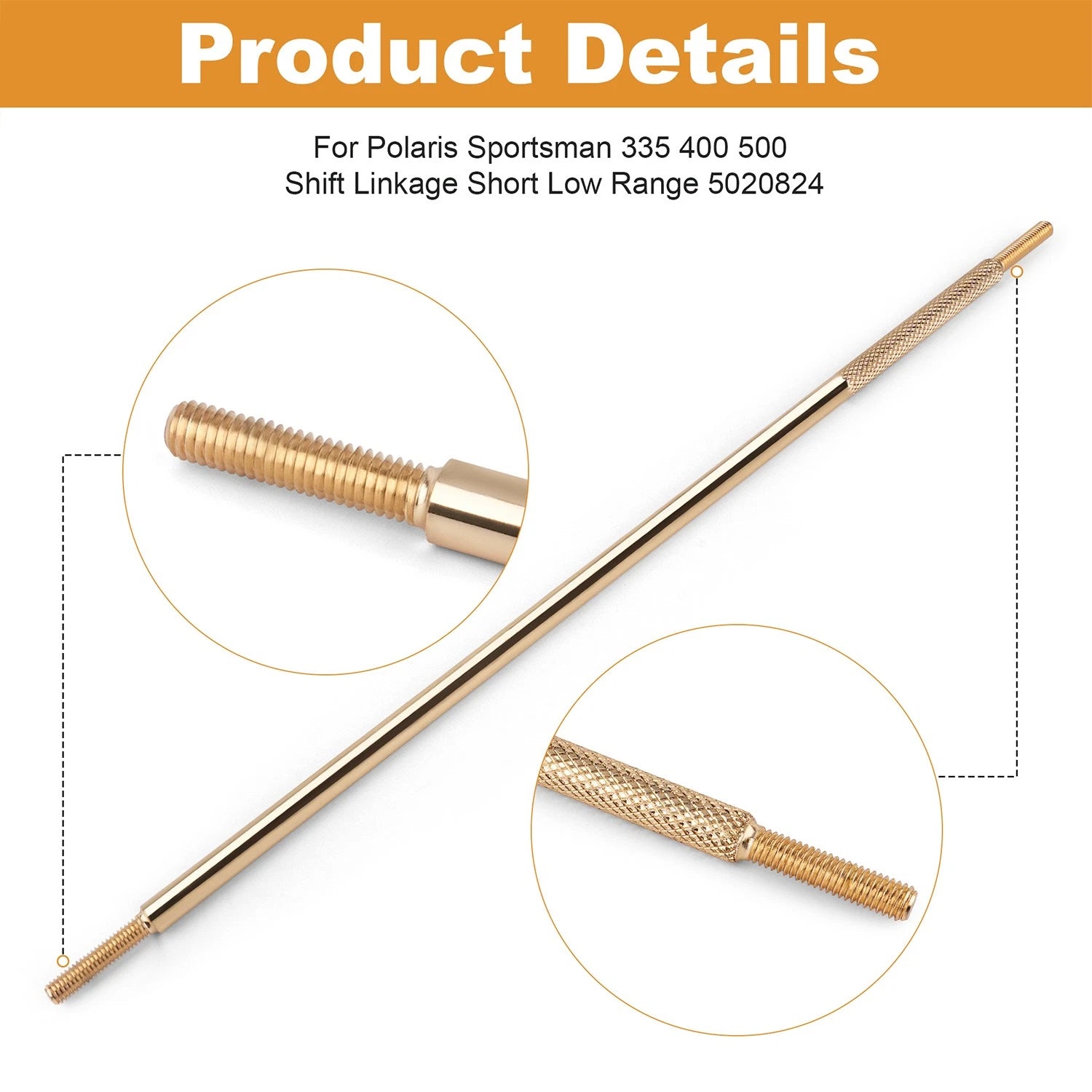

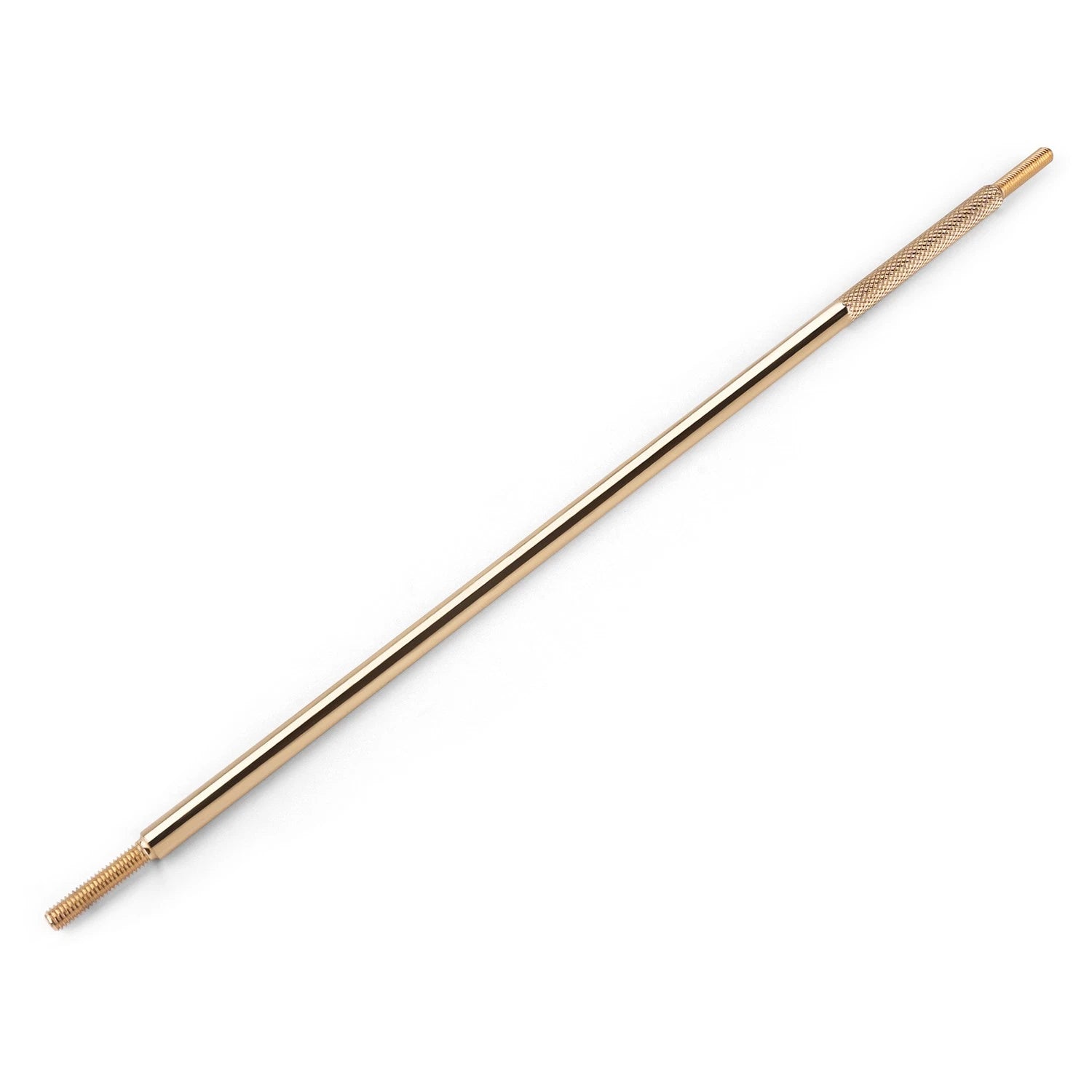

This single rod replaces the low-range link in a compatible Polaris gear-selector mechanism. It has a long straight body, exposed male threads at both ends and a knurled section near one end. The gold color shown in the photo identifies this version.

Match the low-range reference

Replacement reference

5020824

Linkage position

Low range

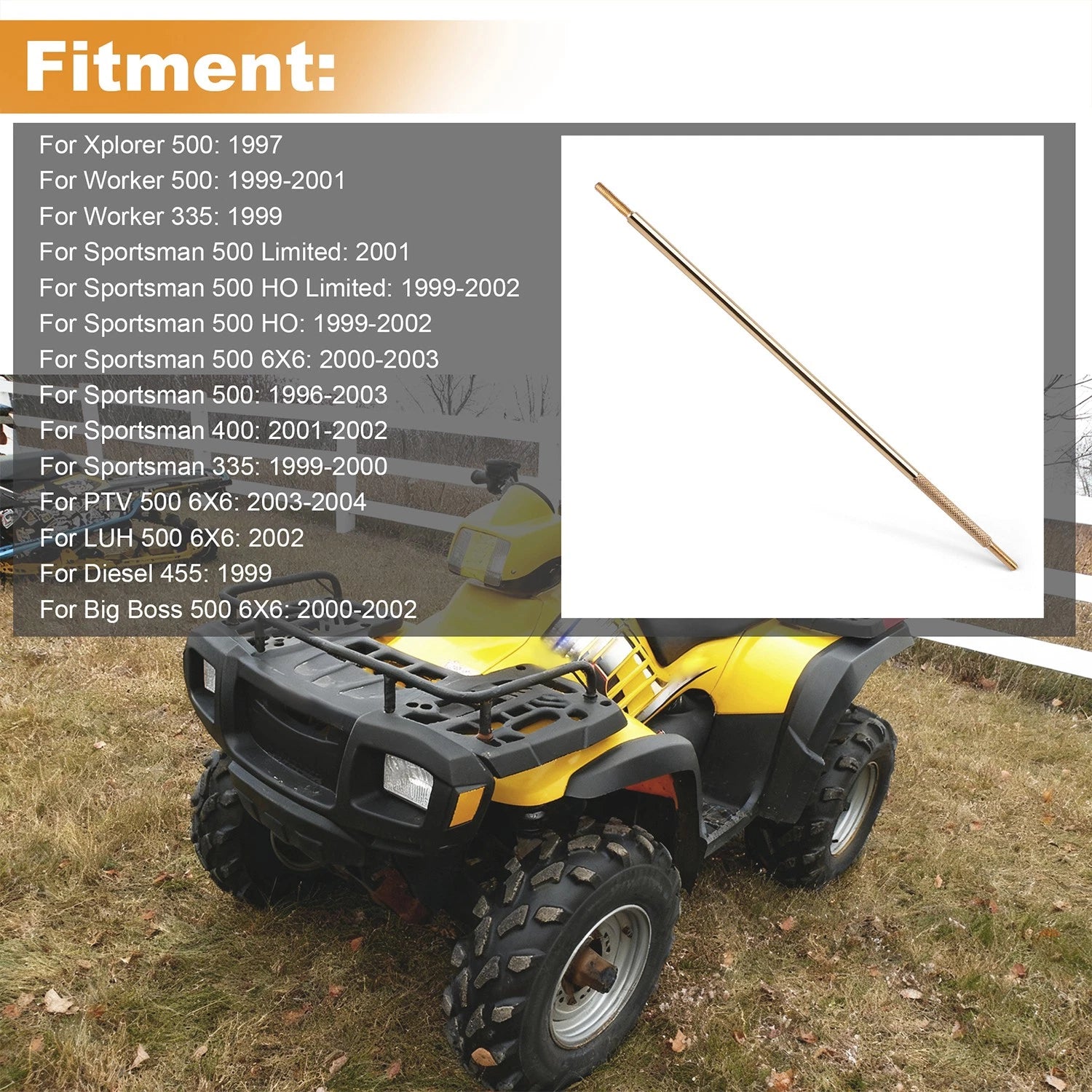

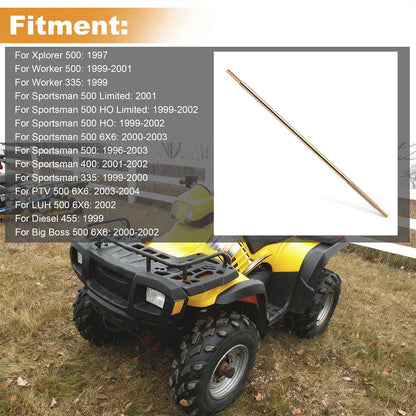

Listed model families

Select Polaris Sportsman 400 and 500 configurations

Supply

1 bare linkage rod

Color

Gold

Ends

Male-threaded at both ends, as pictured

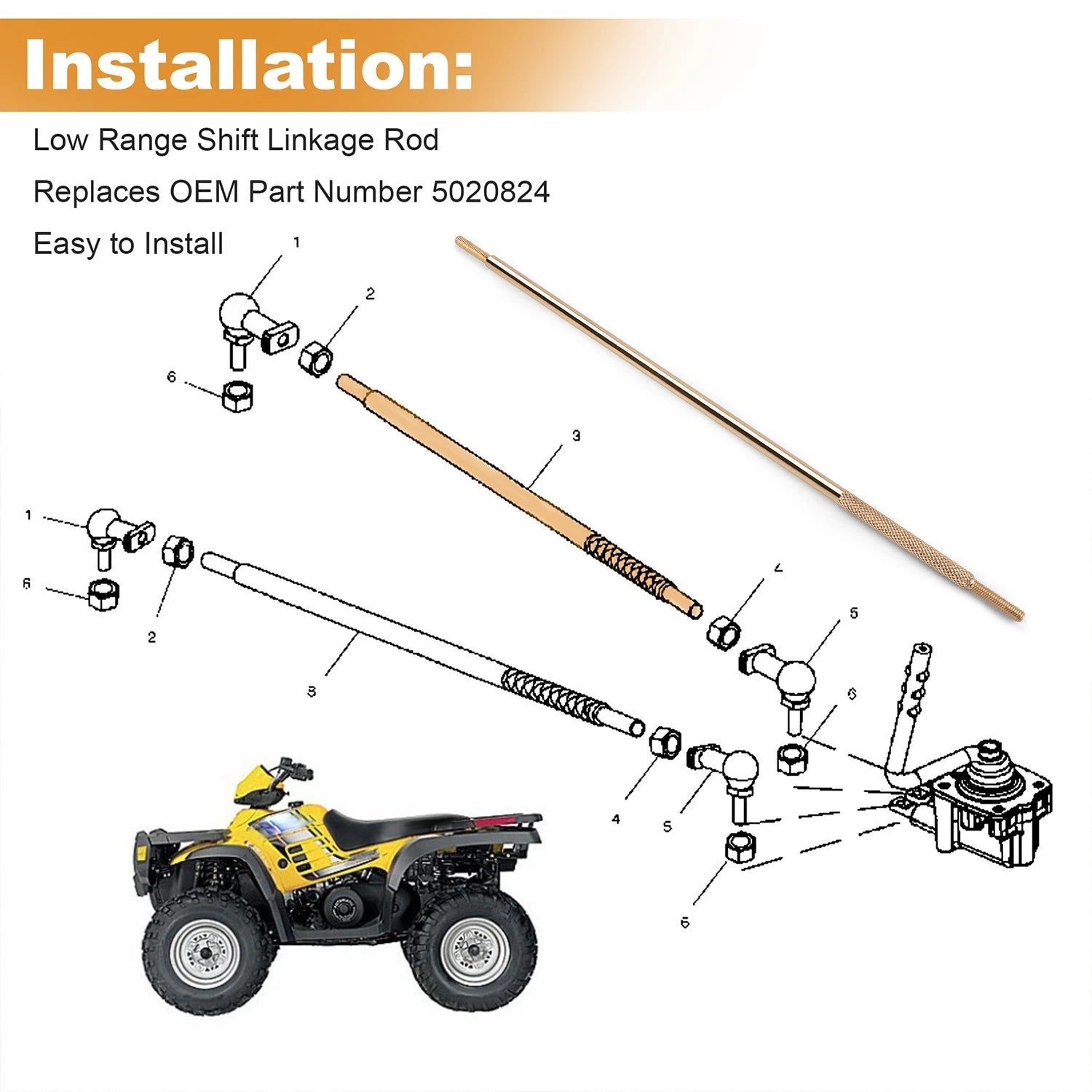

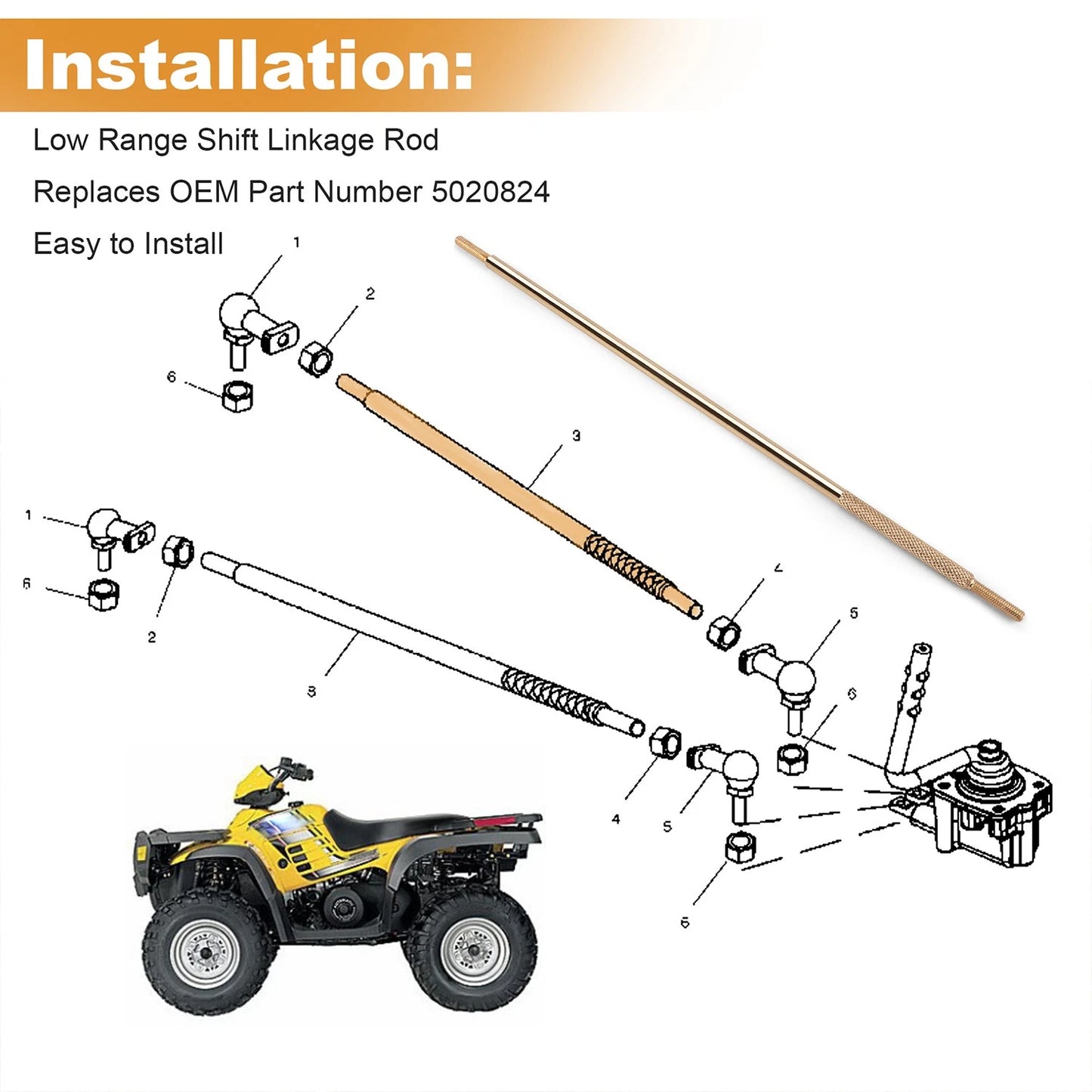

Check your model's gear-selector parts diagram for 5020824 before ordering. The high-range rod is a separate component; the shared Sportsman name does not confirm that both rods have the same fit. This is an aftermarket replacement, and the reference does not establish Polaris manufacture.

Compare the rod and connecting hardware

Measure the existing rod and compare its end threads, thread direction and attachment arrangement. Overall length, adjustment range and thread dimensions are not specified here. Confirm those details before transferring the connecting rod ends and locknuts.

Rod ends, locknuts and the gear-selector assembly are not included. Inspect the existing joints and follow the applicable service procedure to set the linkage and check selector movement after installation.
