Pin and bushing service adapter kit, reference 15012

Pin and bushing service adapter set, reference 15012

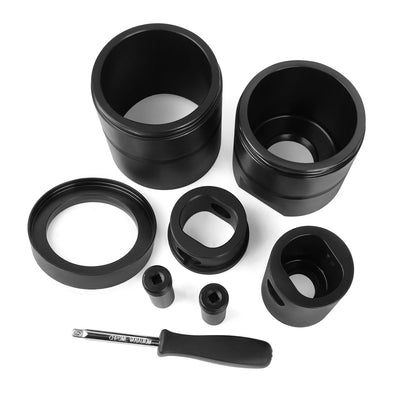

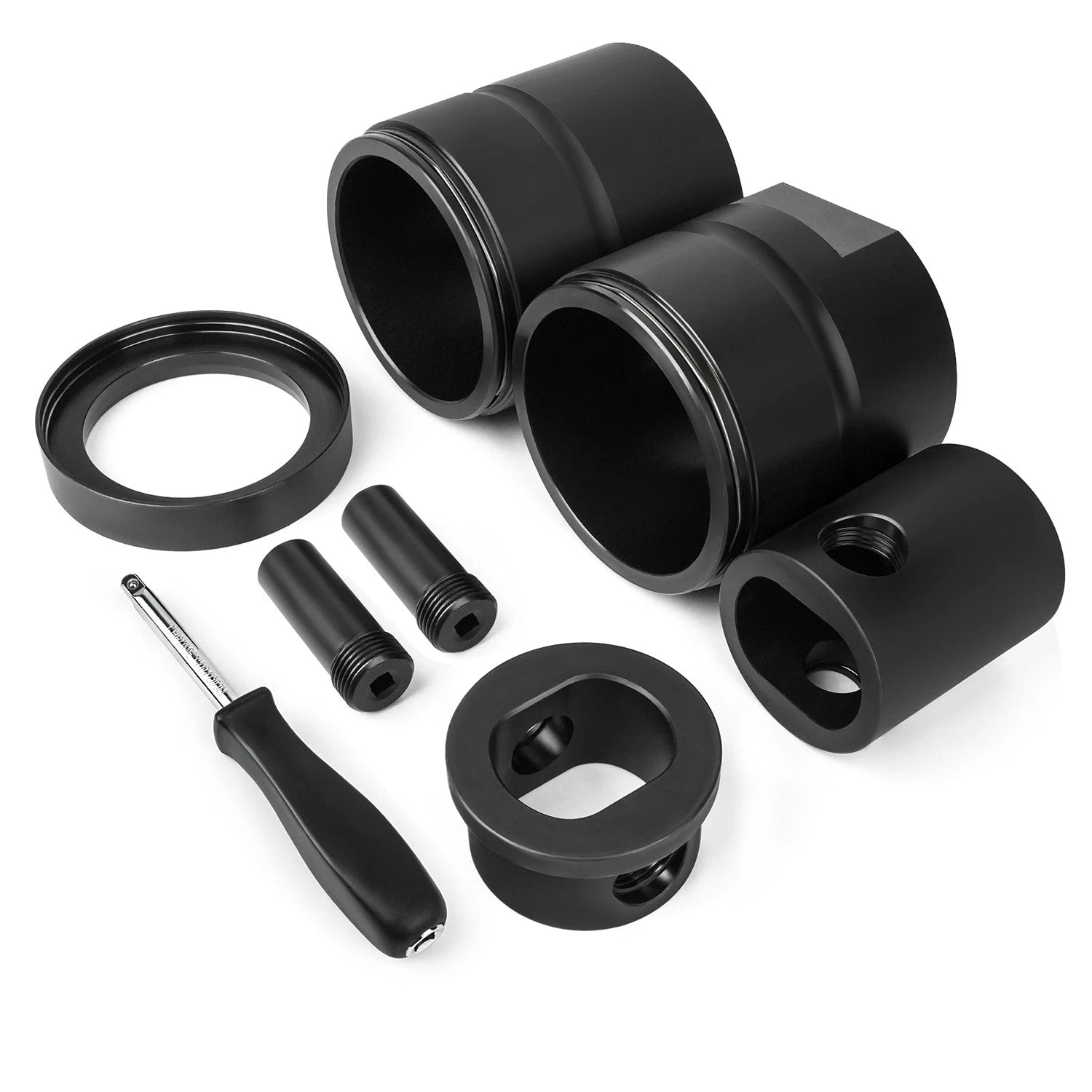

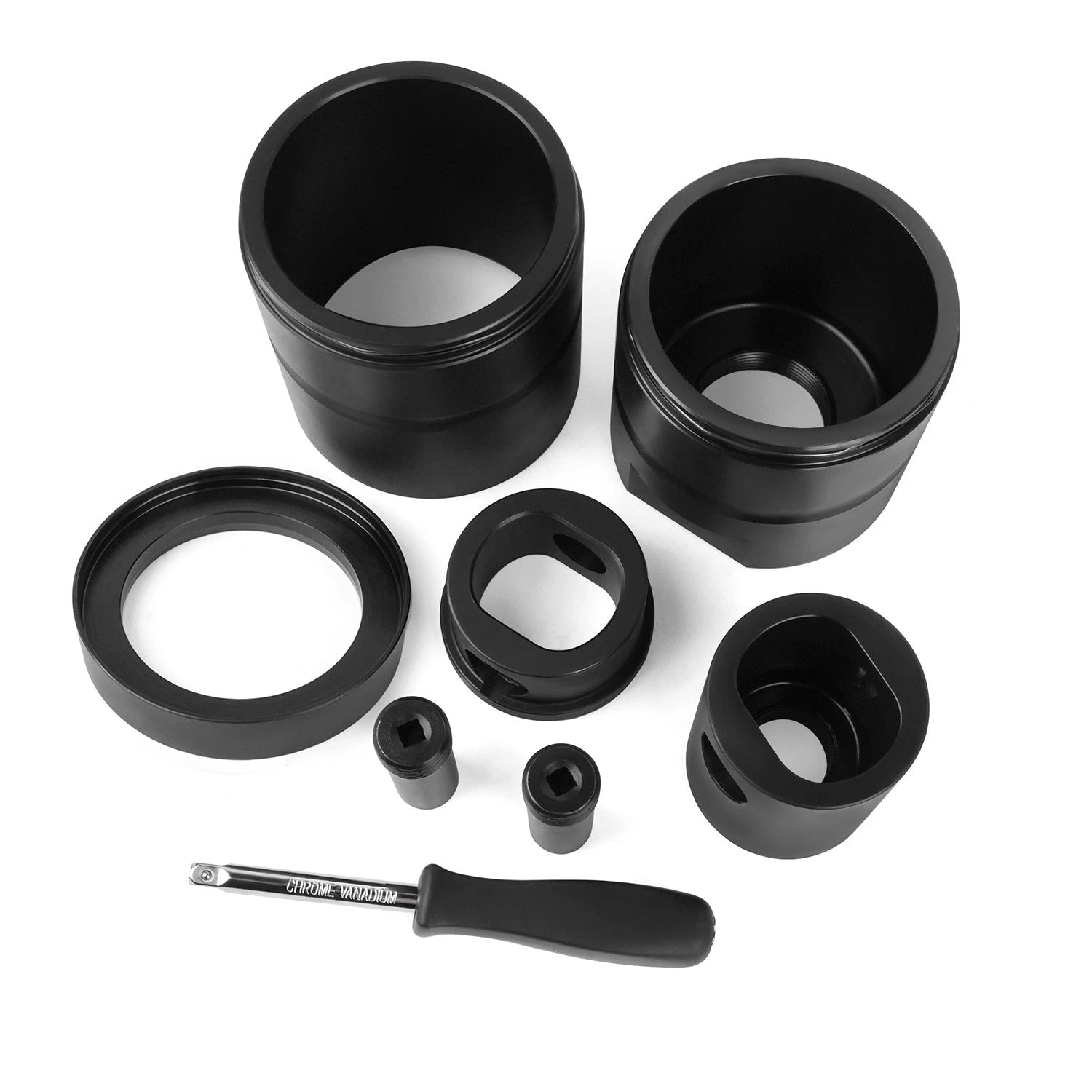

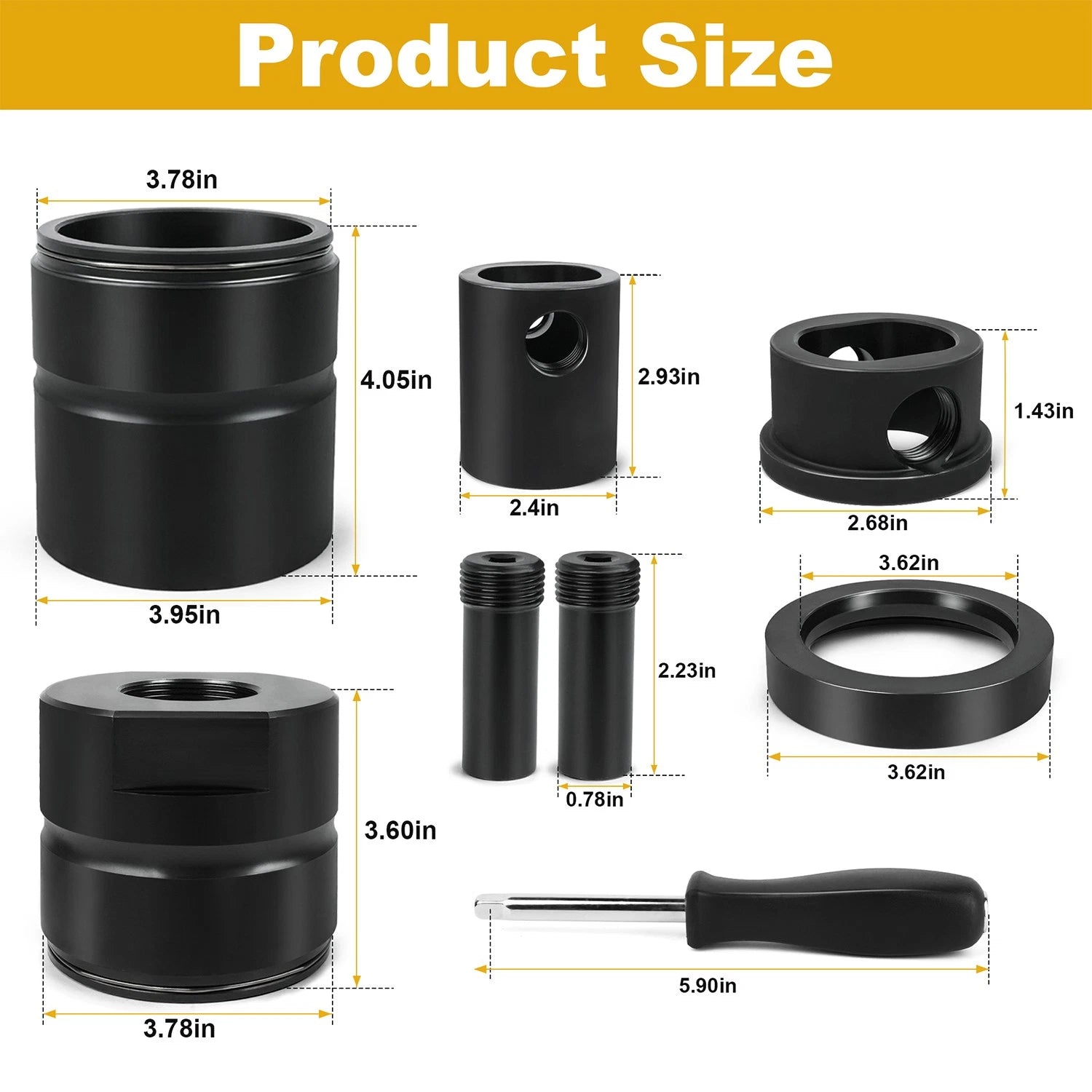

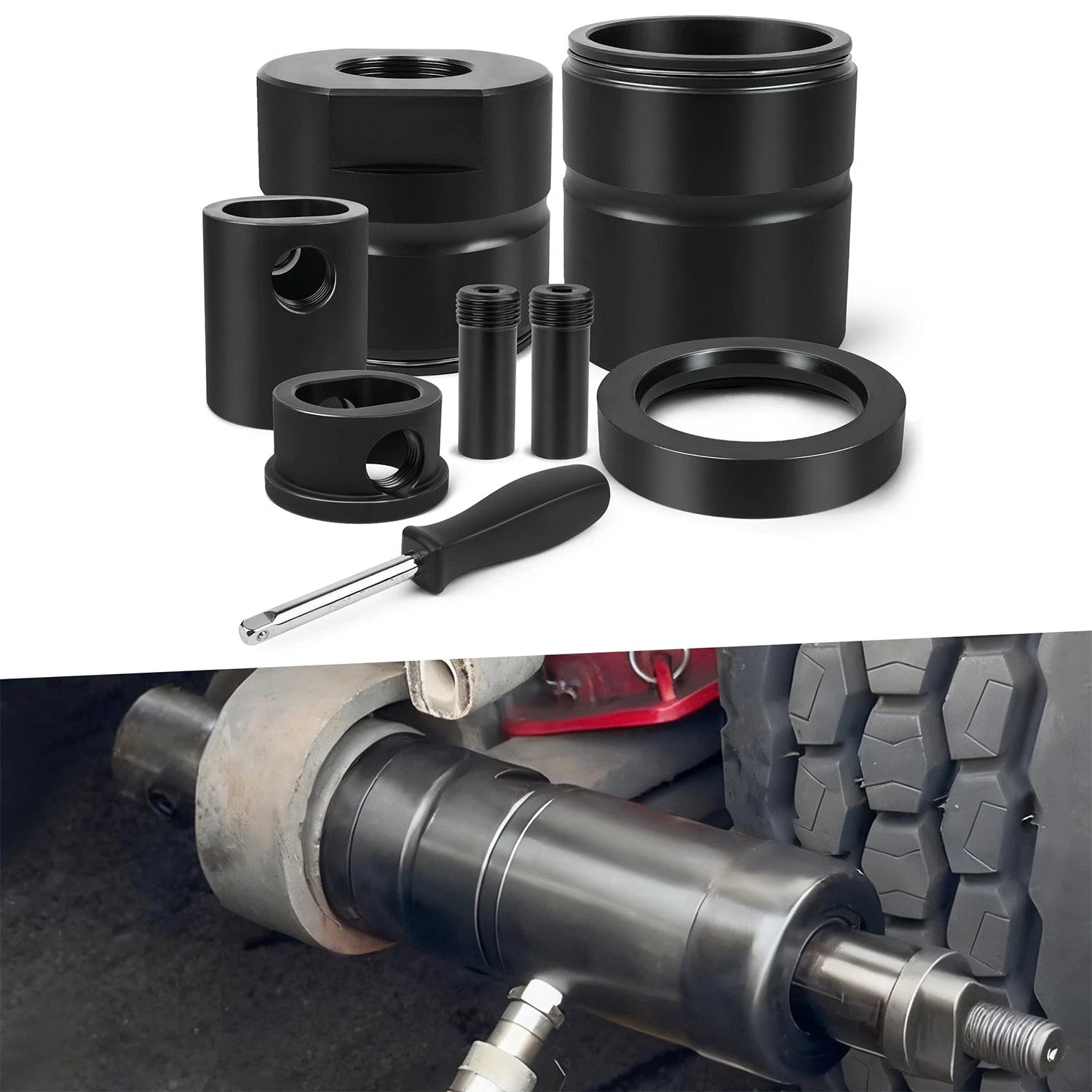

This set is listed under reference 15012 for pin and bushing service. The kit photograph shows eight separate pieces: four cylindrical adapter bodies, two threaded pins, one face ring and one handled socket-style driver. It supplies adapter components for a matched service setup; the base tool and powered pulling equipment must be confirmed separately.

The two larger bodies have different interfaces. One has a threaded opening at the top and flat sections on its outer wall; the other has a broad open bore and a stepped rim. The two shorter bodies each have a threaded side opening, and one has a flange around its base. These differences matter when comparing the set with the adapters and tooling already in the workshop.

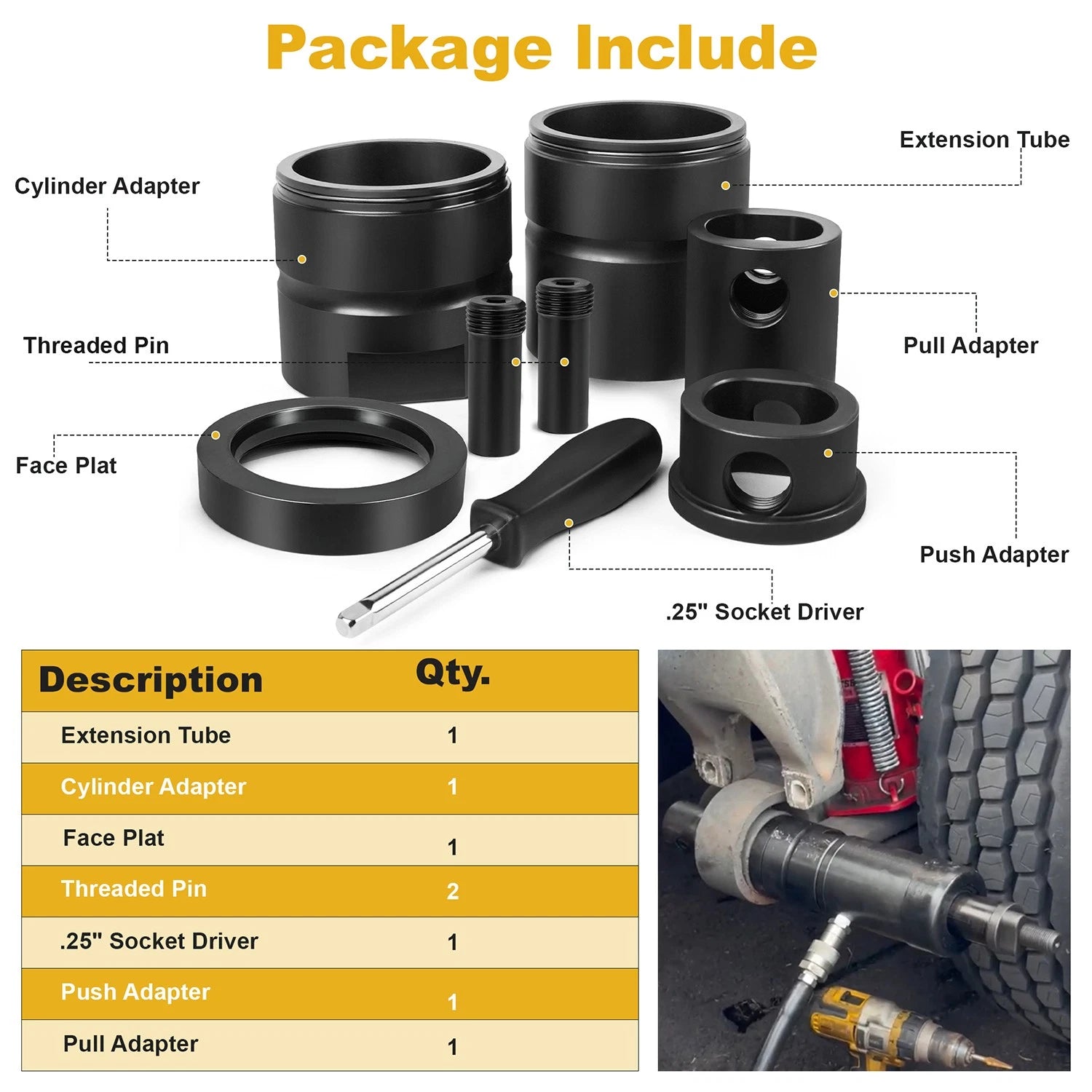

Pictured adapter components

Listed reference

15012

Visible piece count

Eight separate pieces in the kit photograph

Large threaded body

One cylindrical body with a threaded top opening and outer flats

Large open body

One cylindrical body with an open bore and stepped rim

Shorter adapters

Two bodies with threaded side openings; one has a base flange

Threaded pins

Two pins with external threads near one end

Face ring

One separate circular ring with a stepped inner opening

Hand driver

One black-handled socket-style driver

Match the adapters to the service system

Check the base tool's adapter requirements, connection threads, pull-bar arrangement and available clearance before ordering. The listed 15012 reference alone does not verify every interface with an existing tool. Adapter dimensions, thread sizes, driver size and load rating are unspecified for this set.

Identify the actual suspension component and bushing being serviced, then confirm that the adapters can support and engage it as required by the tool instructions. Vehicle make or the presence of leaf springs alone is insufficient to establish fit. No universal truck, leaf-spring or C-frame press compatibility is stated.

Plan the complete tooling before starting

The photograph shows loose adapters and a hand driver. A hydraulic cylinder, pump, pull bar, base frame and replacement vehicle pins or bushings are separate from the pictured set. Use the instructions for the verified tool-and-adapter combination, and inspect the working faces and threads before use. Metal grade, coating specification and internal magnet configuration have not been confirmed.
