6311/6312 intermediate shaft end play gauge tool set
6311/6312 intermediate shaft end play gauge tool set
SKU:297462308662
Low stock: 10 left
Couldn't load pickup availability
Check the part details and order terms before buying. Need a specification confirmed? Contact Keyead.
- Product type
- Transmission service tools
Measure for the intermediate shaft spacer

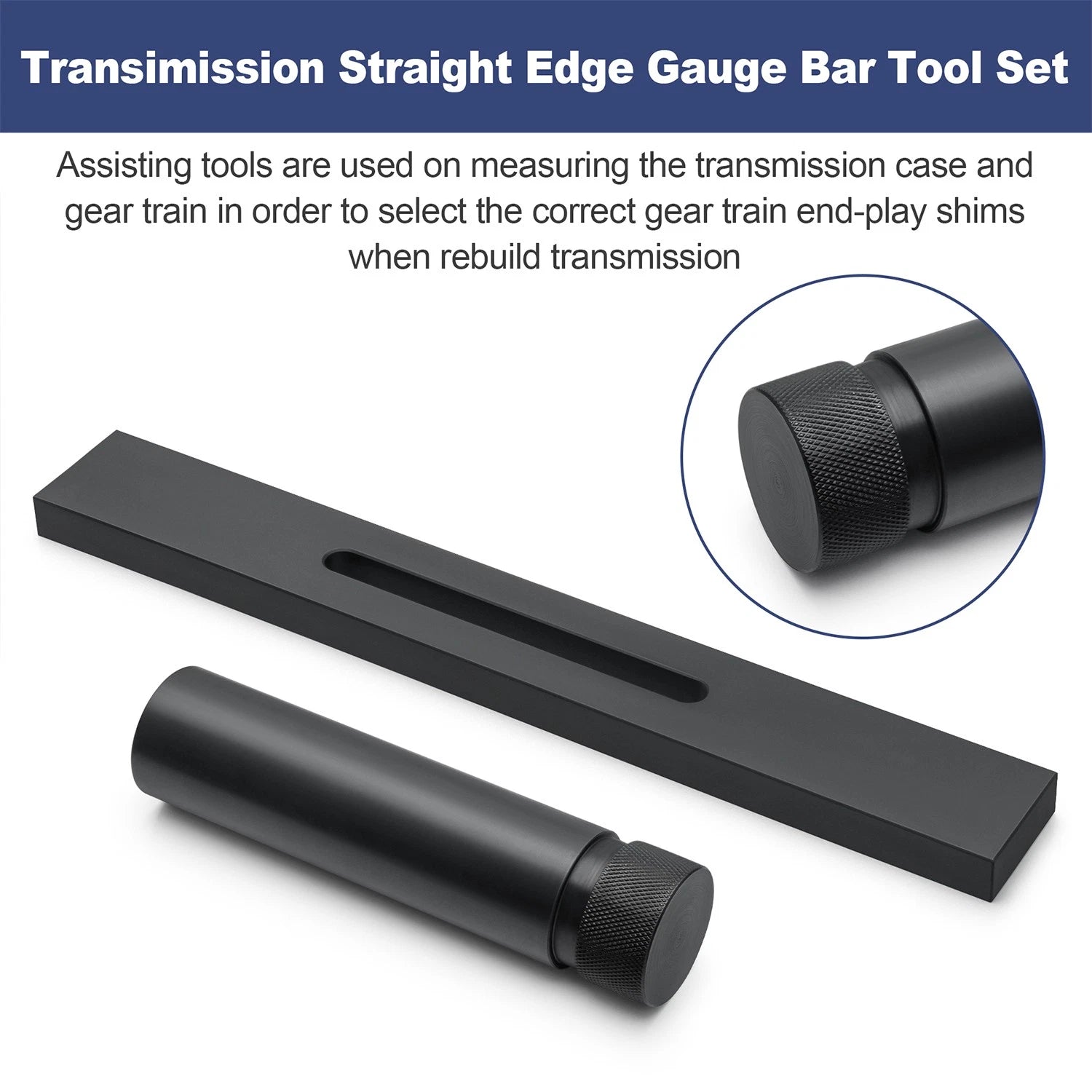

This 6311/6312 intermediate shaft end play gauge set pairs a slotted straightedge with a cylindrical gauge tool. It is an unbranded replacement set for the tool references used to select the intermediate shaft spacer during Chrysler RH/RE overdrive assembly.
Tool details
- Tool references
- 6311 and 6312

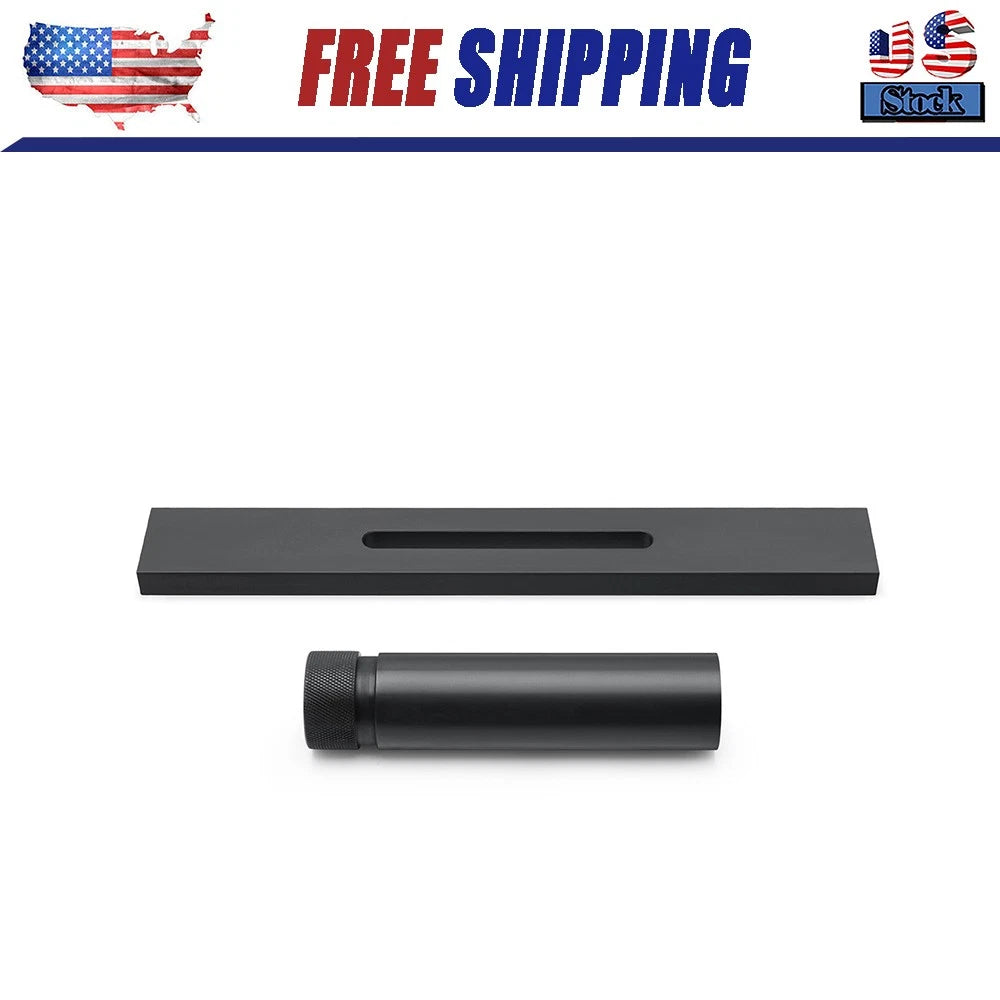

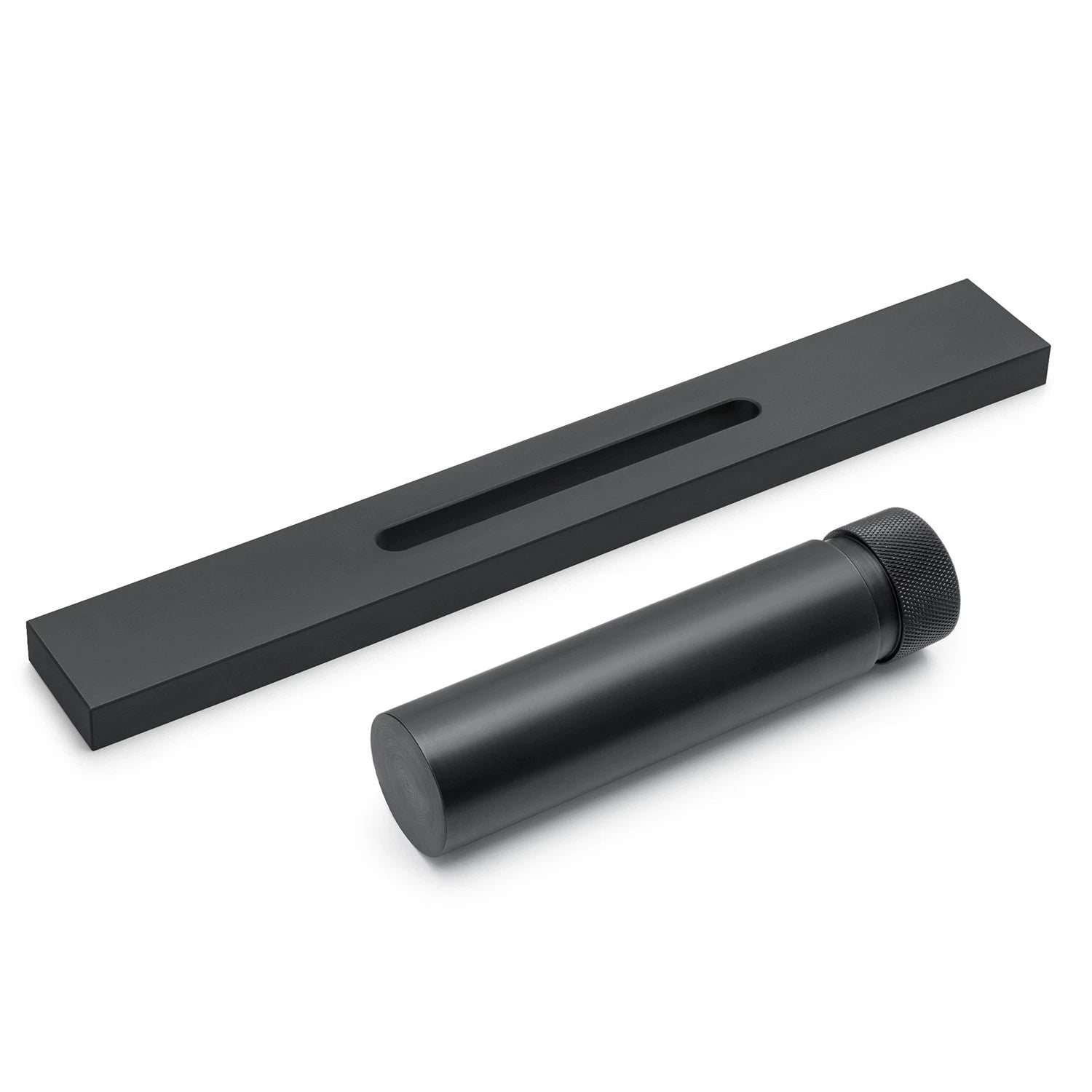

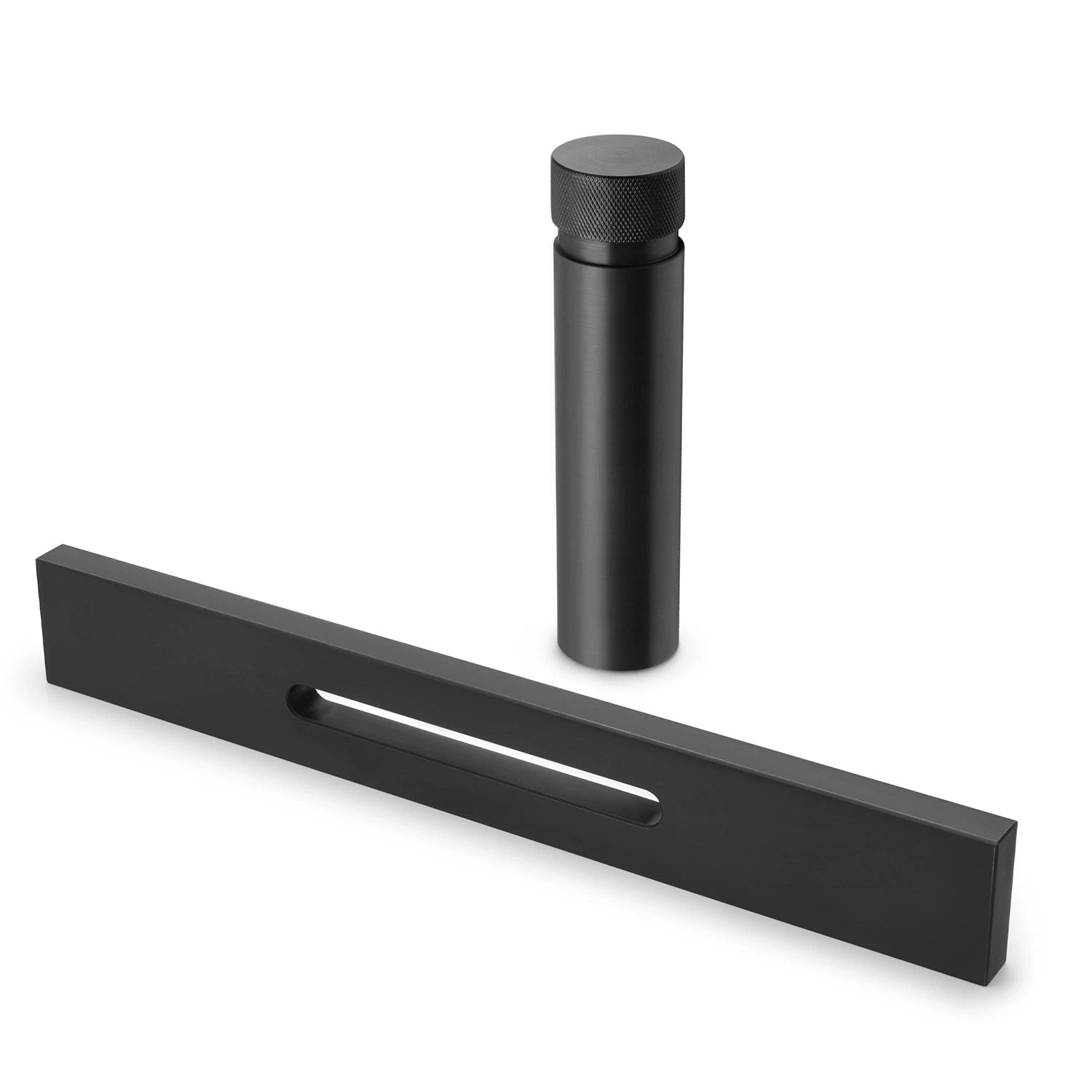

- Set components
- Slotted straightedge and cylindrical gauge tool
- Service task
- Intermediate shaft end play spacer selection
- Measuring equipment
- A separate dial caliper or depth micrometer is required
How the pair is used

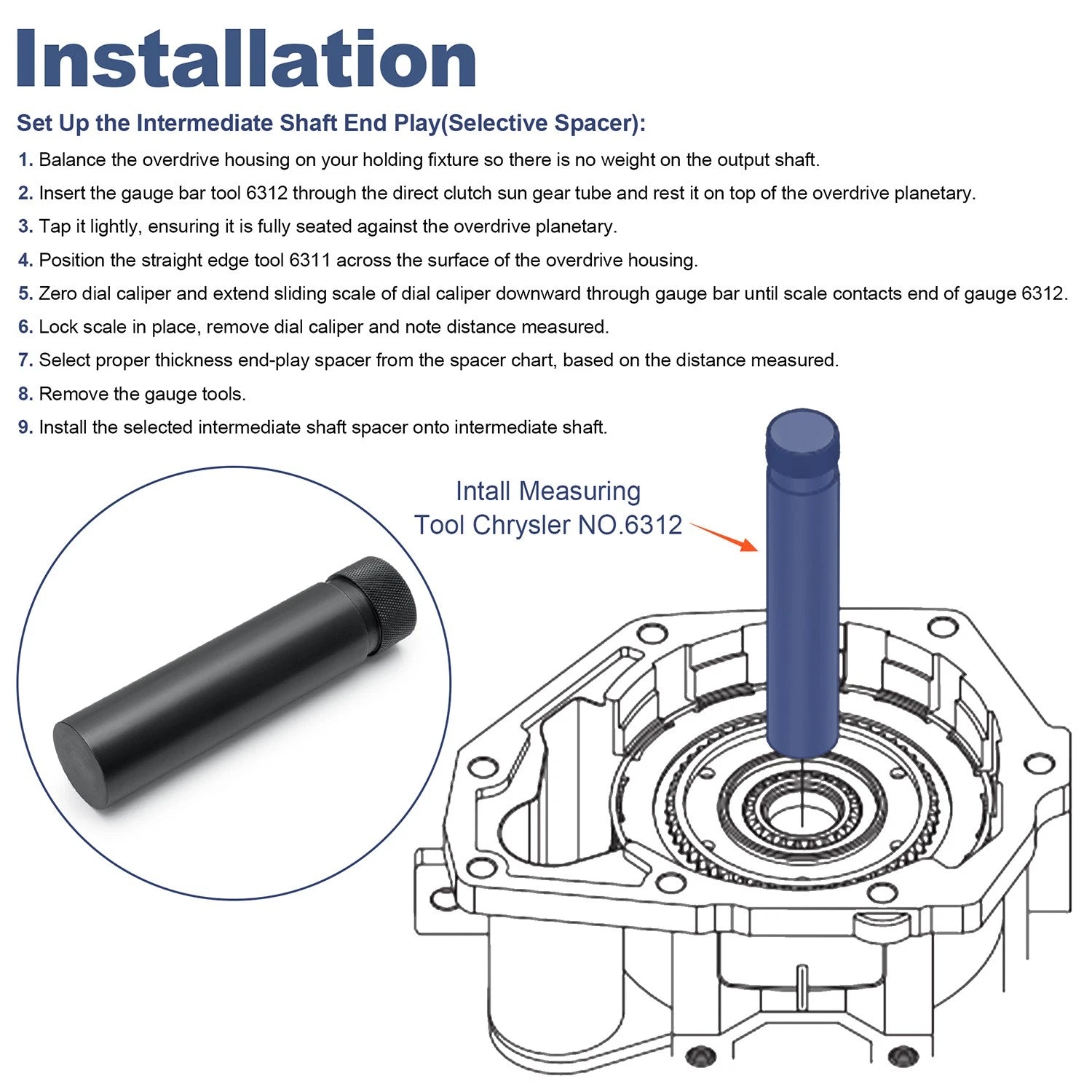

In the specified overdrive procedure, the 6311 straightedge bridges the housing face while the 6312 gauge seats against the planetary shoulder. A separate measuring instrument reads the distance between the straightedge and the gauge. Compare that reading with the spacer chart for the transmission being rebuilt.
Support the overdrive unit upright without loading the output shaft, and seat the internal components as directed by the service manual. The 6311 straightedge also has a separate role in overdrive thrust plate selection; the 6312 gauge is used for the intermediate shaft spacer measurement.
Check the transmission and procedure
Match the transmission code and its service instructions to both 6311 and 6312 before ordering. Dodge, Ram or Wrangler JK model names alone do not establish compatibility. Use the assembly sequence and spacer specifications for your exact transmission.
