INJORA CNC Aluminum Transmission with 370 45T Motor for Traxxas TRX4M

Aluminum transmission and 370 motor upgrade for the TRX4M

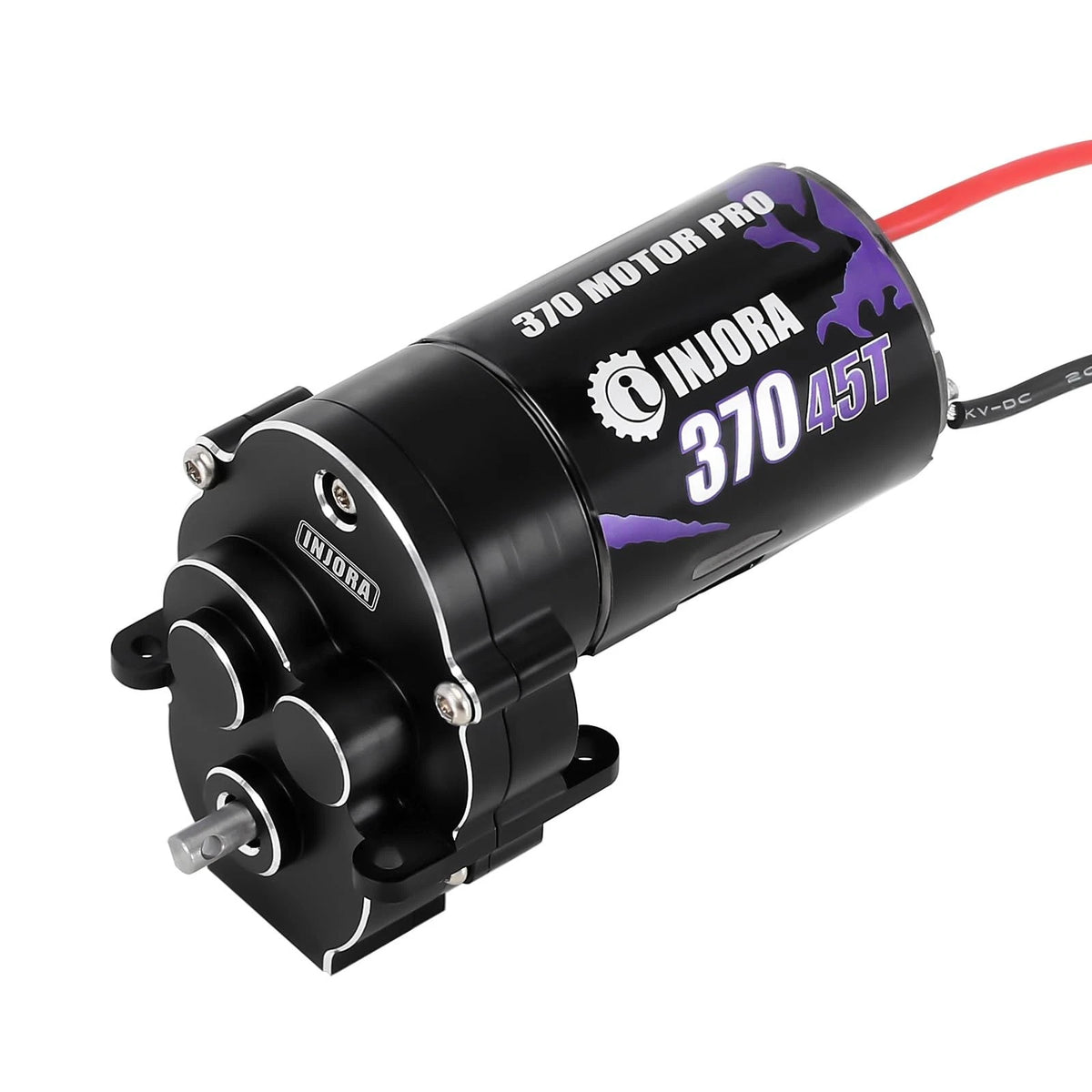

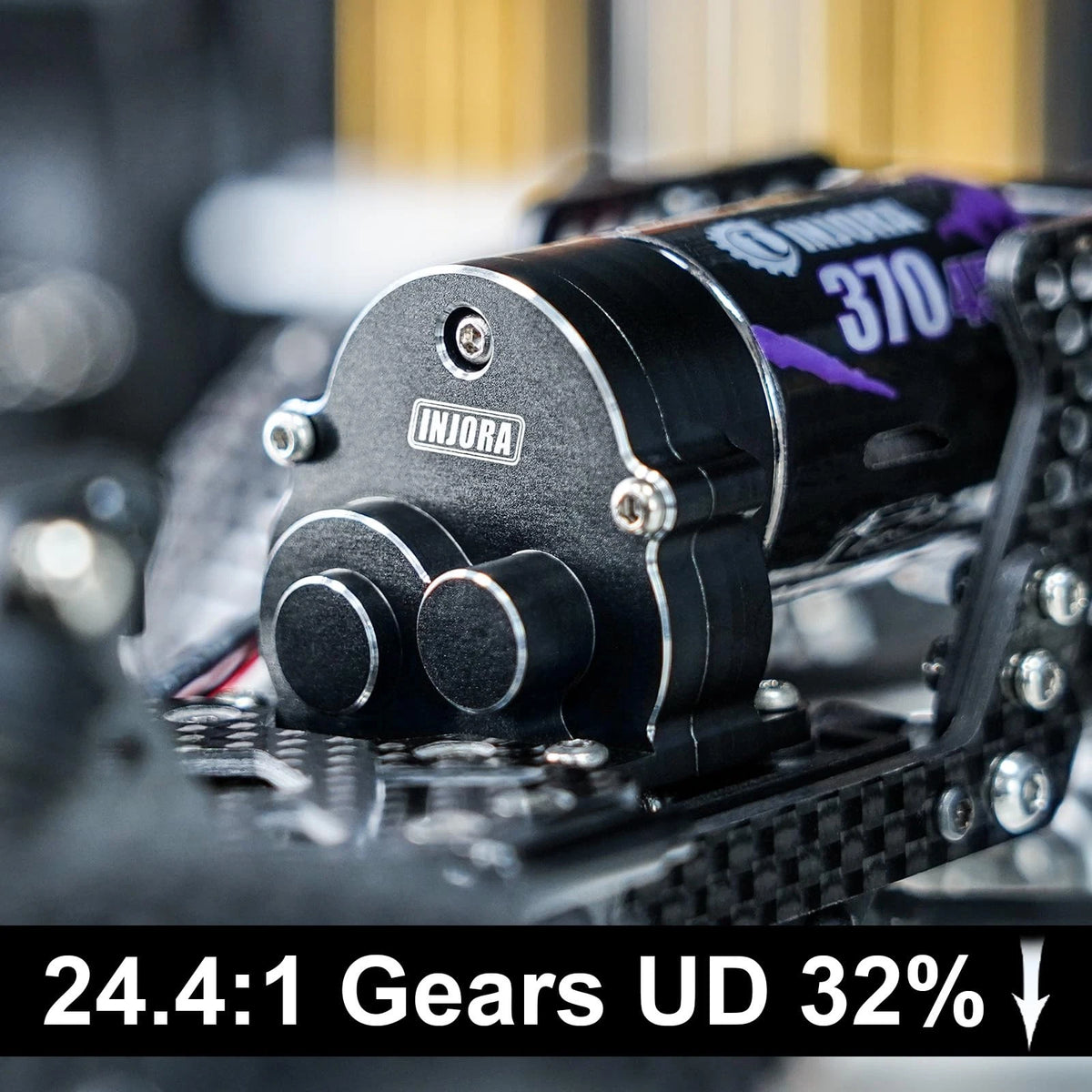

This INJORA set (part 4M-98BK) is built for the 1/18 Traxxas TRX4M crawler: a complete CNC machined aluminum transmission plus a 370 brushed motor. The motor is 45T. The transmission comes with a 24.4:1 stainless steel gear set, a 32% underdrive. The aluminum housing is taller than the stock case to fit a 370 motor.

High strength neodymium magnets give the motor its torque, and INJORA rates drag brake and torque delivery above the stock TRX4M part. The IPX6 rating covers rain and brief submersion. The pinion in this set is a 9 tooth, 0.4 module stainless steel gear. The stock TRX4M pinion has 11 teeth.

What the set includes

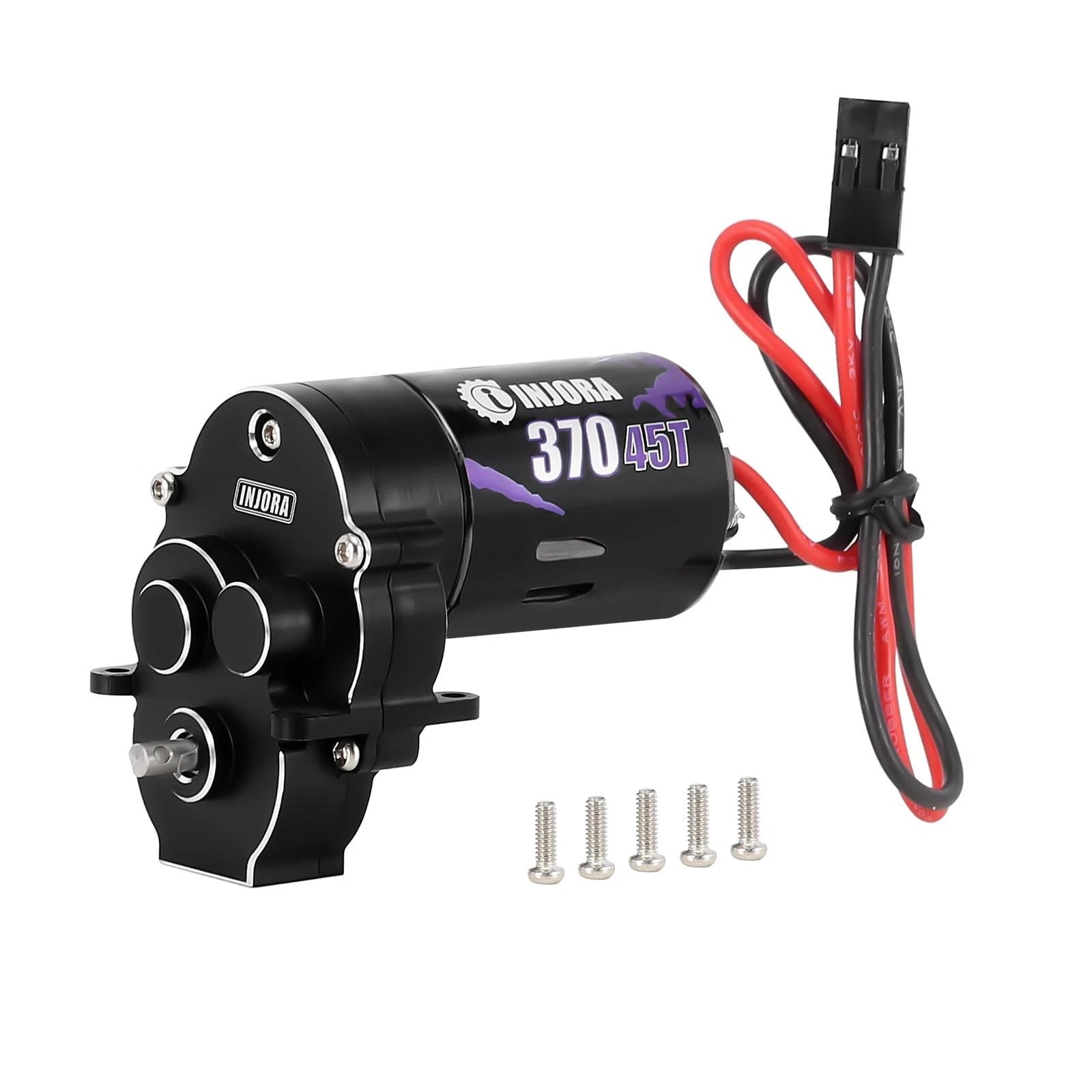

• 1x complete transmission with CNC aluminum housing, 24.4:1 stainless steel gear set and ball bearings
• 1x 370 brushed motor, 45T, with a 9T 0.4mod stainless steel pinion

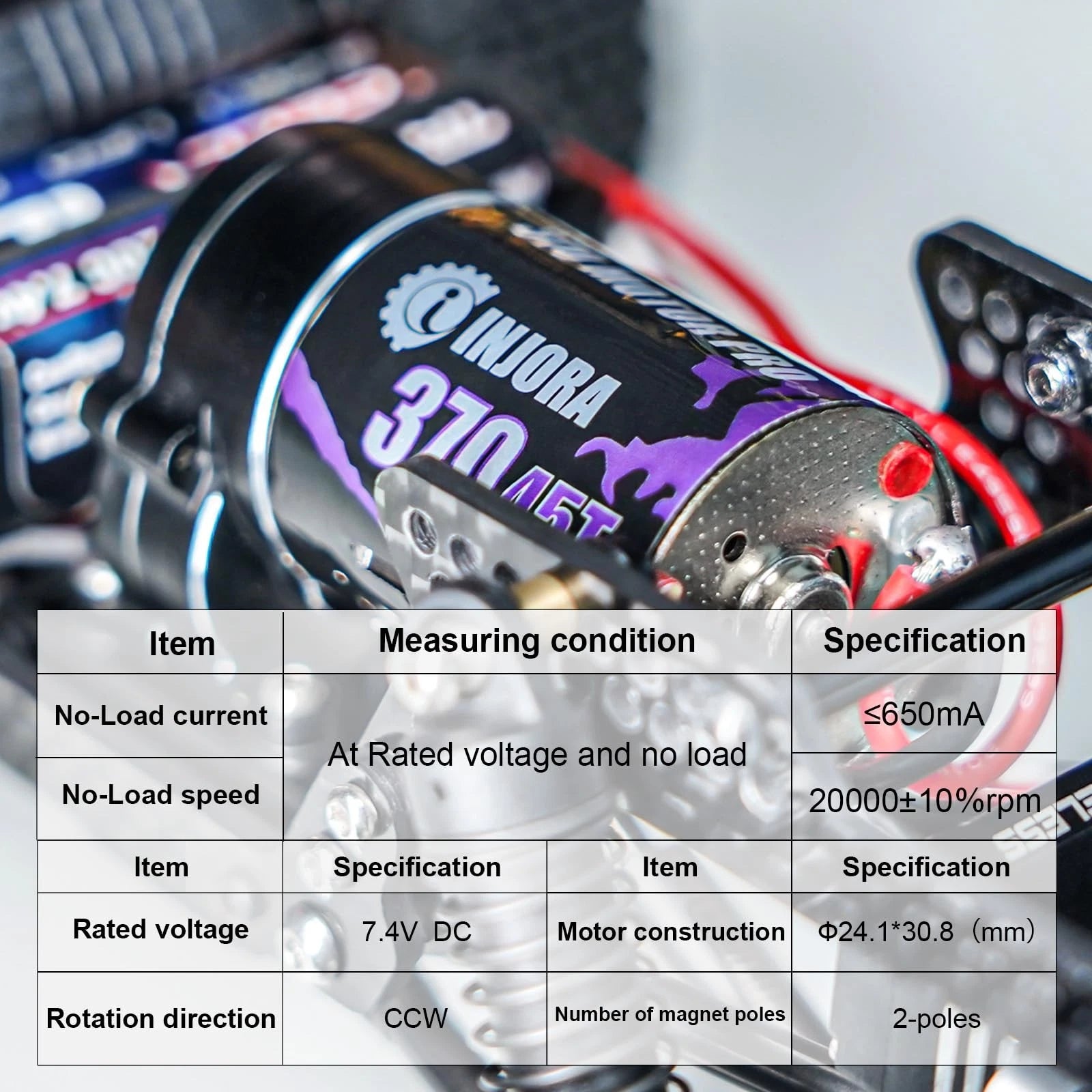

370 motor specifications

Turn

45T

Rated voltage

7.4V

No-load speed

20000±10% rpm

No-load current

650mA or less

Magnets

Neodymium

Waterproof rating

IPX6

Pinion

9T, 0.4 module, stainless steel

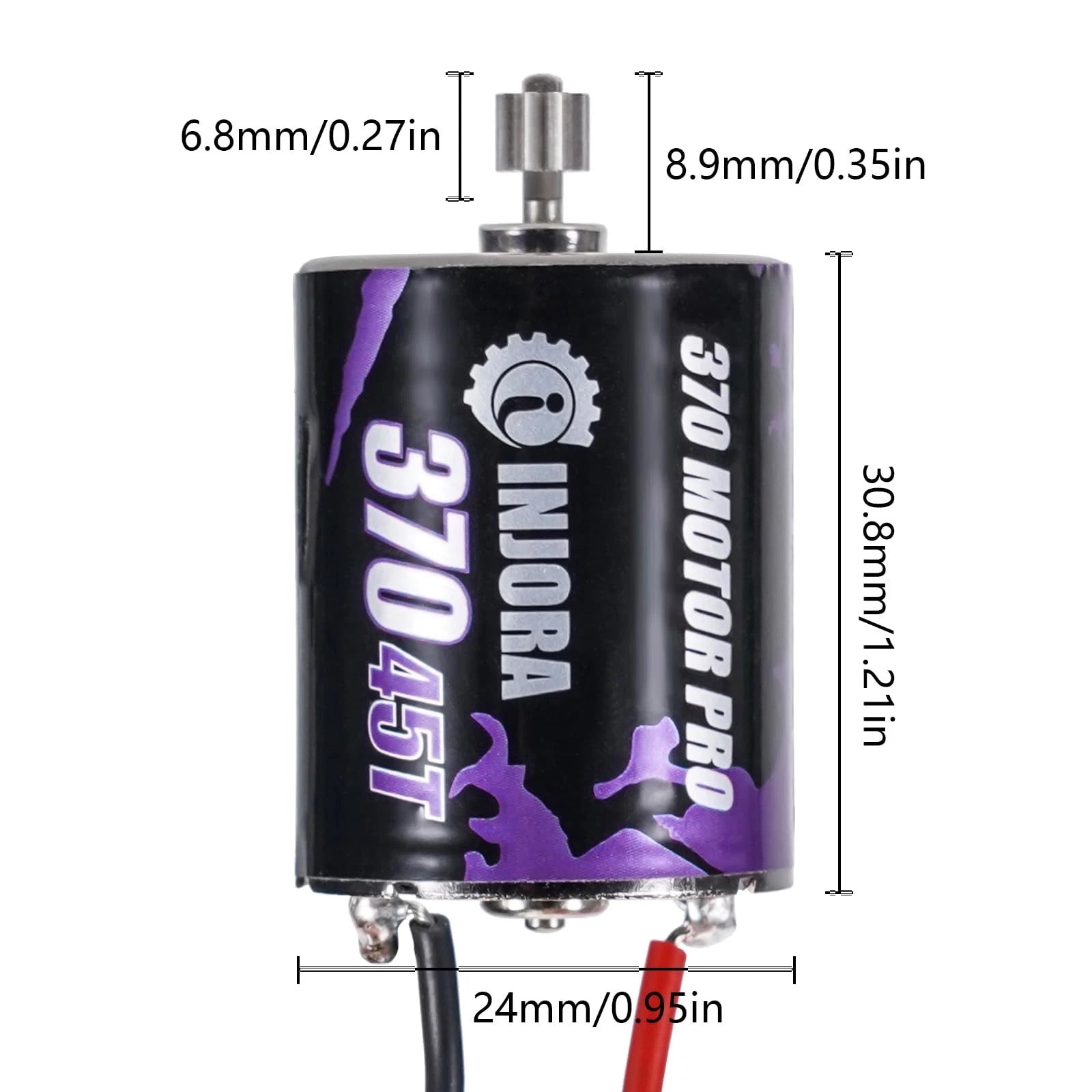

Total length

42.7mm (1.68in)

Diameter

24.4mm (0.96in)

Weight

53g

Transmission specifications

Housing

CNC machined aluminum, black

Gears

Stainless steel, 24.4:1

Underdrive

32%

Bearings

Ball bearings included

Weight

36g

ESC and gearing notes

The 370 motor draws more current than the stock TRX4M ESC can supply. INJORA does not rate this set for the stock ESC. Its MB100 ESC is listed as compatible, and INJORA says you can run a 3S battery with that pairing.

The 9T pinion is meant for the included 24.4:1 gear set only. INJORA advises against other gear ratios in this transmission.

INJORA lists it for ages 14 and up and notes it is not a toy.
