Horizontal Threaded Hinge Pin Kit for BOSS RT3 V-Plow MSC09649

Horizontal threaded hinge pin kit for BOSS RT3 V-plows

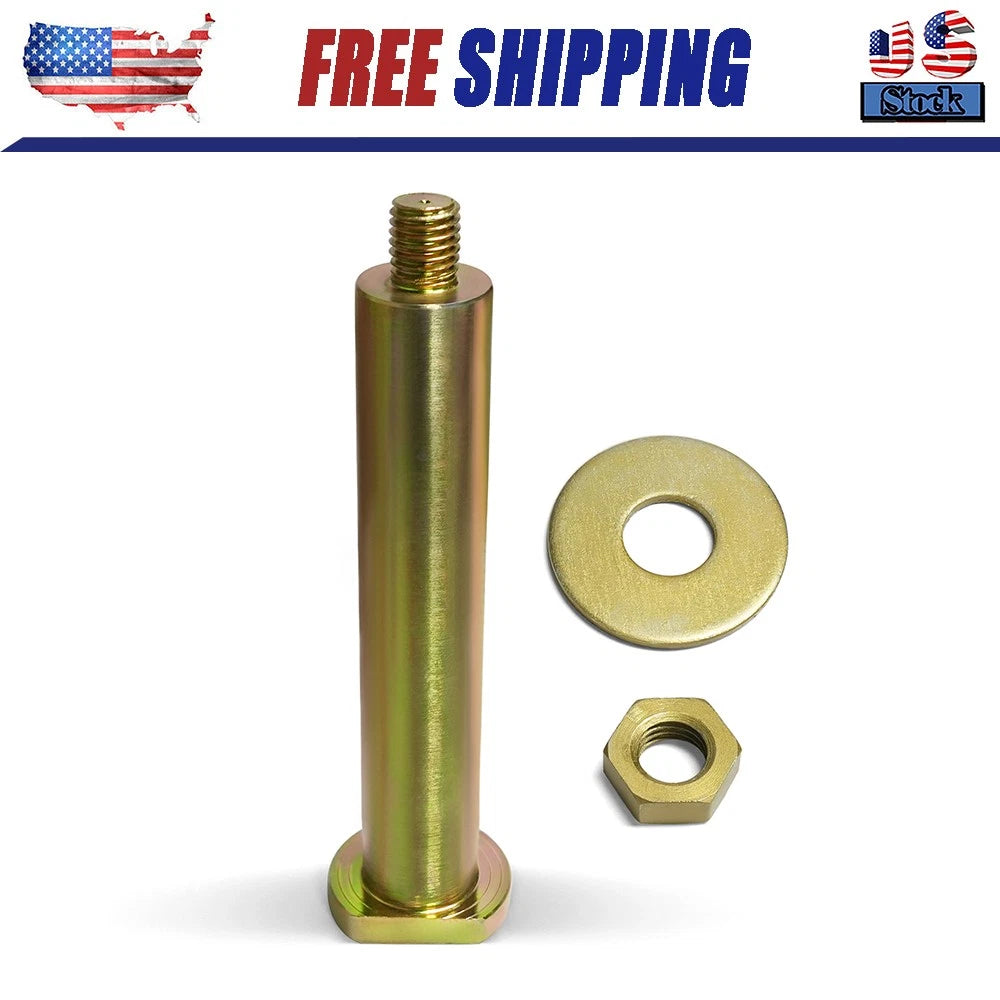

This replacement kit contains one horizontal hinge pin, one flat washer and one hex nut for compatible BOSS RT3 V-plow hinge assemblies. Use MSC09649 as the threaded-kit reference and confirm the required pin against your plow's model, serial number and parts diagram.

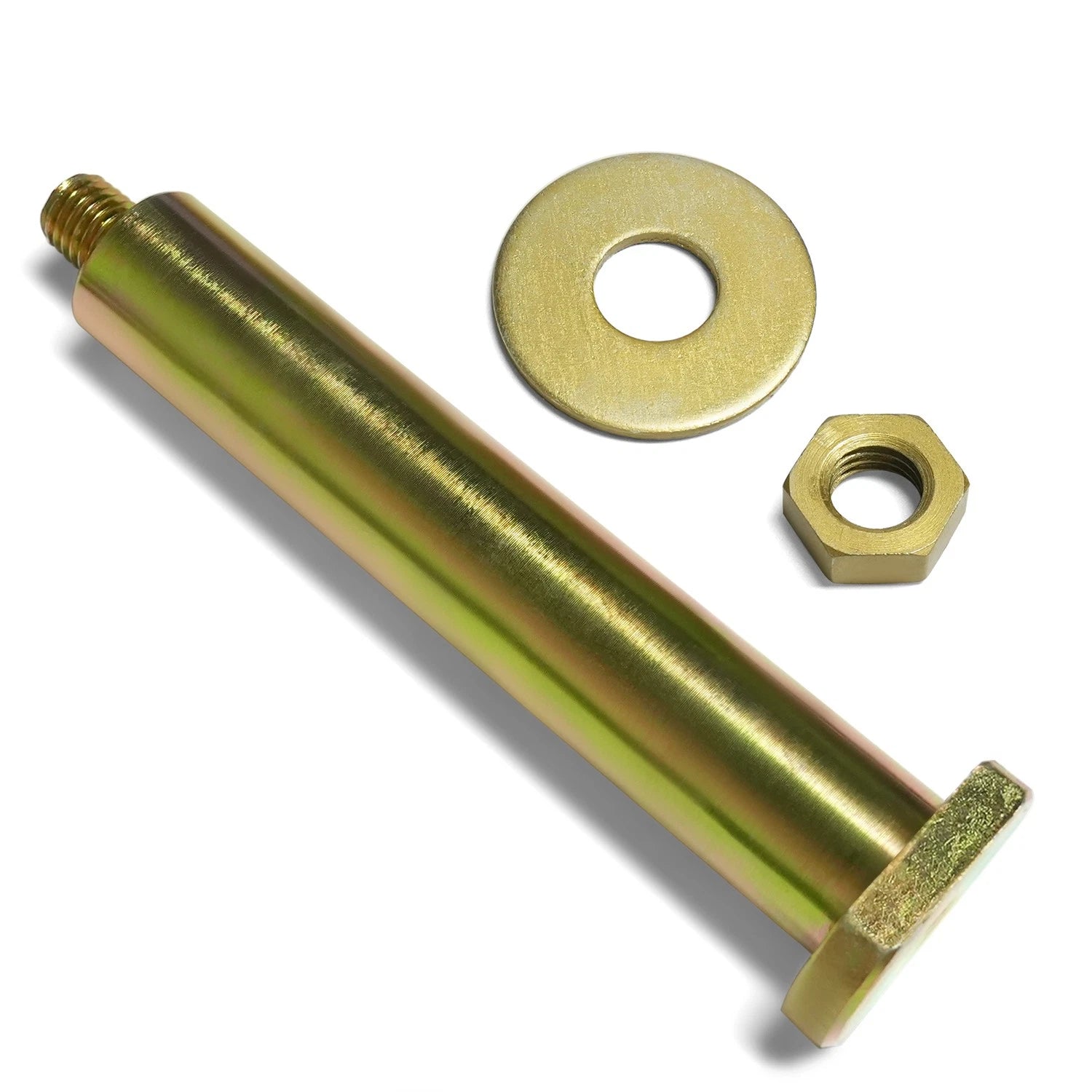

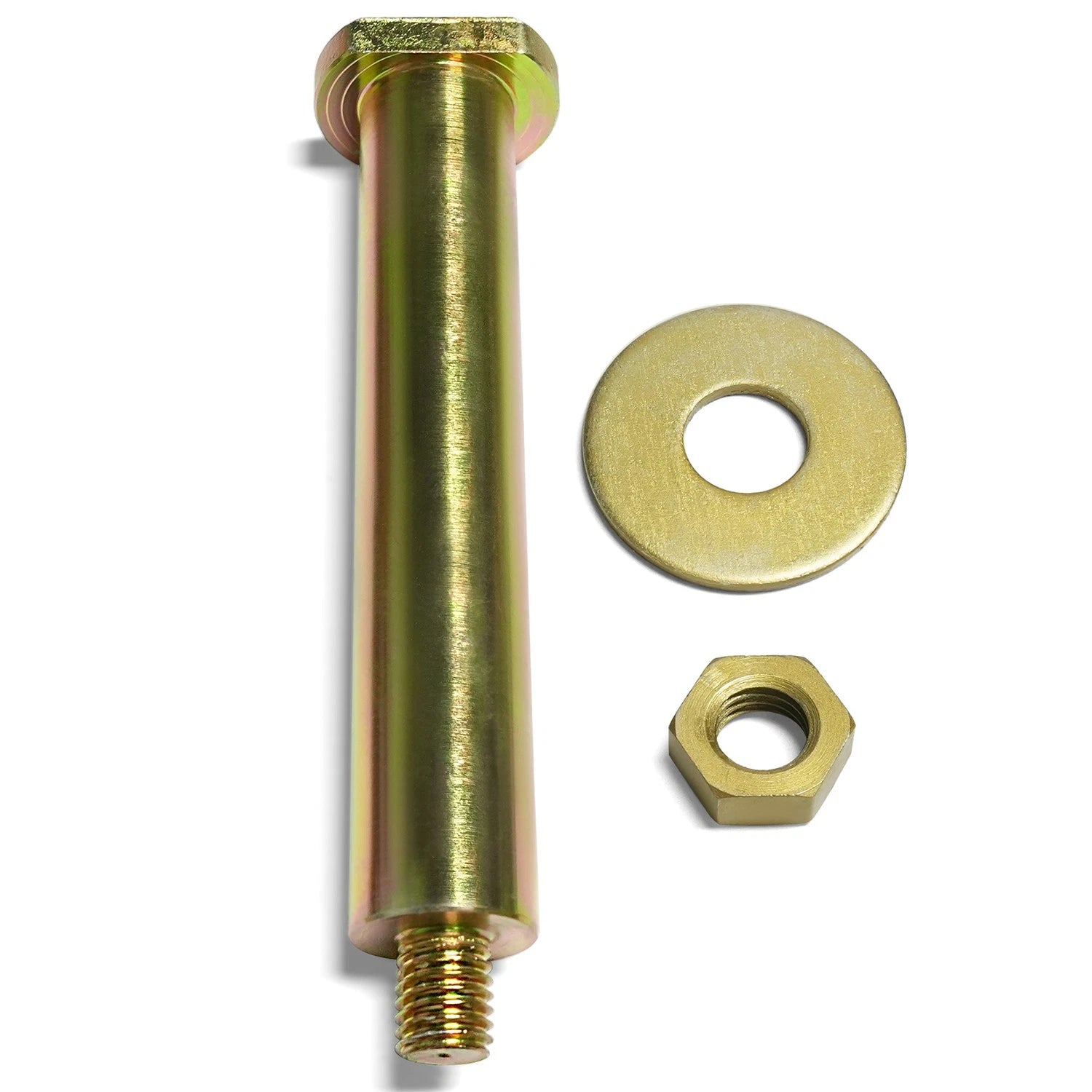

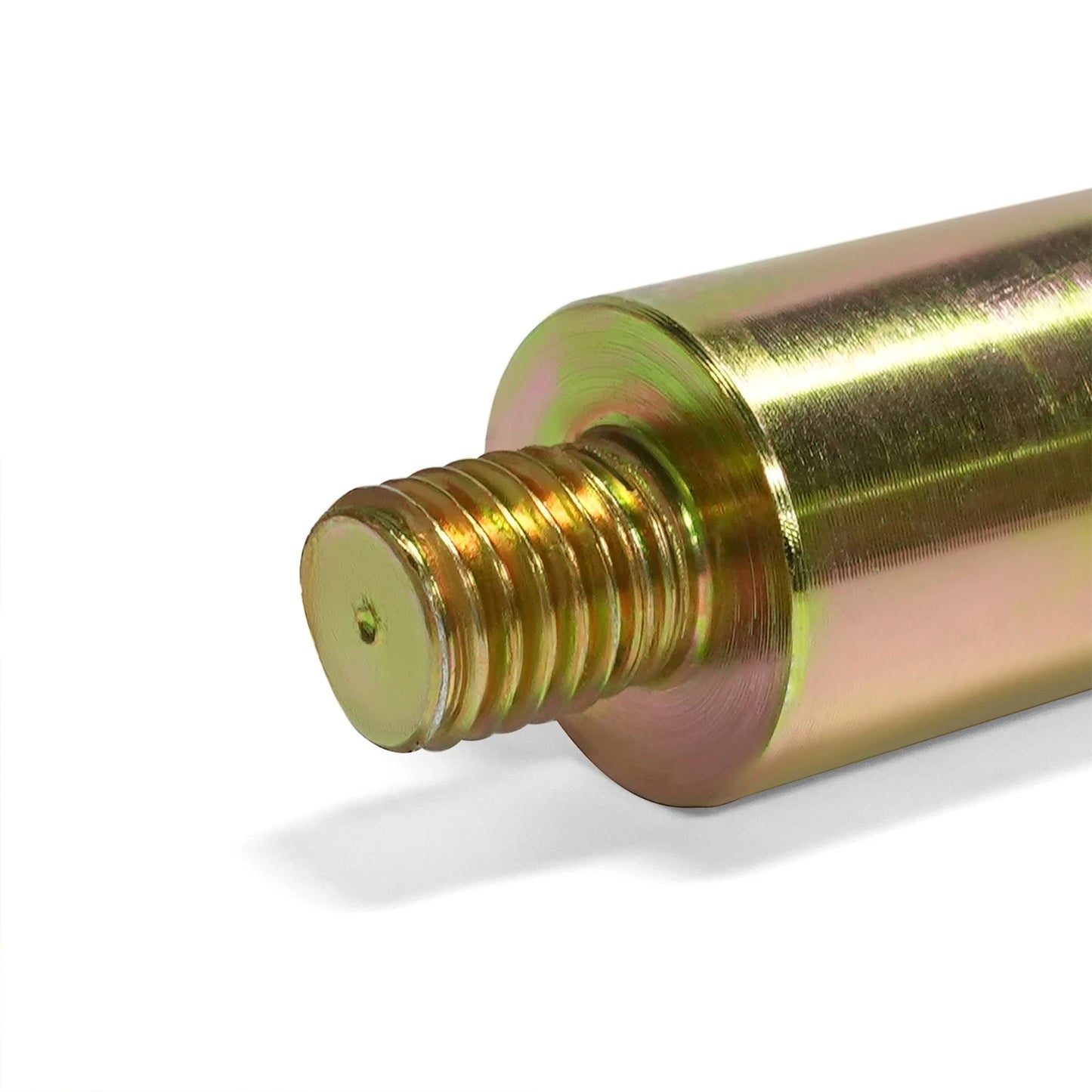

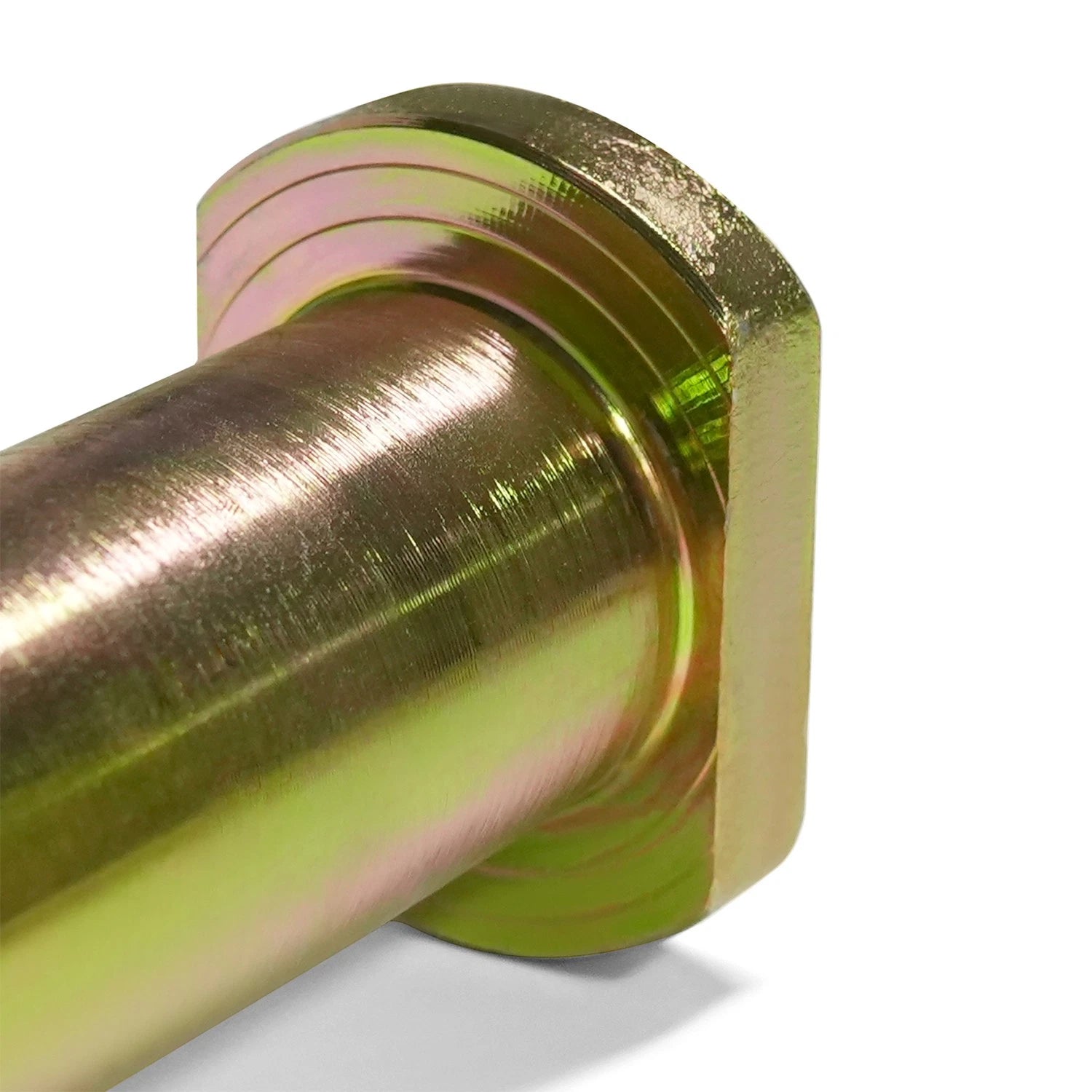

The pin has a smooth cylindrical shank, a broad head with flats at one end and a reduced threaded end at the other. The washer and nut retain the threaded end. The supplied parts have a yellow-gold finish.

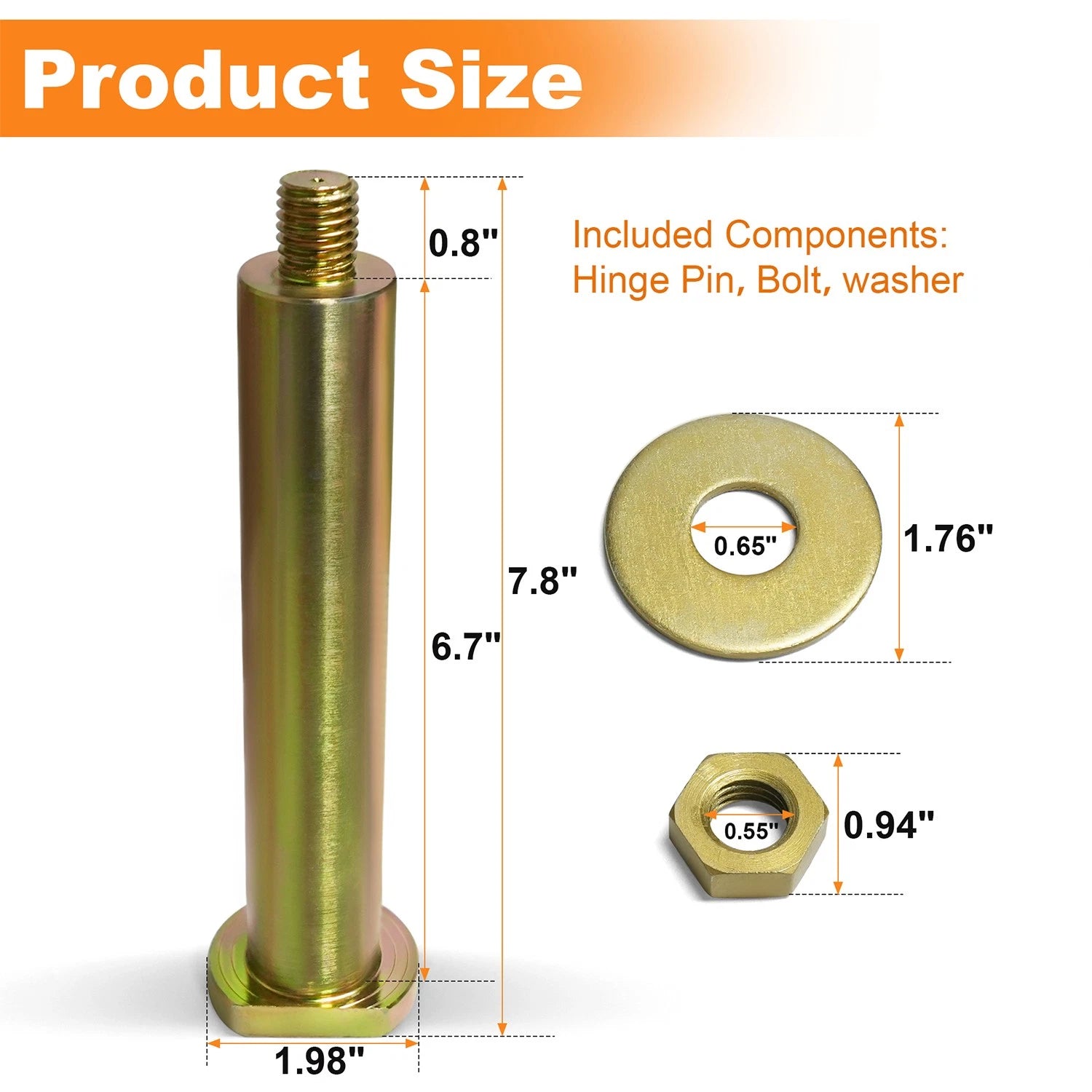

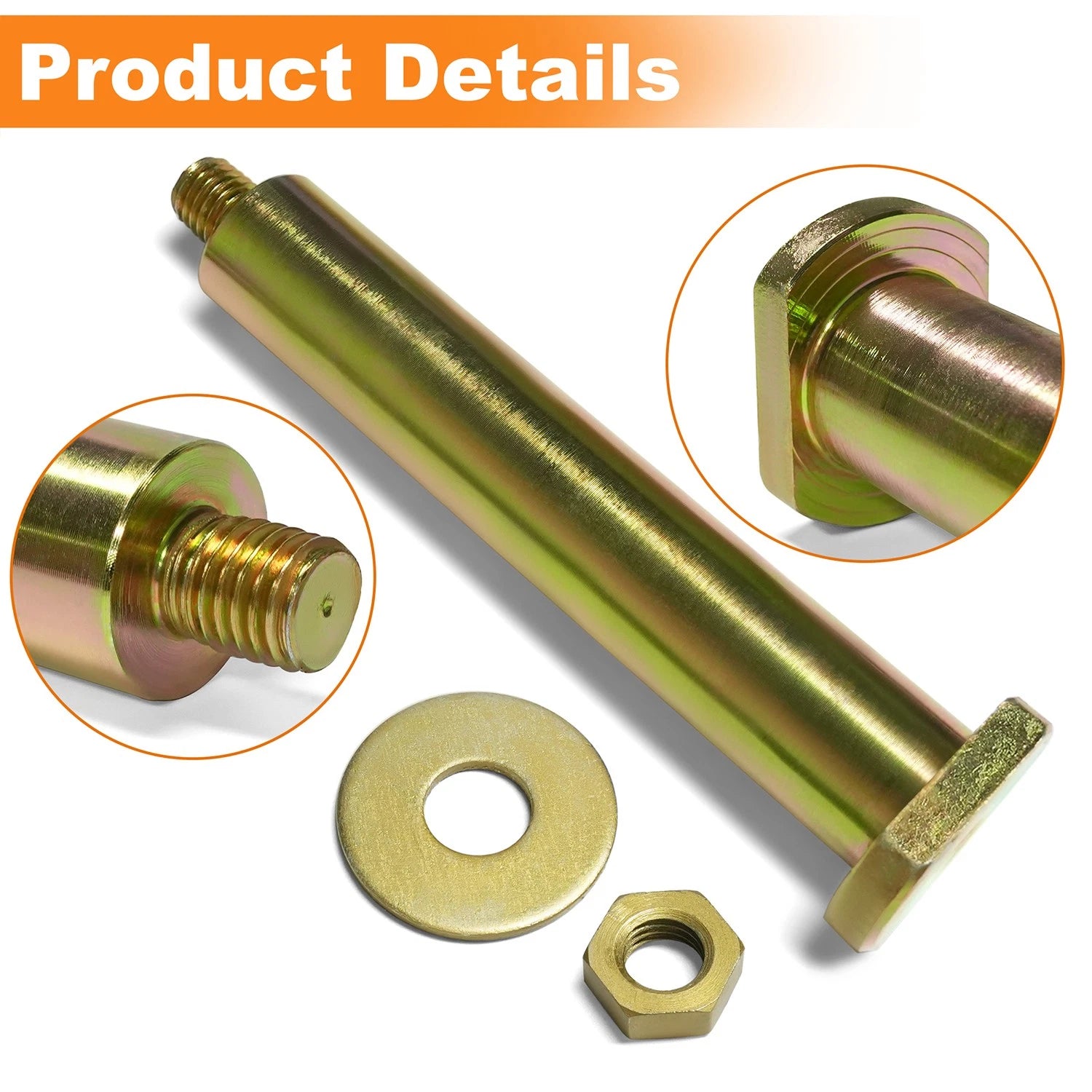

Kit contents and pictured dimensions

Hinge pin

1 horizontal pin with a threaded end

Retaining hardware

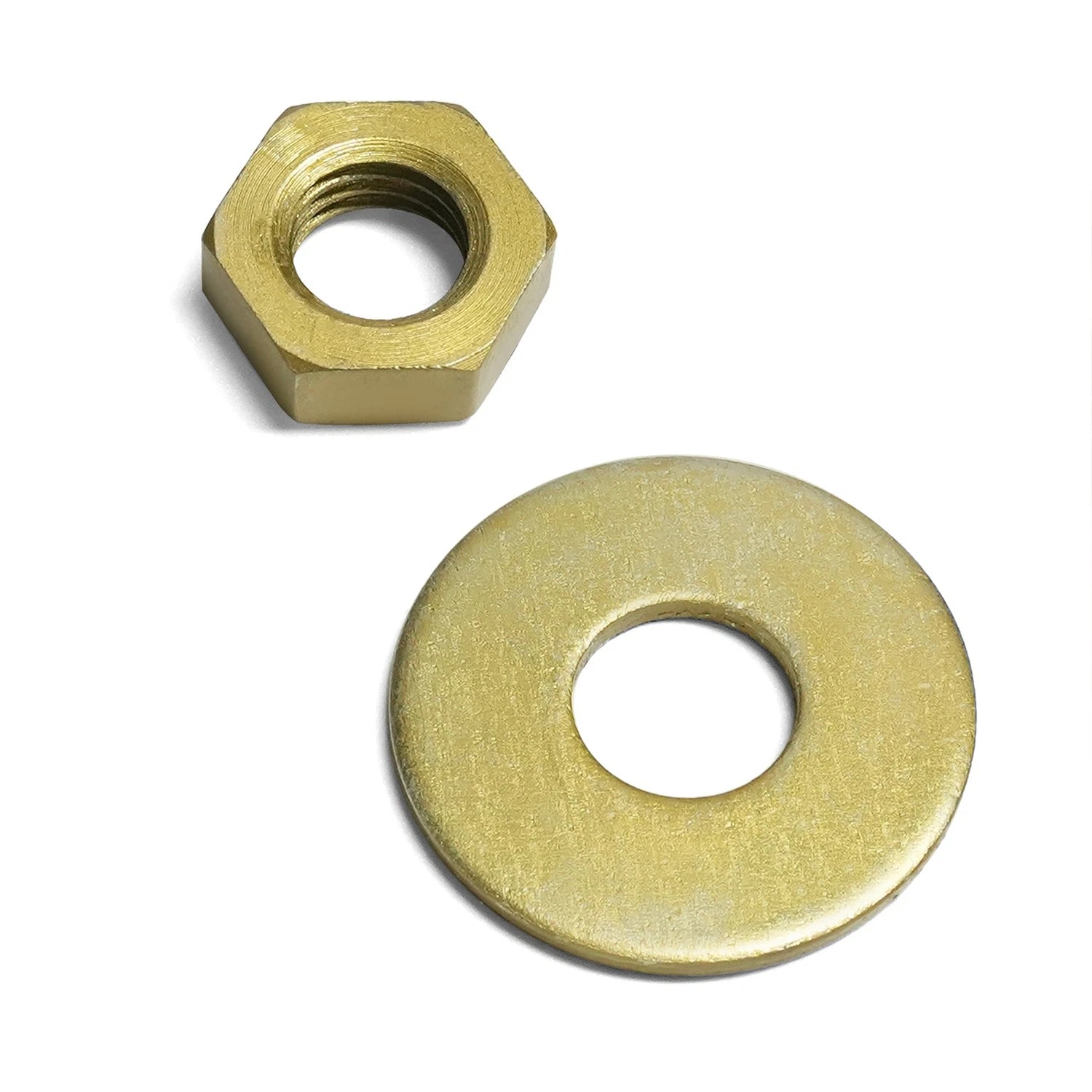

1 flat washer and 1 hex nut

Threaded-kit reference

MSC09649

Earlier hinge-kit reference

MSC04250; verify the threaded replacement arrangement before fitting

Overall pin length

Approximately 7.8 in, from outer head face to threaded tip

Thread projection

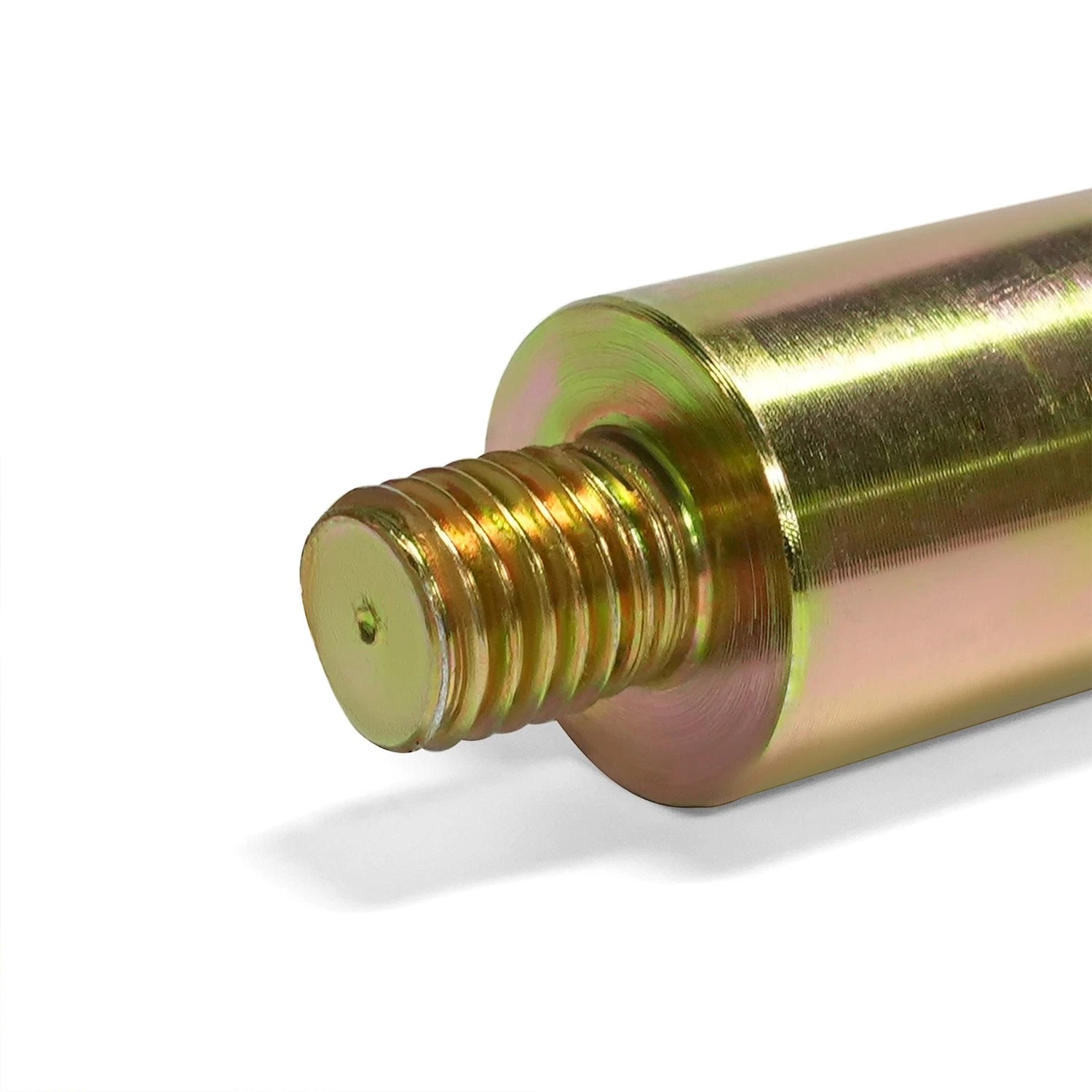

Approximately 0.8 in, from shank shoulder to tip

Washer outer diameter

Approximately 1.76 in

Washer opening

Approximately 0.65 in

Application type

Compatible BOSS RT3 V-plow horizontal hinge assemblies

The dimensions describe the supplied pin and washer. Pin-shank diameter and thread size/pitch are not specified. The kit supplies one pin. Roll pins, cotter pins, bushings and hinge brackets are not included.

MSC09649 and MSC04250 identify different retention styles

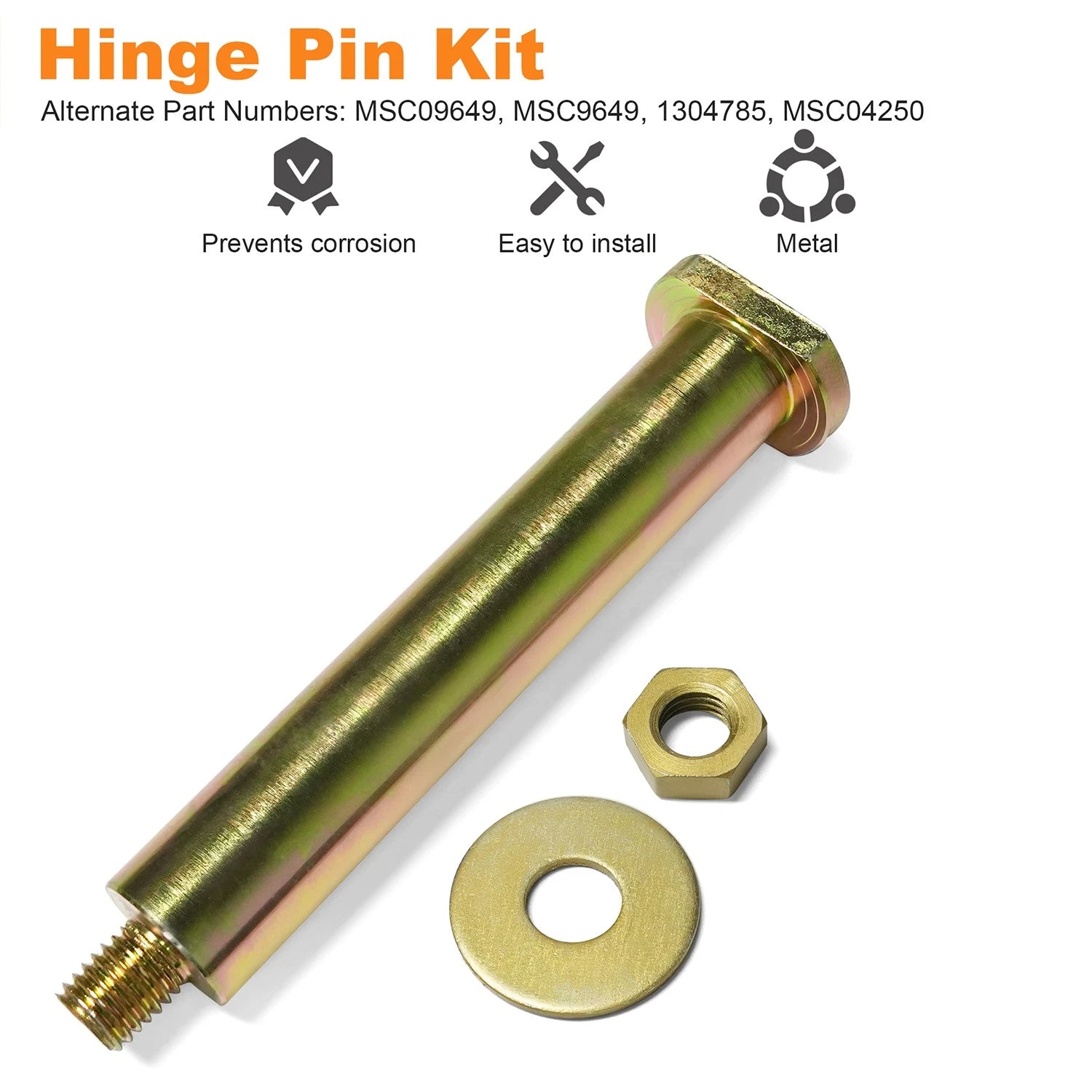

BOSS identifies MSC09649 as a horizontal threaded hinge pin kit. Its earlier MSC04250 parts listing uses a pin secured with roll pins and cotter pins. When replacing an assembly identified by MSC04250, confirm that the threaded style is suitable for your specific plow before ordering.

Compare the existing pin's shank diameter, working length, head clearance and retaining arrangement with this kit. Check the hinge bore and adjoining parts for wear or damage. A worn hinge may require additional parts beyond a new pin.

Fitting and service checks

Support the plow and follow its service instructions before removing the existing hinge pin. Use the specified pin orientation, hardware arrangement and torque for the confirmed replacement configuration. The nut's shape and finish do not establish its grade or locking specification.

After fitting, check that the pin is retained and the hinge moves as intended through the plow's operating range. Confirm any lubrication requirement from the service information for your assembly.
