High-range shift linkage rod for Polaris Sportsman, 5020823

High-range shift linkage rod for Polaris Sportsman

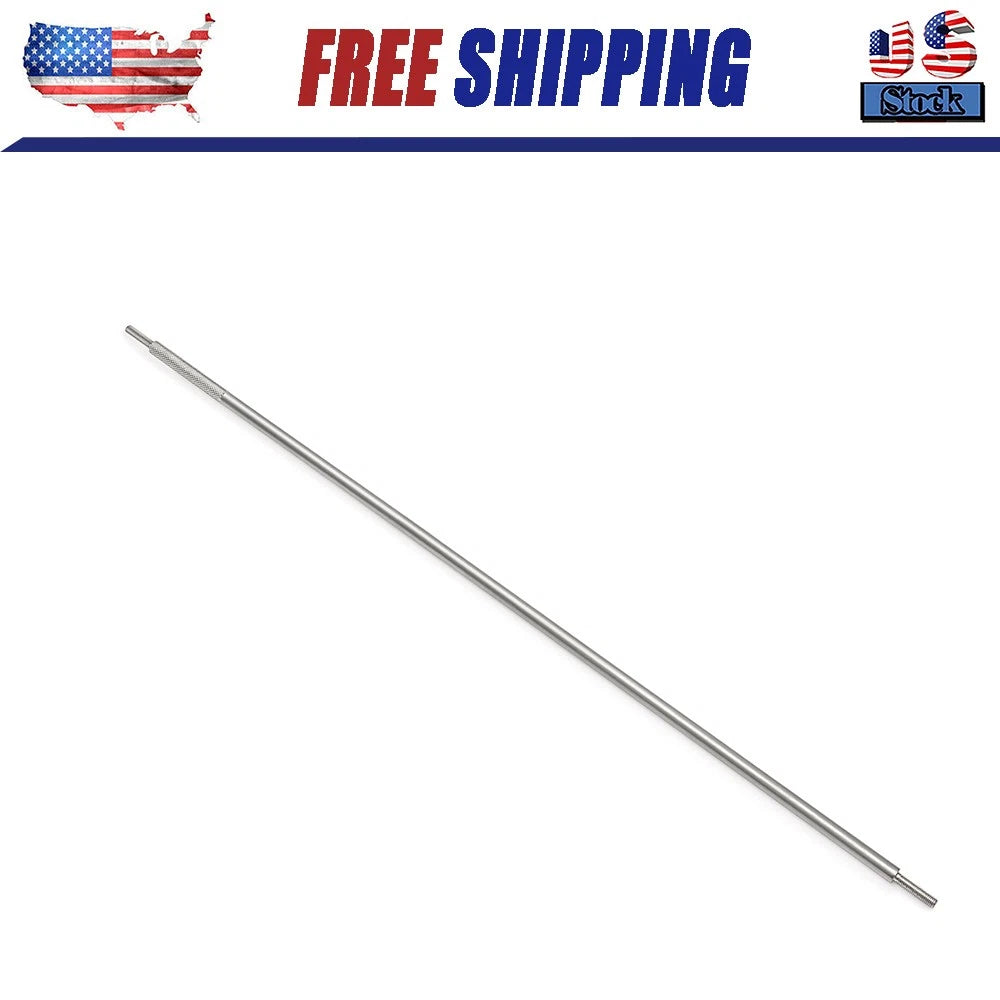

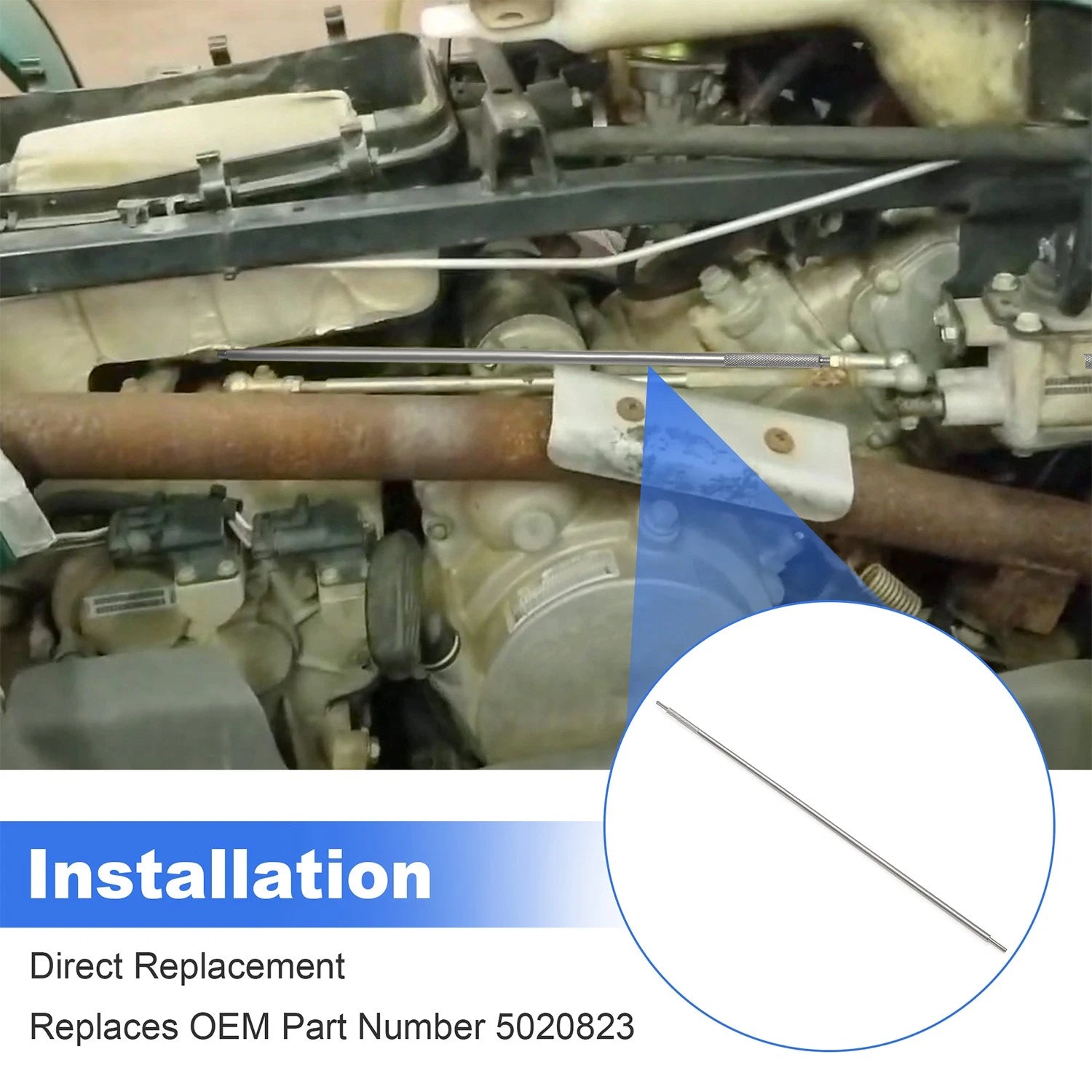

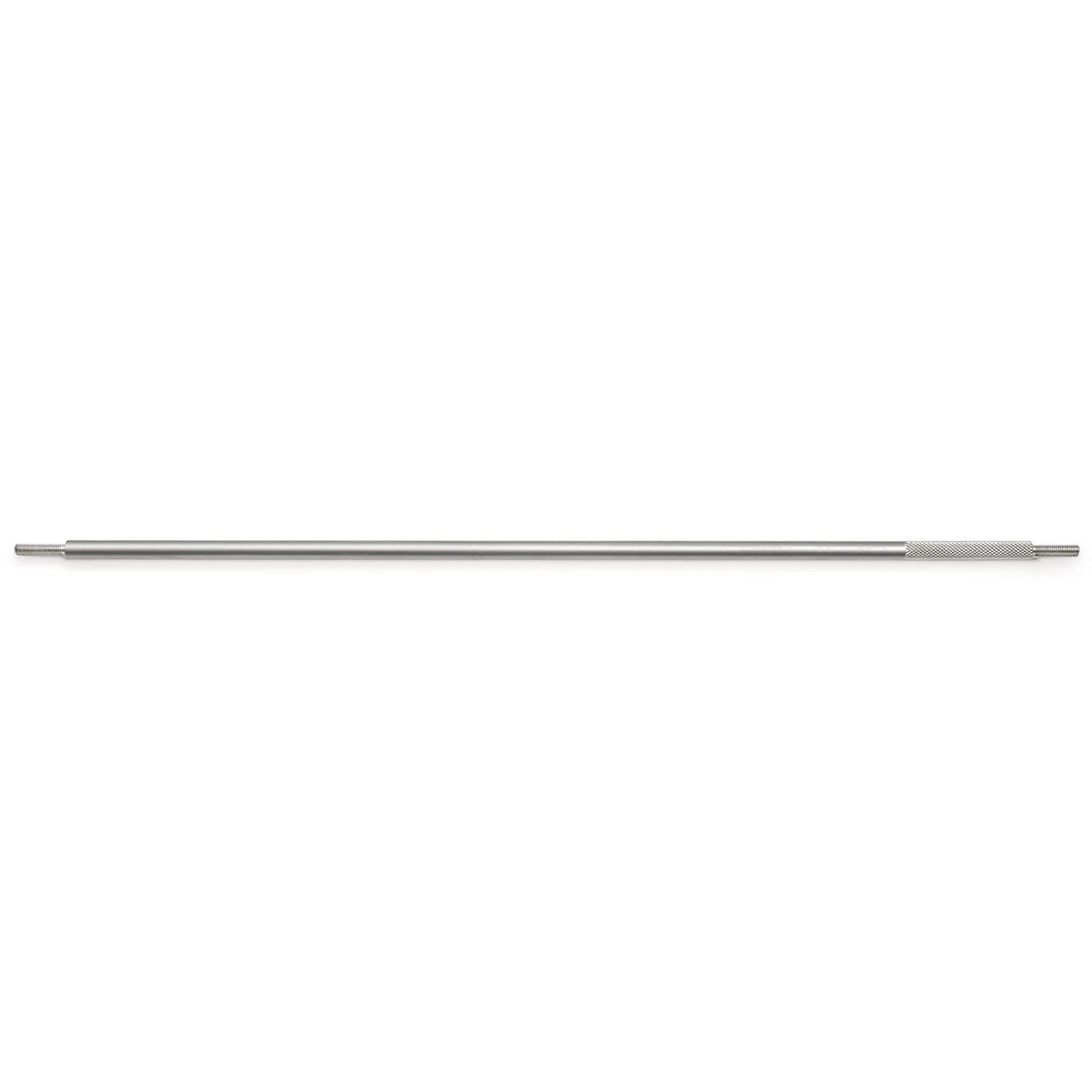

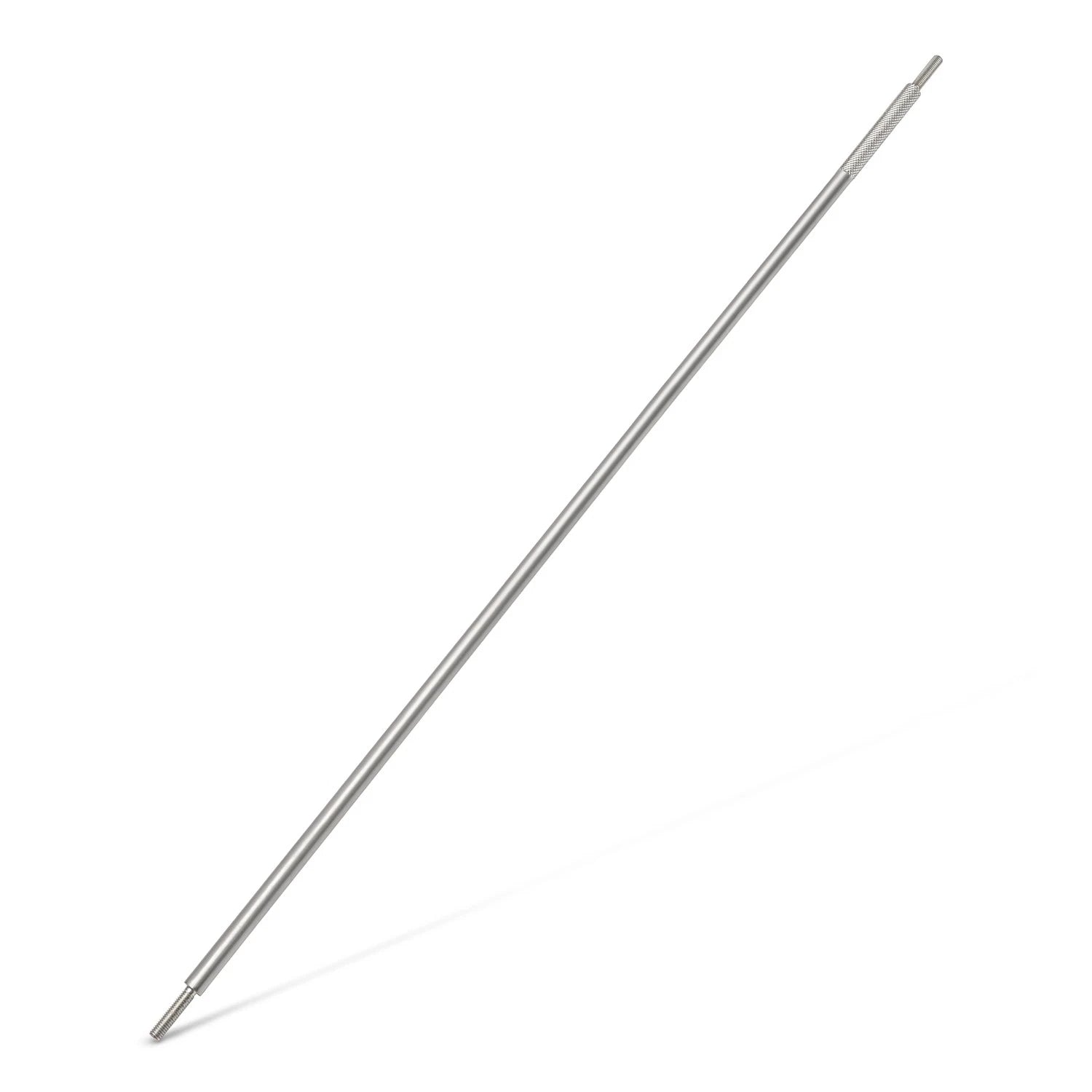

This aftermarket rod is listed as a replacement for high-range shift linkage reference 5020823 on selected Polaris Sportsman 500, 400 and 335 models. The pictured supply is one long, straight, silver-colored rod with threaded end sections. It connects within the gear-selector linkage; the rod ends and selector assembly are separate parts.

Identify the high-range rod

Check the parts information for your exact model code and year, then compare the old rod with this one. Reference 5020823 identifies the high-range linkage rod. The low-range rod is a different part, so match the reference and linkage position before ordering.

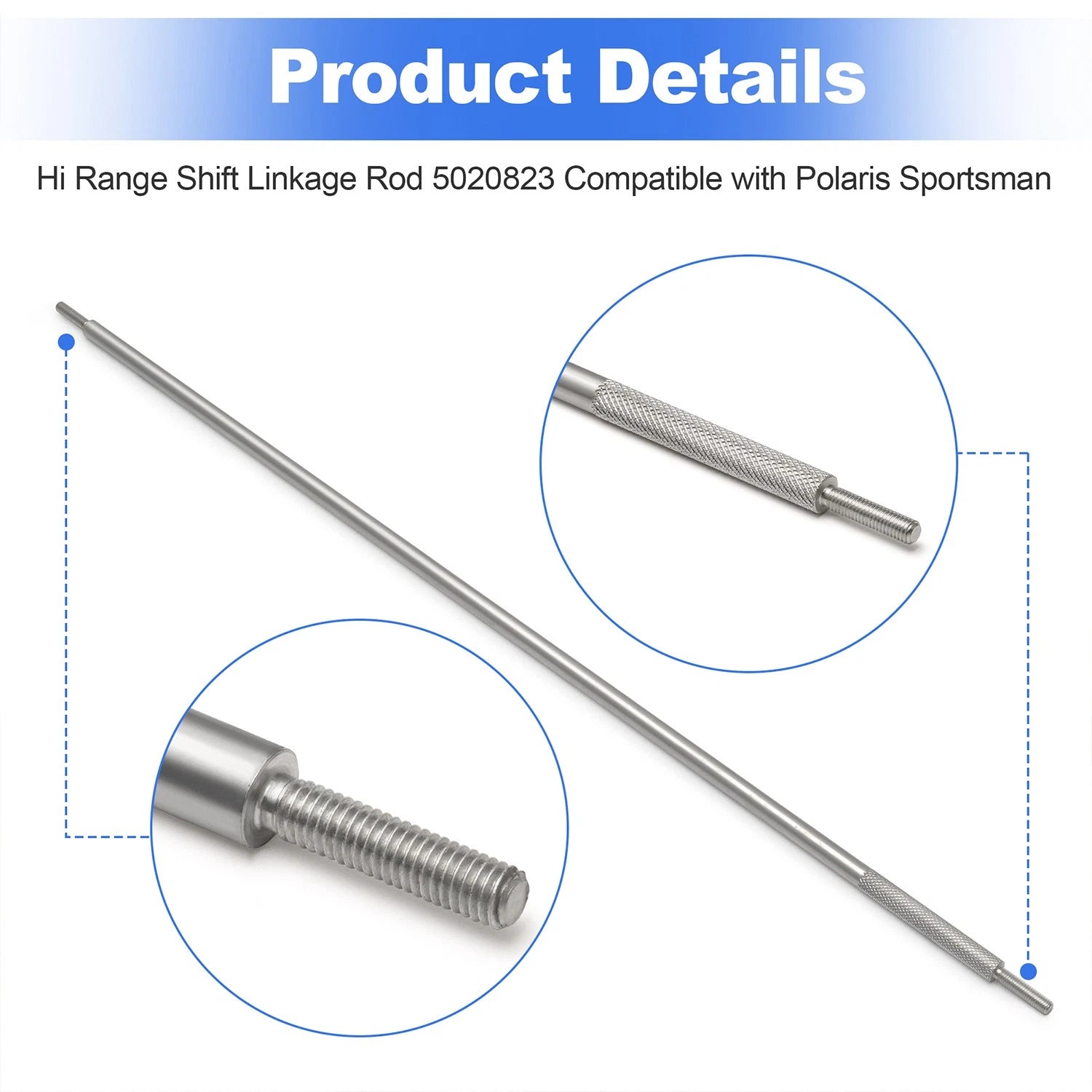

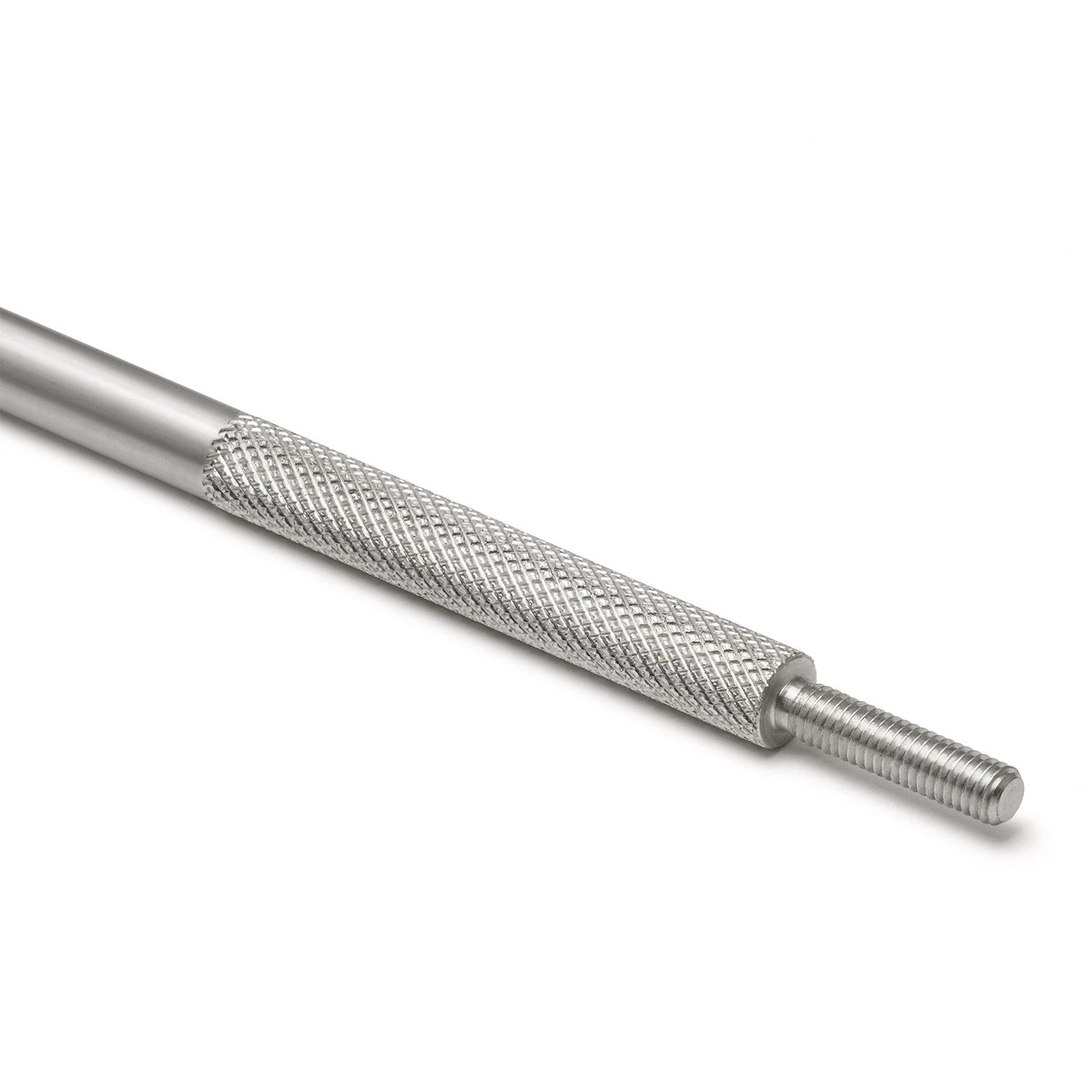

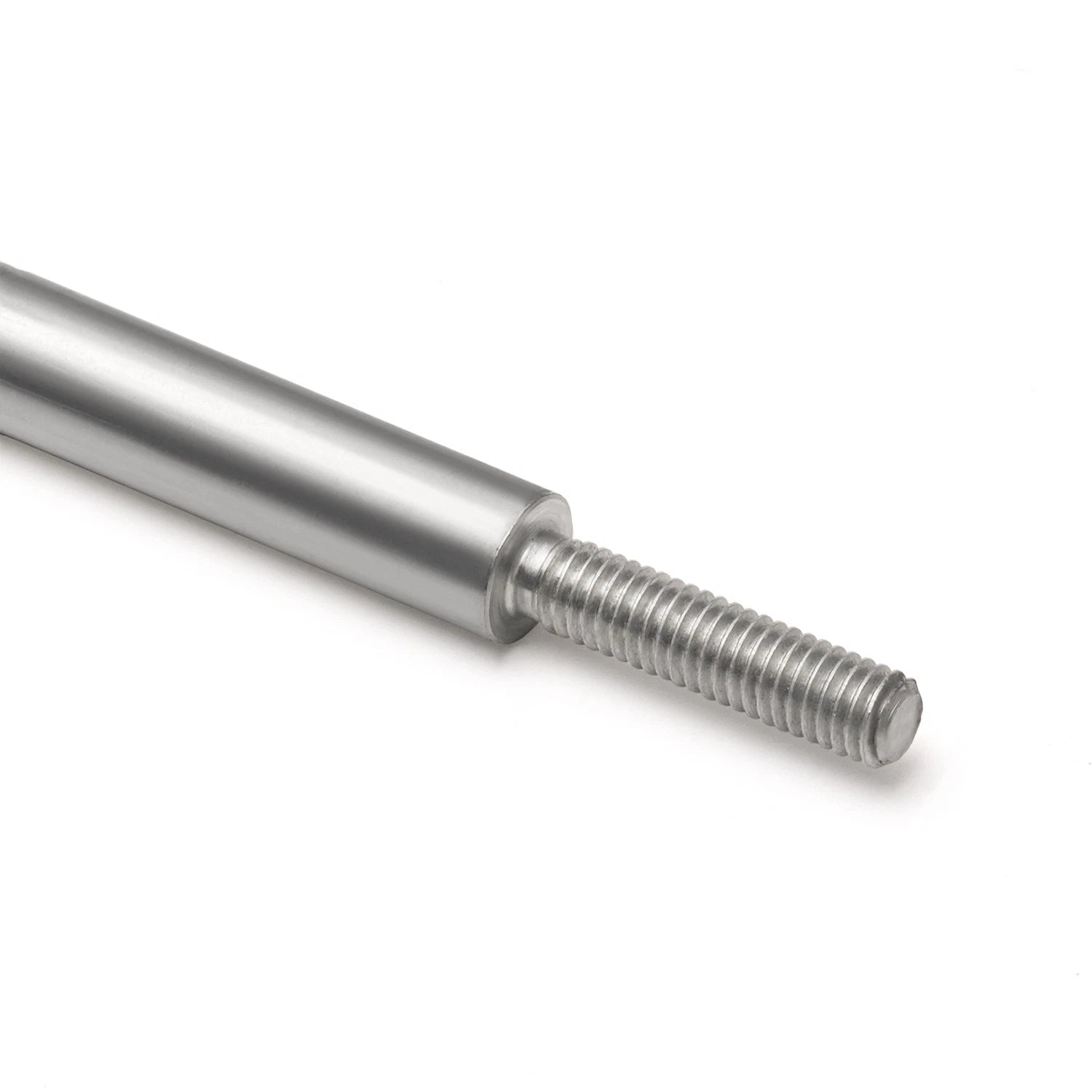

Compare overall length, each threaded section and the thread size, pitch and direction required by the existing rod ends. The pictured threaded ends differ in visible length. Numerical dimensions and thread specifications are not supplied here; check those details before transferring the old end fittings.

Part type

High-range gear-selector linkage rod

Listed reference

5020823

Listed models

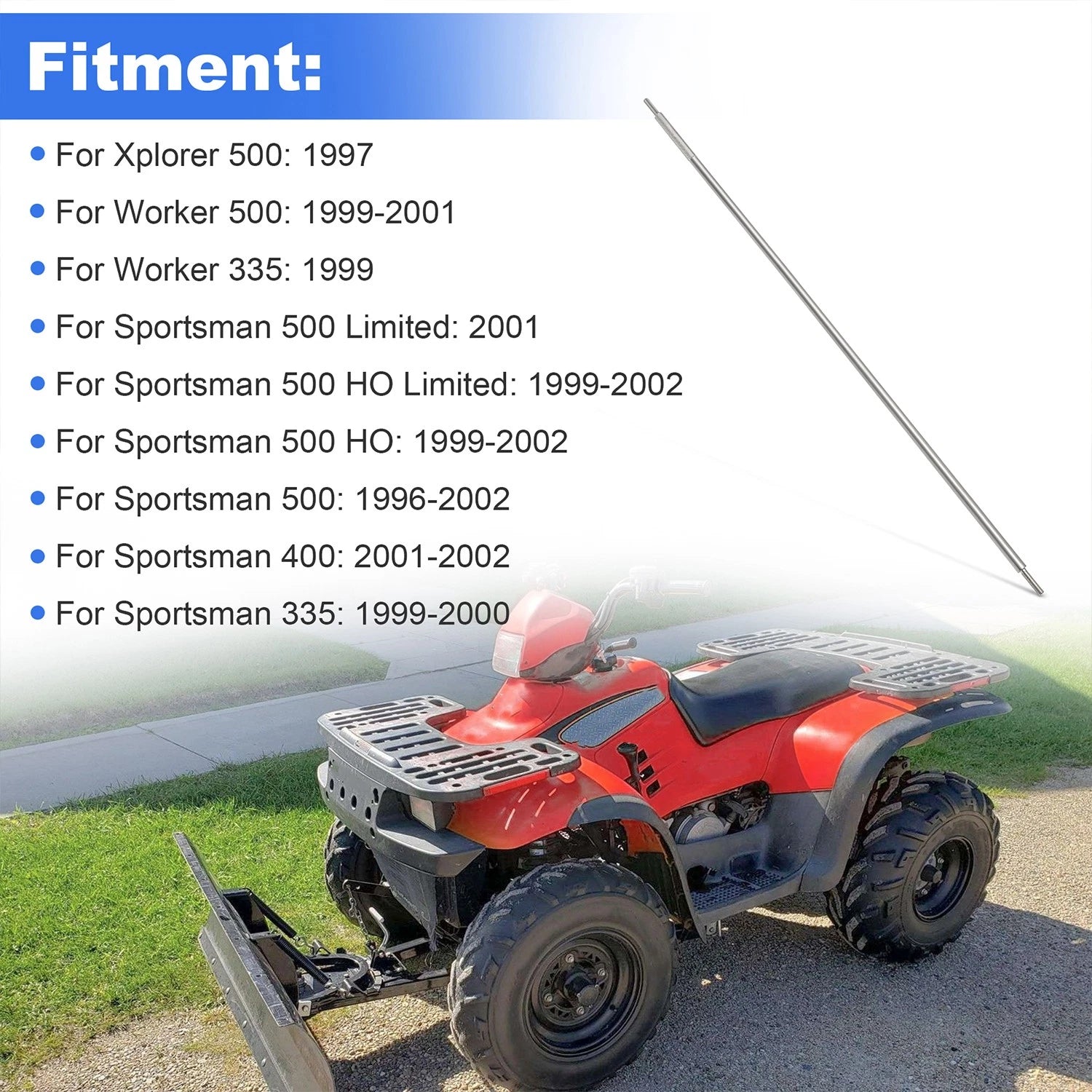

Selected Polaris Sportsman 500, 400 and 335 configurations; verify the model code and year

Shown supply

One straight rod with threaded end sections

Appearance

Silver-colored; metal grade and finish specification are not supplied

Fit checks

Overall length, threaded-section lengths, thread size, pitch and direction, and existing end fittings

Inspect the rest of the linkage

No rod ends, locknuts, selector lever or transmission components are shown with the rod. Inspect the existing end fittings and linkage mounts for wear, looseness or damage. Replacing the rod does not establish the condition of those parts.

Follow the service procedure for the exact ATV when setting linkage length and adjustment. Check selector movement and proper gear engagement before returning it to use. Have persistent shifting difficulty assessed by a qualified service technician rather than forcing the lever.
