HGLRC Talon 2 Inch Cinewhoop FPV Drone Frame Black

HGLRC Talon 2 inch cinewhoop frame

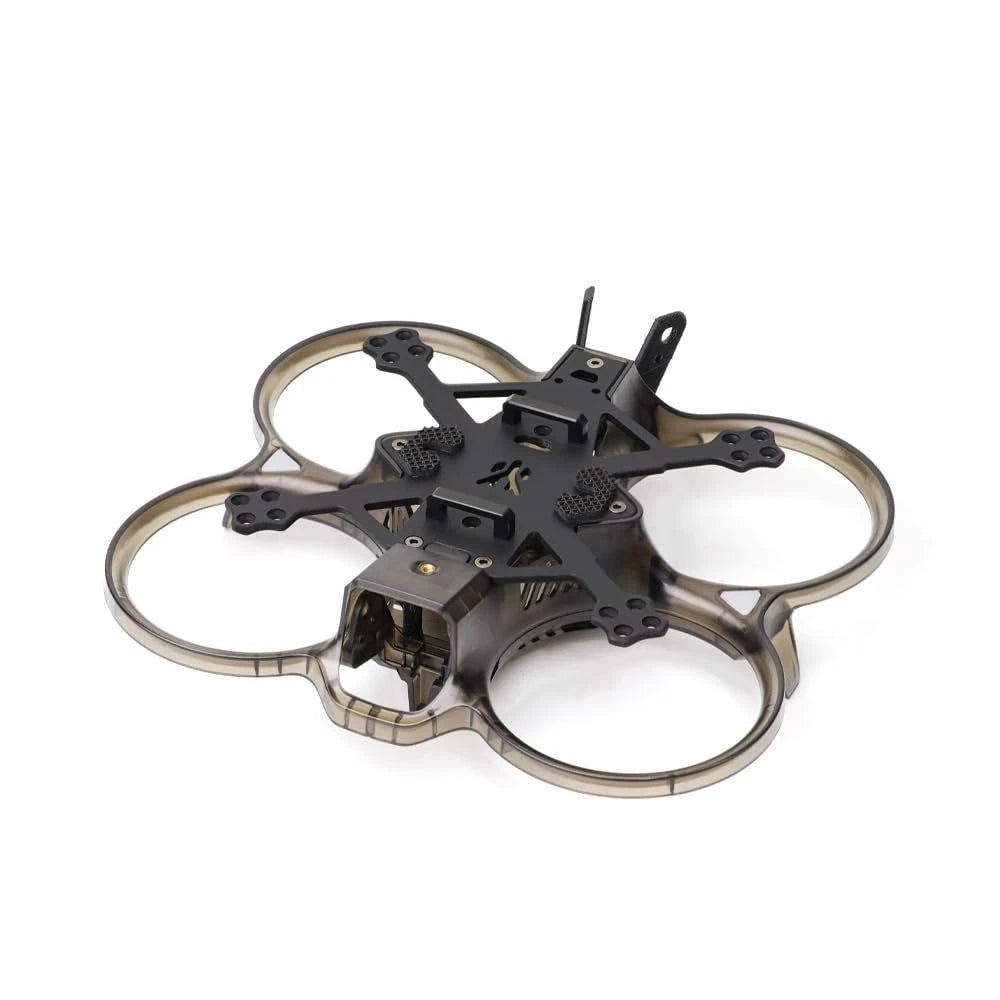

The Talon is HGLRC's 2 inch cinewhoop frame set. Injection-molded guards fully wrap all four props, and the smoke-tinted shell sits around a black carbon center plate. This listing is the frame kit only. Motors, flight controller, VTX, camera and receiver are not included.

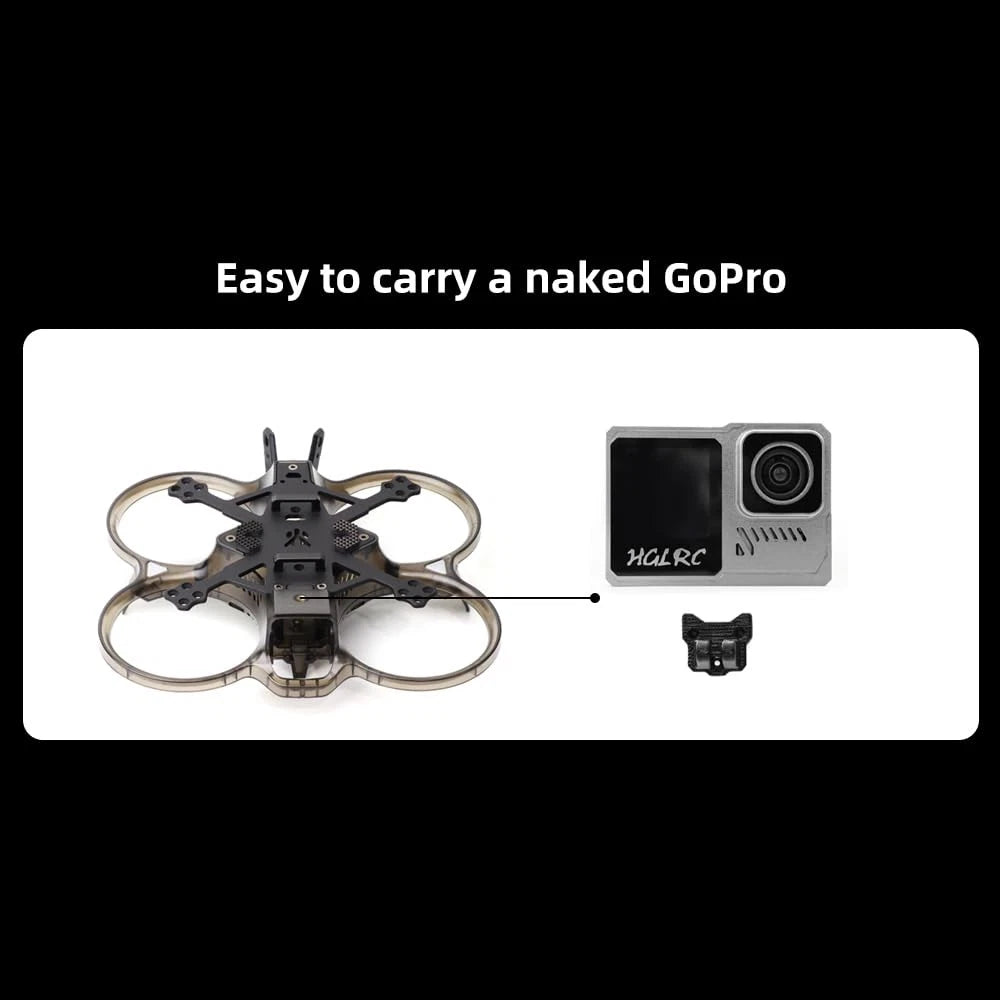

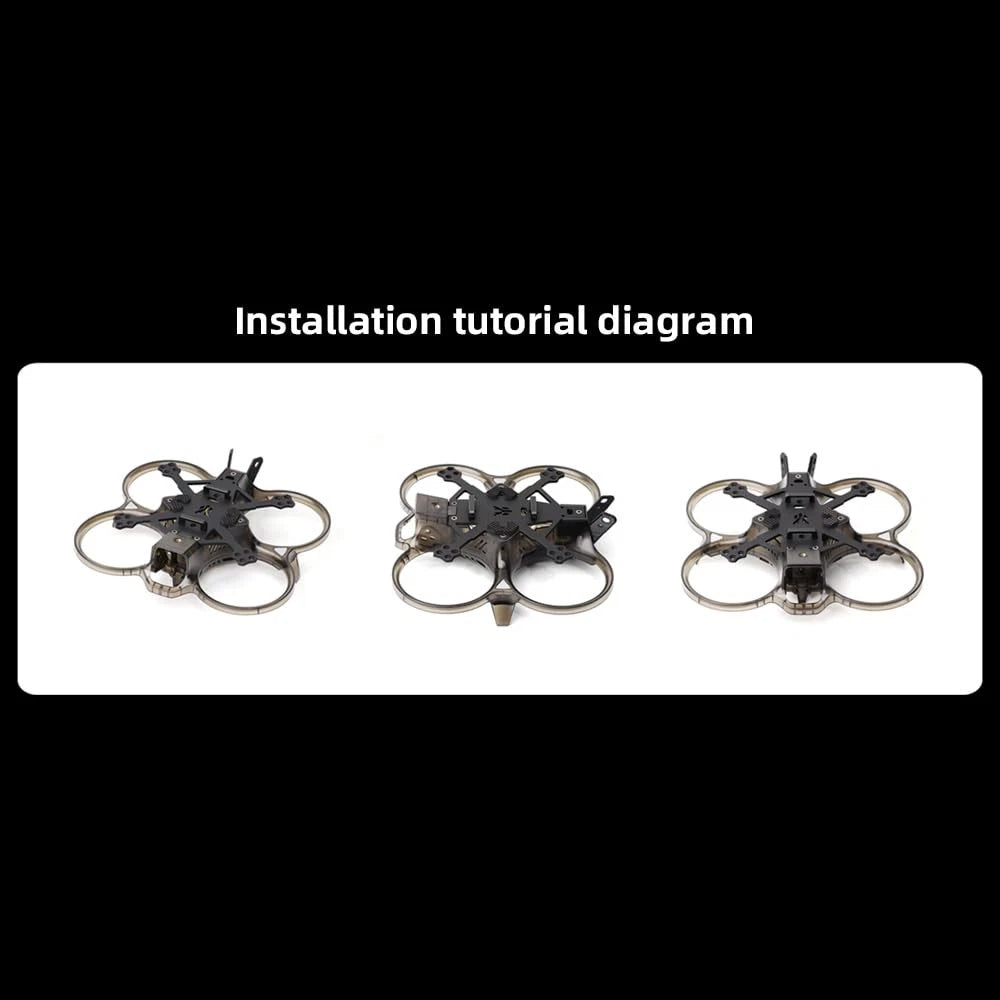

The design is modular: the VTX system, the power system and the shell assemble separately, and the air docking cables in the kit connect them. The stack takes 25.5 x 25.5 mm and 20 x 20 mm mounting, so both analog and HD video systems fit. The frame can carry a naked GoPro on top. It weighs 46 g before electronics go in.

Specifications

Brand

HGLRC

Model

Talon

Type

2 inch cinewhoop frame set

Wheelbase

106 mm

External dimensions

150 x 170 mm

Propeller size

2 inch

Flight controller mounting

25.5 x 25.5 mm

VTX mounting

20 x 20 mm and 25.5 x 25.5 mm

Motor mounting

9 x 9 mm

Frame weight

46 g

Plate thickness

Not stated by the supplier

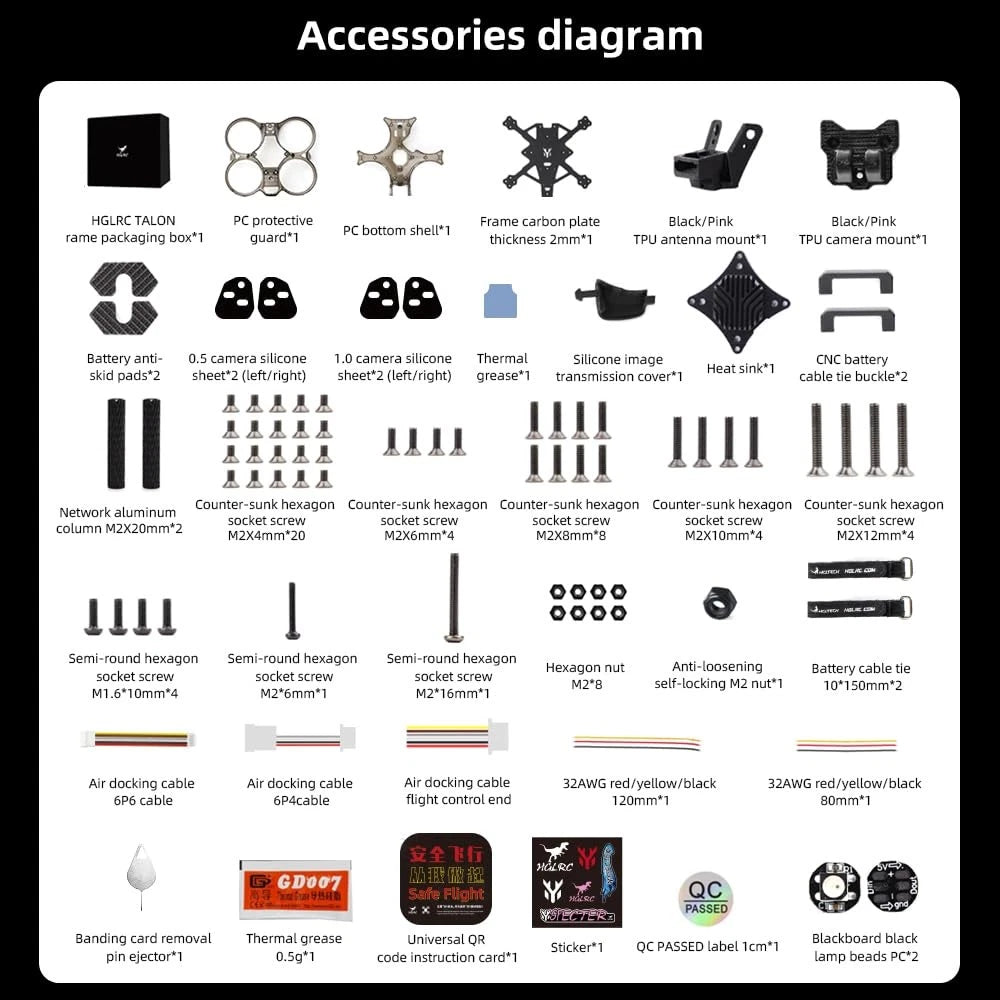

What is included

Main parts

• Protective guard x 1
• Bottom shell x 1
• Frame carbon plate x 1

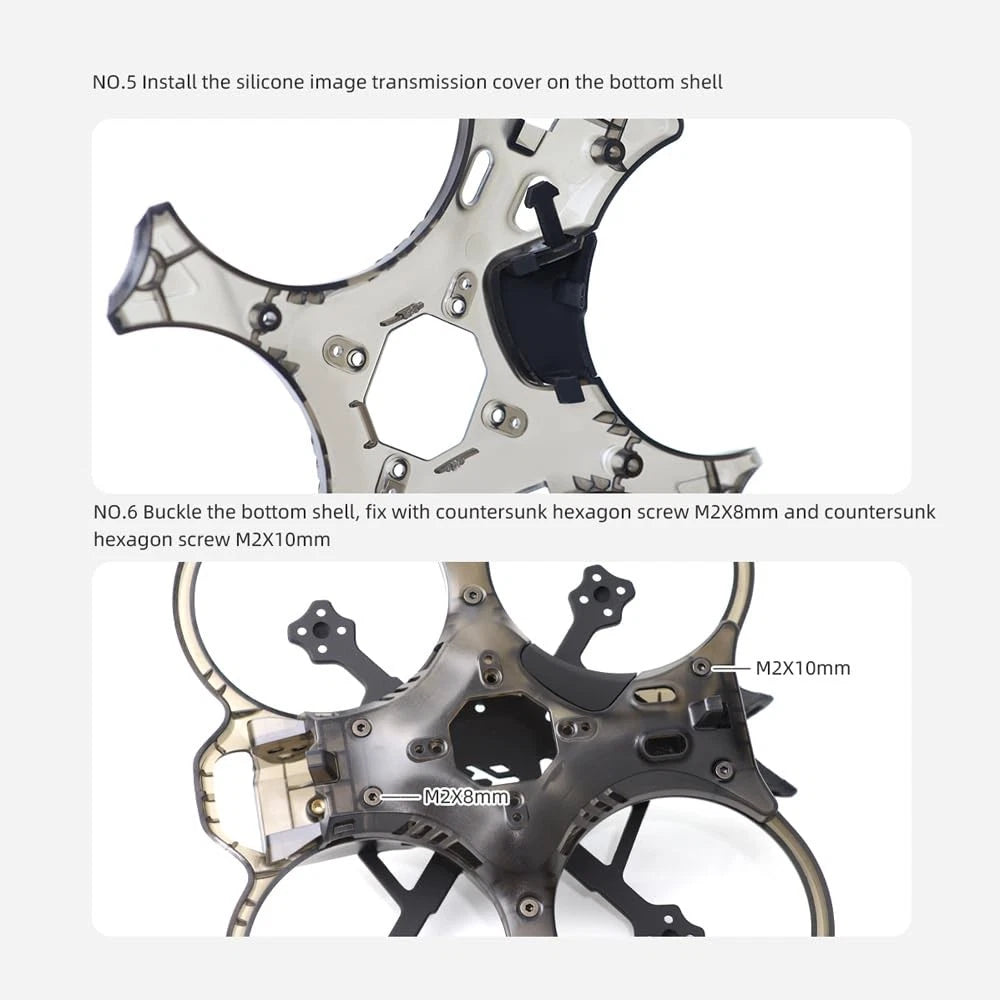

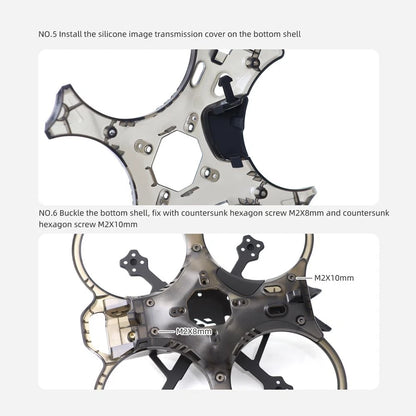

• Silicone VTX cover x 1

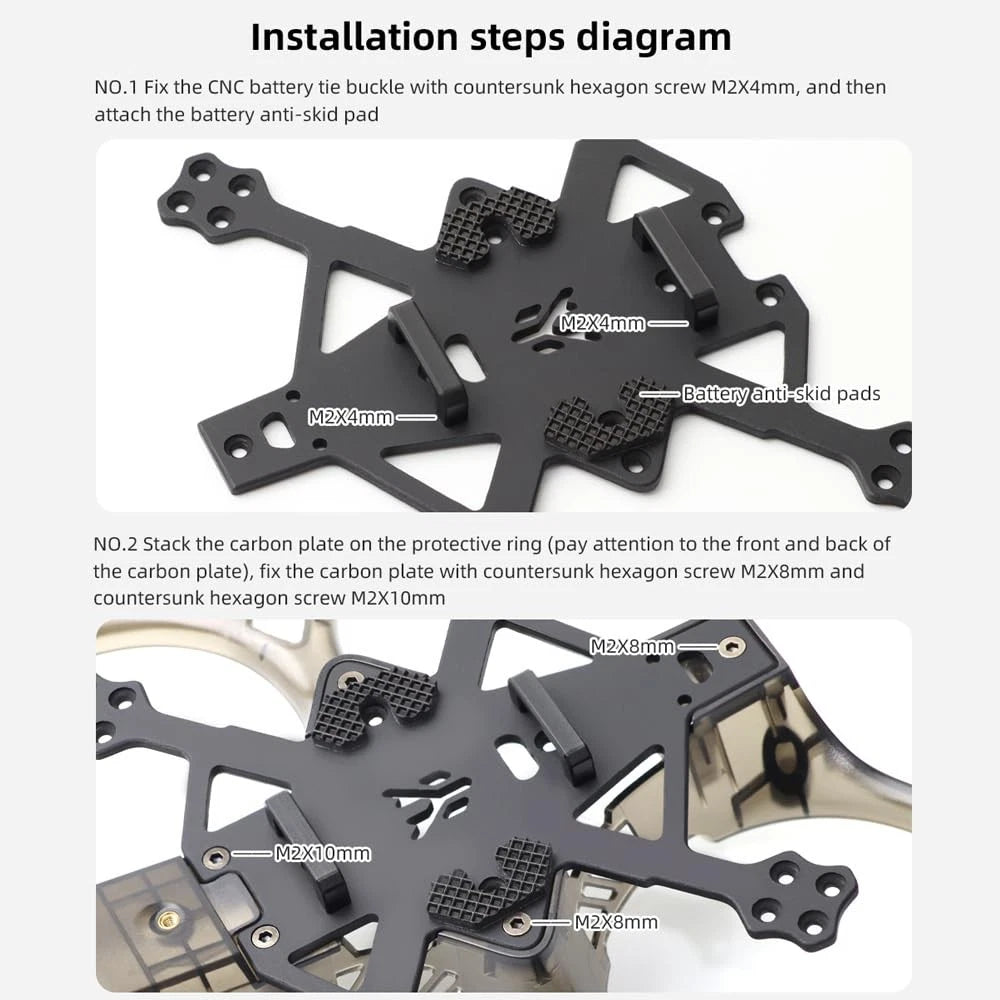

• CNC battery tie buckle x 2

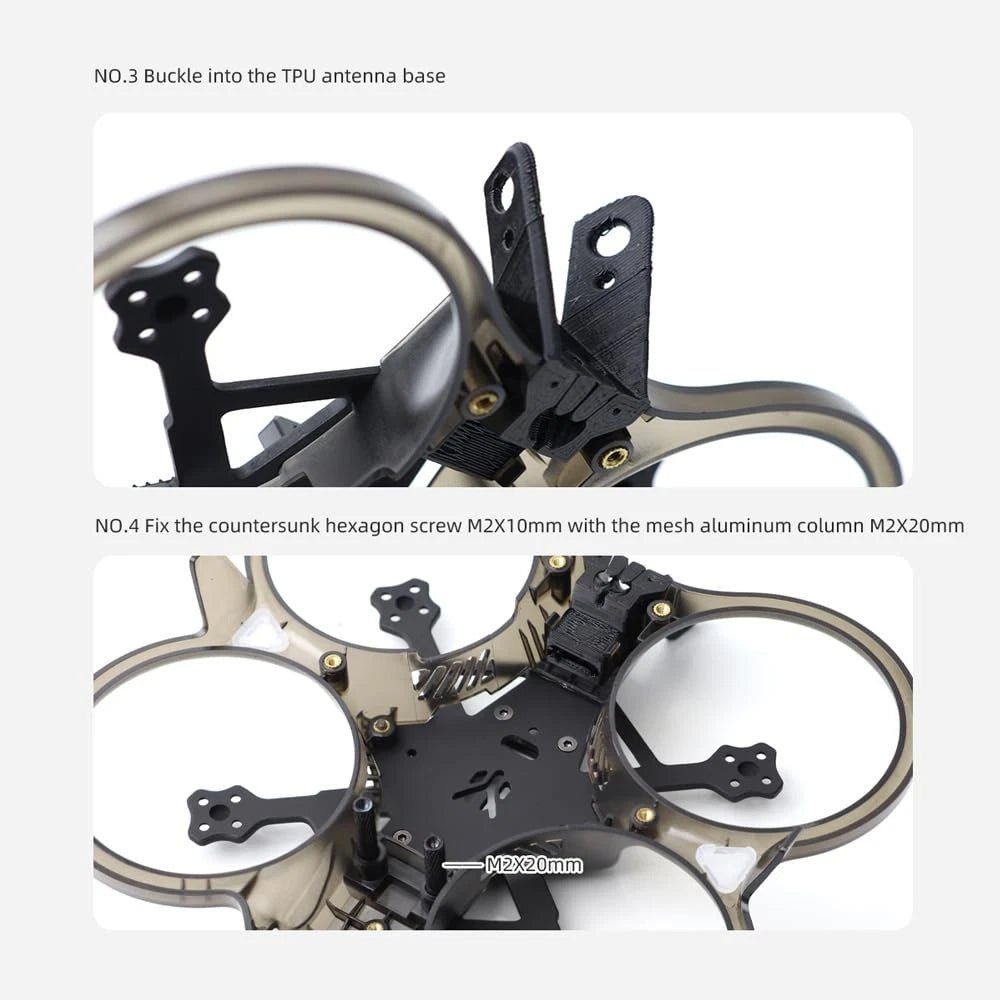

• Antenna mount x 1
• Camera mount x 1
• LED x 2, pre-installed on the guard
• Battery anti-skid pad x 2
• 0.5 mm camera silicone sheet x 2 and 1.0 mm camera silicone sheet x 1
• Thermal grease for HD VTX x 1 and thermal grease pad for Zeus 800 mW VTX x 1

Hardware and cables

• M2 x 20 meshed aluminum standoffs x 2
• Counter-sunk hex socket screws: M2 x 4 x 20, M2 x 6 x 4, M2 x 8 x 8, M2 x 10 x 4, M2 x 12 x 4
• Button head hex socket screws: M1.6 x 10 x 4, M2 x 6 x 6, M2 x 16 x 1
• Self-locking M2 nut x 1 and M2 black nylon nuts x 8
• Battery ties 10 x 150 mm x 2
• Air docking cables: 6P6 x 1, 6P4 x 1 and flight controller end x 1
• SIM card removal pin x 1
• 32 AWG silicone wires in red, yellow and black, 120 mm and 80 mm lengths

Design notes

The camera mount takes silicone damping sheets, and the kit includes pads sized for 19 mm and 20 mm cameras. A CNC metal heat sink cools the VTX position.

Two LEDs come pre-installed in the guard. The included thermal grease matches HD VTX units and the HGLRC Zeus 800 mW VTX.

Before ordering, plan the electronics around the mounting: 2 inch props, a 25.5 x 25.5 mm or 20 x 20 mm stack, and a camera that fits the included 19 mm and 20 mm damping pads. Confirm your VTX fits the included silicone cover. Check part numbers against your build list.
