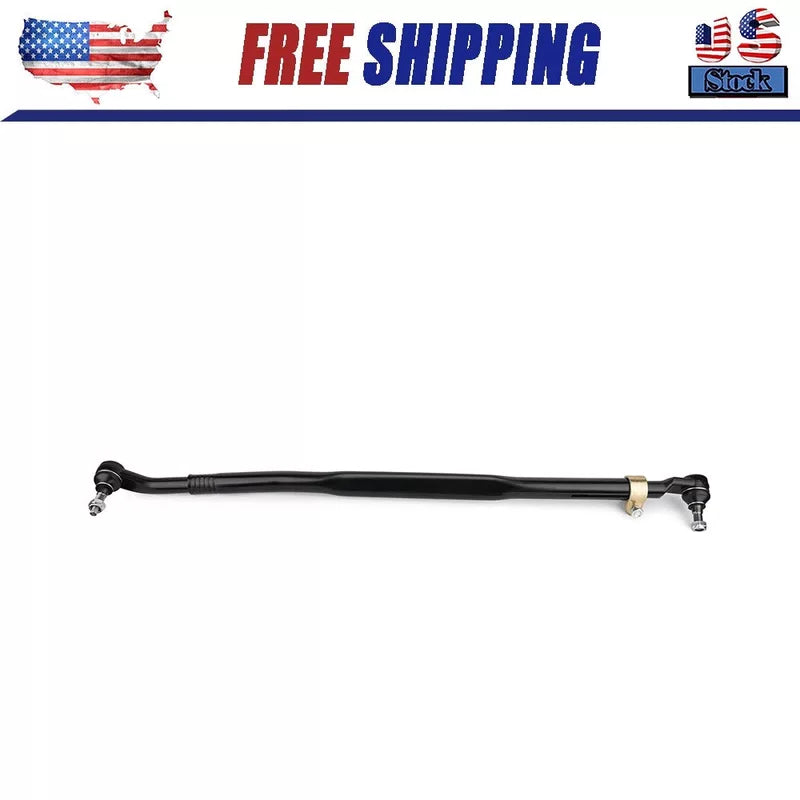

Steering Drag Link 68338342AD for Selected Ram 2500/3500 4WD Pickups

A complete drag link assembly for matching Ram HD steering

This replacement steering drag link uses reference 68338342AD for selected 2014-2025 Ram 2500 and 2013-2025 Ram 3500 four-wheel-drive pickups. Confirm the required part by VIN and match the installed steering linkage before ordering. Chassis cab models are excluded.

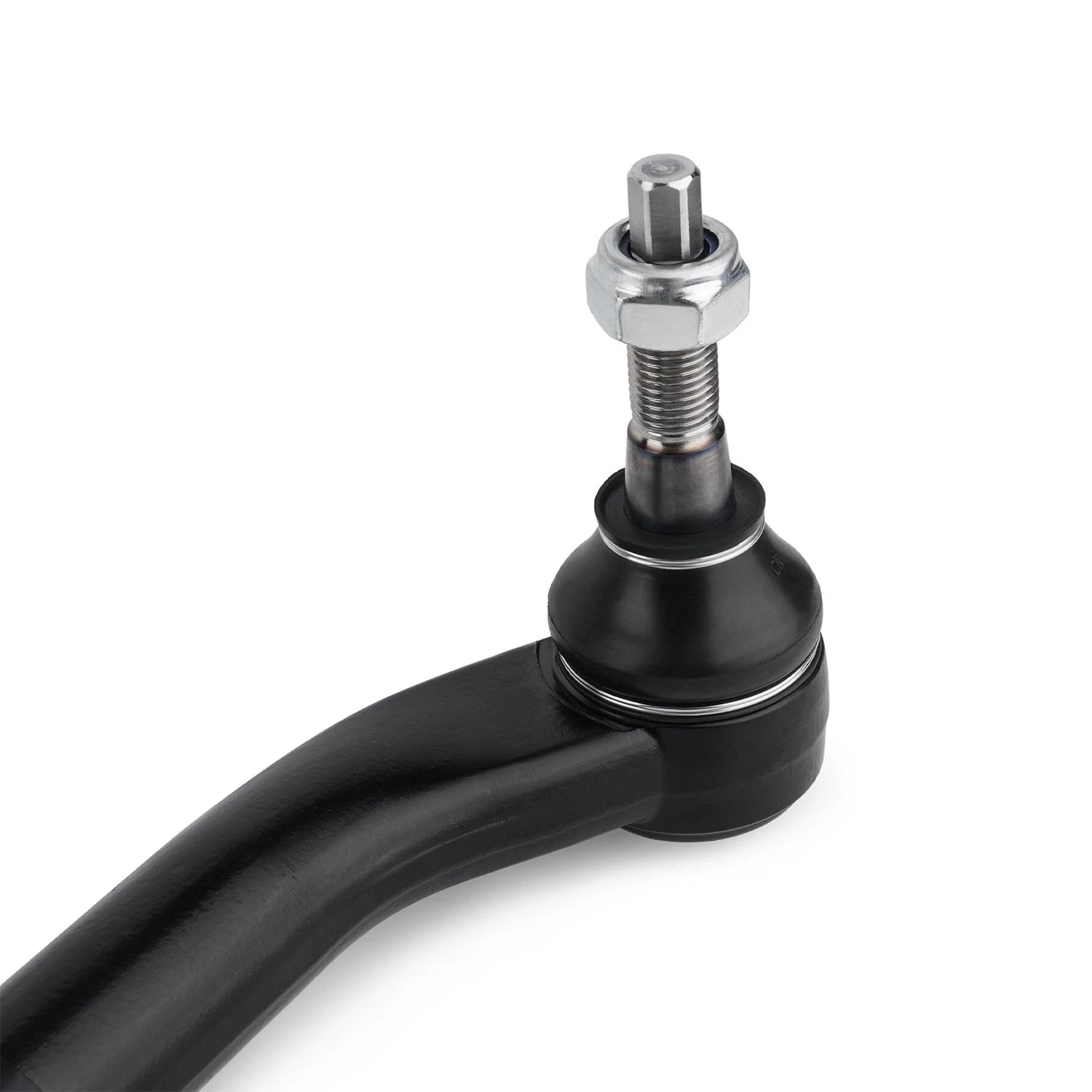

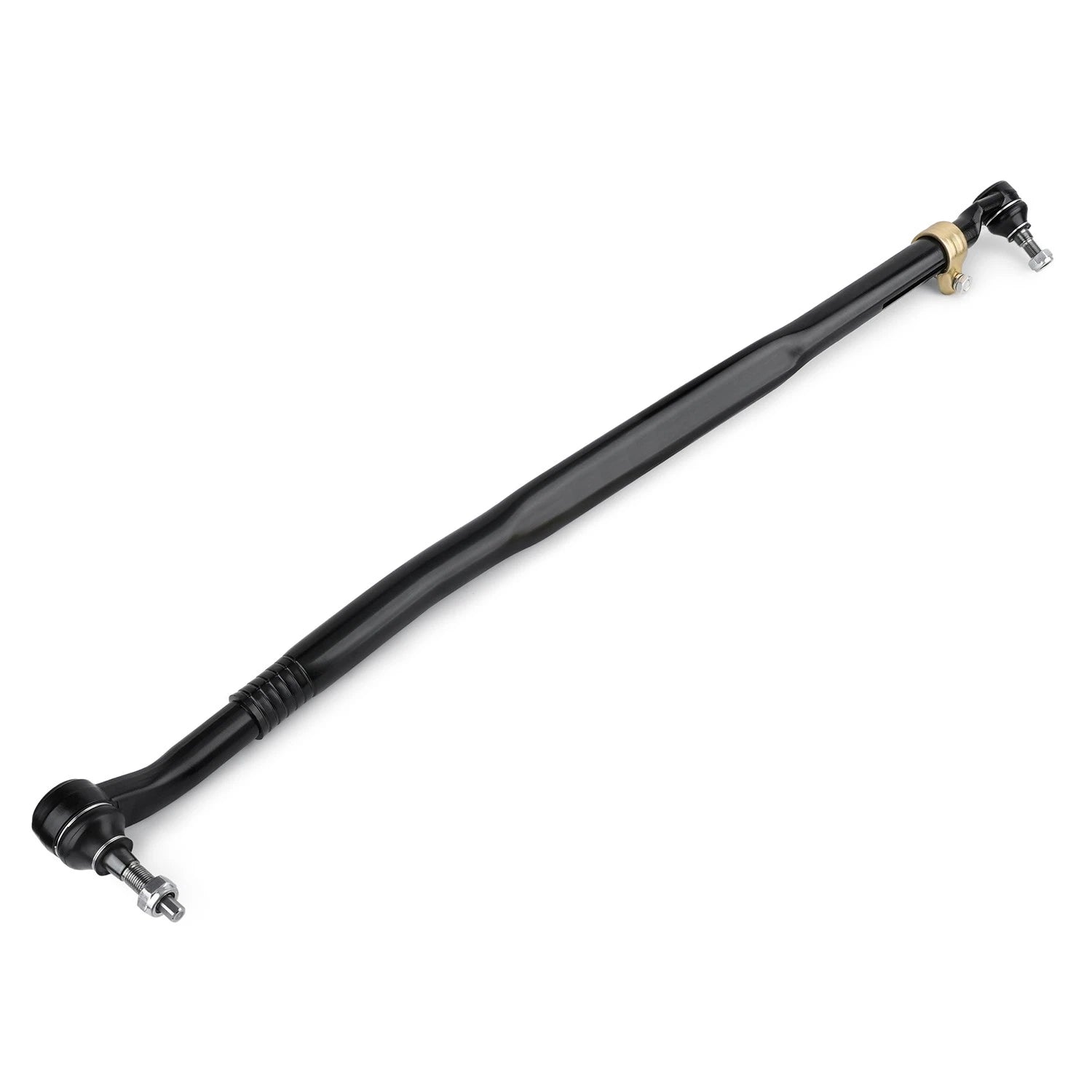

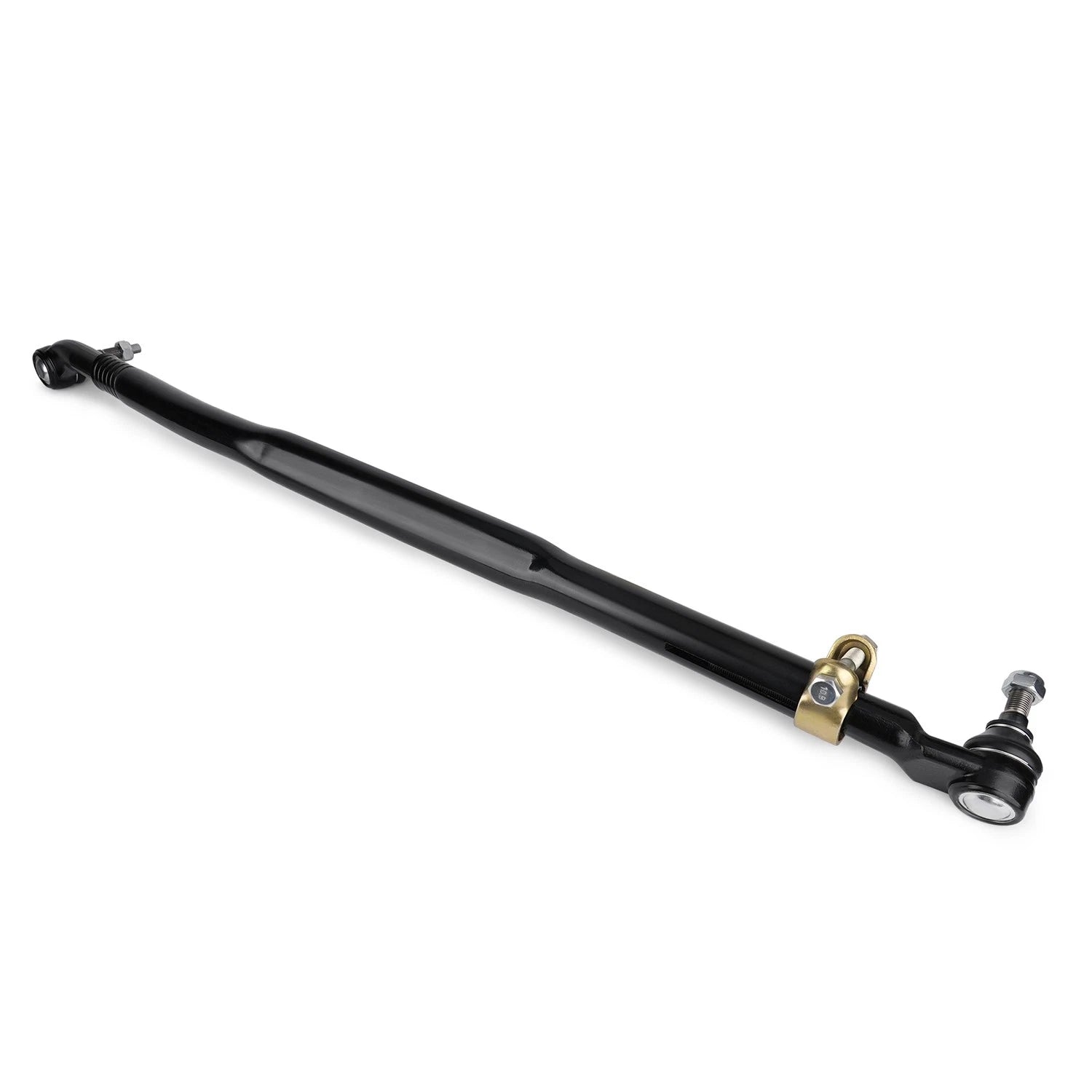

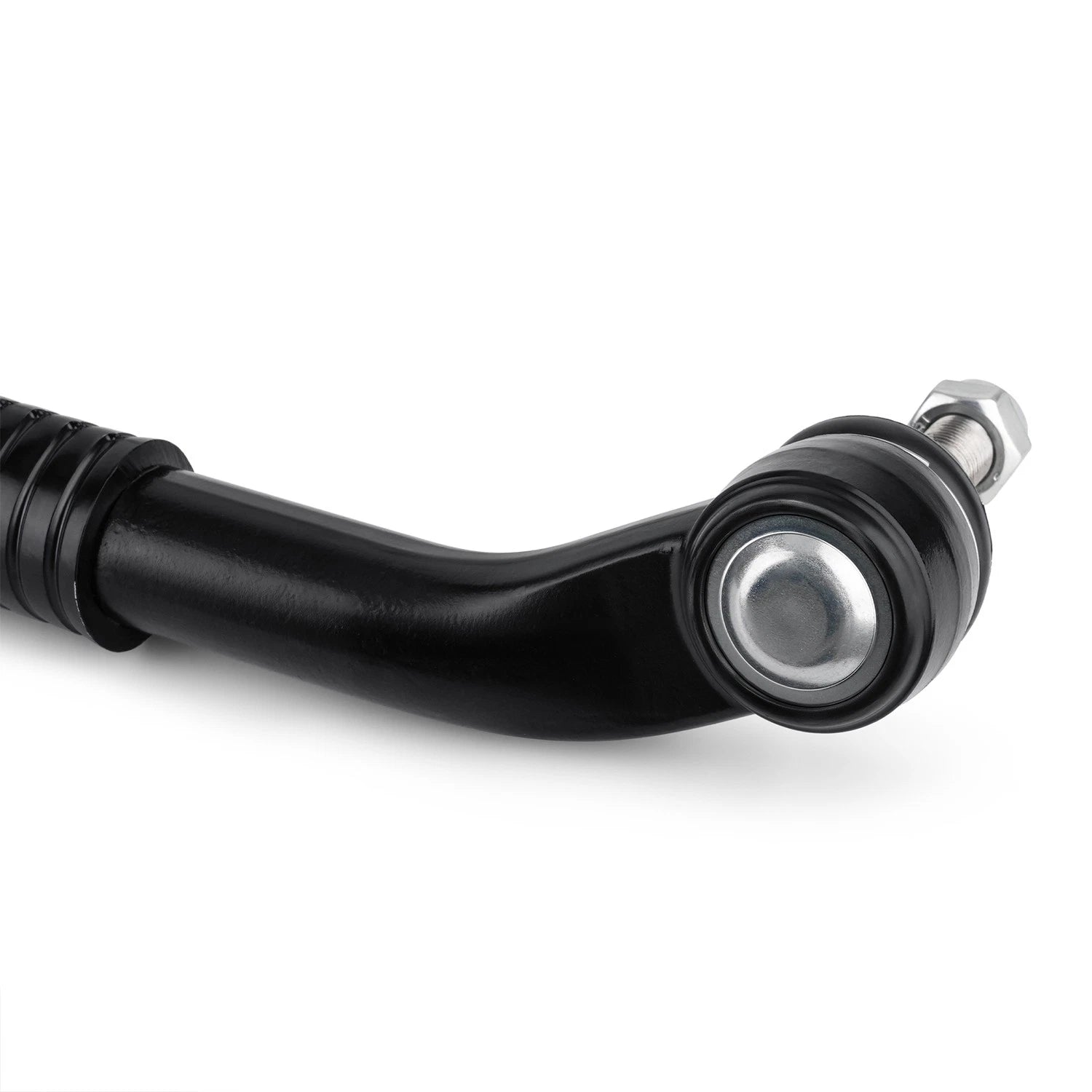

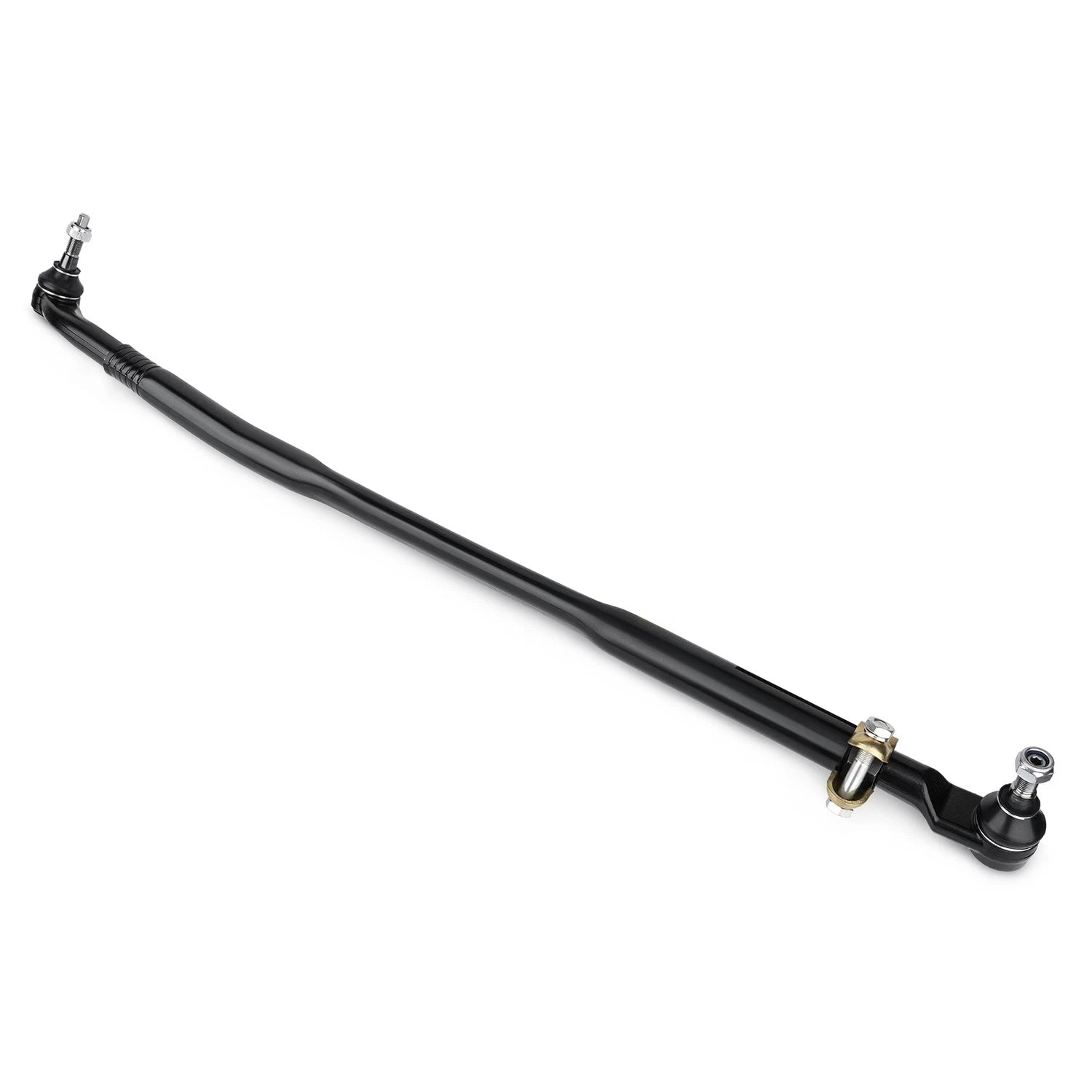

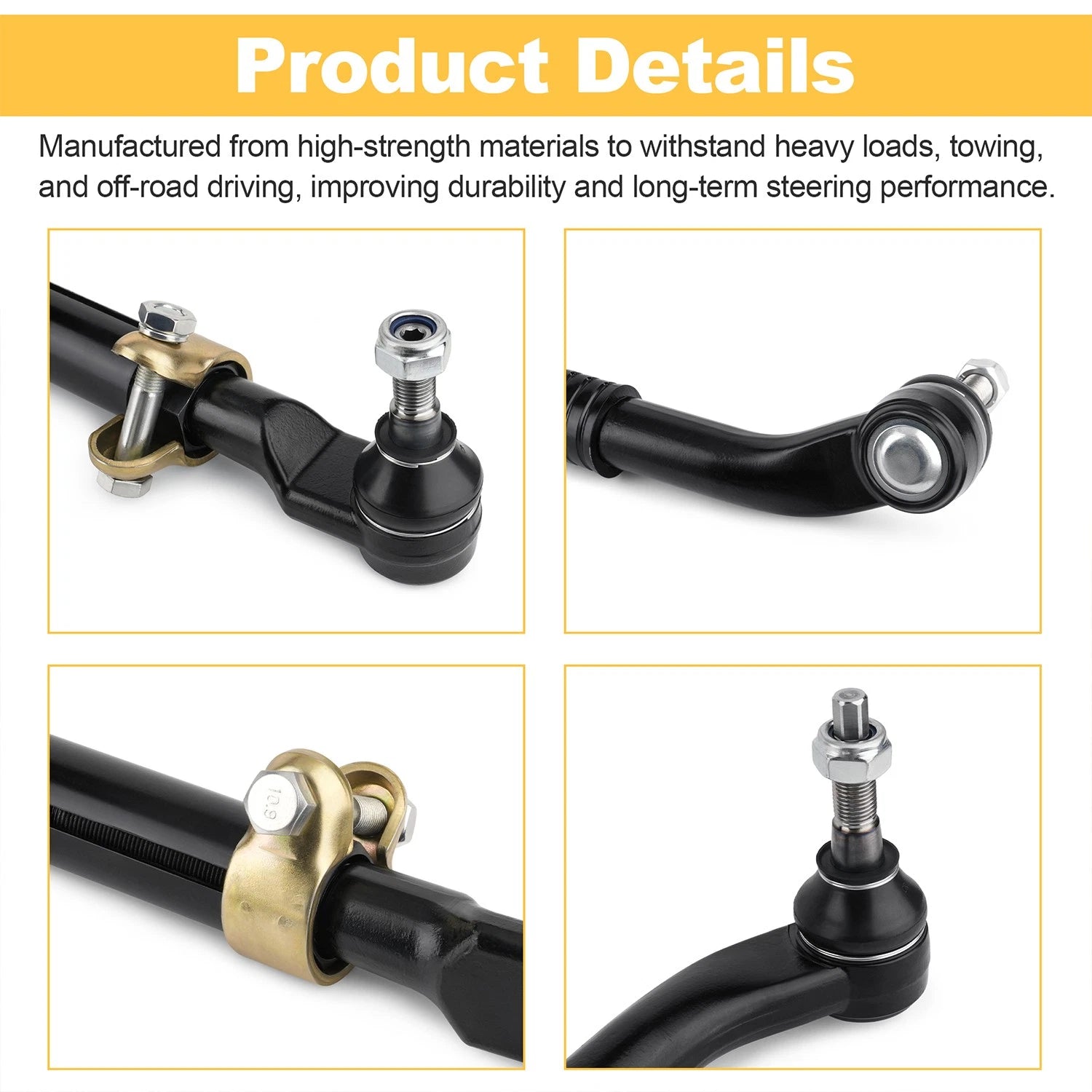

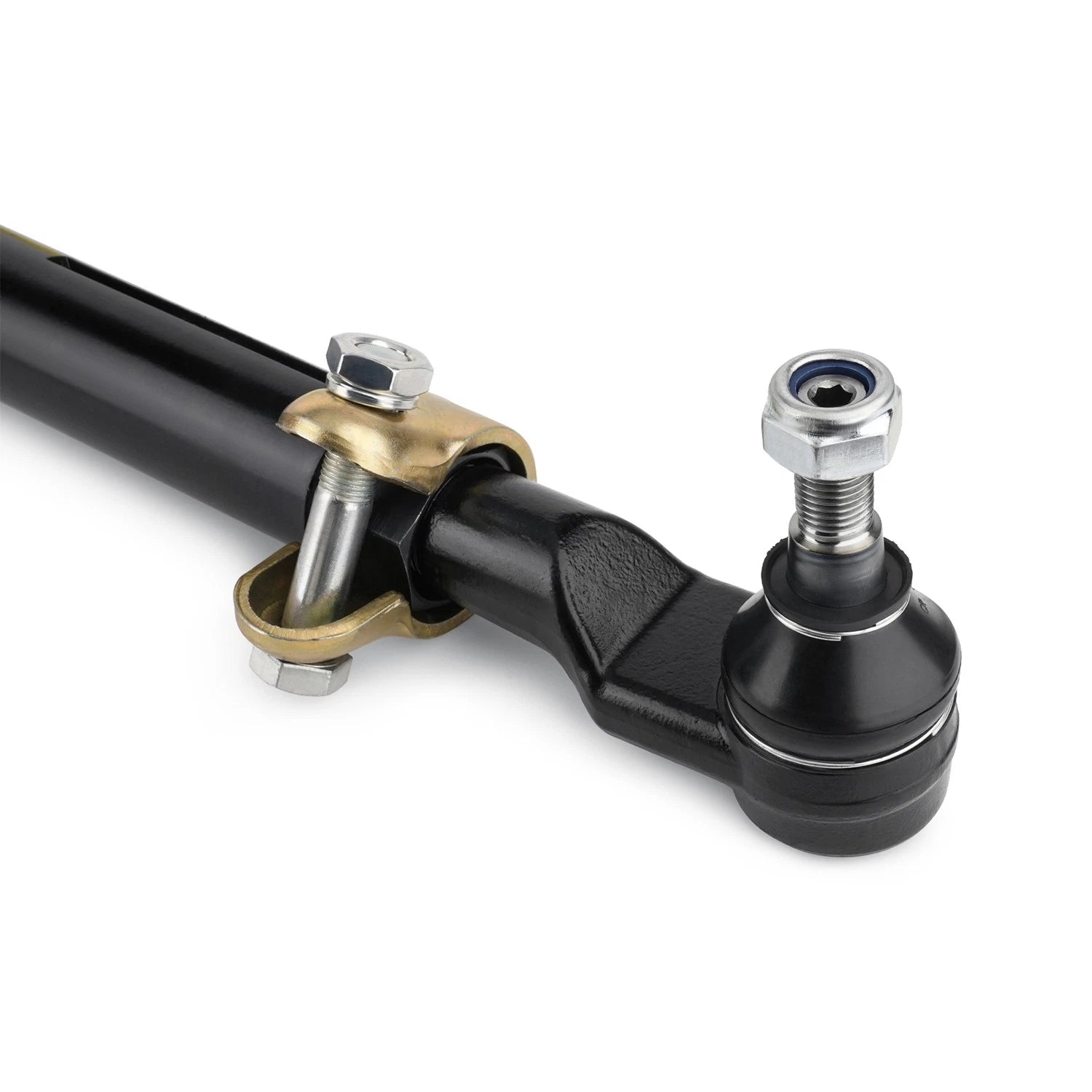

One assembled link is supplied with a ball-joint end at each side, fitted stud nuts and an adjustment clamp. The steel assembly has a black finish. It serves the drag link position between the pitman arm and the outer steering connection on the matching system. The cross-vehicle tie rod, steering damper and pitman arm are separate components.

Check the existing steering layout

Confirm that the vehicle calls for reference 68338342AD and compare the joint positions, stud tapers, link shape and adjustment arrangement with the installed steering system. Four-wheel drive and model year alone do not establish compatibility. A changed pitman arm, modified suspension or previous steering conversion needs its own fitment check.

Fitment for the 2013 Ram 2500 has not been confirmed. Do not order this assembly for that application without verifying the exact steering configuration and required part reference. This listing also excludes Ram 1500, two-wheel-drive trucks and chassis cab applications.

Assembly and dimensions

Supplied part

One assembled steering drag link with two joint ends, fitted stud nuts and an adjustment clamp

Main reference

68338342AD

Ram 2500 application

Selected 2014-2025 four-wheel-drive pickups; VIN and linkage match required

Ram 3500 application

Selected 2013-2025 four-wheel-drive pickups; chassis cab excluded

Material and appearance

Steel assembly with a black finish

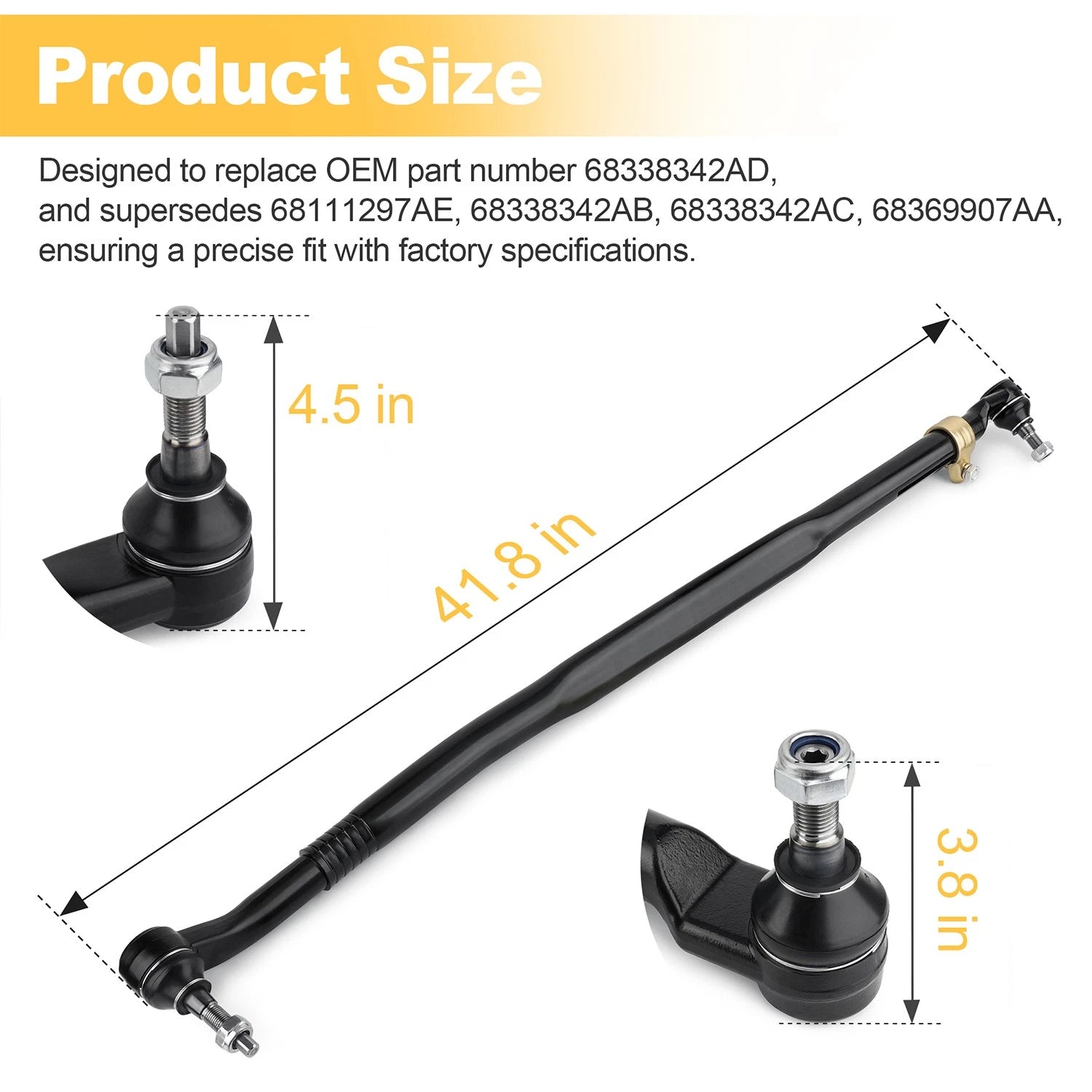

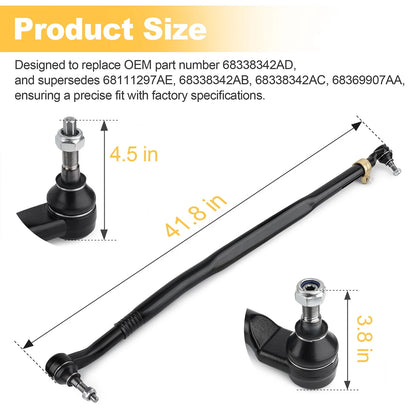

Illustrated length

Approximately 41.8 inches along the illustrated assembly; not an alignment setting or confirmed joint-center distance

Separate parts

Cross-vehicle tie rod, steering damper and pitman arm

Installation and steering checks

Have a qualified steering technician confirm the application and install the complete matched assembly using the vehicle's service information. The required fastener procedure, joint orientation and final adjustment depend on the installed system. Check steering travel and have the appropriate alignment and steering-wheel centering checks completed after replacement.

Exact stud taper dimensions, thread specifications, adjustment range, metal grade and load rating are not specified. The reference number identifies the intended application; this replacement is not represented as a Mopar manufactured part or an approved recall repair component. Existing steering service or recall requirements should be checked for the vehicle's VIN.
