Front Sway Bar Bracket and Bushing Kit for Ford F-250 / F-450 / F-550 4WD

Front sway bar brackets and bushings for Ford 4WD trucks

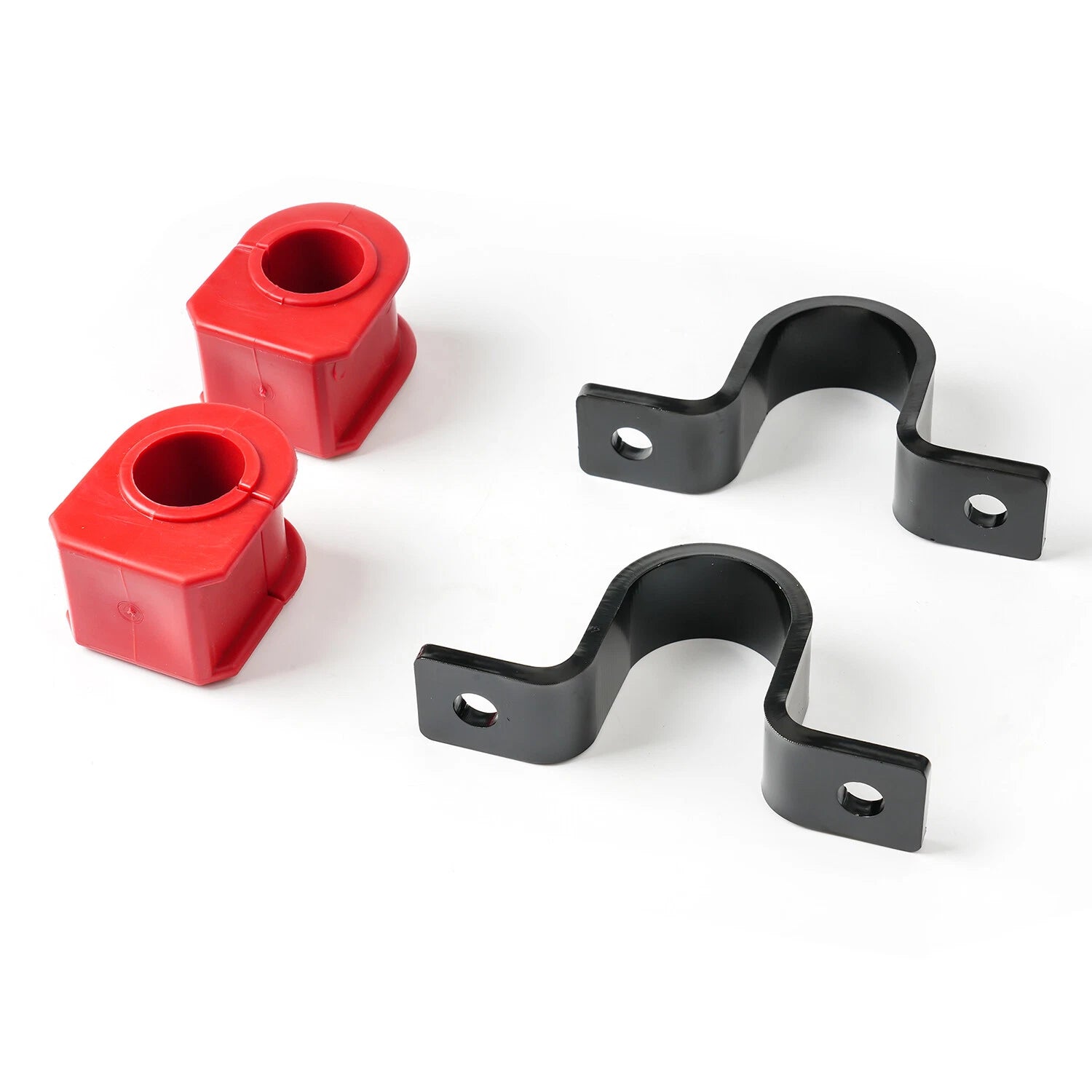

This kit contains two black mounting brackets and two red split bushings for matching front stabilizer bar mounts on 4WD Ford F-250, F-450 and F-550 trucks. Each bracket wraps around one bushing, with a mounting hole in each of its two feet. The kit supplies the bracket-and-bushing components shown in the photos.

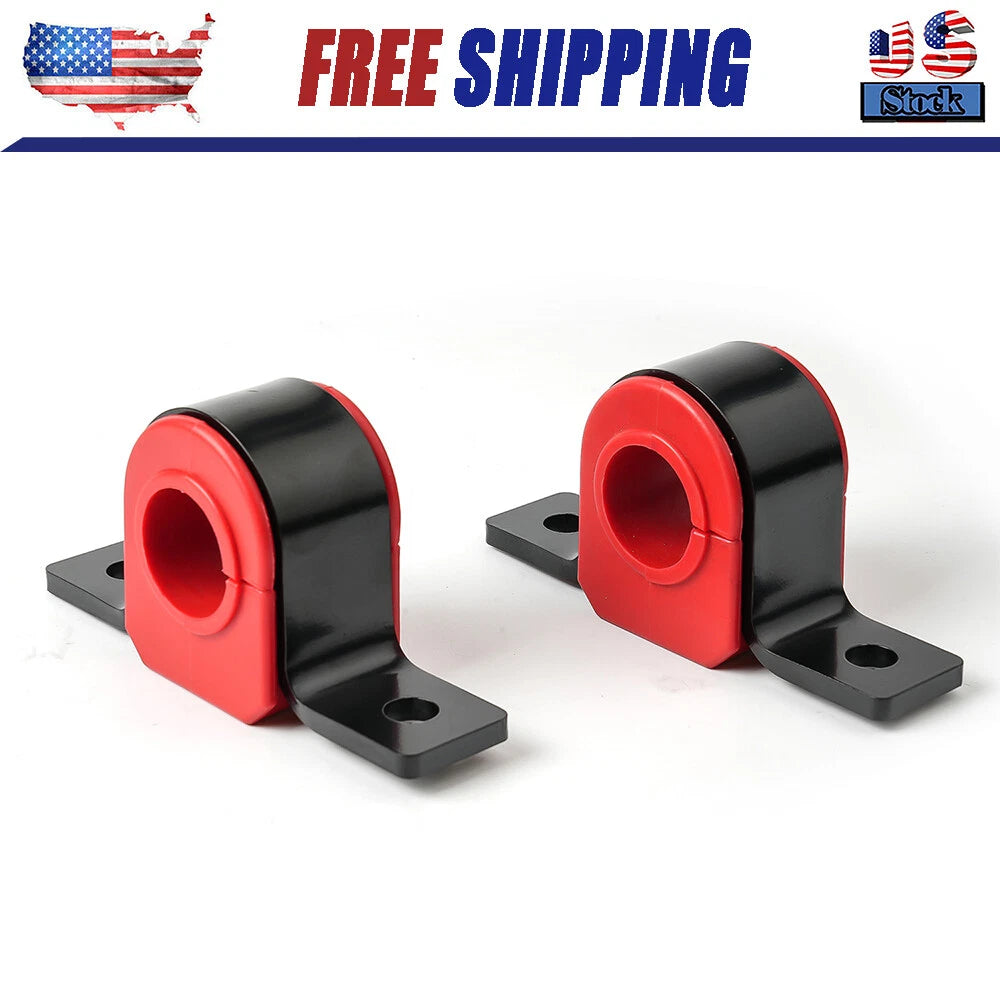

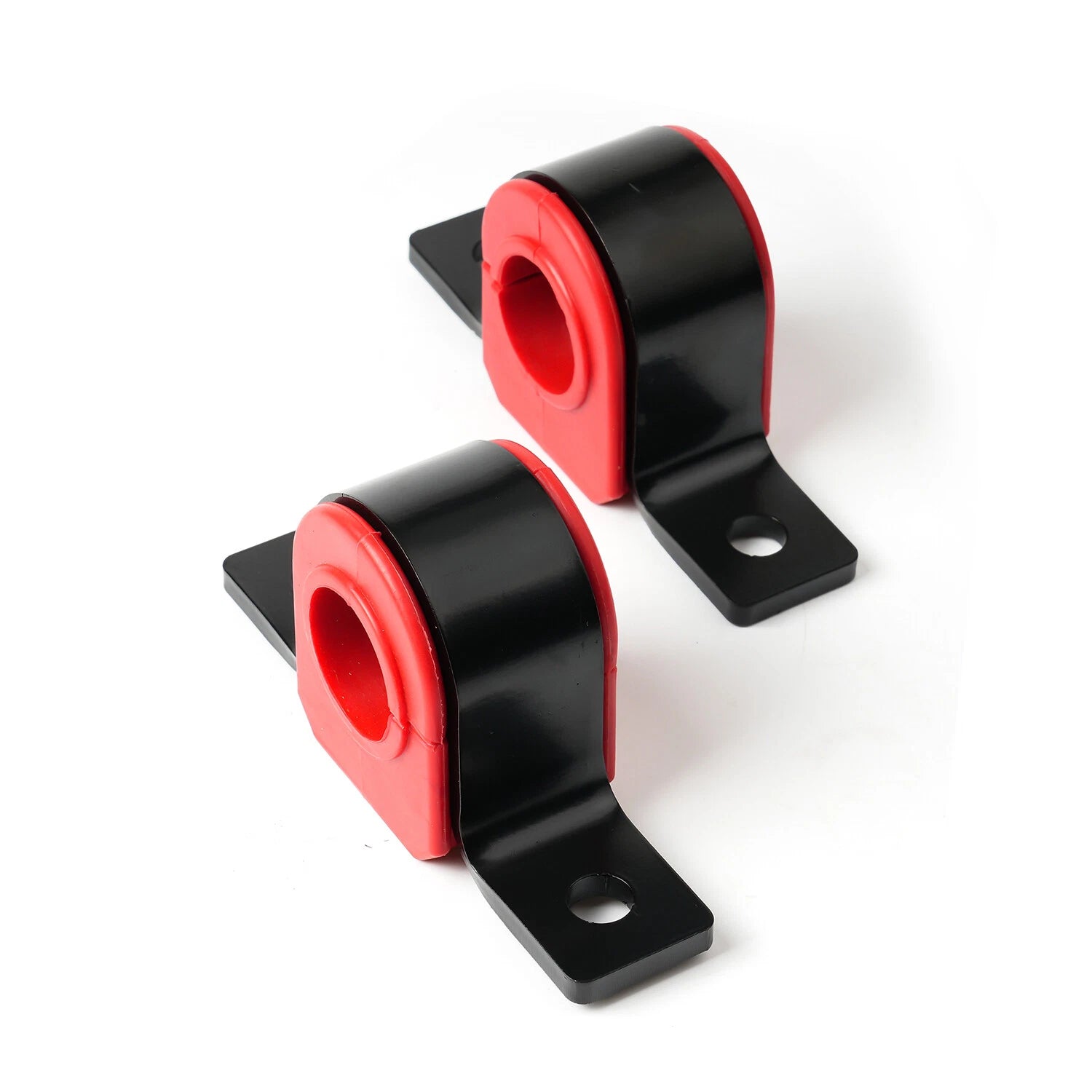

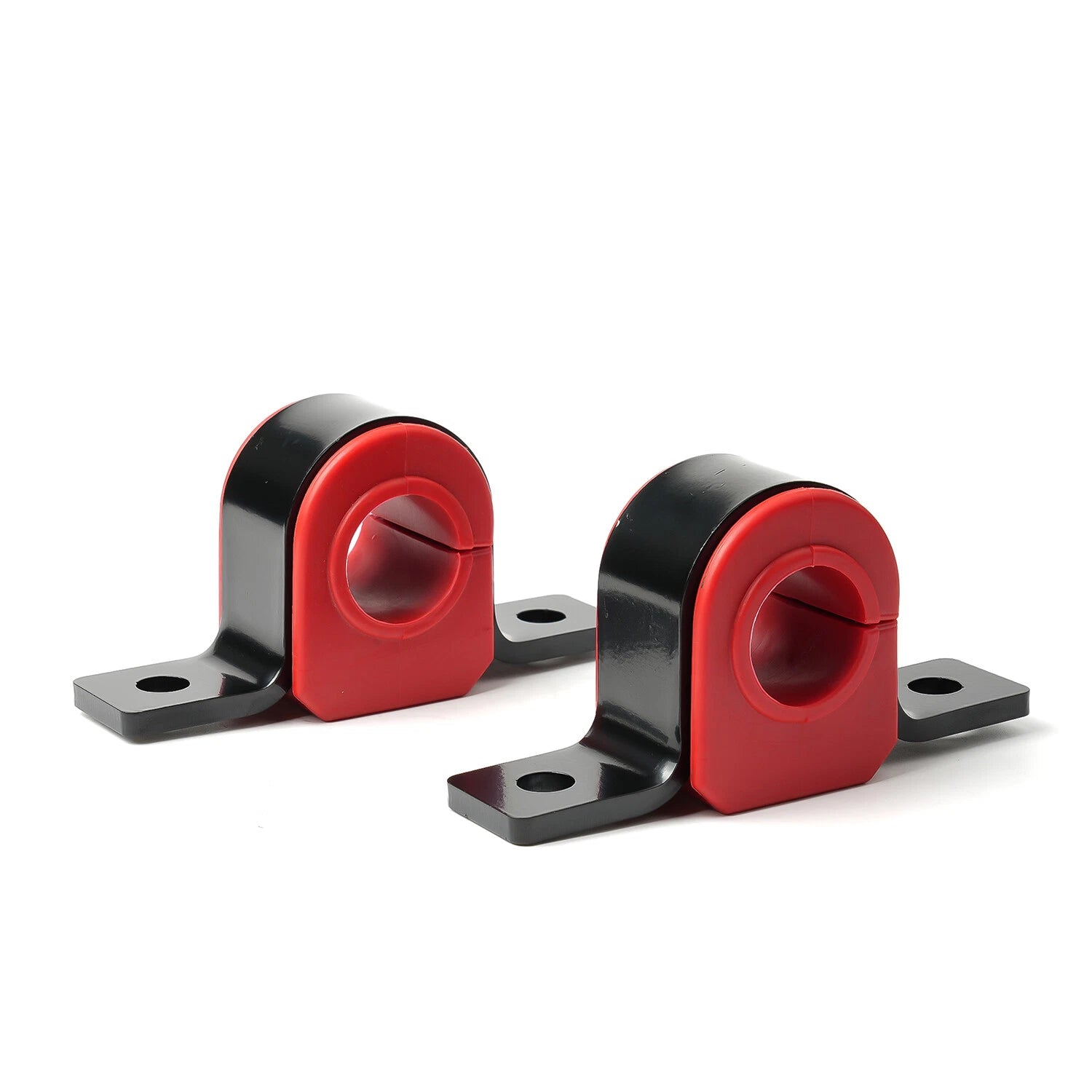

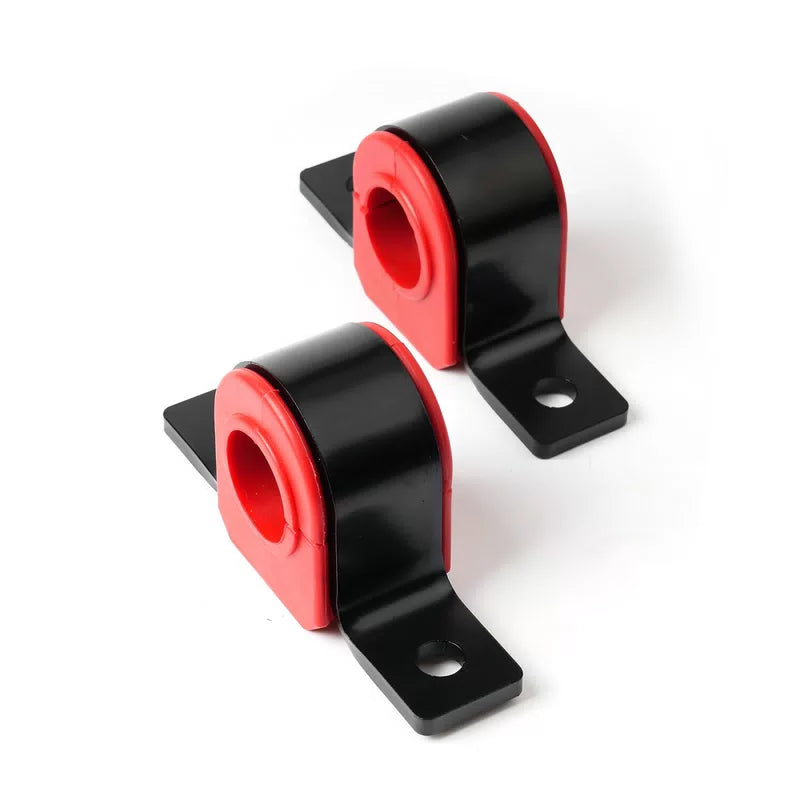

Two bracket and bushing sets

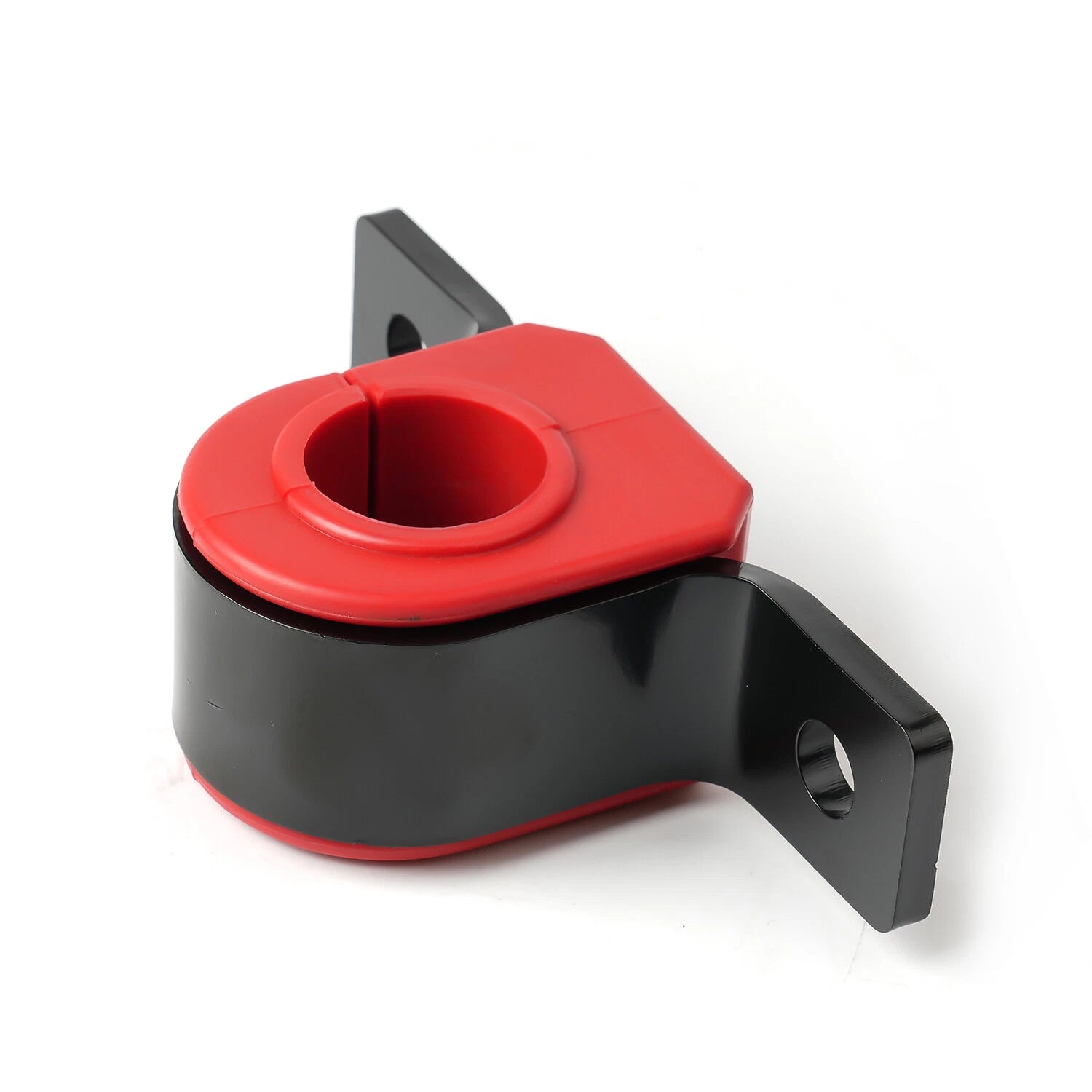

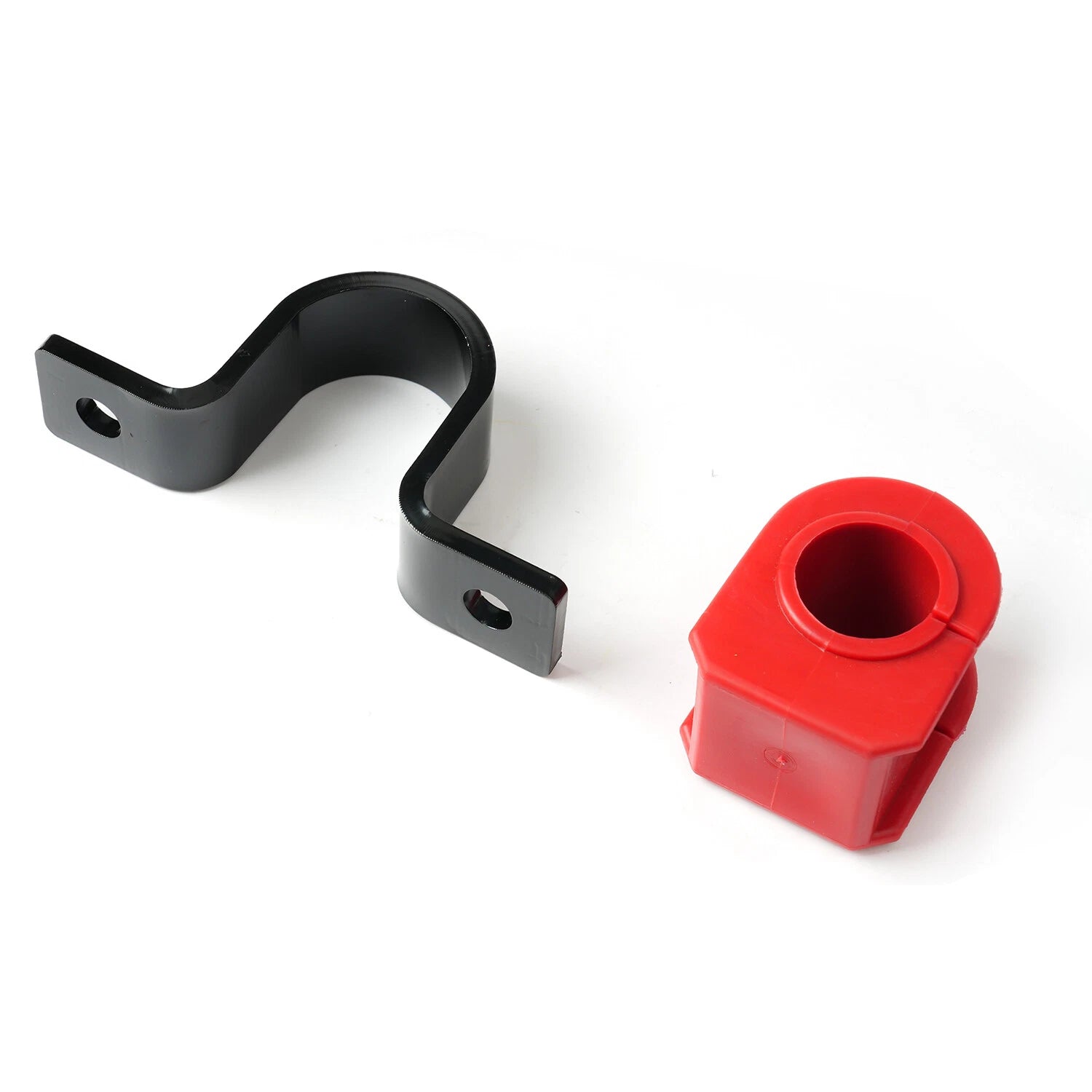

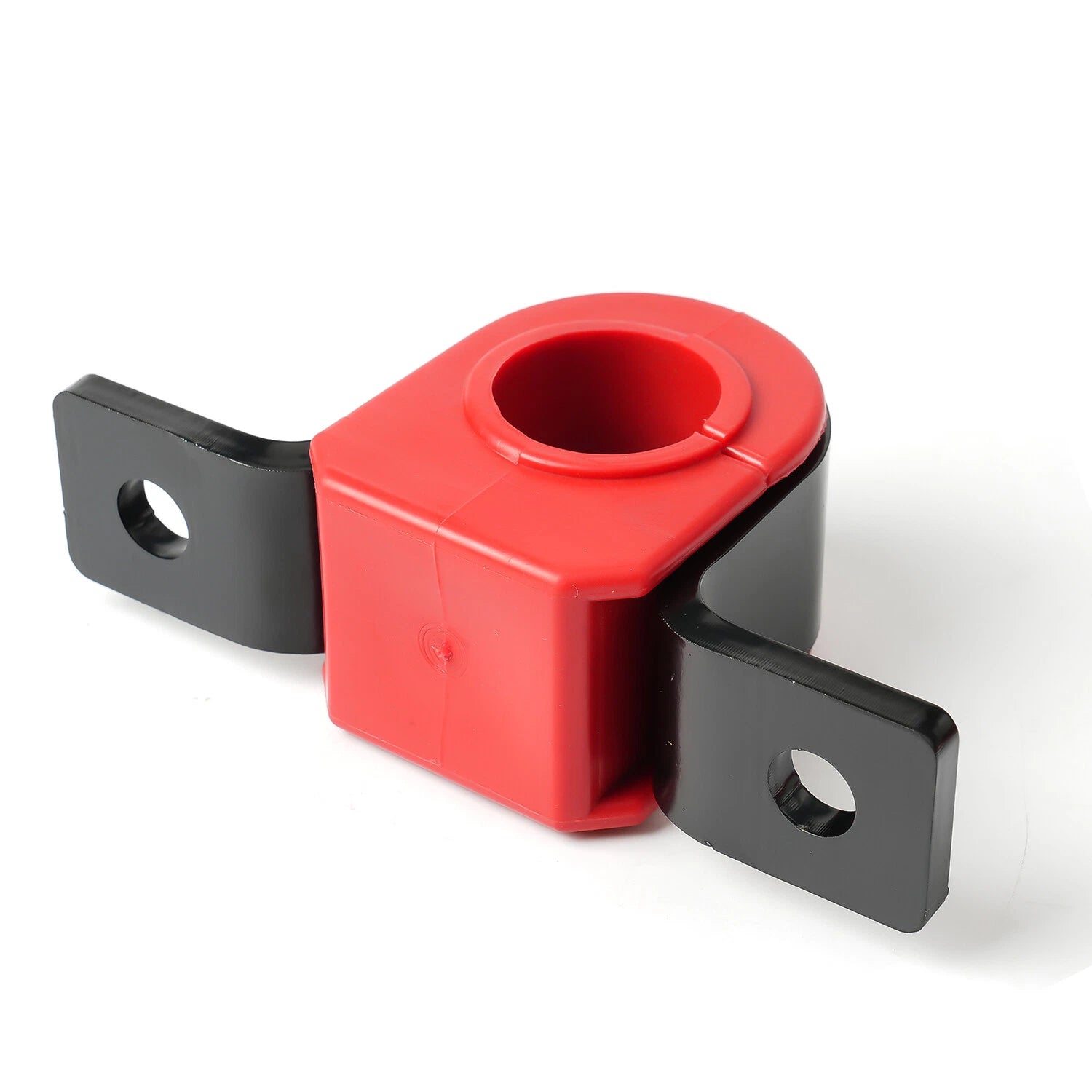

The bushings have a D-shaped outer profile, a circular bar opening and a slit through one side. Raised edges on the bushing flank the bracket when the pieces are assembled. Compare the bushing shape, bracket width and mounting feet with the existing mounts before choosing this kit.

Vehicle scope

Matching 4WD Ford F-250 / F-450 / F-550 front sway bar mounts

Brackets supplied

Two black mounting brackets

Bushings supplied

Two red D-shaped split bushings

Mounting holes

Two per bracket, one in each foot

Bushing opening

Circular bore with a side slit; diameter not specified

Bracket dimensions

Width and mounting-hole spacing not specified

Fasteners

Mounting bolts and nuts are not included

Other components

Stabilizer bar and end links are not included

Confirm the bar diameter and mounting pattern

Measure the stabilizer bar at the bushing contact area and compare the bracket's mounting-hole centers, width and profile. The photos contain no scale or dimension labels, so they cannot establish the bore size. Vehicle model and four-wheel drive alone do not confirm these measurements.

Check the installed suspension configuration and the parts required for the truck's model year before ordering; no year-specific fitment range is supplied here. Follow the vehicle's service procedure for bushing orientation, fastener selection and tightening. Inspect the bar's contact surfaces and the attachment points during replacement so worn or damaged surrounding parts are addressed as well.
