68810-0R010 Rear Liftgate Hinge for Toyota RAV4 2013-2018, Single

68810-0R010 rear liftgate hinge for RAV4

This single replacement hinge is for 2013-2018 Toyota RAV4 rear liftgate applications matching reference 68810-0R010. It connects the upper liftgate mounting points through a pivoting hinge assembly. One hinge is supplied, with two threaded mounting studs already fitted.

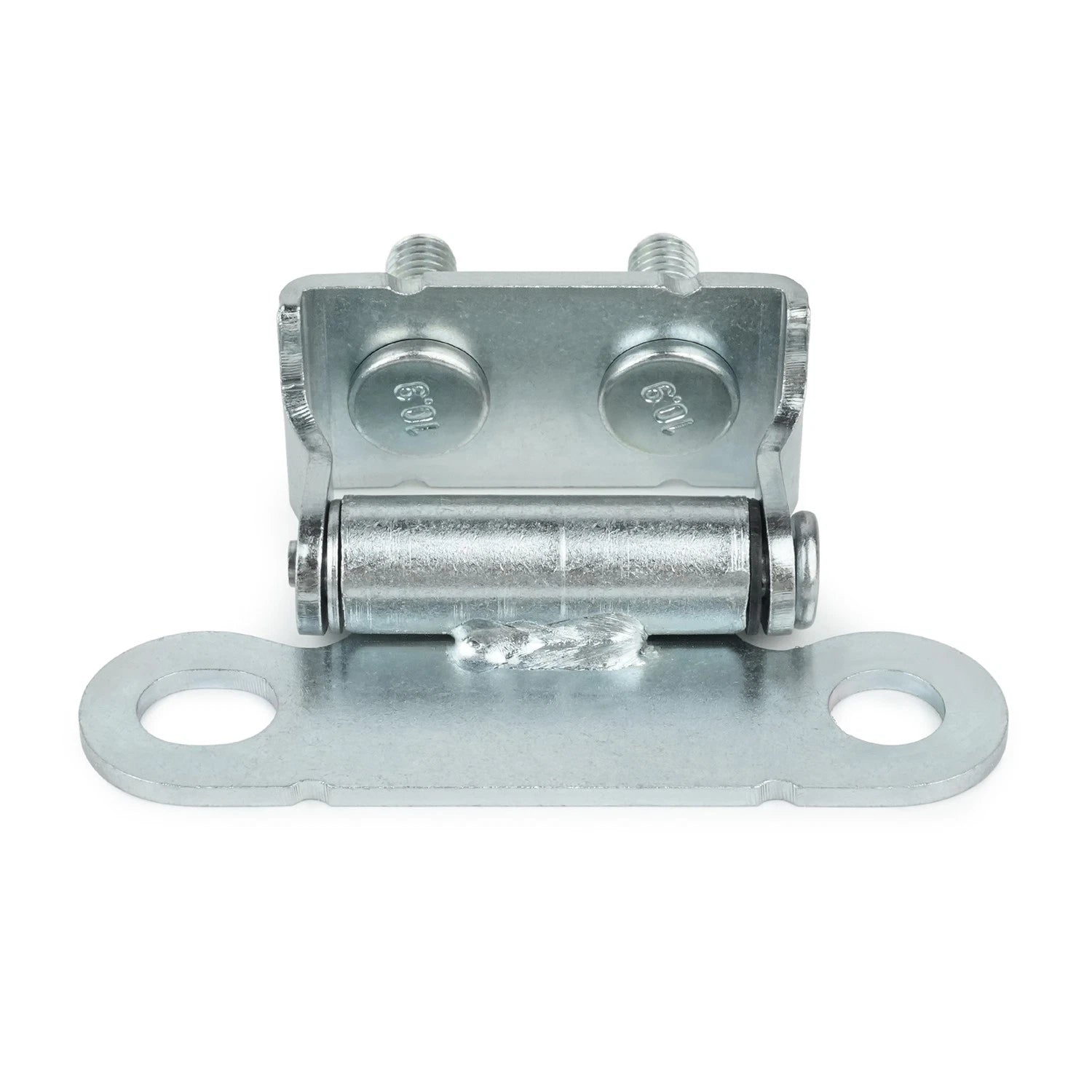

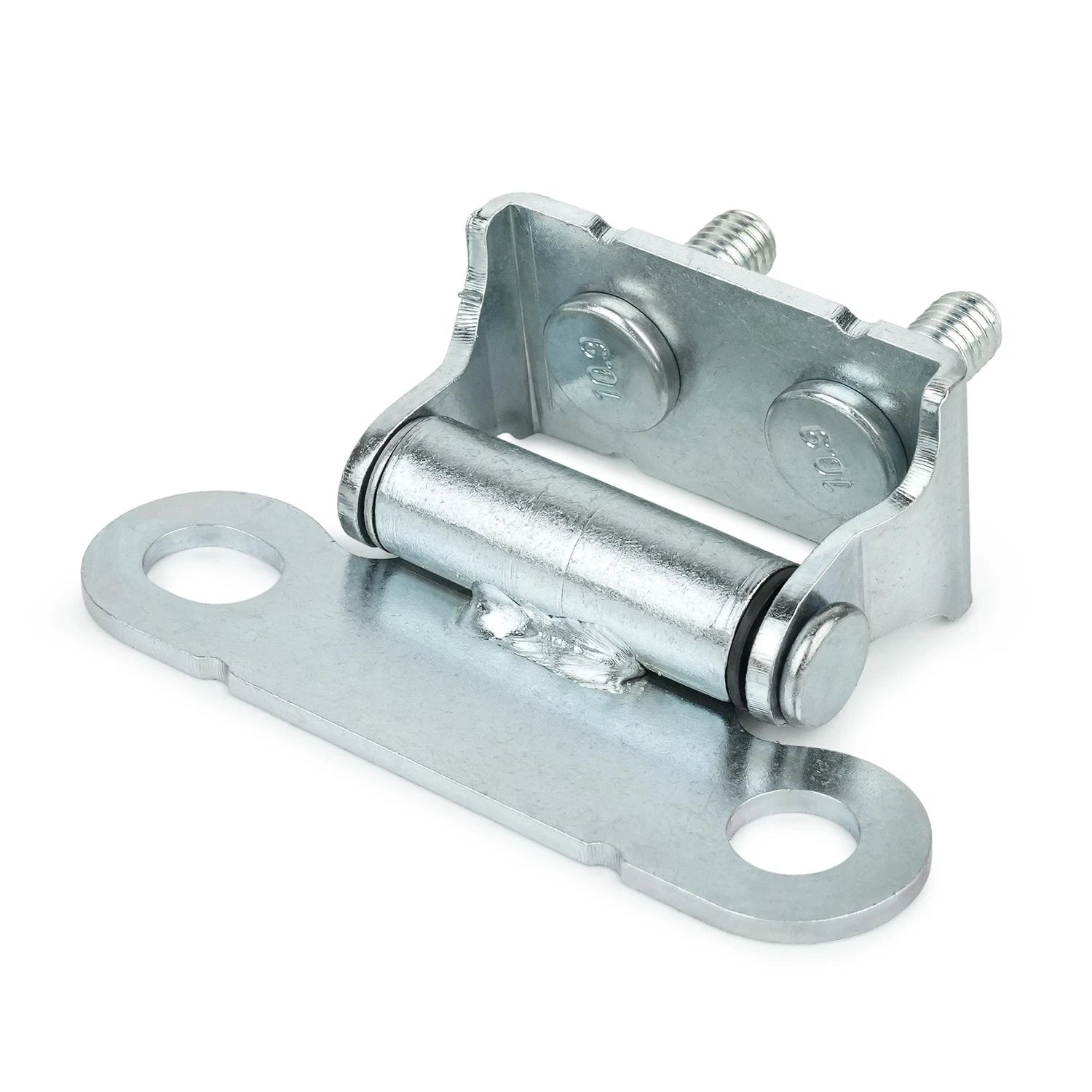

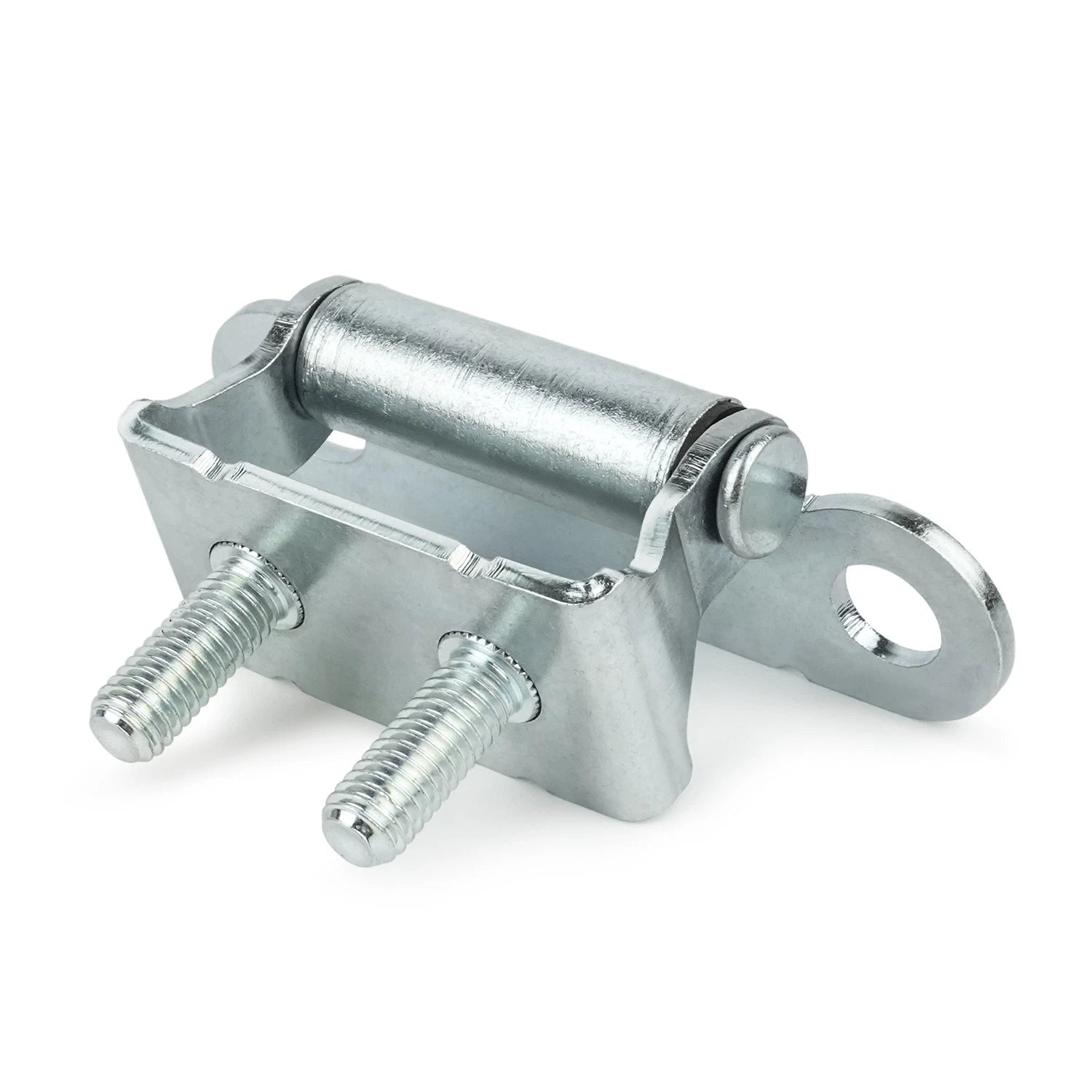

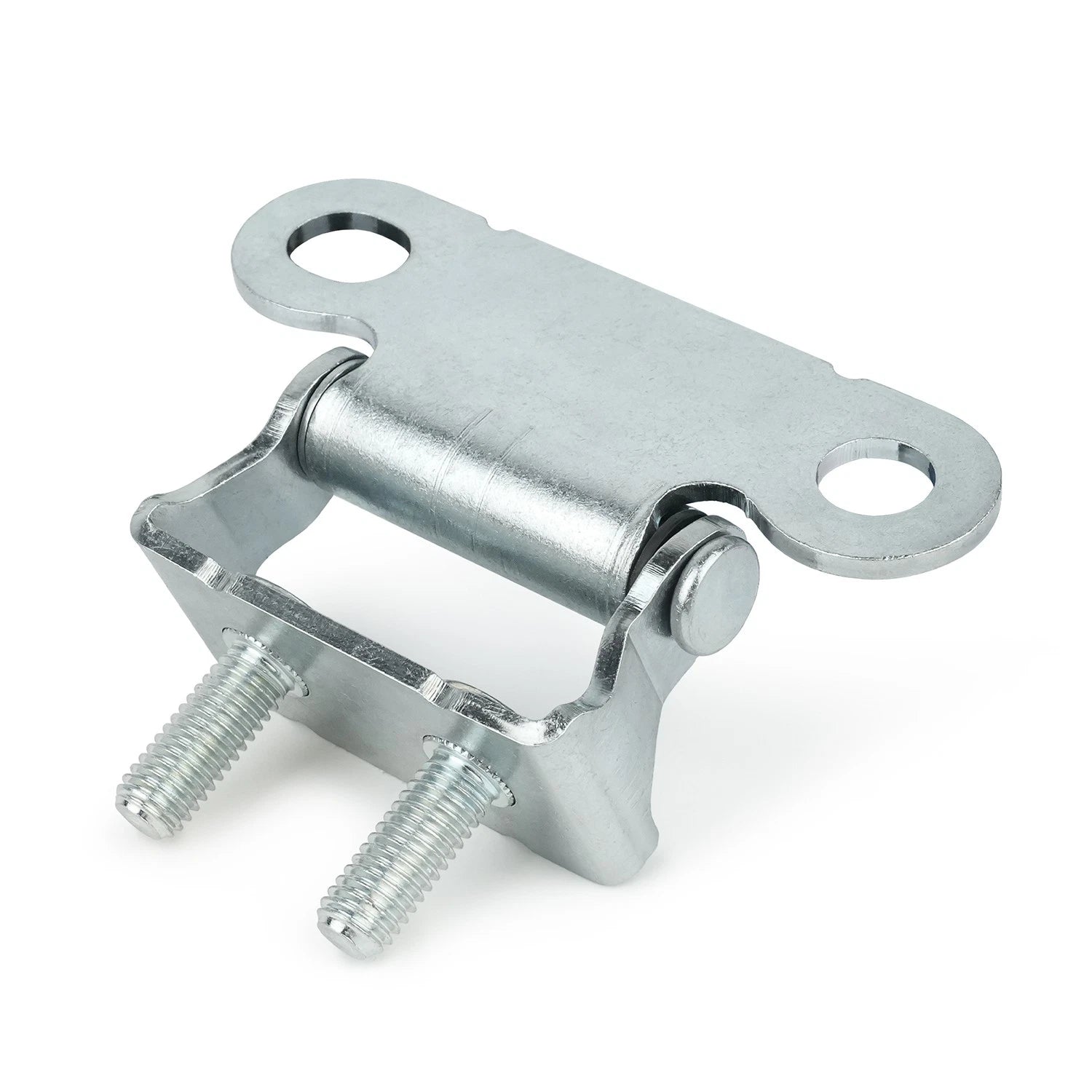

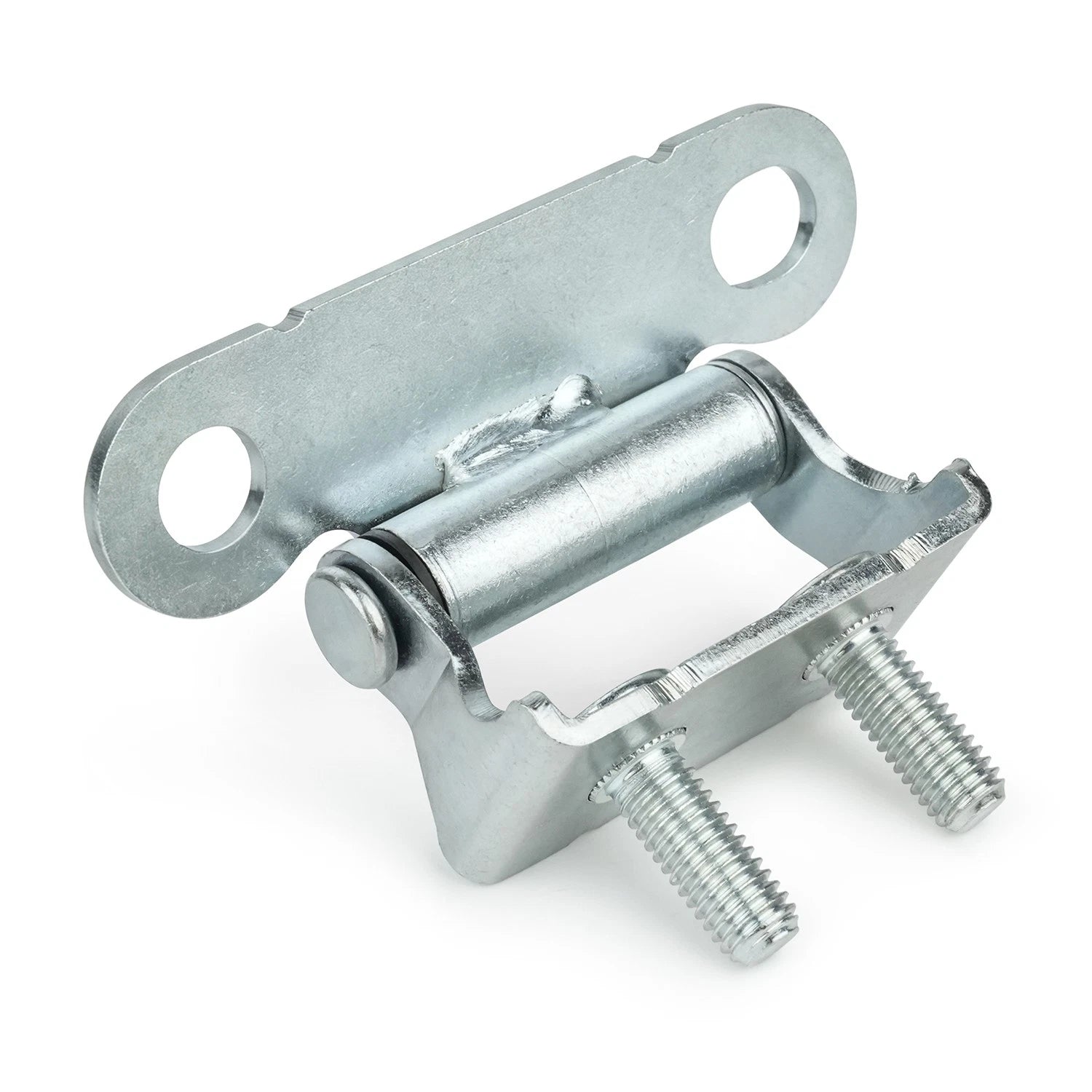

The silver-colored assembly has a flat mounting plate with two openings and a raised bracket joined by the pivot barrel. The part is offered for a left or right rear liftgate position; compare it with the hinge being replaced before ordering. There is one product configuration and no separate left/right selection.

Dimensions and mounting details

Application

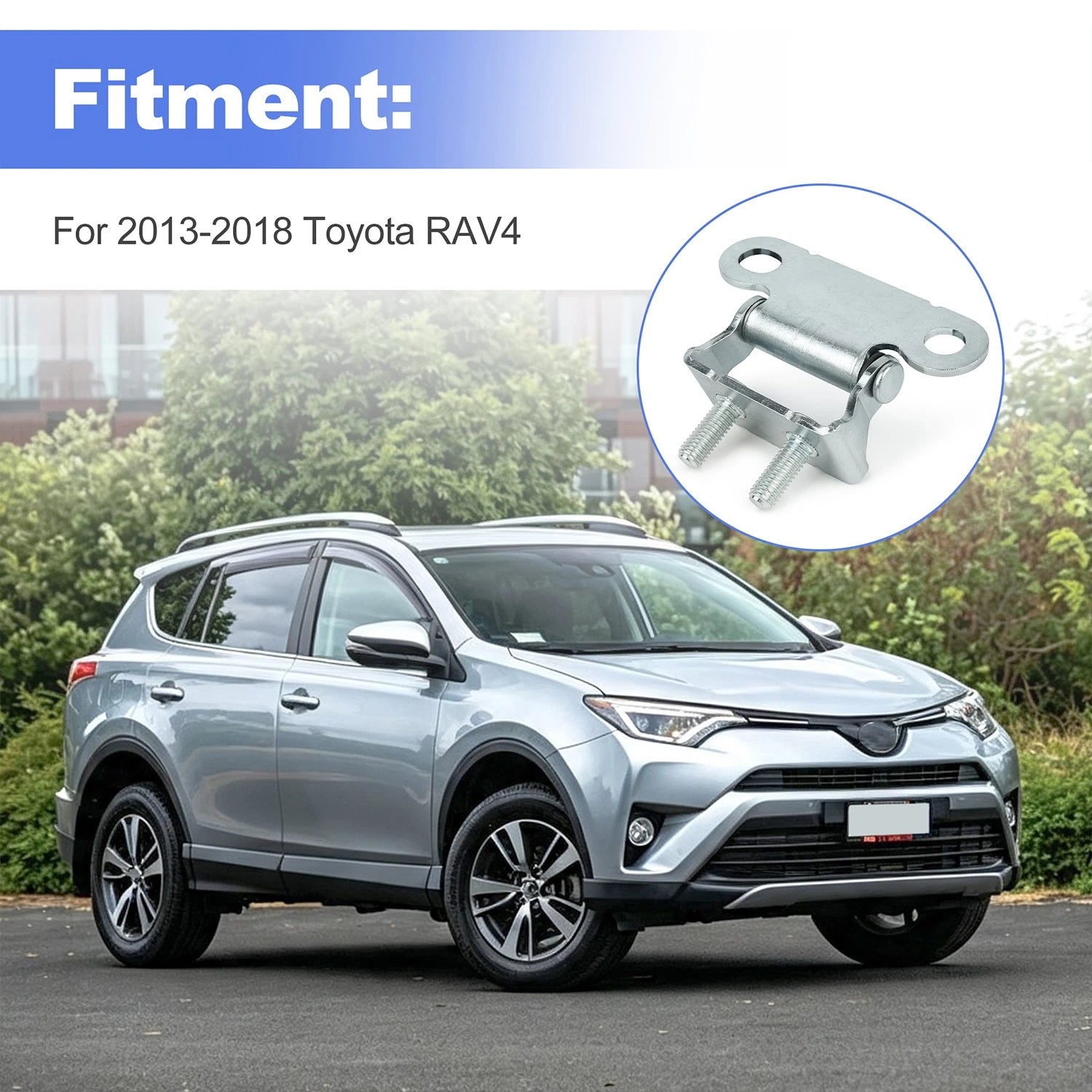

Toyota RAV4, 2013-2018, with matching hinge reference and mounting layout

Reference number

68810-0R010

Quantity

1 hinge assembly

Mounting hardware on hinge

2 fitted threaded studs

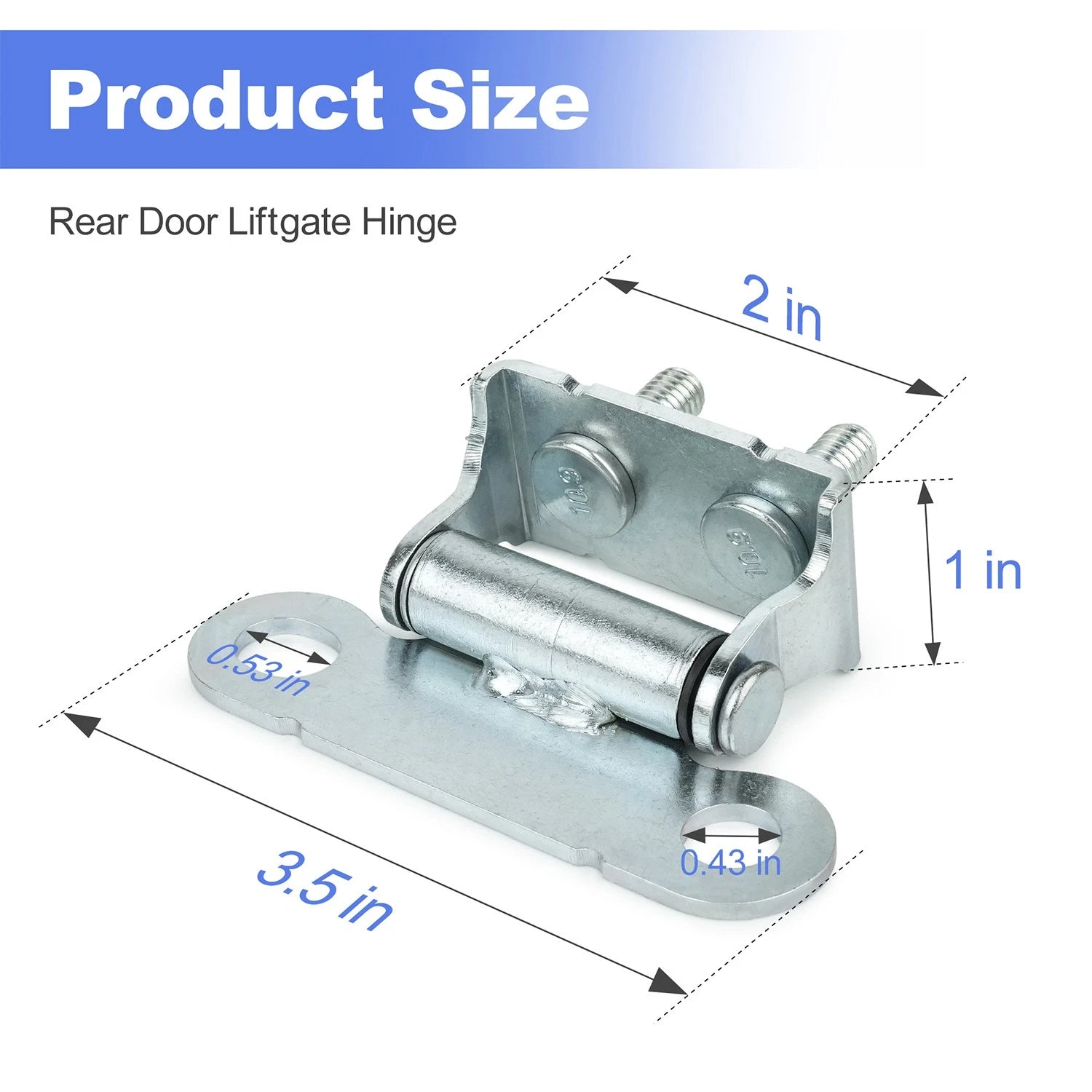

Flat plate length

Approximately 3.5 in, measured end to end

Raised bracket width

Approximately 2 in

Bracket height in illustrated position

Approximately 1 in; see dimension image for the measurement direction

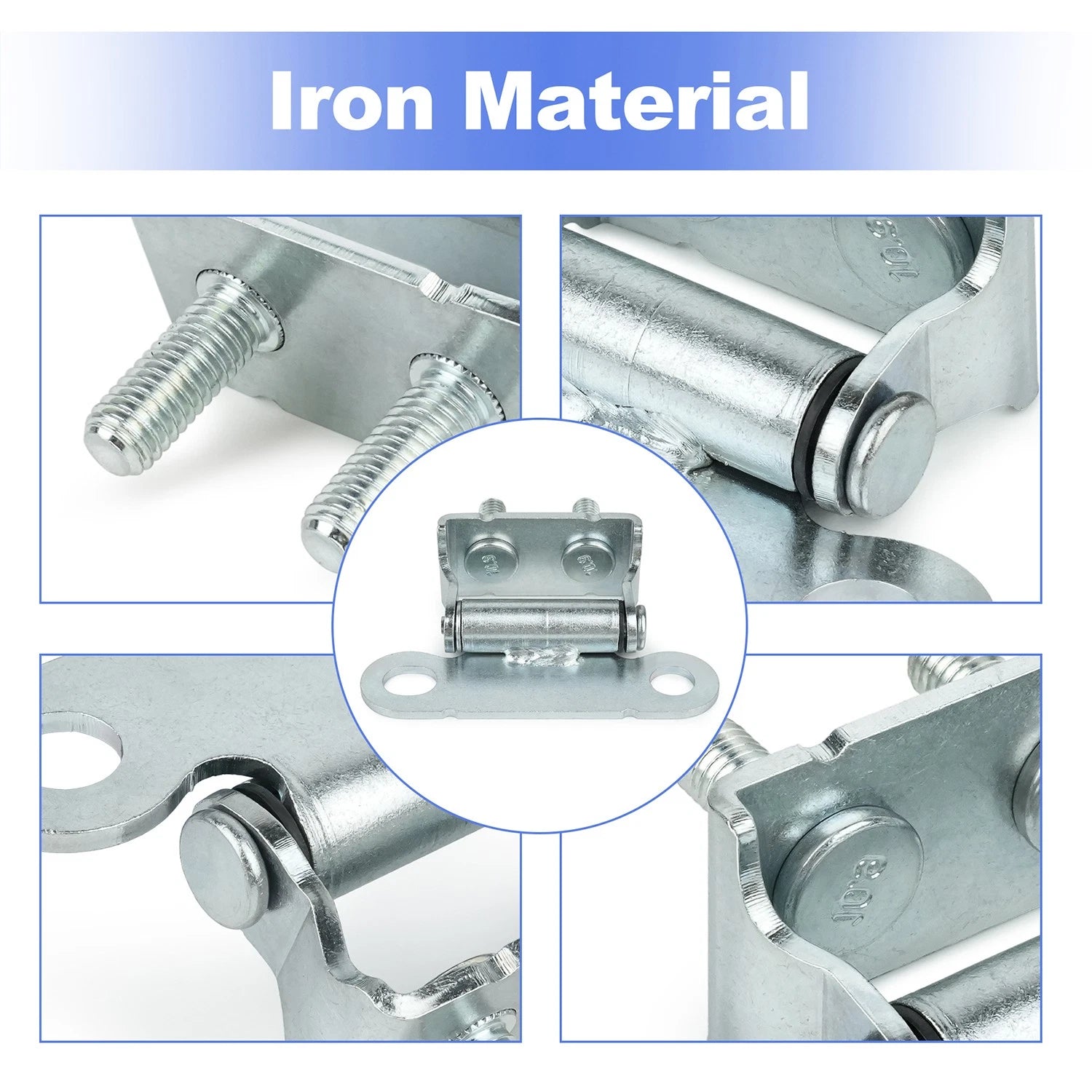

Material

Iron

Surface appearance

Silver-colored

The dimensions describe the parts in the pictured position. They do not specify installed liftgate alignment, stud thread size or mounting-hole center spacing. Use the dimension image together with the actual hinge profile when checking your replacement.

Check the hinge you need to replace

Confirm 68810-0R010 for your vehicle's exact configuration using its VIN or parts catalog. Match the flat plate, mounting openings, stud spacing and bracket offset on the required side. The 2013-2018 year range alone does not establish a match for every liftgate assembly.

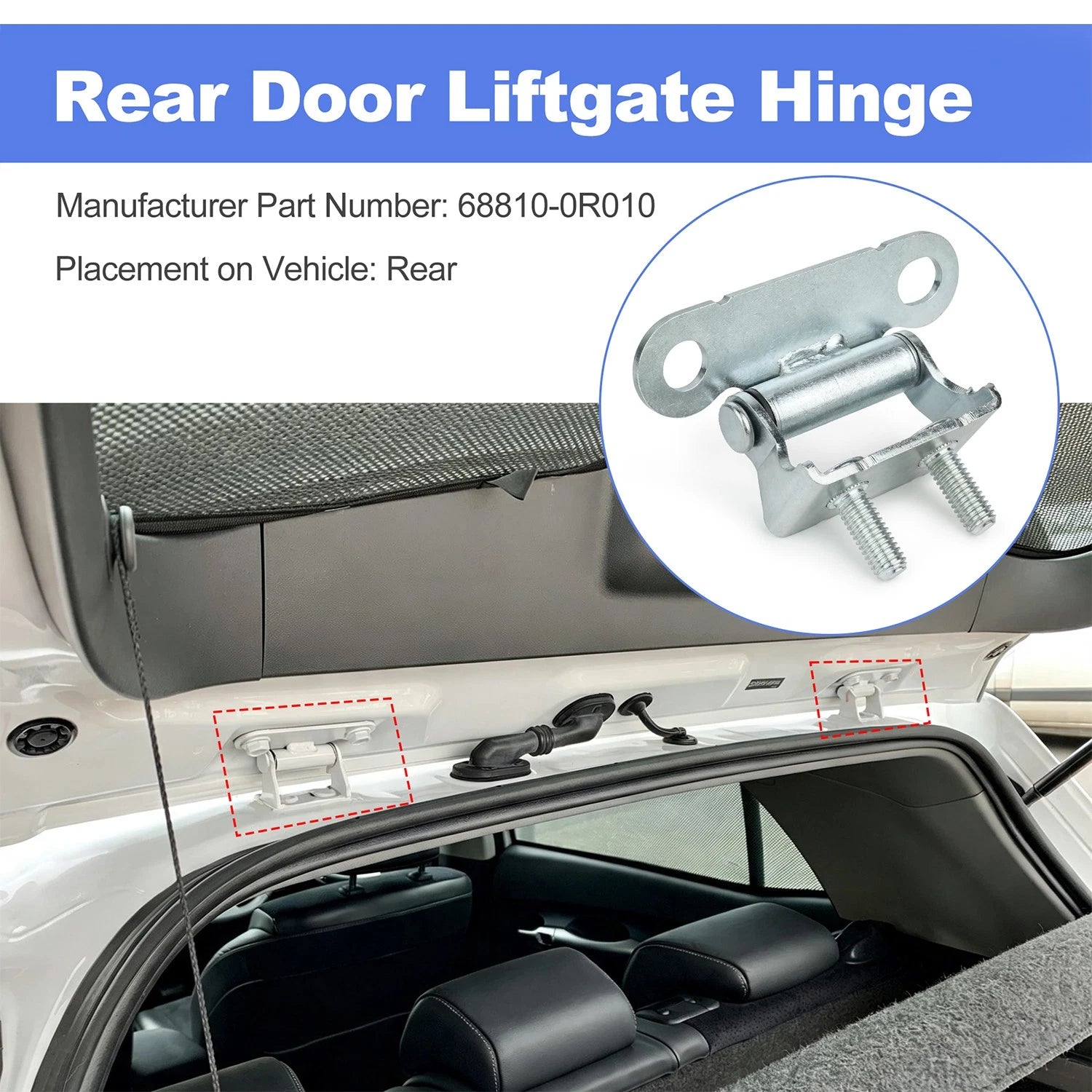

If replacing both upper liftgate hinges, order two matching units. The installation photo shows both vehicle hinge locations; each purchase supplies one hinge.

Liftgate replacement checks

Keep the liftgate supported during hinge removal. Use the vehicle's service procedure for fastening, sealing the mounting area and adjusting the liftgate gaps. No tightening torque or preset alignment is specified for this part.

Inspect the surrounding mounting points and the other hinge before fitting the replacement. Check opening movement, latch engagement and panel clearance after adjustment.
