Ski-Doo square suspension spring pair, ref. 503191614 / 503191615

Left and right square-section suspension spring pair

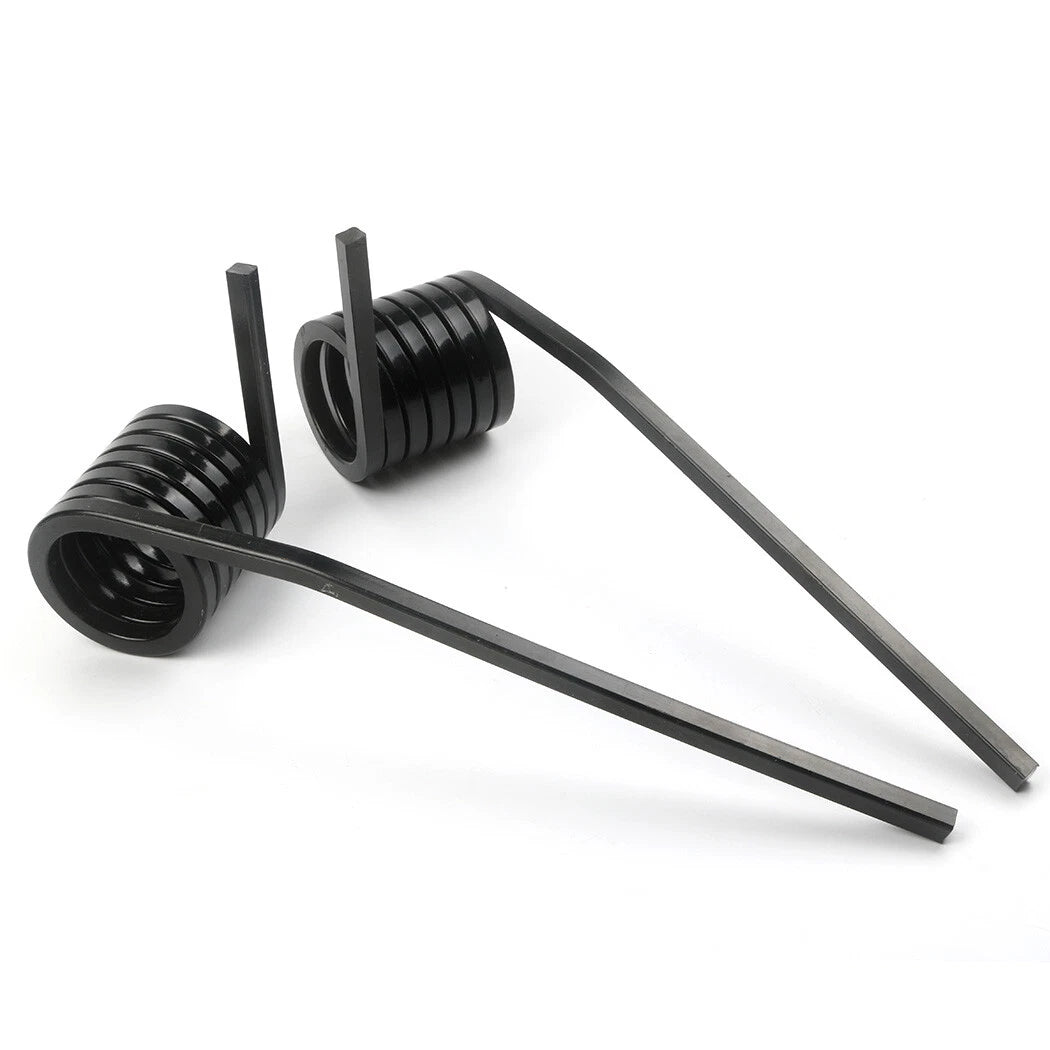

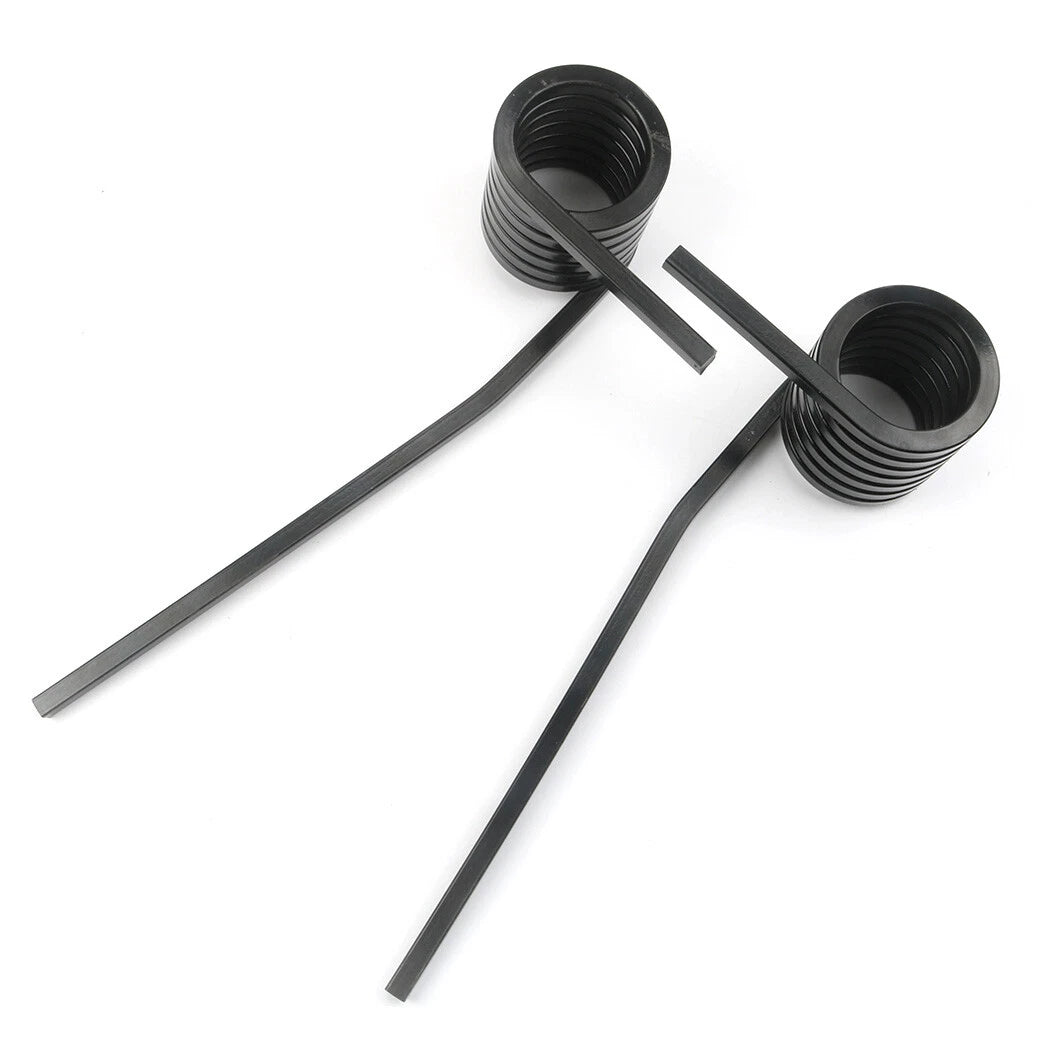

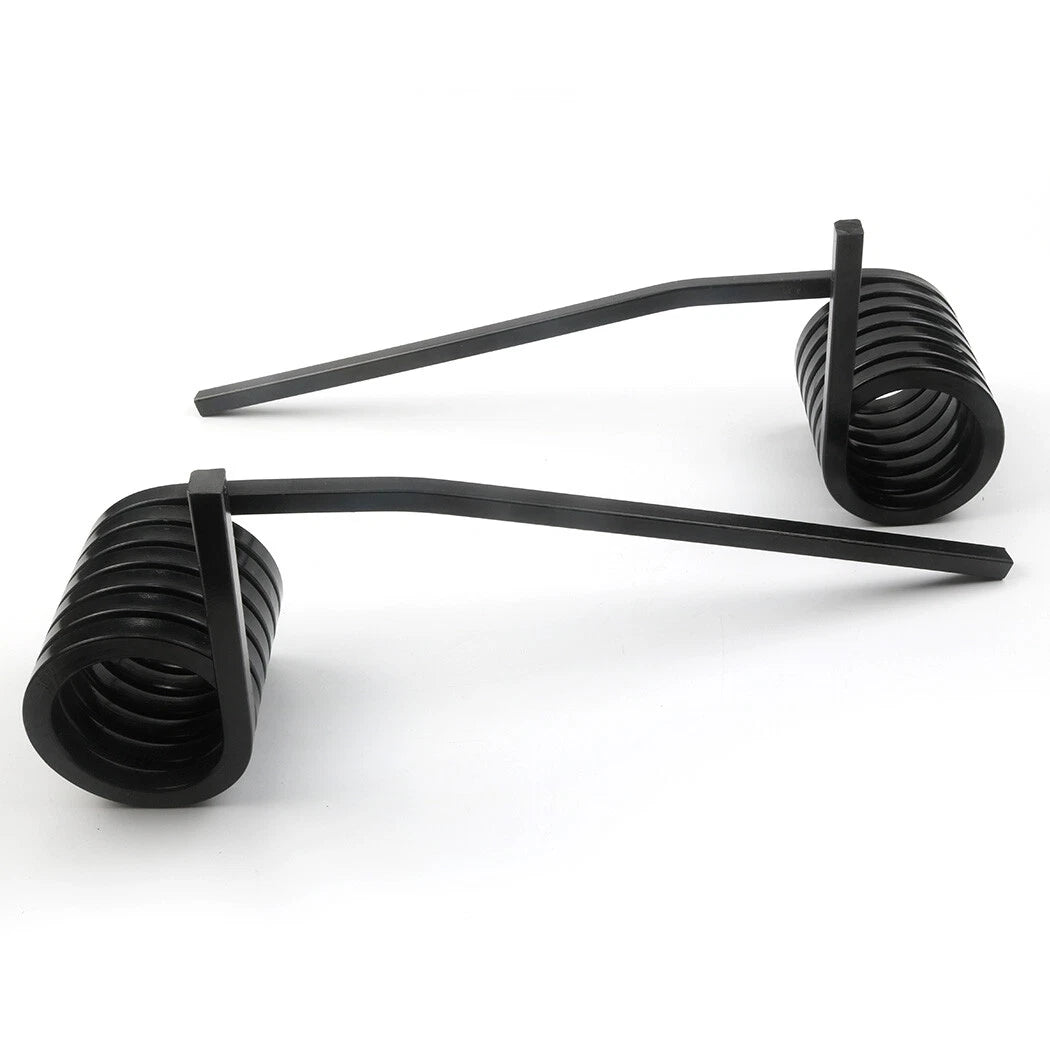

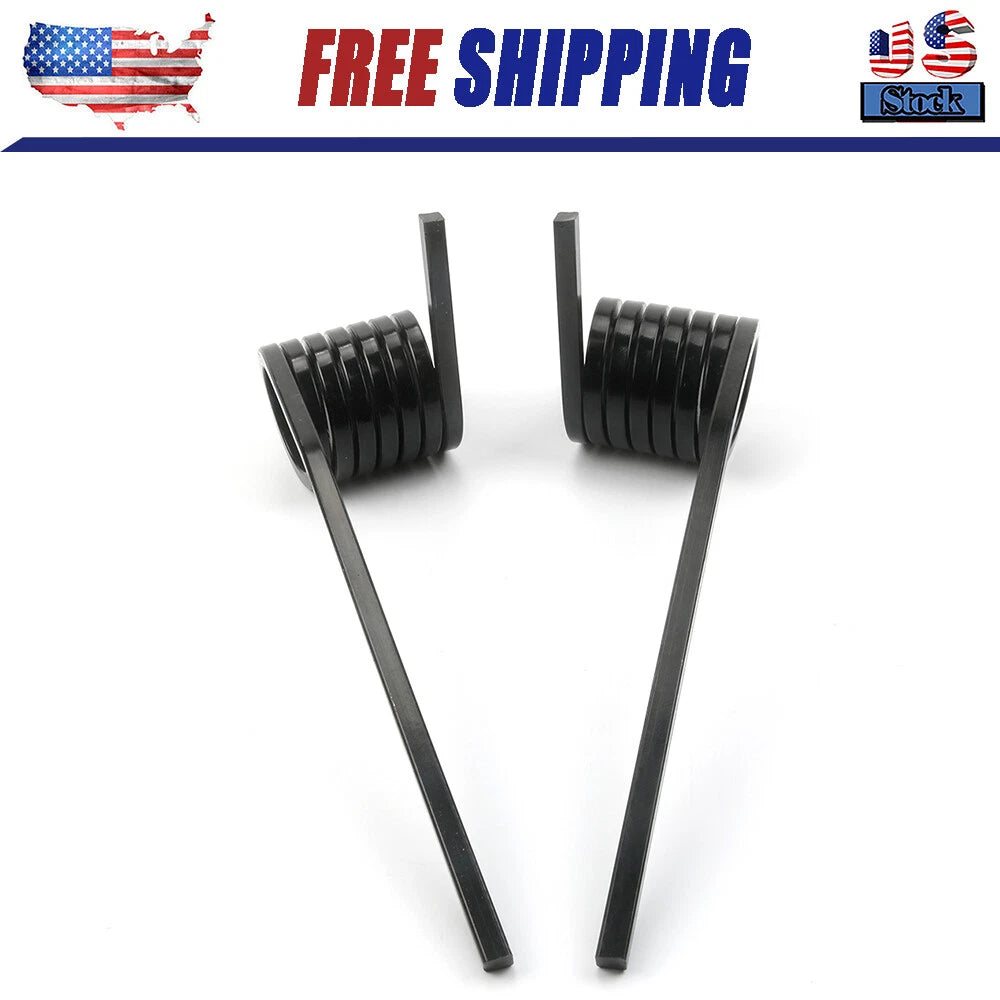

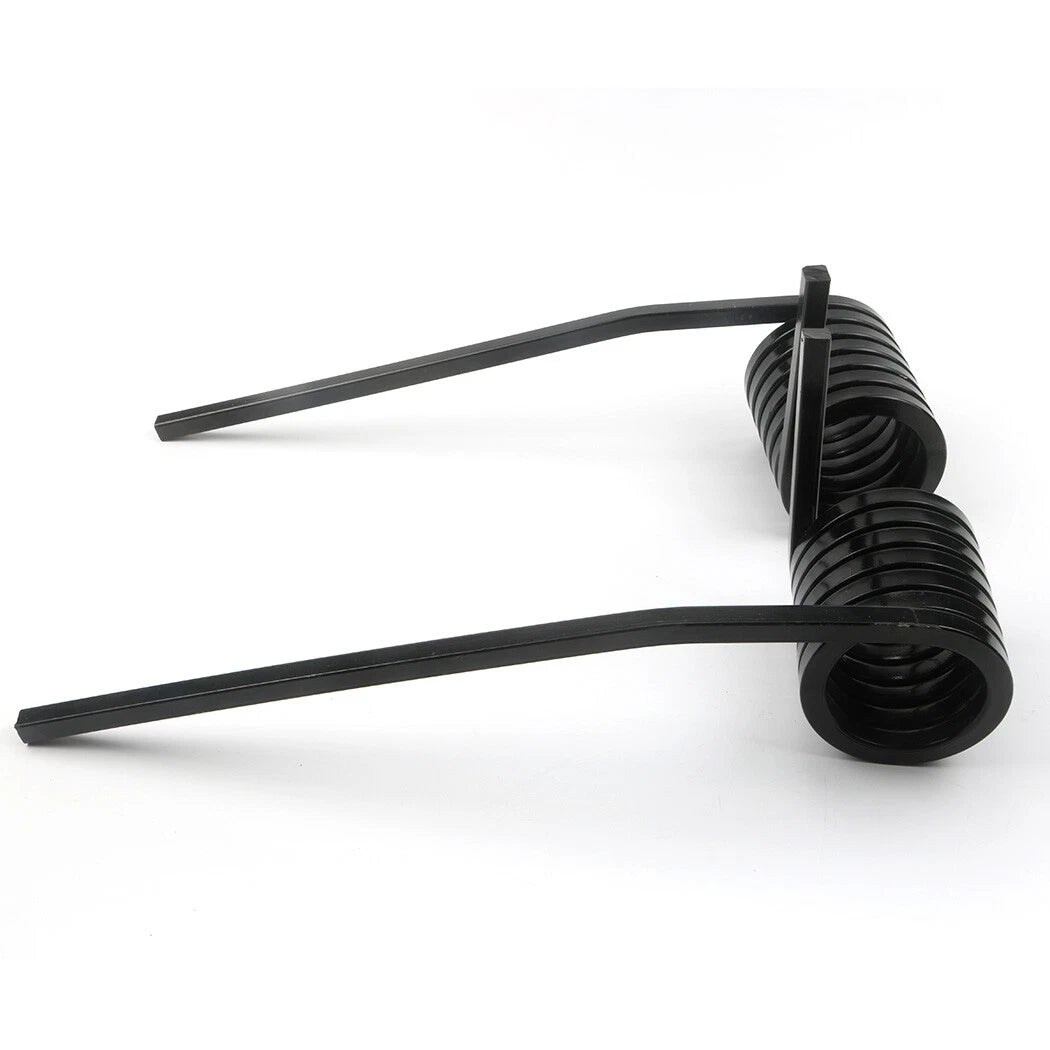

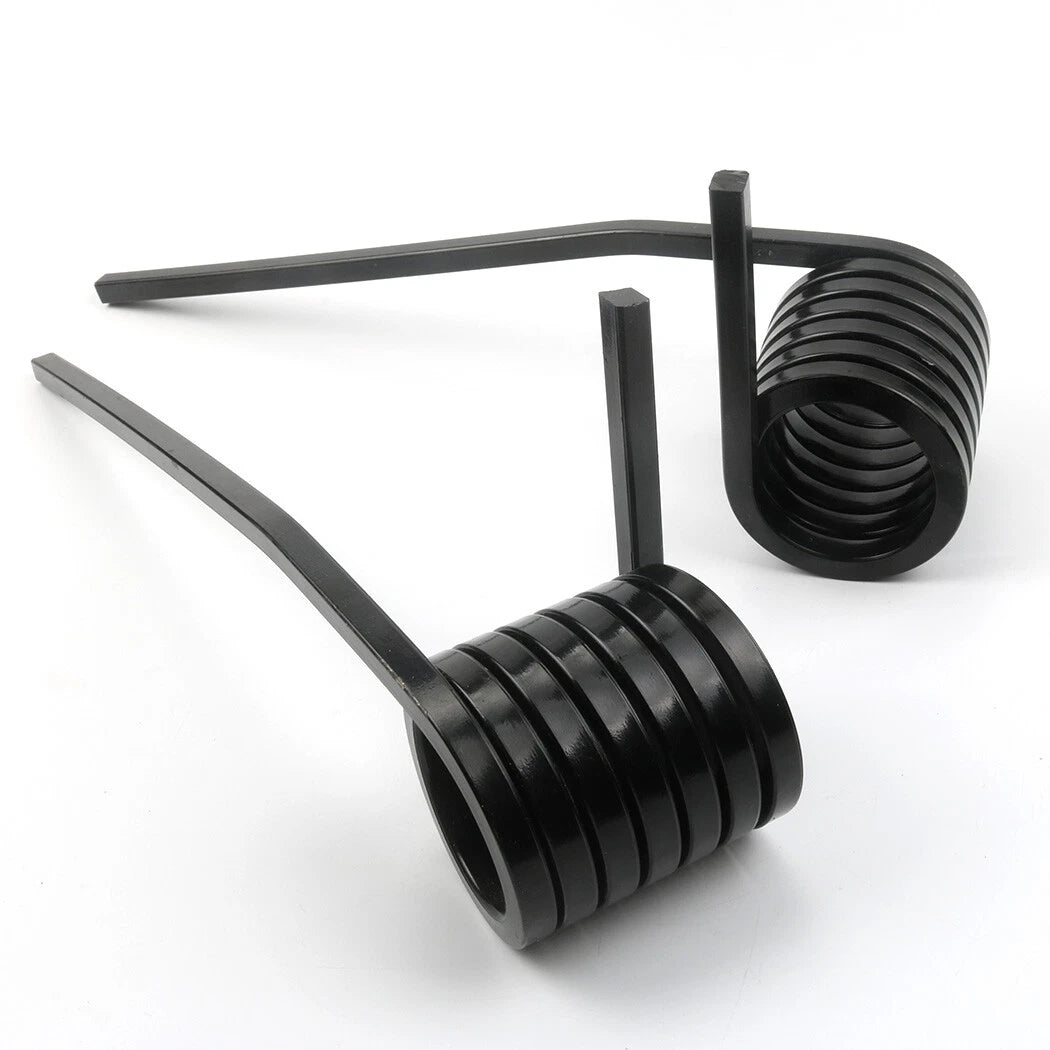

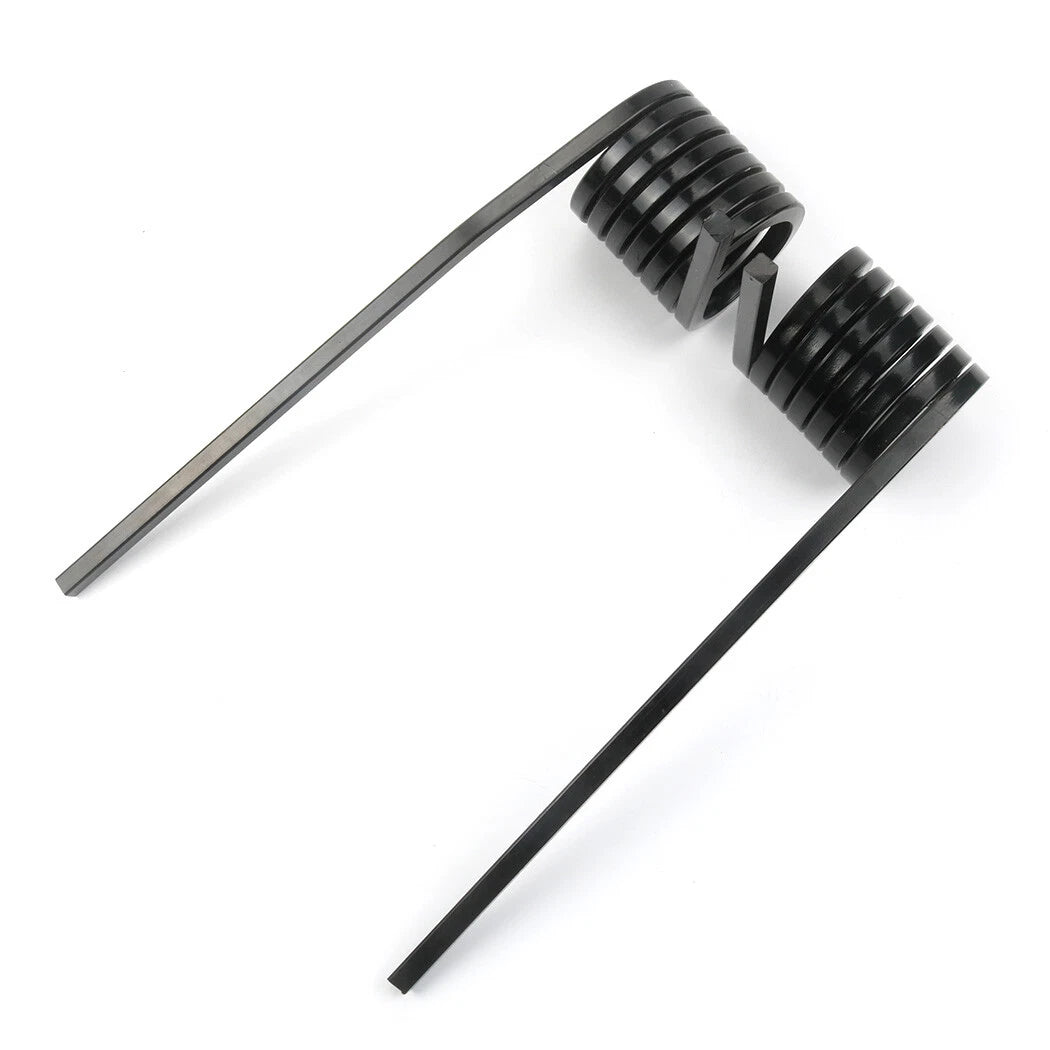

This set contains two black suspension springs listed for Ski-Doo applications using references 503191614 and 503191615. The pair has opposing coil directions, with a long arm and a shorter upright arm on each spring. The photos show the springs alone, without an axle, bushings, adjusters or mounting hardware.

Keep the left and right references separate

BRP identifies 503191614 as the right-hand square spring and 503191615 as the left-hand square spring. These numbers are fitment references for this replacement pair. Match the coil direction and both arms to your suspension diagram; the spring's position in a product photo does not identify its installed side.

Quantity

Two springs: one left and one right

Right-side reference

503191614

Left-side reference

503191615

Spring form

Coiled body with long and short arms; square-section stock

Color

Black

Additional parts shown

No axle, bushings, adjusters or loose fasteners

Compare the suspension configuration

Check the required references for your exact year, model and suspension package before ordering. Compare the coil opening and width, the stock size, arm lengths and arm angles with the existing springs. This listing does not provide measured dimensions or a complete model-year fitment chart.

Square-section describes the shape of the spring stock. It does not establish a spring rate, rider-weight range or additional carrying capacity. If you are choosing springs to change the suspension setting, confirm the required rate separately rather than relying on their appearance or reference numbers alone.

Use the snowmobile's service procedure to identify each side and set the preload arrangement. The pair supplies the spring components; any required bushings, retainers and adjusters need to be checked separately.
