Lower hood roller bracket kit for Peterbilt 379, both sides

Lower hood roller brackets for both sides

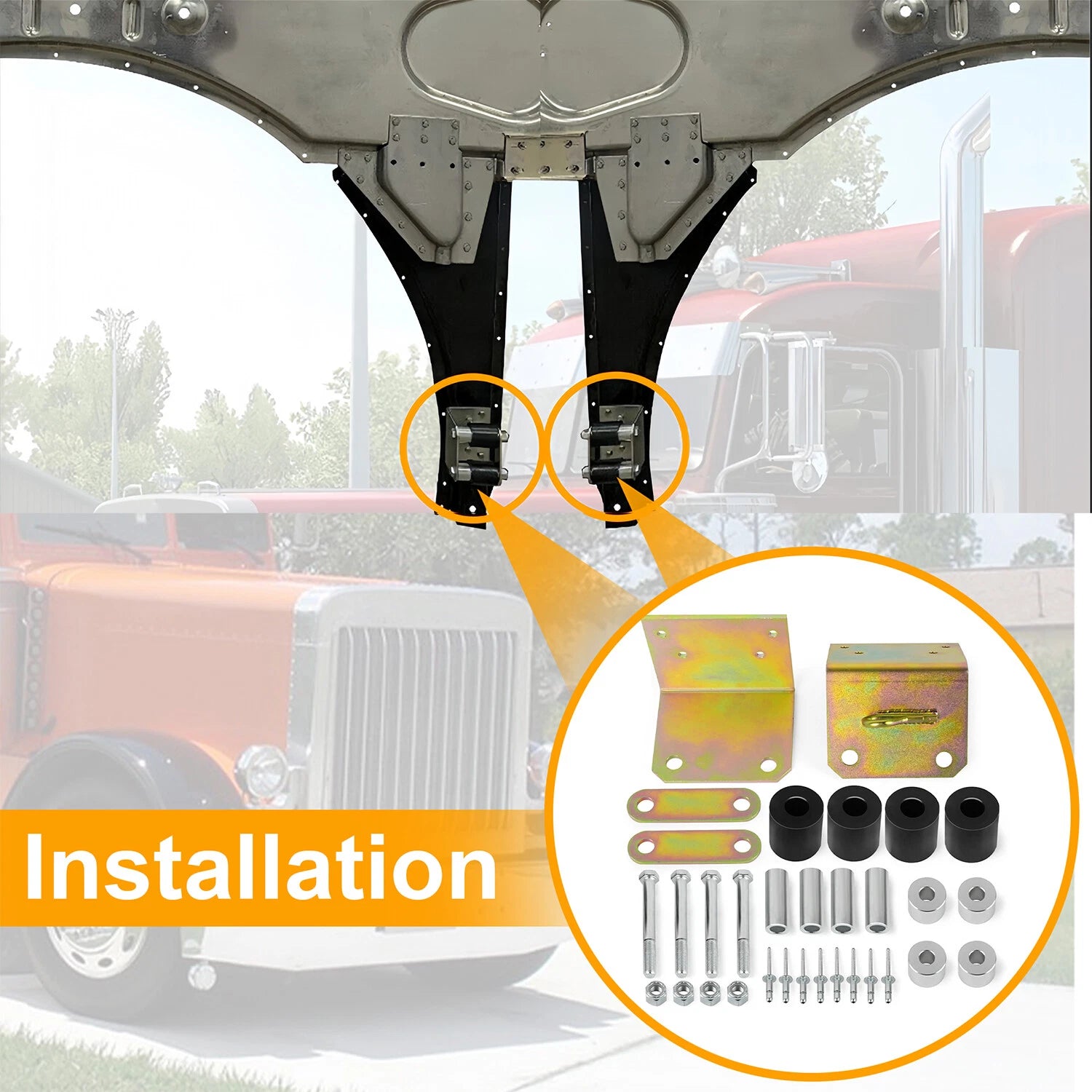

This aftermarket bundle replaces the lower hood roller mounting components on a Peterbilt 379. It includes two angled brackets and four black rollers, with the sleeves, spacers and fasteners shown in the package photos. The installation image places two rollers at each side of the hood's lower inner area.

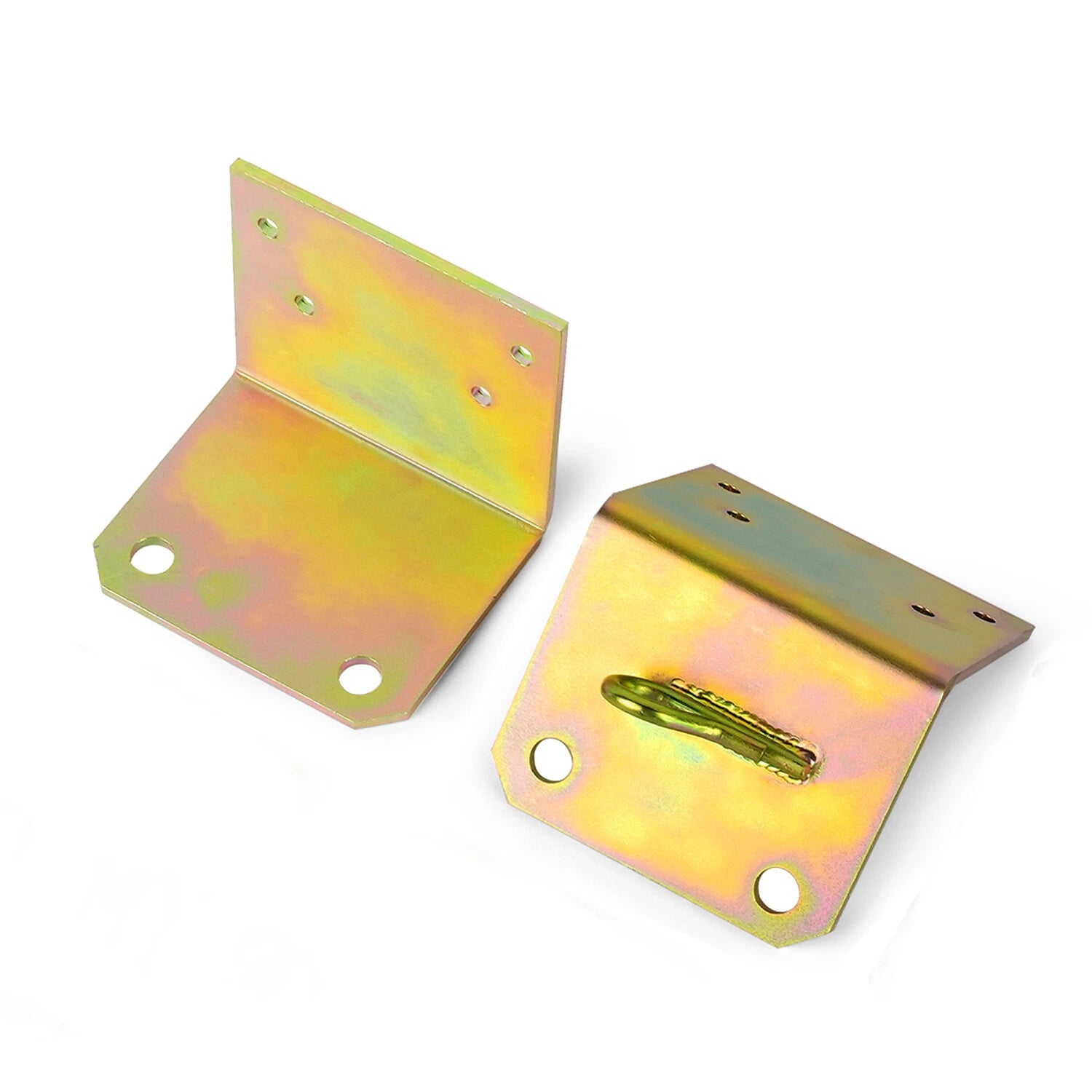

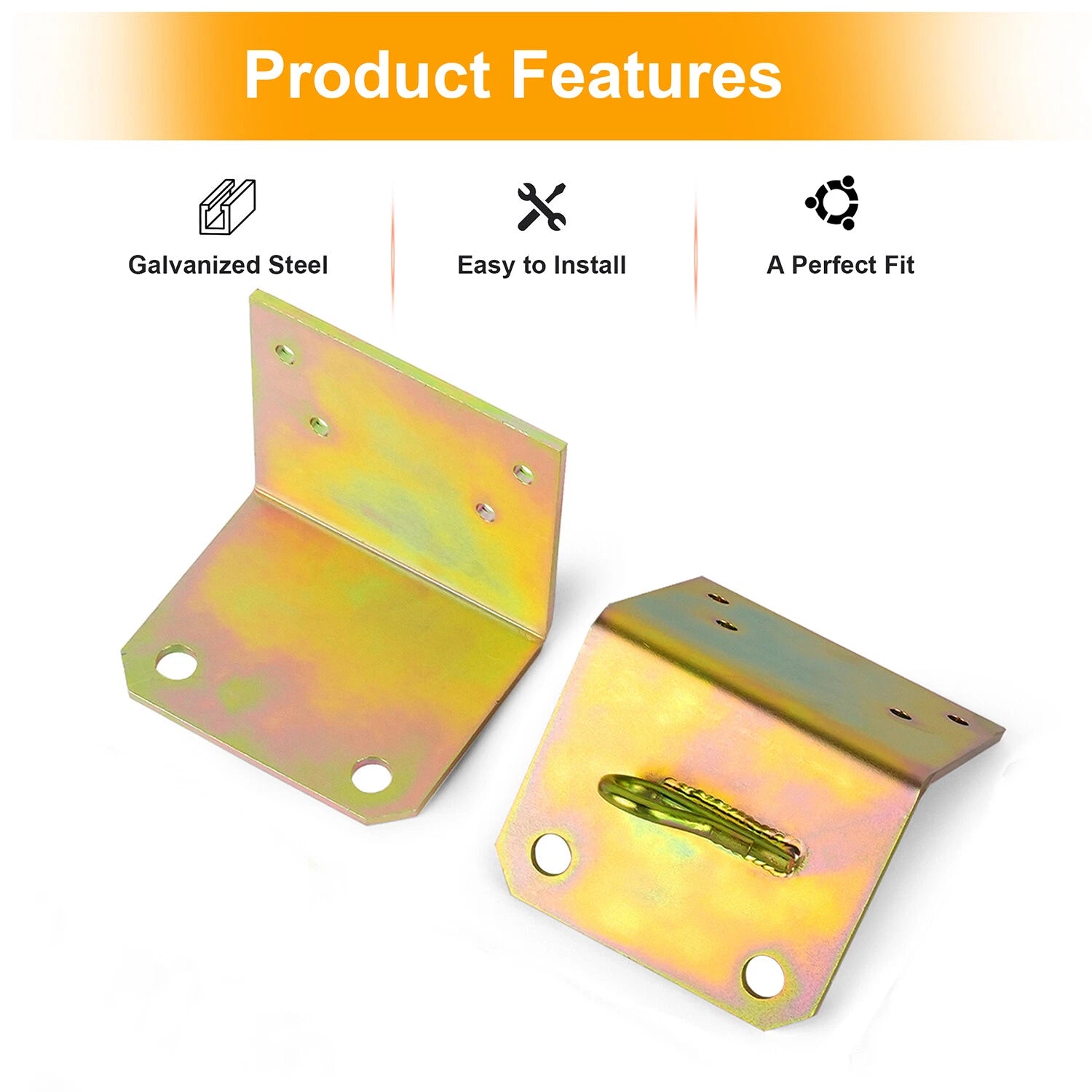

The brackets have different details: one carries a welded hook, while the other has a plain face. Match each bracket to the existing side and mounting pattern before assembling the roller hardware. The supplier identifies the brackets as galvanized steel.

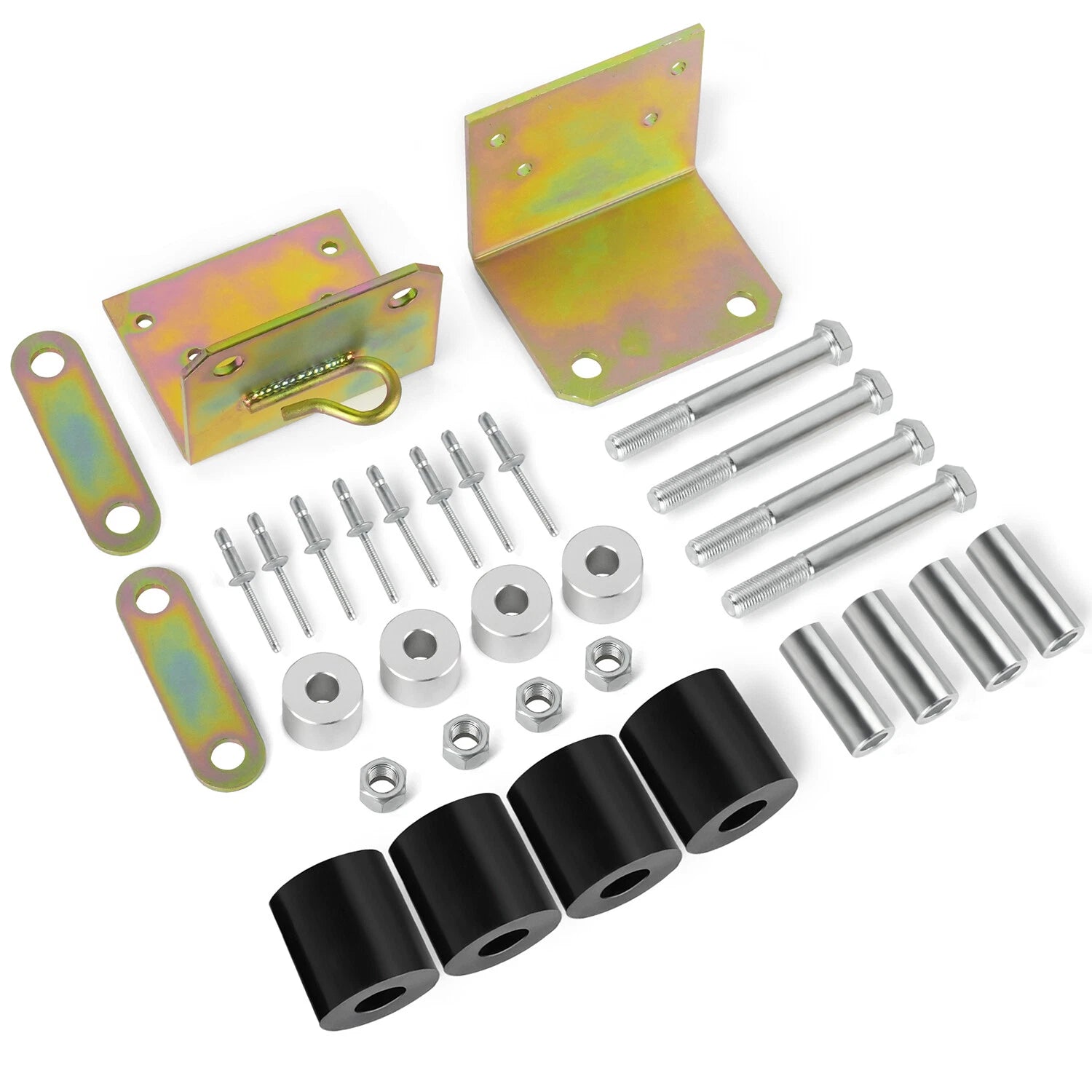

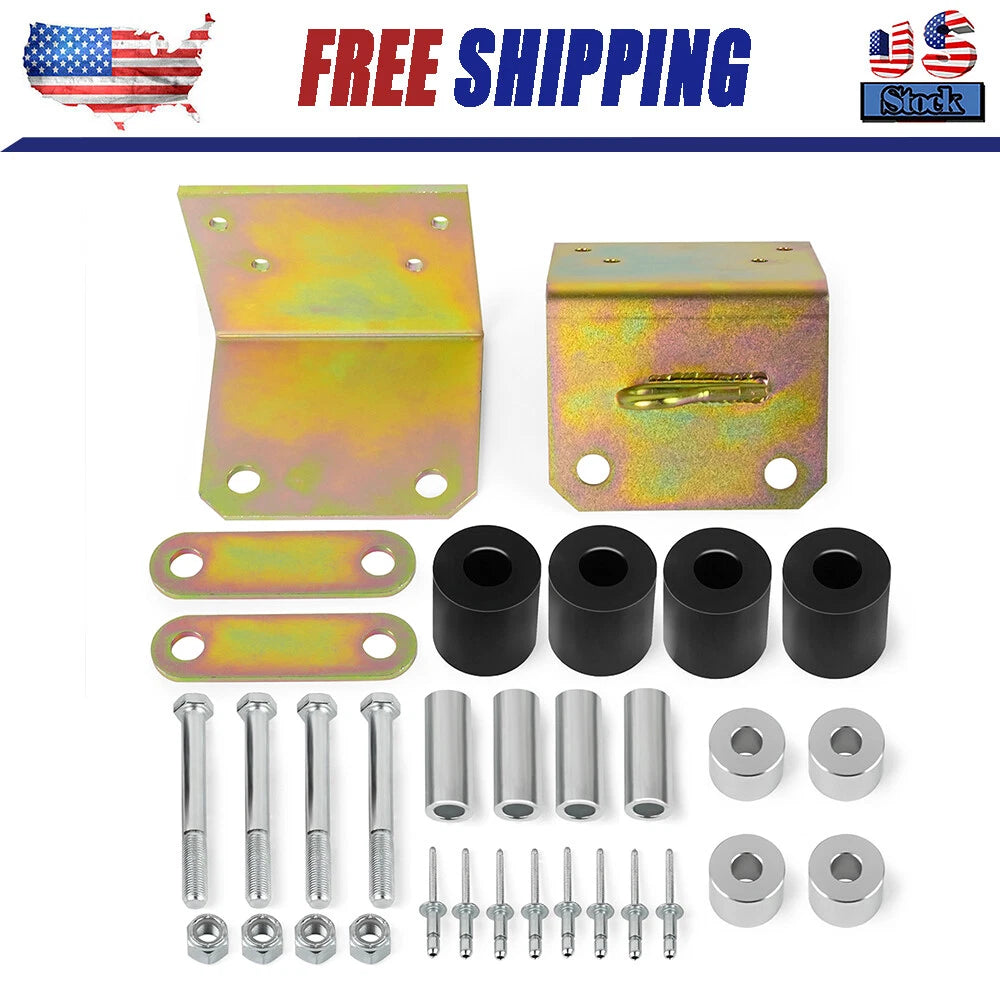

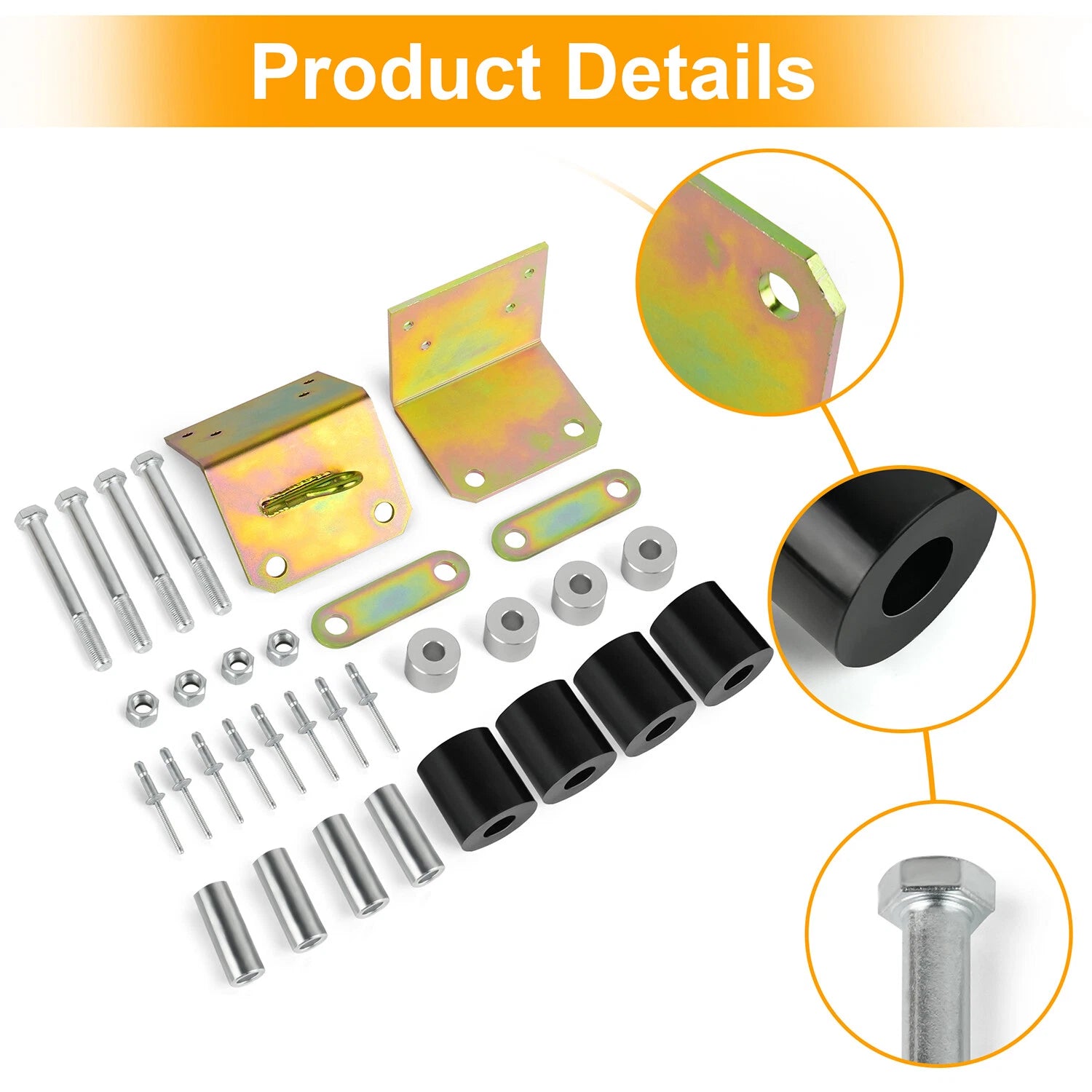

Package contents

Angled mounting brackets

2, for the two sides; one has a welded hook

Two-hole plates

2

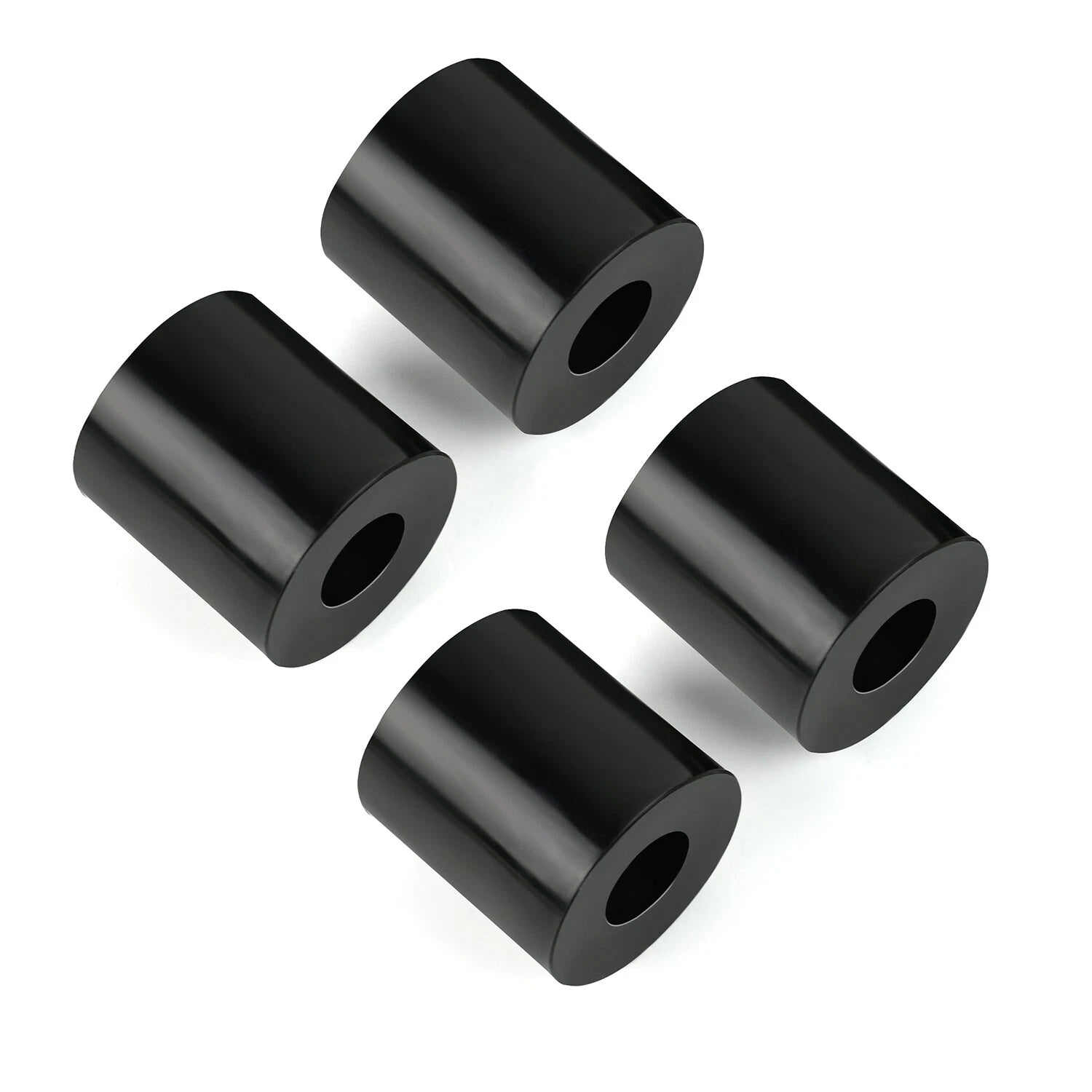

Black rollers

4

Tubular sleeves

4

Short cylindrical spacers

4

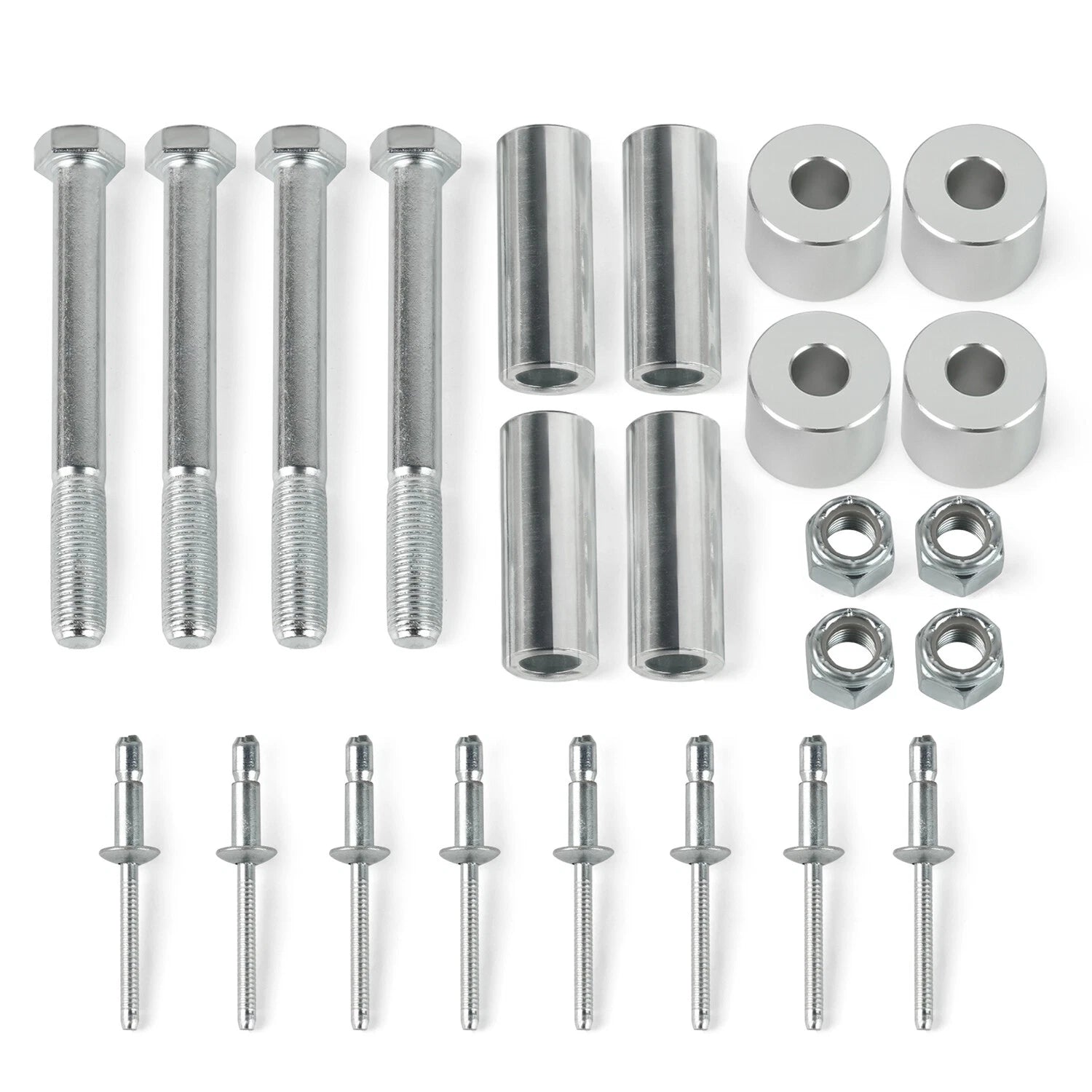

Hex-head bolts

4

Hex nuts

4

Rivets

8

Total pieces shown

32

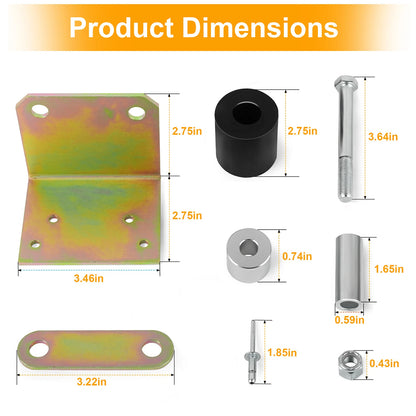

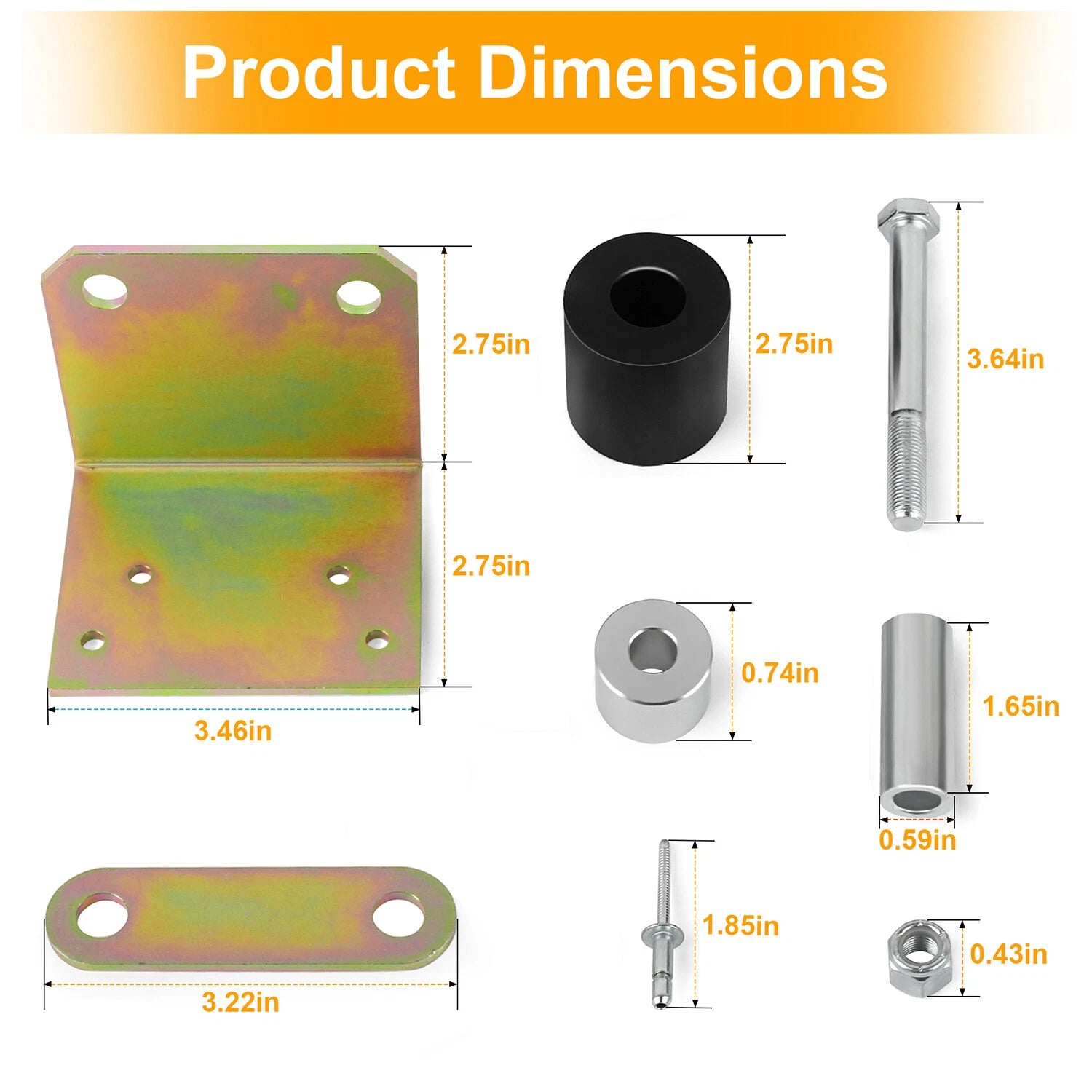

Bracket width shown

Approximately 3.46 in

Two-hole plate length shown

Approximately 3.22 in overall

Sleeve dimensions shown

Approximately 1.65 in long x 0.59 in outside diameter

Confirm the hood arrangement

Listed replacement references are 13-04401M001, 13-04401M002, 13-03593, 13-04667 and 13-04413SPL. These identify the bracket and roller component family; check the applicable parts diagram for your truck's chassis and hood configuration. The photos do not label which bracket is the left or right replacement.

Compare the bend, rivet-hole pattern and roller-bolt positions with the removed parts. The illustrated dimensions are approximate component measurements, not hole-center spacing. The supplied group covers the lower roller bracket work shown; other hood supports, latches and pivot parts are outside this bundle.

Assembly checks

Support the hood according to the truck's service procedure before removing its mounting hardware. Use the specified fastener and riveting procedure for the actual installation, then check the rollers and hood clearance through the required movement. Roller material, fastener grade and tightening torque are not specified for this replacement set.
