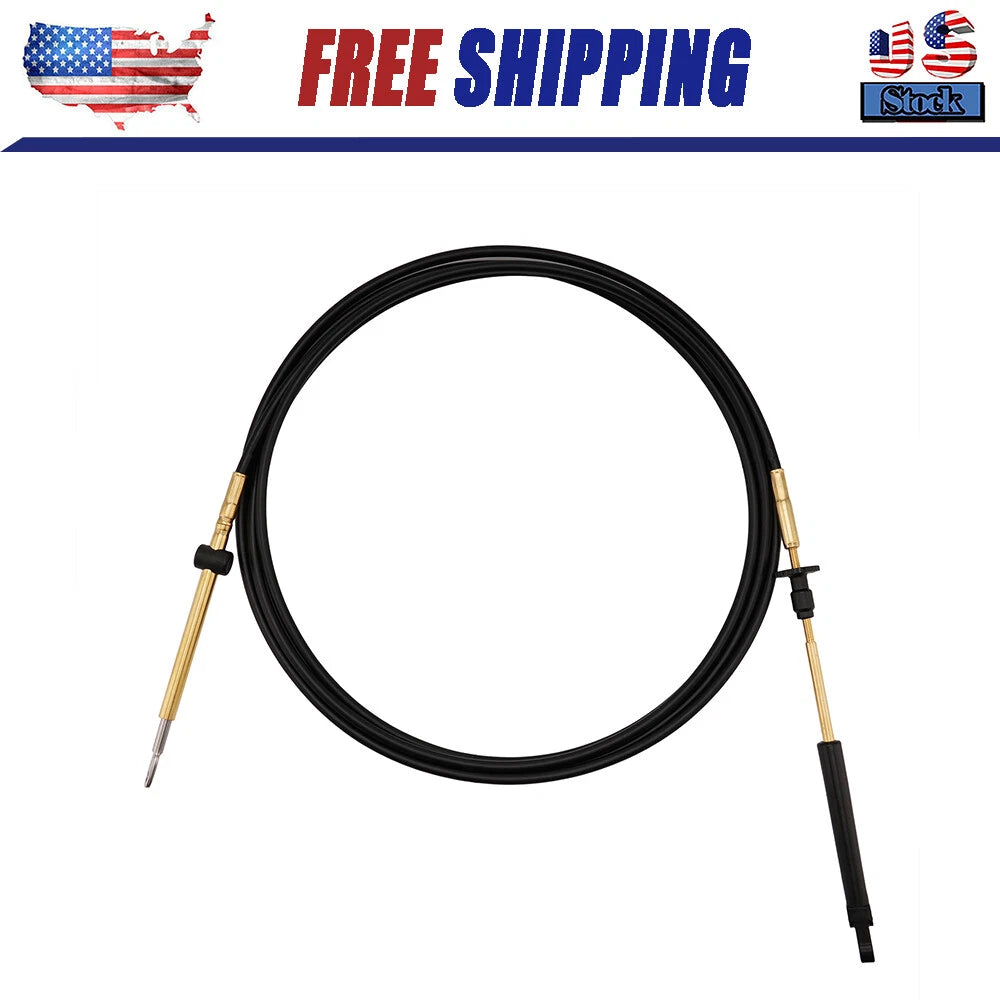

15-Foot Remote Control Cable 173115 / 0173115 for Johnson Evinrude OMC

15-Foot Remote Control Cable for Johnson, Evinrude and OMC

This aftermarket mechanical control cable matches references 173115 and 0173115 for compatible Johnson, Evinrude and OMC throttle or shift controls. It is supplied as one cable in the nominal 15-foot length. Choose the cable for the specific throttle or shift connection you are replacing.

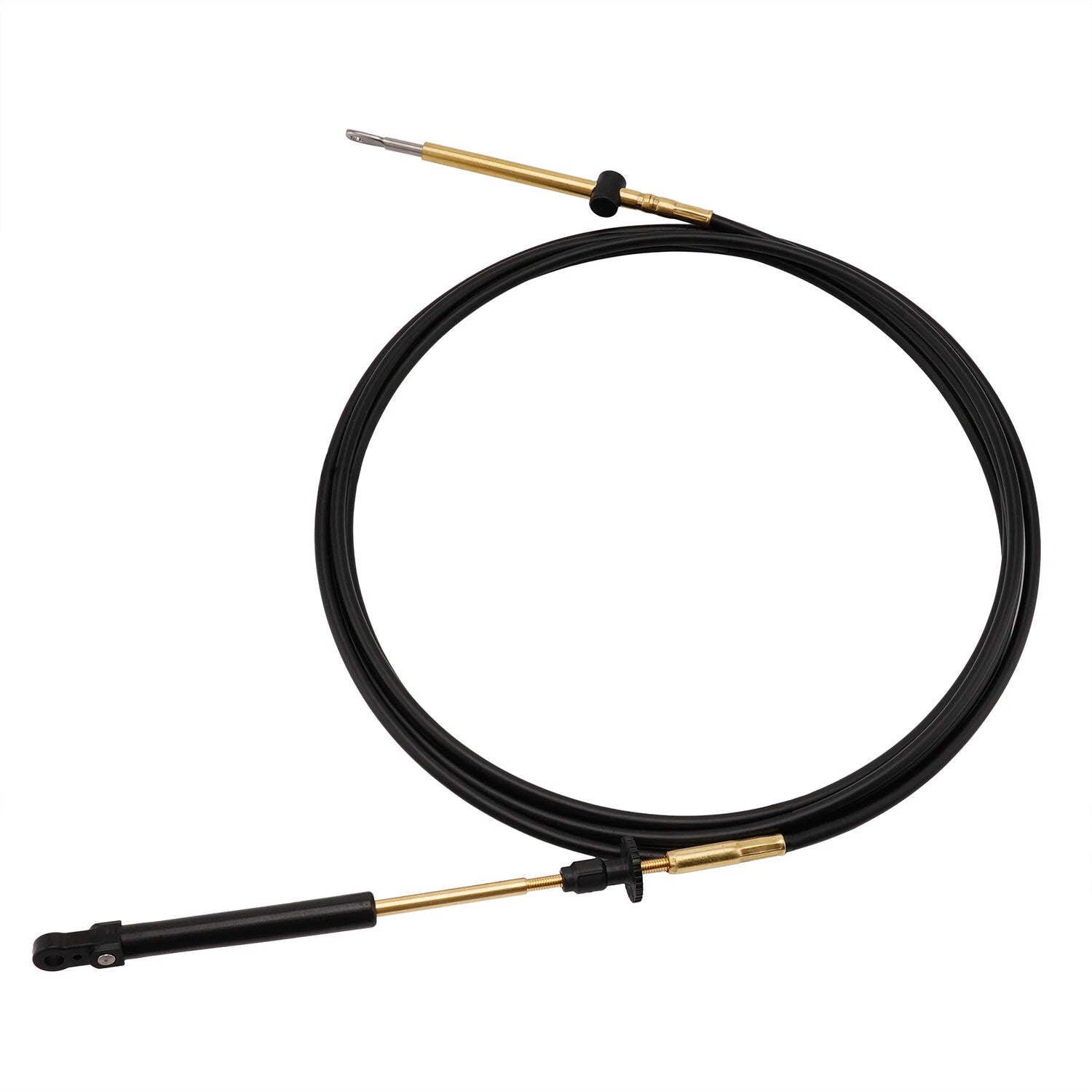

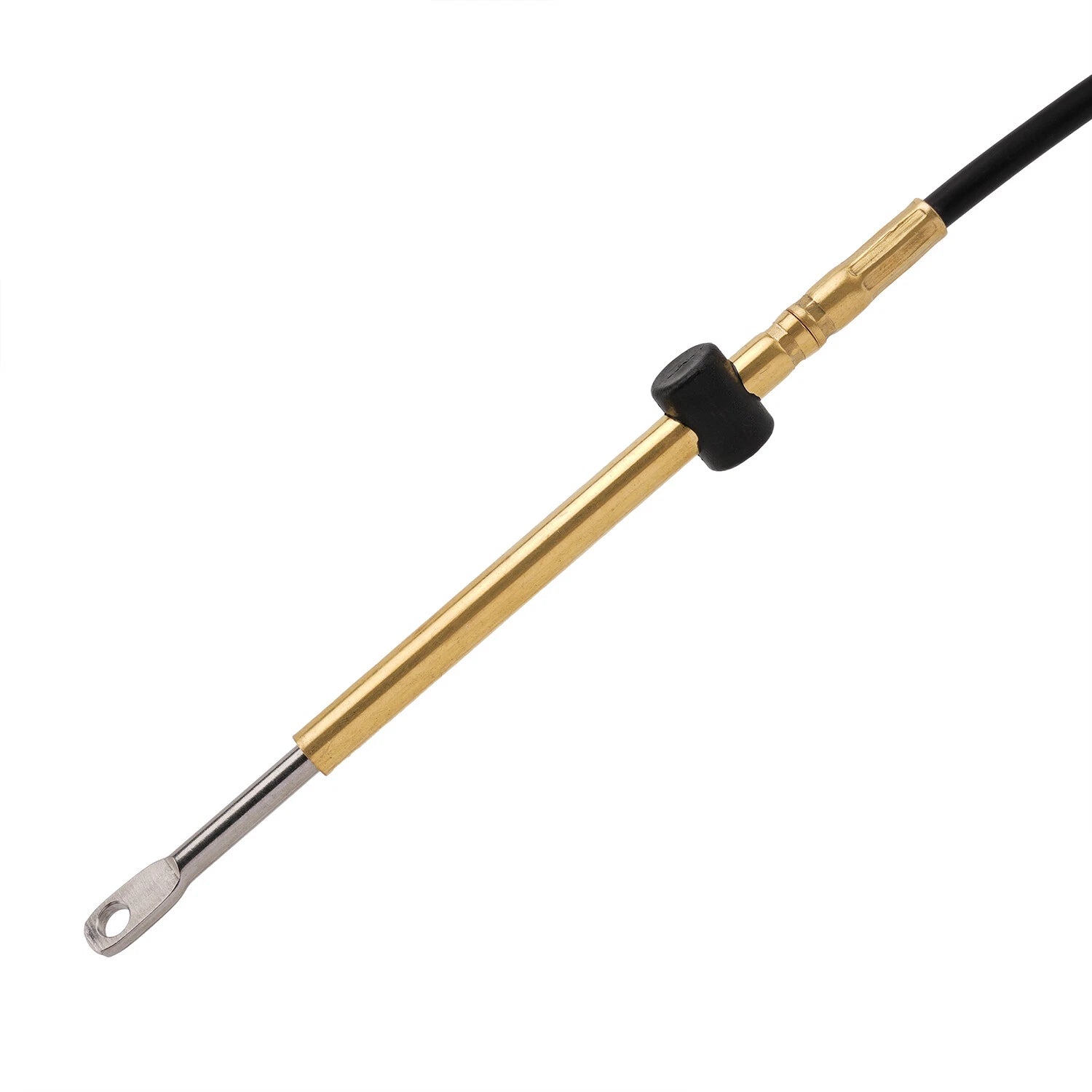

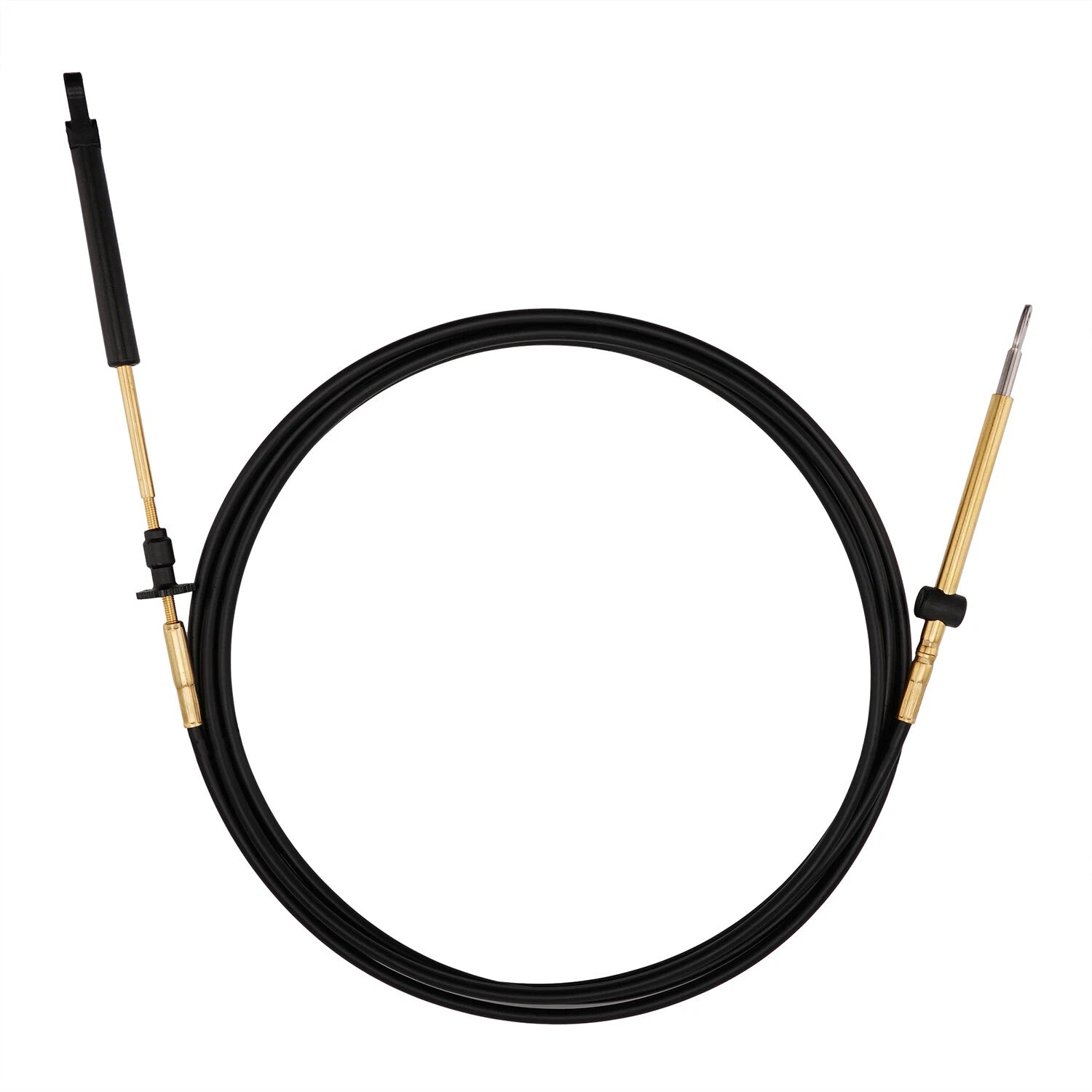

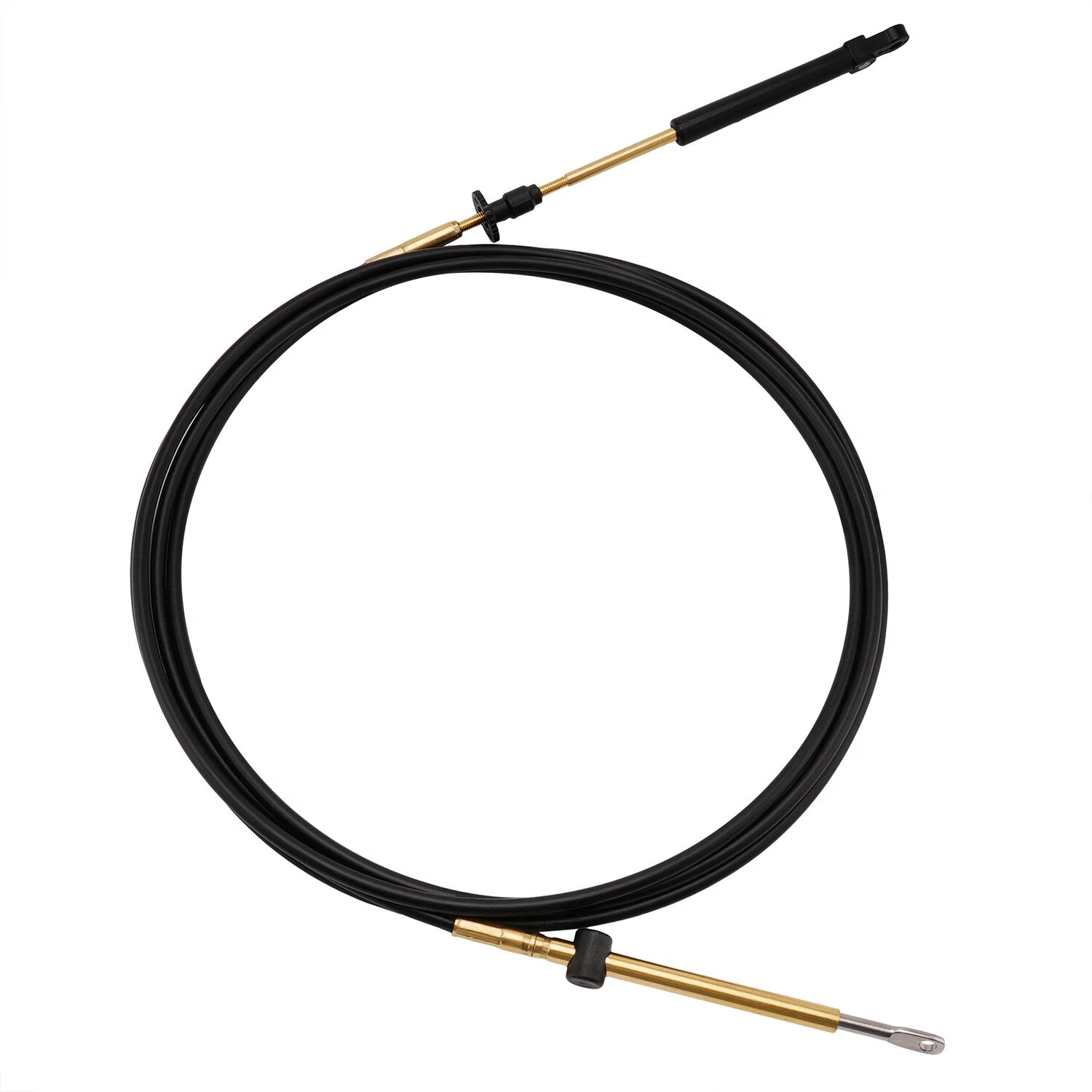

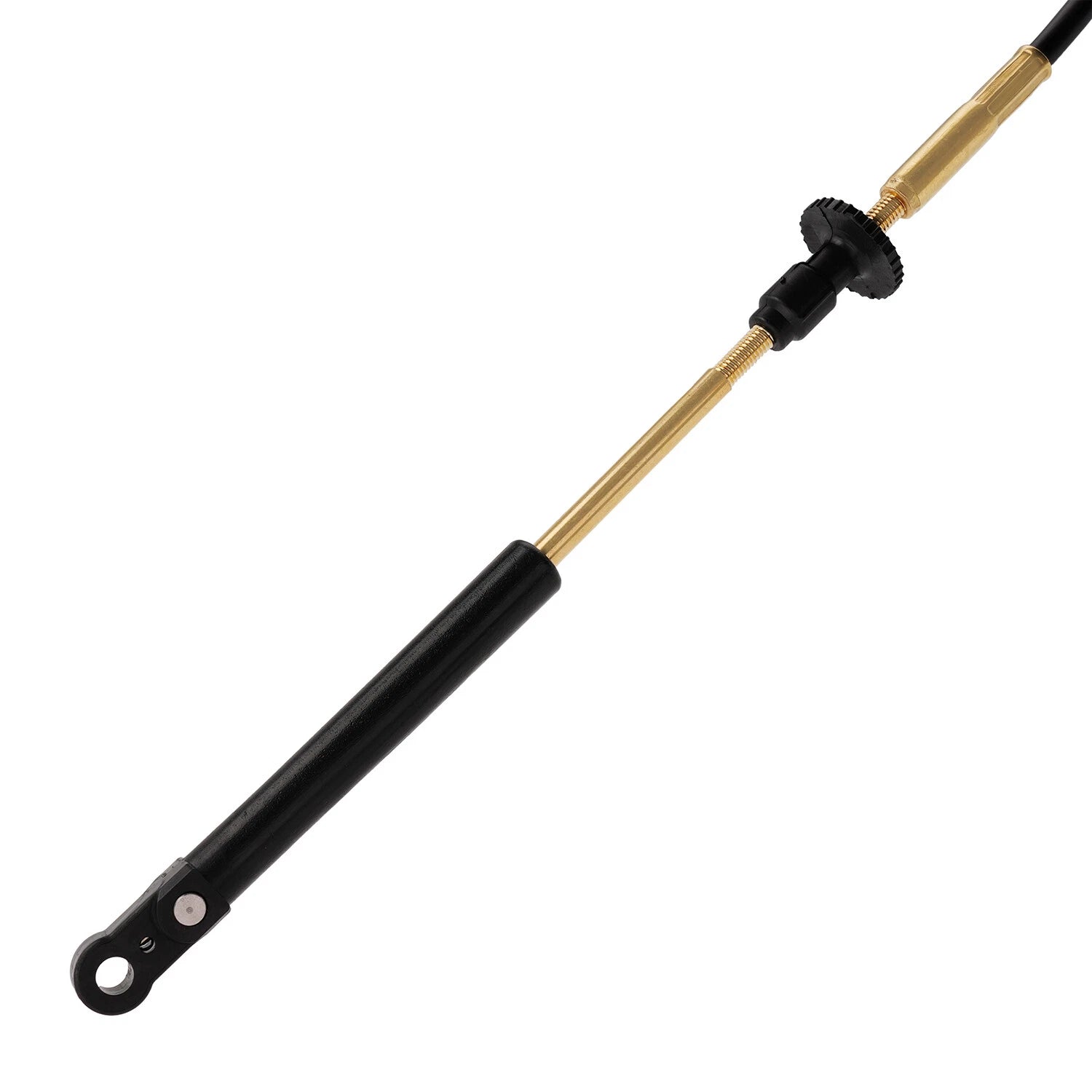

The two ends have different fittings. One has a black eye fitting and a threaded adjustment section with a thumb wheel. The other has a metal eye fitting and a fixed black barrel on the end sleeve. These shapes matter when matching the cable to the control box and engine linkage.

Cable Details

Product

Aftermarket mechanical remote control cable

Reference numbers

173115, 0173115

Nominal cable length

15 feet; measurement endpoints are not specified

Quantity

1 cable with attached end fittings

Adjustable end

Black eye fitting with threaded adjustment and thumb wheel

Opposite end

Metal eye fitting with fixed barrel

Outer casing

Black flexible casing

Application

Compatible Johnson, Evinrude and OMC remote controls requiring these references and end fittings

Match Both Connections and the Cable Route

Check the reference on the existing cable and the parts information for your control box and engine. Compare both eye fittings, the casing retention points and the adjustment arrangement with the photos. A brand name or a 15-foot label alone does not establish compatibility with a particular remote control.

Use the required cable-length specification for your boat's routing. Allow for the route between the control and engine, including vertical runs and movement at the engine, as directed by the rigging instructions. The 15-foot designation is a nominal cable size; it does not state the length of the black casing alone or the cable's operating travel.

Supply and Adjustment

You receive one cable assembly. If the repair requires separate throttle and shift cables, check each cable's length and quantity before ordering. A control box, linkage adapters and separate mounting clips are not shown as supplied parts. Follow the instructions for the exact control and engine to secure the ends and set the adjustment before use.
