Single-Pivot Bushing Kit with Alignment Collars for Hendrickson QUIK-ALIGN

Single-pivot bushing kit with alignment collars

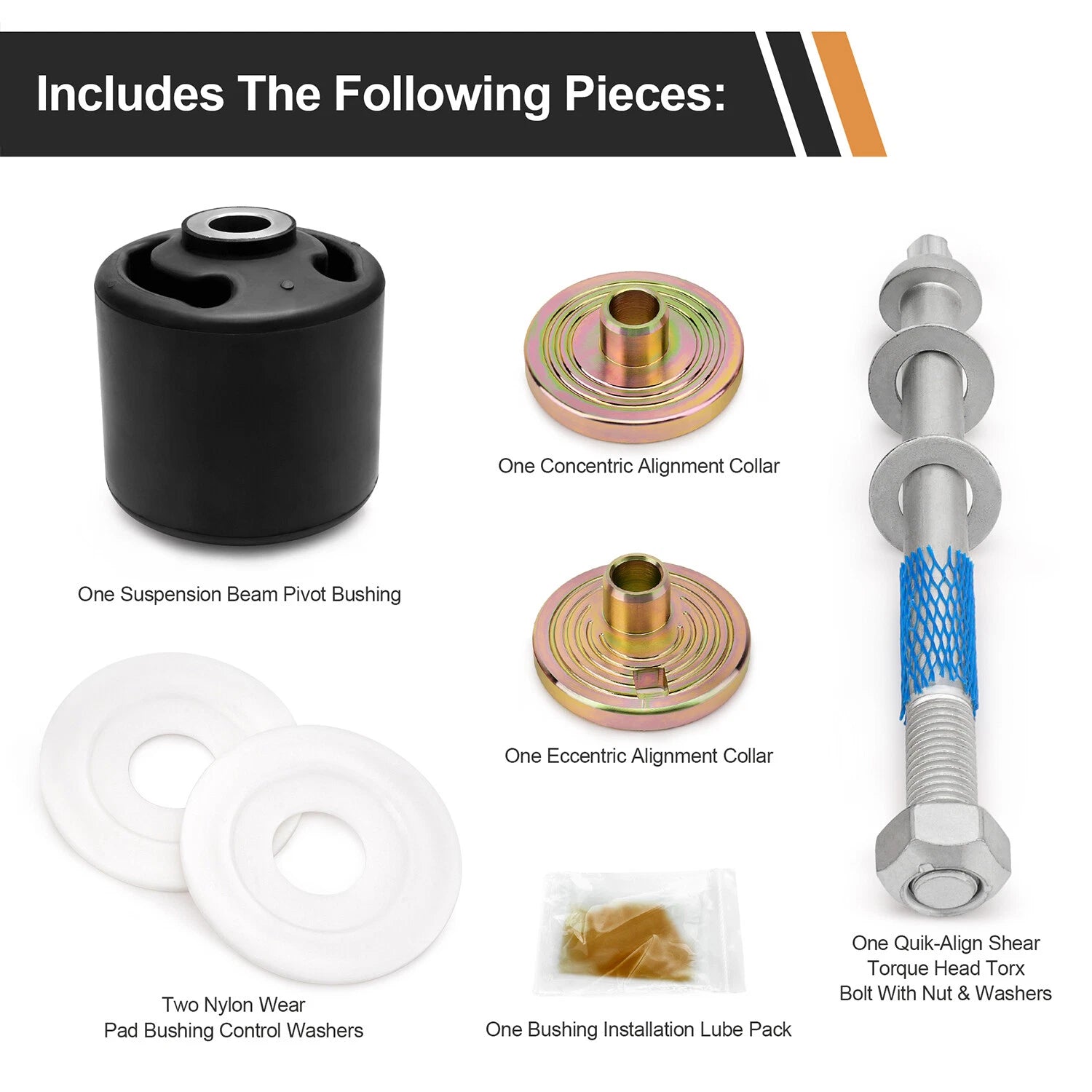

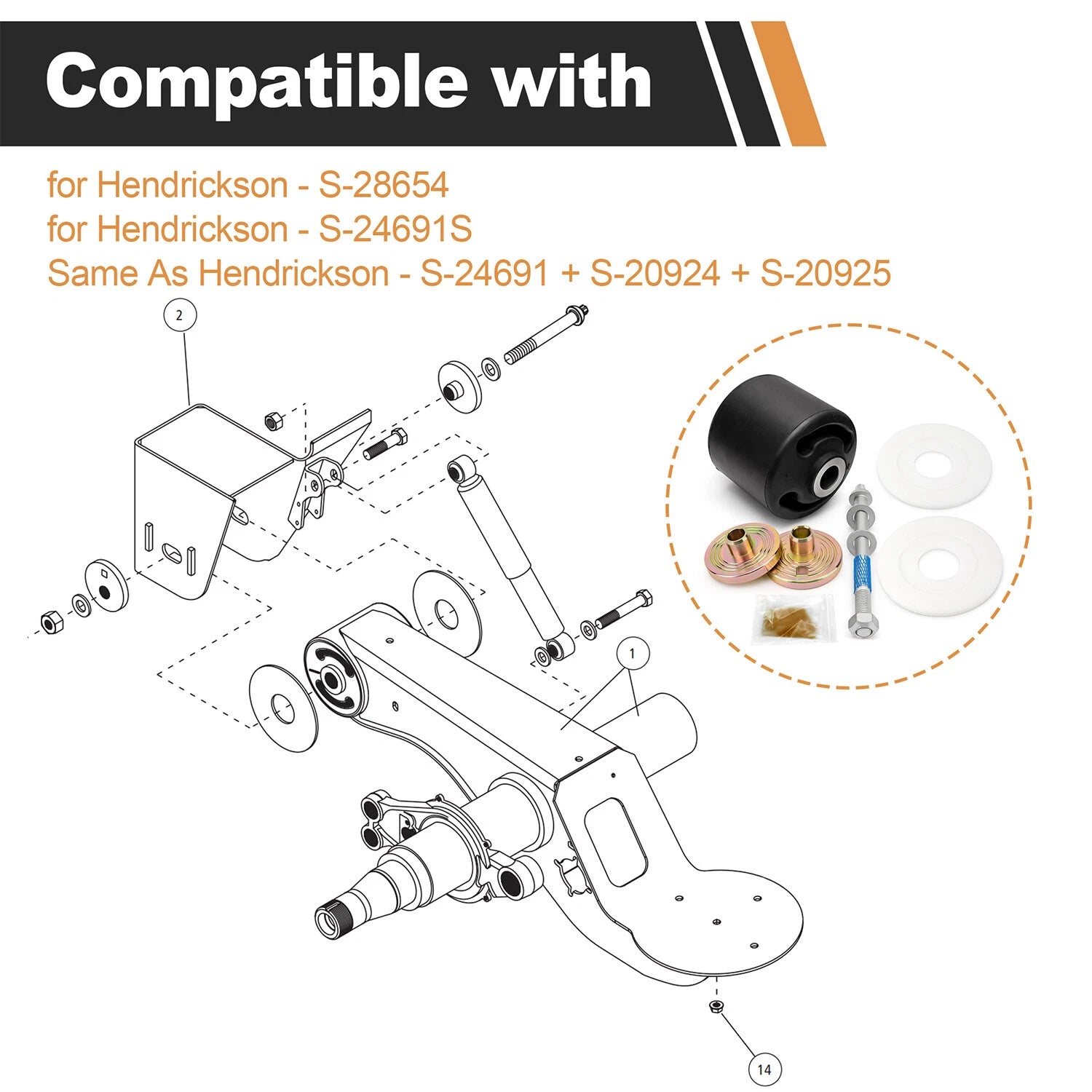

This aftermarket repair kit contains one rubber pivot bushing, two alignment collars and one bolt-and-nut set. It is listed for matching Hendrickson QUIK-ALIGN pivot connections, with S-24691S and S-28654 as comparison references. Check the suspension's identification and parts requirements before selecting it.

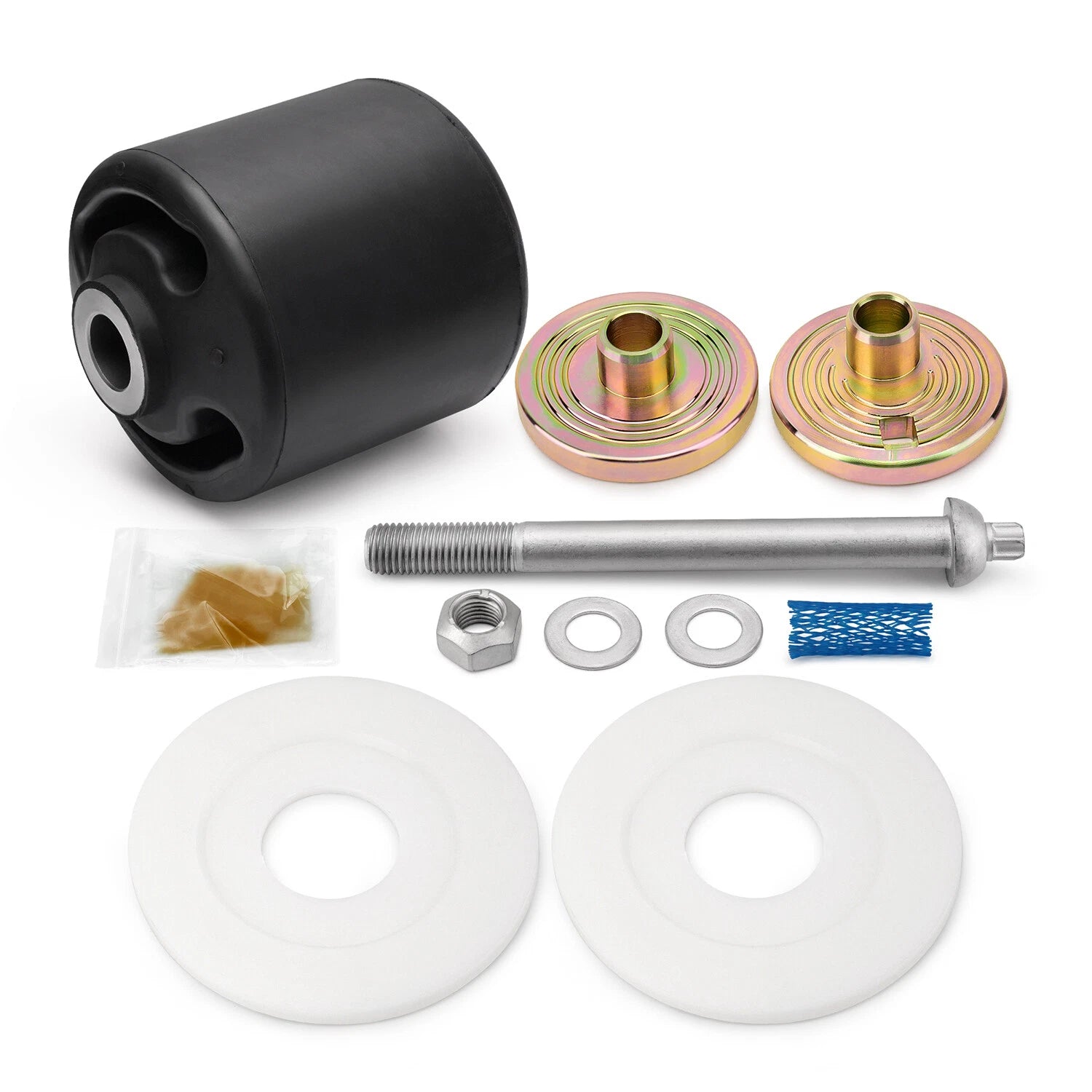

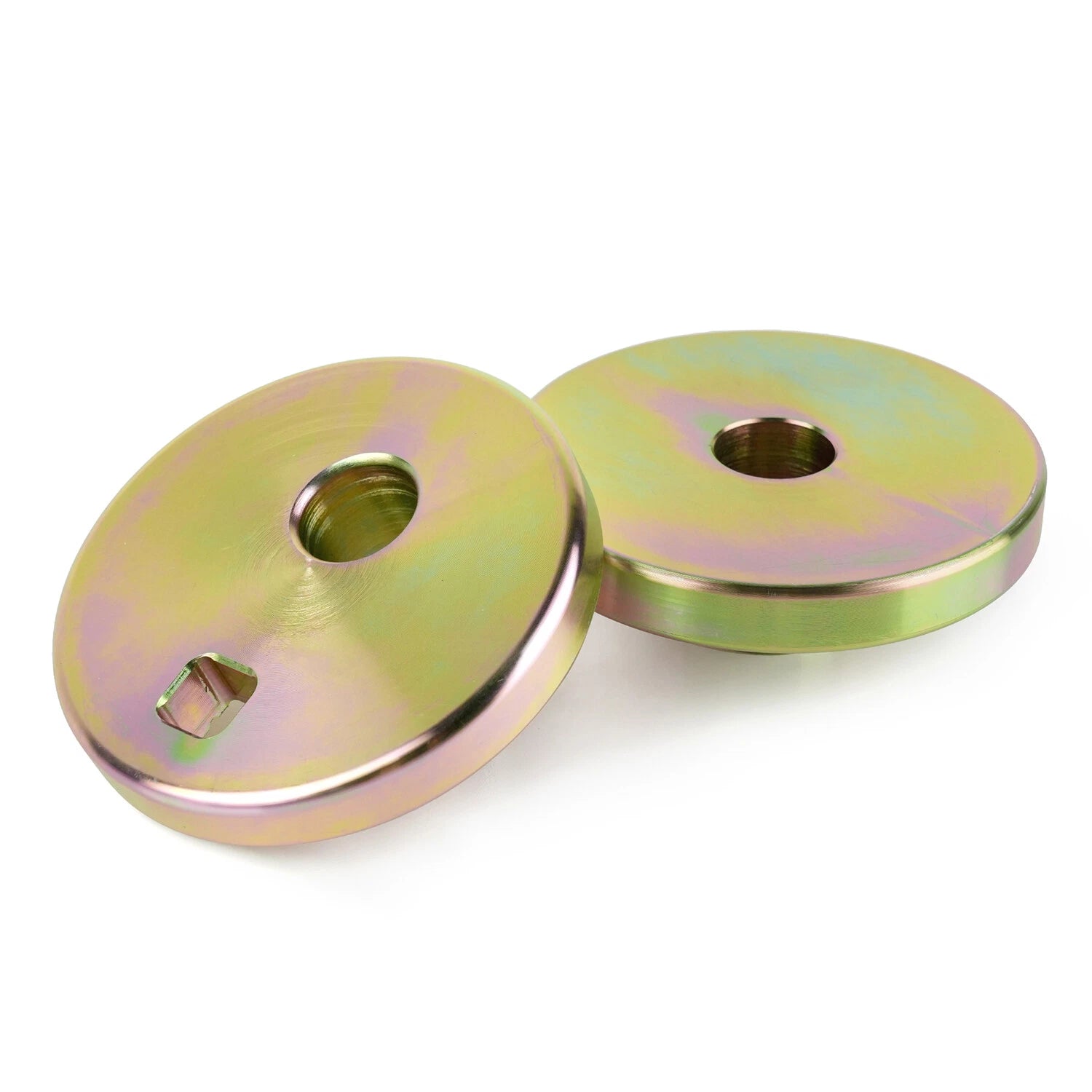

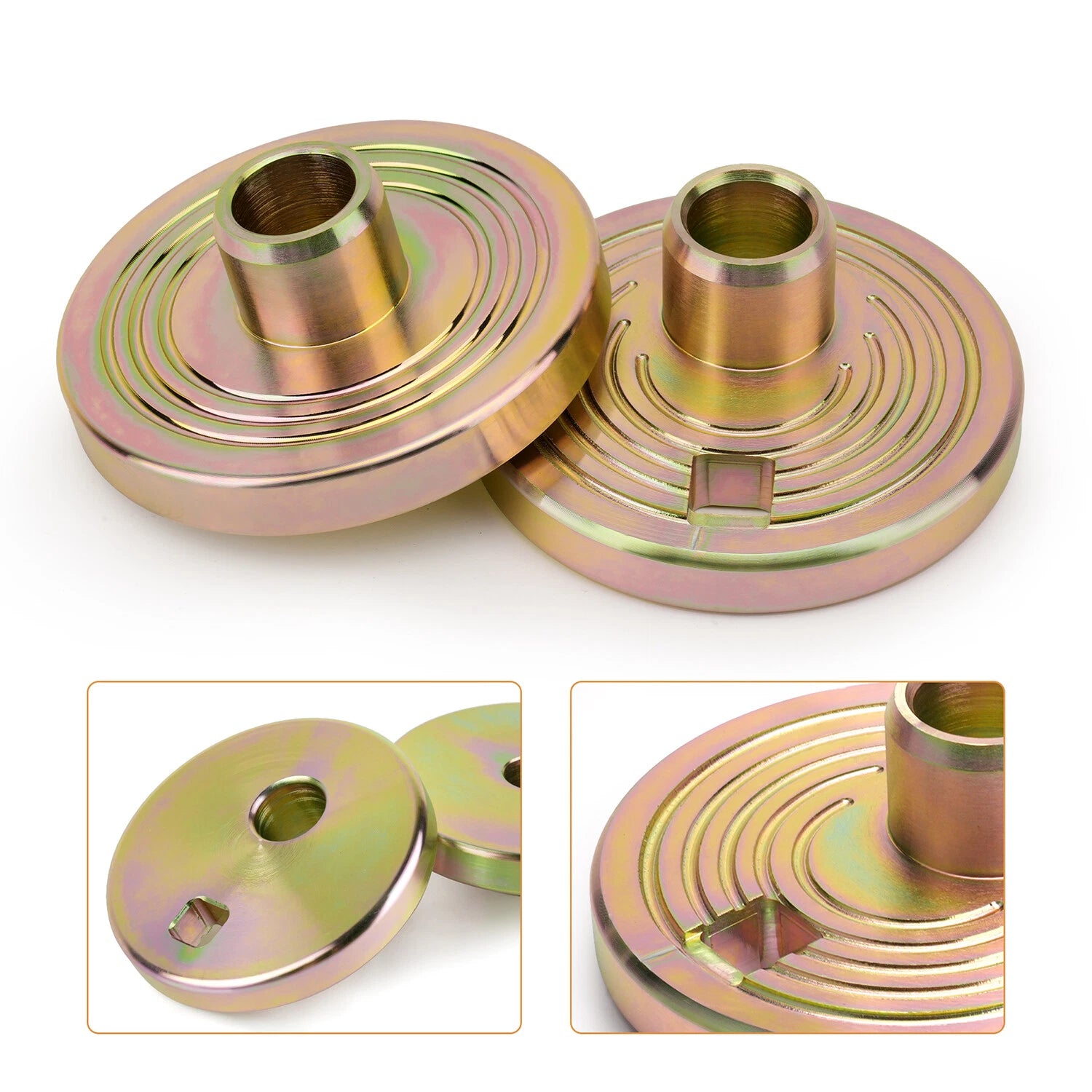

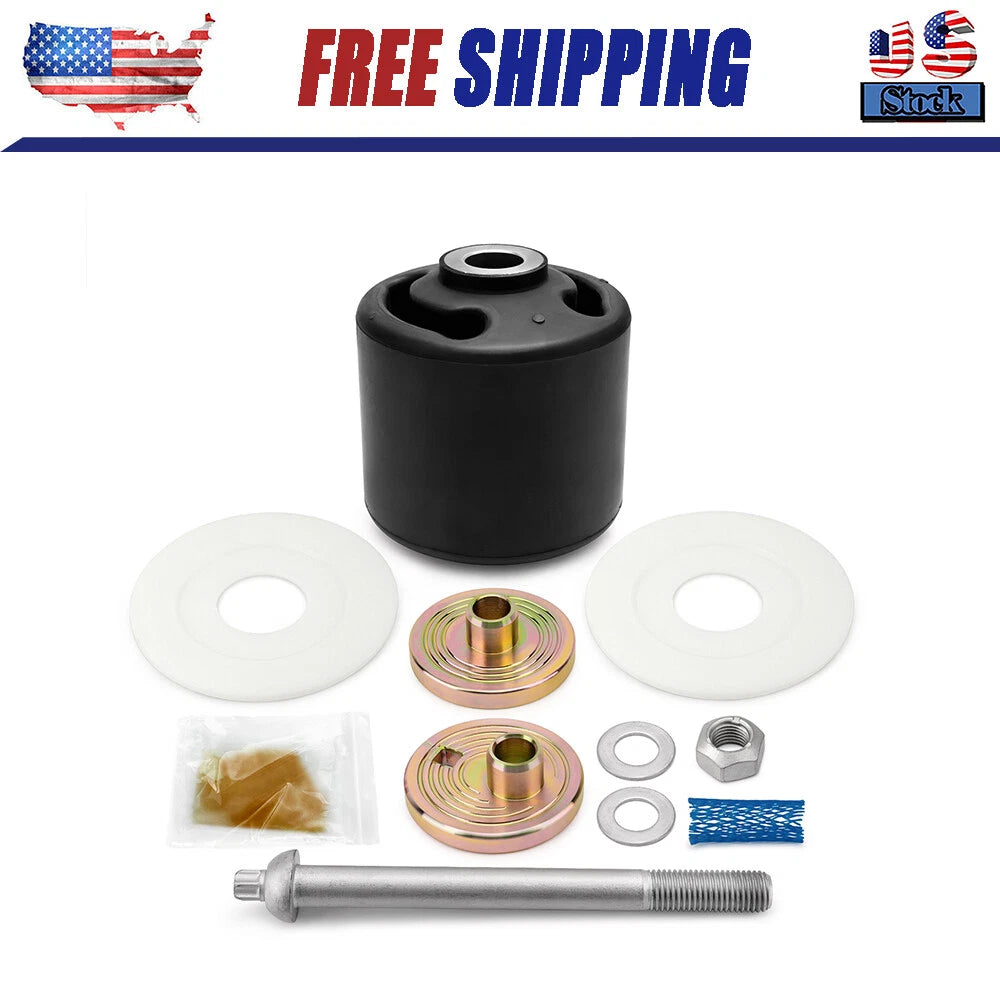

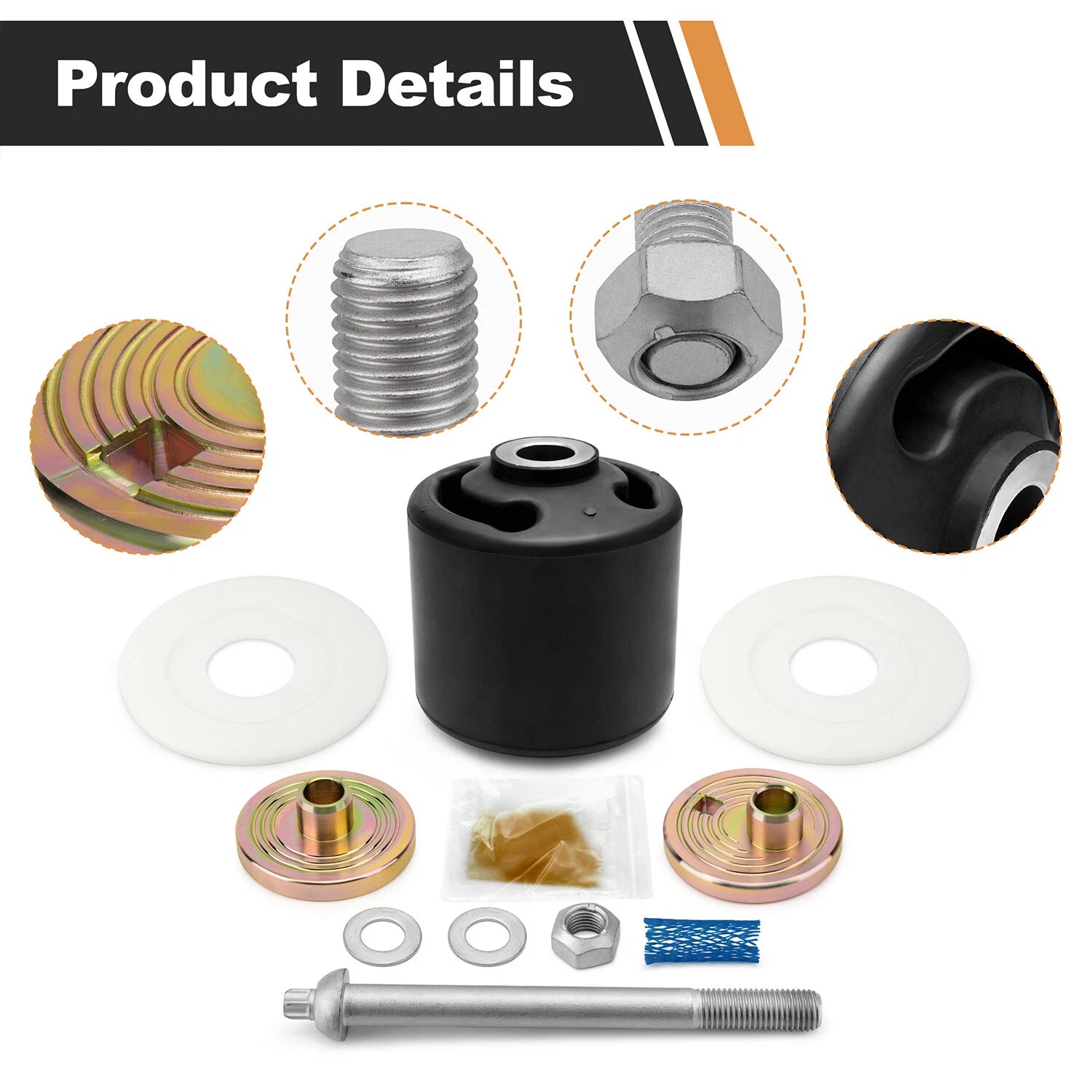

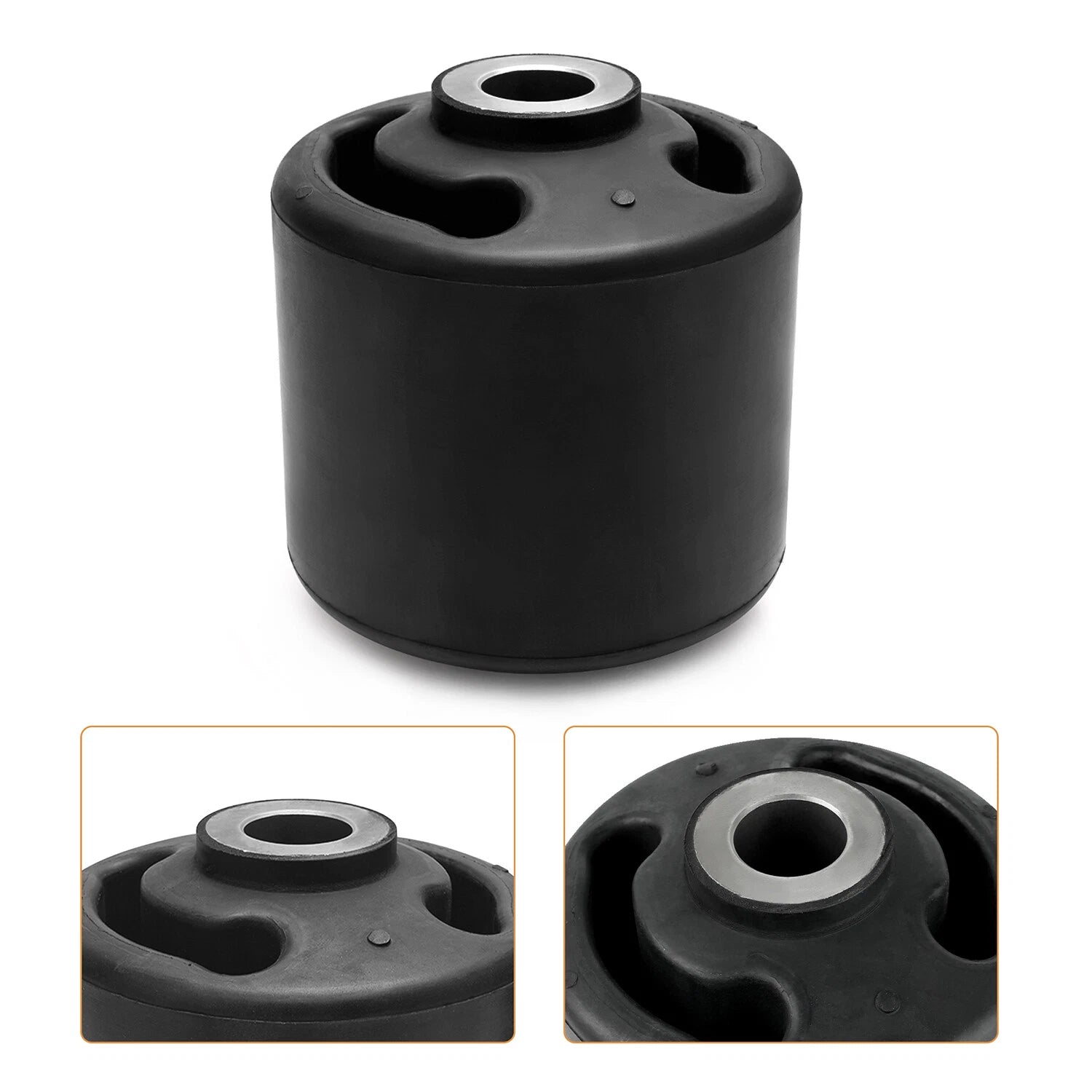

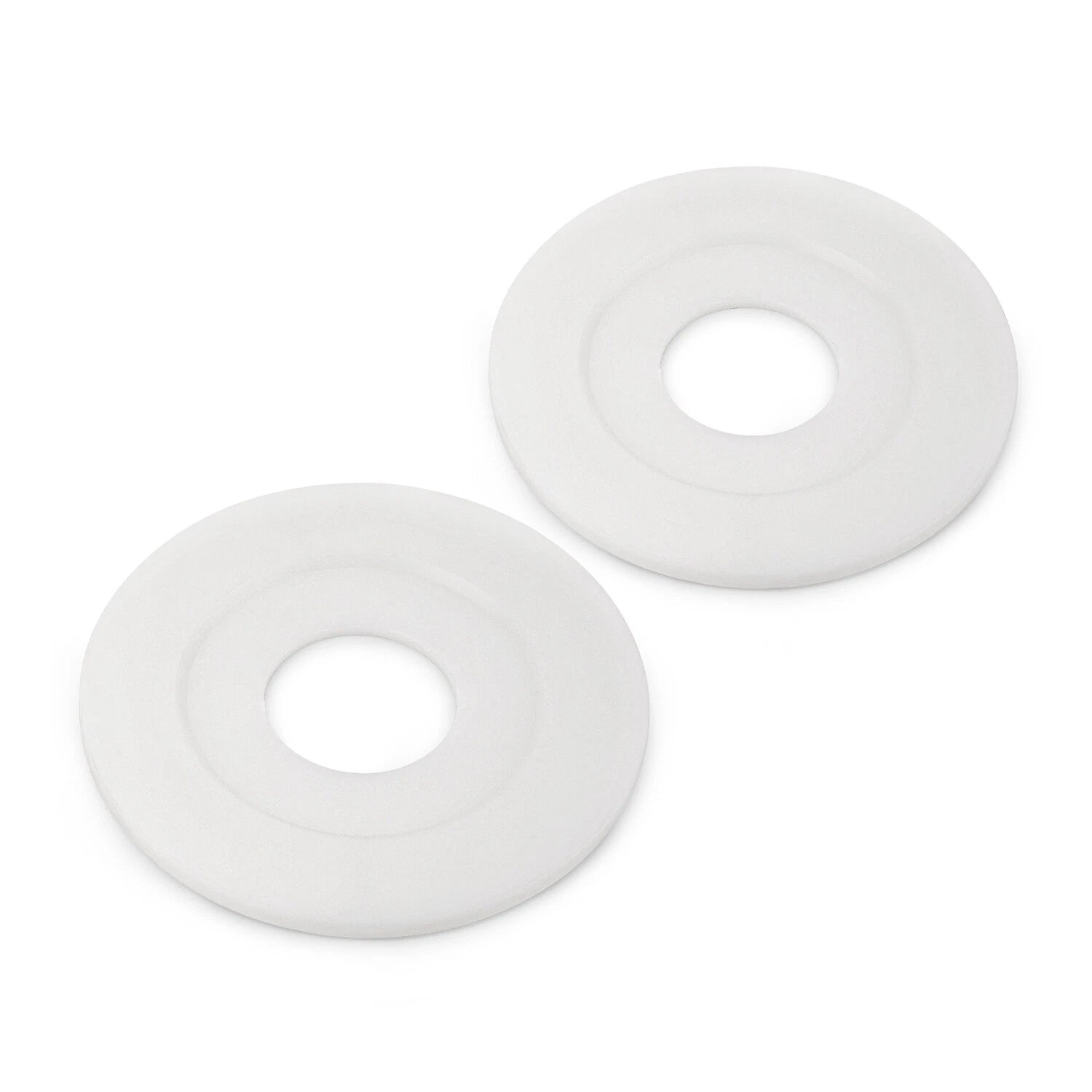

The pictured package also includes two white disc spacers, two flat metal washers and a small lubricant packet. The bushing has a central sleeve and molded openings around it. The collars have raised sleeves and circular grooves; one pictured collar also has a square adjustment opening.

What this kit contains

Product identity

Aftermarket pivot bushing repair kit with alignment collars

Listed comparison references

S-24691S and S-28654

Bushing quantity

One rubber bushing with central sleeve

Alignment collars

Two

Pivot fastening hardware

One bolt, one hex nut and two flat metal washers

Spacers and lubricant

Two white disc spacers and one lubricant packet

Listed bushing dimensions

Length: 6.75 in; outer diameter: 5.95 in; inner diameter: 1.25 in

Package coverage

One bushing position; select the required quantity for the repair

Use the reference and package count together

Hendrickson's factory S-28654 kit is cataloged with two bushings and two pivot bolt kits. This offered package contains one bushing and one bolt set. Allow for that count when planning work on both suspension pivots.

Match the bushing dimensions, sleeve, collar arrangement and pivot hardware with the installed suspension. The listed dimensions are comparison specifications; measurement endpoints and tolerances have not been confirmed. Standard and off-highway connections can require different spacers, so verify the actual suspension configuration rather than choosing by the Hendrickson name alone.

Bushing replacement and alignment

Have a suspension technician check the pivot connection and replace the bushing with the appropriate service tooling. Follow the matched suspension's procedure for lubricant, collar orientation, axle alignment and final bolt tightening. No bolt torque, rubber hardness or alignment adjustment range is specified for this replacement kit.
