Standard piston kit 22001-82-1 for Harley-Davidson golf carts 1963-1981

Standard piston and three-ring kit

This aftermarket piston kit is for Harley-Davidson golf carts from 1963-1981 with a two-stroke gasoline engine requiring a standard-size piston. The kit includes one piston, three piston rings, a wrist pin and two retaining clips.

Kit details

Part number

22001-82-1

Model reference

22001-82

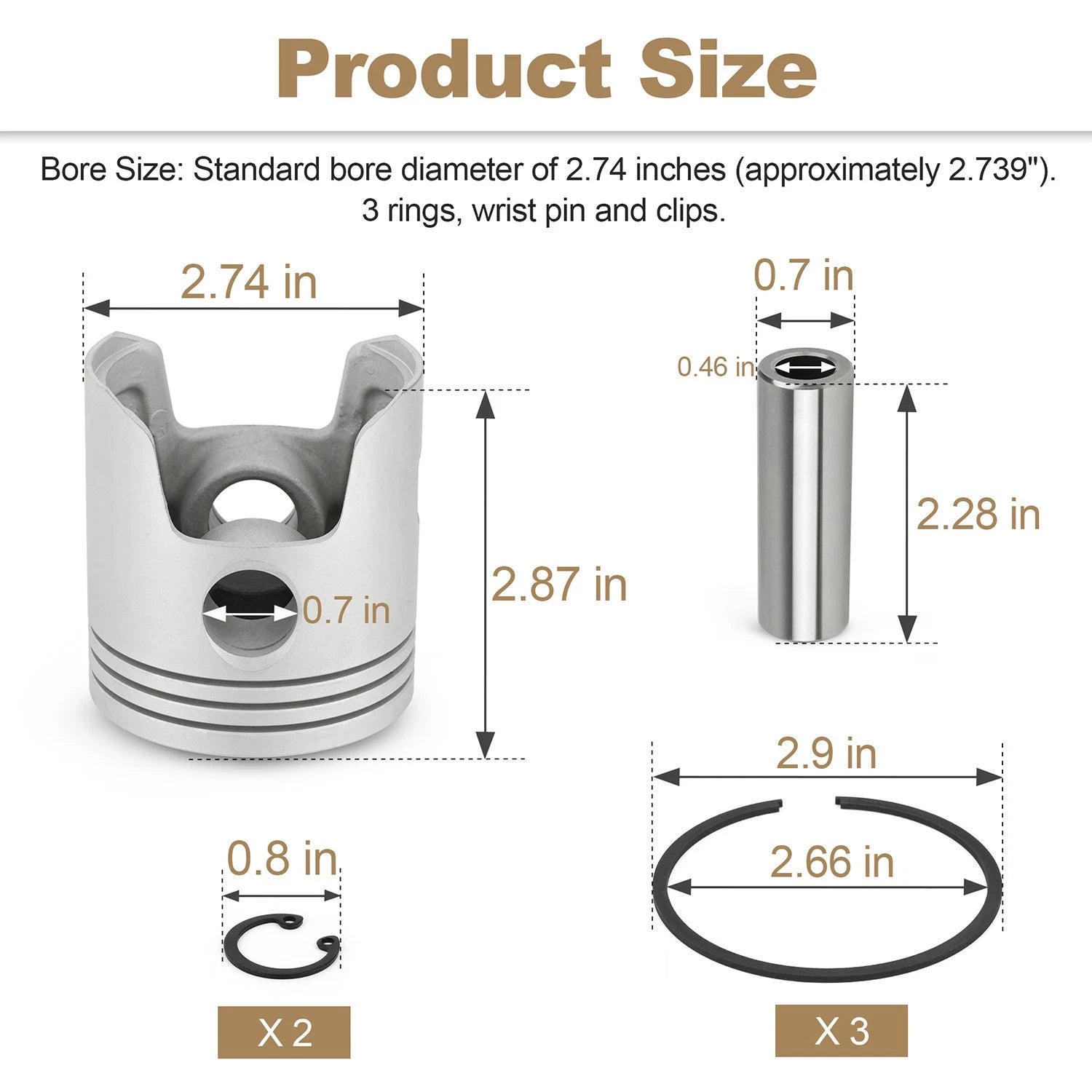

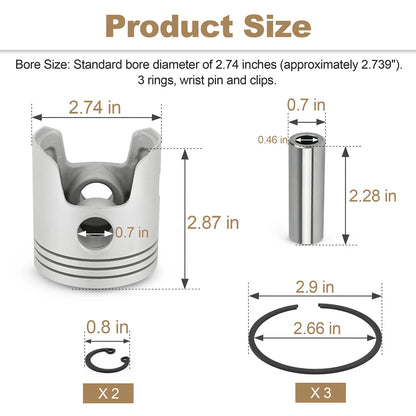

Piston size

Standard (STD)

Engine application

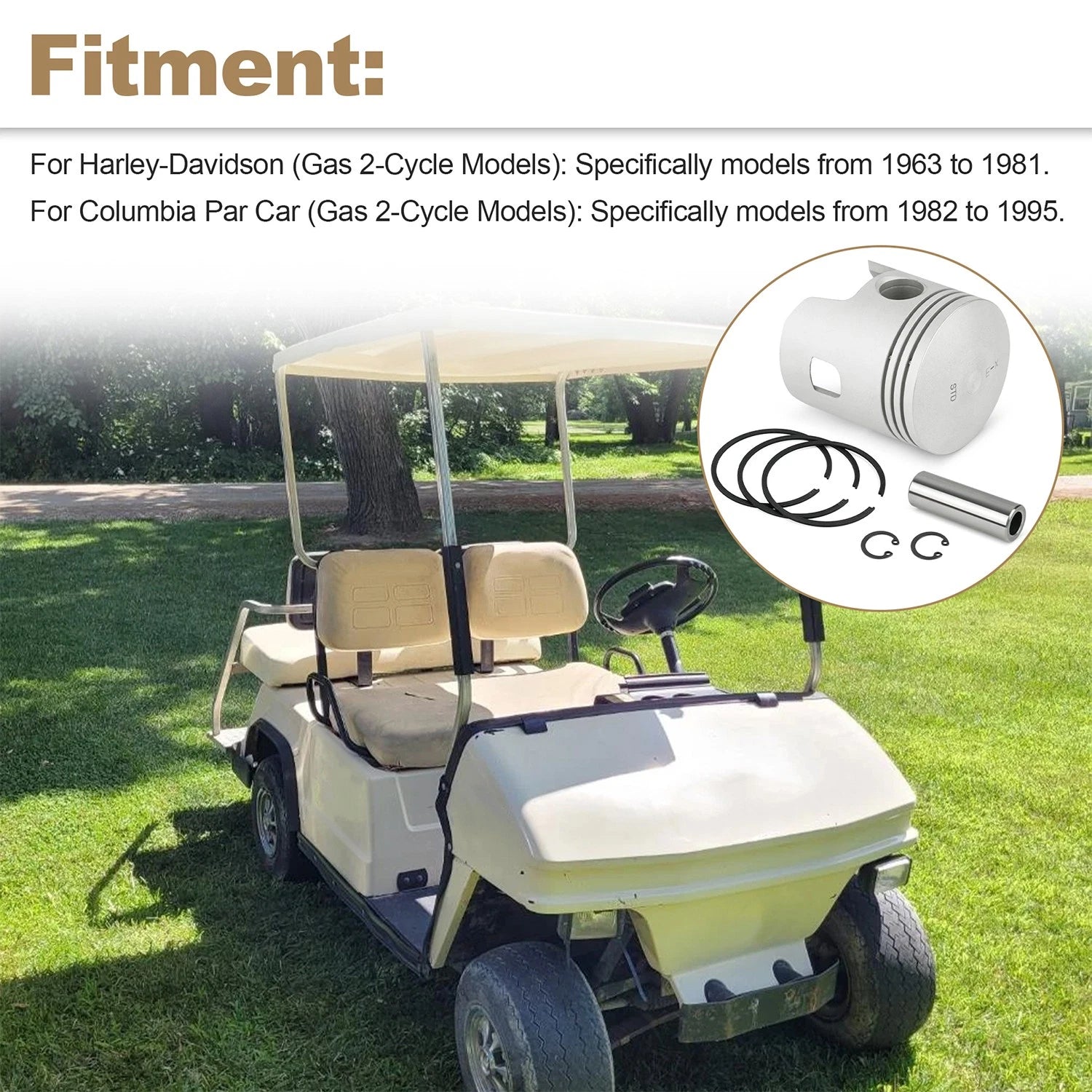

Harley-Davidson golf cart, 1963-1981, two-stroke gasoline engine

Included parts

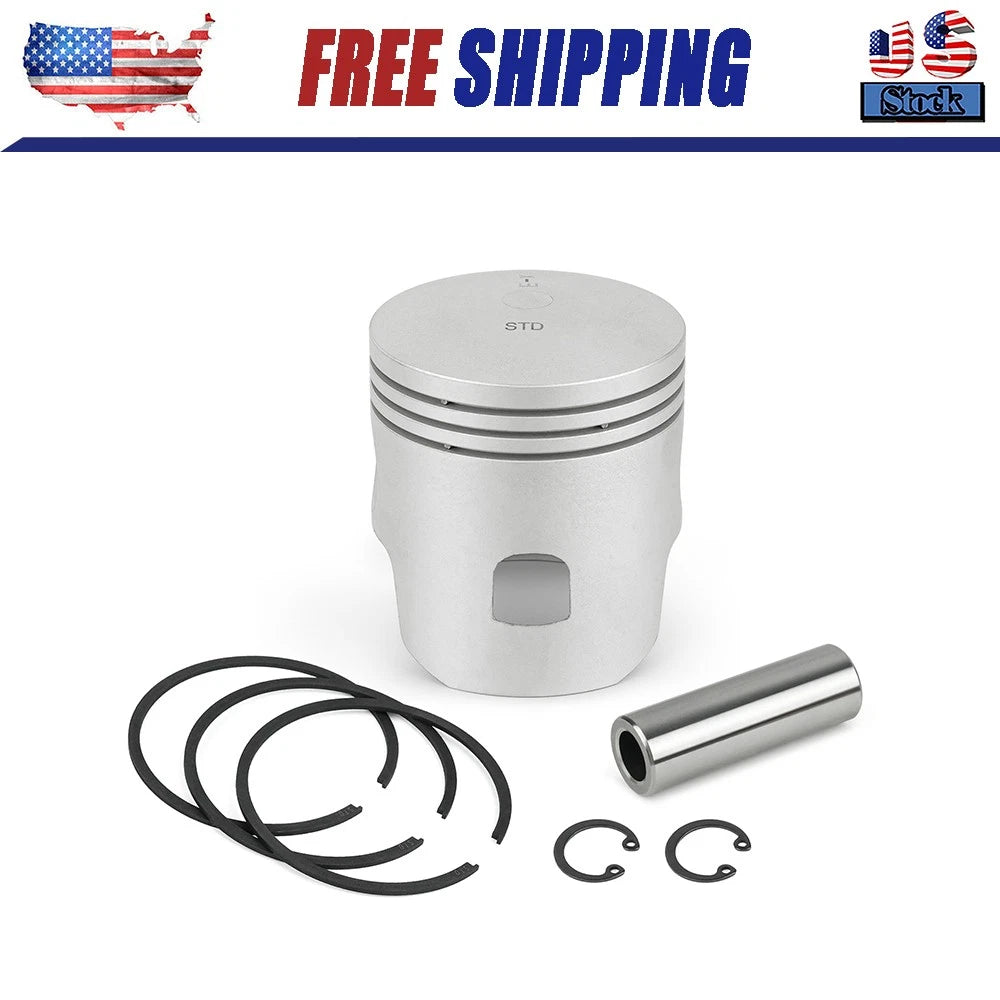

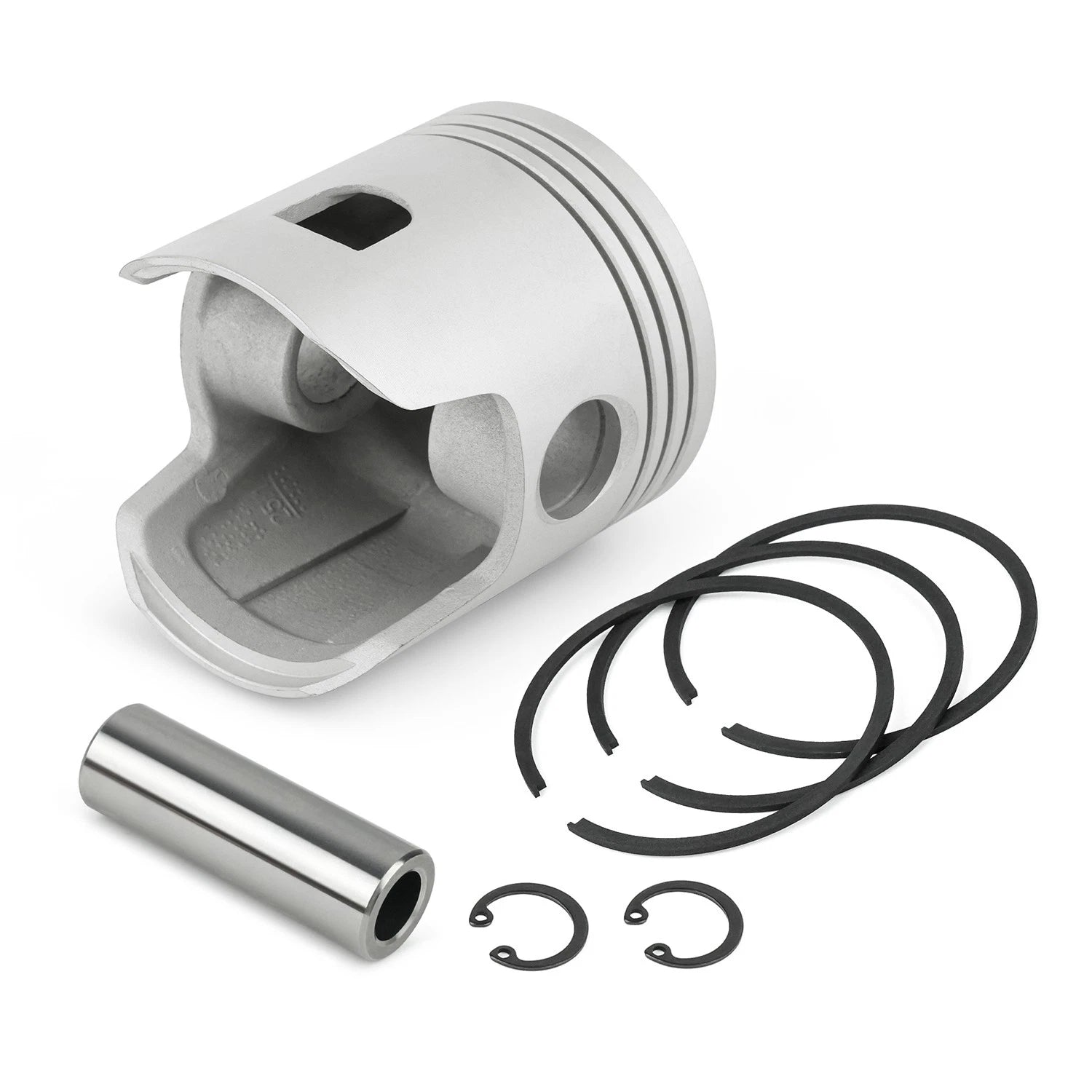

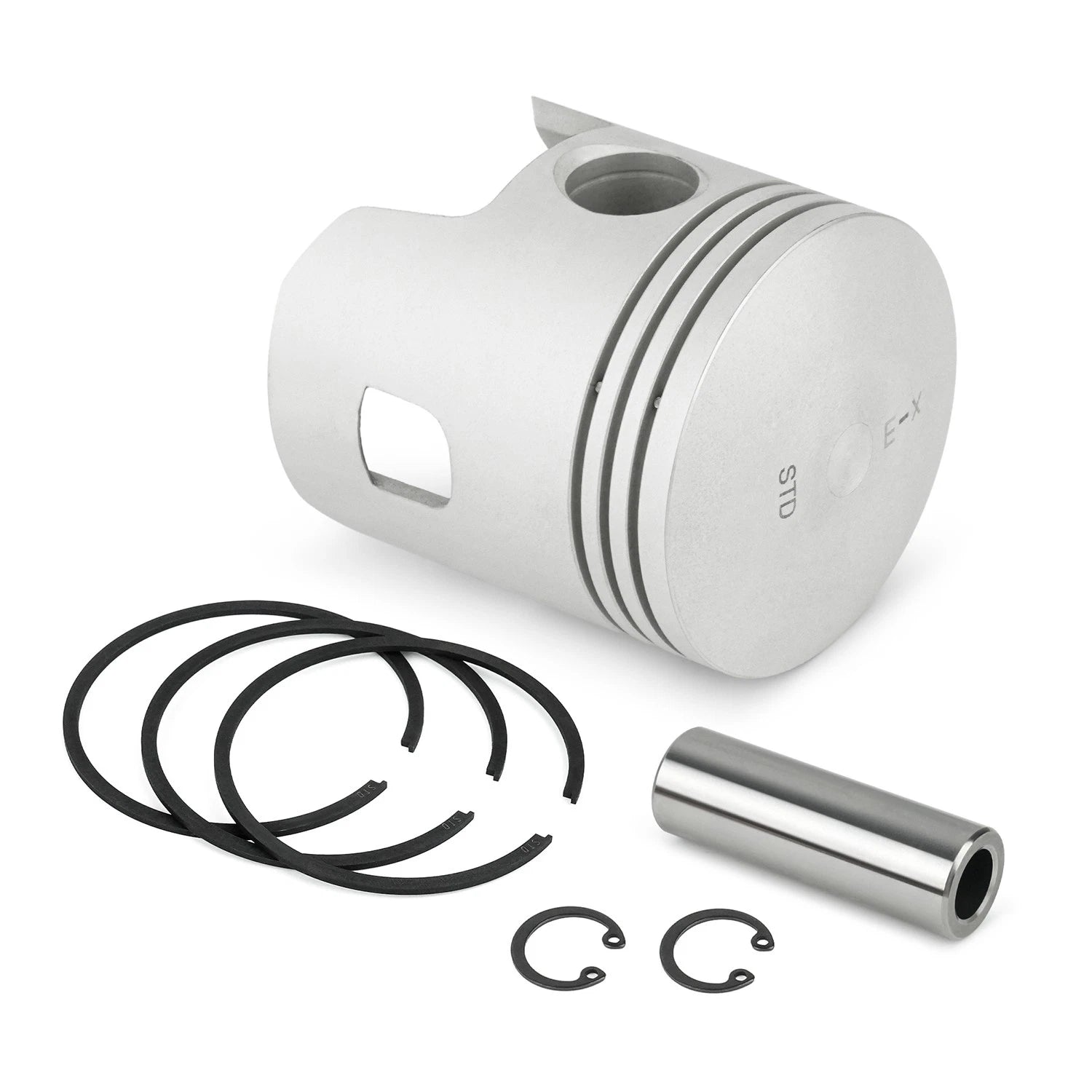

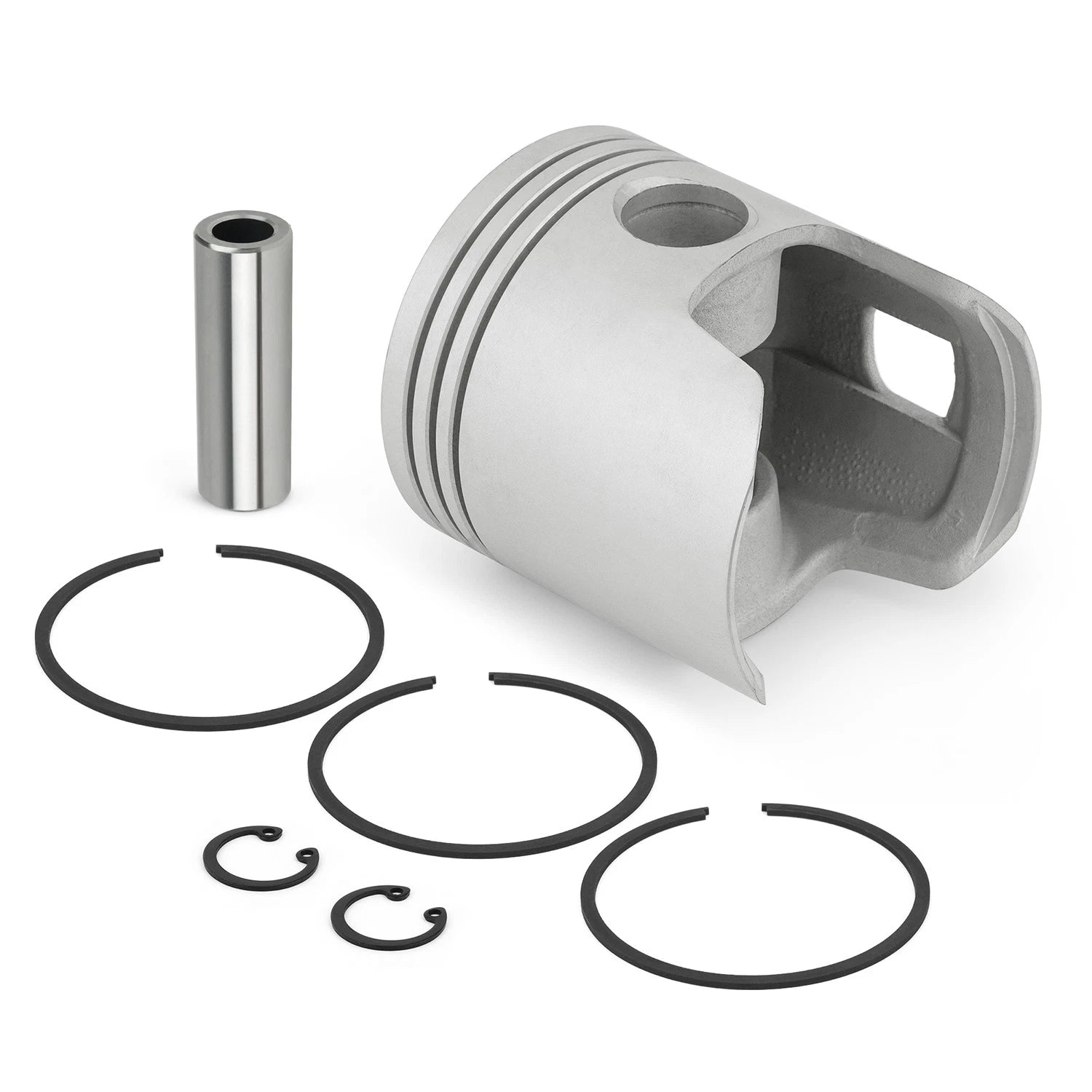

1 piston, 3 piston rings, 1 wrist pin and 2 retaining clips

Replacement type

Aftermarket

Check the cylinder before ordering

Confirm the engine type and inspect the existing piston markings. Have the cylinder measured for wear and any previous overbore before choosing a size. A cylinder bored oversize needs a matching oversize piston and rings; this kit is the standard version.

During assembly, check the piston-to-cylinder clearance and ring end gap against the service information for your engine. This kit does not fit later four-stroke engines.
