2000-2006 Chevy Tahoe front passenger door hinge pin and bushing kit

Front passenger-side Tahoe hinge repair kit

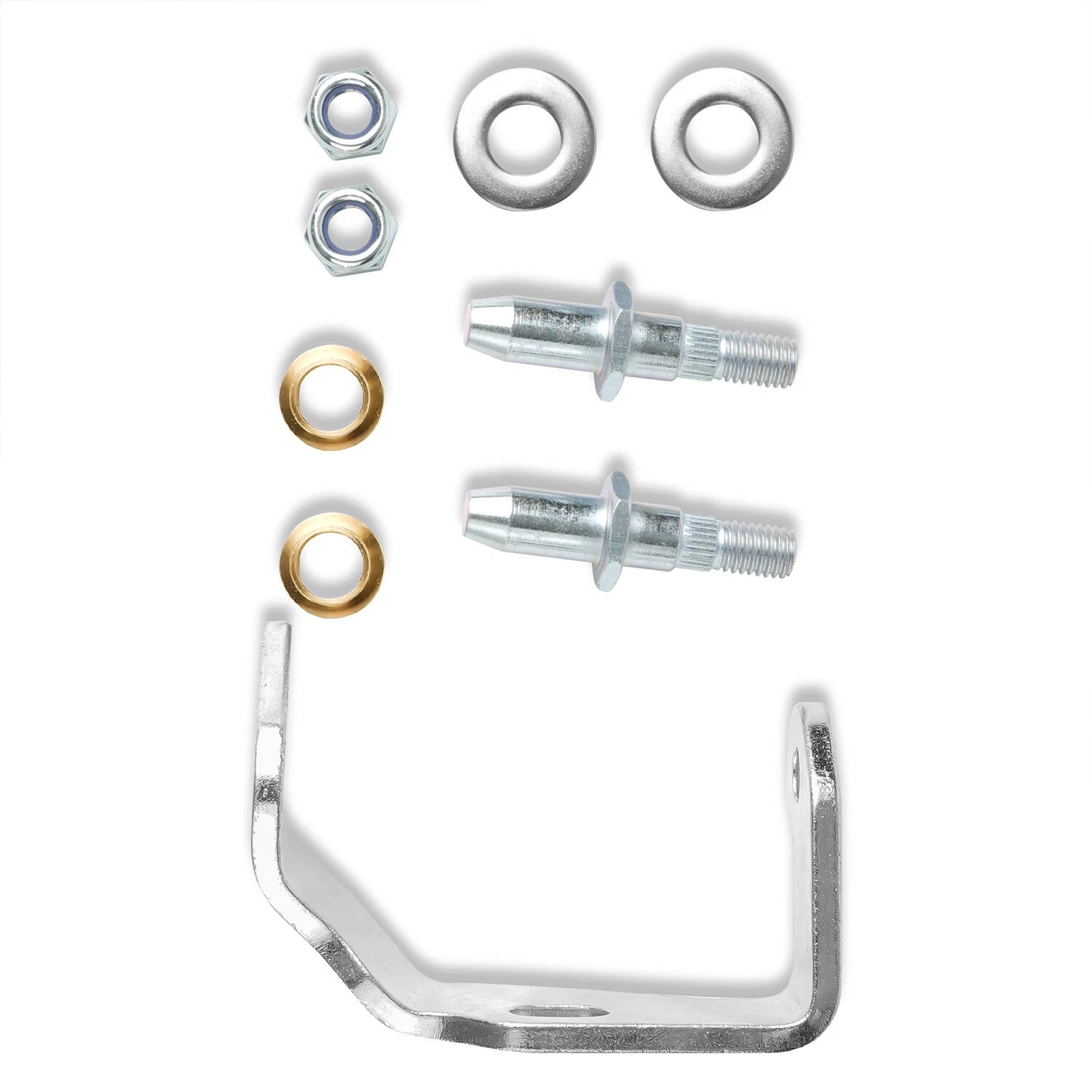

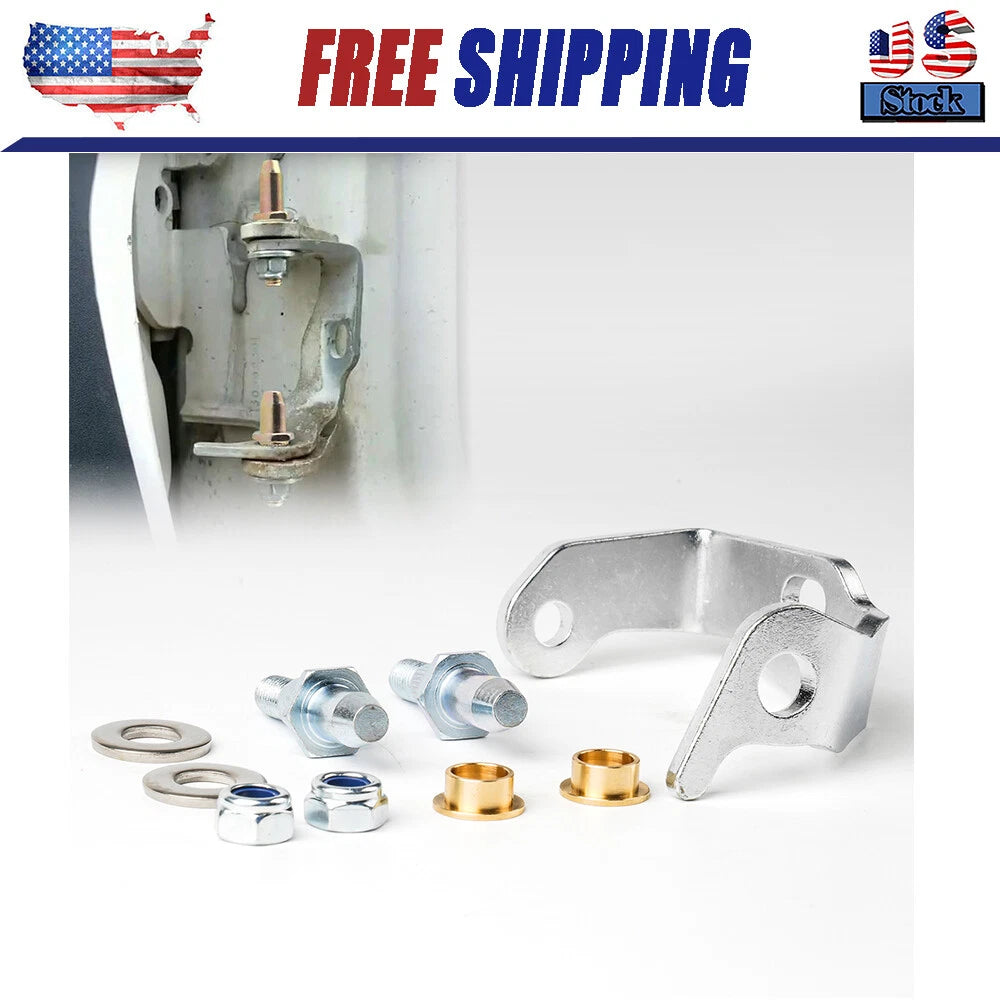

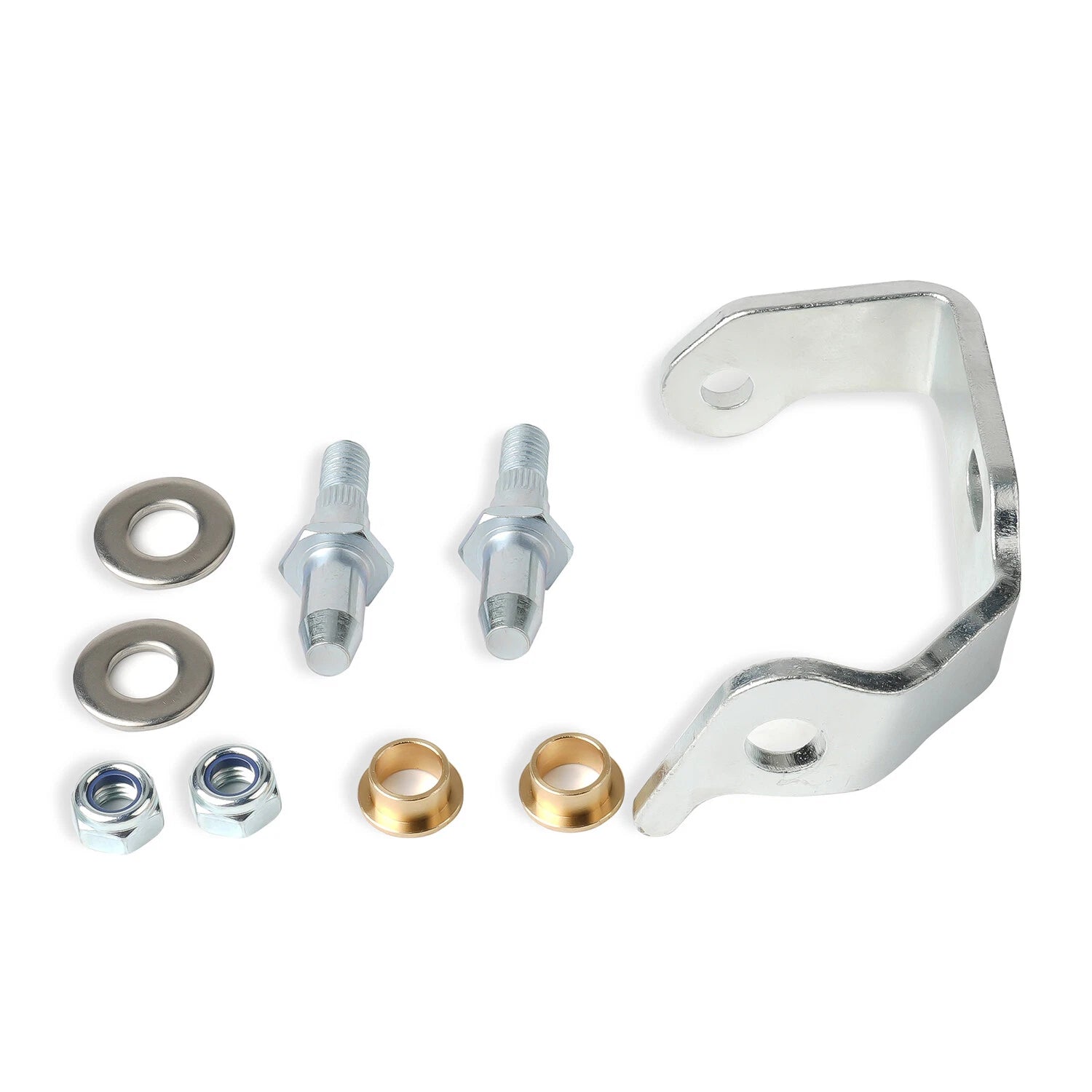

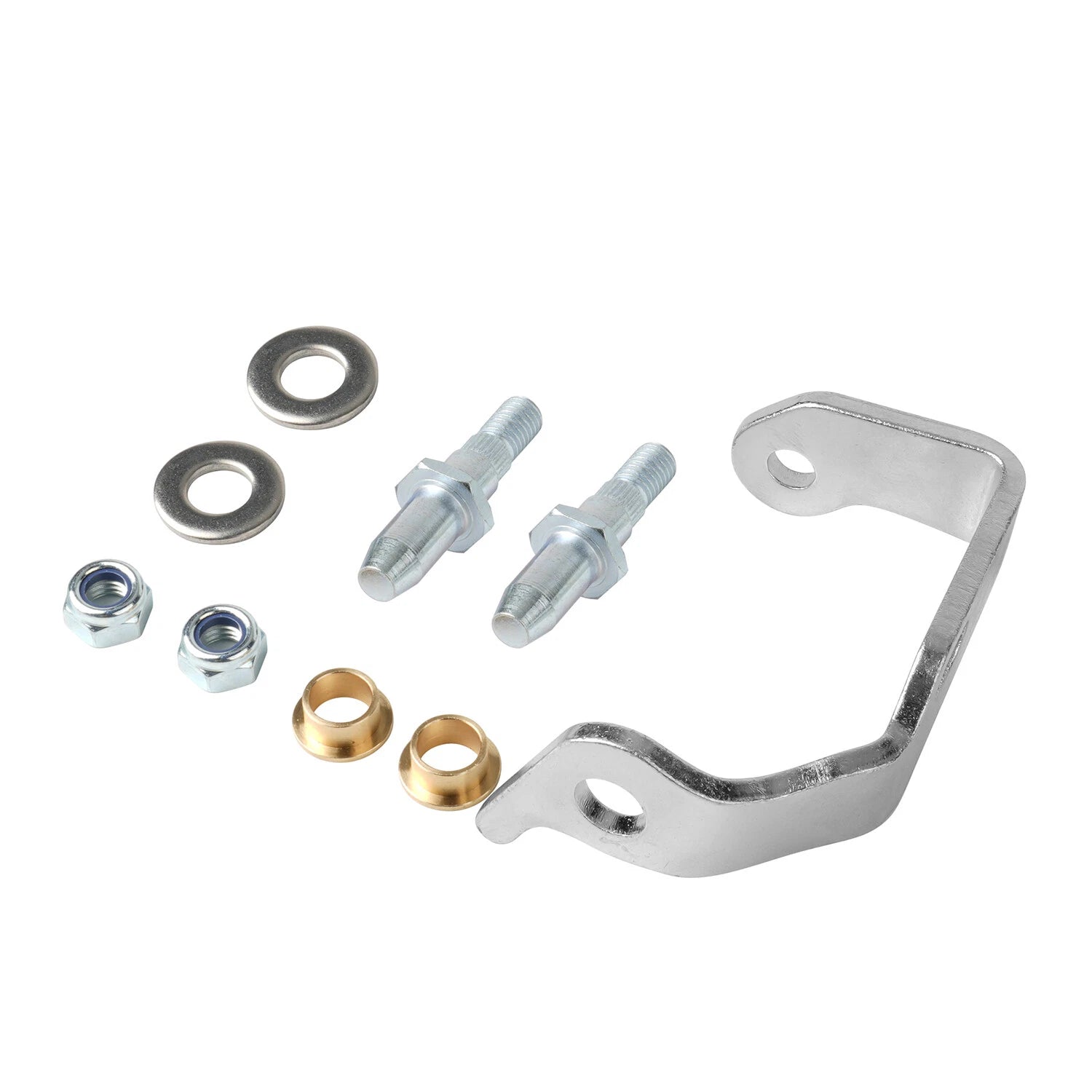

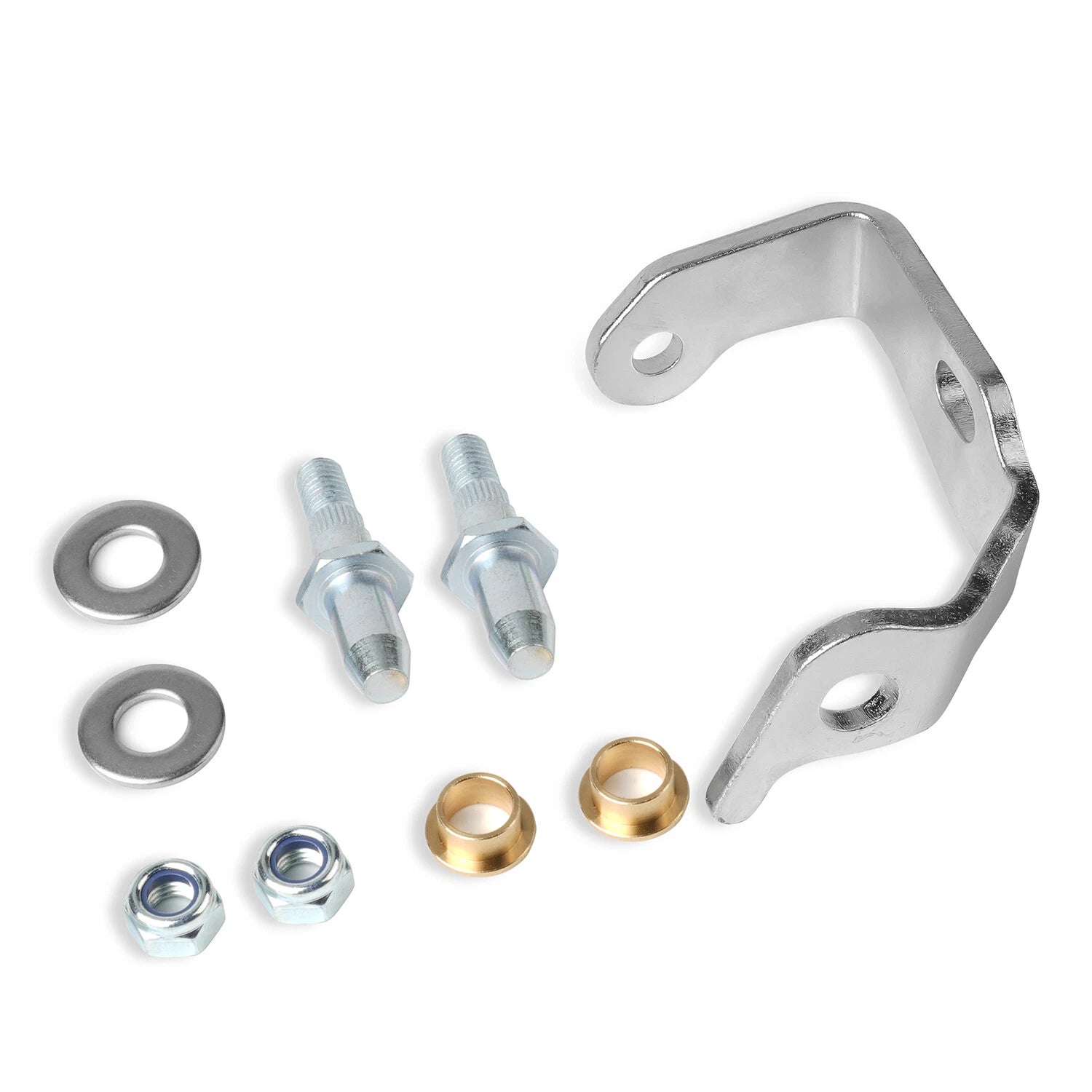

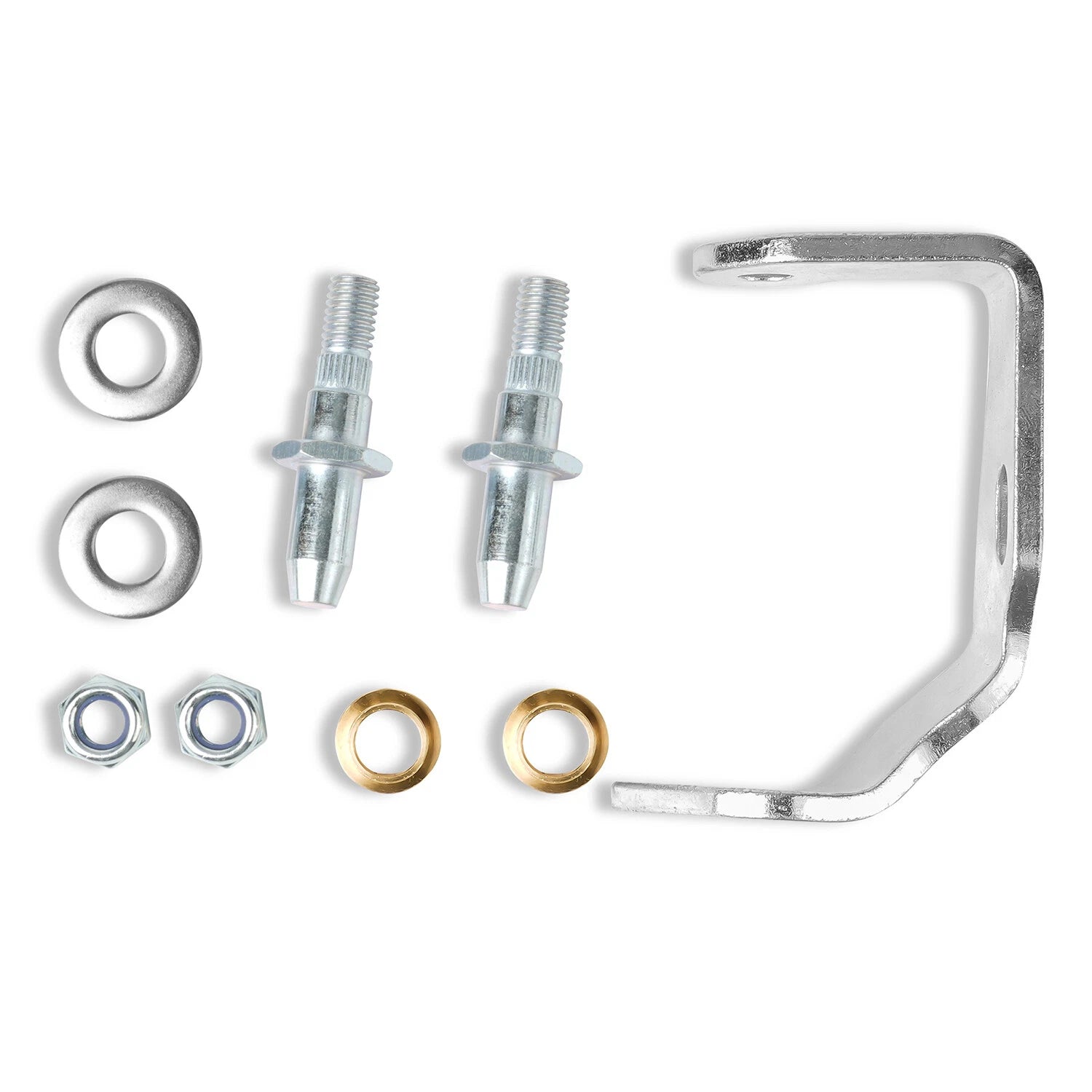

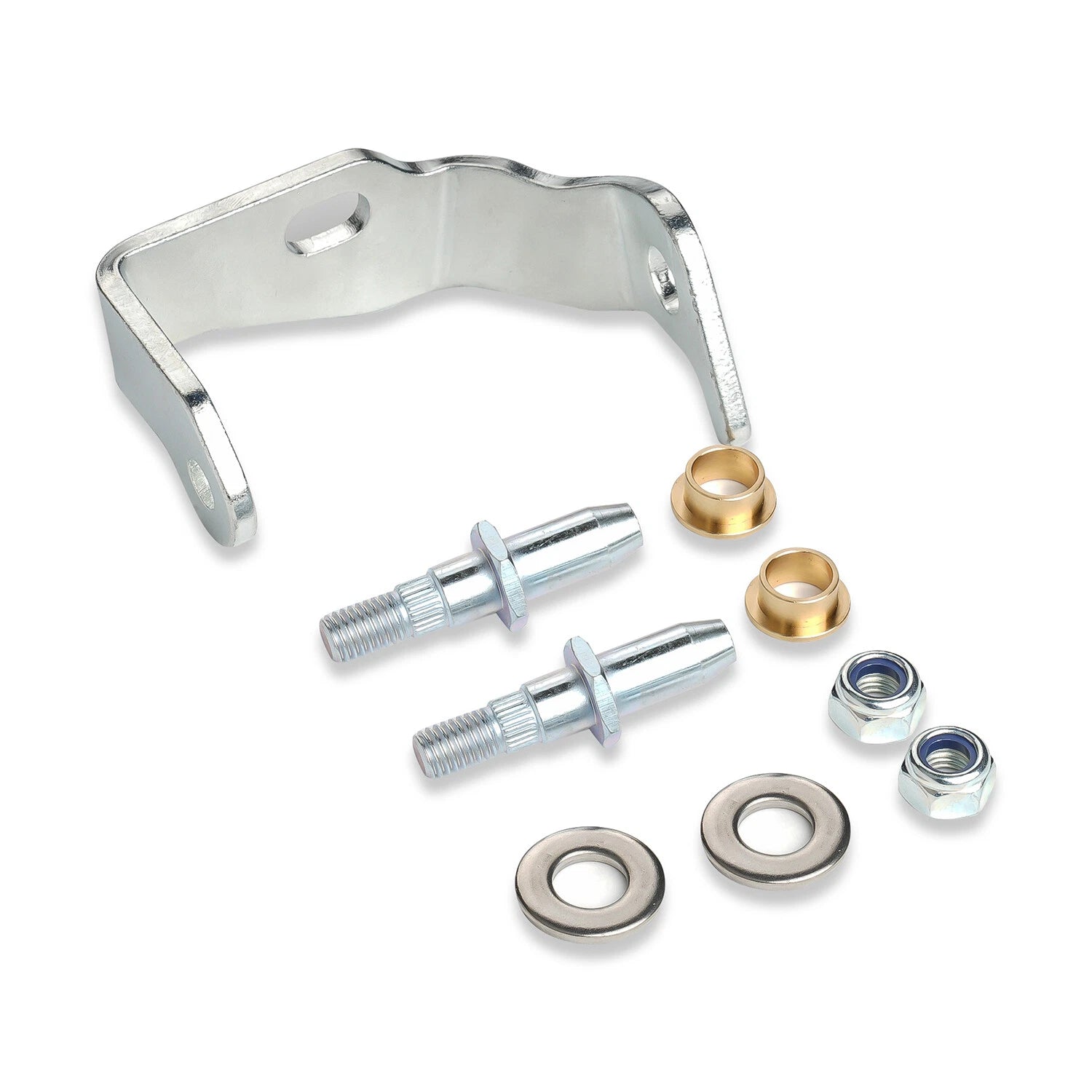

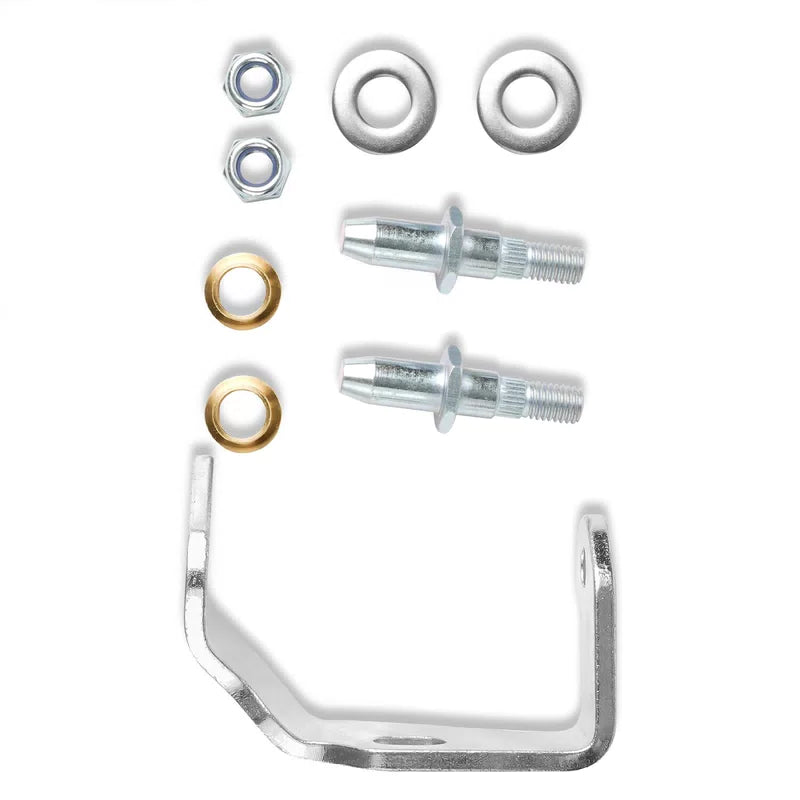

This replacement kit is listed for the front passenger-side door hinge on a 2000-2006 Chevrolet Tahoe. It supplies one formed hinge bracket, two threaded hinge pins, two flanged bushings, two washers and two insert-style locknuts. The two pins have different lengths and knurled-section positions, so compare each with its original location.

Match the hinge being repaired

Check the right front hinge's bracket shape, mounting hole and pin bores before ordering. This is one bracket repair set; the two included pins serve its two pivot points. Coverage for both the upper and lower hinges of a complete door is not established. Confirm which hinge needs repair and how many sets the job requires.

The application is limited to the listed Tahoe years and front passenger-side location. Compare the actual hinge if it has previously been replaced, and check its mounting surfaces and bores for damage beyond pin or bushing wear.

Listed vehicle

Chevrolet Tahoe, 2000-2006

Listed door location

Front passenger side / right front

Bracket

1 formed hinge bracket

Pins

2 threaded pins; pictured overall lengths 1.81 in and 1.88 in

Bushings

2 flanged bushings; pictured bore 0.35 in and flange outside diameter 0.55 in

Retaining hardware

2 washers and 2 insert-style locknuts

Washer dimensions

Pictured outside diameter 0.78 in; opening 0.31 in

Check pin fit and door support during repair

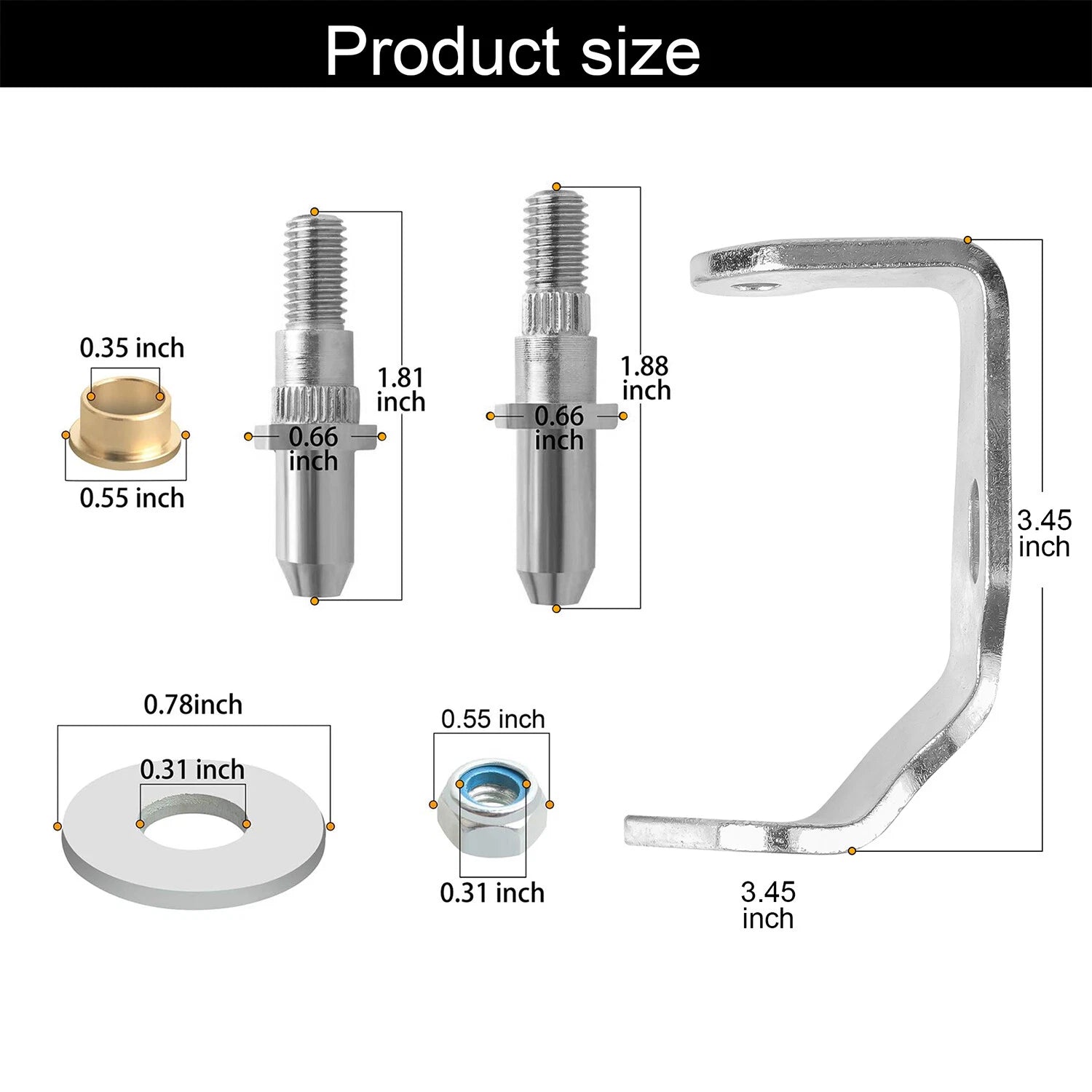

The dimensions above are the product diagram's markings. Thread pitch, pin shaft diameter, bushing body diameter and material grades are not specified. Measure the parts and hinge bores before fitting; the bushing flange diameter is not the press-fit body diameter.

Support the door during hinge work and follow the vehicle's service procedure for hardware orientation and tightening. Seat each bushing squarely in its matching bore. After assembly, check door movement, gaps and latch engagement before putting the repair into use. A worn mounting hole or damaged hinge structure may need work beyond replacing these parts.
