2402-150 drive gearcase seal for Arctic Cat, single piece

2402-150 drive gearcase seal, single piece

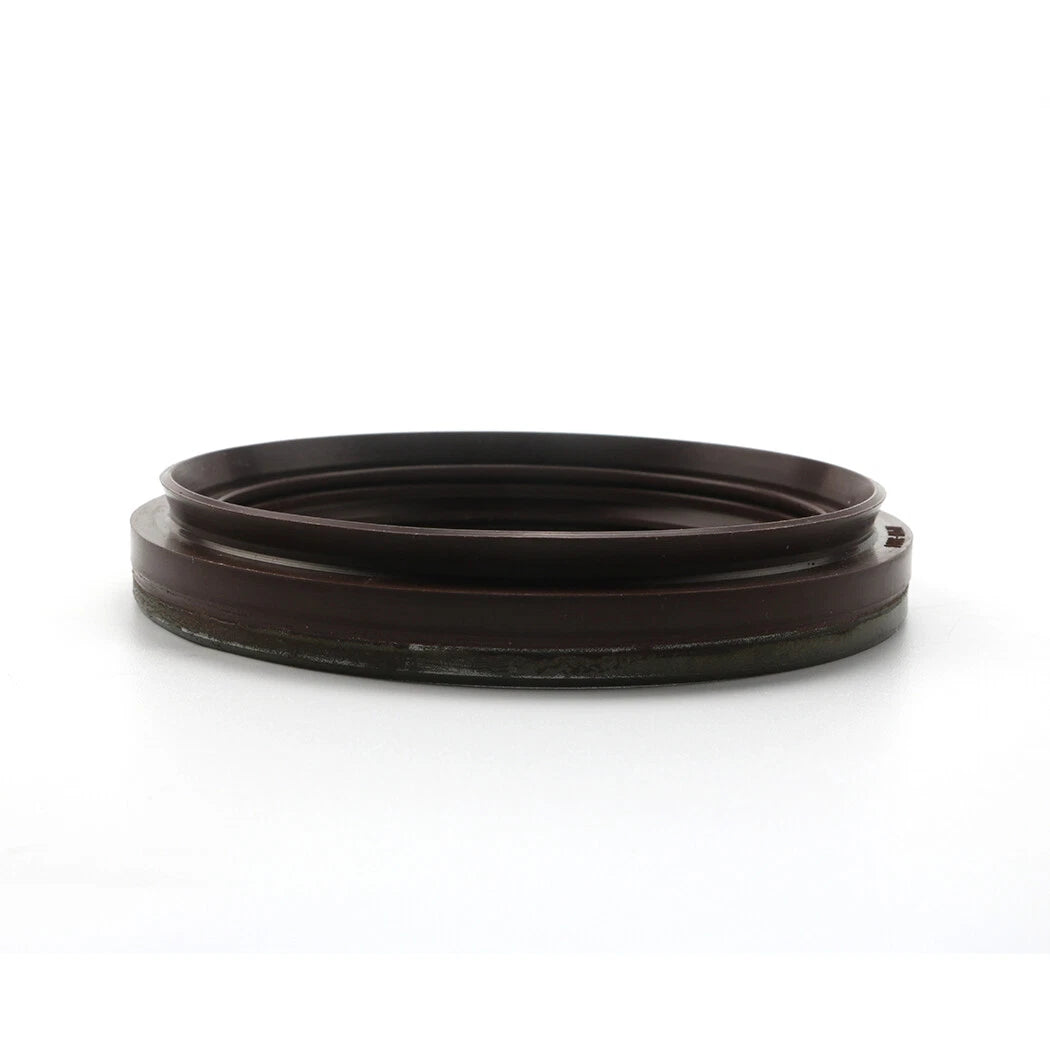

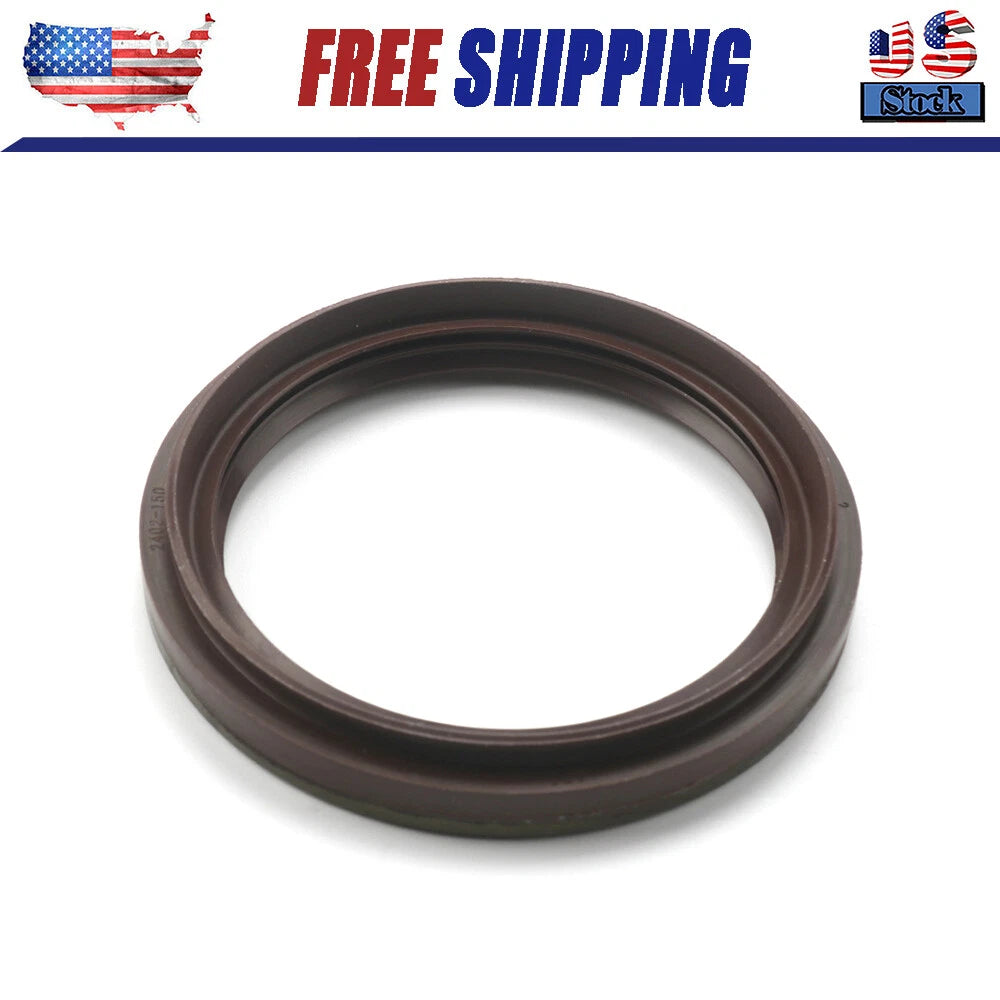

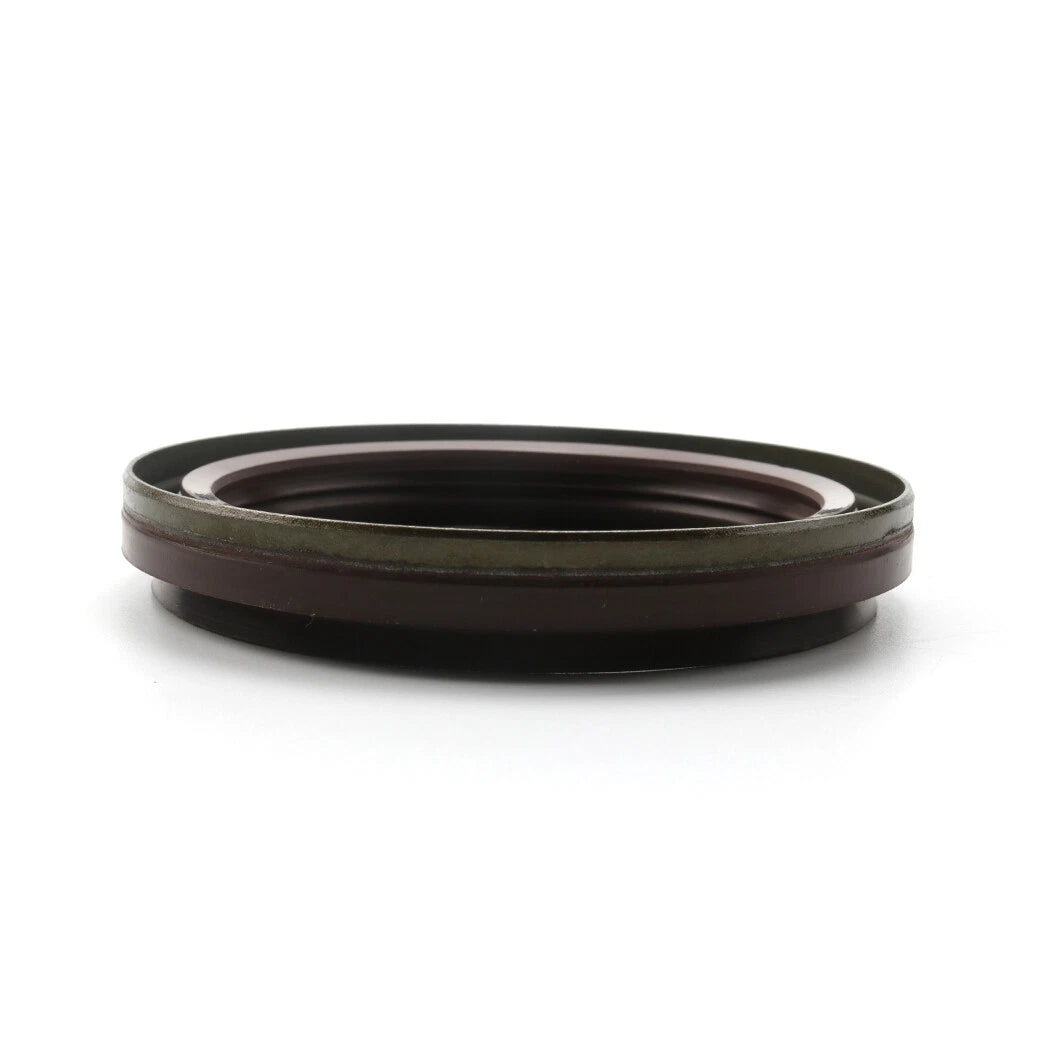

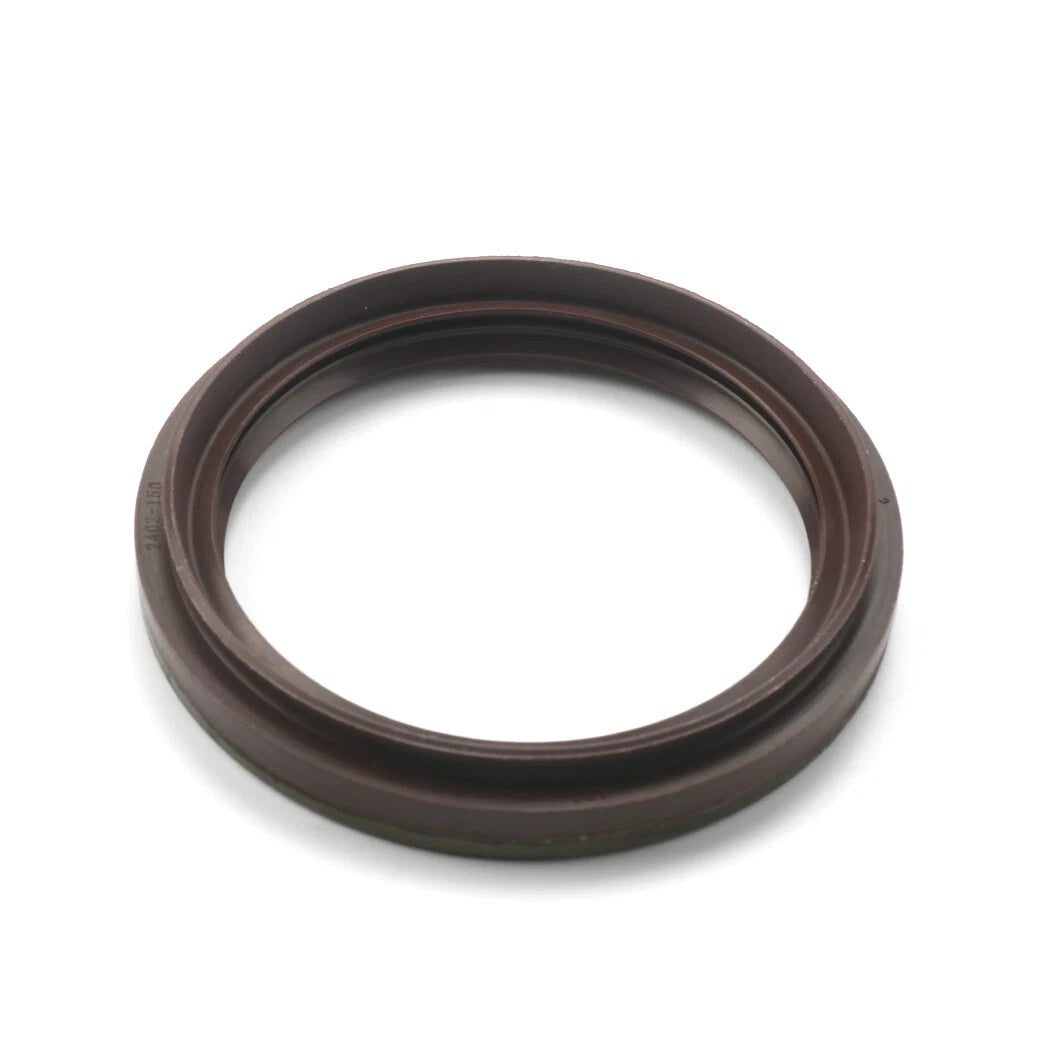

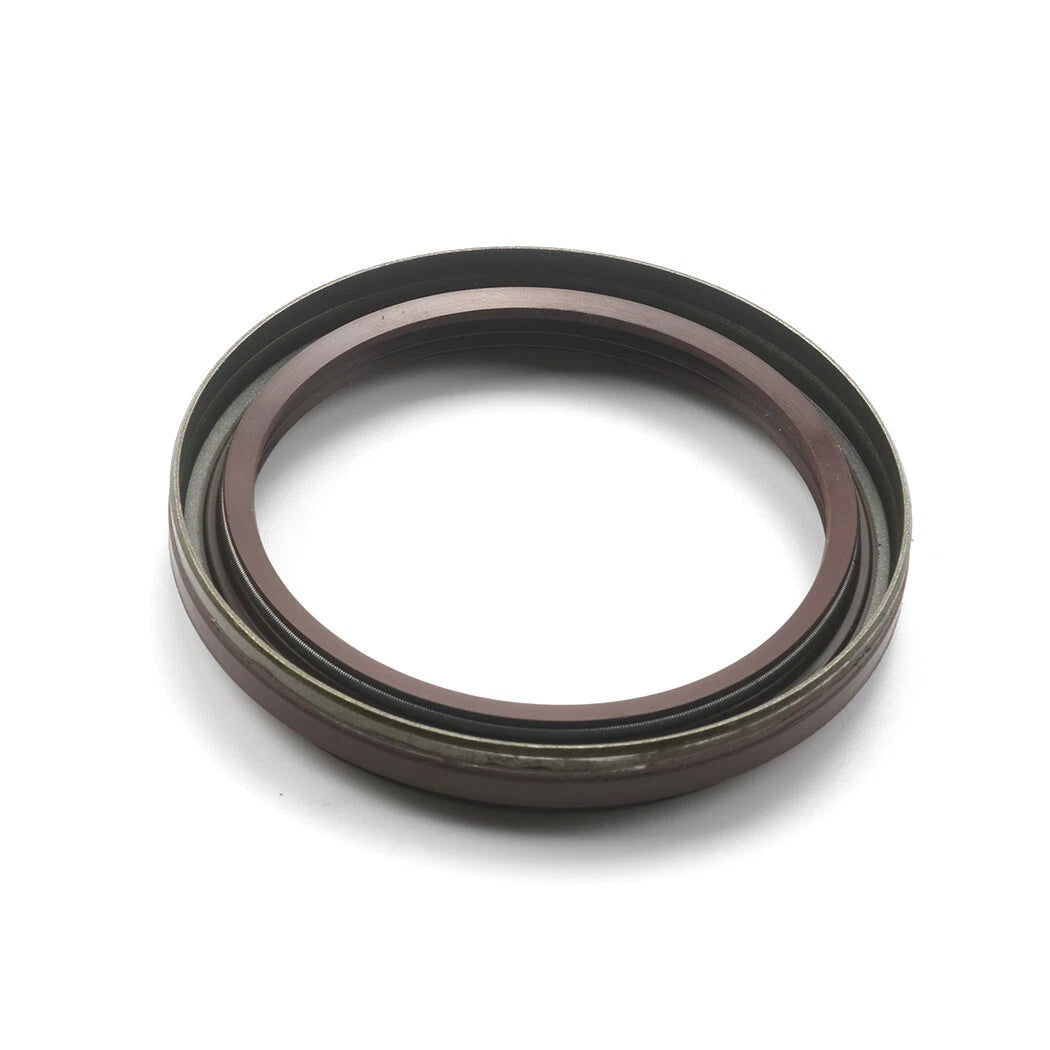

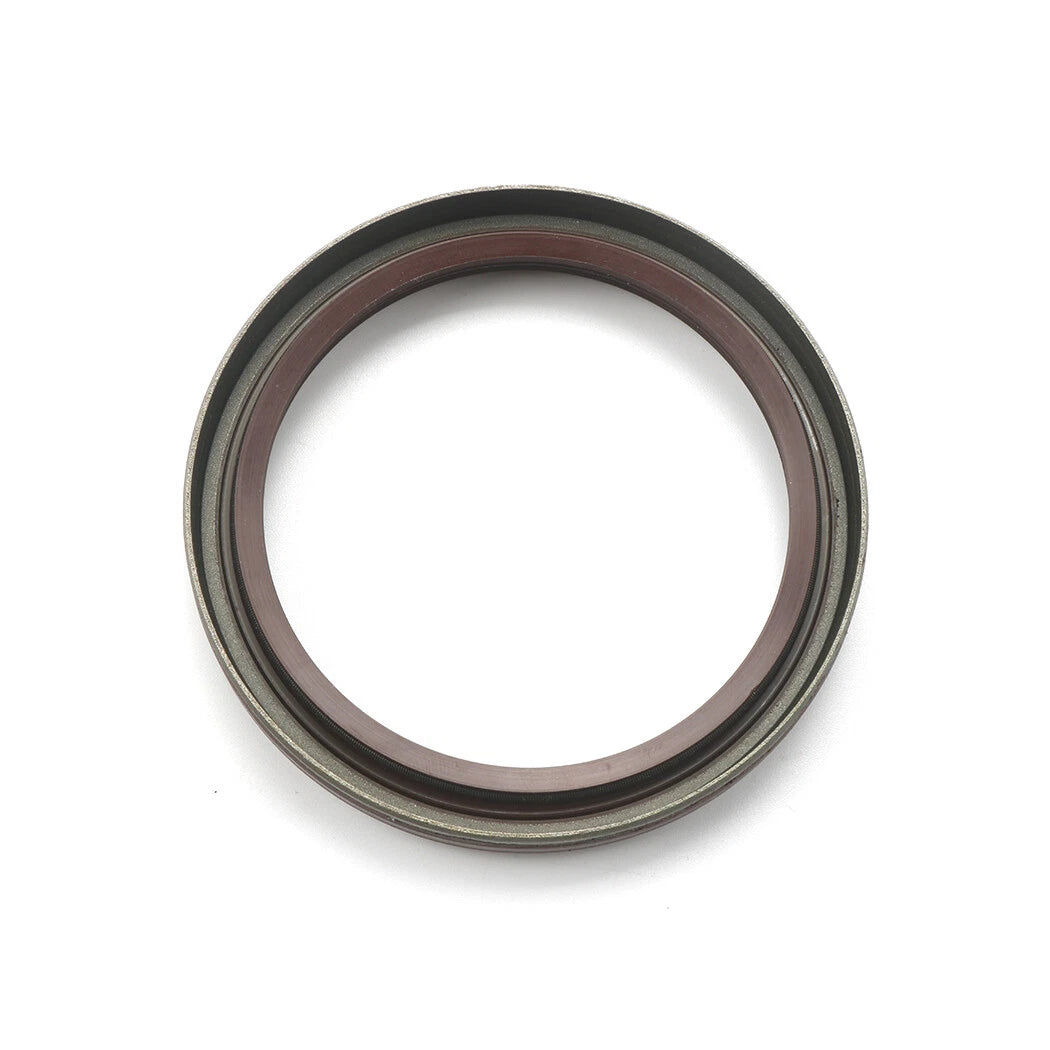

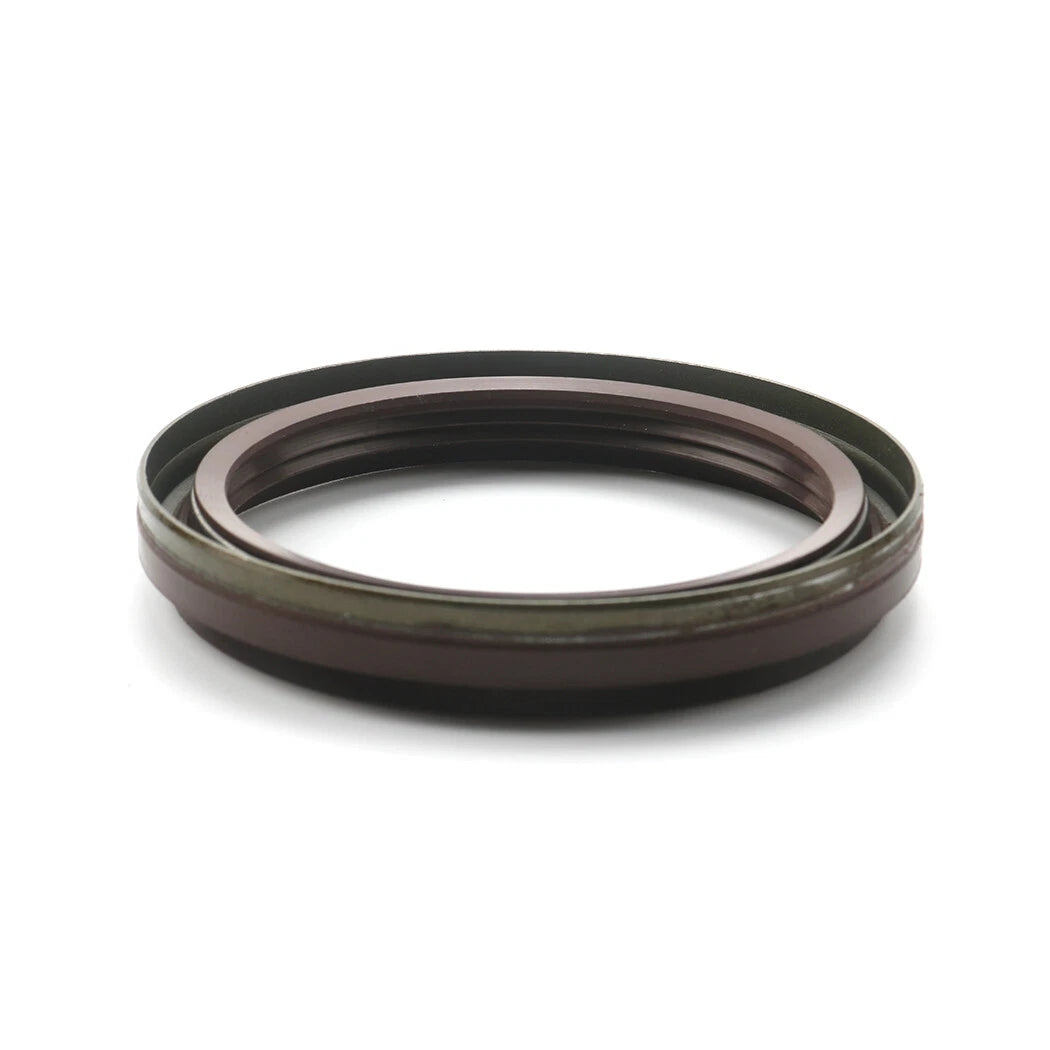

This replacement is listed for an Arctic Cat drive gearcase position using seal reference 2402-150. The photos show one circular lip seal with a brown sealing section, a visible metal outer case and an inner coil spring. The reference is marked on the seal's face.

Locate the seal in your gearcase diagram

Check the parts diagram for the vehicle's exact model, year and gearcase assembly. The reference can appear in both front and rear drive gearcases, so confirm the required position instead of choosing by the Arctic Cat name alone.

For example, Arctic Cat's parts manual for the 2008 ATV 700 EFI Automatic 4x4 FIS Orange LE lists 2402-150 at callout 53 in the front drive gearcase and callout 3 in the rear drive gearcase. Each of those assemblies lists two seals. This product shows one seal, so confirm how many your repair requires.

Replacement reference

2402-150

Part type

Drive gearcase lip seal

Quantity shown

One seal

Visible construction

Brown sealing section, metal outer case and inner coil spring

Dimensions

Inside diameter, outside diameter and width are not supplied

Material specification

Sealing compound and metal grade are not specified

Match the profile before installation

Compare the old seal's reference and profile with the photos, then confirm its shaft and housing dimensions. Color alone does not identify the sealing compound. The supply pictured contains the seal only; bearings, gears, O-rings and installation tools are separate.

Use the vehicle's gearcase service instructions for removal, installation direction and seating depth. Check the mating shaft and housing as part of the repair, and follow the specified lubricant and filling procedure before returning the assembly to service.
