7/32-Inch Lift Cable Repair Set with Hardware for Tommy Gate - 002939

Two-cable repair set for Tommy Gate liftgates

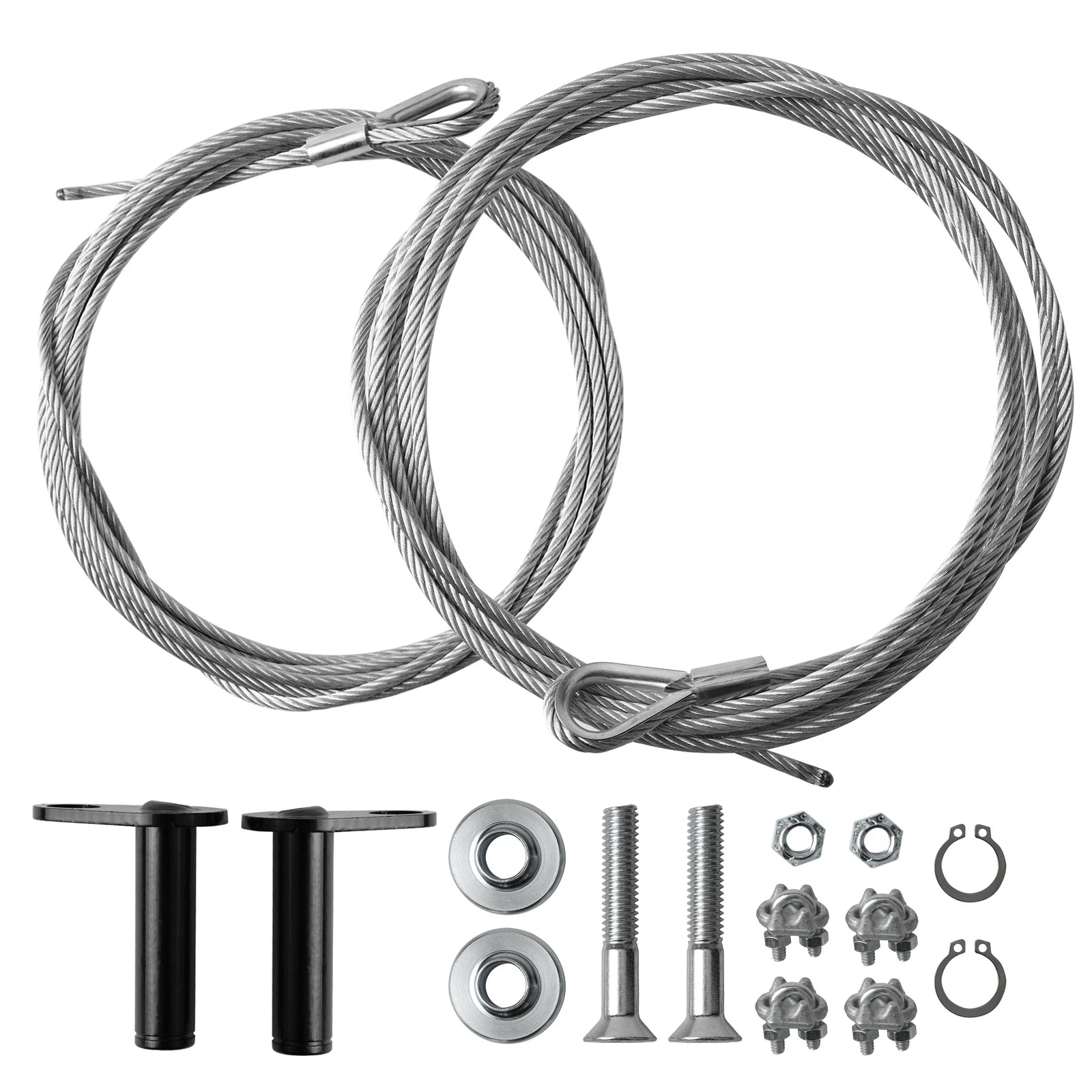

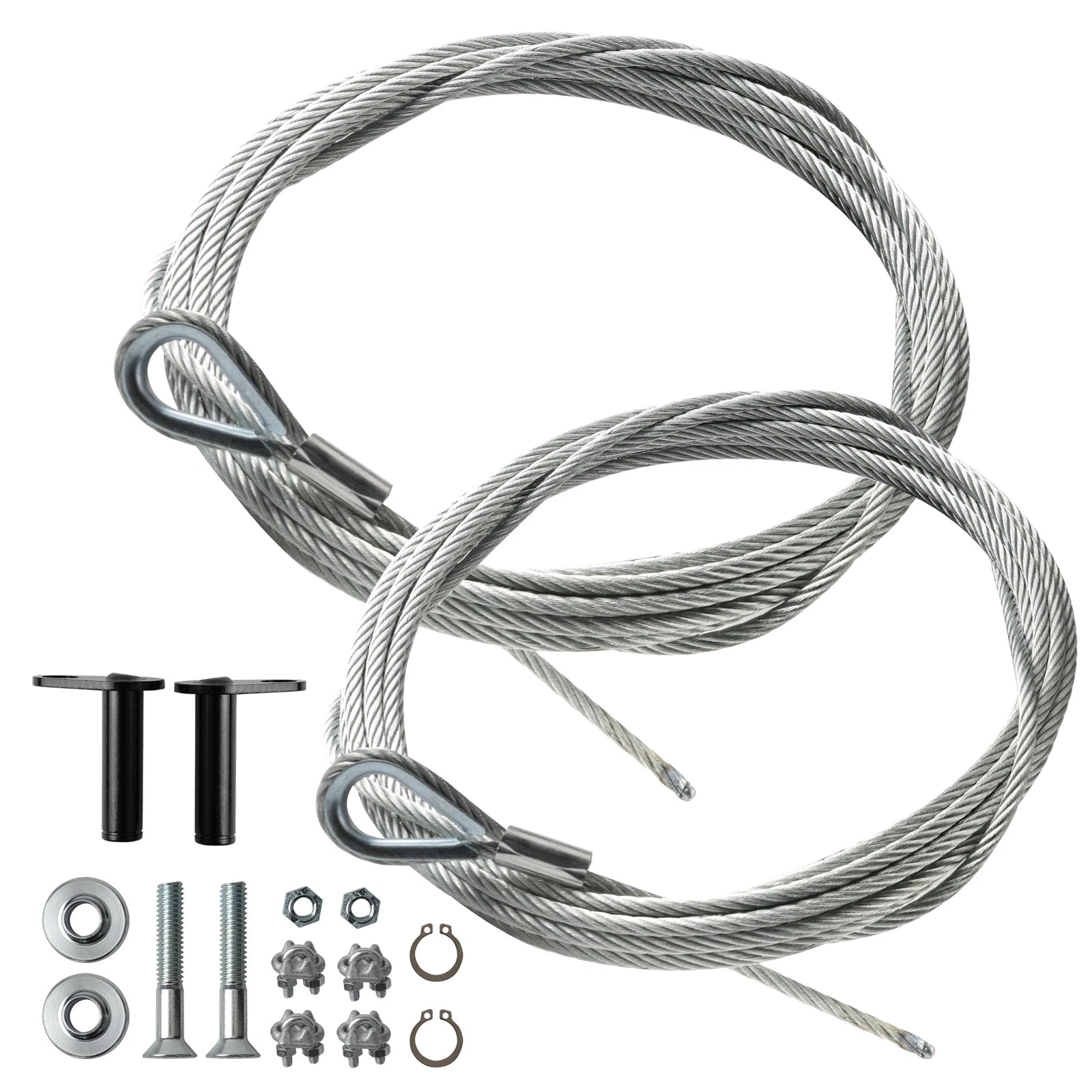

This replacement set is listed against Tommy Gate reference 002939 for 7/32-inch lift-cable applications. It includes two coiled wire-rope cables and the pictured attachment hardware. Each cable has a formed eye with a crimped sleeve at one end and a free tail at the other.

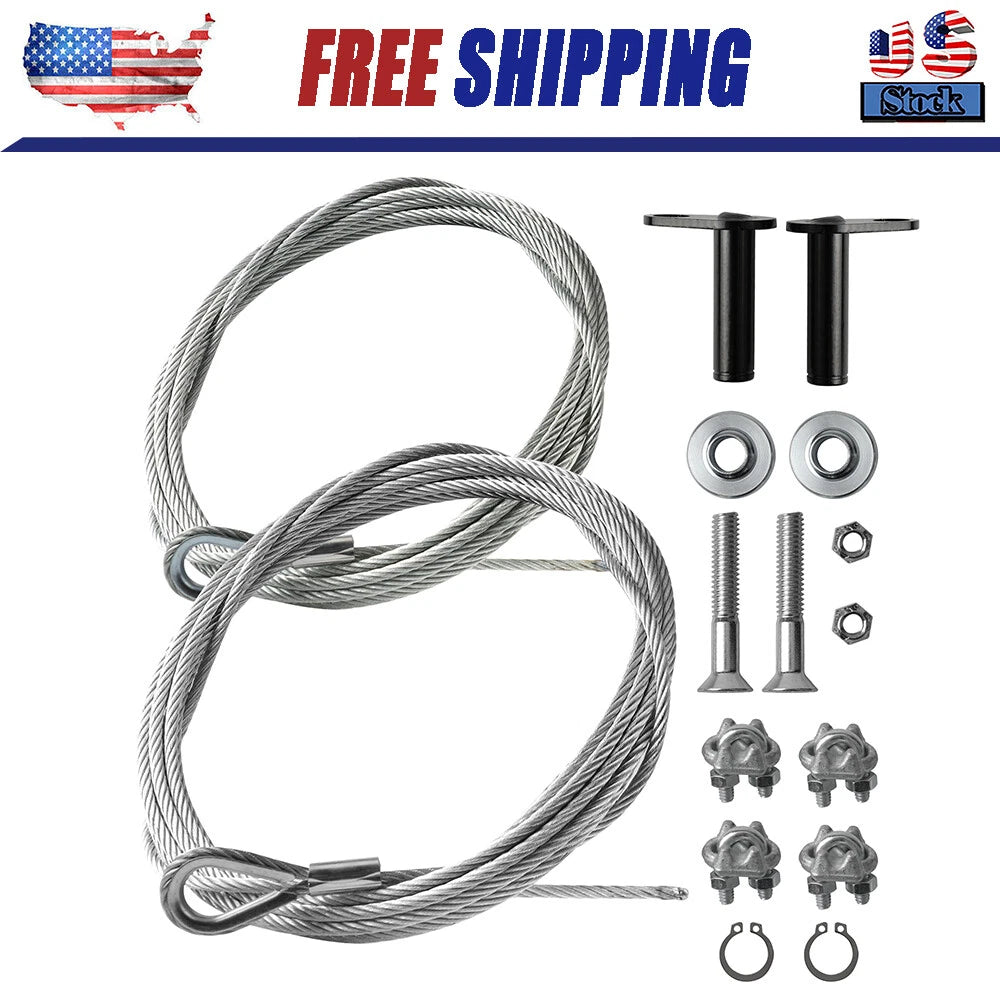

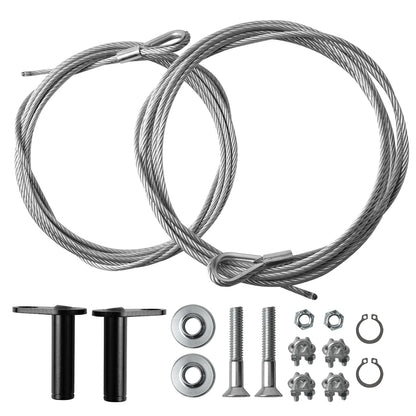

The hardware consists of four wire-rope clips, two headed pins, two round metal spacers, two bolts, two separate hex nuts and two retaining rings. Compare the cable ends and hardware with the liftgate's parts diagram before ordering.

Cables and included hardware

Part

Liftgate repair cable set with hardware

Replacement reference

002939

Cable quantity

Two

Listed cable size

7/32 inch

Cable ends

Formed eye at one end; free tail at the other

Wire-rope clips

Four assembled clips

Other included hardware

Two pins, two round spacers, two bolts, two hex nuts and two retaining rings

Application boundary

Match the 002939 requirement; not for Mini liftgates

Confirm the liftgate's cable kit reference

Tommy Gate's Original Series parts catalog identifies 002939 as a 7/32-inch replacement lift cable kit and excludes Mini liftgates. It lists separate cable kits for Mini and Model 60 applications. Check the model, serial number and specified kit on your own gate; the word Universal does not establish that every Tommy Gate uses this set.

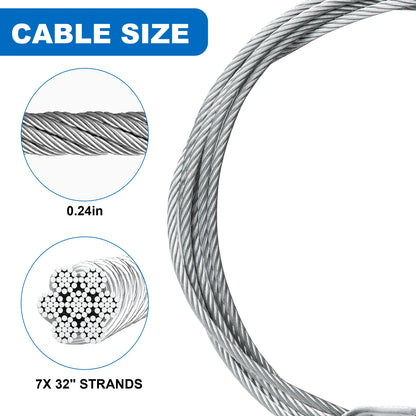

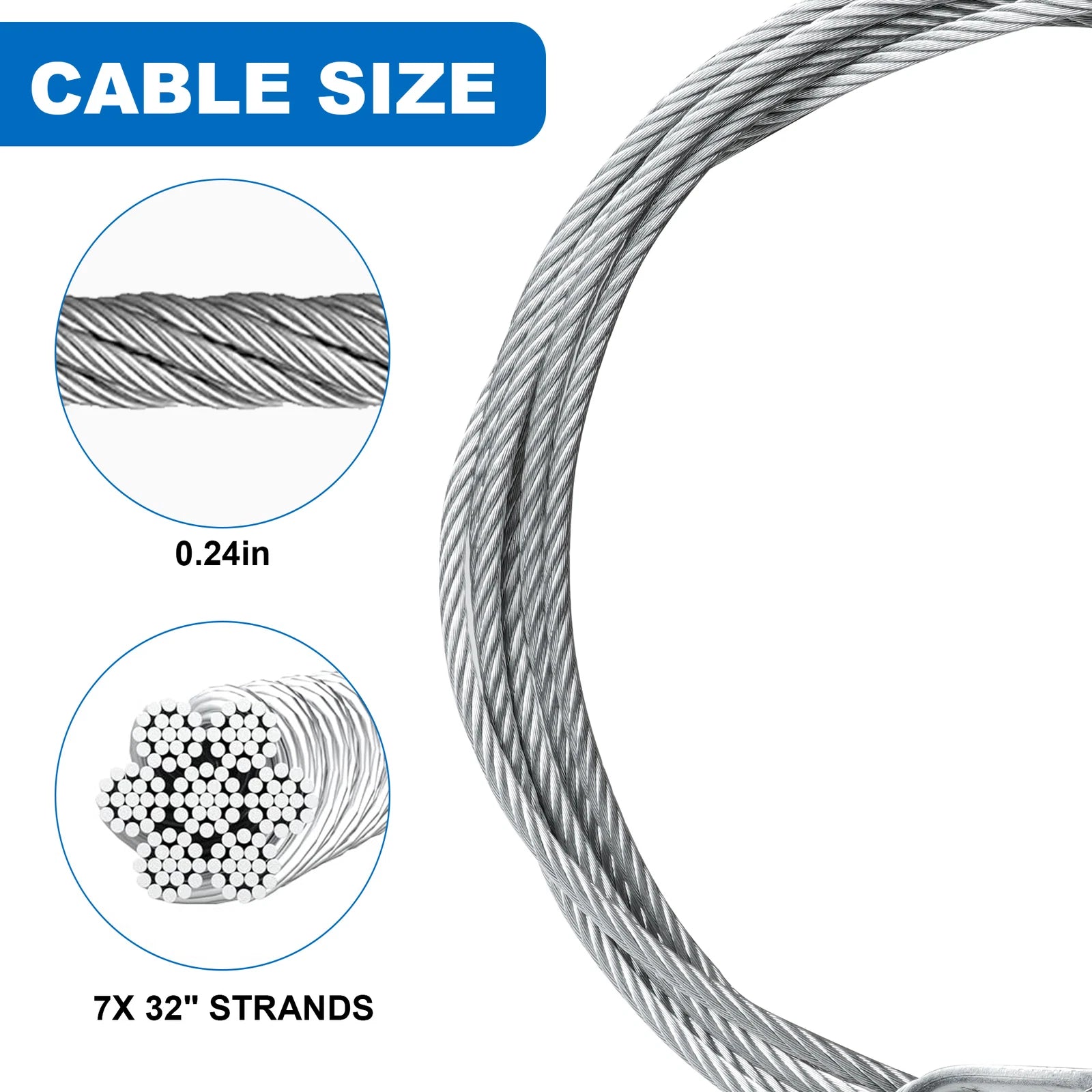

The 7/32-inch specification refers to the listed cable size. It does not give the pin diameter, mounting-hole size or bolt thread. Cable lengths and hardware dimensions have not been verified for this replacement.

Routing and adjustment

Have the cables installed using the service procedure for the matched liftgate, including the required routing, clip placement and final adjustment. Check the pulleys and attachment points during the repair. This package supplies cables and hardware; pulleys, platform chains and hydraulic components are separate.

No independent load rating or wire-rope grade is specified for this set. Keep the liftgate within its own rated capacity after the completed repair has been checked.
