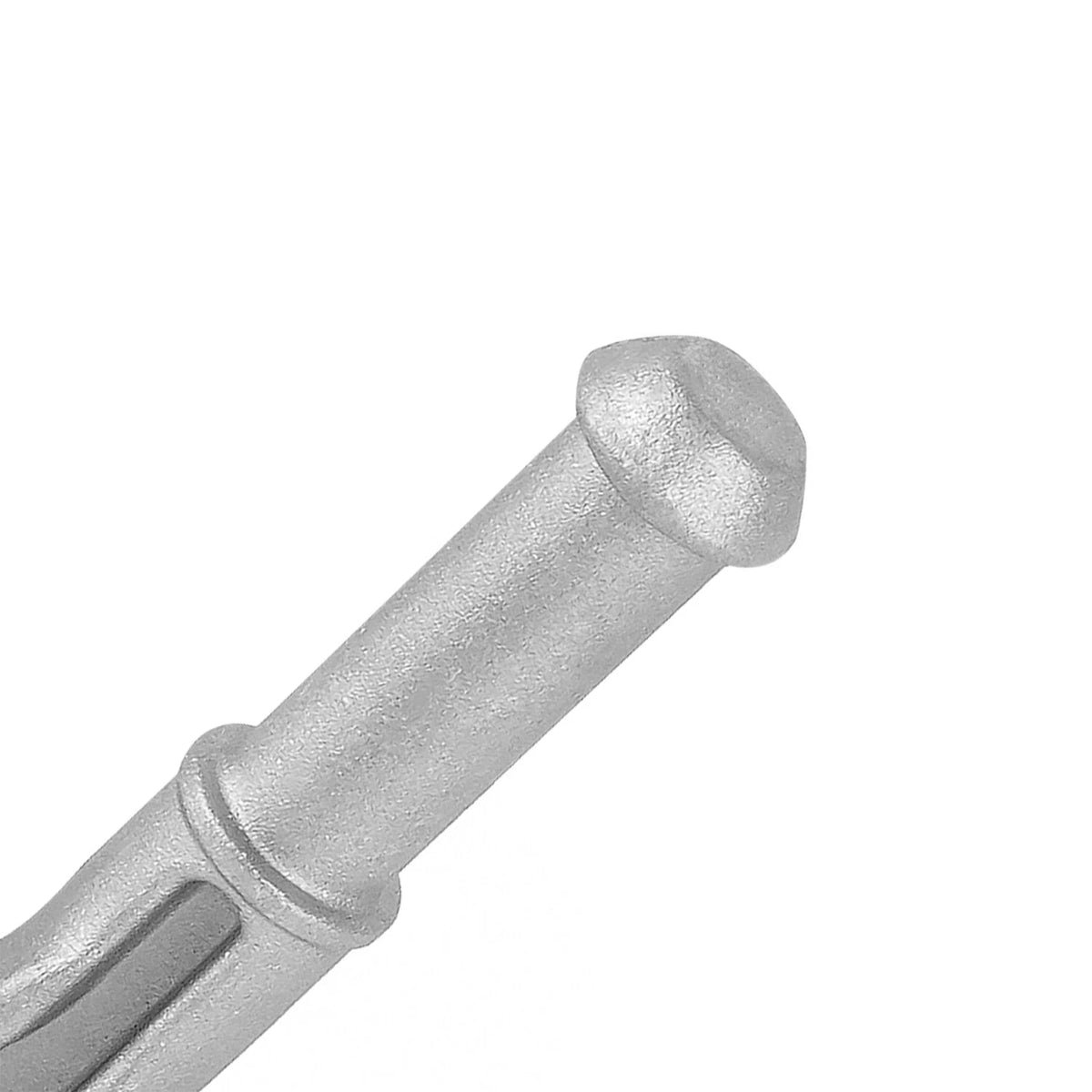

Right rear exhaust bracket and isolator set for Ram 1500 2019-2025

Rear exhaust bracket with rubber isolator

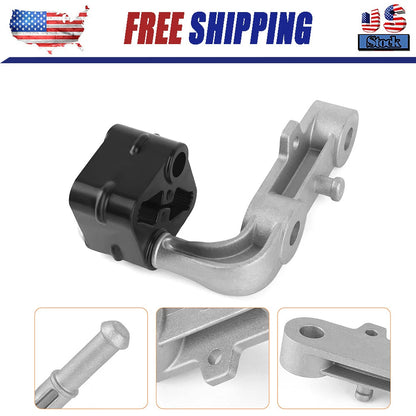

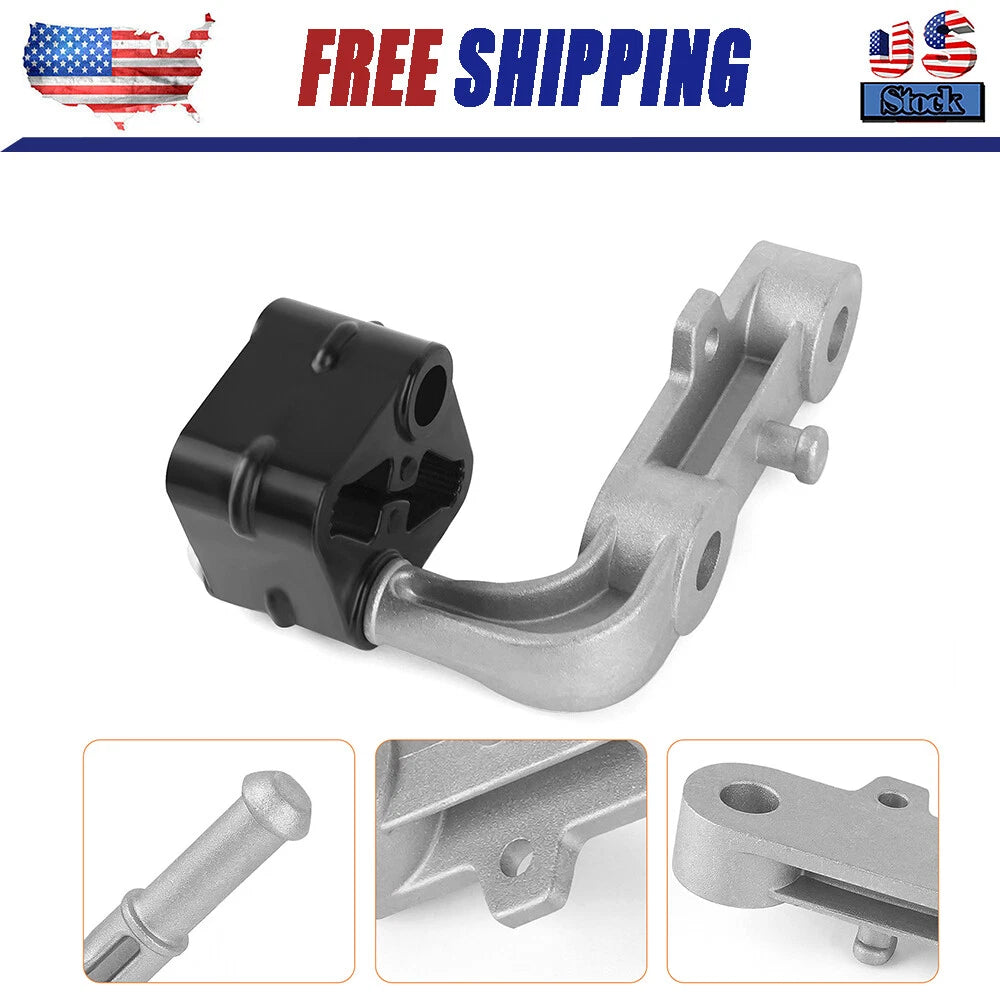

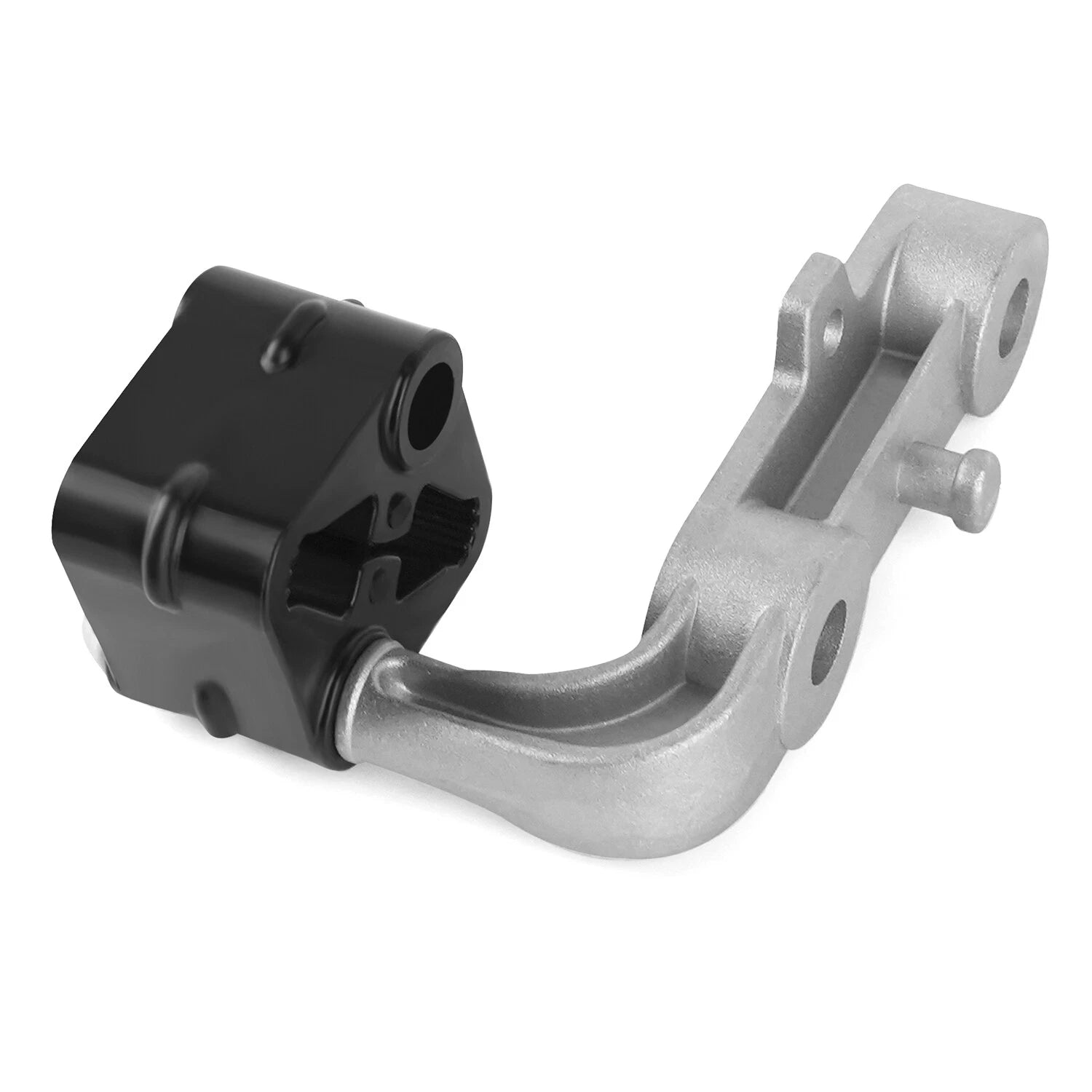

This replacement set contains one silver-colored aluminum exhaust bracket and one black rubber isolator, shown fitted together. It is listed for selected 2019-2025 Ram 1500 applications at the right rear support position. The set supplies one support assembly; a second bracket, mounting bolts and exhaust pipes are not shown.

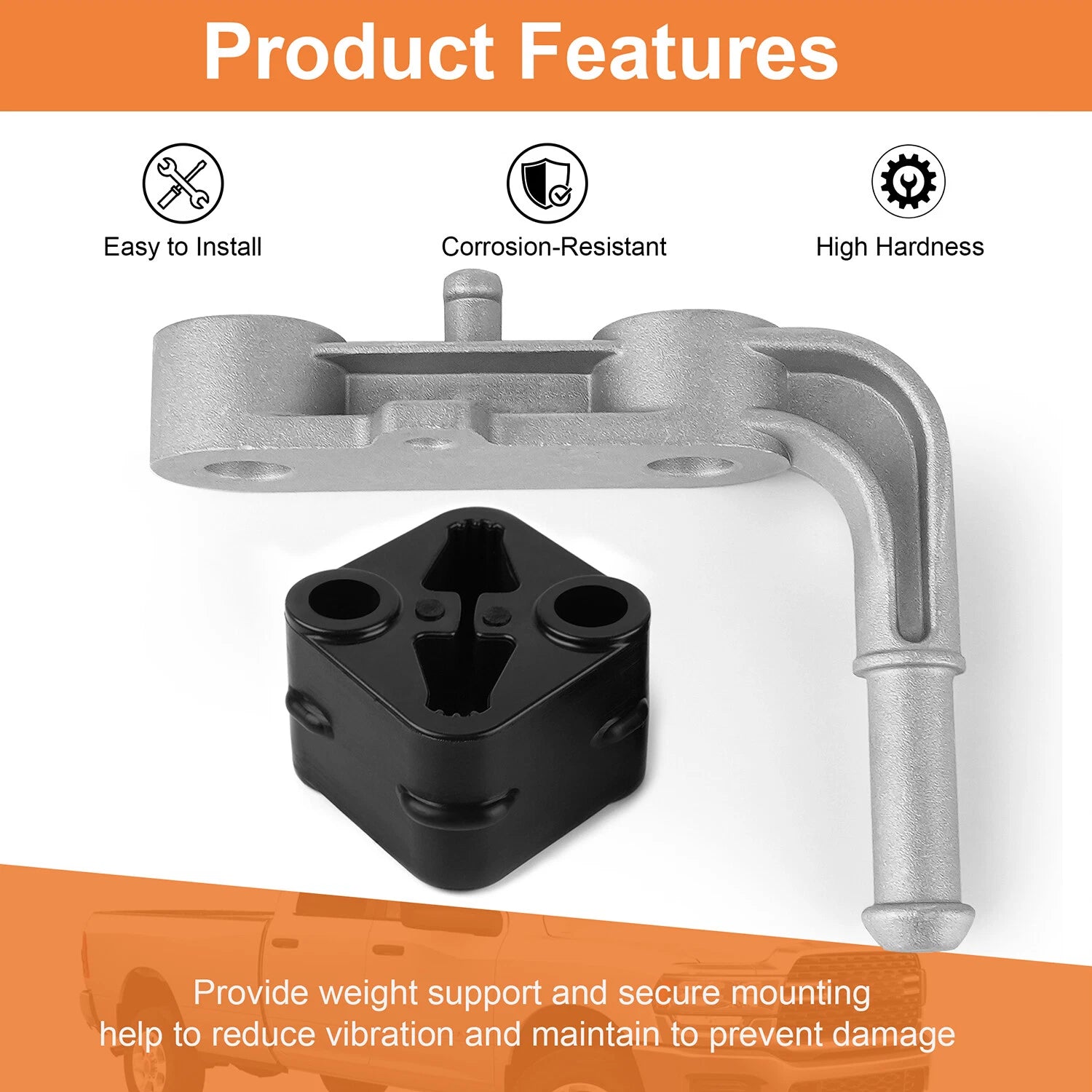

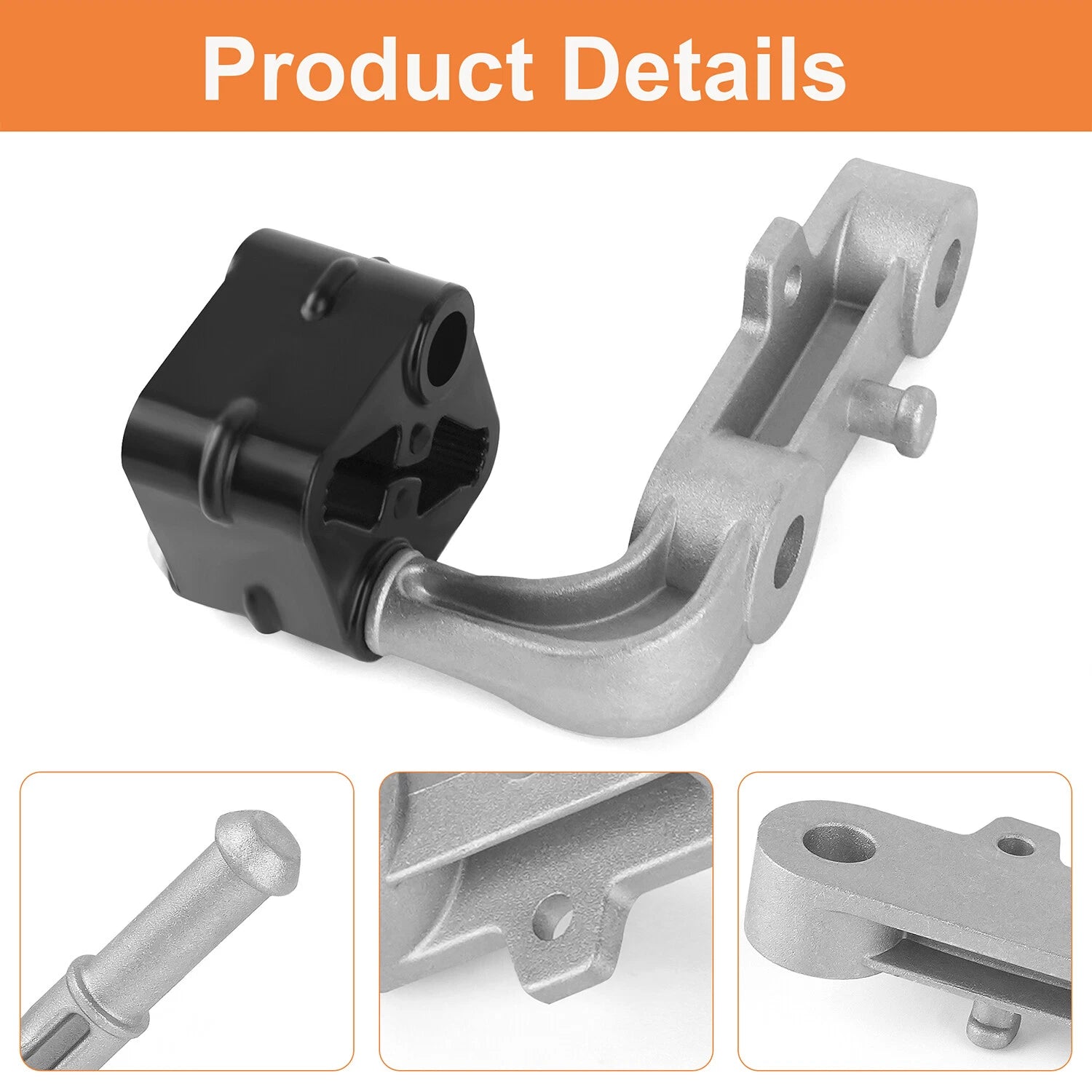

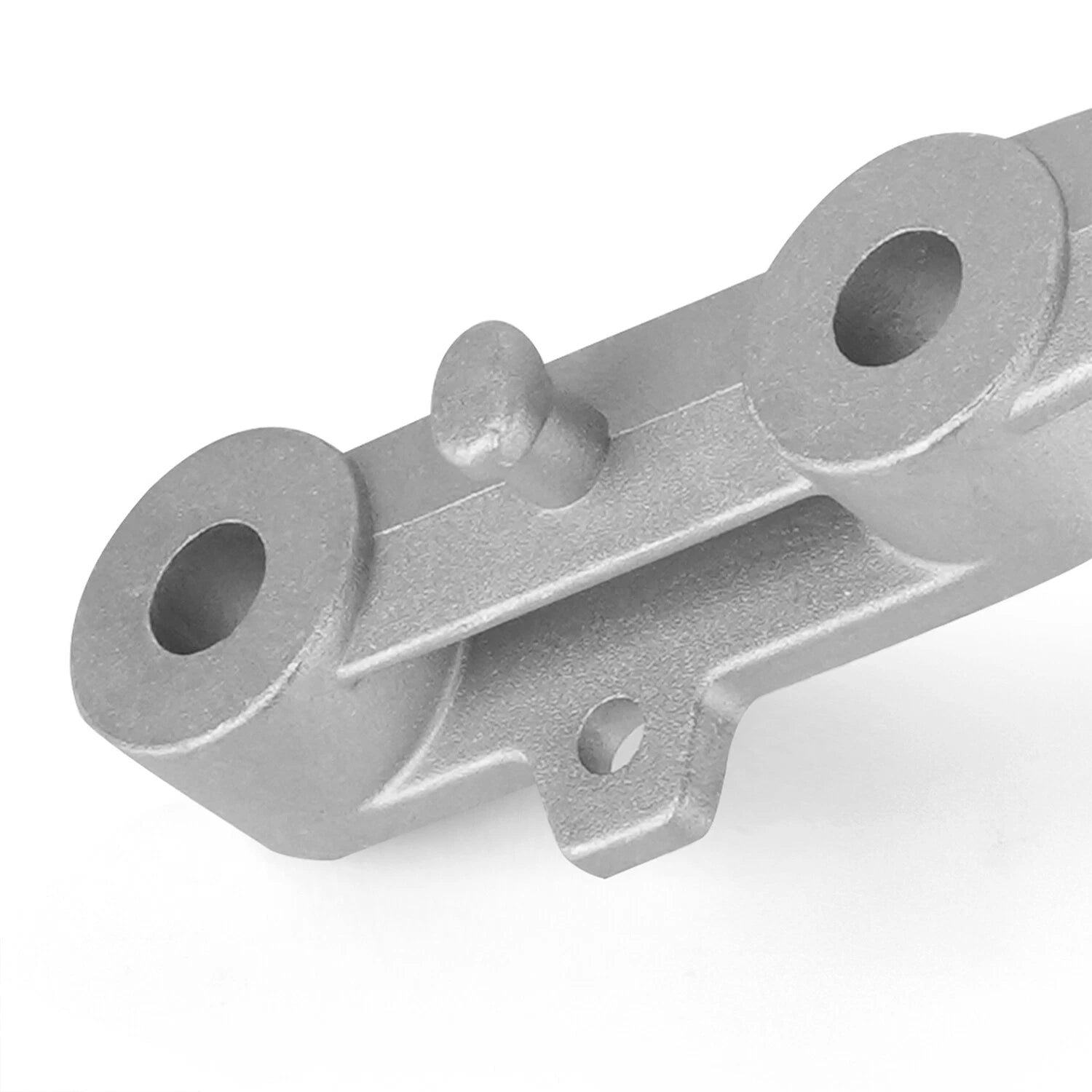

The bracket has an offset arm, mounting openings and a locating post. One end engages the rubber isolator, which has a separate opening for the exhaust hanger rod. Compare the bracket's shape, mounting pattern and isolator arrangement with the original support before ordering.

Keep the bracket and isolator references separate

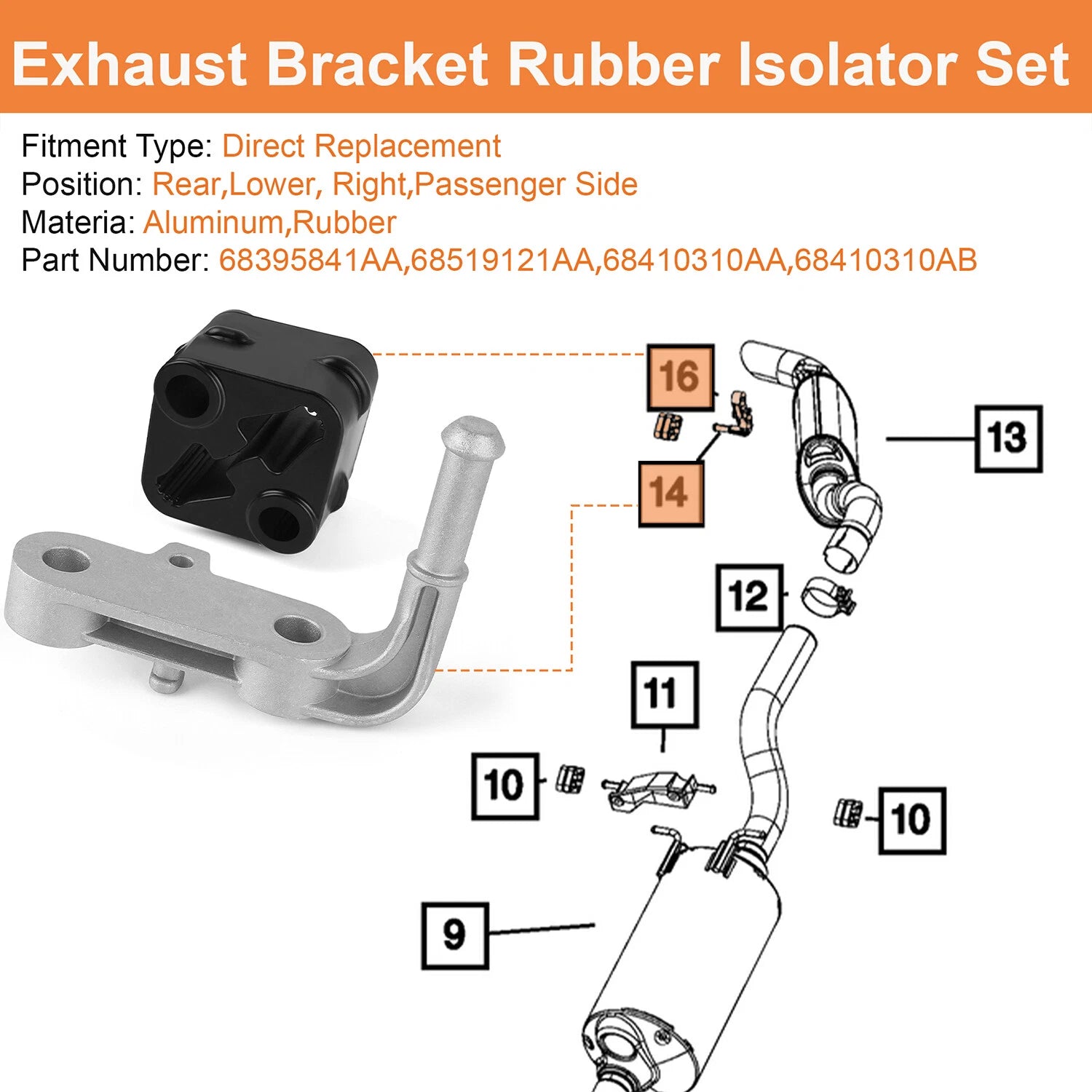

Bracket reference 68395841AA identifies a right-side tailpipe support. The rubber isolator references are 68519121AA, 68410310AA and 68410310AB. An isolator's use at more than one position does not make this shaped bracket interchangeable between left and right sides.

Use the truck's VIN and exhaust parts information to confirm the support position and both components. Check the body version, engine and installed exhaust arrangement, including whether the truck is a Ram 1500 Classic or the newer body. The 2019-2025 range does not establish that every Ram 1500 exhaust or aftermarket system uses this assembly.

Parts and reference details

Bracket supplied

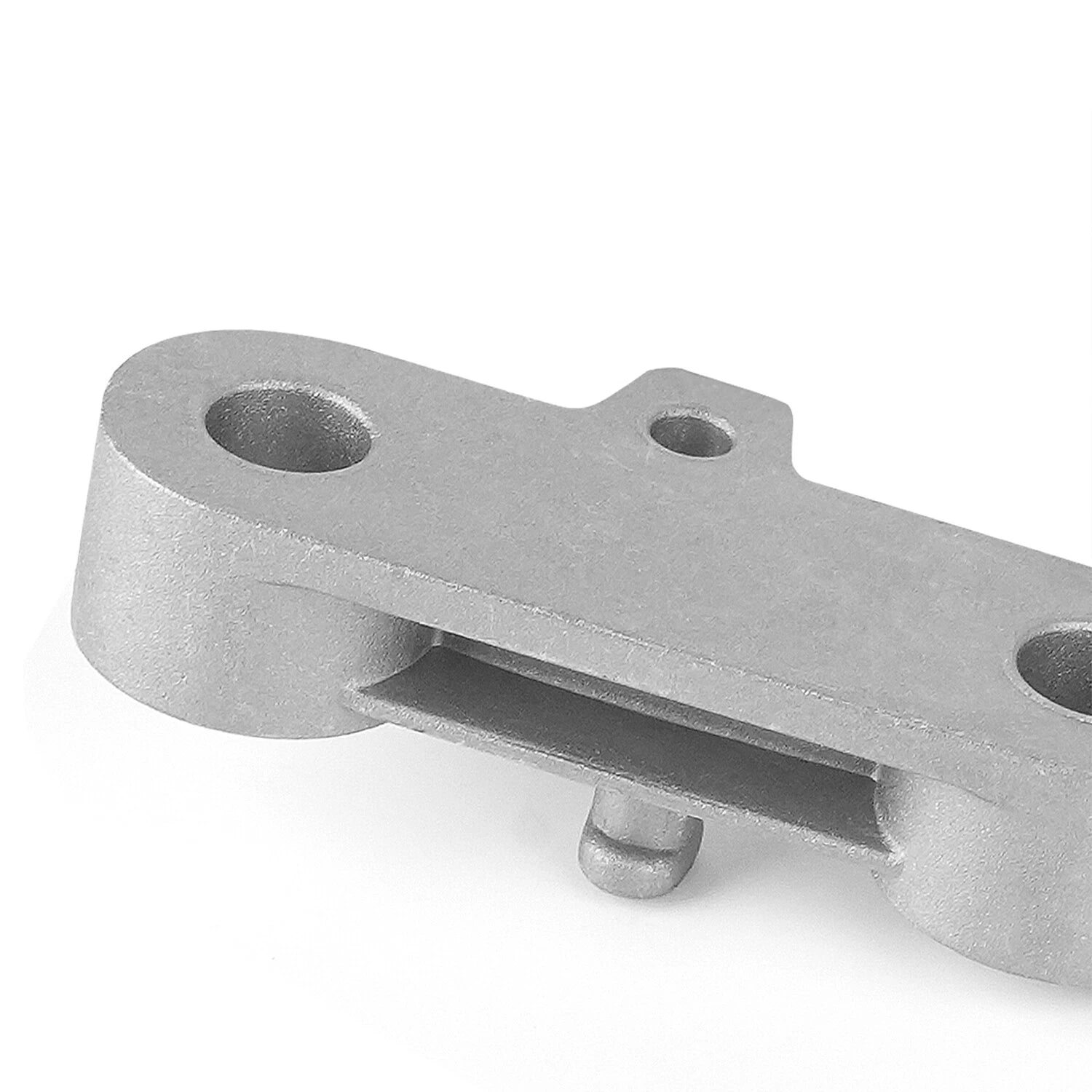

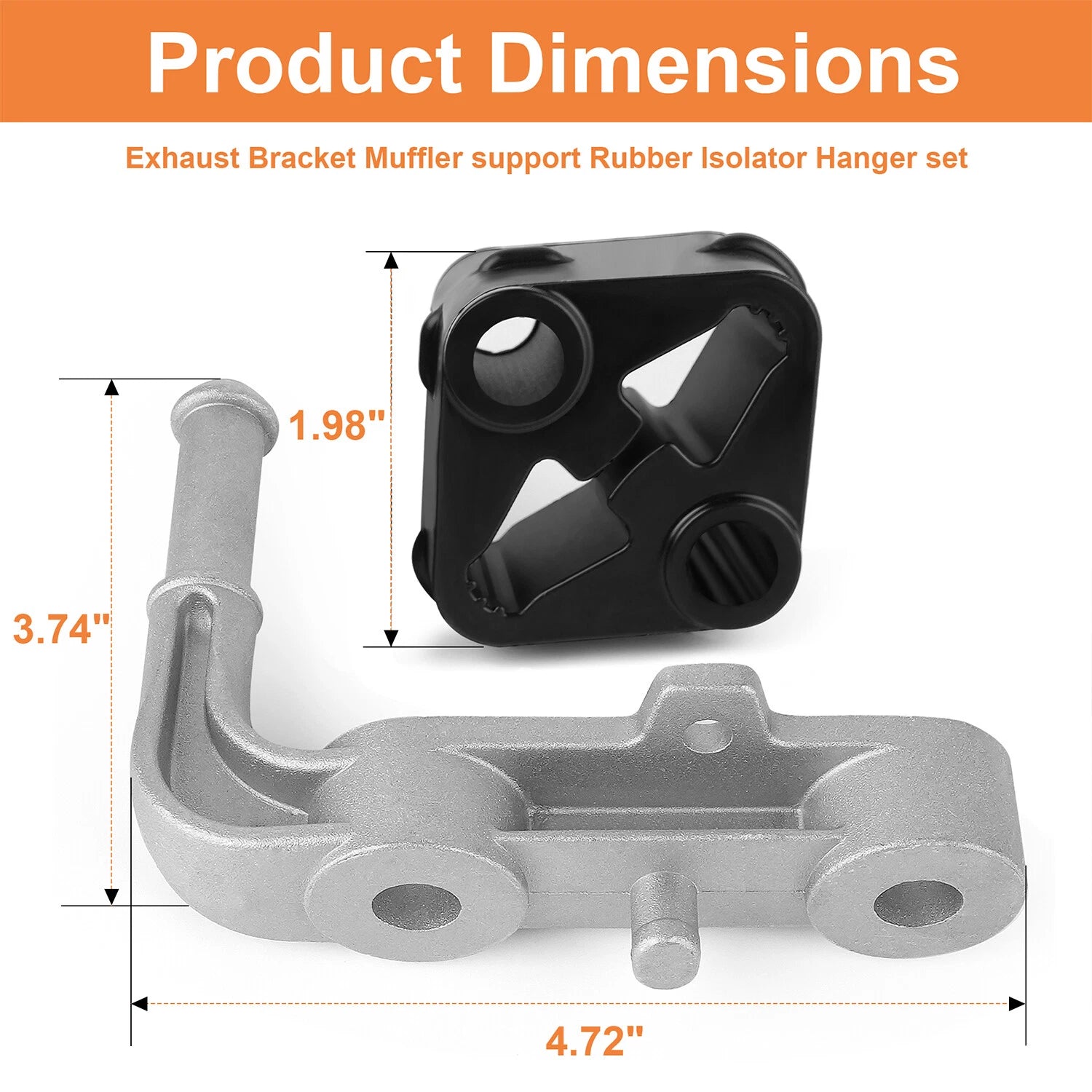

One aluminum bracket with offset support arm, mounting openings and locating post

Isolator supplied

One black rubber isolator, shown fitted to the bracket

Listed position

Right rear exhaust support; confirm the exact mounting location

Bracket reference

68395841AA

Isolator references

68519121AA, 68410310AA and 68410310AB

Vehicle selection

Selected Ram 1500 applications, 2019-2025; VIN, body version and exhaust configuration check required

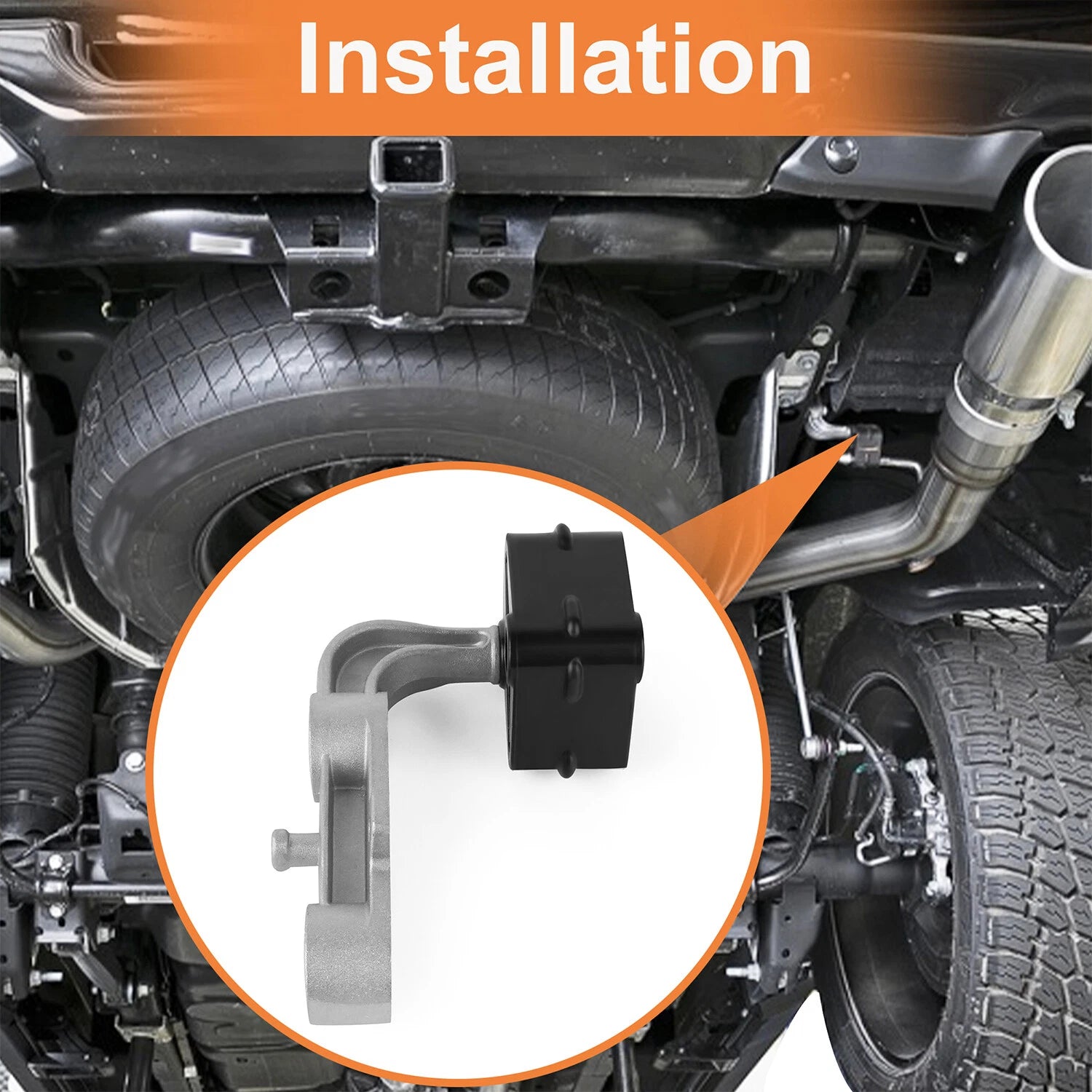

Inspect the exhaust support area

Check the bracket attachment points, exhaust hanger rod and surrounding supports for damage before replacing this assembly. A torn isolator, bent rod or loose mounting point requires its own assessment. The bracket and isolator support the exhaust at a matched location; they do not repair a leaking muffler, pipe or exhaust joint.

Allow the exhaust to cool and support it during removal so its weight does not pull on the remaining hangers. Follow the truck's service procedure for the correct fasteners, tightening specification and exhaust alignment. Check pipe and body clearance after installation. Bolt sizes, rubber compound, load rating and a guaranteed reduction in noise or vibration are not specified for this replacement.
