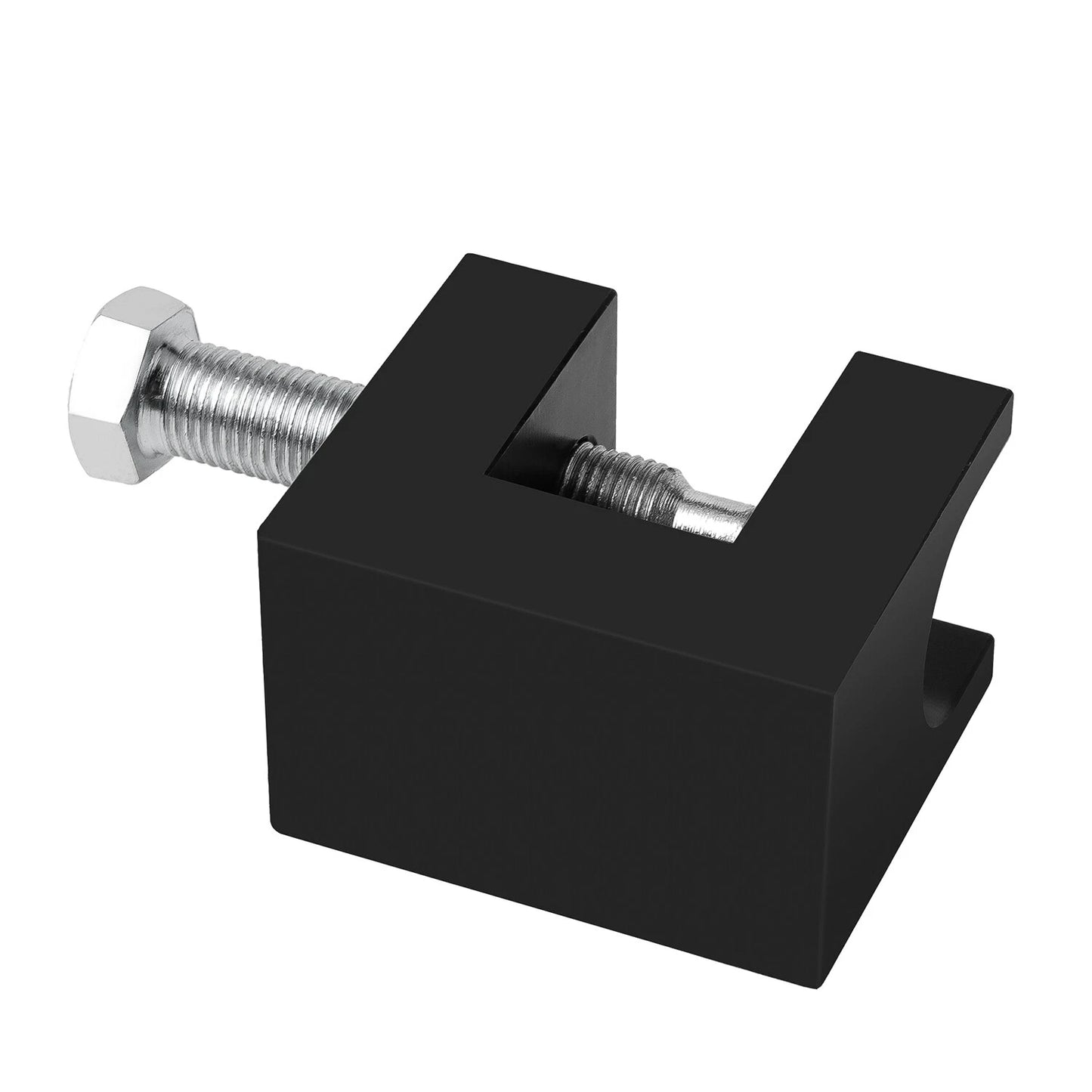

9020902-01 Door Hinge Pin Removal Tool for Silverado / Sierra

Screw press for door hinge pin removal

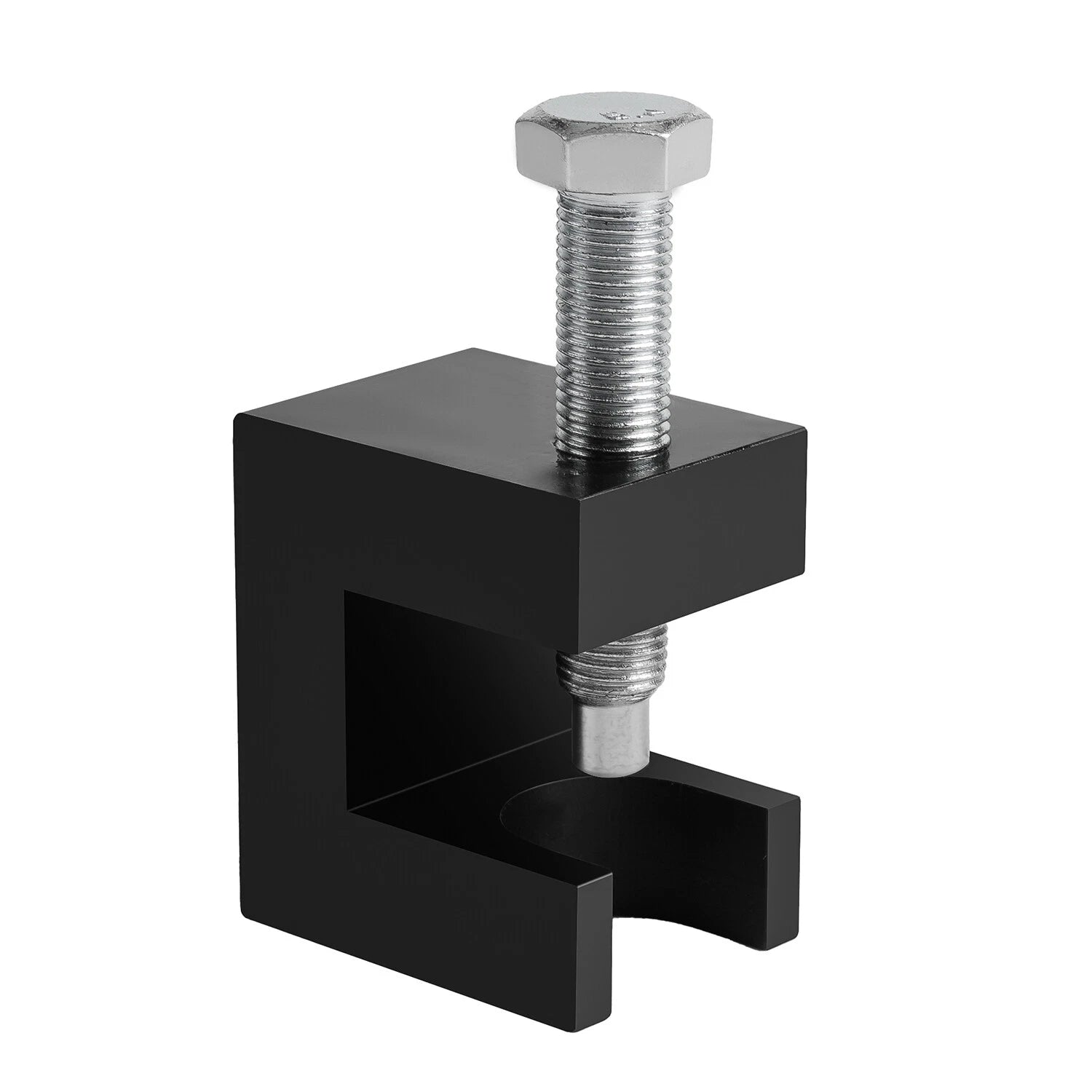

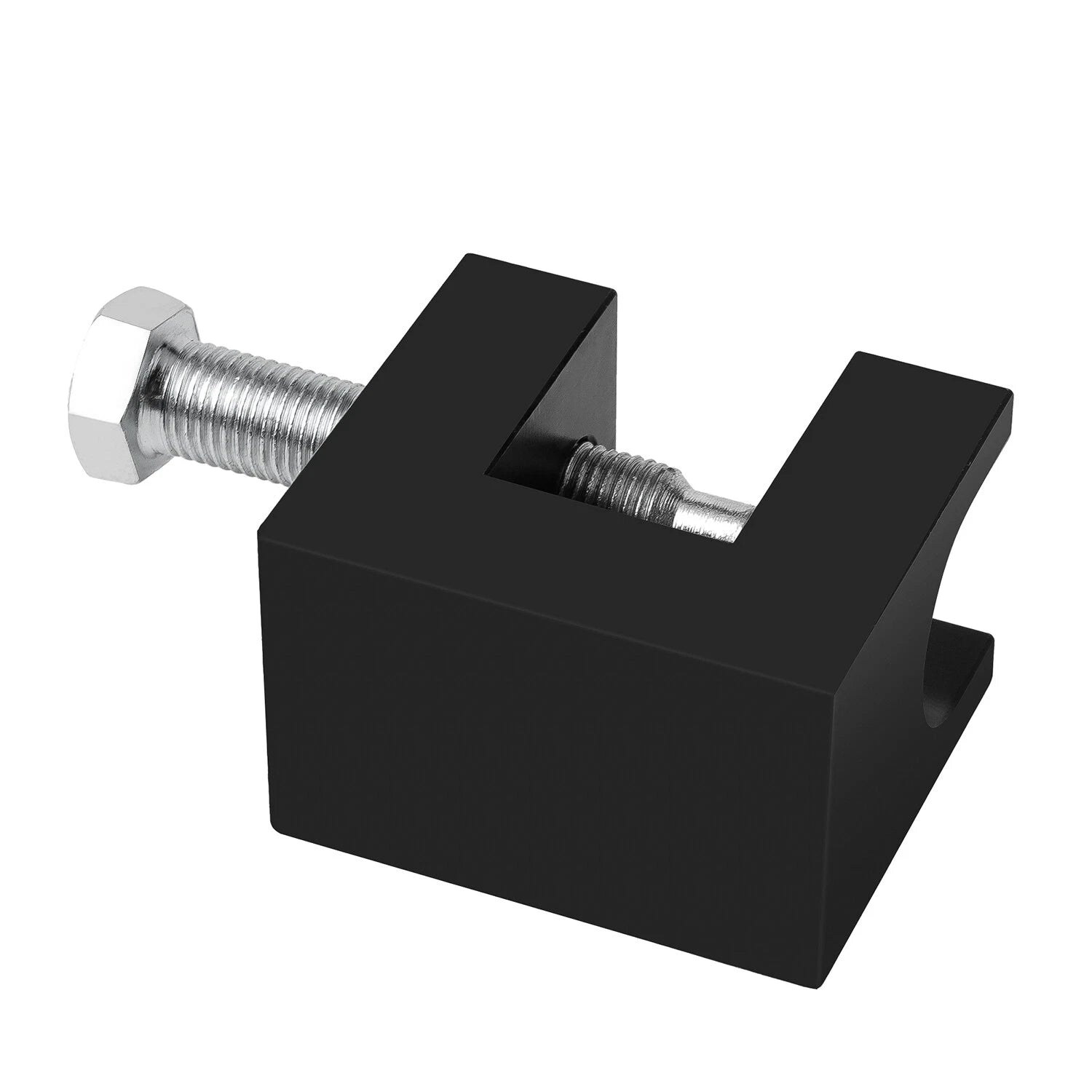

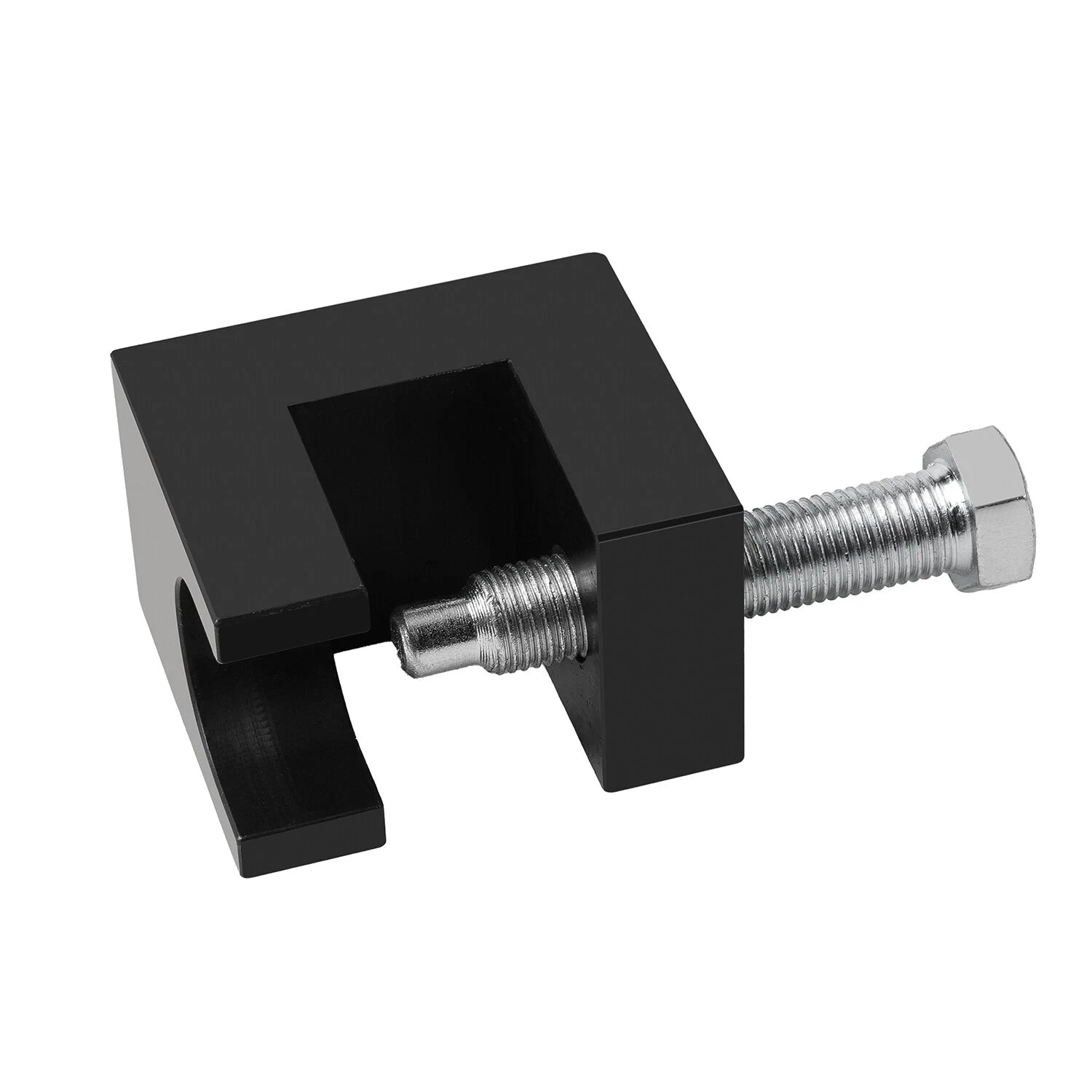

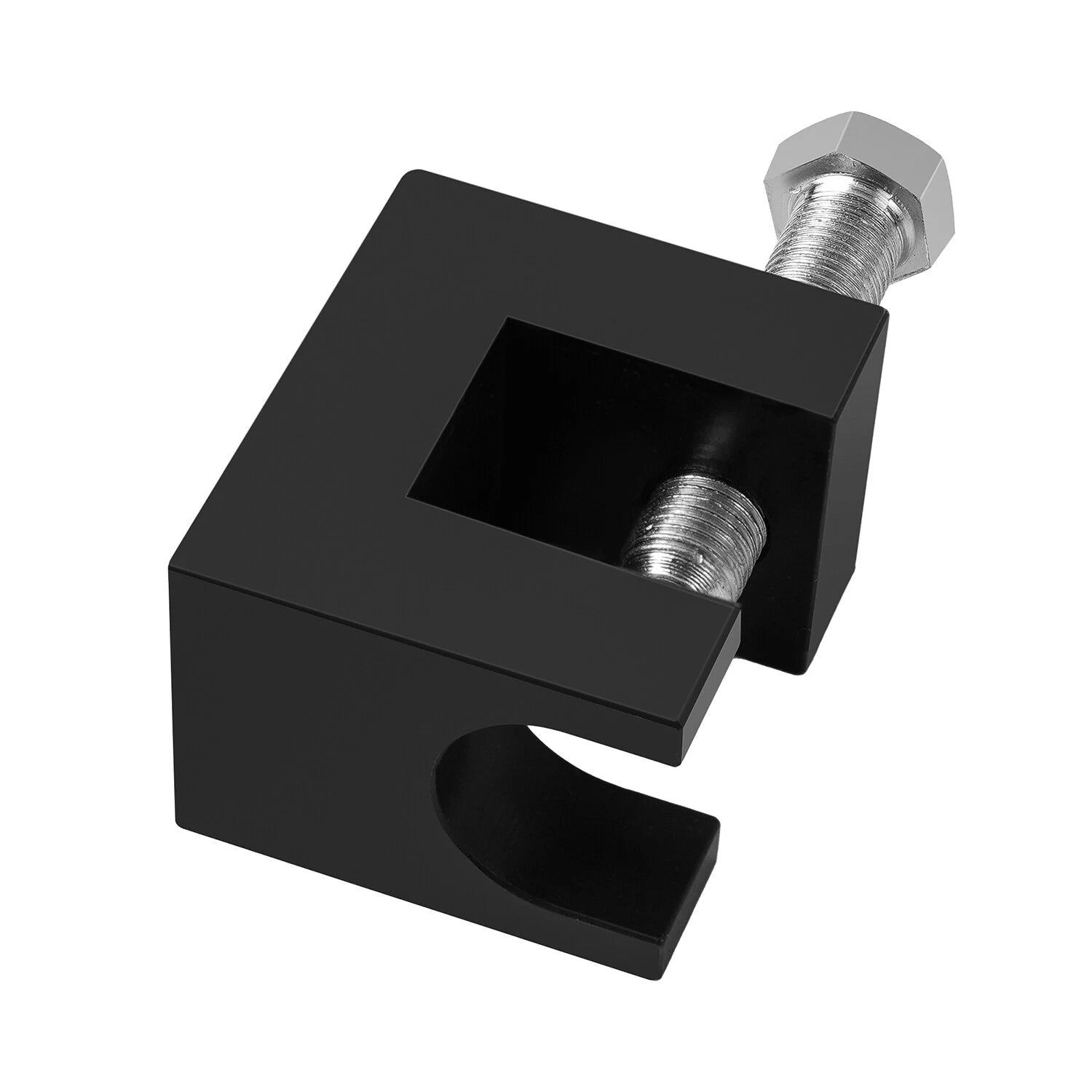

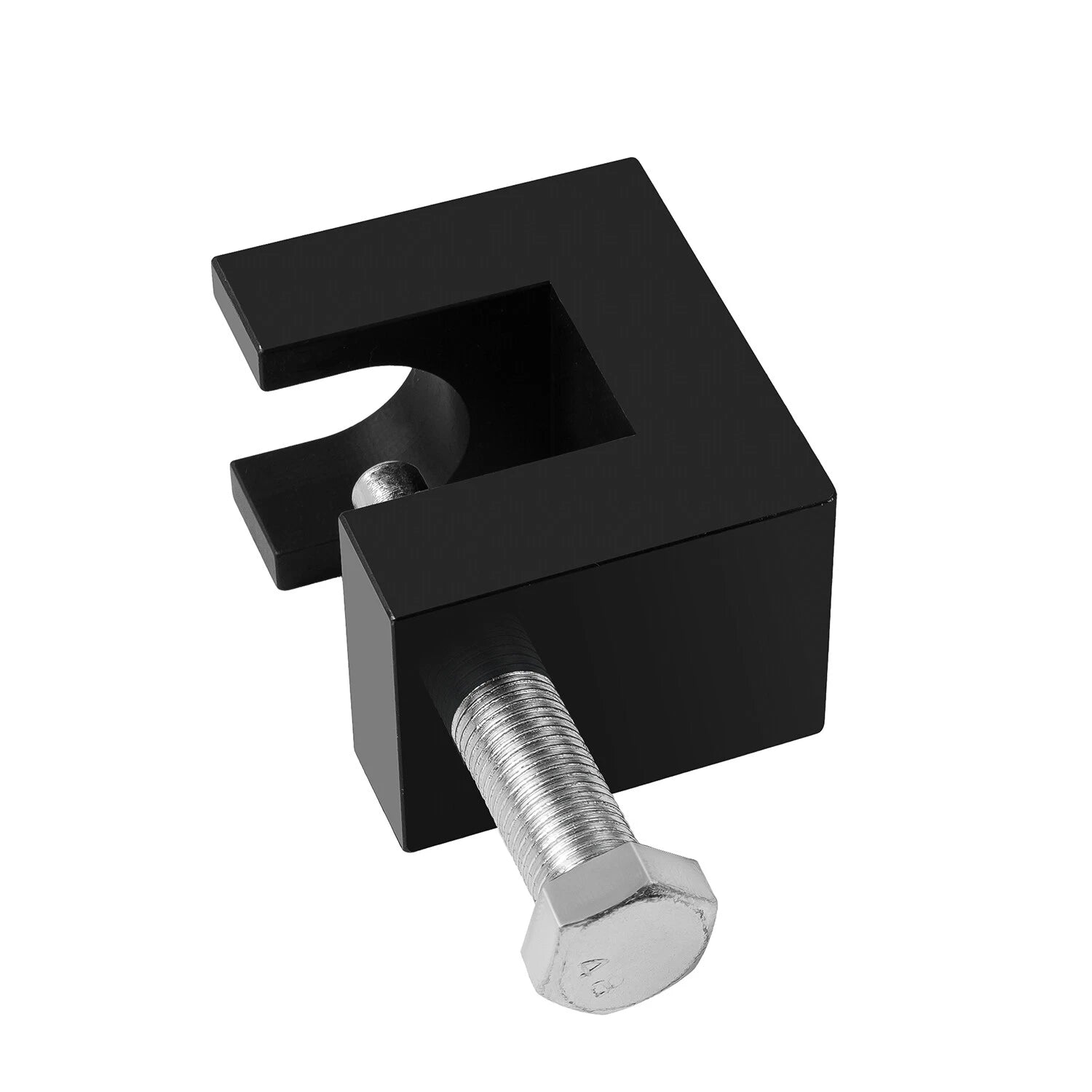

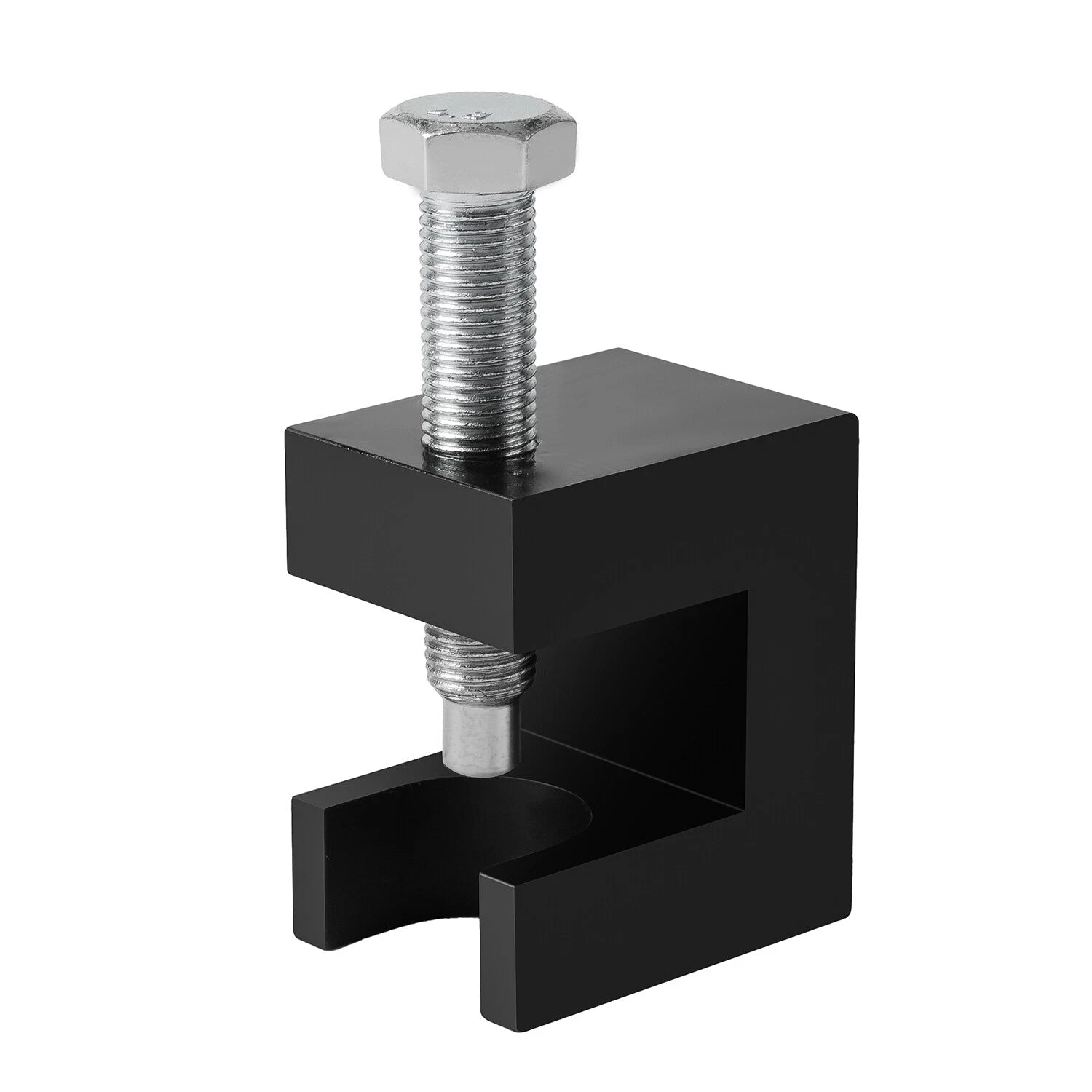

This 9020902-01 tool is listed for compatible door hinges on Chevrolet Silverado 1500, 2500 and 3500 trucks and GMC Sierra models. Its C-shaped frame and threaded forcing screw press against the hinge pin during removal.

The package contains one tool with the screw fitted to the frame. The screw has a hex head for turning and a reduced-diameter tip at the working end. Replacement hinge pins and bushings are sold separately.

Tool details

Tool reference

9020902-01

Purpose

Door hinge pin removal using screw pressure

Listed vehicles

Chevrolet Silverado 1500 / 2500 / 3500 and GMC Sierra, with a compatible hinge layout

Package quantity

1 tool with forcing screw

Frame

Black C-shaped body with an open side

Screw head

External hex head; wrench size not confirmed

Working end

Narrower tip on the forcing screw

Opening and reach

No confirmed jaw-opening or throat-depth measurements

Check access around the hinge

Compare the hinge shape and available working space with the tool photos before ordering. The frame must fit around the hinge while the screw tip lines up with the pin. Check the exact truck year and door configuration; the Silverado or Sierra name alone does not confirm tool clearance.

Prepare the hinge for removal

Use the vehicle's hinge service procedure for pin preparation and door support. This tool does not include a door support or bushing-installation adapter. Its screw thread, material grade and allowable working load are not specified, so no torque or impact-tool setting is provided.
