Digital AC/DC Clamp Meter 60A Auto Select Multimeter 6000 Counts True RMS NCV Live Wire Tester with Temperature for Electrical

Digital AC/DC Clamp Meter 60A Auto Select Multimeter 6000 Counts True RMS NCV Live Wire Tester with Temperature for Electrical

$55.14 USD
$55.14 USD $55.14 USD
Sale Sold out
Shipping calculated at checkout.

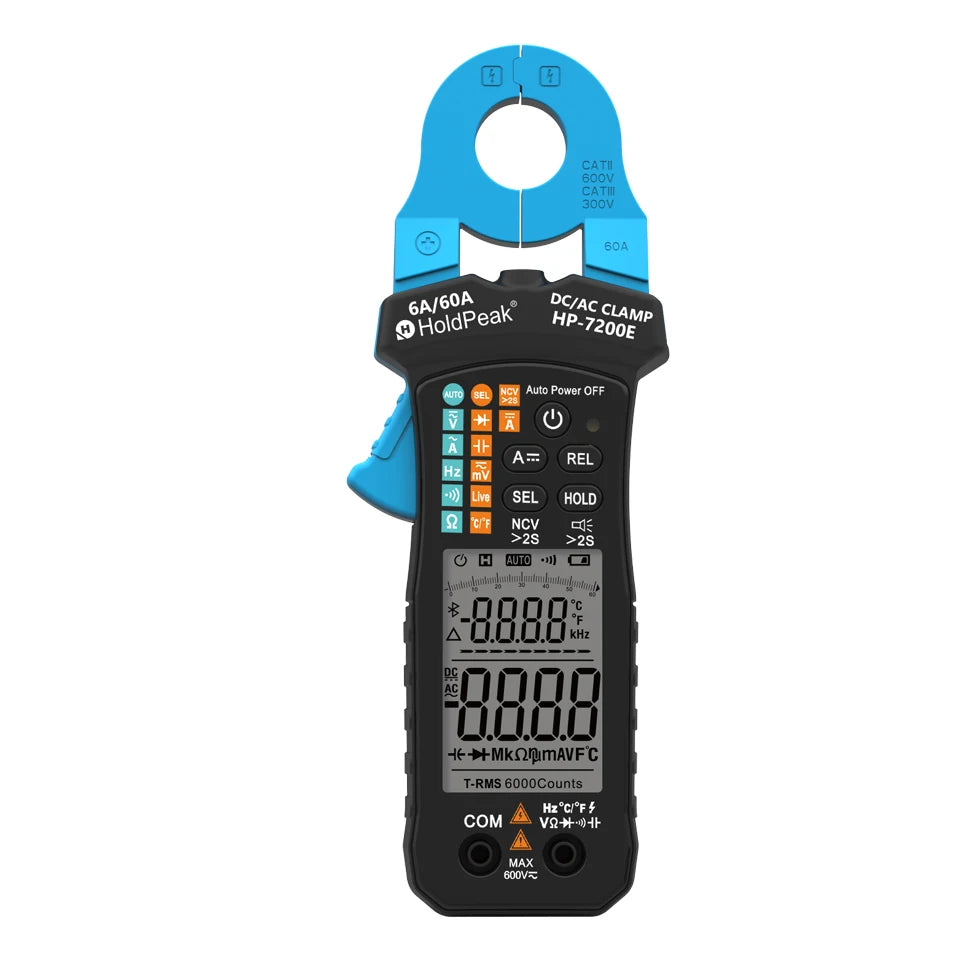

HP-7200E Clamp Meter: 60A Auto-Select Multimeter, 6000 Counts True RMS, NCV, Live Wire Tester, Temperature Measurement, CAT II 600V Safety Rating, Digital Display, Backlight, AAA Battery Powered.
  • 60A Auto-Select Clamp Meter with True RMS The HP-7200E features a 60A measuring current range with auto-select functionality, ensuring accurate readings across various electrical applications. Its True RMS capability delivers precise measurements for complex waveforms.
  • Comprehensive Voltage and Resistance Measurement With a 600V voltage range and multiple resistance ranges up to 60MΩ, this multimeter handles diverse electrical diagnostics. It supports 60mV to 600V DC/AC and 600Ω to 60MΩ resistance testing.
  • NCV Live Wire Detection & Temperature Measurement Equipped with NCV  detection, it safely identifies live wires without contact. The built-in temperature sensor measures from -20℃ to 1000℃, ideal for electrical and automotive inspections.

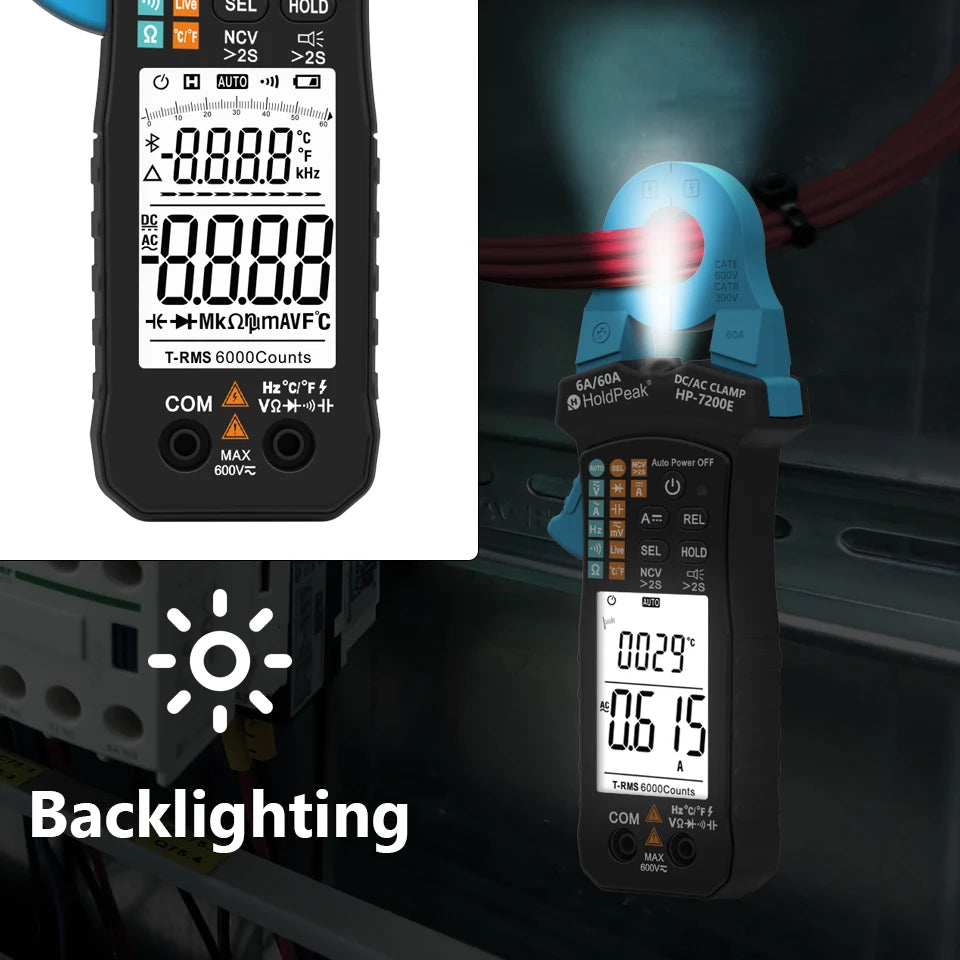

  • Backlit Digital Display & REL Mode The digital-only display includes a backlight for clear visibility in low-light conditions. It also features REL mode for relative measurements, enhancing precision during repeated testing tasks.
  • High Safety Rating & Compact Design Certified with CAT II 600V CAT III 300V safety ratings, the HP-7200E ensures protection in demanding environments. Its compact size of 207 x 75 x 37mm makes it easy to carry and use in tight spaces.
  • Includes 6000 Counts Resolution & AAA Battery Power The 6000 counts resolution provides high precision for detailed readings. Powered by a AAA battery it offers reliable performance with low power consumption and long operational life.
  • Perfect for Electrical, Home, and Automotive Use Designed for electrical, home appliance, and automotive applications, this clamp meter supports a wide range of DIY and professional tasks. Its 20mm clamp opening accommodates most wires and cables efficiently.

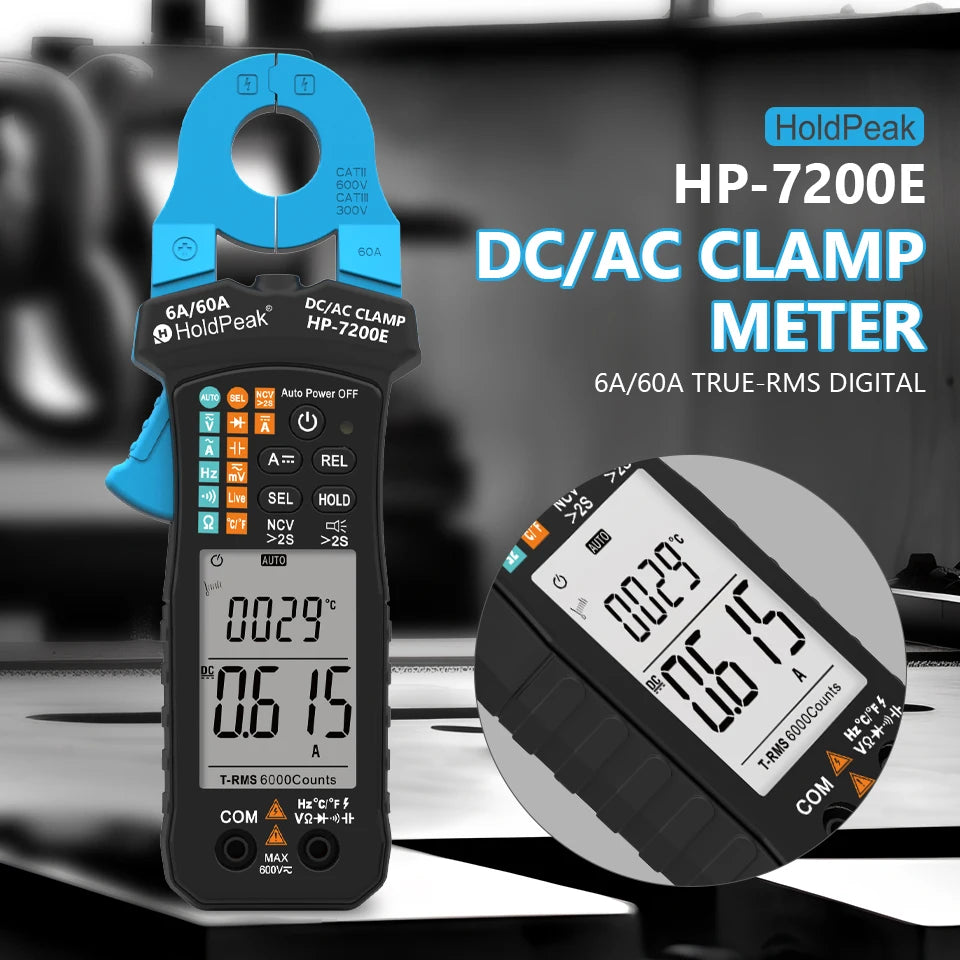

HP-7200E,AC/DC Clamp Meter 60A Auto Select Multimeter 6000 Counts True RMS NCV Live Wire Tester with Temperature for Electrical

The 7200E is a 60A AC/DC clamp meter with auto-select, 6000-count true RMS, and 20mm jaw opening. Features NCV detection, live wire identification, temperature measurement, capacitance, frequency, REL mode, and data hold. Powered by 2×AAA batteries. Perfect for electrical troubleshooting, home appliance repair, automotive circuits, and DIY projects.

Perfect for：

🔧 Home appliance electrical testing
🚗 Automotive circuit diagnostics
🏠 Household outlet and wiring inspection
🏭 Light industrial electrical maintenance
📊 Small current measurement (up to 60A)
🔌 Live wire identification for safety

⚙️ Features

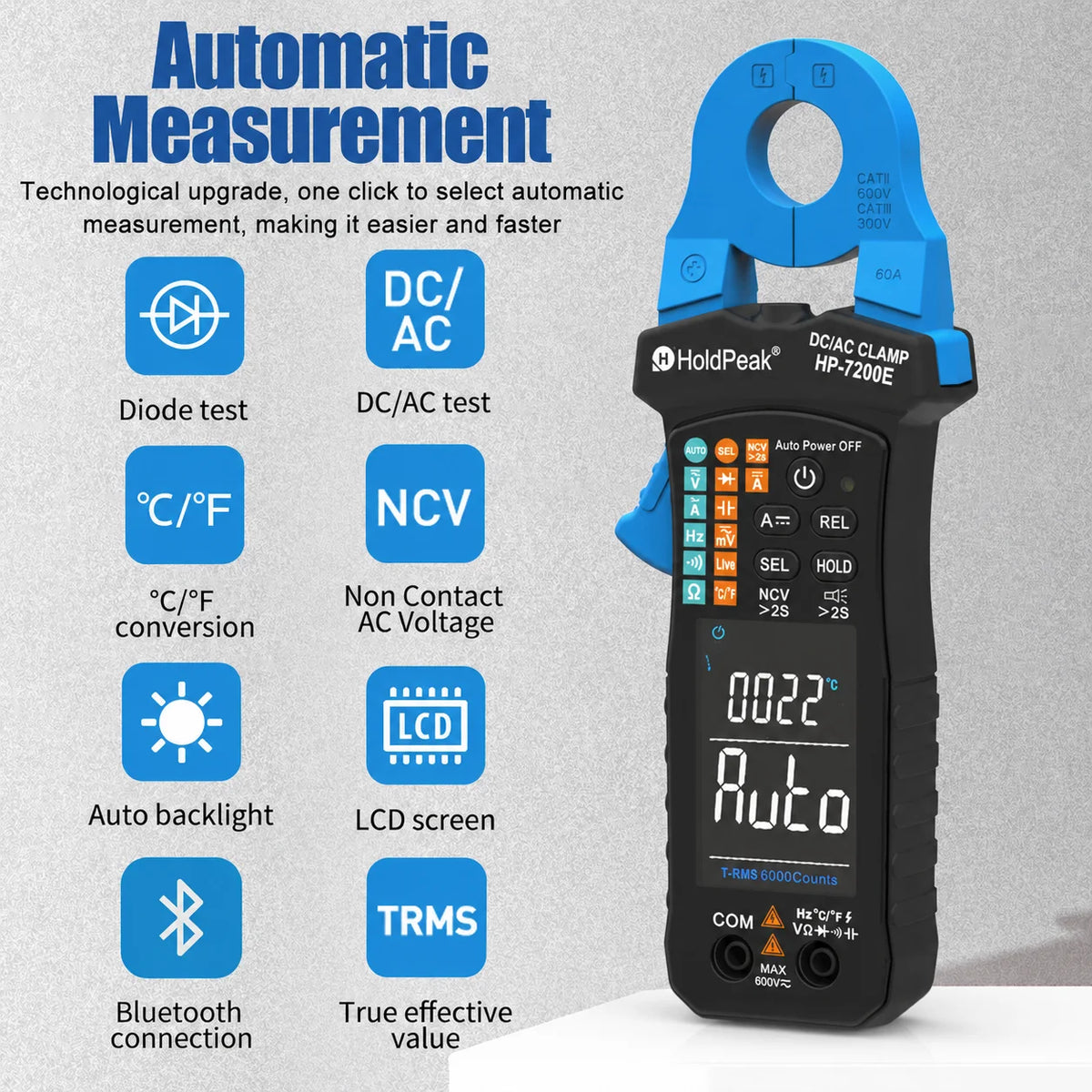

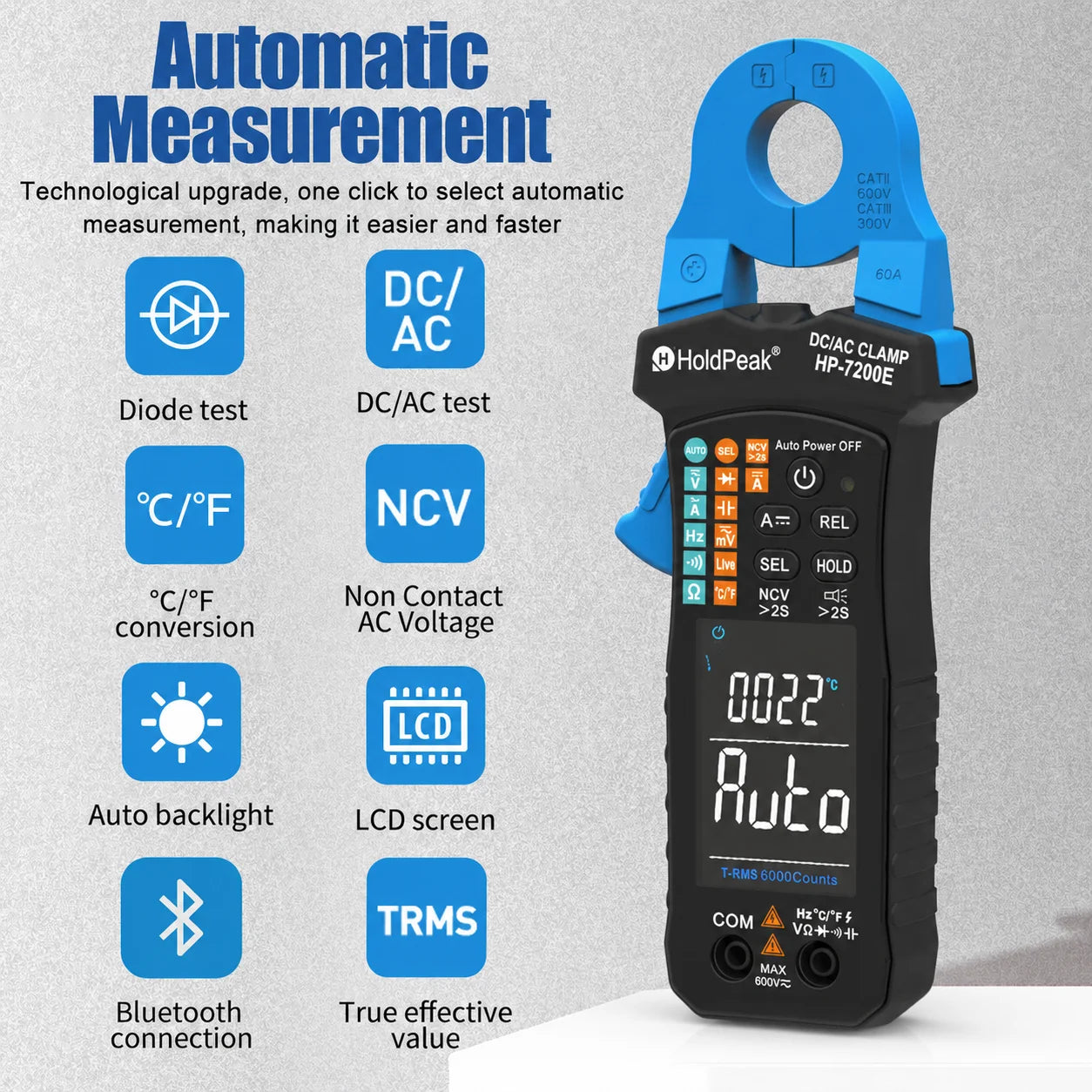

✅ Auto-Select & Auto-Range – Automatically identifies DC voltage, AC voltage, resistance, and continuity. Simply connect test leads – the meter chooses the correct mode. Auto range selects best resolution.

✅ 60A AC/DC Current with 20mm Jaw – Measures current up to 60A (6A/60A ranges). Compact 20mm jaw fits in tight spaces – ideal for crowded breaker panels and automotive fuse boxes.

✅ 6000 Counts True RMS – High-precision true RMS for accurate AC measurements on non-sinusoidal waveforms. 6000-count display with analogue bar graph and secondary display.

✅ NCV & Live Wire Detection – Non-contact voltage detection (90V-1000V AC) with audible/visual alert. Live wire identification for power outlet testing – insert red test lead to identify hot wire.

✅ Multi-Function Measurement – AC/DC voltage (600V), AC/DC current (60A), resistance (60MΩ), capacitance (60mF), frequency, temperature (-20℃ to 1000℃ with K-type), diode, and continuity.

✅ User-Friendly Design – Backlit LCD, data hold, REL relative measurement, lamp light for dark areas. Auto power off after 15 minutes. Powered by 2×AAA batteries. Compact size 207×75×37mm, weight 280g.

📊 Specifications

📏 Model : 7200E

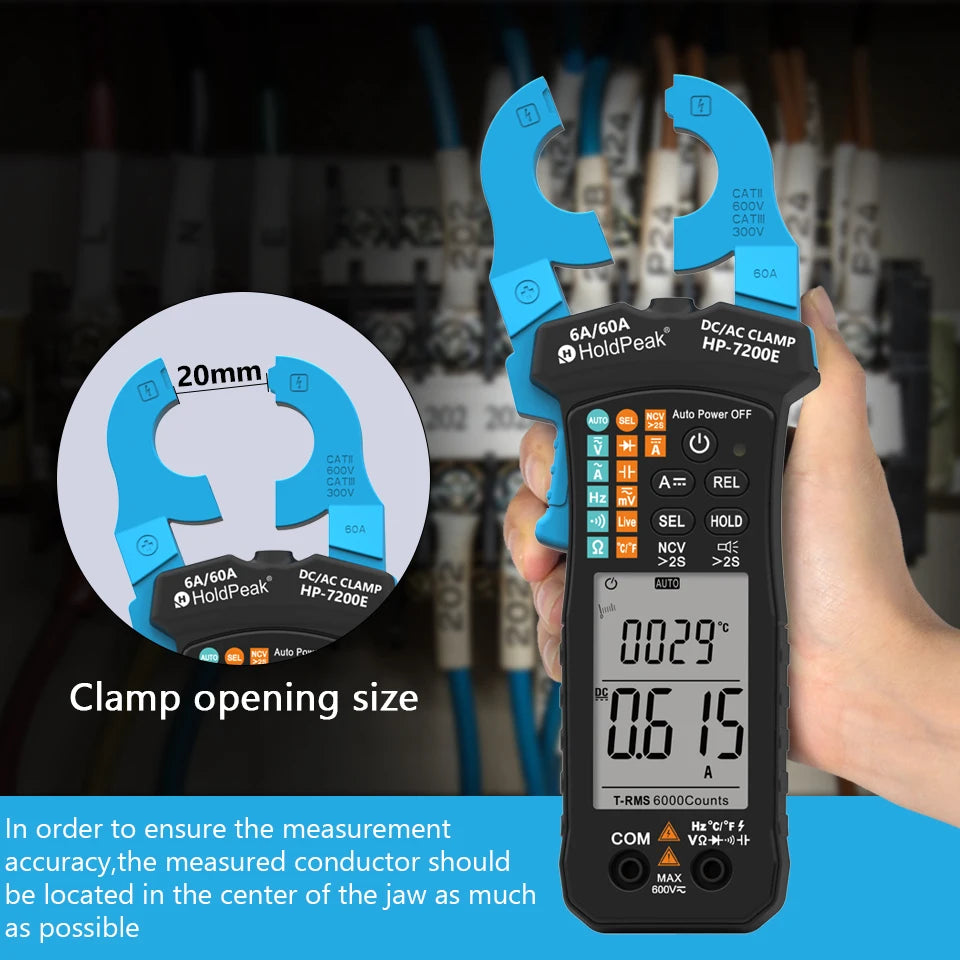

📏 Clamp Opening : 20mm
Display : 6000 counts LCD with analogue bar graph & secondary display
🔄 Range : Auto range + Auto-select

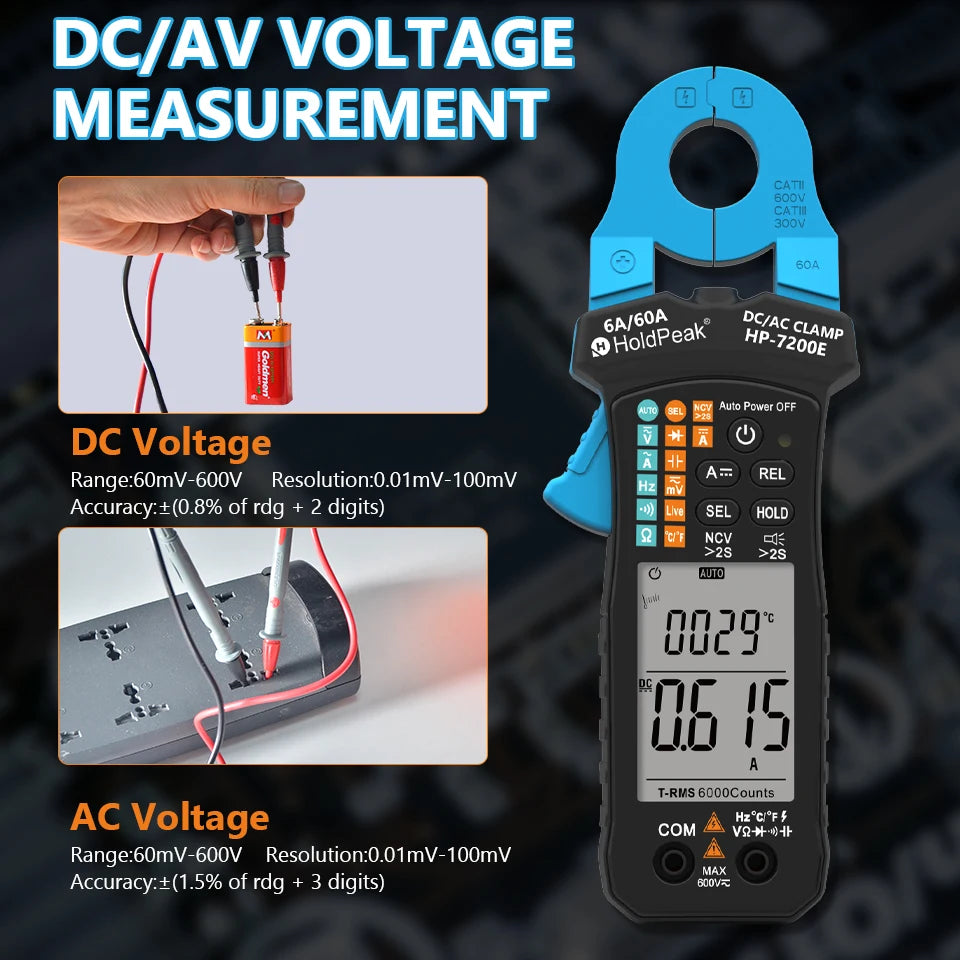

⚡ DC Voltage : 60mV/600mV/6V/60V/600V ±(0.5%-0.8%+2d)
⚡ AC Voltage (True RMS) : 60mV/600mV/6V/60V/600V ±(1.0%-1.5%+3d), 40Hz-1kHz
🔋 DC Current : 6A/60A ±(2.5%-3.0%+5-10d)
🔋 AC Current (True RMS) : 6A/60A ±(2.5%-3.0%+5-10d), 40Hz-1kHz
📏 Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%-1.5%+2-3d)
🧪 Capacitance : 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(3.0%-10%+10-20d)
📶 Frequency : 9.999Hz~9.999MHz ±(0.1%+5d)
🔄 Duty Cycle : 0.1%~99.9% ±(2.0%+2d)
🌡️ Temperature : -20℃~1000℃ / -4℉~1832℉ with K-type (3%+2-3d)
💡 Diode Test : Forward voltage drop (approx. 1.5mA)
🔊 Continuity : Buzzer + LED if resistance <50Ω
🛡️ NCV : AC voltage 90V-1000V detection, audible/visual alert
⚡ Live Wire Detection : Yes (red test lead insertion)
🔘 Data Hold : Yes
🔘 REL Mode : Yes

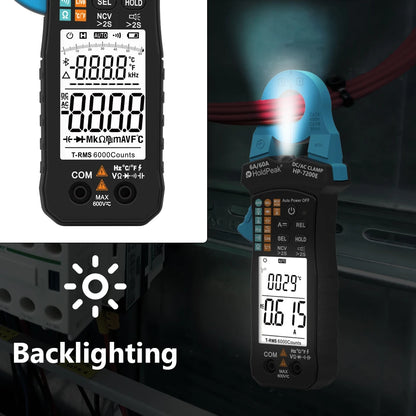

🔘 Backlight : Yes
🔦 Lamp Light : Yes
🔄 Auto Power Off : After 15 minutes
🔋 Power : 2 × AAA 1.5V batteries (R03P)
⚖️ Weight : Approx. 280g (including battery)

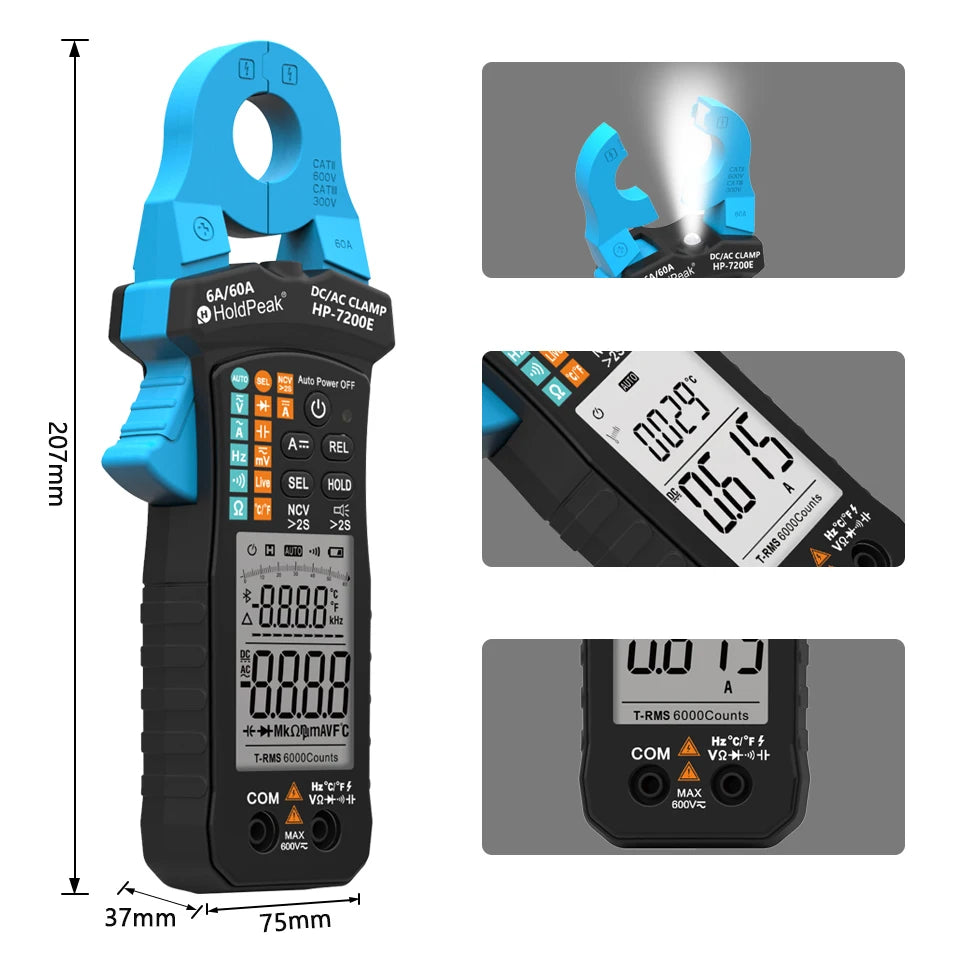

📏 Dimensions : 207 × 75 × 37mm
🌡️ Operating Temp : 0℃~40℃ (humidity <85%)
📦 Storage Temp : -10℃~50℃ (humidity <85%)
🛡️ Safety Rating : CAT II 600V / CAT III 300V

📝 Note

📌 Auto-Select Tips – In Auto mode, the meter automatically identifies DC voltage (>0.5V), AC voltage (>0.5V rms), resistance, and continuity. For low voltage measurements (<0.5V), press SEL key to select DC/AC mV mode.

⚠️ Current Measurement – Clamp around only one conductor. For DC current, press REL to zero before measurement. For AC current below 1A, press SEL key to select ACA mode. The arrow on jaw indicates DC current direction.

🔧 Battery & Safety – When low battery symbol appears, replace with 2 new AAA batteries. Do not input voltage above 600V. Remove batteries if not using for long periods.
