Belt Removal Adapter and Screw for Can-Am Maverick - 708200720 / 529000088

Driven pulley adapter and belt removal screw

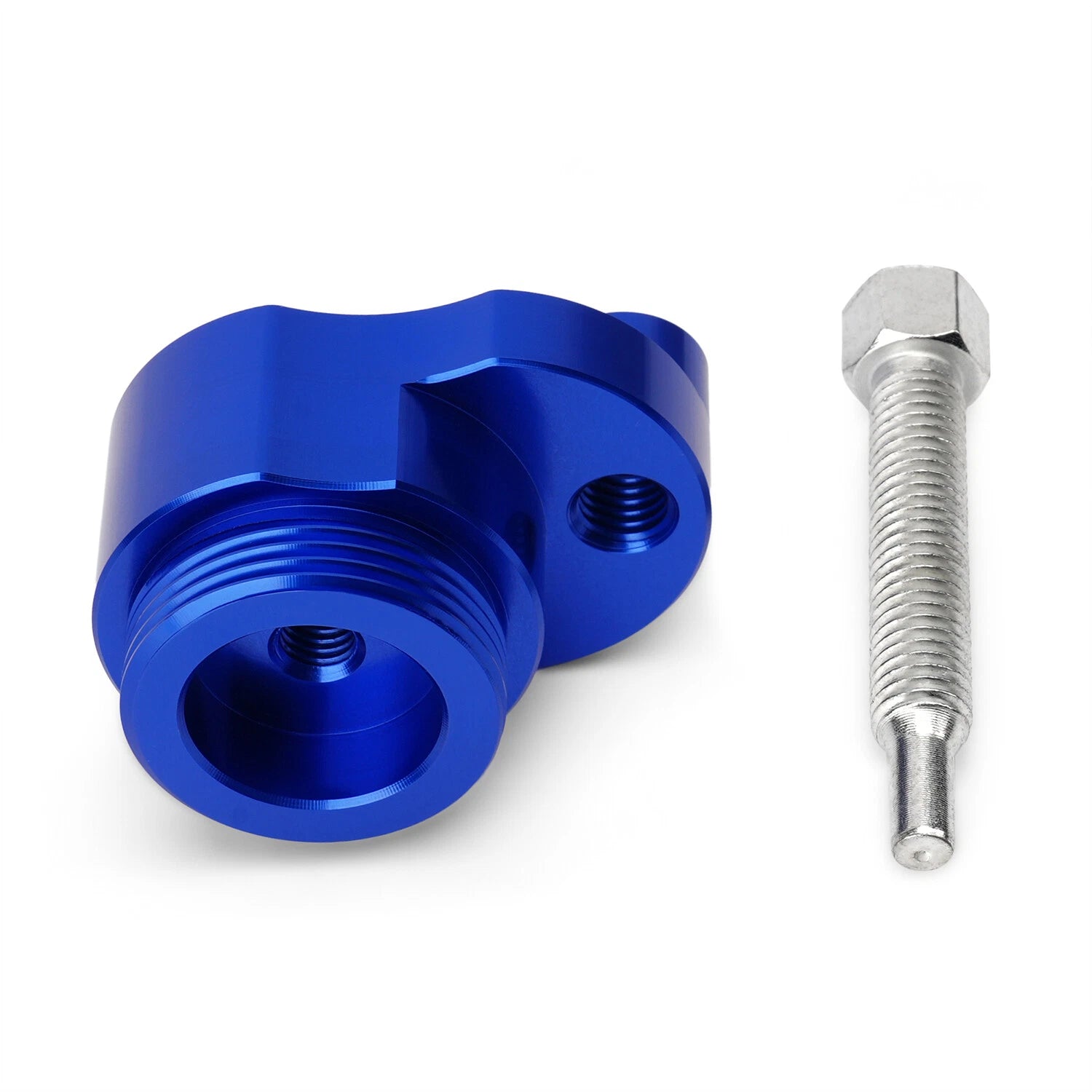

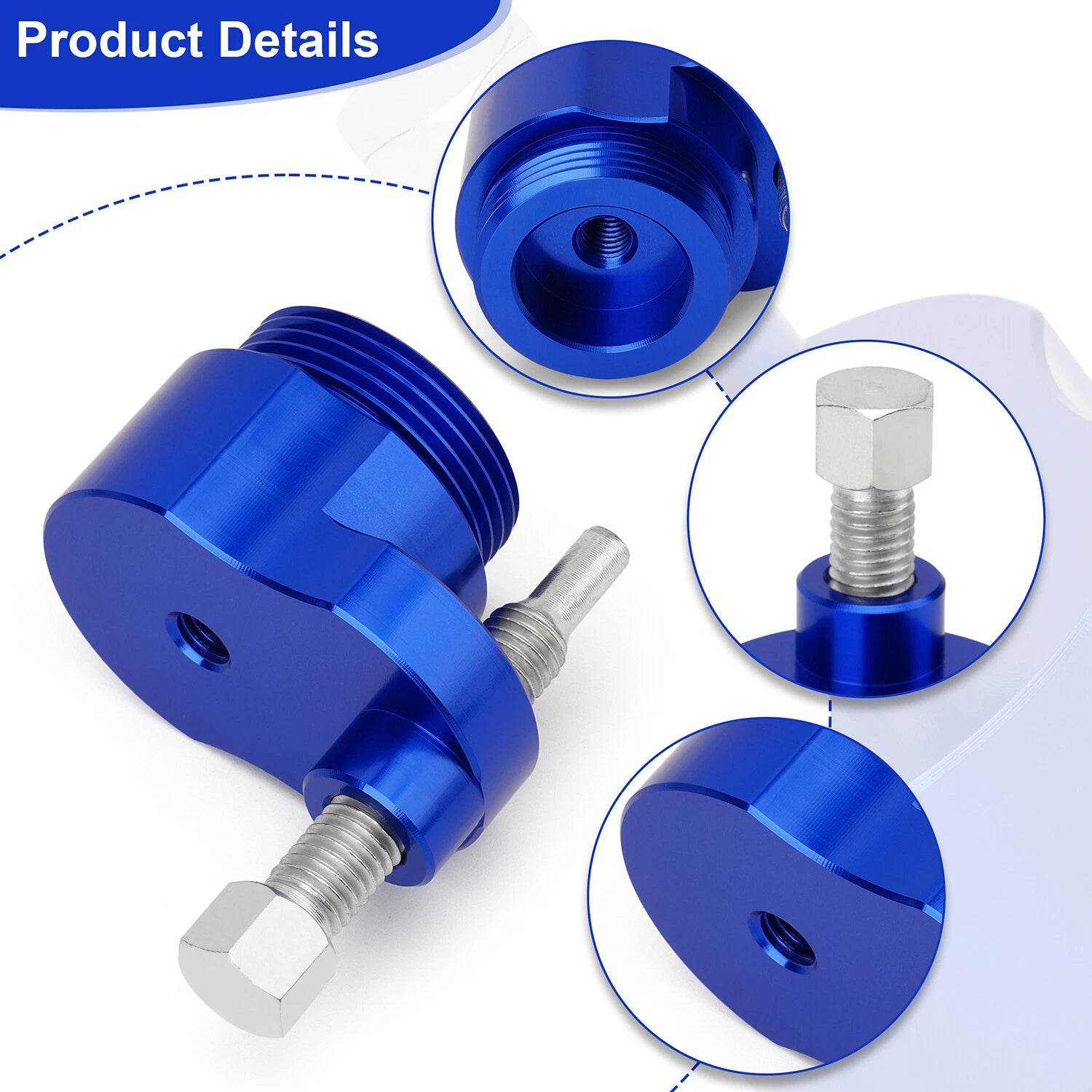

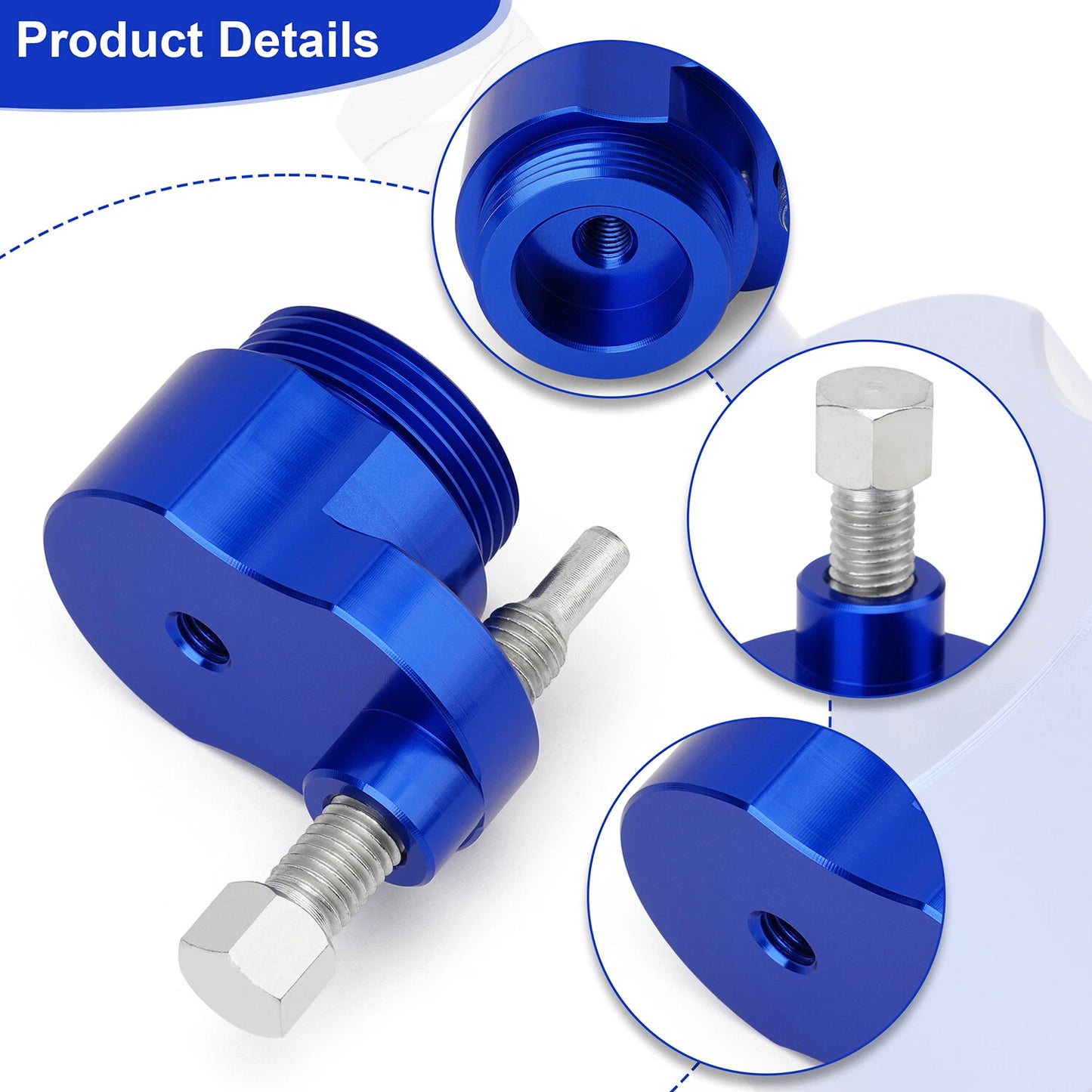

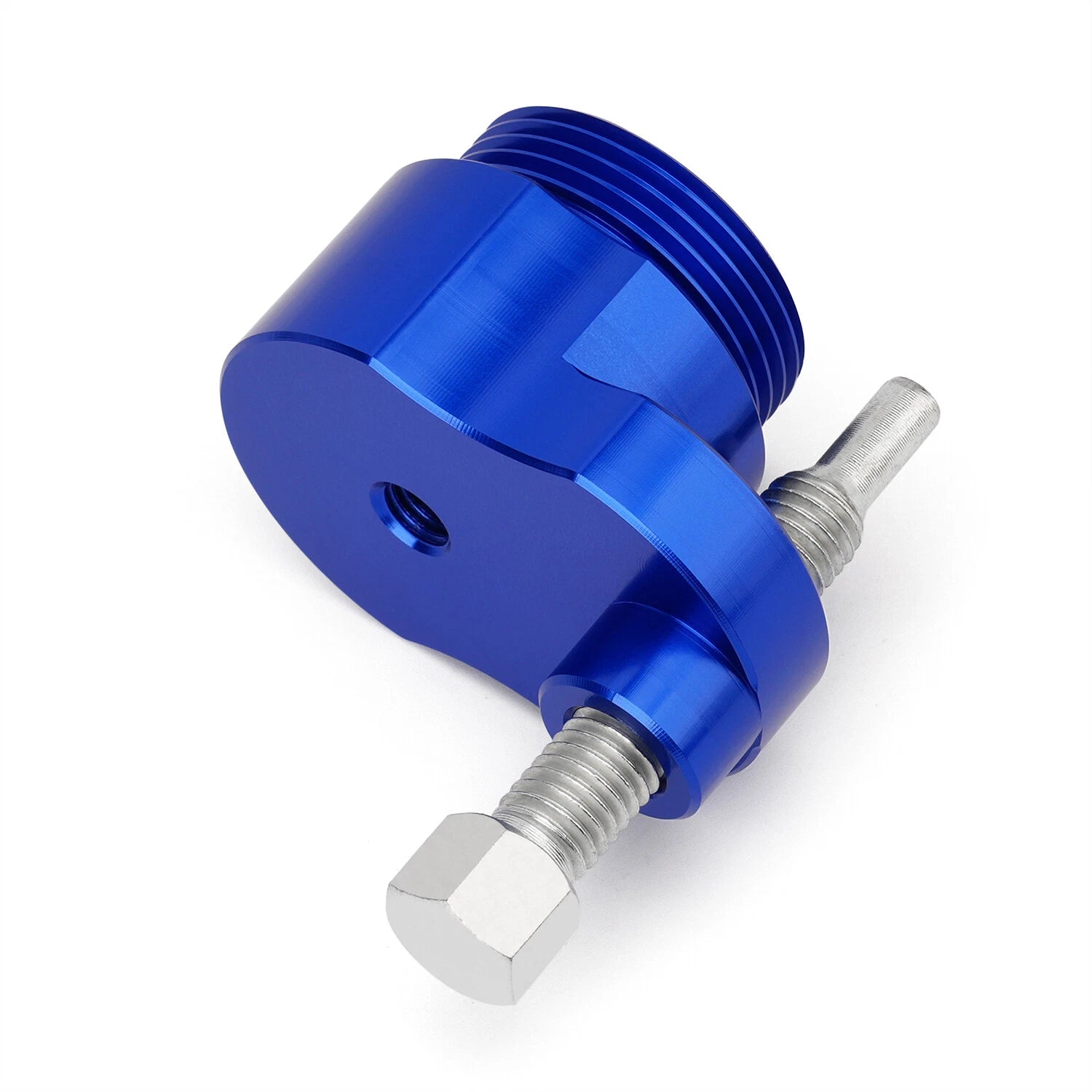

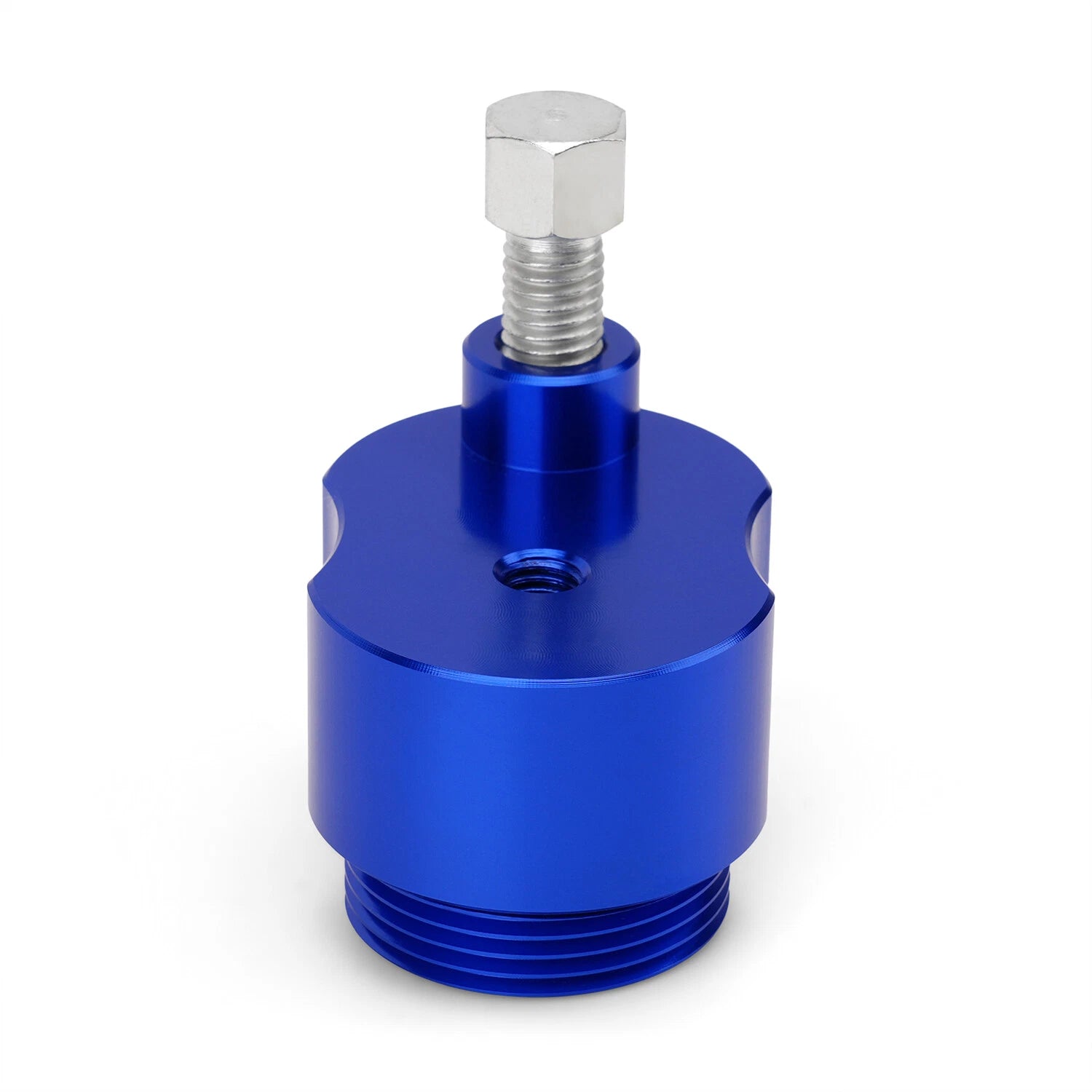

This two-component aftermarket tool set contains a blue anodized aluminum adapter and a silver hex-head spreading screw. It is intended for opening a matching secondary clutch during drive belt replacement. The adapter has a large externally threaded end, a recessed center opening and an offset threaded boss for the screw.

Check the clutch tool references

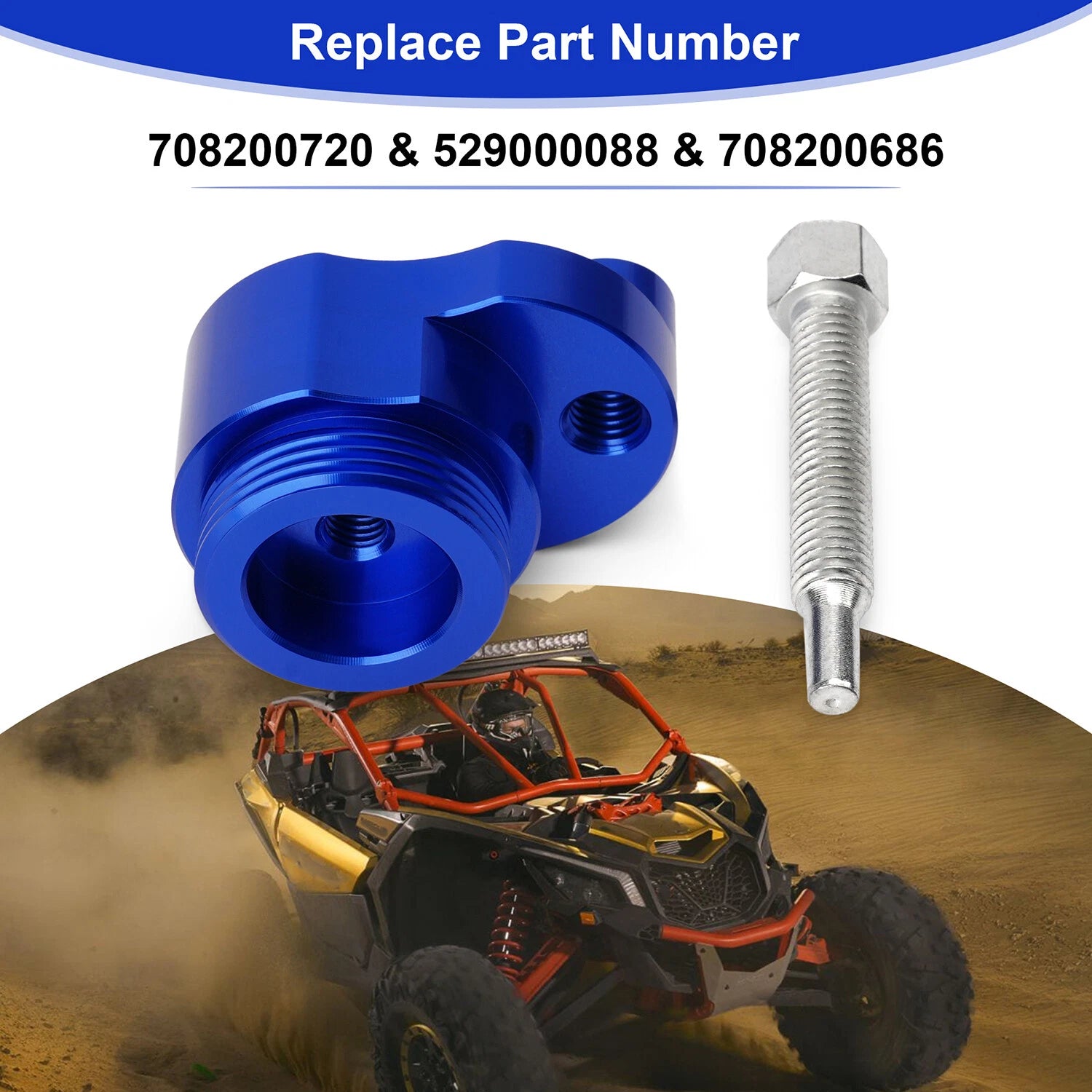

The adapter is listed against reference 708200720, while 529000088 identifies the associated clutch spreading tool. These references describe different components of the service arrangement. Confirm the required adapter, spreading screw and mating clutch threads in the service information for the exact vehicle.

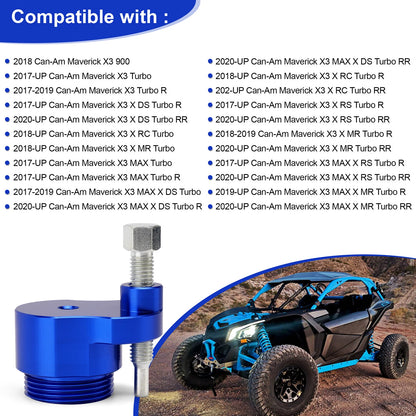

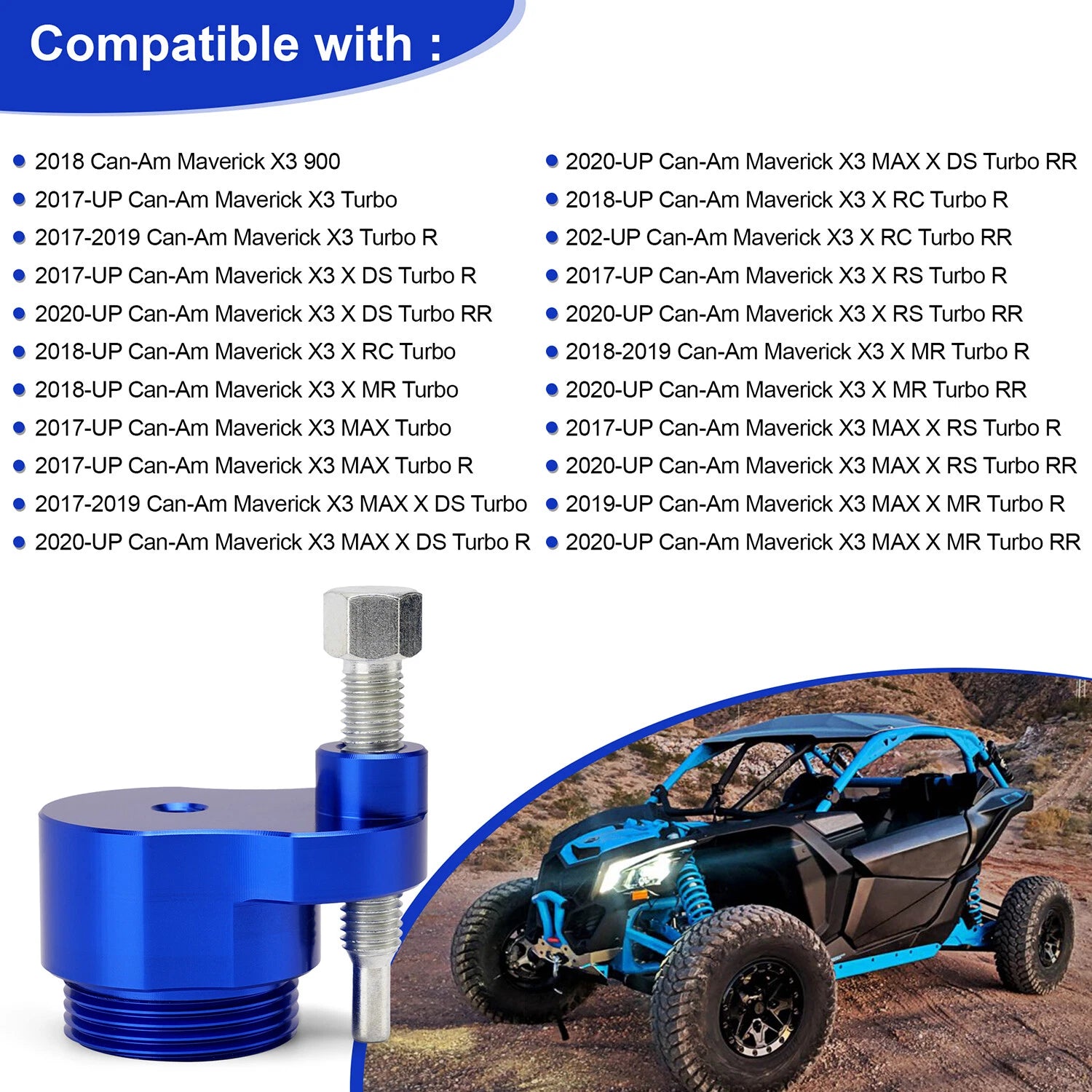

Listed applications include selected 2017-2020 Maverick X3 and X3 MAX configurations. Turbo, Turbo R and Turbo RR trims have different year listings; the model family and year alone do not confirm tool fit. For Maverick Trail, verify its exact year, engine and driven pulley arrangement separately before ordering. Modified or replacement clutches also require a physical thread and clearance check.

Supplied components and listed measurements

Adapter

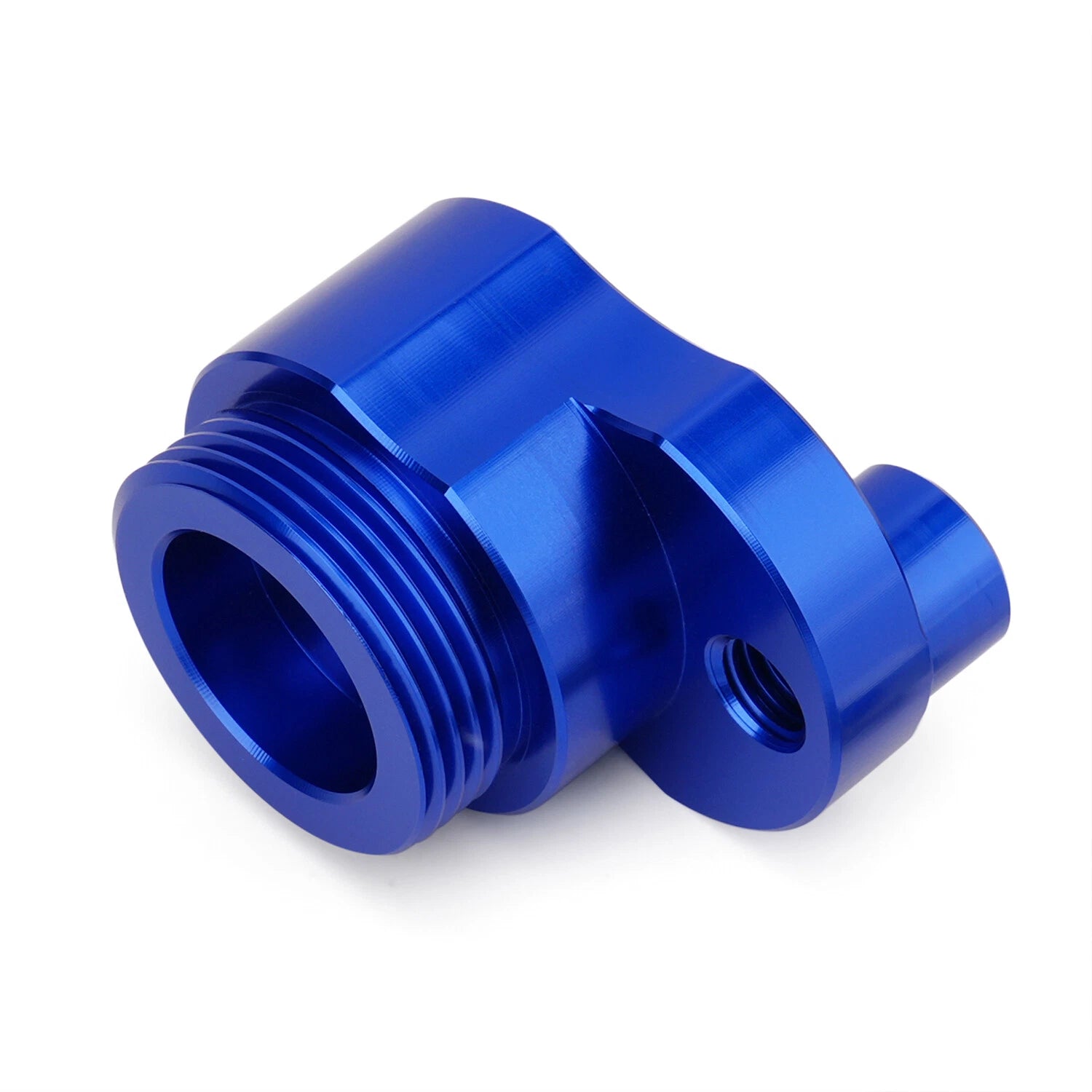

One blue anodized aluminum driven pulley adapter

Spreading screw

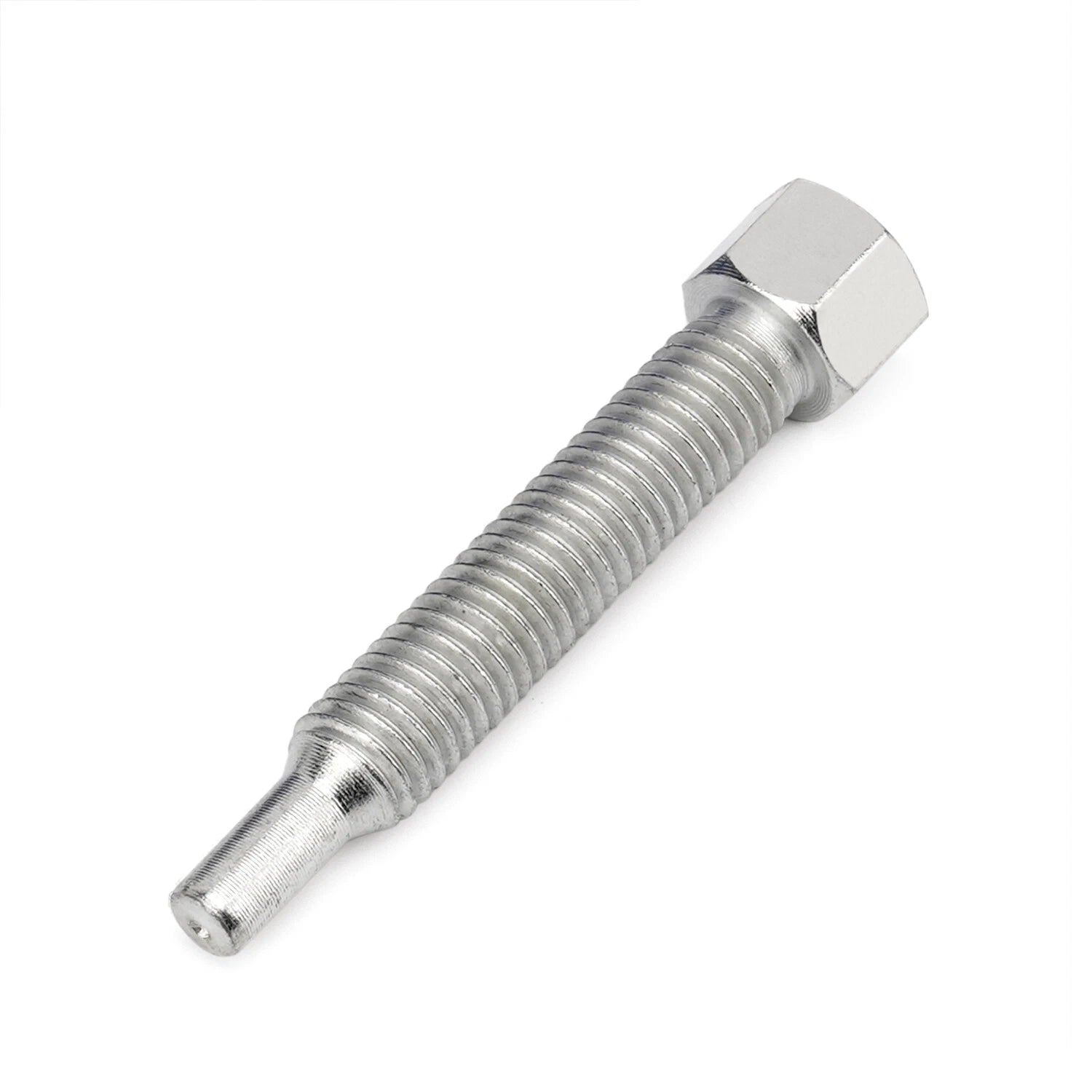

One silver hex-head threaded screw with a reduced smooth tip

Adapter application reference

708200720

Spreader application reference

529000088

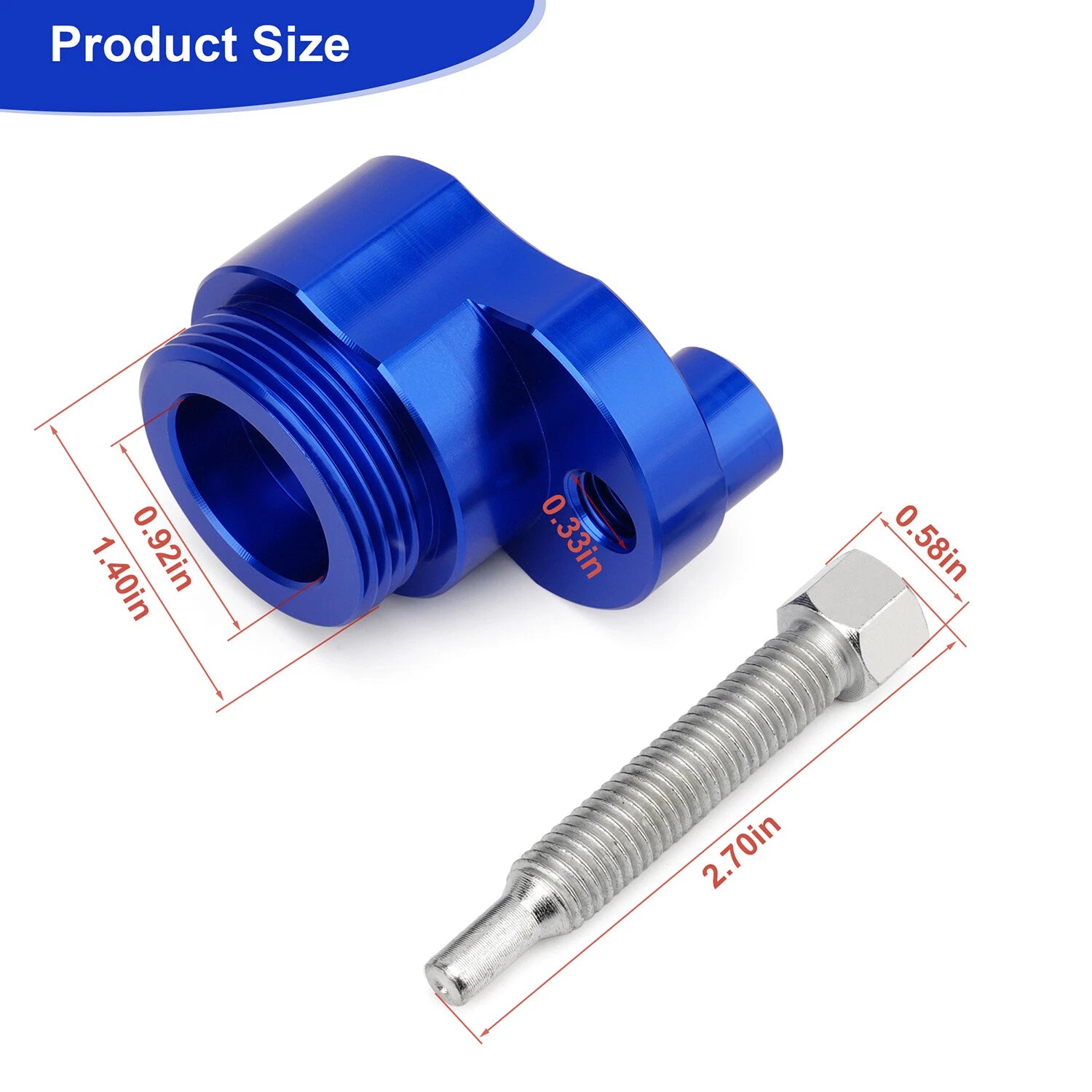

Listed threaded-end outside diameter

1.40 inches

Listed recessed opening diameter

0.92 inch

Listed screw overall length

2.70 inches, including the head and smooth tip

Other items

Drive belt, clutch assembly and wrench are not included

Before using the tool

The diameter measurements describe the illustrated adapter features; they do not specify a thread pitch or a metric thread designation. Screw thread size, required wrench size and tightening limits are not confirmed. Check the actual mating threads rather than choosing the tool from the diameter alone.

Follow the vehicle's belt replacement procedure for access, tool placement and controlled clutch opening. Stop if the adapter or screw binds or will not engage correctly. Remove both tool components after belt service and reassemble the clutch cover as required by the vehicle manual.
