Aluminum Alloy Motor Pinion Remove Gear Puller Tool Set Compatible with HSP HPI Traxxas Axial Redcat Arrma 1/16 1/24 RC Car Truck

What this puller does

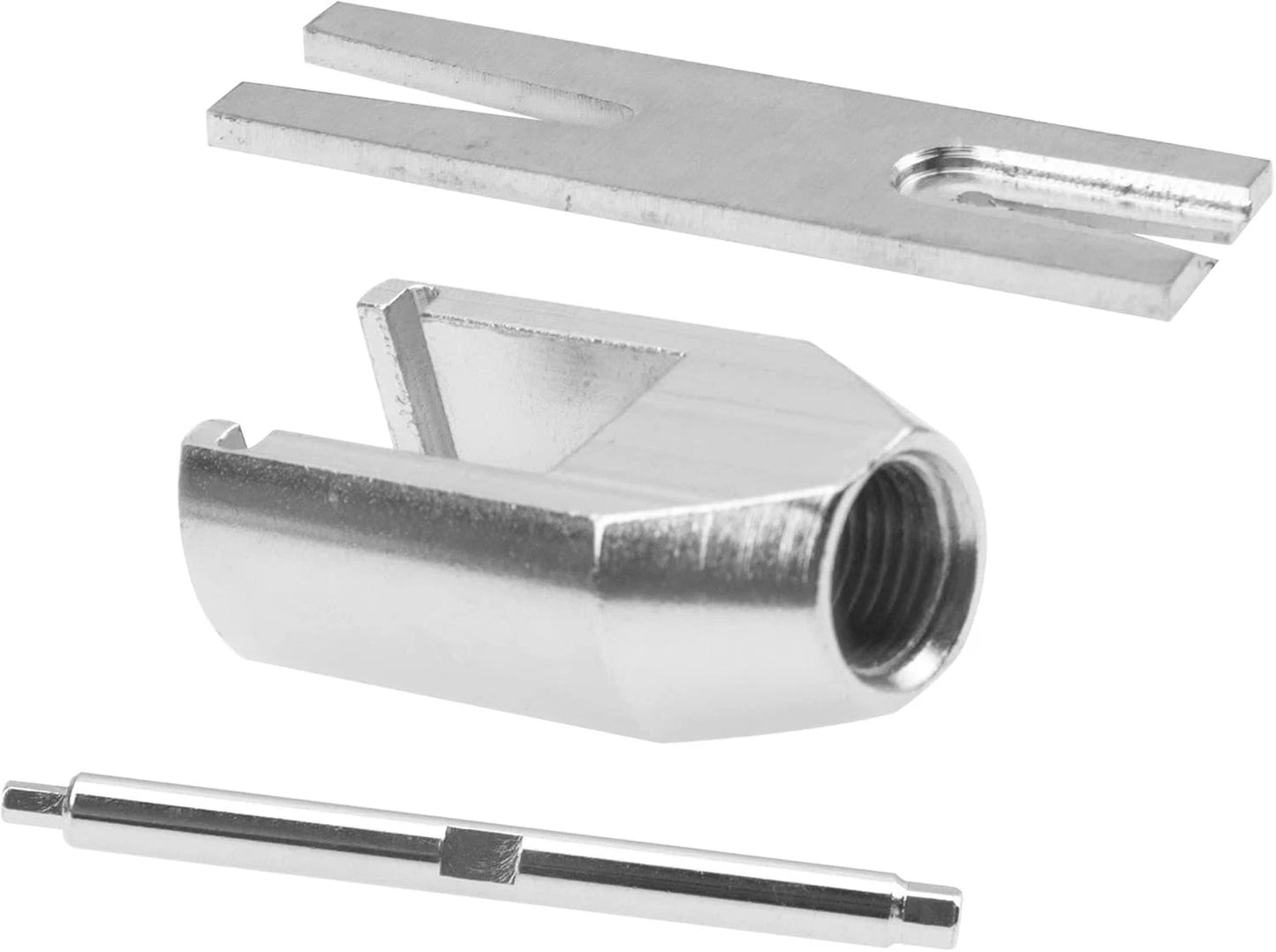

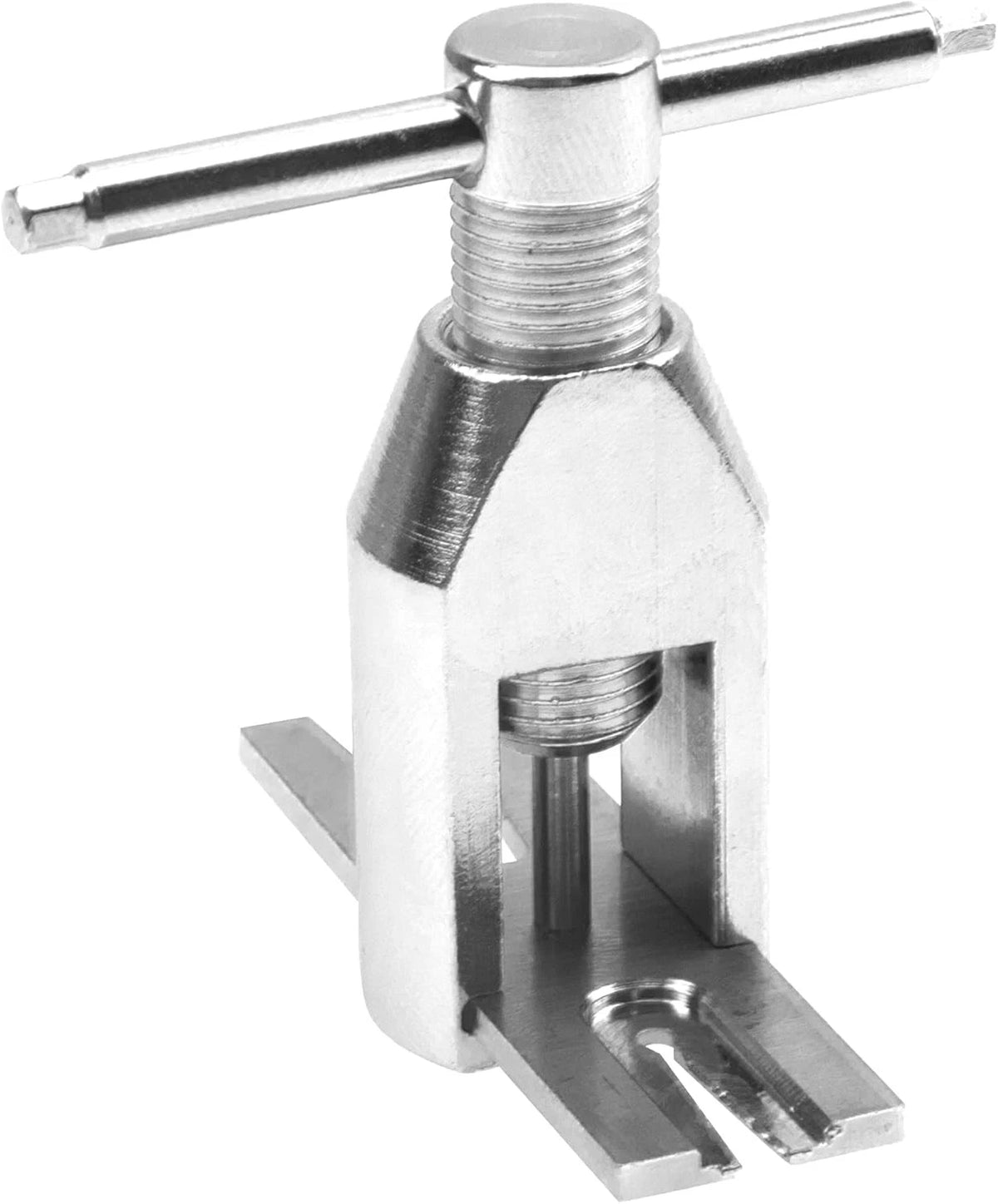

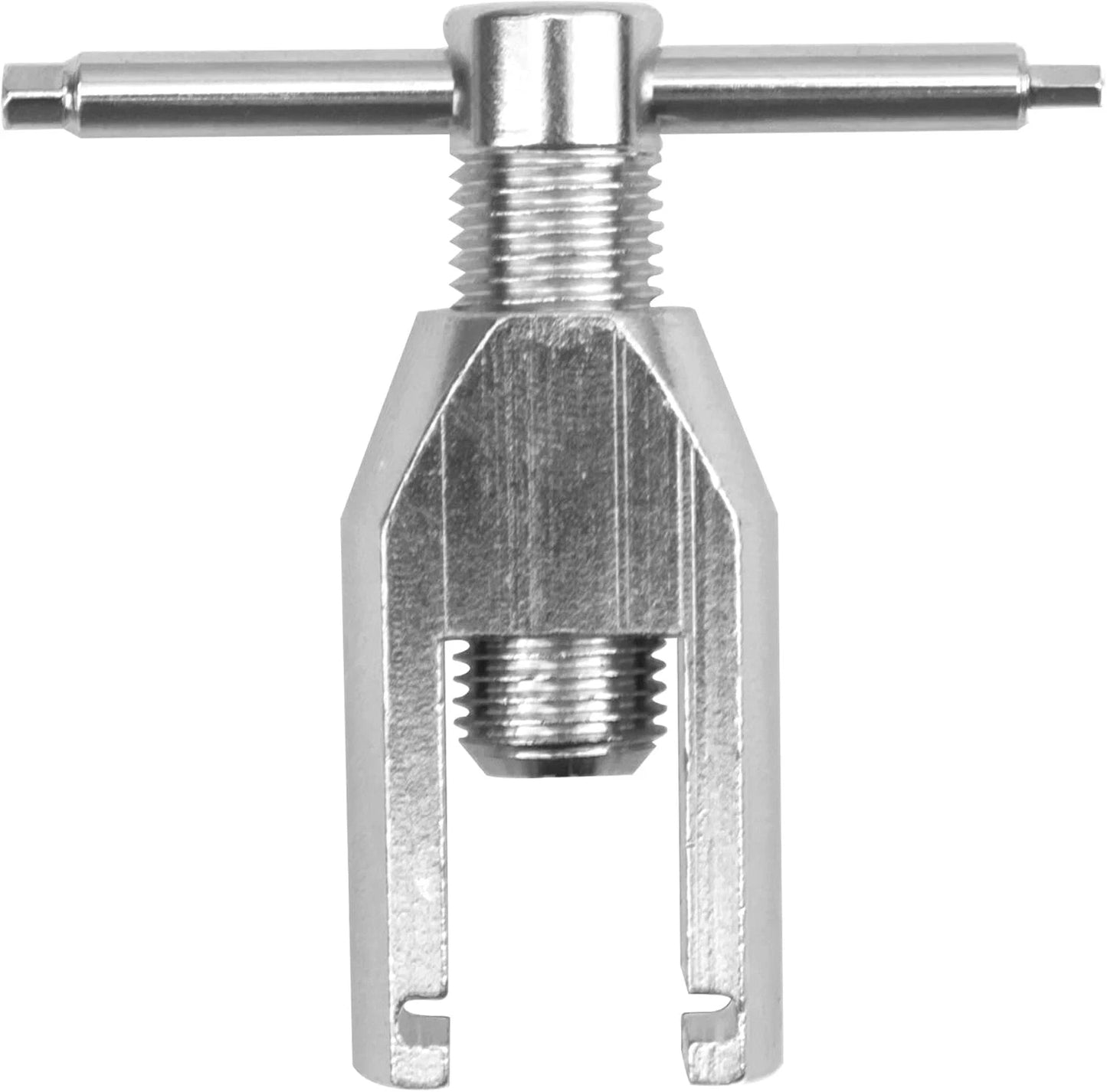

This tool removes a press-fit pinion gear from an RC motor shaft. The slotted base holds the gear, a pin backs the end of the shaft, and turning the top screw draws the gear off.

The set is made for mini motors in RC helicopters, planes, cars and trucks, with 1/16 and 1/24 scale vehicles as the main fit. The listing names HSP, HPI, Traxxas, Axial, Redcat and Arrma as compatible brands. What decides the fit is the motor shaft diameter and the gear size, so check both before ordering.

Specifications

Tool type

Motor pinion gear puller set

Body material

Aluminum alloy

Pin material

Steel

Pin sizes

0.9mm x 1, 1.75mm x 2, 1.9mm x 1, 2.8mm x 1 (five pins, four sizes)

Max gear outer diameter

11mm

Max gear height

Under 12mm

Color

Silver

Weight

53g

Package dimensions

4.72 x 3.54 x 0.51 in (about 120 x 90 x 13mm)

Manufacturer

Vgoohobby

Recommended age

14 years and up

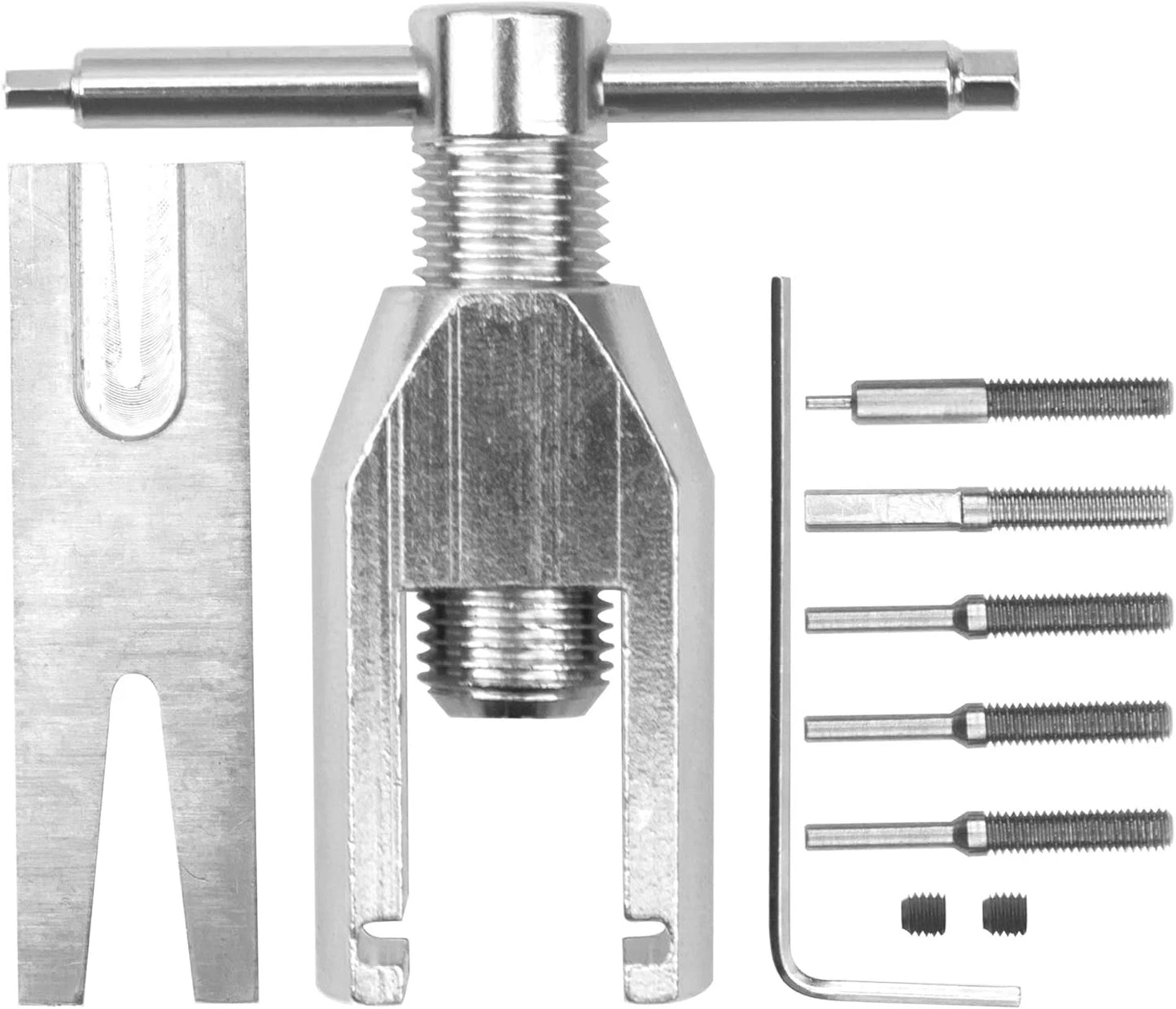

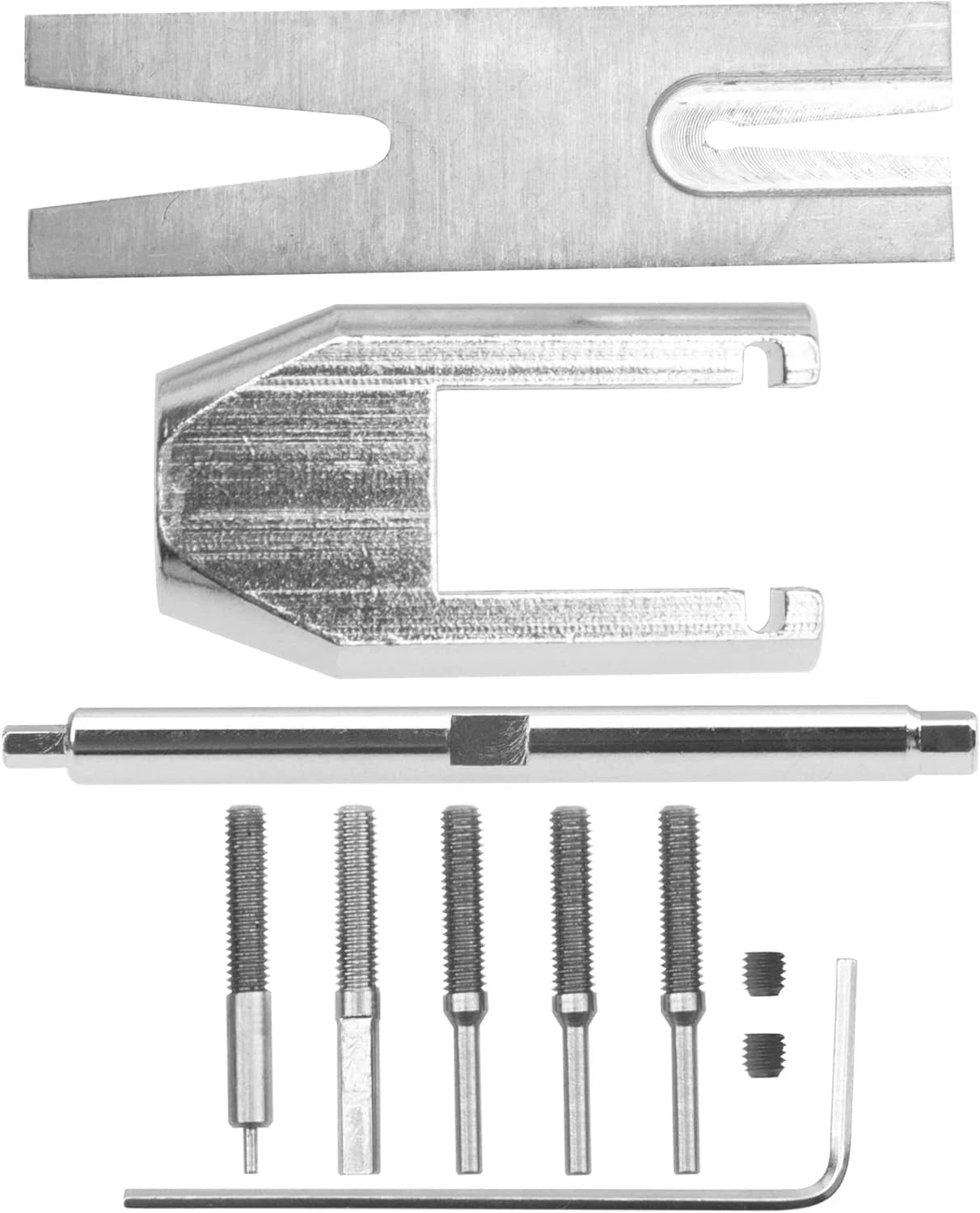

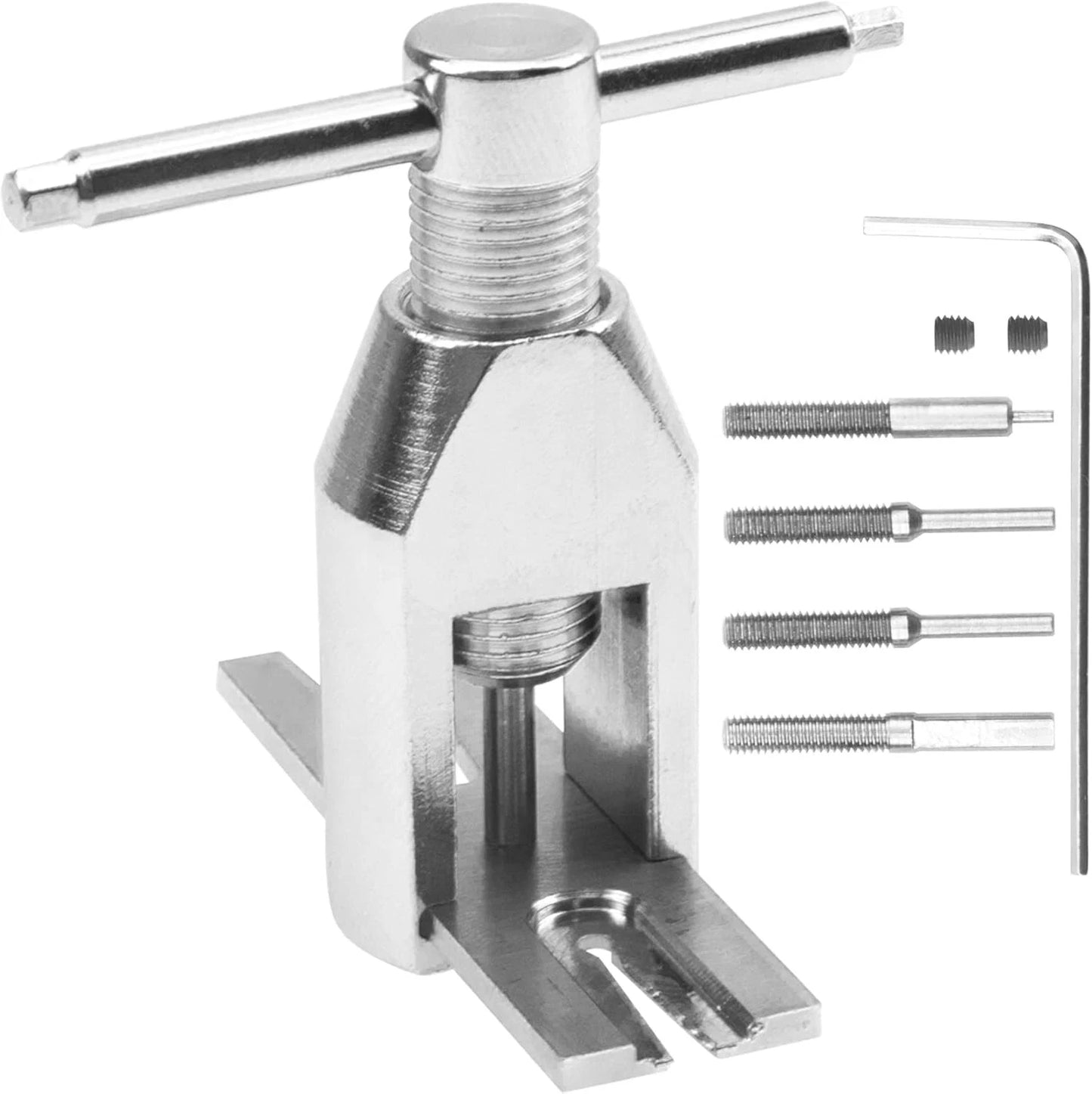

What is in the package

• Gear puller body with top press screw
• Five puller pins: 0.9mm, 1.75mm (two), 1.9mm and 2.8mm
• Hex key

How to remove a pinion gear

1. Pick the pin that matches your motor shaft diameter: 0.9mm, 1.75mm, 1.9mm or 2.8mm.
2. Set the gear over the slotted base and place the pin against the end of the shaft.
3. Turn the top screw clockwise and evenly until the gear slides off the shaft.

Check three numbers before ordering: your motor shaft diameter against the four pin sizes, the gear outer diameter against the 11mm limit, and the gear height against the 12mm limit. The listing asks buyers to compare these dimensions closely with the puller.

The puller weighs 53g and fits in a tool bag. If your gear is larger than the 11mm diameter limit or the shaft does not match any of the four pins, this set will not pull it.
