ALLCSM DN-34C Massage Chair Remote Control 5 Button 6 Pin, White

Overview

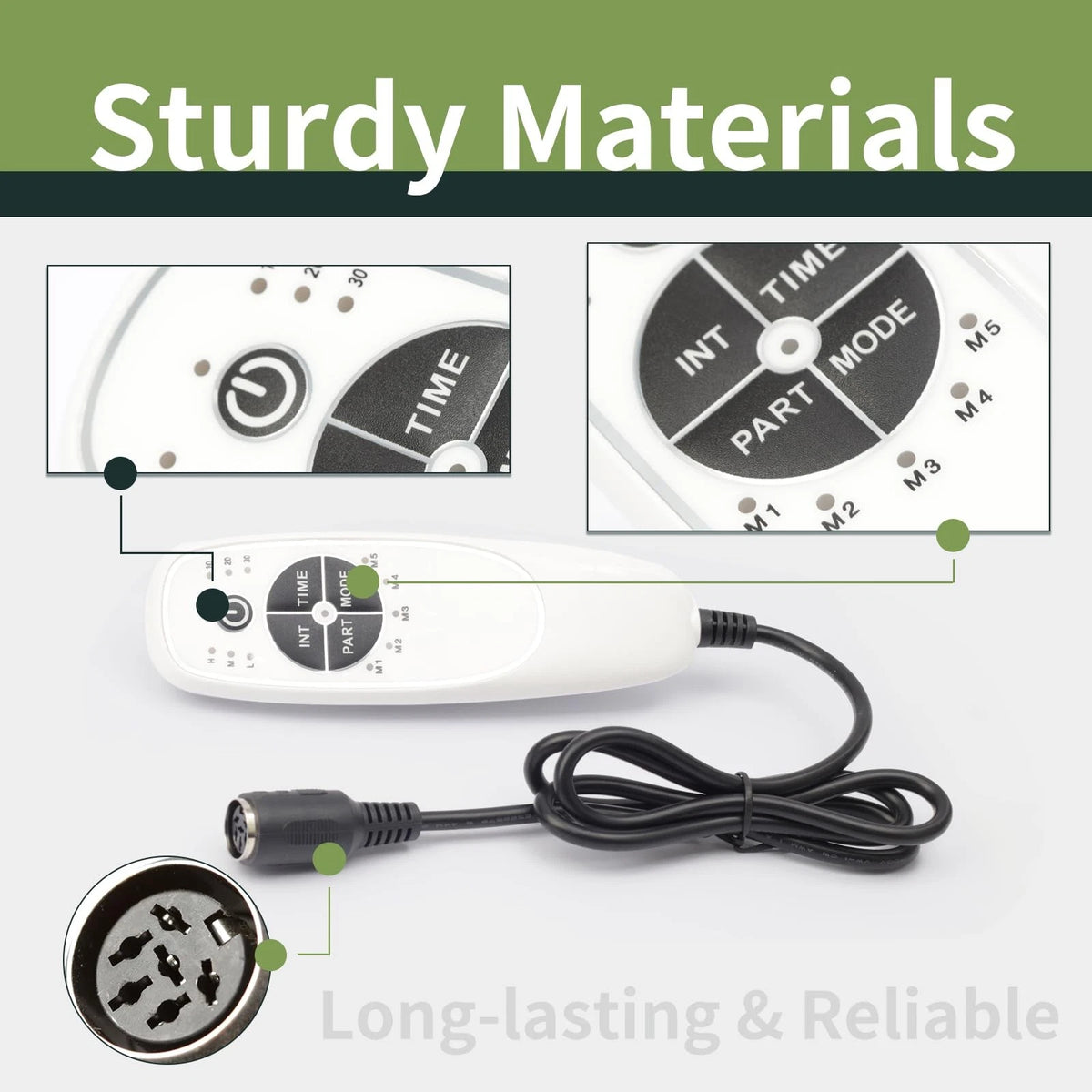

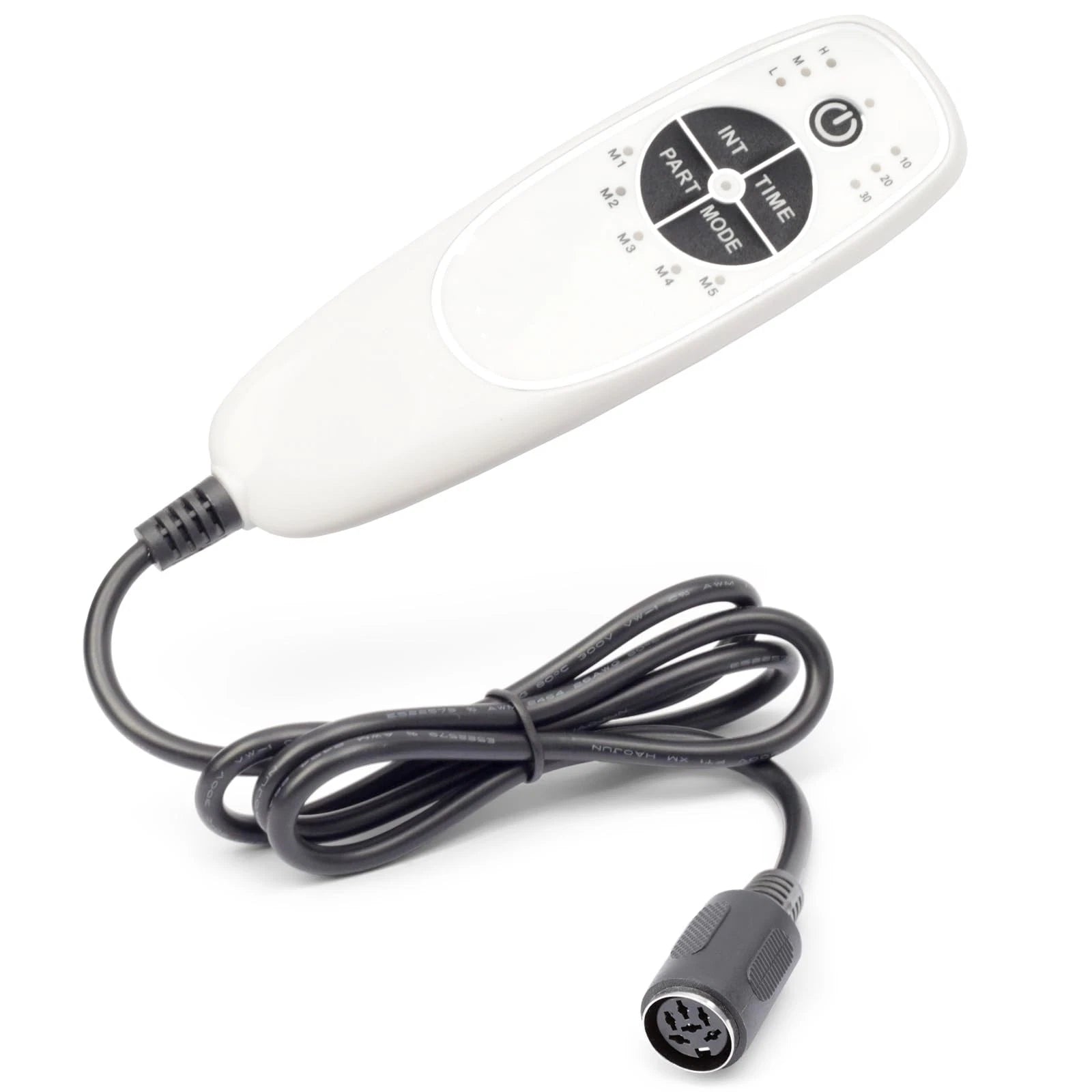

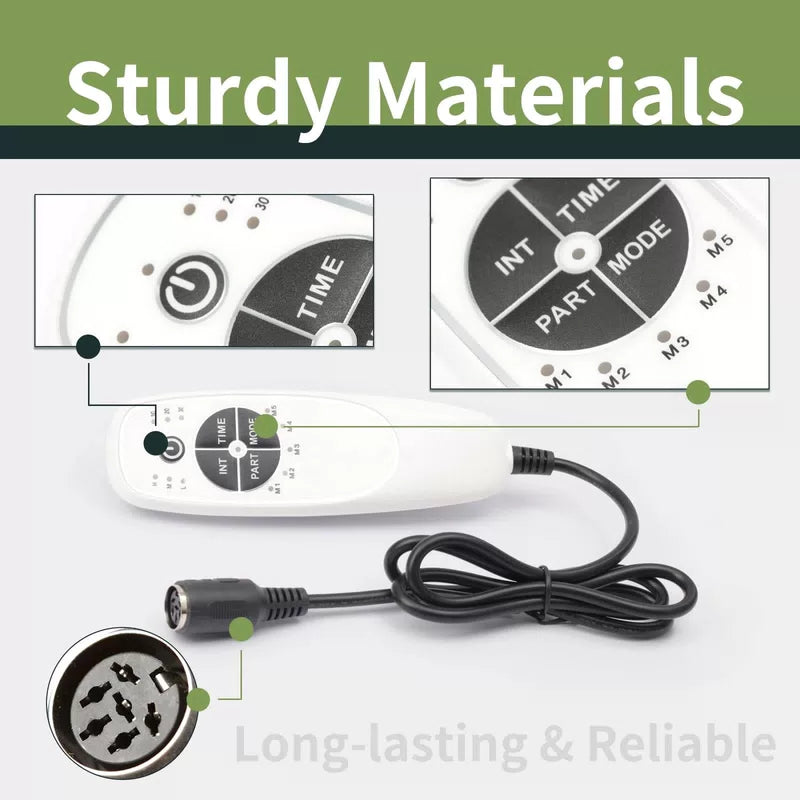

This is a wired replacement hand control for the vibration massage function of recliners and lift chairs. The white ALLCSM handset carries five buttons and a light panel, and the board code inside is DN-34C. A coiled cable runs from the base to a round 6-pin plug. The supplier describes the shell as sturdy, small and lightweight.

Before you order

The listing asks you to check three things on your old handset before buying.

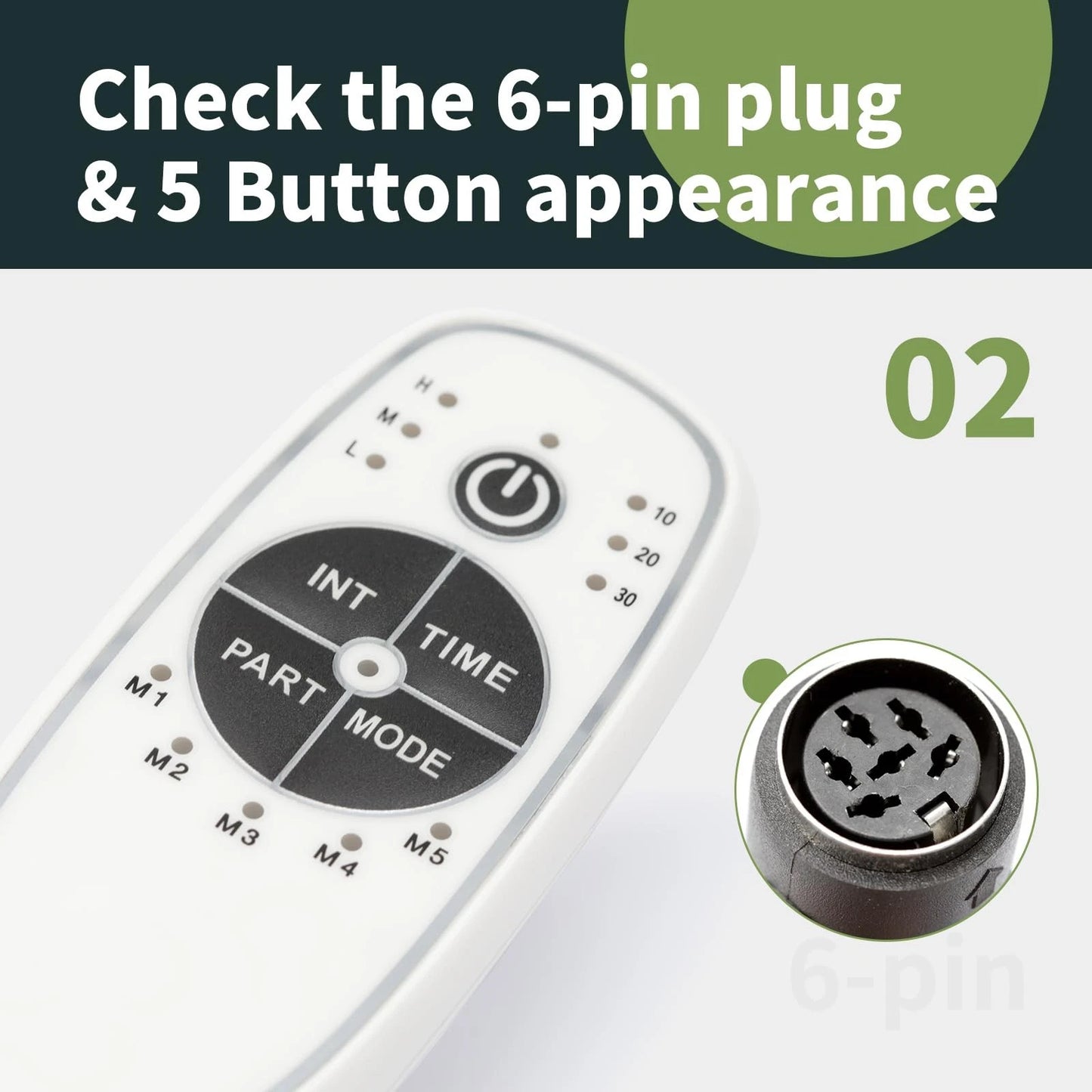

• The 5-button layout and the 6-pin plug look the same as the photos on this page.

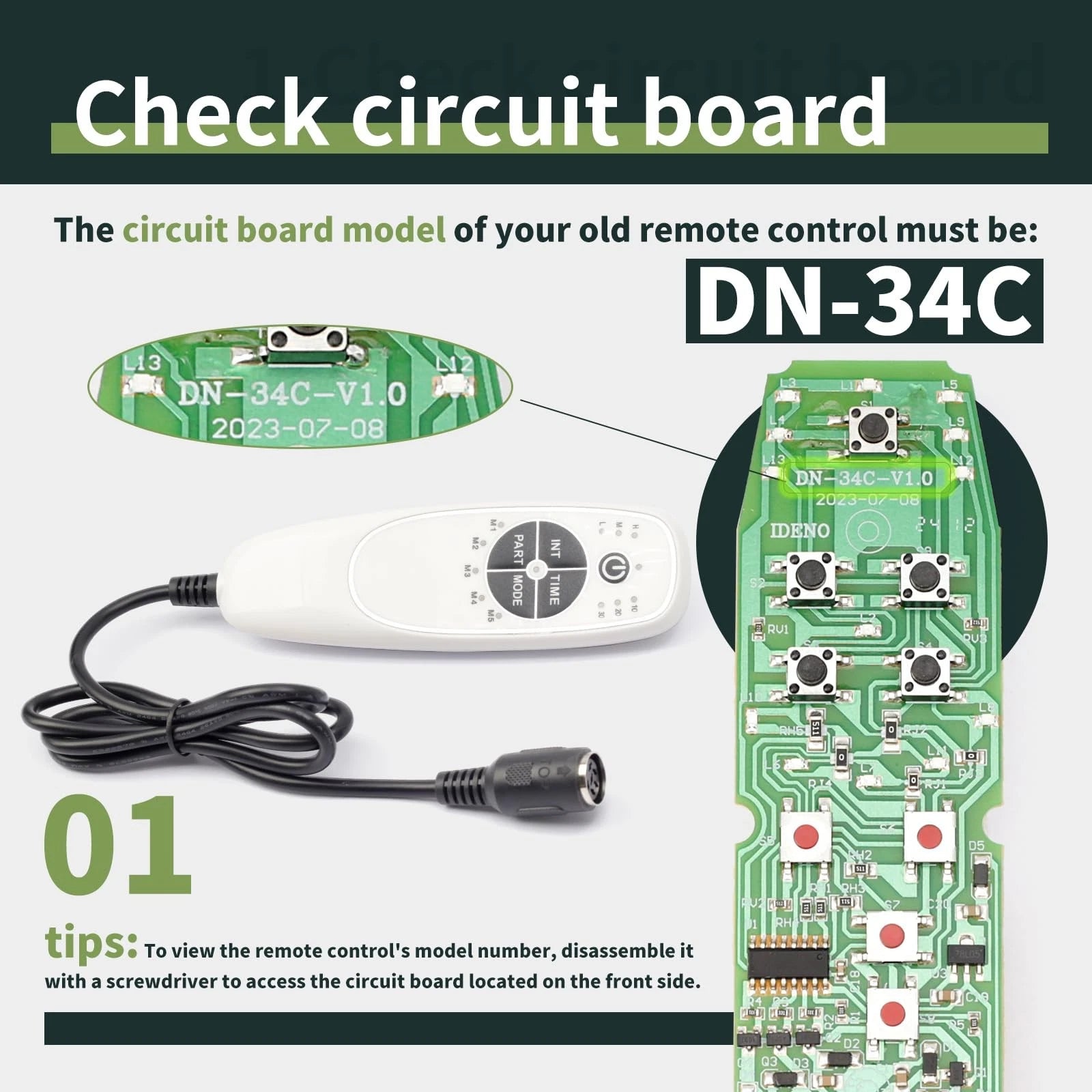

• The circuit board inside your old remote carries the code DN-34C.
• The wires on the bottom of that board run left to right in this order: green, brown, orange, white, red, black, blue.

If any of the three checks fails, this handset will not work with your chair.

Controls and functions

The panel has a power button above a four-way cluster labelled INT, PART, TIME and MODE. The light panel shows M1 to M5, the letters C, M and S, and the numbers 10, 20 and 30.

• Three timer options: 10, 20 or 30 minutes.
• Three vibration intensity levels.
• Four vibration points, each switched on or off separately.
• Five vibration modes.

Specifications

Brand

ALLCSM

Board code

DN-34C

Colour

White

Buttons

5: power, INT, PART, TIME, MODE

Plug

Round 6-pin connector on a coiled cable

Rated input

AC100-240V, 50/60 Hz

Rated output

DC12V 0.5A

Timer options

10 / 20 / 30 minutes

Intensity levels

3

Vibration points

4, independently switchable

Vibration modes

5

Cable length

Not stated by the supplier

Shell size and weight

Not stated by the supplier

Setup

The supplier lists this handset as plug and play. Unplug the old handset and connect this one in its place. The listing gives no pairing steps.
