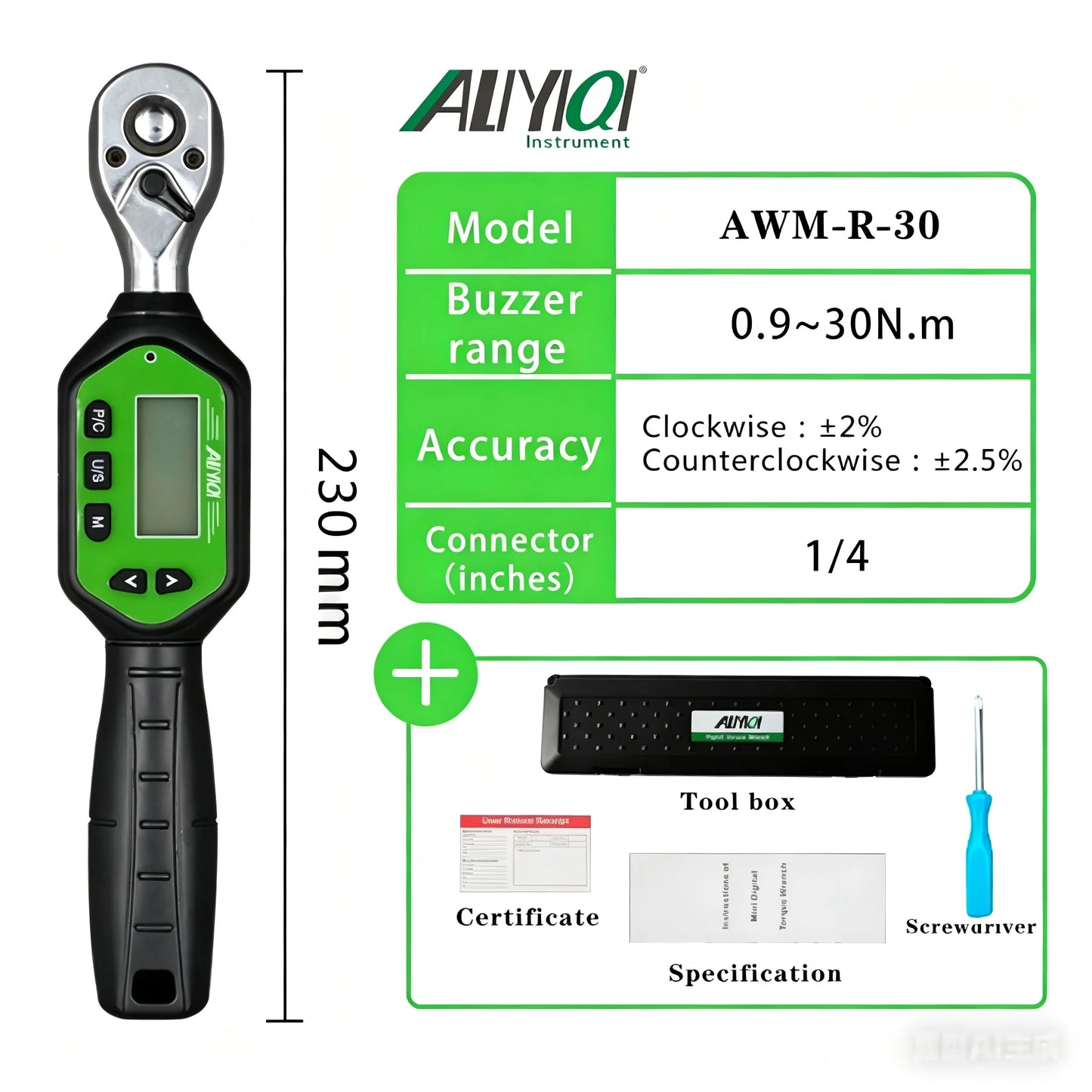

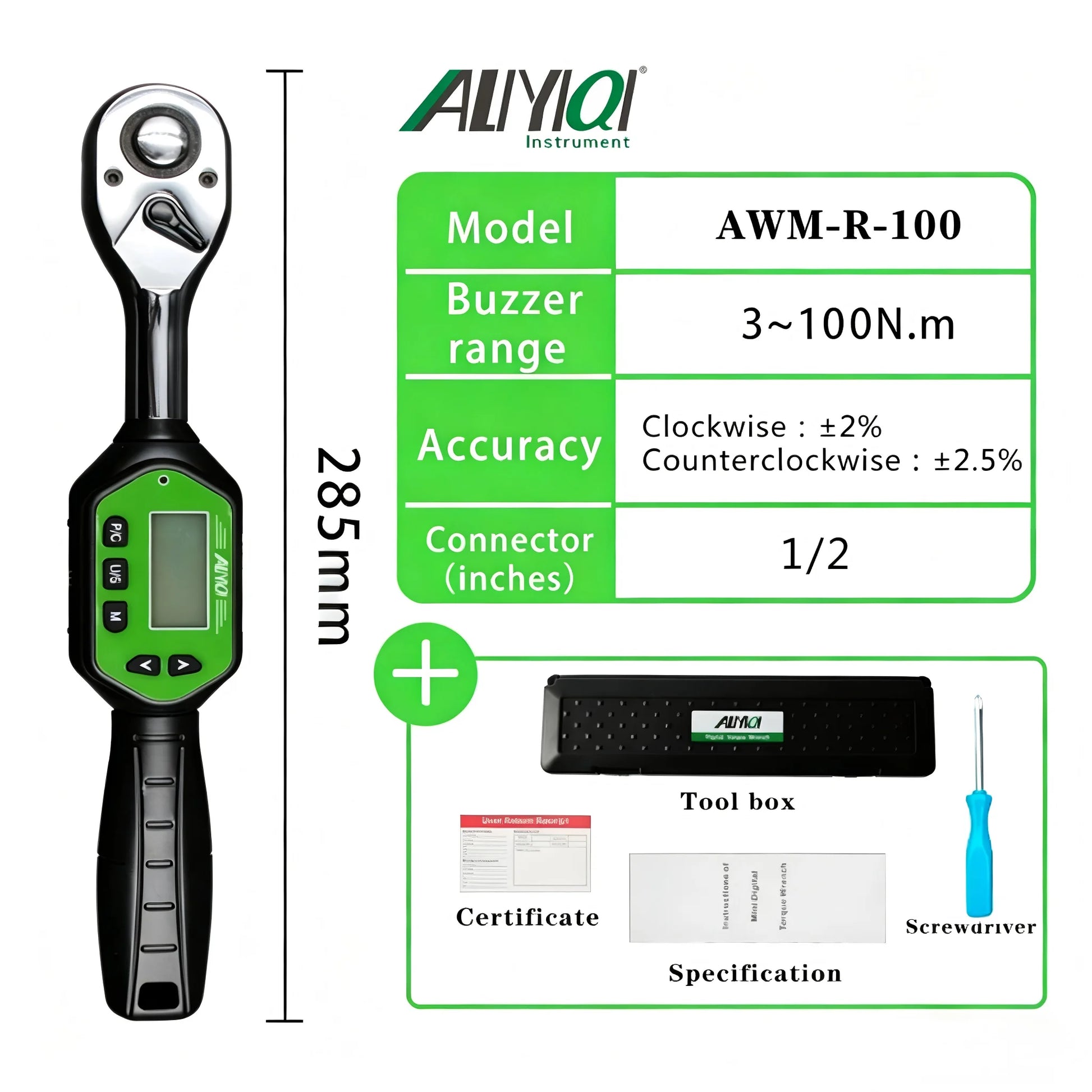

ALIYIQI Digital Torque Wrench 10 30 60 100 Nm 1/4 3/8 1/2 Inch Screen Mini Tool For Bike Motorcycle Repair No Battery
ALIYIQI Digital Torque Wrench 10 30 60 100 Nm 1/4 3/8 1/2 Inch Screen Mini Tool For Bike Motorcycle Repair No Battery
SKU:1788431452
Low stock: 10 left
Couldn't load pickup availability
Check the part details and order terms before buying. Need a specification confirmed? Contact Keyead.
- Product type
- hardware
High-precision digital torque wrench The ALIYIQI Digital Torque Wrench delivers accurate torque measurements with options of 10, 30, 60, and 100 Nm, ideal for precise fastening tasks in bike and motorcycle repairs.
Multiple socket size compatibility Designed with 1/4, 3/8, and 1/2 inch drive sizes, this wrench offers versatile compatibility for various fastening applications across different tools and equipment.
Durable carbon steel construction Made from high-strength Carbon Steel, the wrench ensures long-lasting performance and resistance to wear, making it suitable for demanding metalwork and repair tasks.

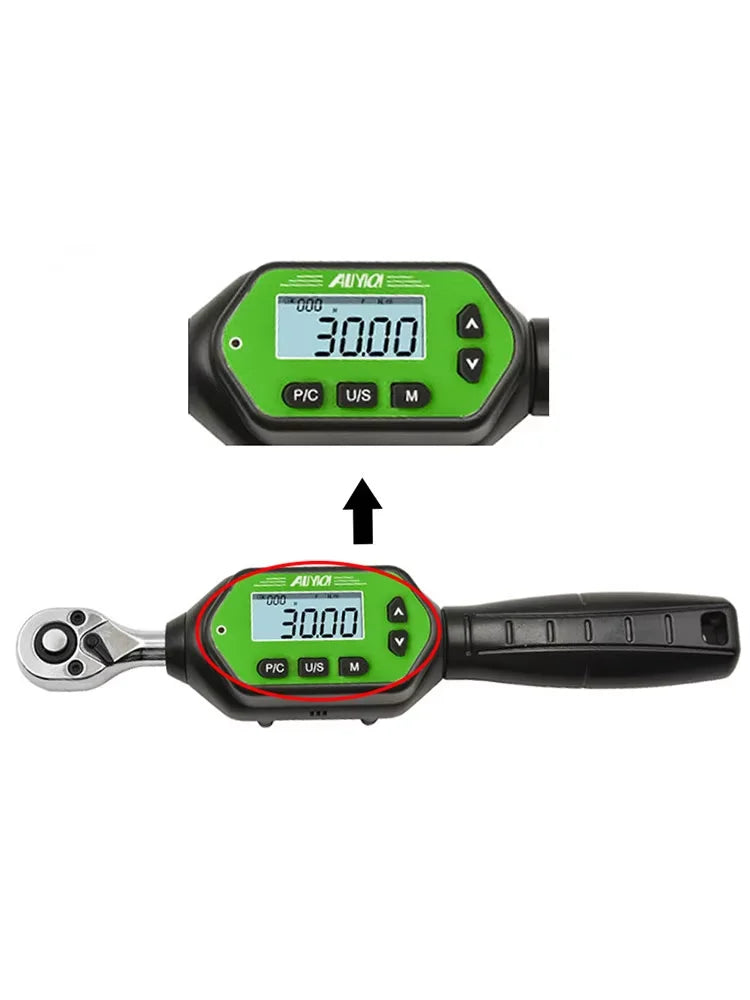

Compact and portable screen design Featuring a mini digital screen, this tool is easy to read and handle, perfect for on-the-go repairs where space and visibility are key.
No battery required for operation The no battery design ensures continuous use without the need for power sources, reducing downtime and simplifying maintenance during field repairs.
ALIYIQI Digital Torque Wrench 10 30 60 100 Nm 1/4 3/8 1/2 Inch Screen Mini Tool For Bike Motorcycle Repair No Battery
Noted:the parcel is not including batteries, the batteries are two AAA batteries
The mini digital wrench is designed in a miniaturized shape and is more suitable for the operation in a narrow space. Meanwhile, it has complete operating functions including torque setting function, unit setting function, numerical value storage function, numerical value eliminating function, numerical value output function and user correction function. It is easy to operate. The mini digital torque wrench is provided with the digital display screen, so that the requirement on operators is reduced. The mini digital torque wrench is suitable for fastening and controlling bolts in automobile industry, machinery industry, etc.
Features
1 Large Screen Display, Backlight Function;
2 Precision: Clockwise ±2%, Counterclockwise ±2.5% (The total range of 20% ~ 100%);
3 Buzzer and LED Light will be started when predetermined torque value is reached (Only in Peak Mode);
4 Four types of engineering units (N.m, kgf.cm, ft.lbf, in.lbf);
5 Three Measuring Modes: Real-Time Mode, Peak Mode, Preset Mode;
6 Switch itself off after 3 minutes automatically.
7 999 sets of record data can be saved;
Ordinary Model |
10 |
30 |
60 |
100 |
135 |
|
Replaceable Head Model |
10 |
30 |
60 |
100 |
||
Maximum operating range |
N.m |
10.000 |
30.00 |
60.00 |
100.00 |
135.0 |
lbf.ft |
7.380 |
22.14 |
44.28 |
73.80 |
99.6 |
|
lbf.in |
88.50 |
265.5 |
531.0 |
885.0 |
1194 |
|
kgf.cm |
102.00 |
306.0 |
612.0 |
1020.0 |
1377 |
|
Connector (inches) |
1/4 |
3/8 |
1/2 |
1/2 |
||
|
Inter changeable head connection size |
9*12 |
|||||
Buzzer Setting range （N.m） |
0.3~10 |
0.9~30 |
1.8~60 |
3~100 |
4~135 |
|
Ordinary Model Length(mm) |
235 |
245 |
290 |
388 |
||
Replaceable Head Model Length (mm) |
205 |
240 |
||||
Accuracy*1 |
Clockwise: ±2% Counterclockwise: ±2.5% |
|||||
Data storage capacity |
999 |
|||||
Operation mode |
Peak mode (P) Real-time mode (T) Preset value mode (Pre) |
|||||
Unit |
N.m、kgf.cm、lbf.ft、lbf.in |
|||||
Ratchet head form |
Two-way ratchet head |
|||||
Number of ratchet teeth |
72 teeth |
|||||
Number of buttons |
5 |
|||||
Battery |
2 7# batteries (not included) |
|||||
Operating temperature |
-10°C~60°C |
|||||
Storage temperature |
-20°C~70"C |
|||||
Drop test height |
1 meter |
|||||
Vibration test conditions |
10G |
|||||
Life test*2 |
10000 times |
|||||
