4Pcs SG90 9g Micro Servos for RC Robot Helicopter Airplane Controls Car Boat

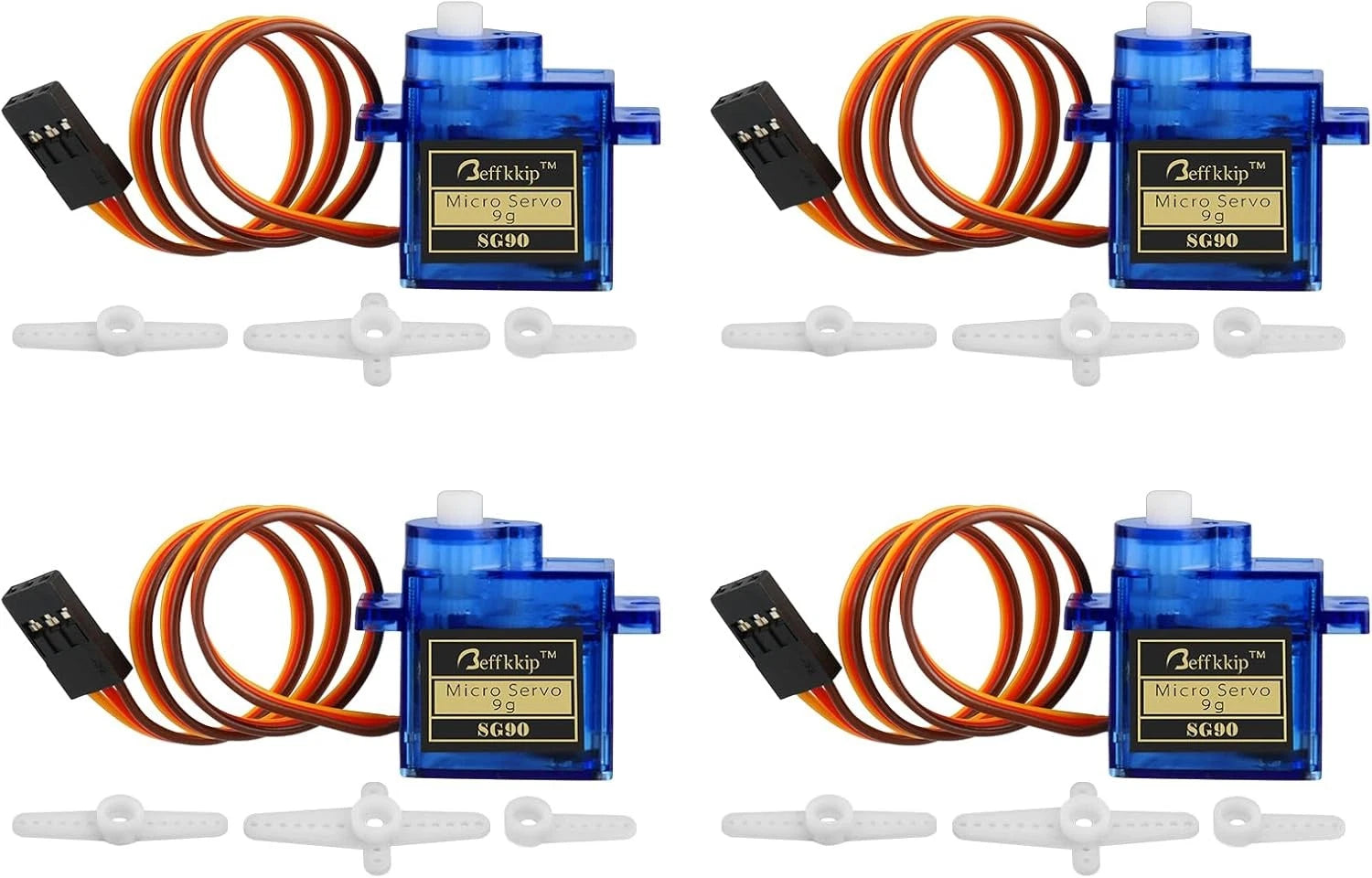

Four SG90 micro servos in one pack

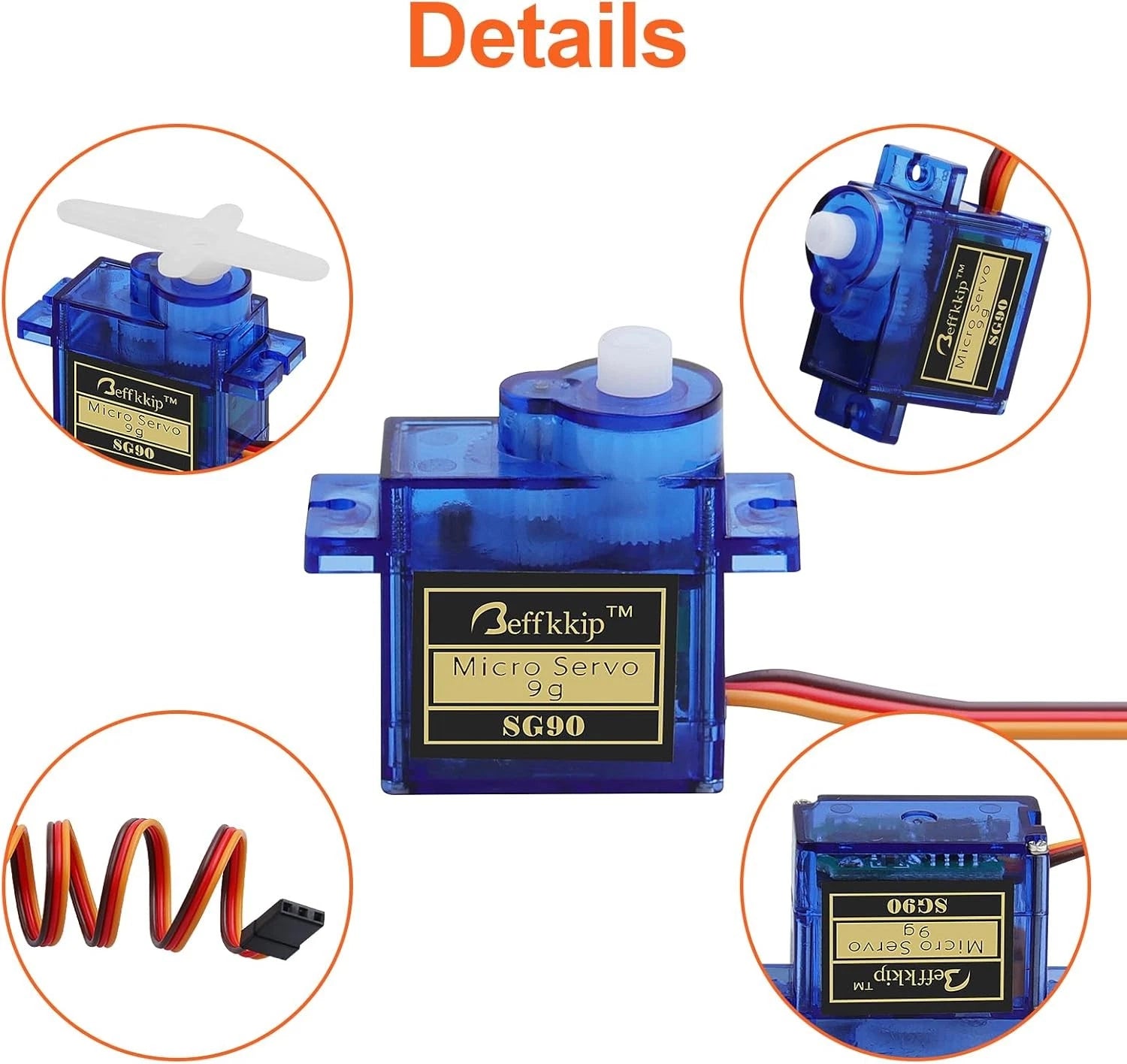

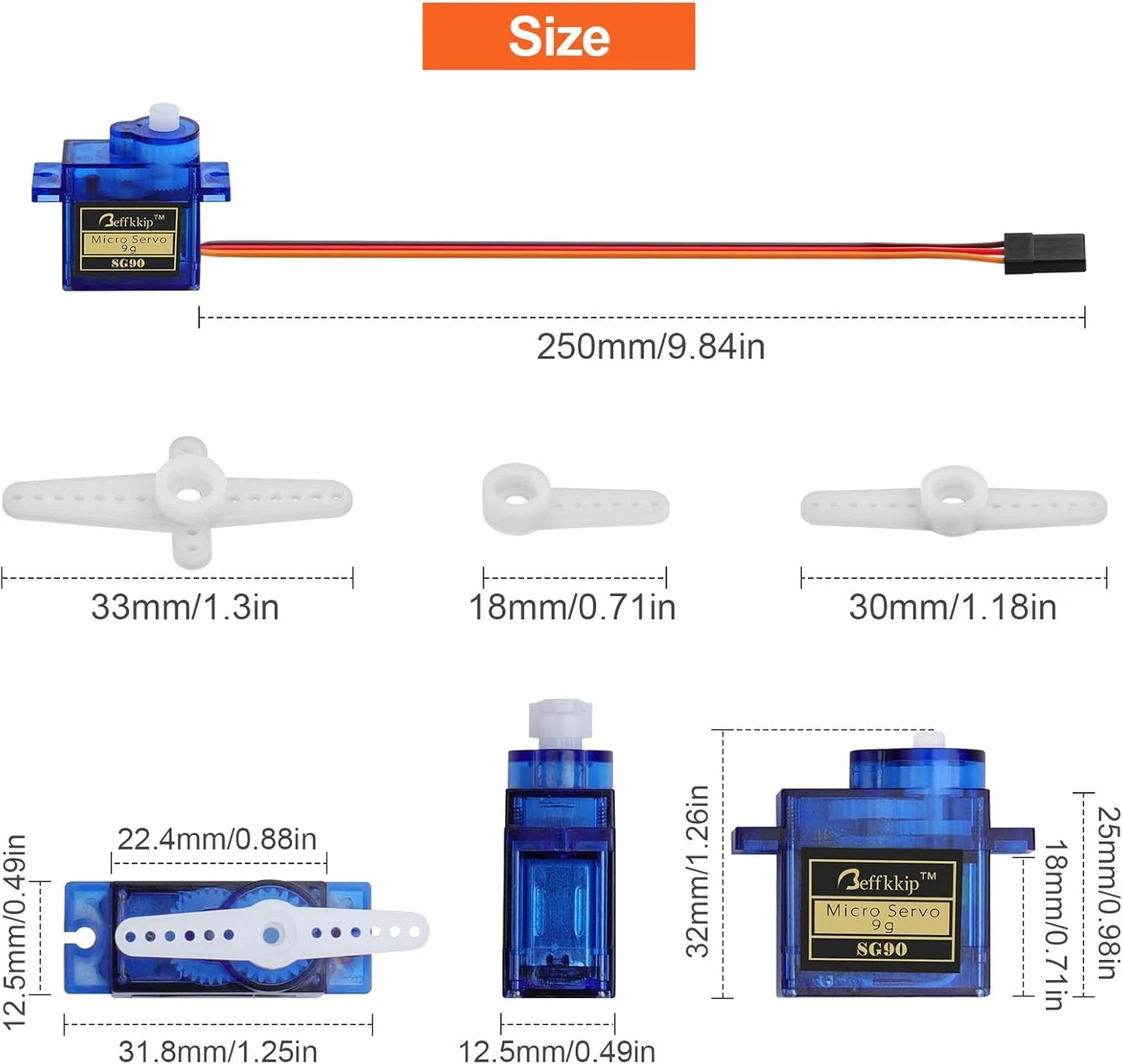

This pack contains four Beffkkip SG90 9g micro servos for RC models and small robots. Each servo has a translucent blue case with the white plastic gears visible through it, a three-wire lead ending in a 3-pin plug, and the white servo horns shown in the photo.

• Four servos, each with its own lead and set of horns
• Case label on each unit: Beffkkip Micro Servo 9g SG90

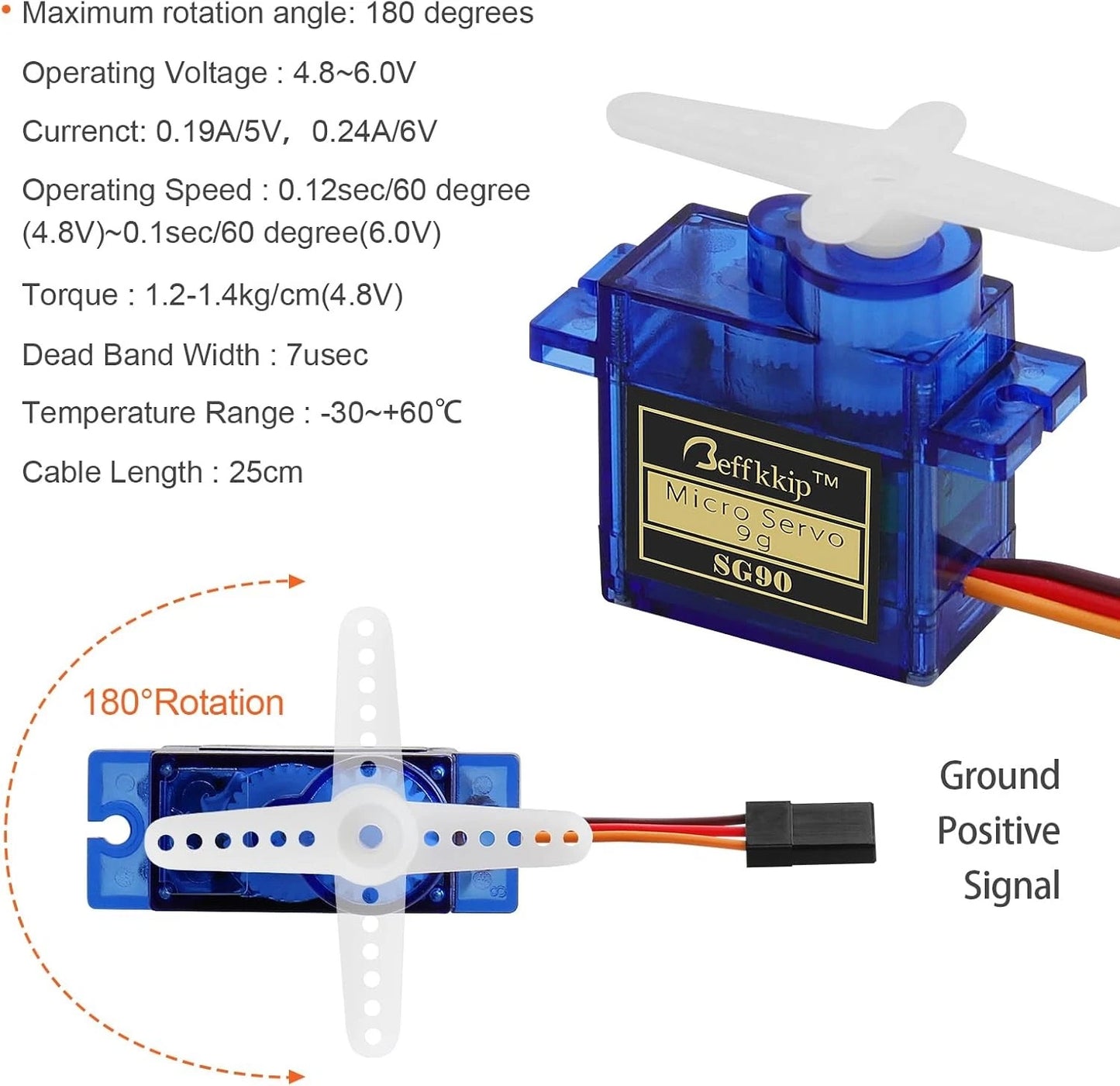

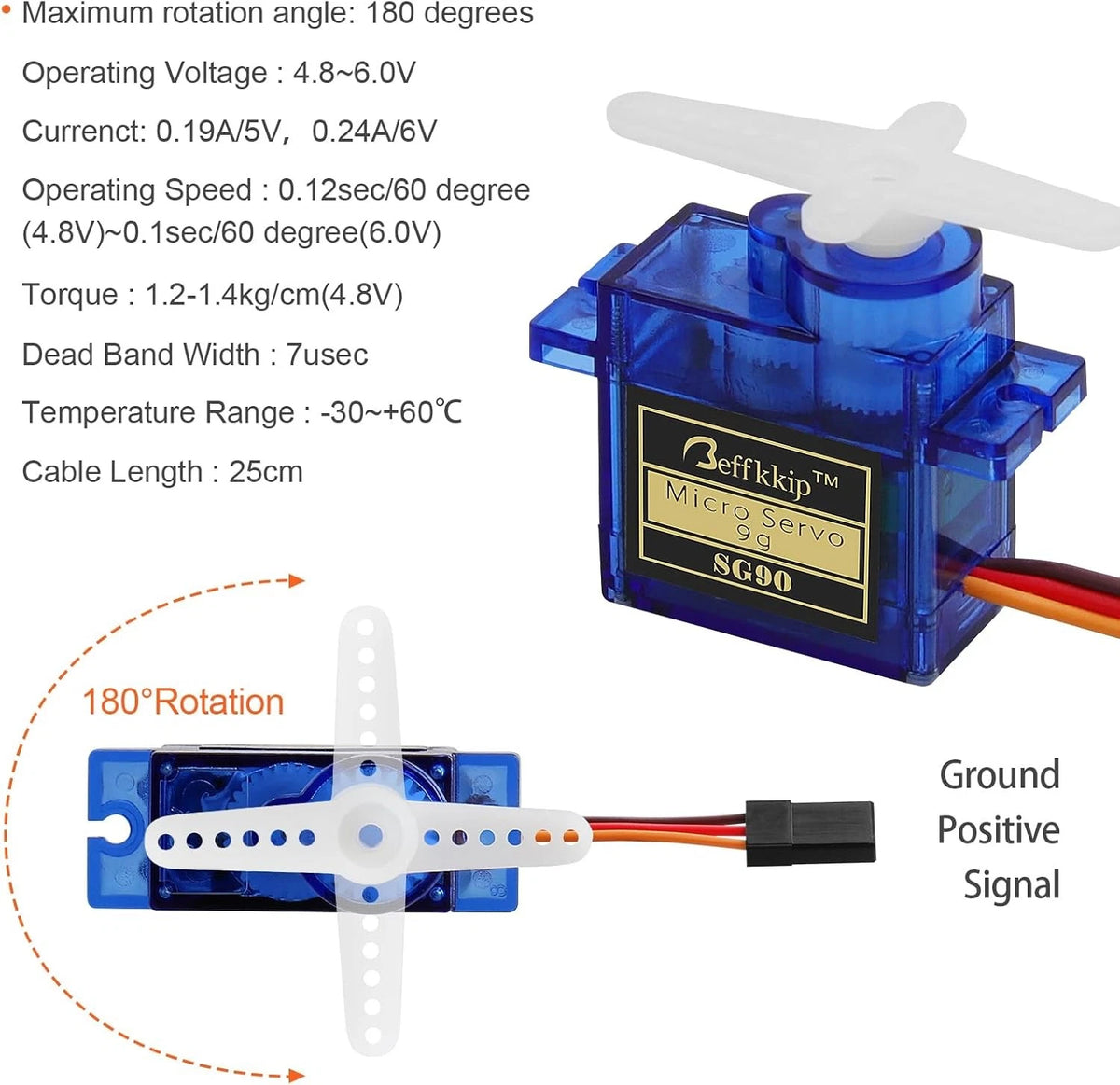

Specifications

Brand

Beffkkip

Model

SG90

Class

9 g micro servo

Operating speed

0.1 s per 60 degrees at 4.8 V, no load

Operating voltage

4.8 to 6 V

Gears

Plastic, visible through the clear case

Case

Translucent blue plastic

Lead

Three wires (orange, red, brown) and a 3-pin plug; plug standard not specified

Pack weight

2.11 oz listed for the full pack

Package size

5.35 x 4.02 x 1.34 in listed

Listed manufacturer

Deegoo-FPV

Where they fit

The listing describes these servos for fixed-wing planes, helicopters, KT foam builds, gliders, small robots, and robotic arms. The pack title also covers RC cars and boats. Each servo weighs about 9 g.

Not stated on this page

• Torque: no value given
• Connector type: JR or Futaba style not specified
• Dimensions of a single servo: not provided

Check the 4.8 to 6 V range against your receiver or BEC before ordering. If your build needs an exact torque figure, ask first, because this listing does not publish one.

Before you install

1. Confirm your receiver or power supply outputs 4.8 to 6 V.
2. Plug a servo into a spare channel and check travel before you attach a horn.
3. Attach one of the included horns and set the servo in place.
