Wheel-centering sleeve tool set for 22 mm studs, 3 pieces

Three centering sleeves for wheel installation

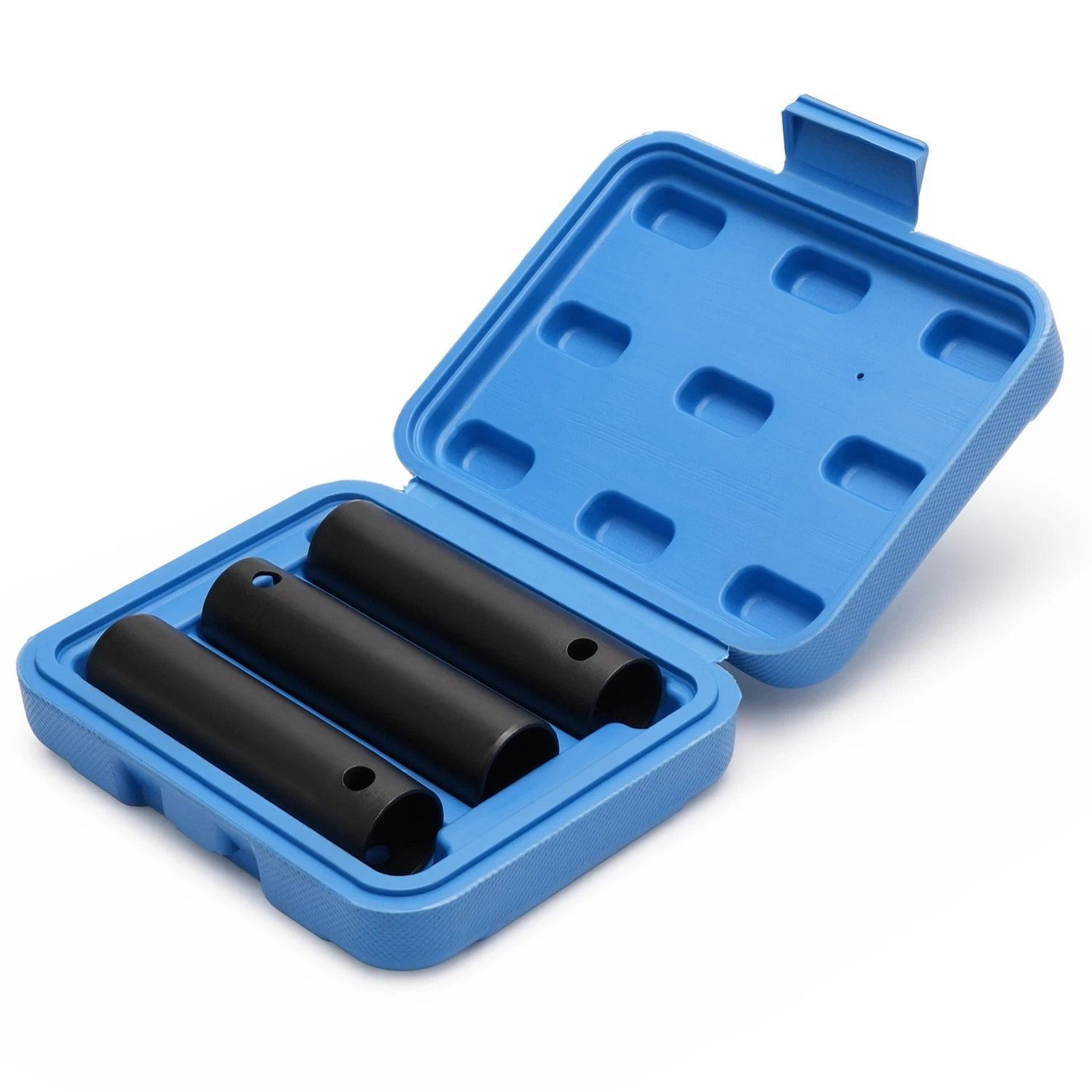

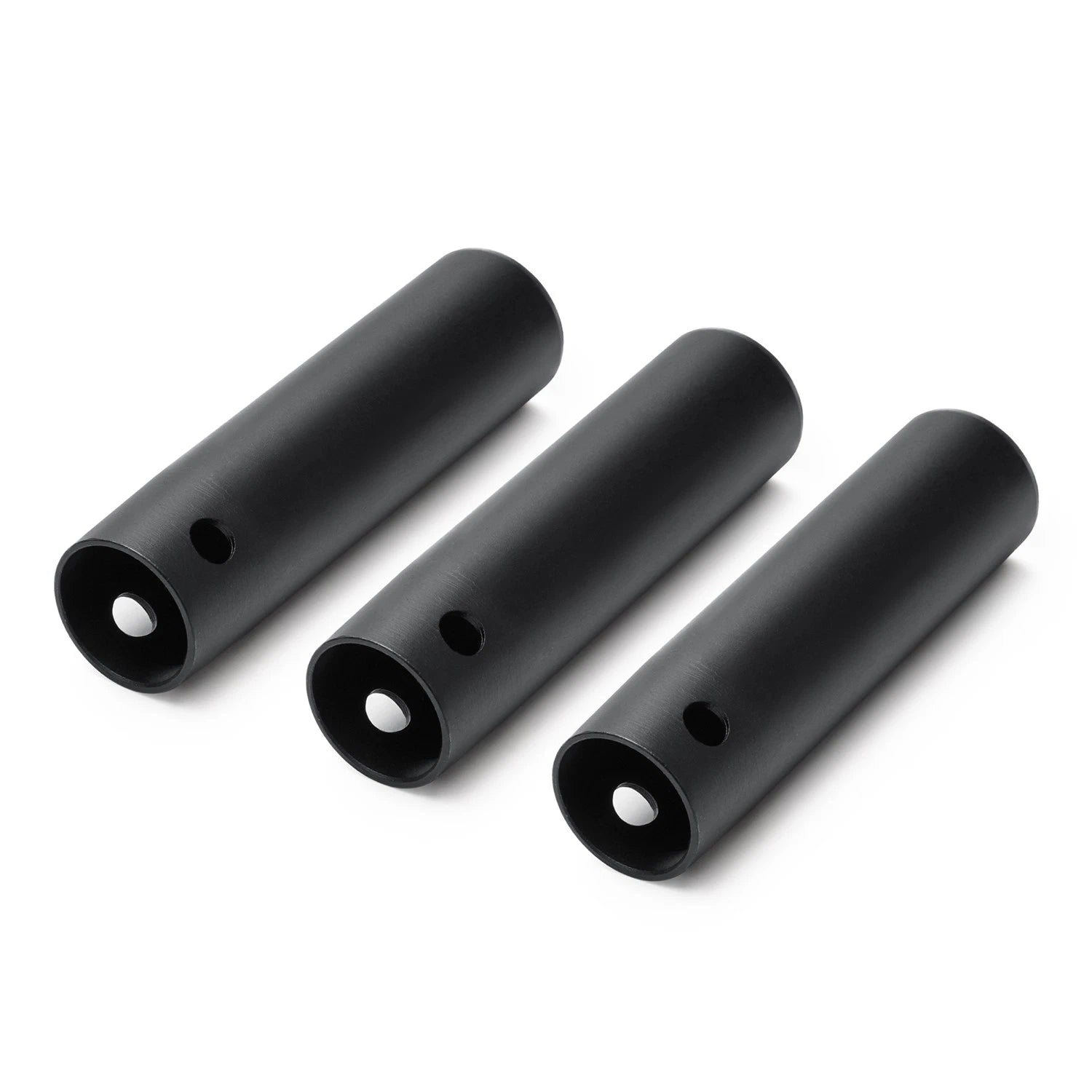

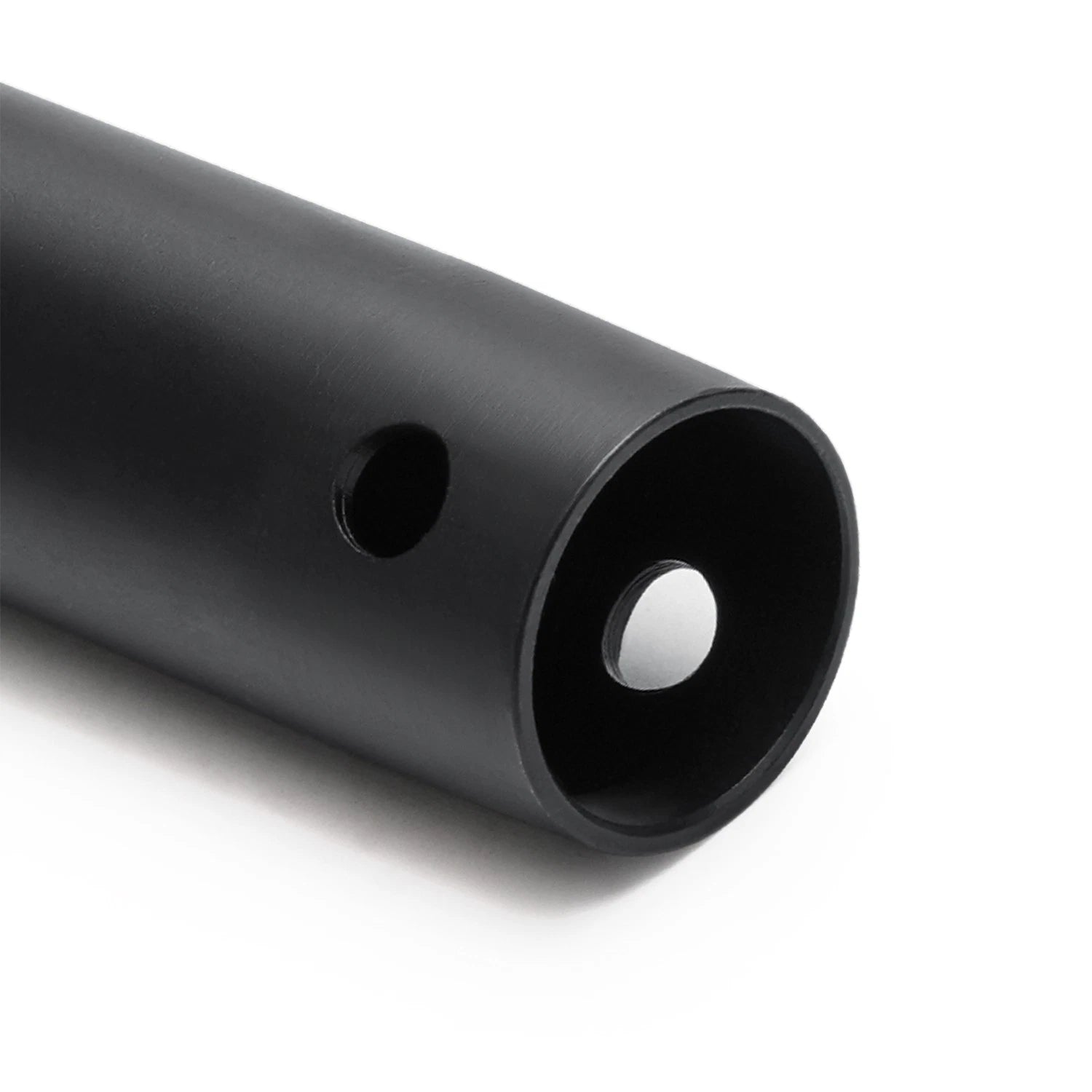

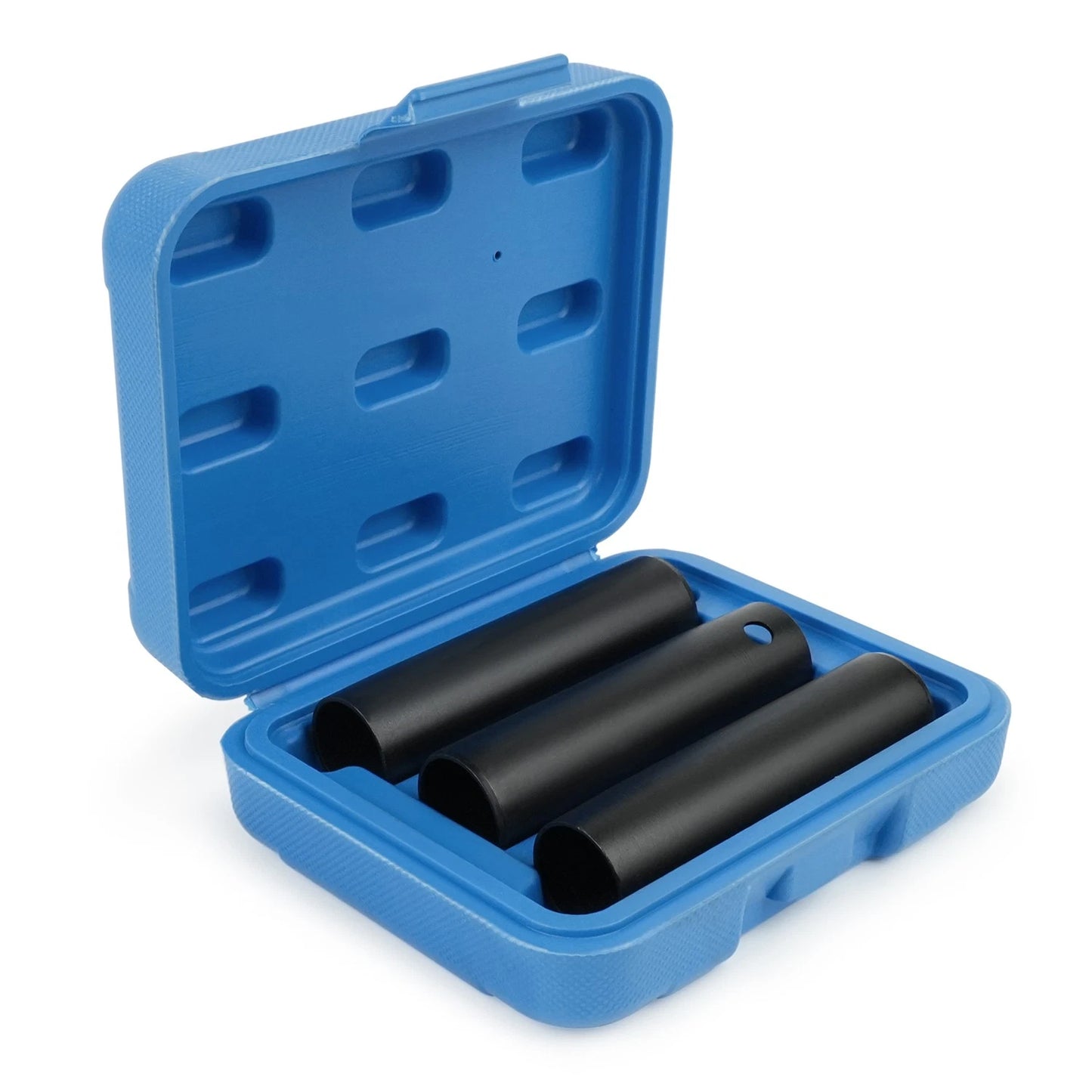

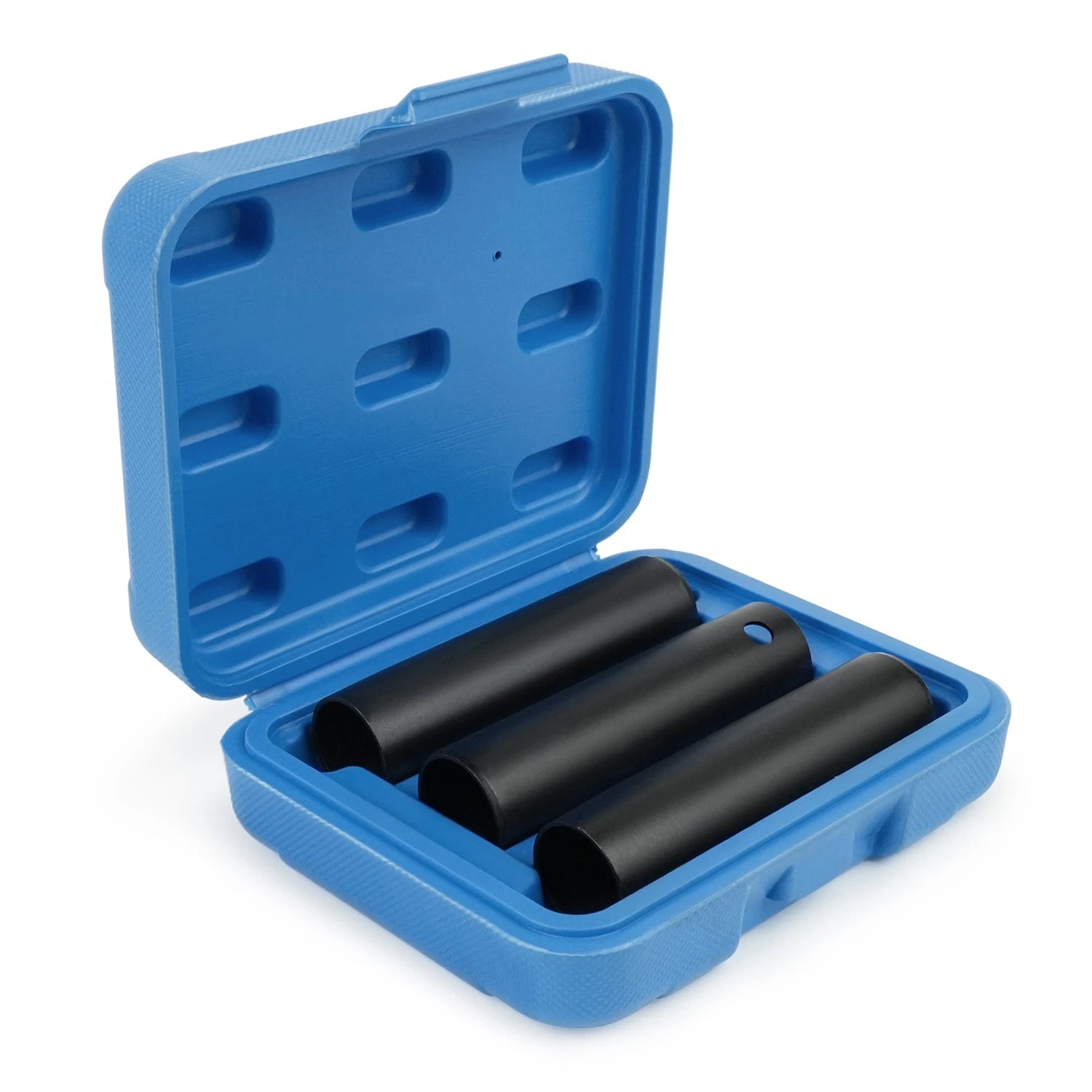

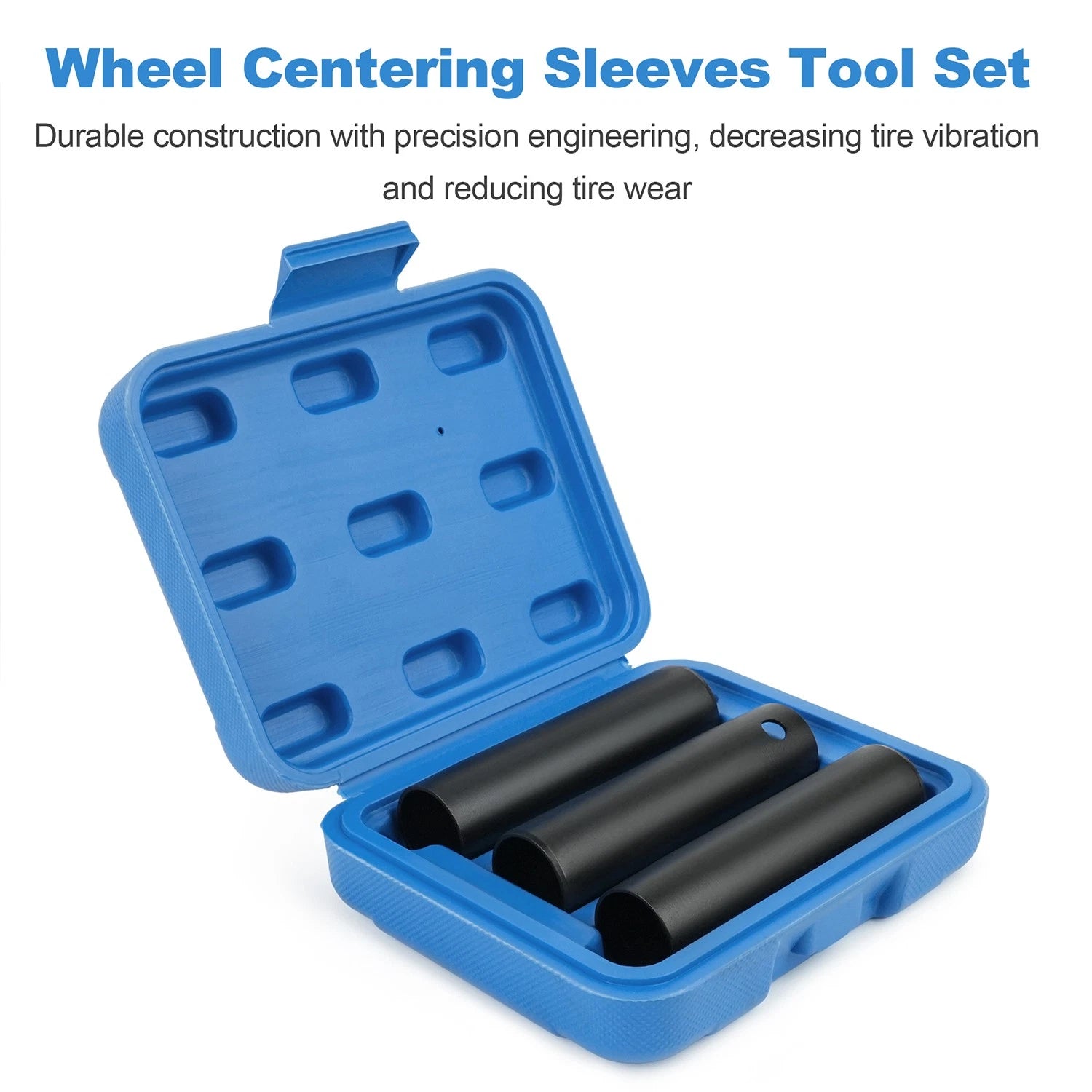

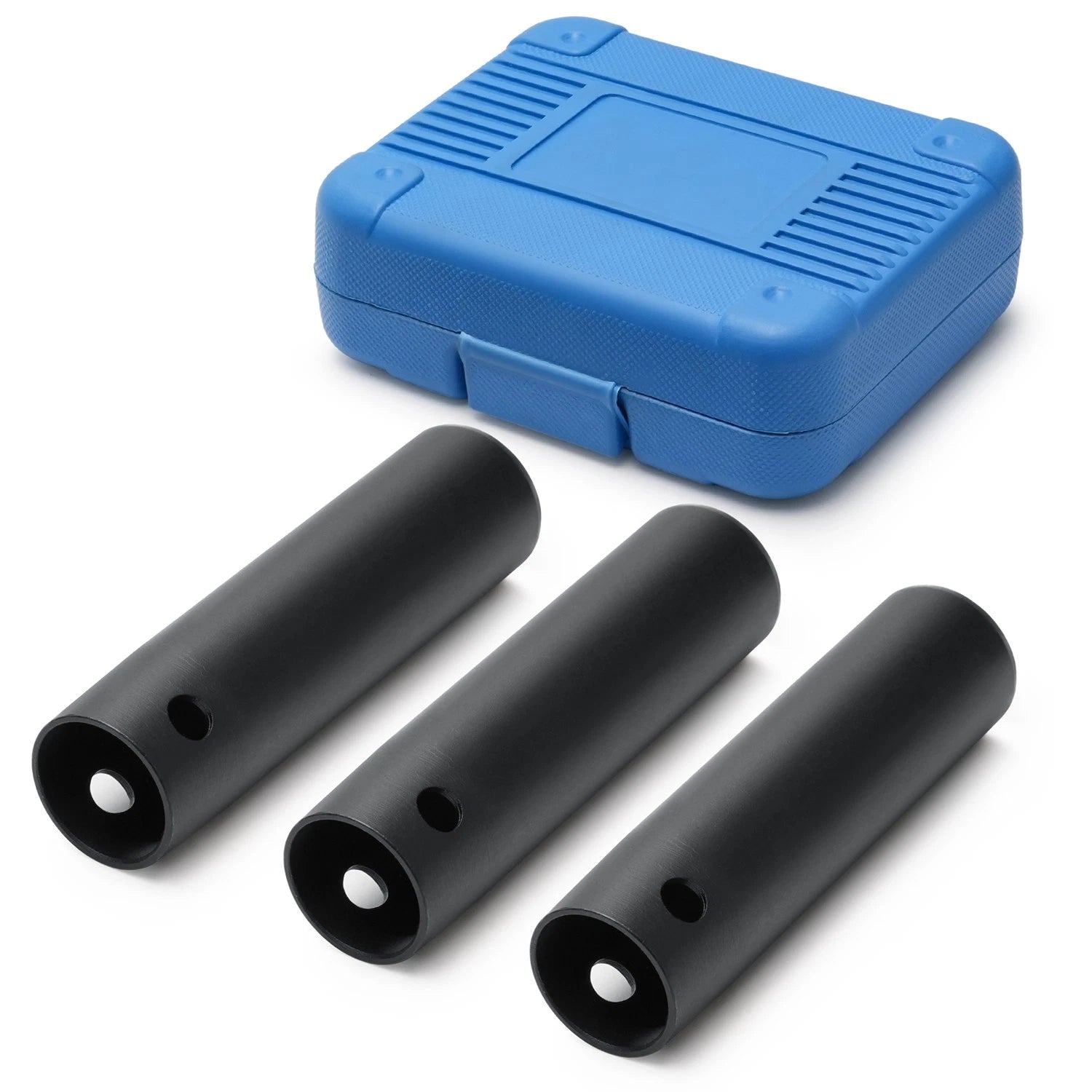

This set contains three black wheel-centering sleeves in a blue fitted storage case. The sleeves help guide a compatible heavy-truck or trailer wheel over its studs during mounting. Each has a cylindrical body and a cross-hole near one end for removal after the wheel is seated.

Check the stud and wheel-hole fit

Included tools

3 wheel-centering sleeves

Storage

Blue fitted case

Listed stud size

22 mm

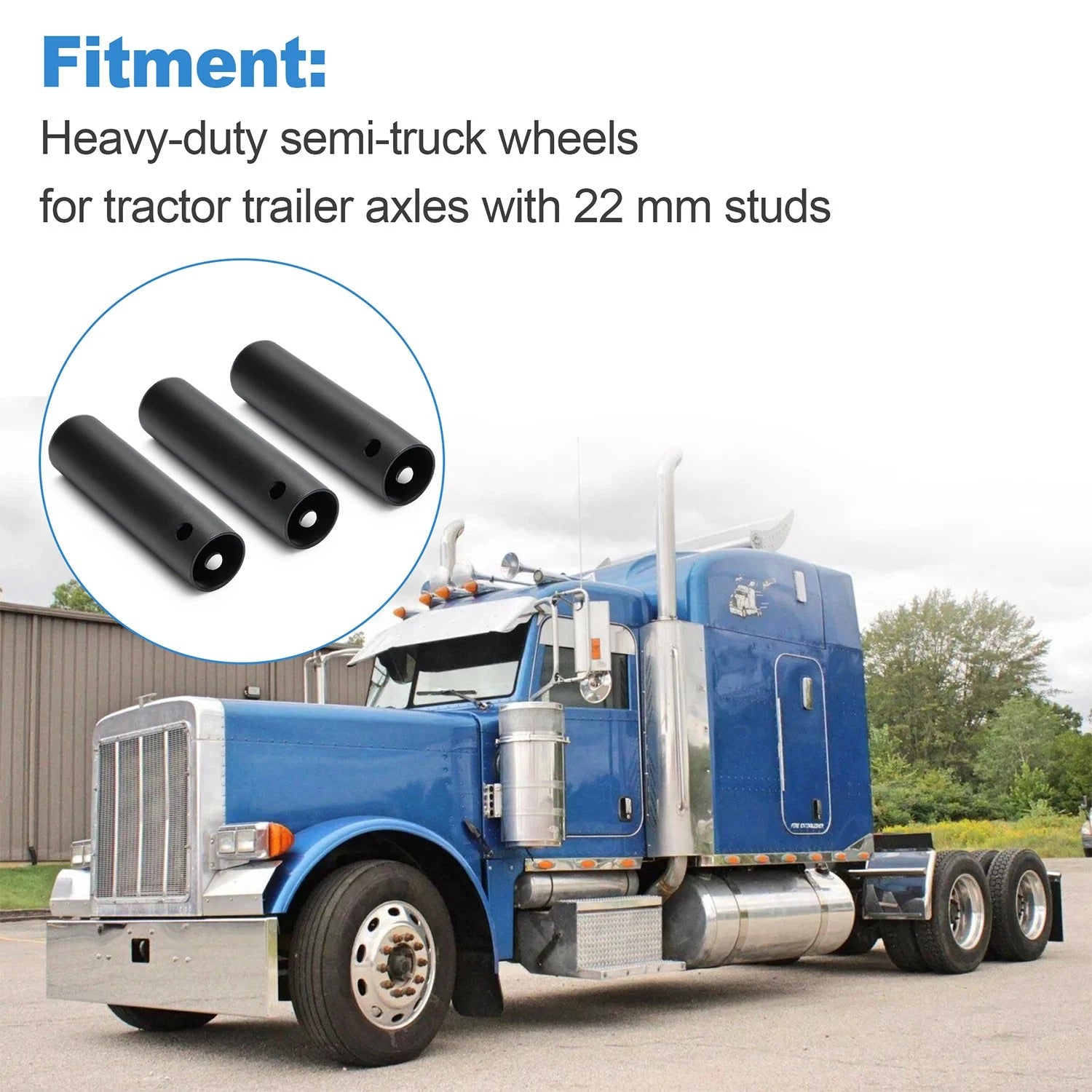

Listed applications

Compatible steer, drive and trailer axle wheel installations

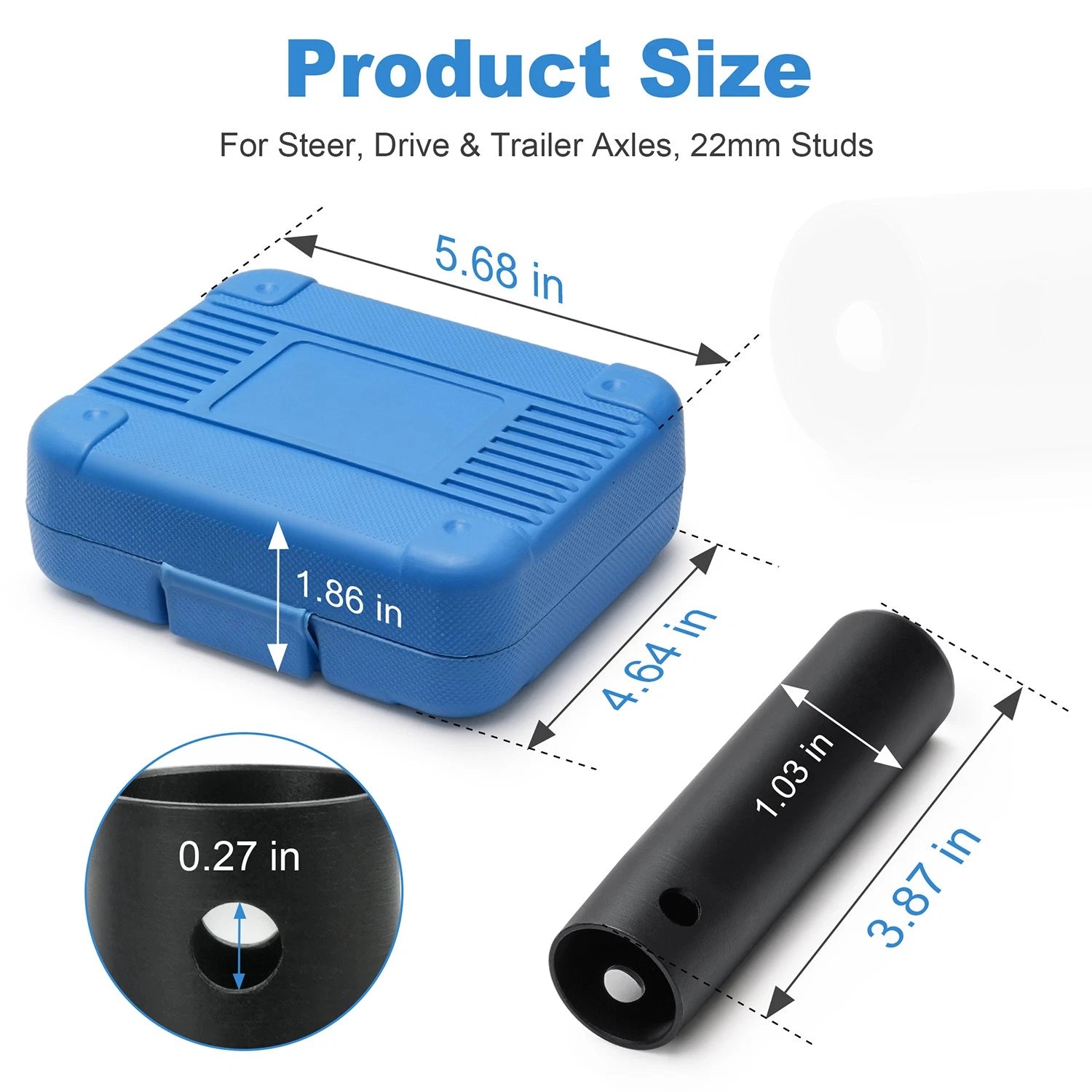

Sleeve length

3.87 in, as marked in the product size photo

Sleeve outside diameter

1.03 in, as marked in the product size photo

Material

Steel

The 22 mm specification refers to wheel-stud diameter, not thread pitch or a socket size. Check the wheel-hole clearance, stud projection and hub-piloted mounting arrangement before choosing the set. The pictured dimensions do not establish a minimum wheel-hole size or machining tolerance, and a truck or trailer description alone does not confirm fit.

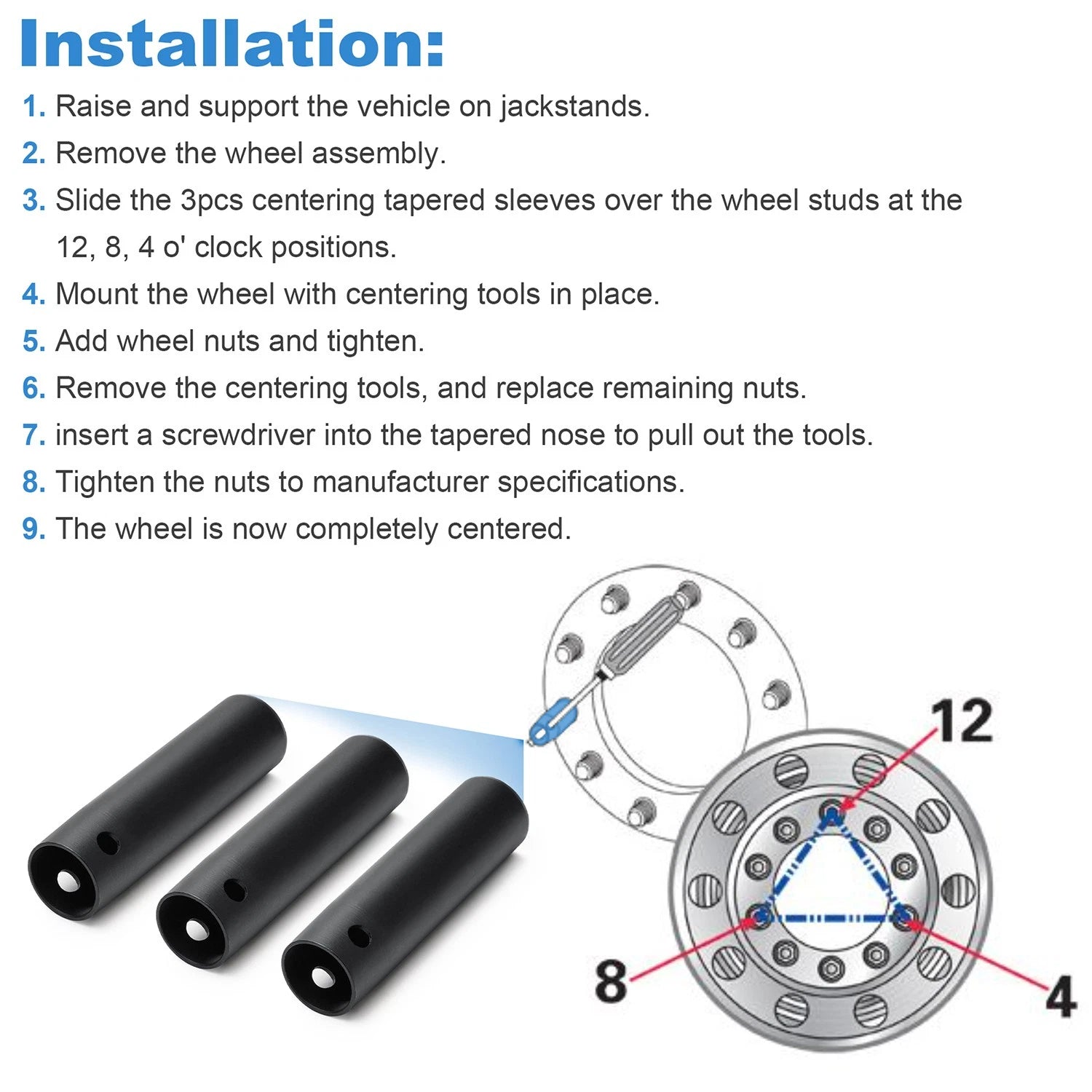

Remove the sleeves before final tightening

These are temporary mounting tools. Remove them once the wheel is held in position, install the remaining wheel nuts, and complete tightening to the wheel and stud manufacturer's procedure. Do not force a sleeve into a wheel hole or leave the tools fitted when moving the vehicle.

The set supplies sleeves and their case. Wheel nuts, replacement studs and a socket wrench are not included.
