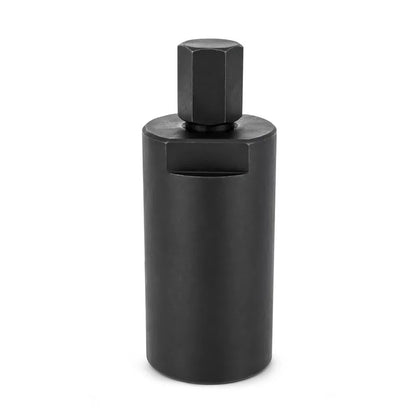

35 mm x 1.0 Female Clutch Puller for Honda Foreman TRX400 TRX450 TRX500

A 35 mm female clutch puller for Foreman service

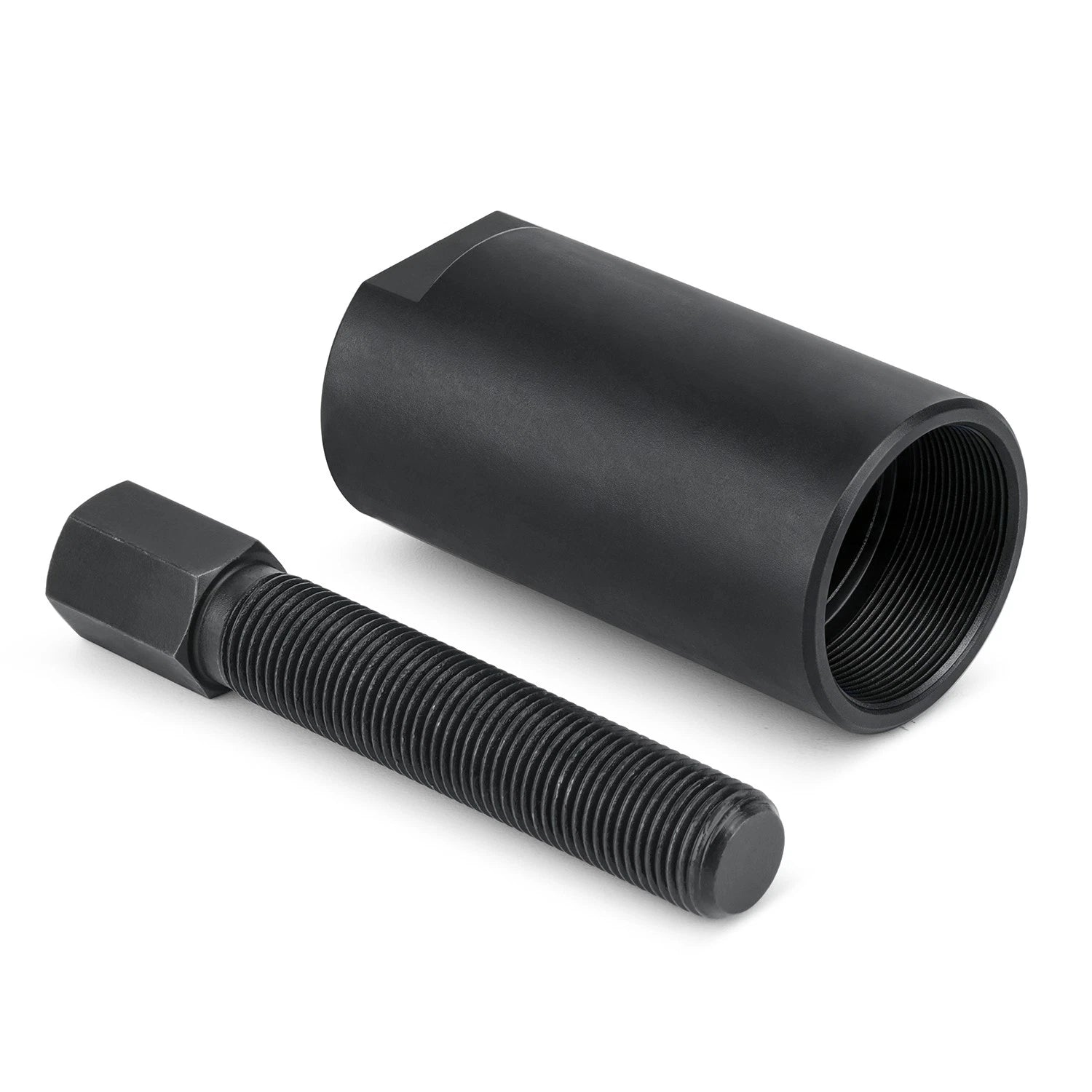

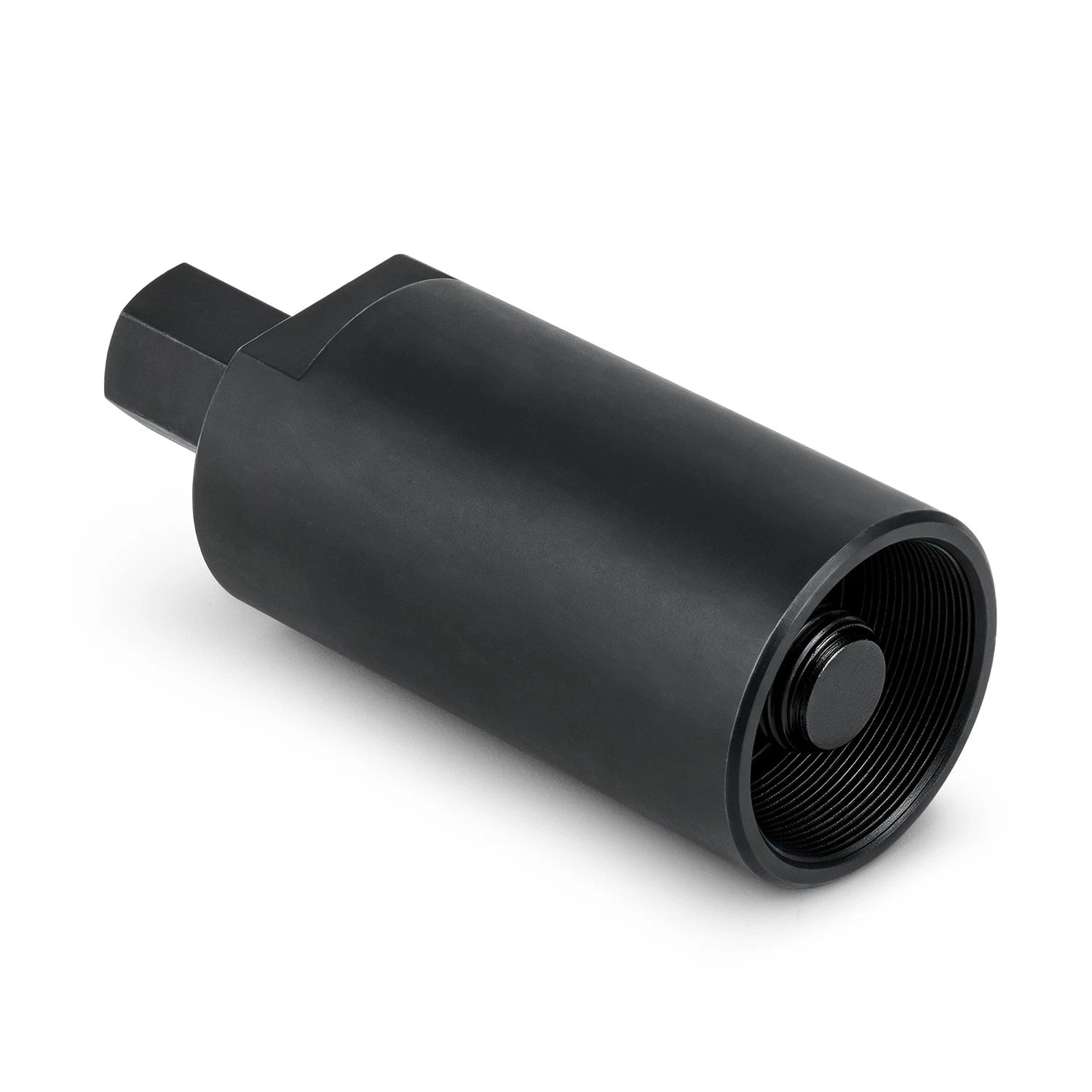

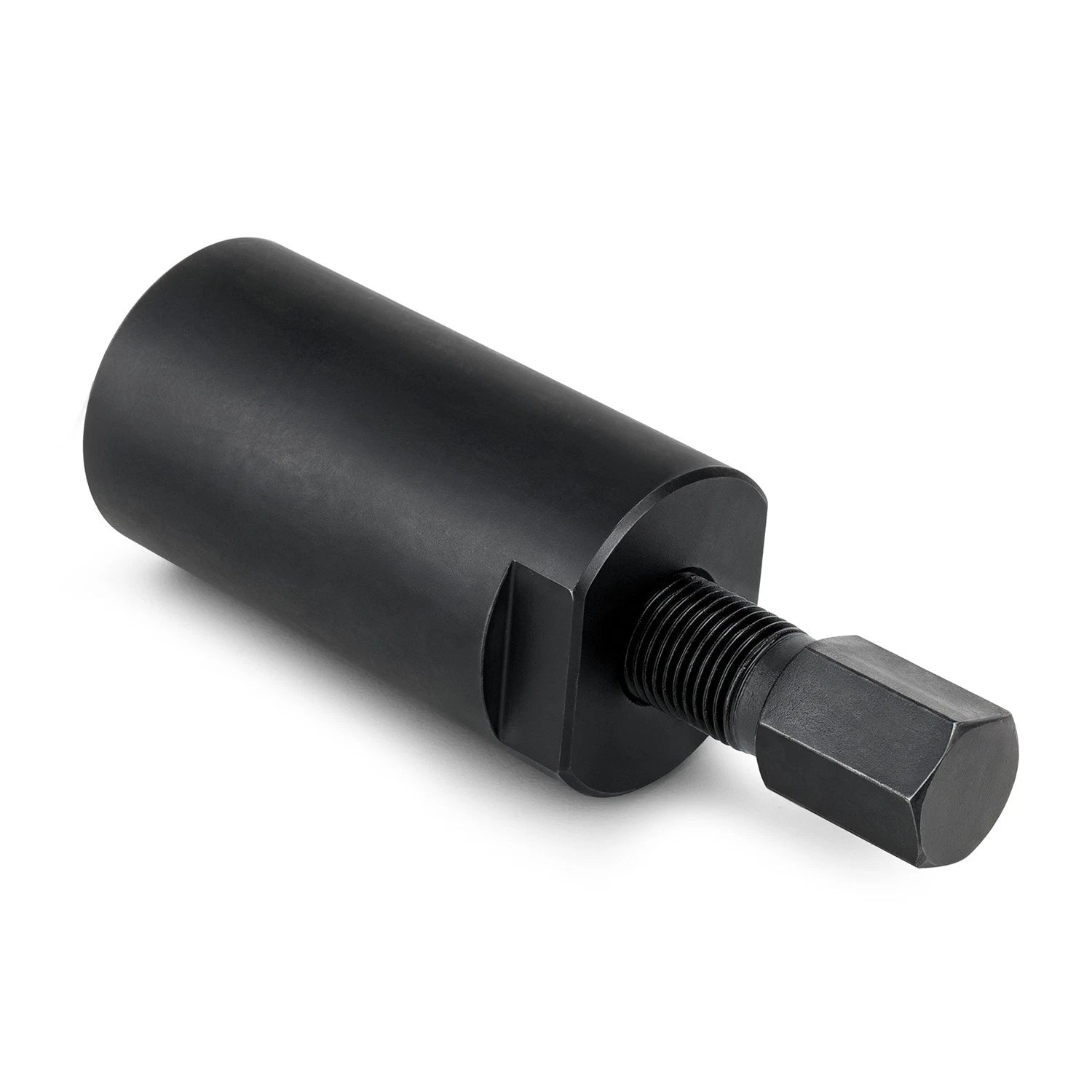

This cup-style puller has a 35 mm x 1.0 mm right-hand internal thread and a central forcing screw. It is a replacement service tool referenced to Honda 07933-HA80000 for selected Foreman TRX400, TRX450 and TRX500 clutch-removal applications.

The female opening fits over a matching external puller thread on the clutch assembly. The center screw supplies the pulling action once the tool is correctly engaged. The 35 mm x 1.0 mm specification describes the cup's connection thread; it does not specify the center screw's size.

Check the complete model code

Use your ATV's model year, full TRX model suffix and service manual to select the tool. Honda's 1998-2004 TRX450S/FM and TRX450ES/FE manual lists 07933-HA80000 as a clutch puller. For TRX400 or TRX500 machines, confirm that the clutch-removal procedure calls for that reference and a 35 mm x 1.0 mm female connection.

Foreman and Rubicon names, engine displacement and a shared TRX500 prefix do not establish the same puller connection. Check the installed clutch before purchase, especially if the engine or clutch has been replaced.

Tool details

Included tool

One cup-style puller body with a center forcing screw

Clutch connection

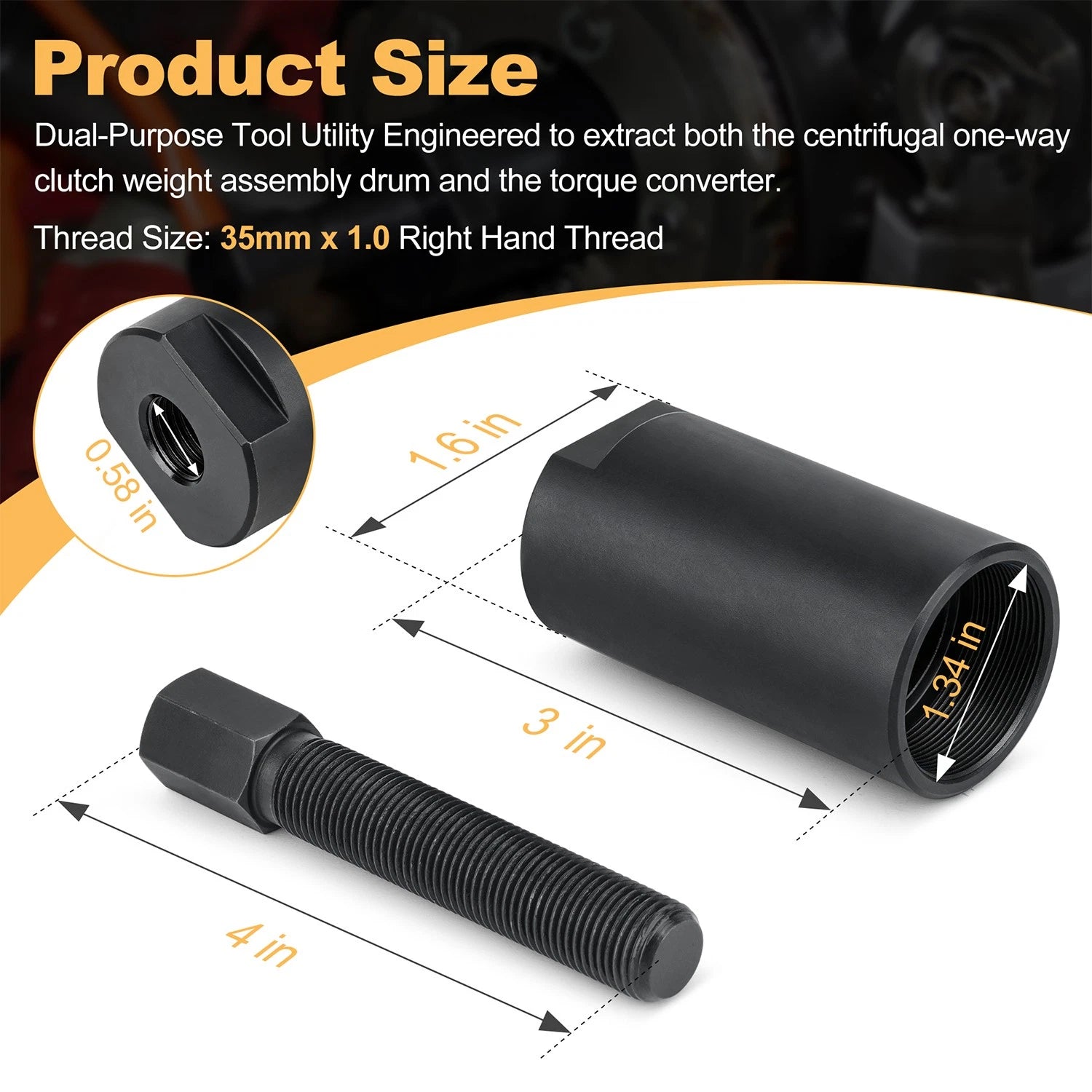

35 mm nominal diameter x 1.0 mm thread pitch

Thread form

Female, internal, right-hand

Tool reference

07933-HA80000

Drive and holding surfaces

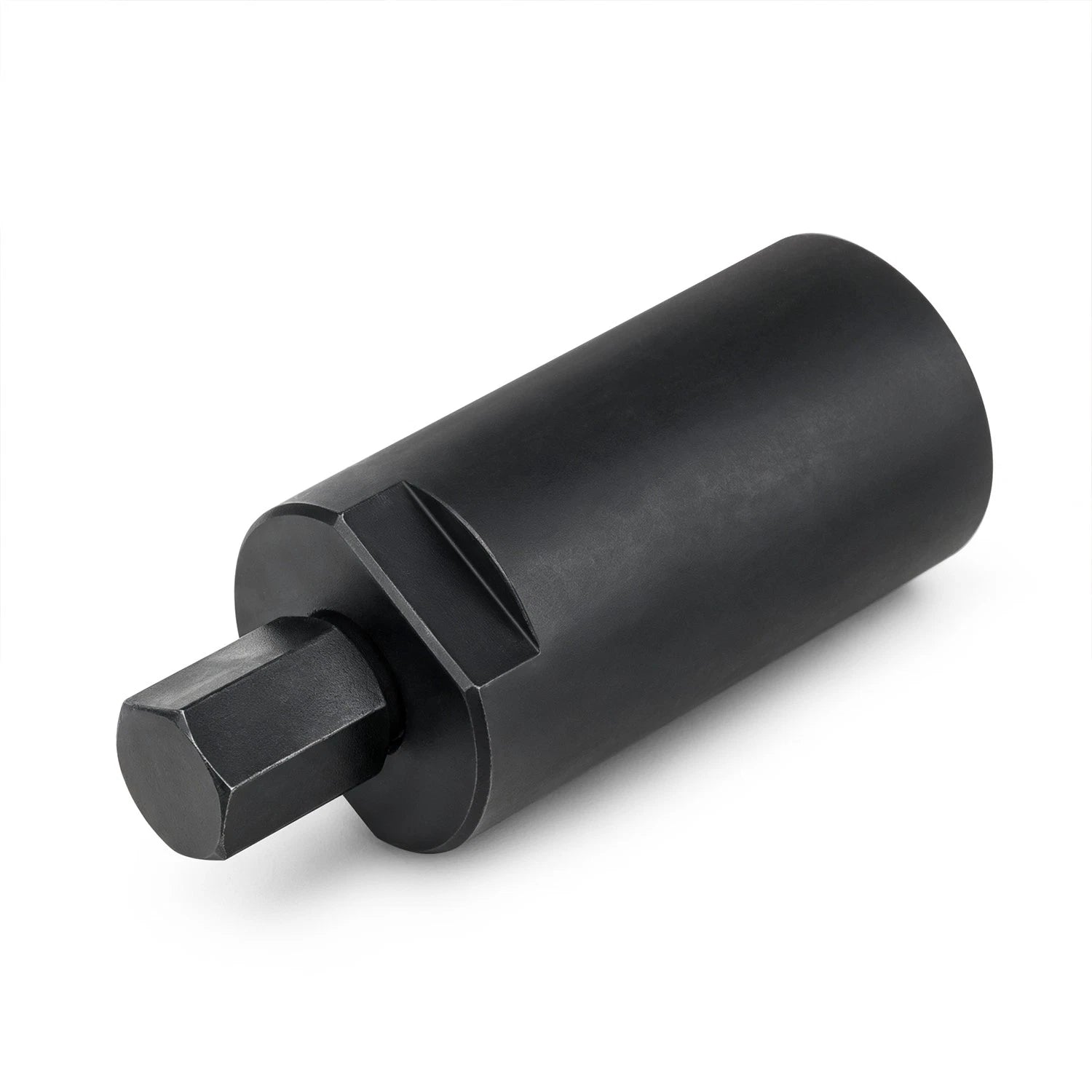

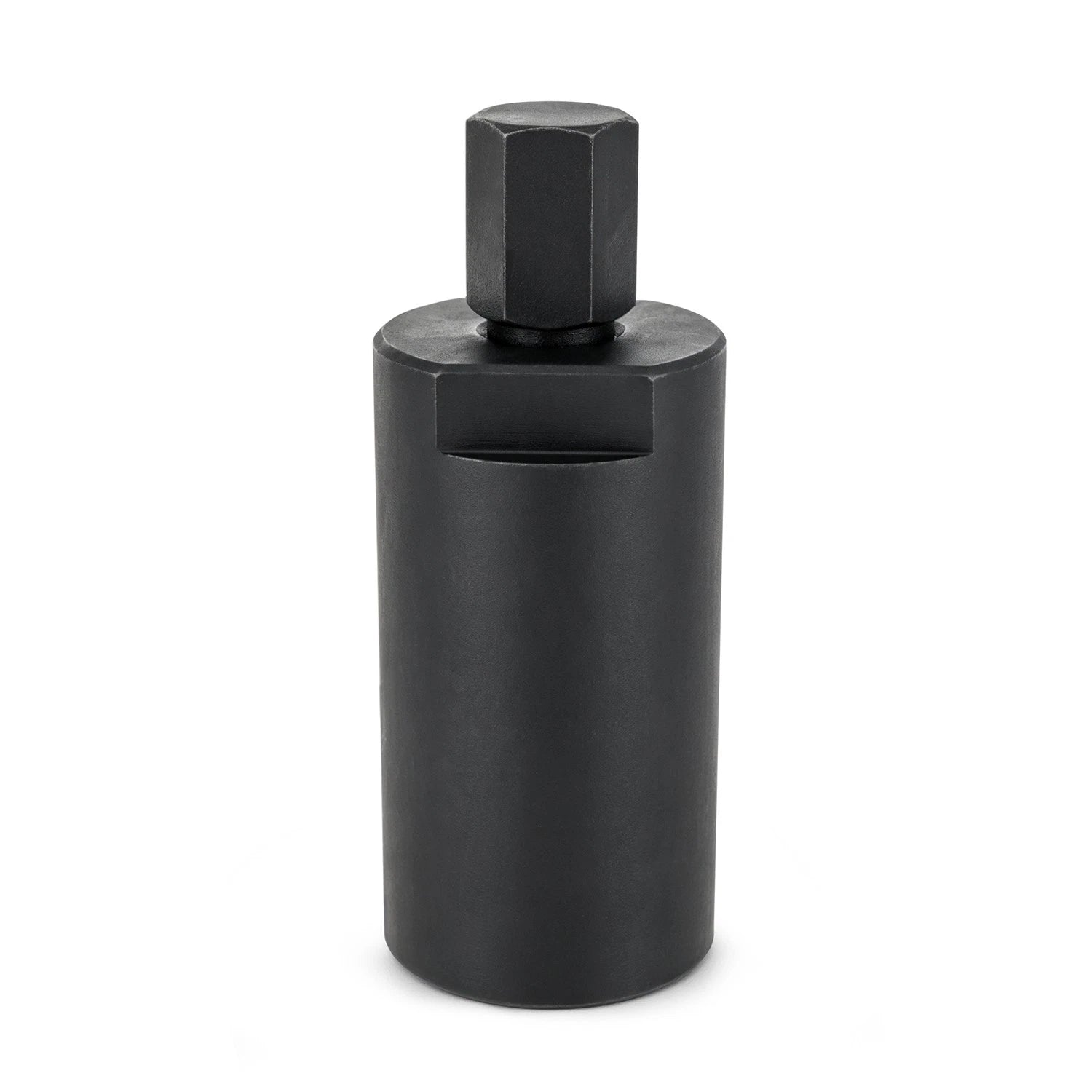

Hex head on the forcing screw; flattened holding surface on the body

Intended job

Clutch removal on matching Honda Foreman applications

Prepare for clutch removal

Check that the clutch's puller threads are clean and undamaged and that the tool engages without binding. Follow the exact model's service procedure for access, removal of retaining parts and support of the assembly. Holding tools, wrenches and replacement service parts are not included in the pictured package.

The tool reference identifies the intended application and does not indicate Honda manufacture. Wrench sizes, center-screw dimensions and a maximum pulling-force rating are not specified.
