Black aluminum seat hinge pair for Kawasaki 650 SC, 1991-1995

Black aluminum seat hinges for the 650 SC

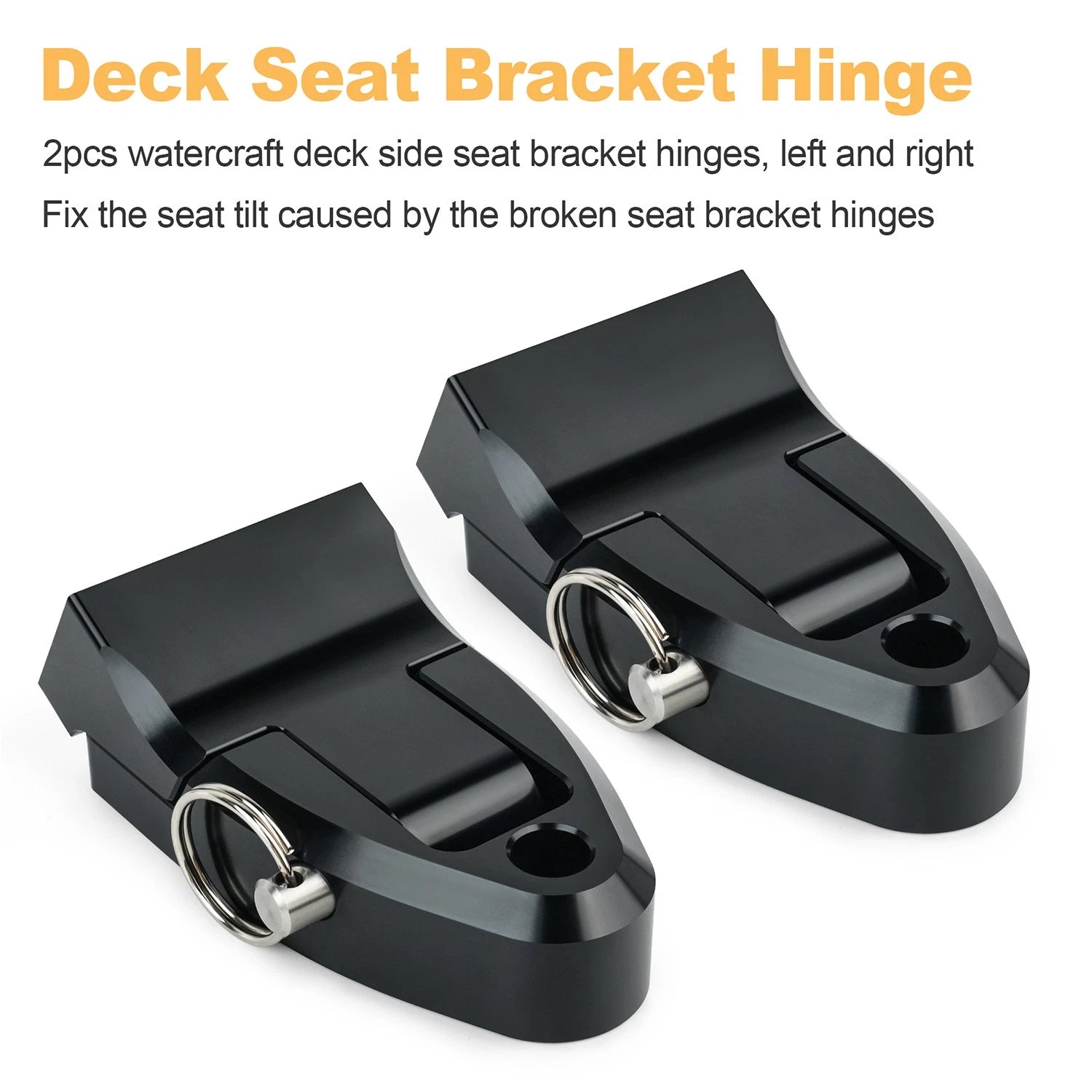

This pair replaces the seat hinge assemblies on listed Kawasaki 650 SC Super Chicken watercraft. The two hinges are supplied for the left and right seat-hinge positions, with black anodized aluminum brackets and a ring-pull pin in each assembly.

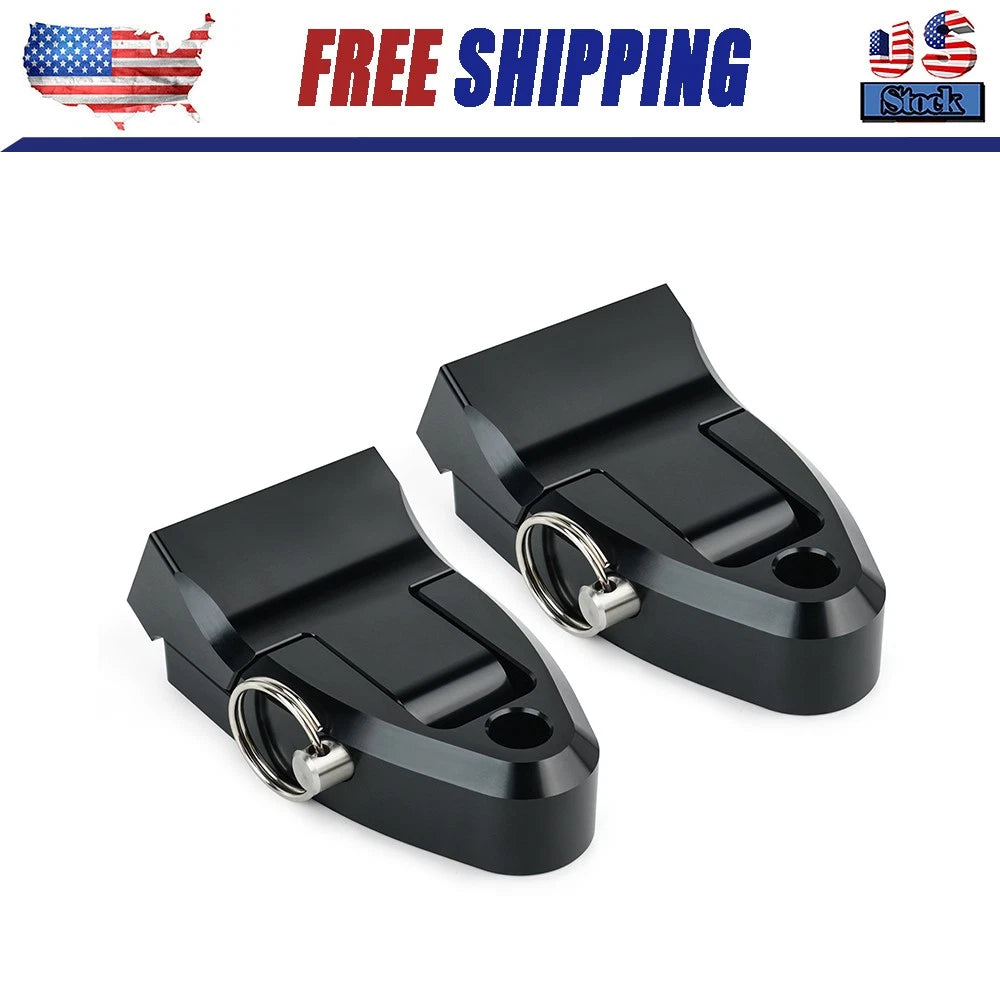

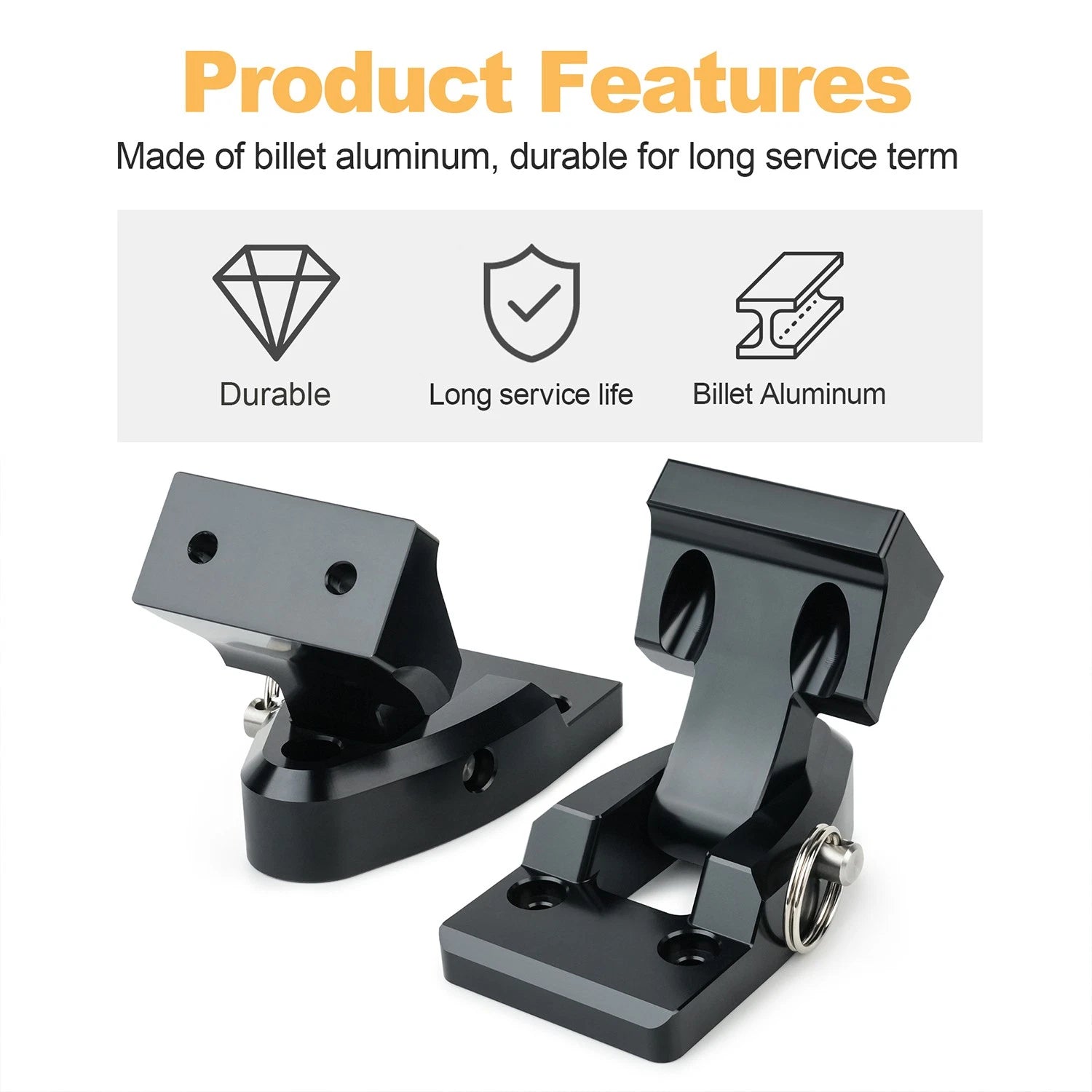

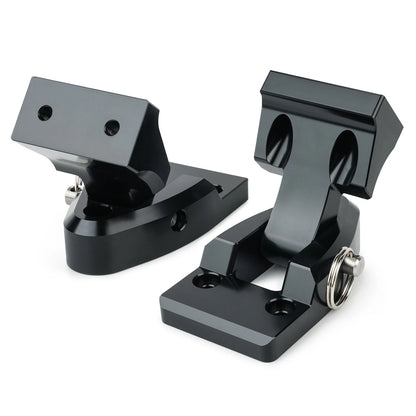

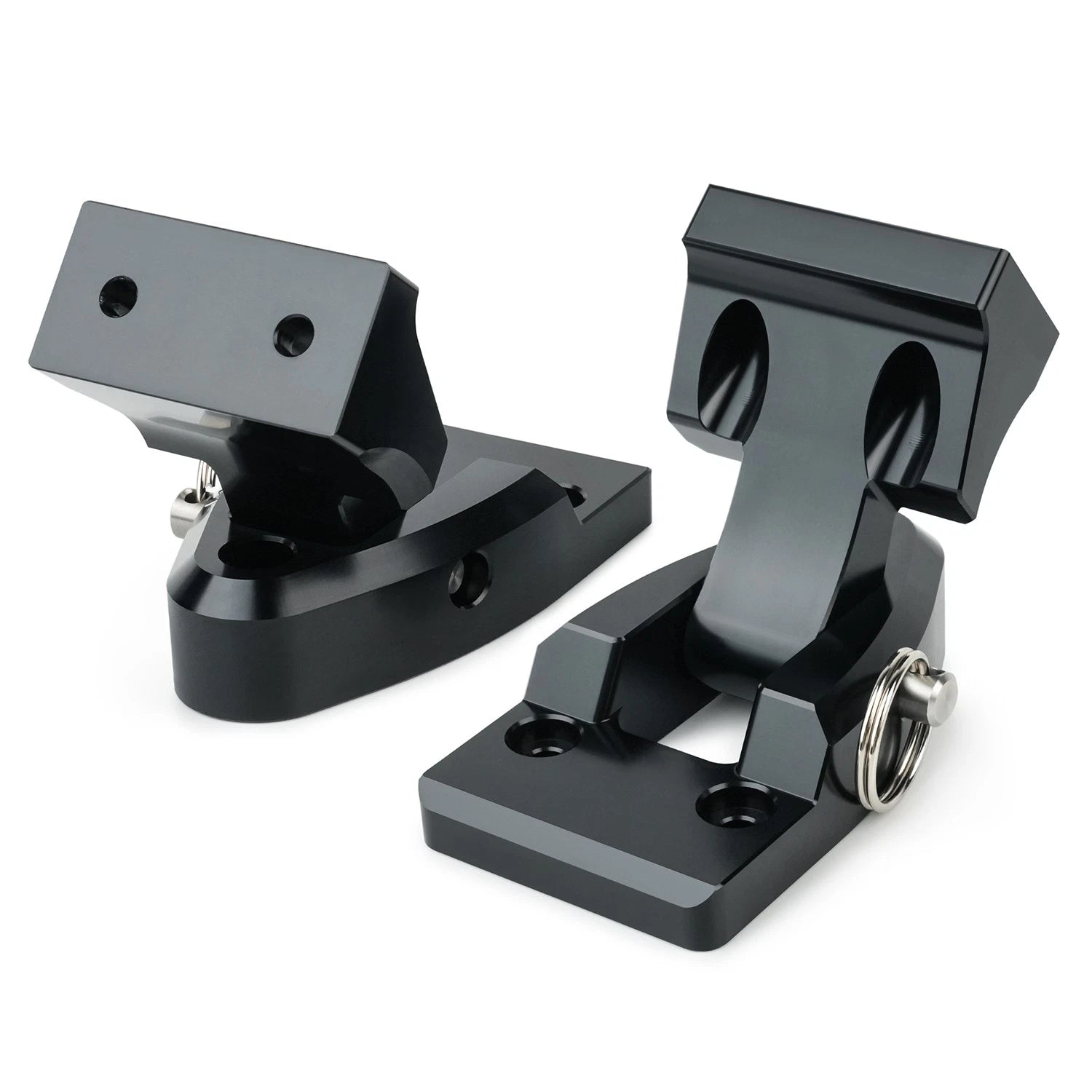

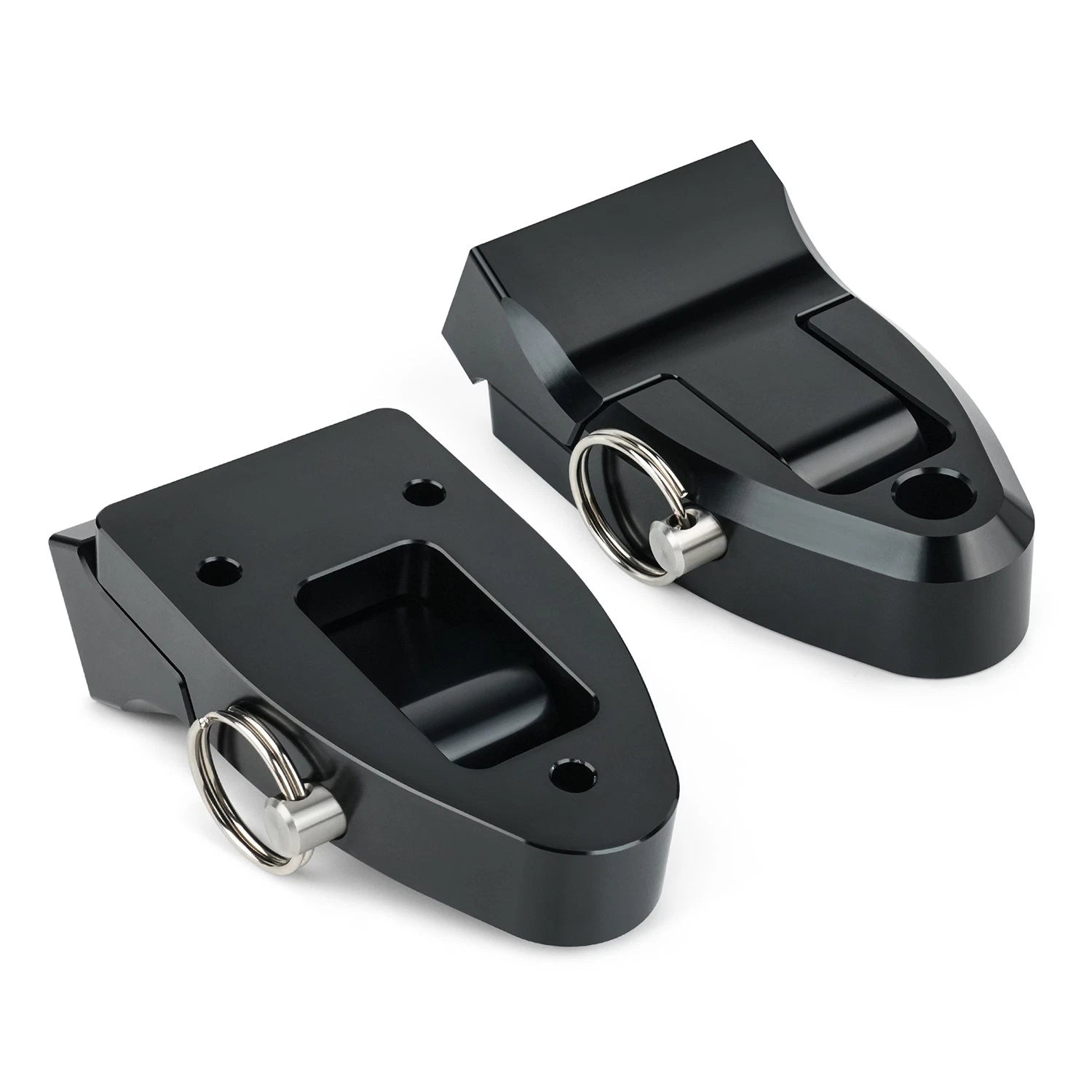

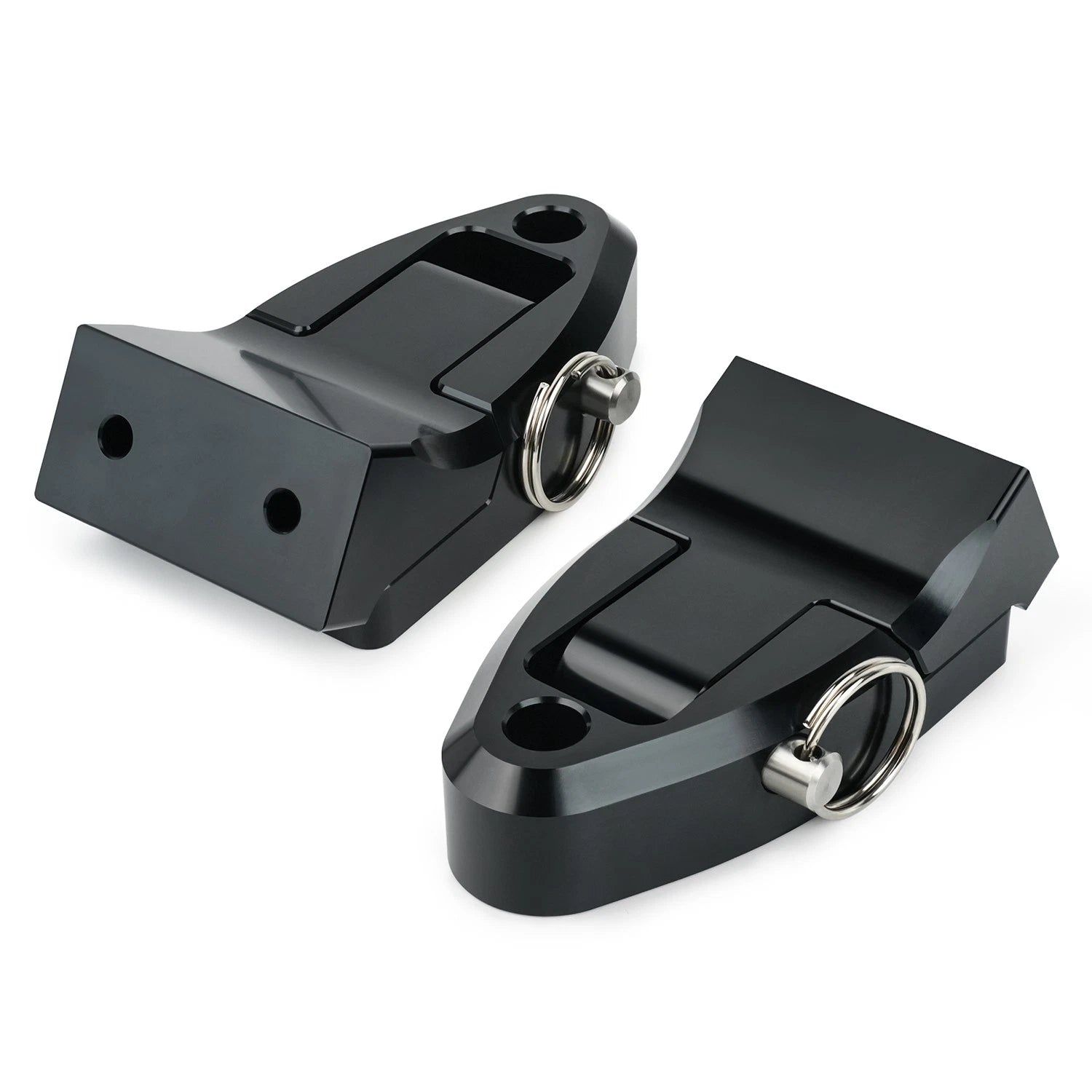

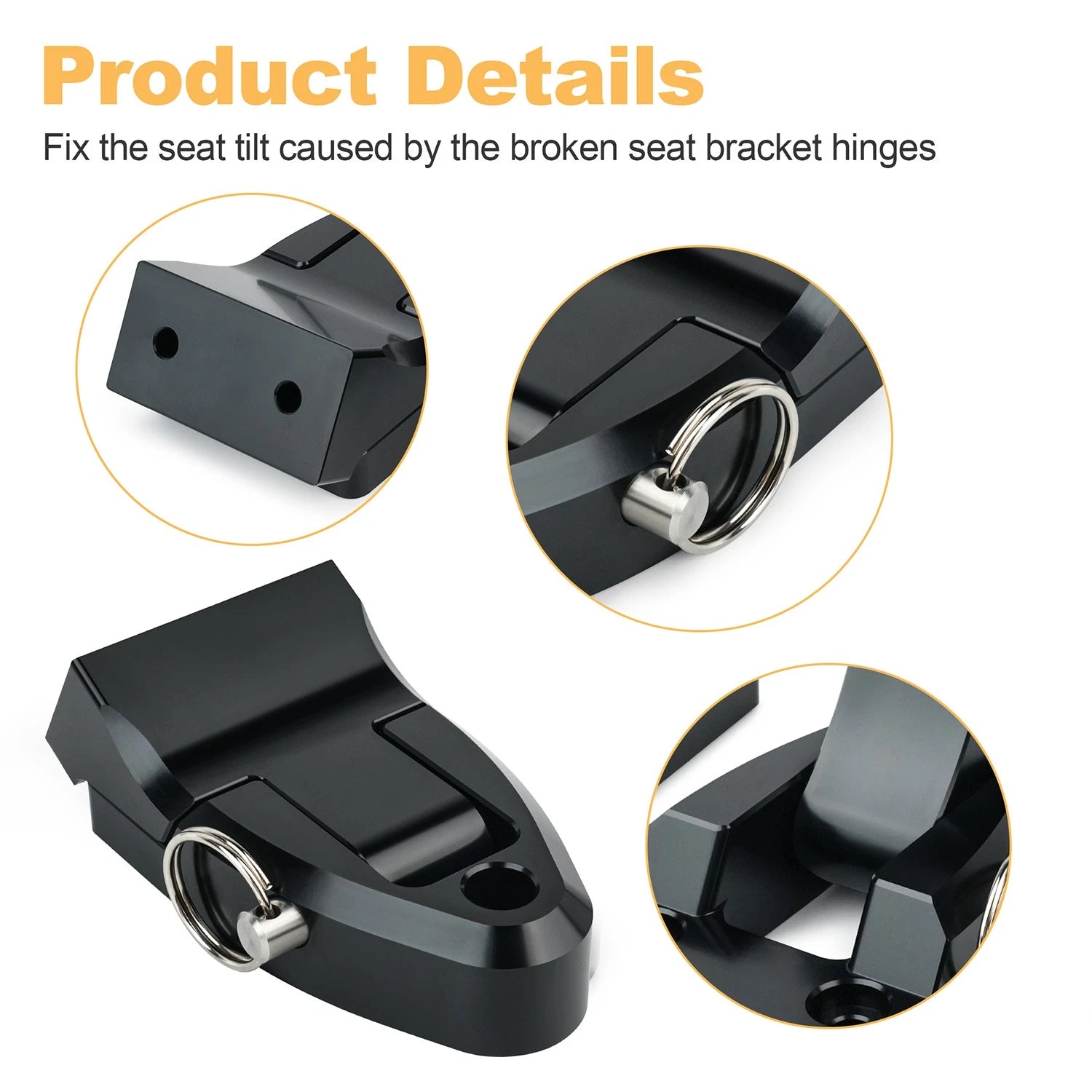

Each hinge has a deck-mount base and a moving bracket joined by the removable pin. The product photos show both hinges opened, closed and separated, so you can compare the bracket shape and mounting faces with your existing setup.

What the pair contains

Quantity

2 hinge assemblies

Listed positions

Left and right seat hinges

Bracket material

Billet aluminum

Finish

Black anodized

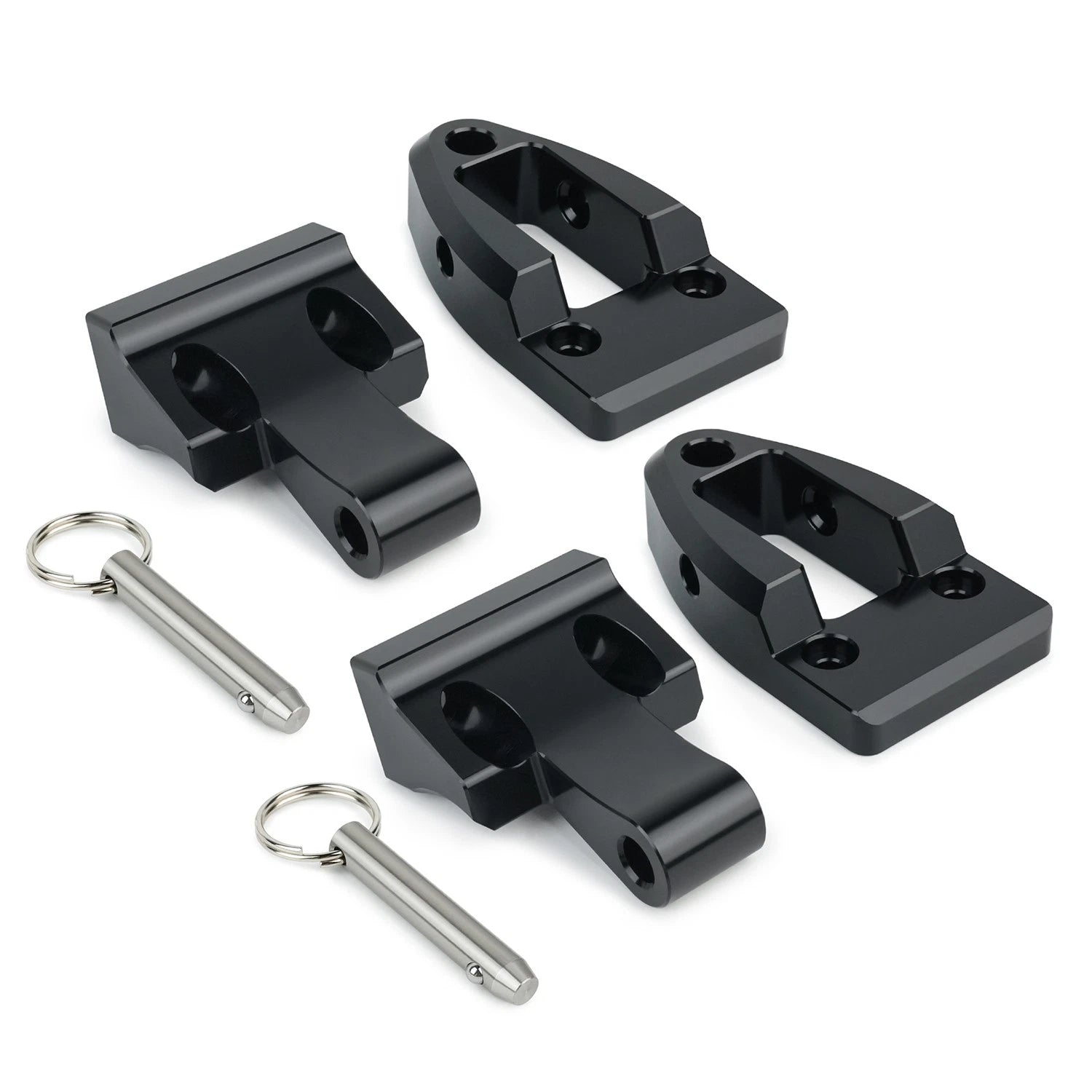

Assembly components pictured

Two bracket halves and one ring-pull hinge pin per hinge

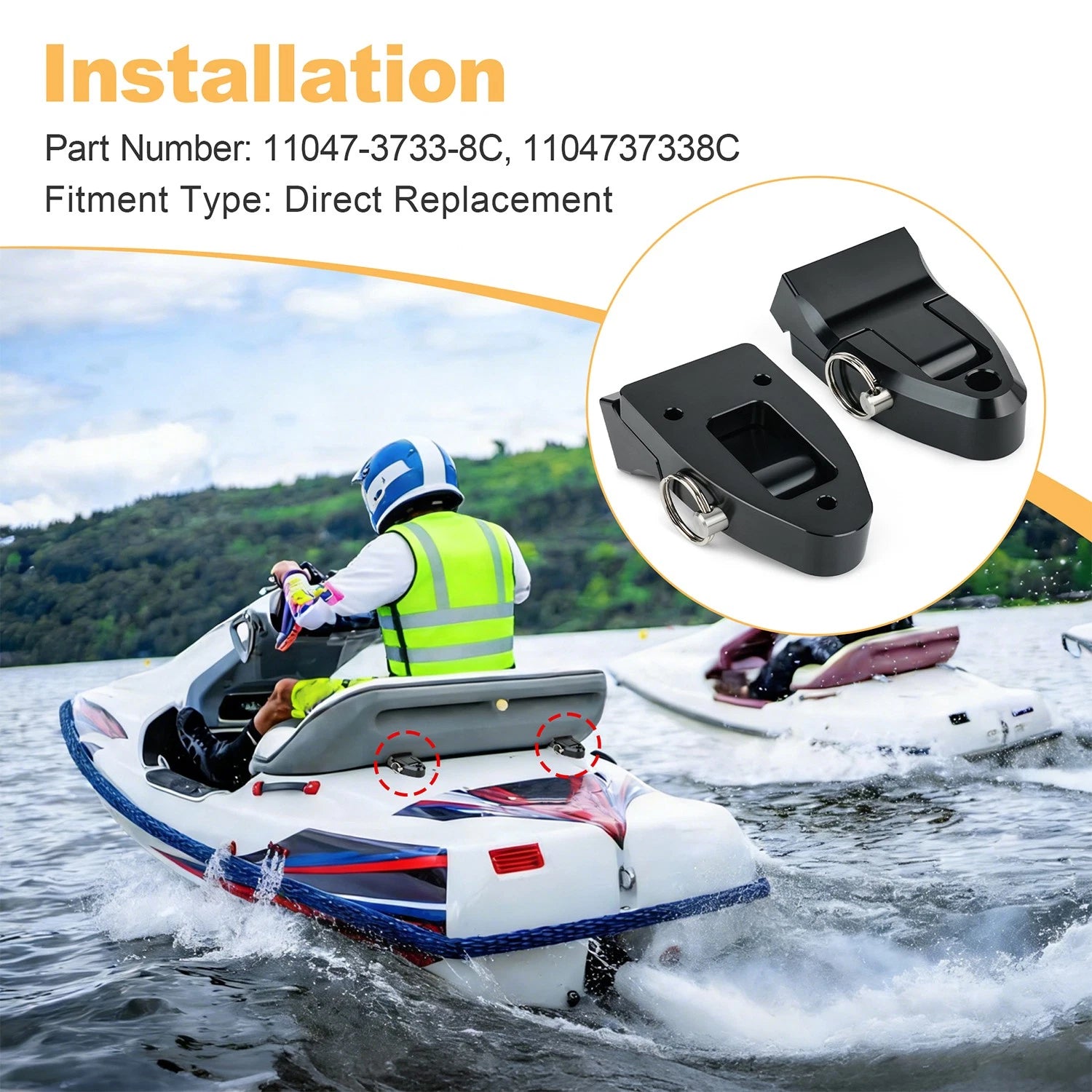

Replacement reference

11047-3733-8C / 1104737338C

Loose mounting hardware

Bolts and washers are not shown; inclusion is unconfirmed

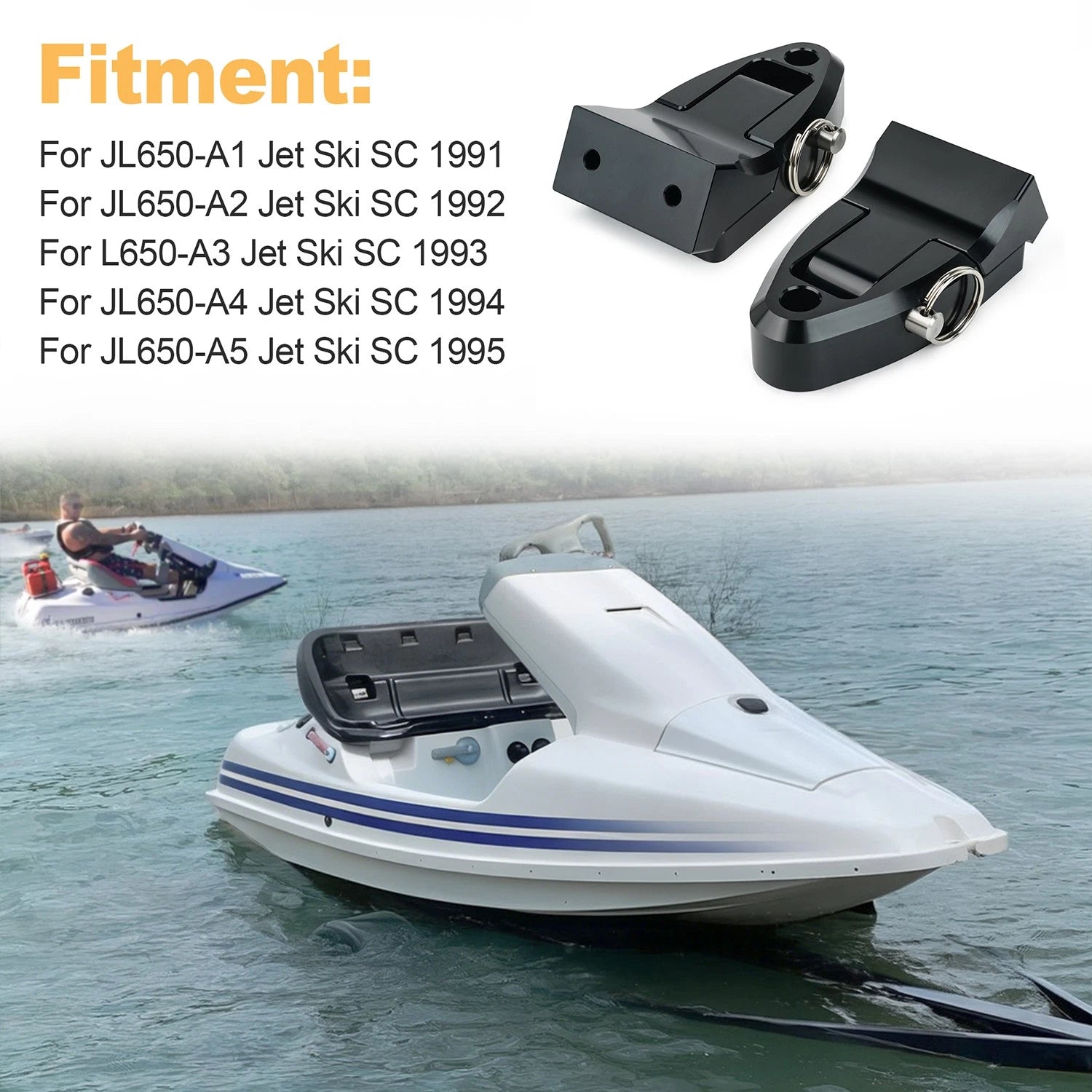

Listed Kawasaki 650 SC models

1991

JL650-A1 Jet Ski SC

1992

JL650-A2 Jet Ski SC

1993

JL650-A3 Jet Ski SC

1994

JL650-A4 Jet Ski SC

1995

JL650-A5 Jet Ski SC

Check both mounting faces

Match the watercraft model code, existing hinge reference, mounting-hole pattern and pin orientation before ordering. Hole spacing, thread sizes and overall dimensions are not specified. Other Kawasaki 650 models and modified seat arrangements need separate confirmation.

Inspect the seat and deck attachment points as well as the hinges. A damaged mounting point or worn seat latch needs its own repair. Use the watercraft's specified fasteners and tightening procedure, then check that the seat pivots and closes correctly with both pins seated.
