21-piece wheel lock set for Honda CR-V, 08W42-SCV-101

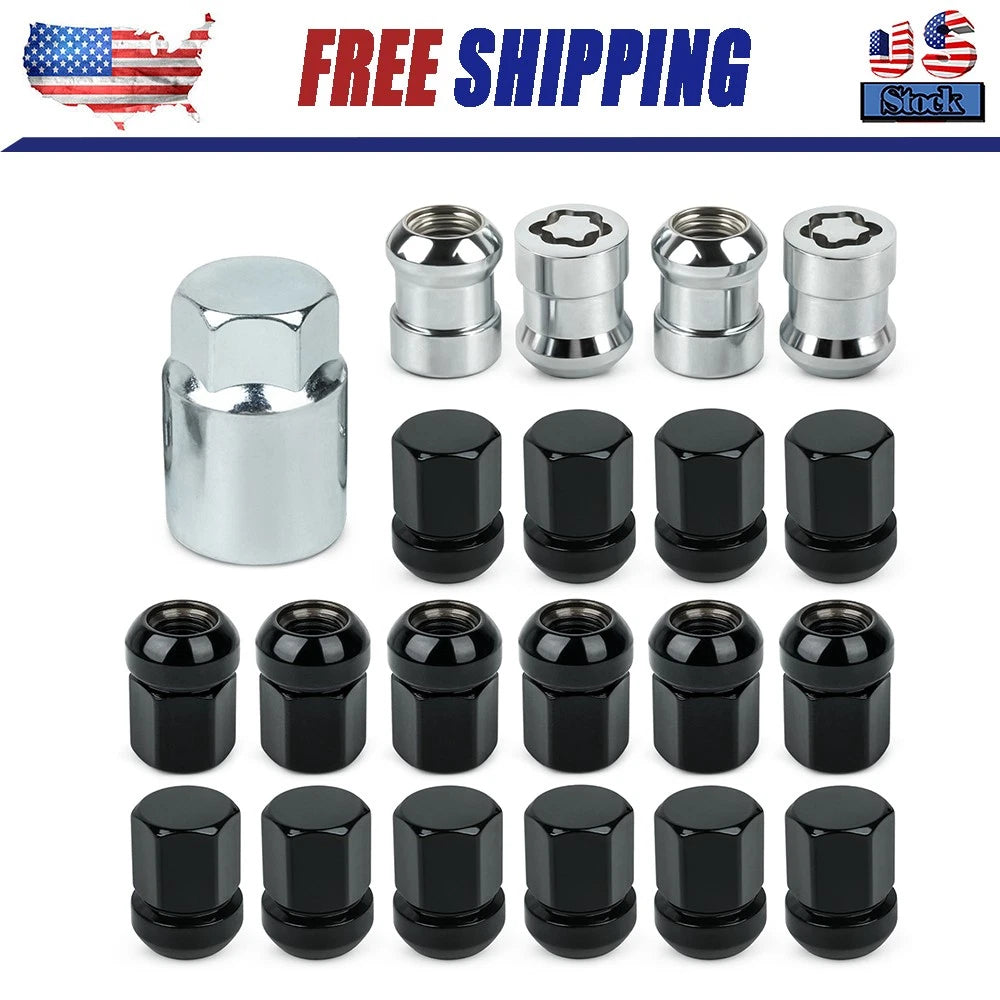

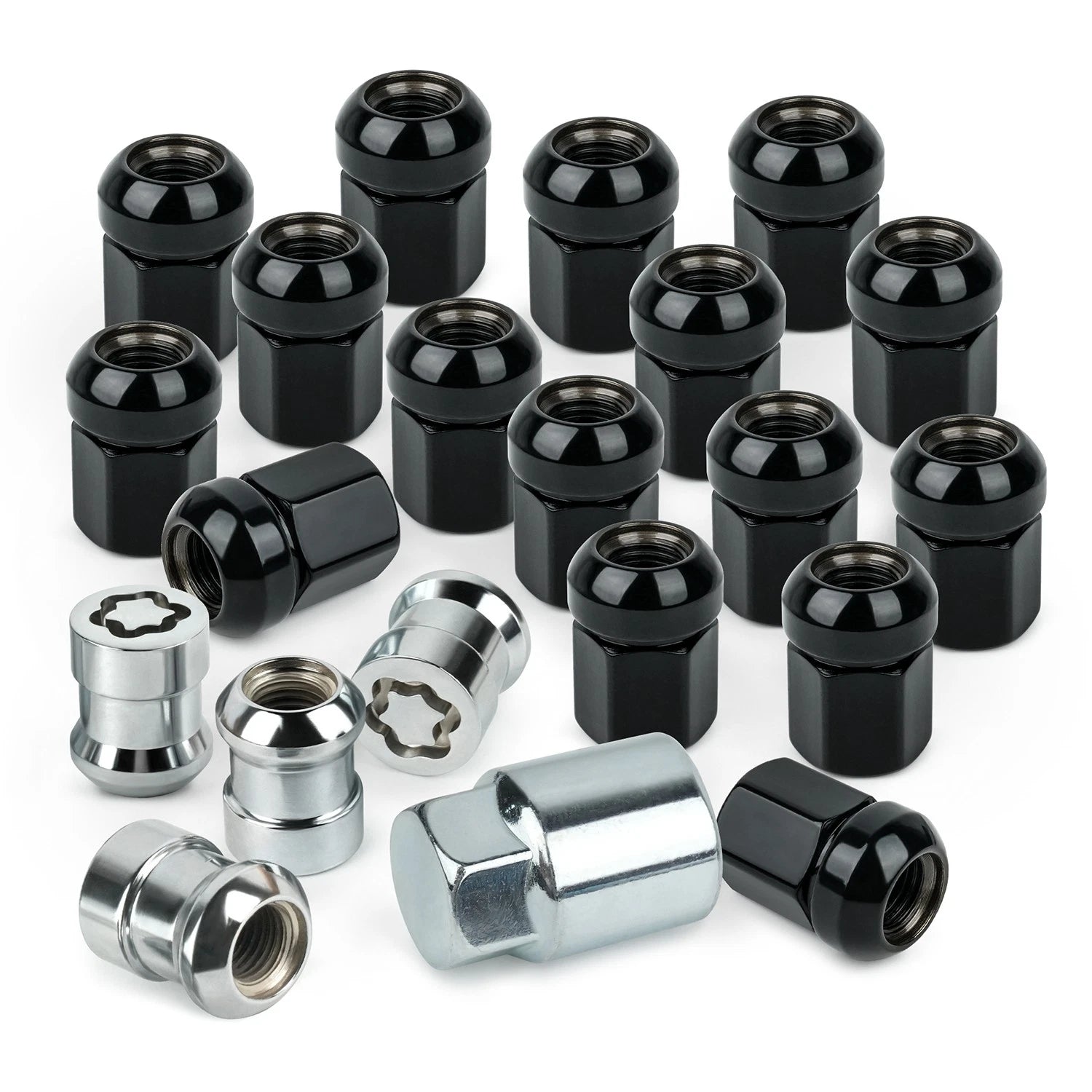

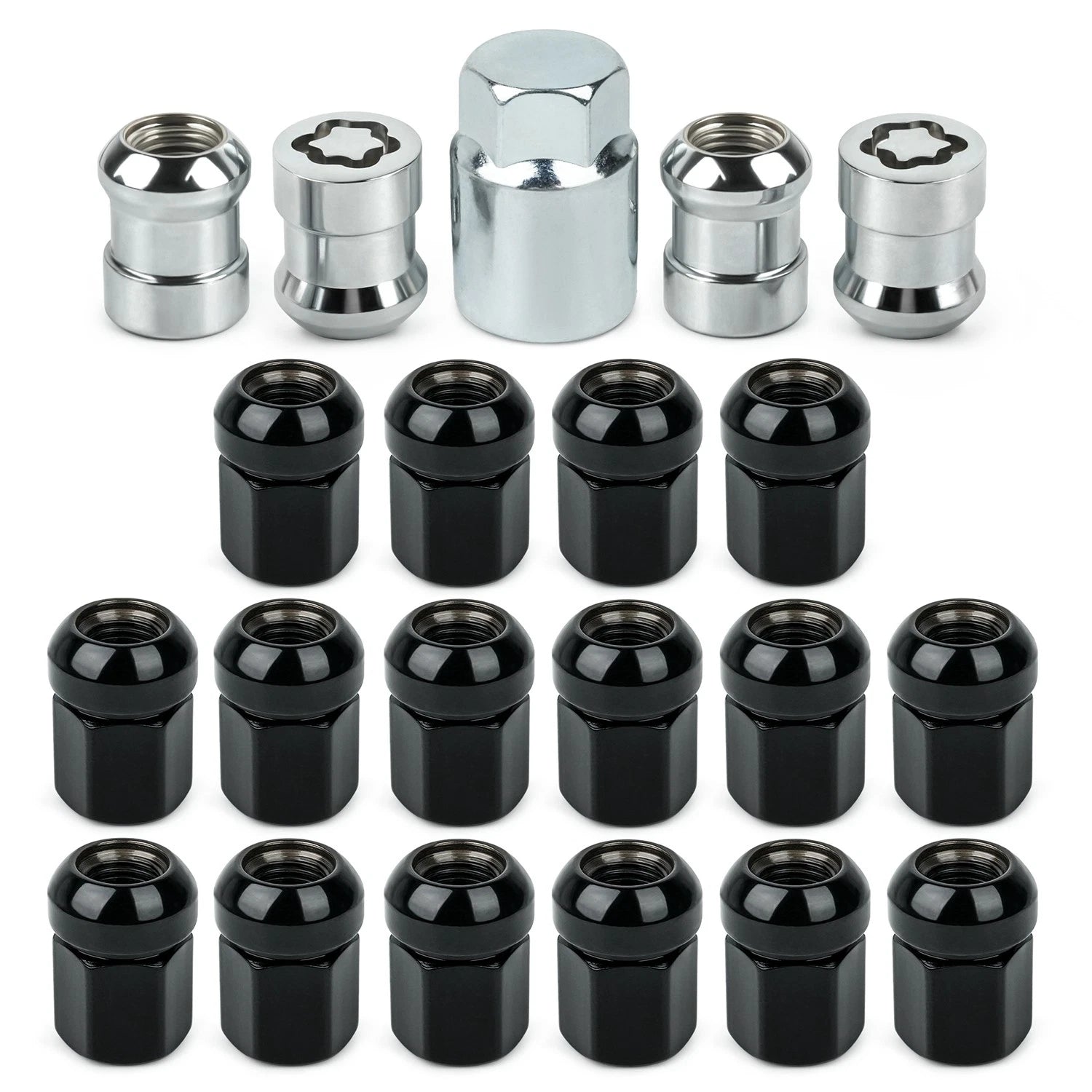

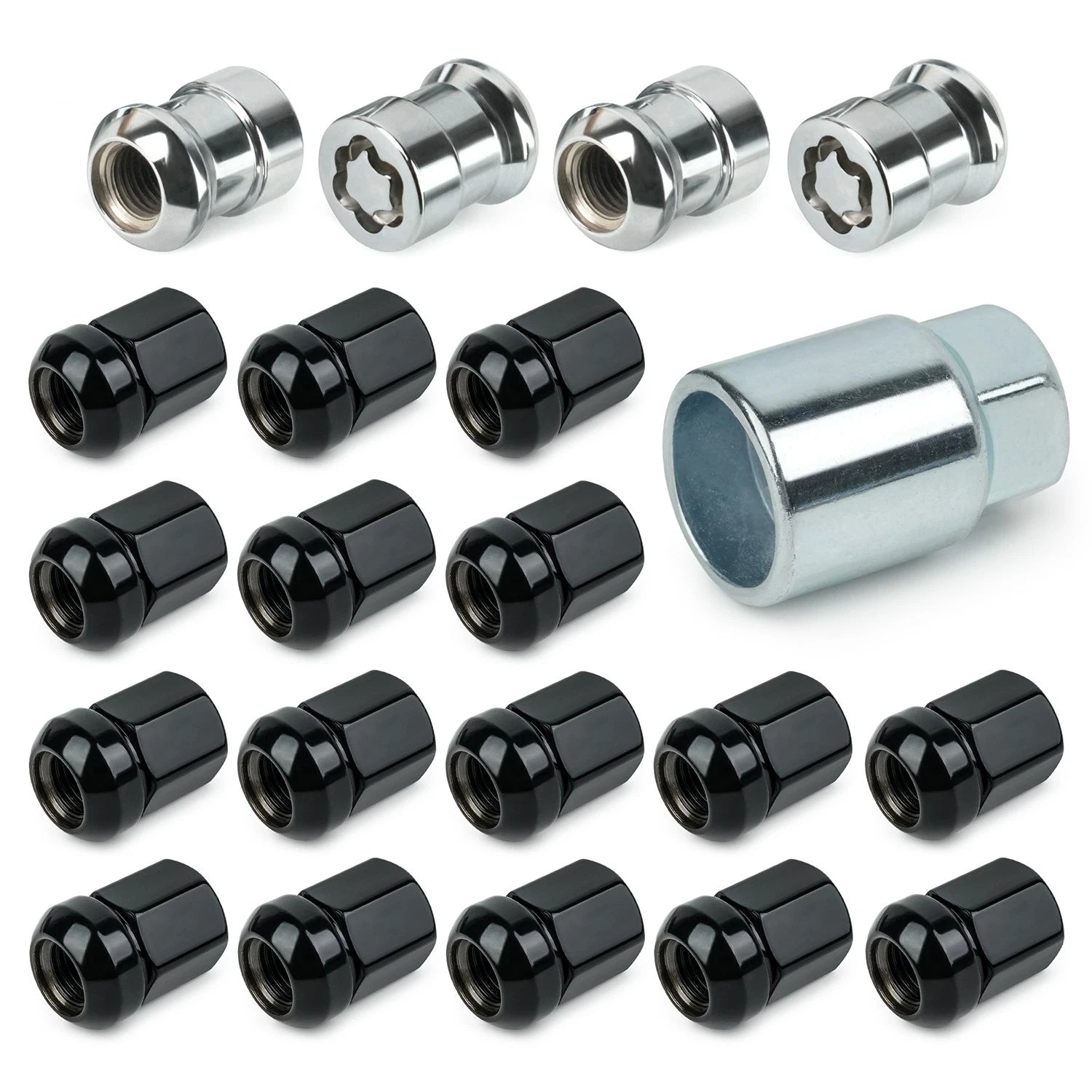

16 black lug nuts, four silver wheel locks and a key

This 21-piece set combines sixteen black hex lug nuts with four silver-colored wheel locks and one matching key adapter. The locks have a patterned drive face that engages the supplied key; the regular nuts have an external hex for a conventional socket.

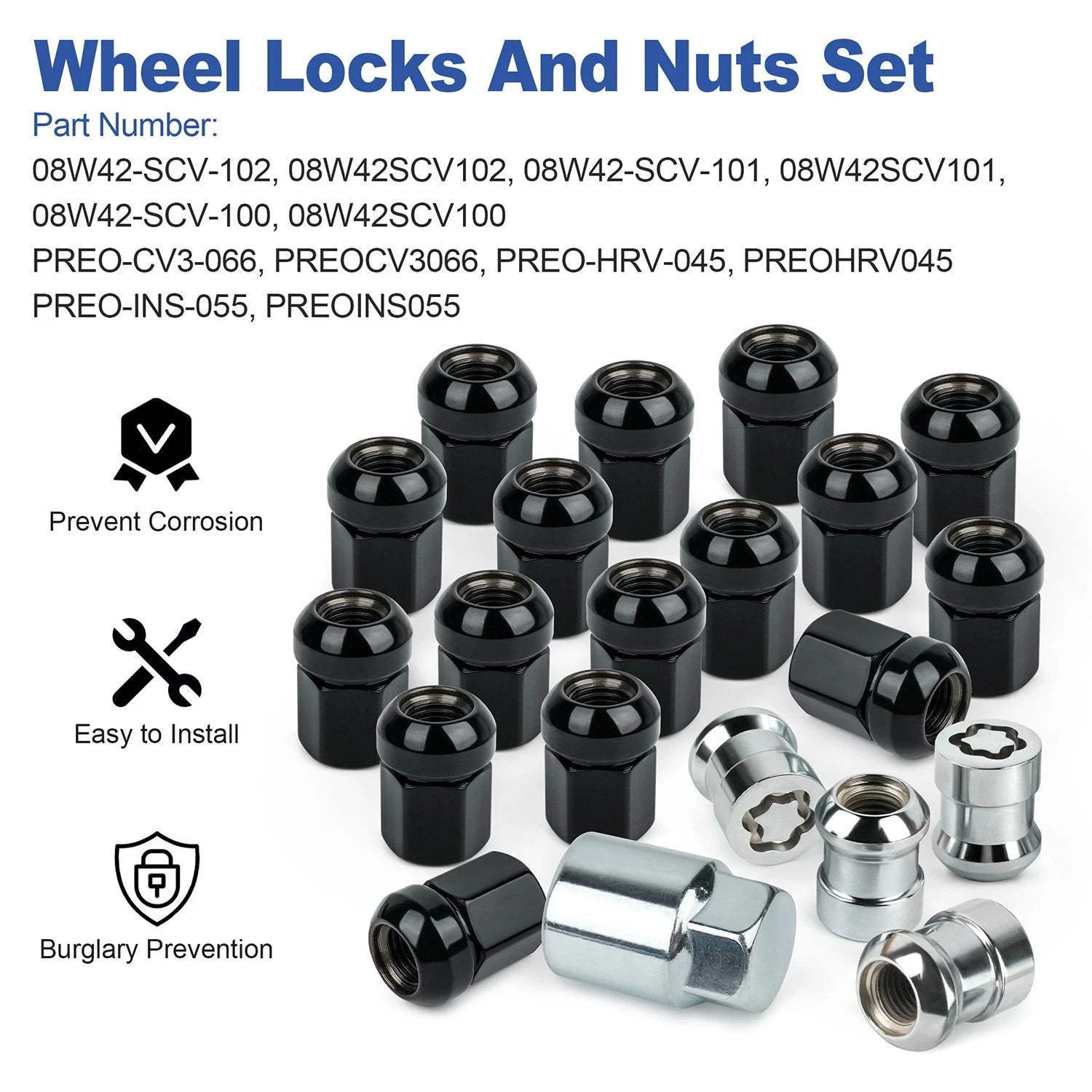

The product images list reference 08W42-SCV-101 alongside 08W42-SCV-100 and 08W42-SCV-102. Use these as comparison references and check the wheel fastener requirements for your vehicle. They do not identify this set as Honda manufacture or establish interchangeability with another lock key.

Set contents and pictured dimensions

Regular lug nuts

16 black hex nuts

Locking nuts

4 silver-colored nuts with patterned drive faces

Key adapter

1 silver-colored adapter for the supplied locks

Regular nut span marked

1.1 in vertically; 0.8 in across the base

Locking nut span marked

1.0 in vertically; 0.8 in across the base

Key adapter span marked

1.45 in vertically; 1.0 in across the lower body

Nut opening marked

0.53 in on both nut types; nominal thread size and pitch are not specified

These are spans marked in the photo diagram. Some arrows start below the upper shoulders, so check the full nut height and socket clearance against your wheel rather than using the vertical labels as overall-height specifications.

Honda applications listed in the images

CR-V

2007-2016, 2.4L

CR-V

2023-2025, 1.5L or 2.0L

Civic

2016, 1.5L or 2.0L

Accord

2008-2012, 2.4L or 3.5L

HR-V

2023-2025, 2.0L

Fit

2007-2012 or 2015-2020, 1.5L

CR-Z

2011-2016, 1.5L

Crosstour

2012-2015, 2.4L or 3.5L

Insight

2013-2014, 1.3L

Insight

2019-2022, 1.5L

S2000

2004-2009, 2.2L

Element

2005-2007, 2.4L

Check the wheel and stud before installation

Match thread diameter, thread pitch and seating shape to the studs and wheels actually fitted to the car. The listed applications need that check, especially with aftermarket wheels. The image's opening dimension does not establish an M12 or M14 thread, and the seating radius or angle is not specified.

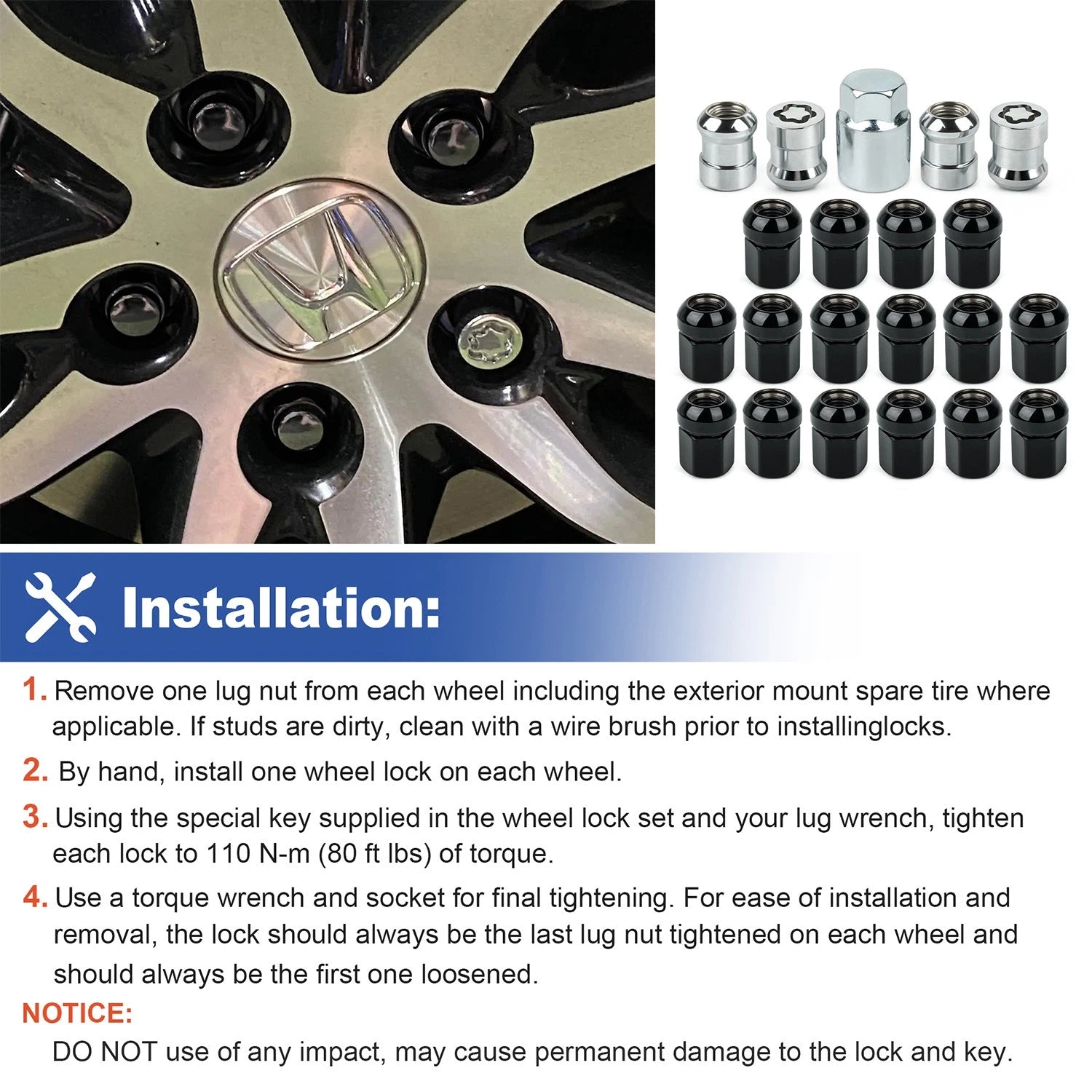

Start the nuts by hand and use the correct torque specification for your vehicle and wheel combination. The installation instructions shown prohibit impact-tool use on the locks and key. Keep the key accessible for future wheel removal and check that it fully engages each lock before applying a hand tool.
