Shock mount brackets, pair - 6 mm HRP&O steel, 1/2-inch bolt hole

Two steel brackets for a fabricated shock mount

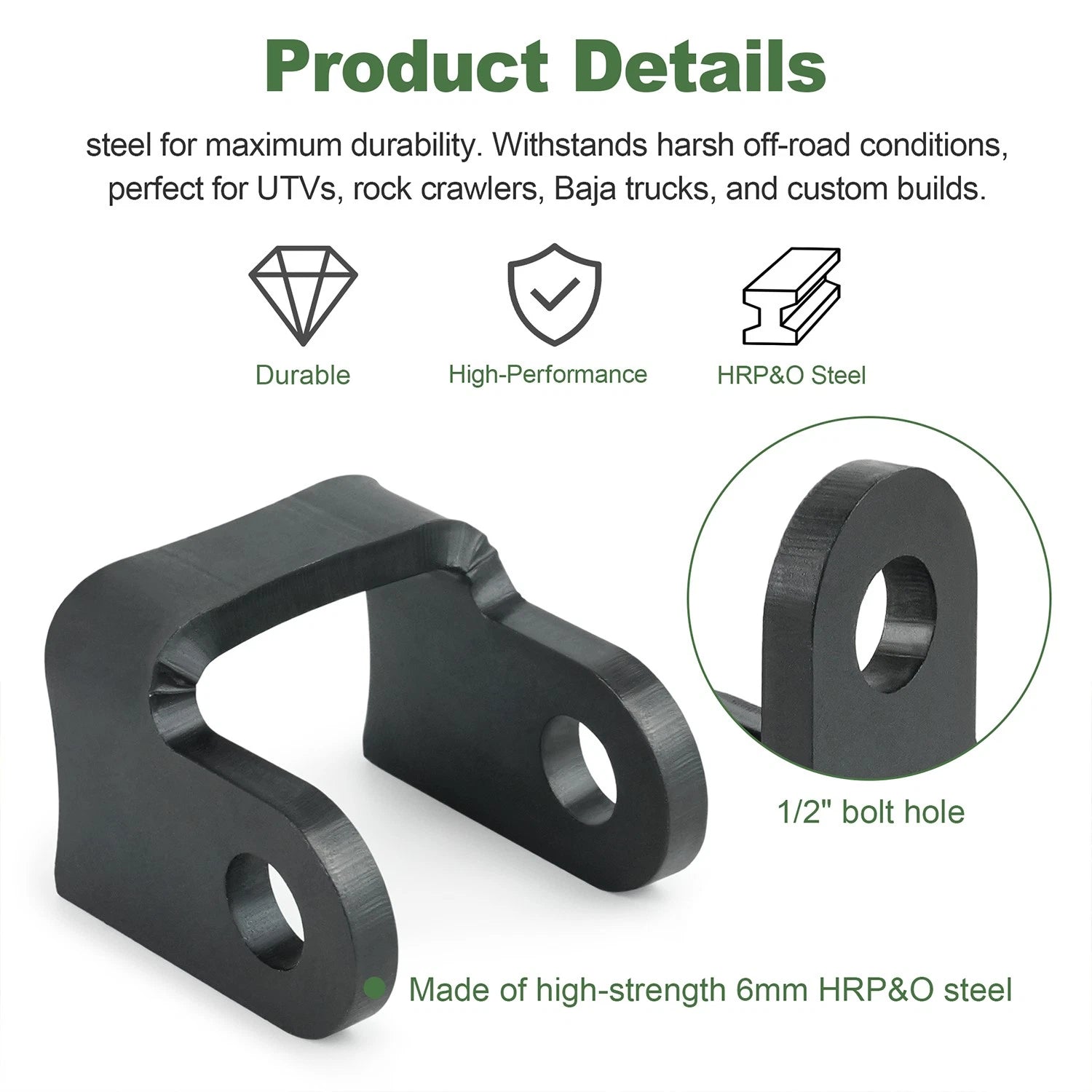

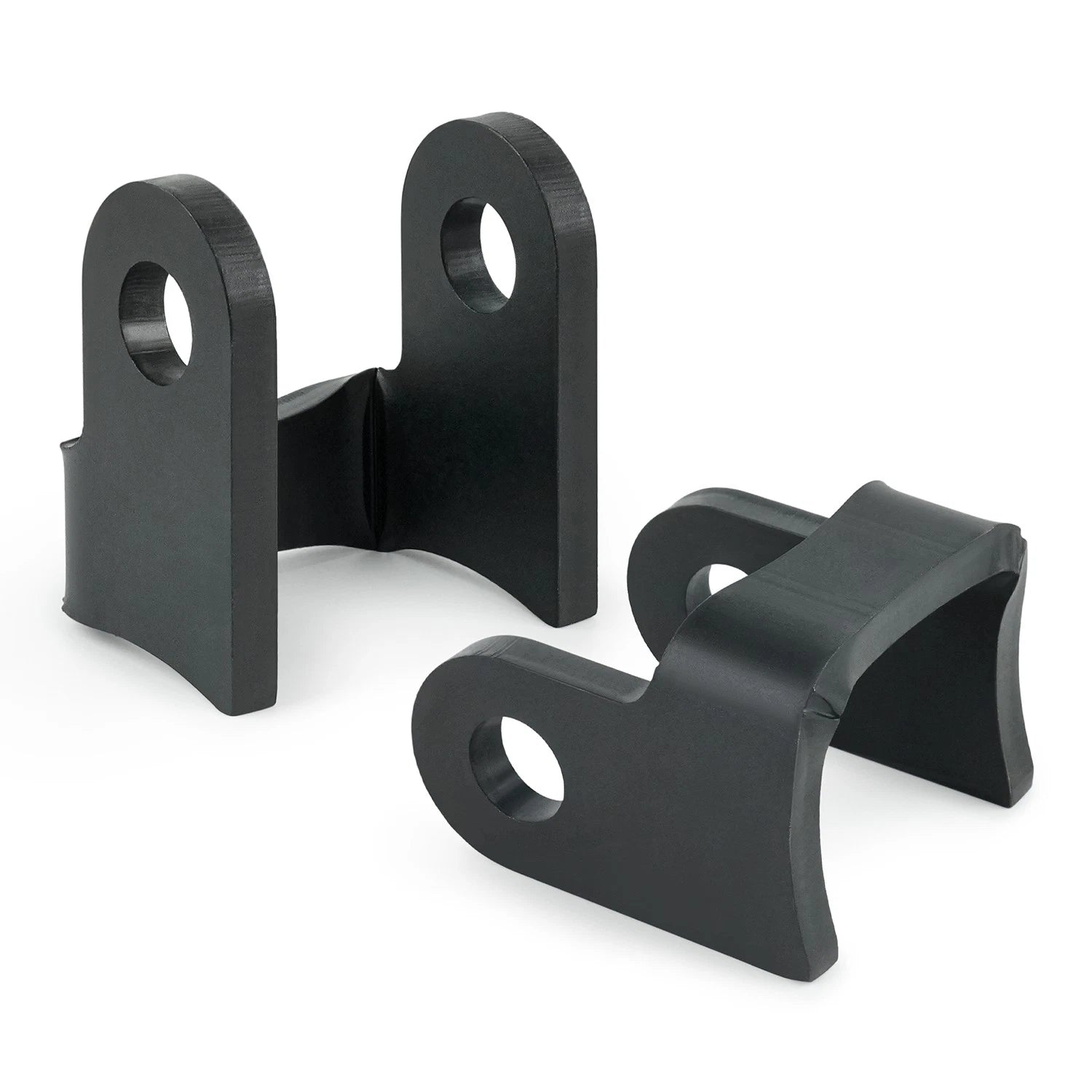

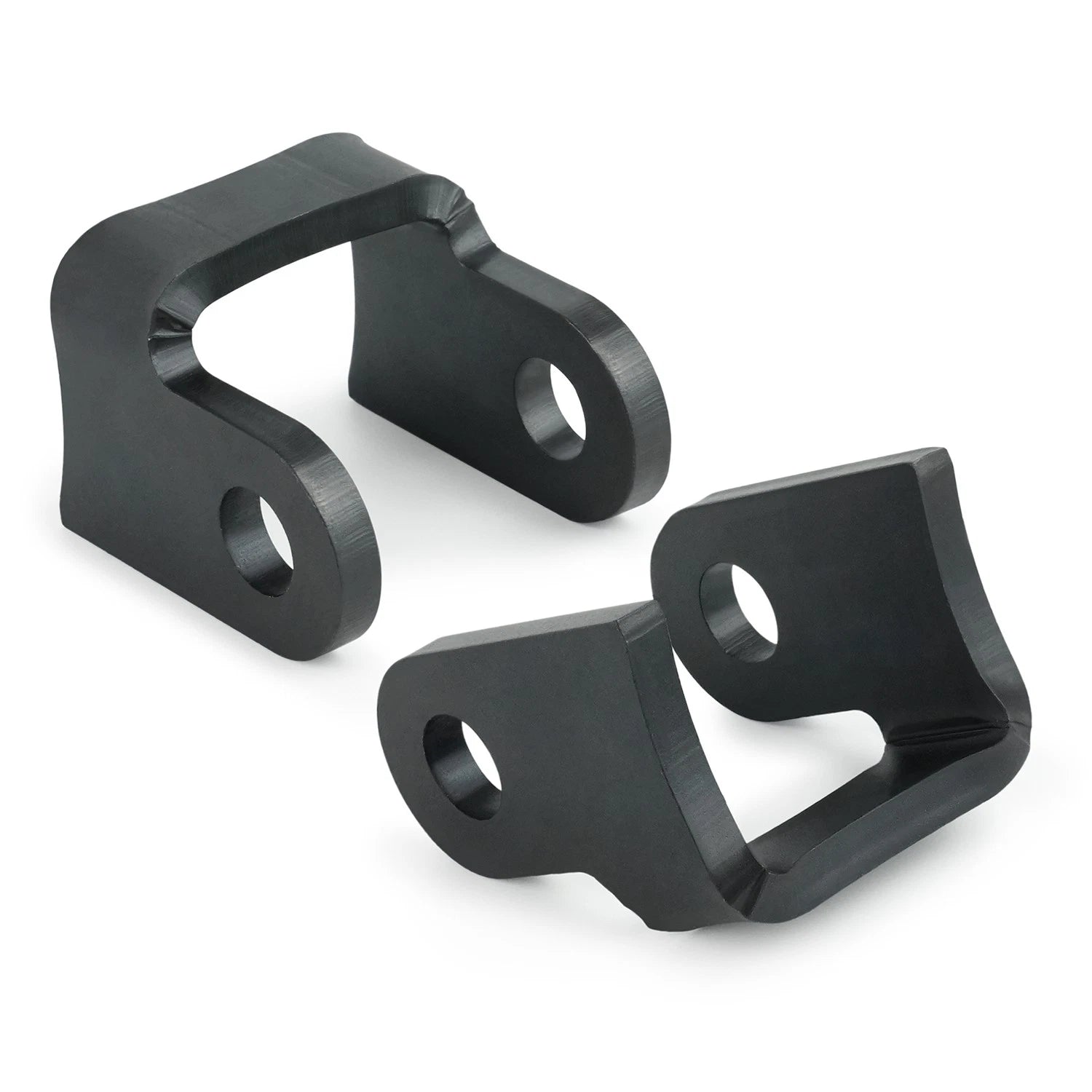

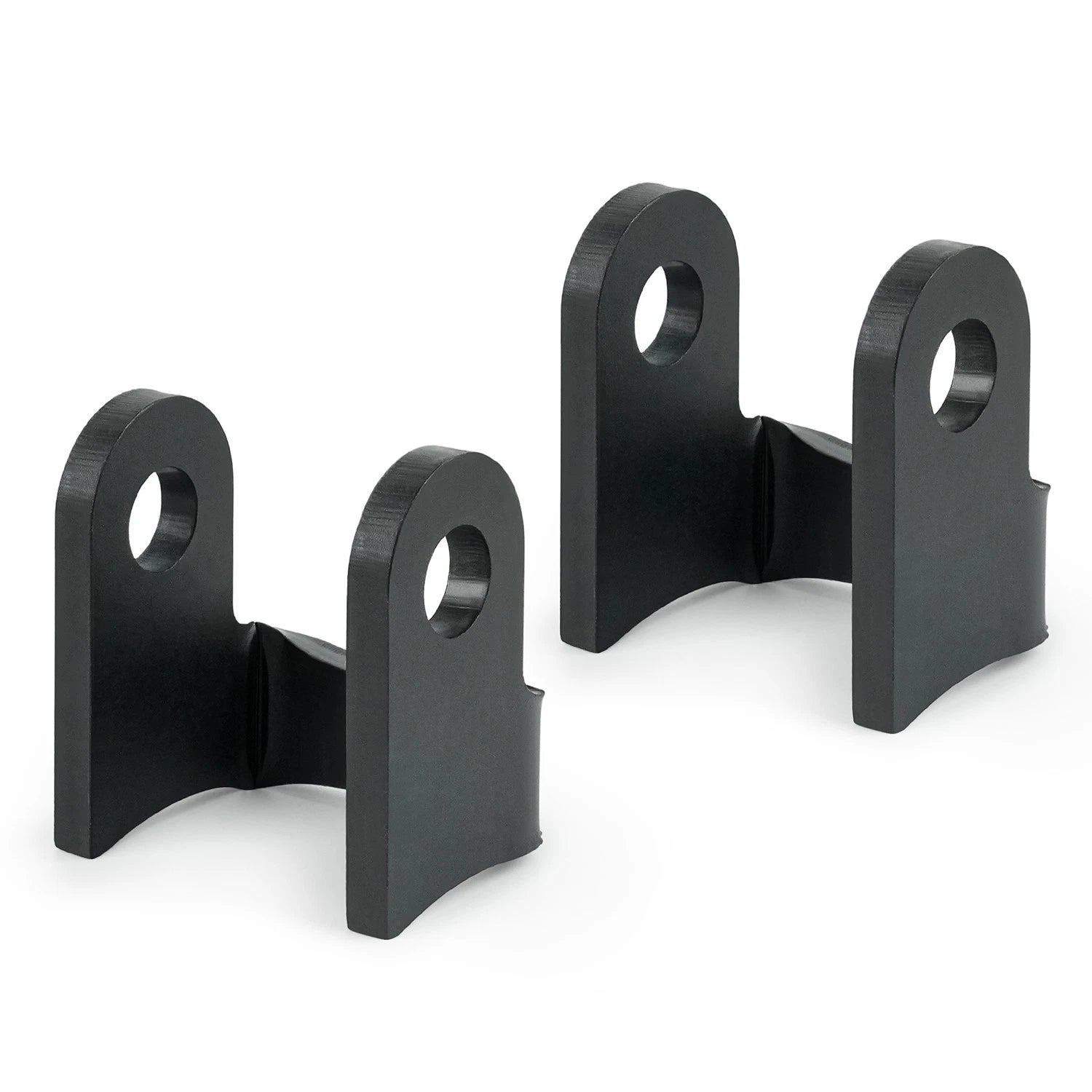

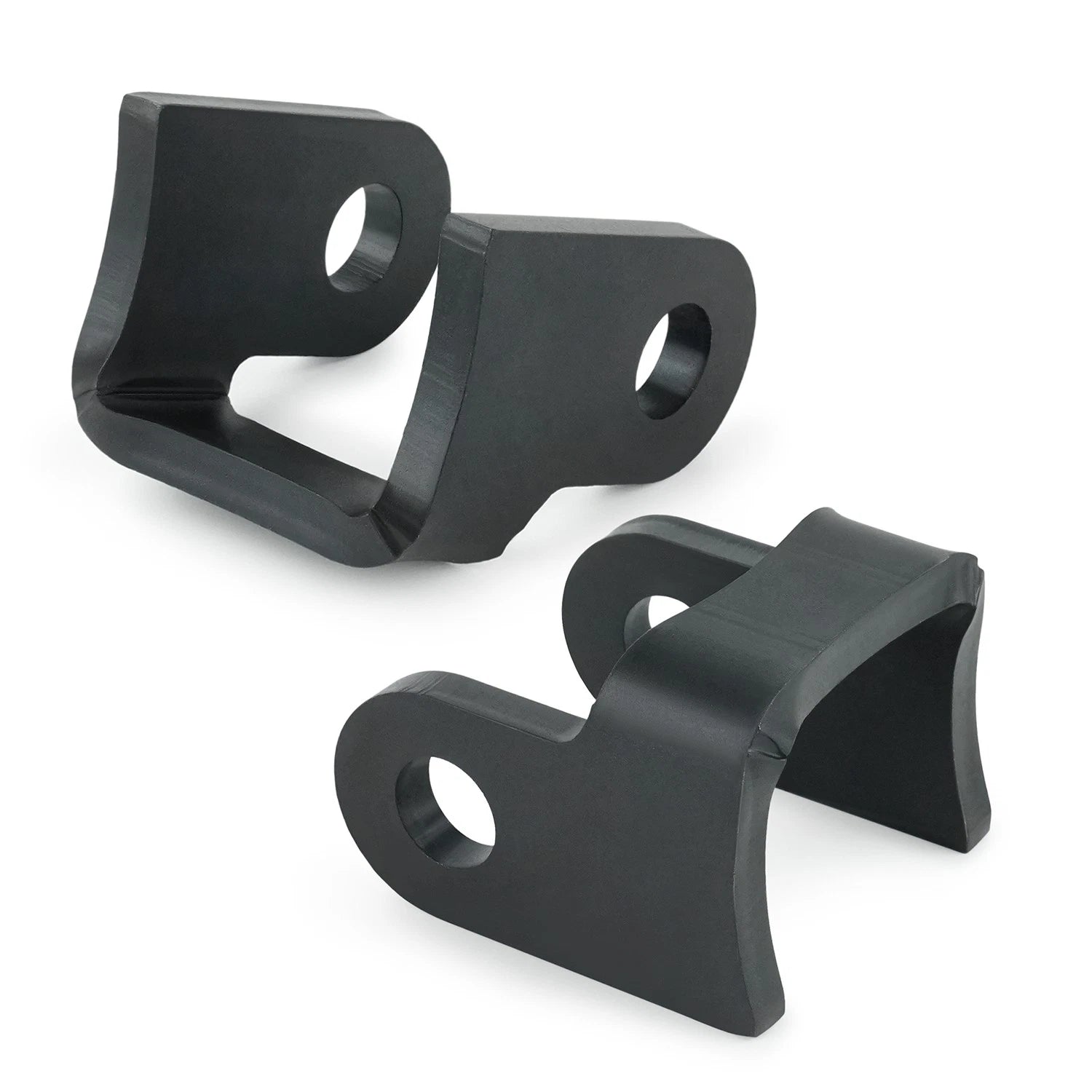

This two-piece set is listed as 3-inch shock brackets made from 6 mm HRP&O steel, with 1/2-inch bolt holes and a listed tube diameter range of 1.75-3 inches. Each pictured bracket joins two upright mounting ears with a curved bridge, leaving an opening for the shock eye between them.

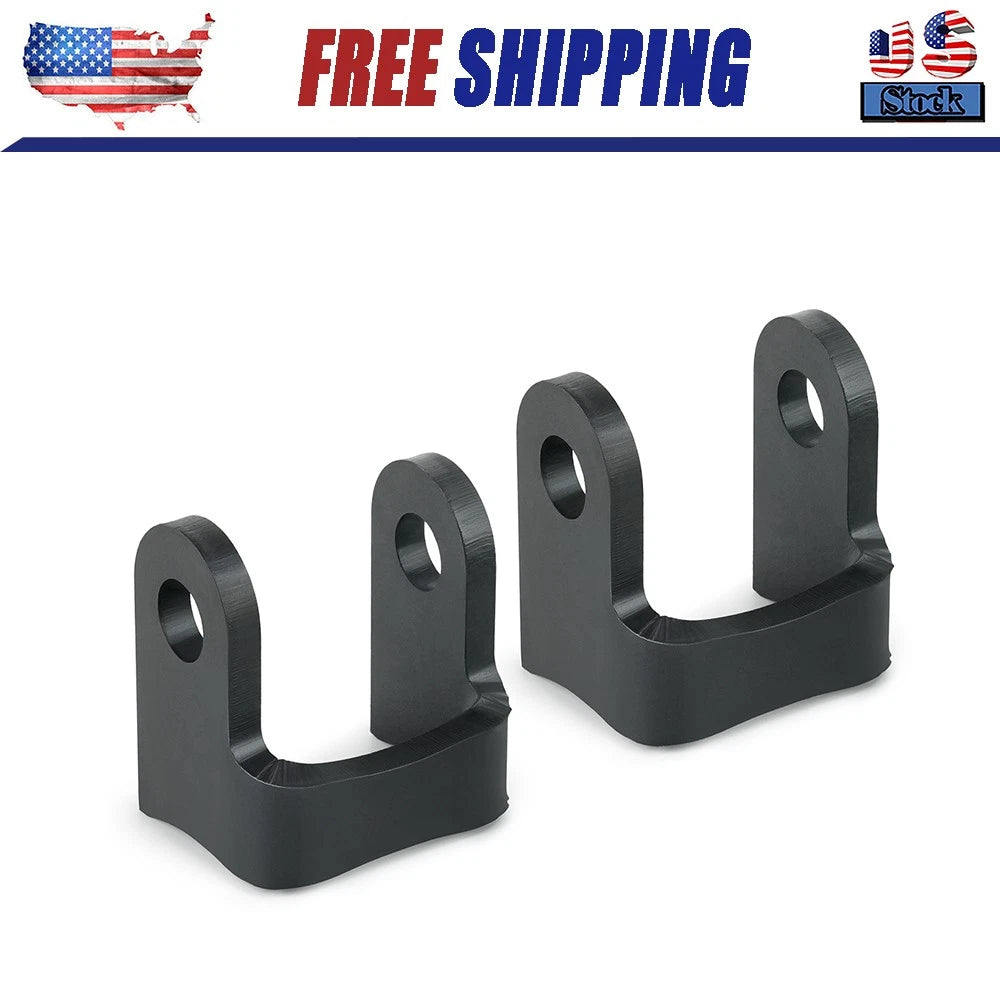

Both brackets are shown in black. The set contains the brackets only; shock absorbers, bolts, nuts, spacers and tubing are not included.

Listed specifications

Quantity

Two shock brackets

Listed size

3-inch shock bracket

Listed material

6 mm HRP&O steel

Listed bolt hole

1/2 inch

Listed tube diameter

1.75-3 inches; check the actual mounting contact

Pictured layout

Two mounting ears joined by a curved bridge

Additional hardware

Not included

Check the shock eye and tube together

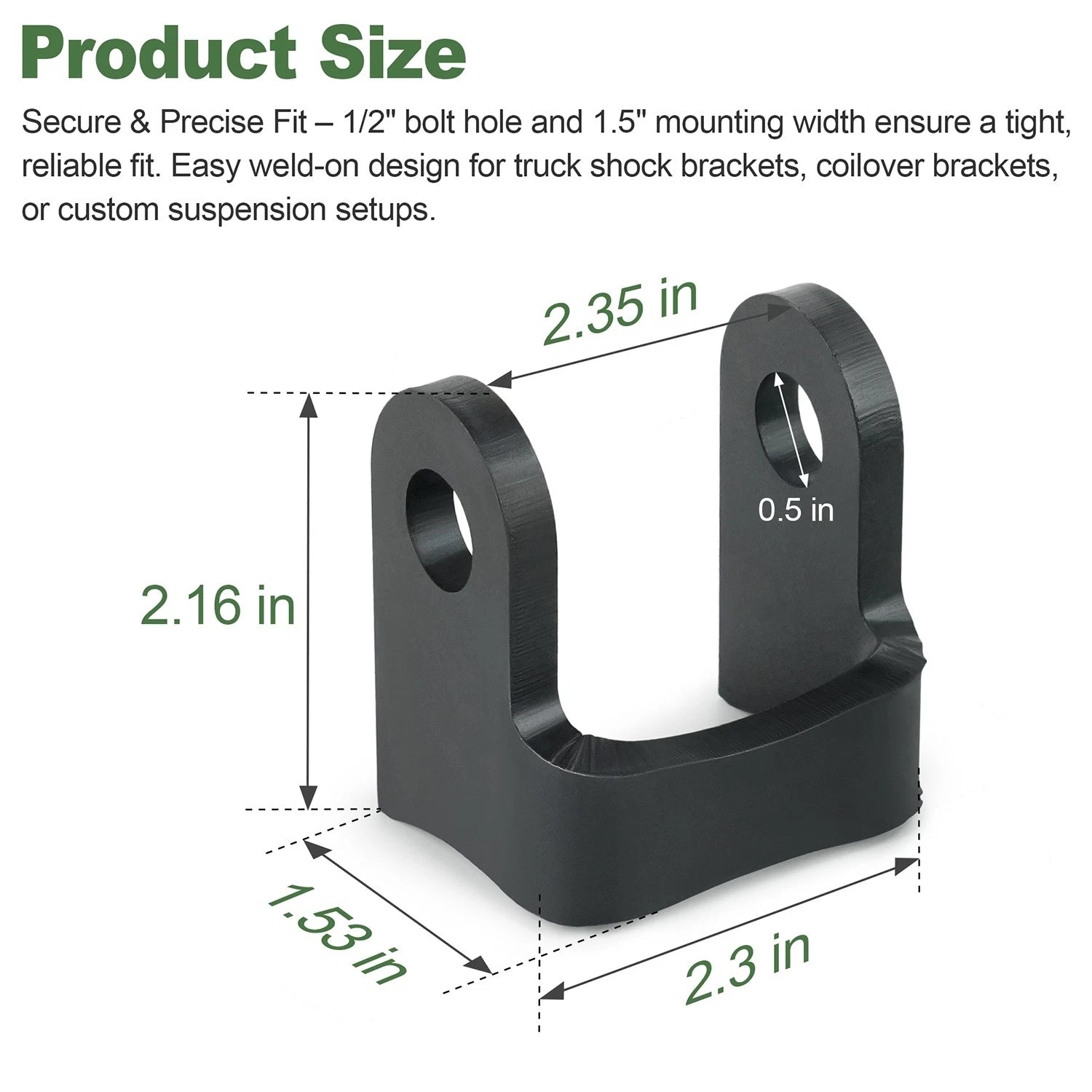

Measure the shock eye's mounting width and bolt sleeve, then confirm the space between the bracket ears. Also check the required bolt length and any spacers. The inside mounting width and the distance from the tube contact to the bolt center are not specified for this set.

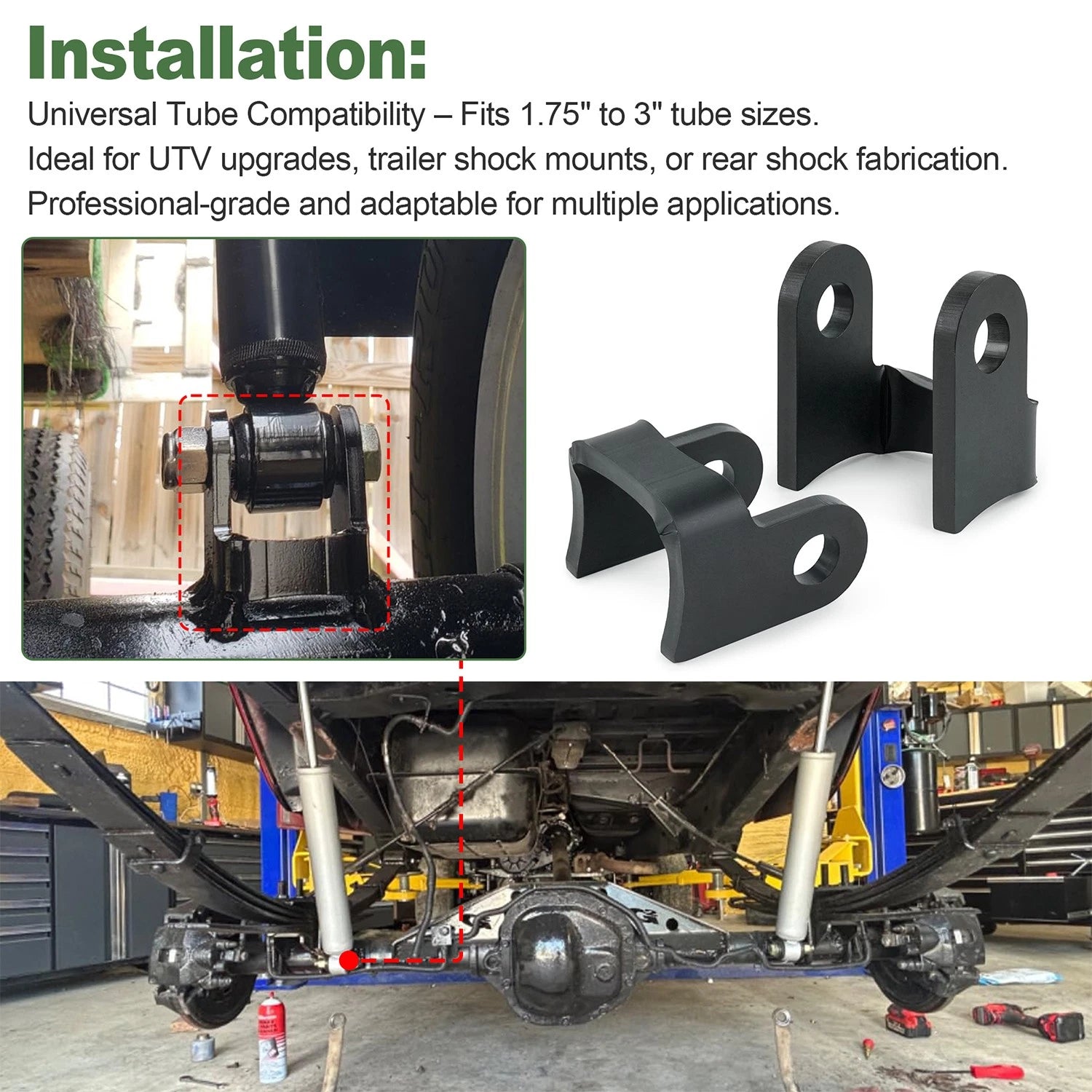

For a custom suspension build, have the fabricator check the bracket's contact with the tube, mounting position and clearance through suspension travel. The listed tube range alone does not confirm the complete mounting arrangement. Attachment details must suit the tubing material and the suspension design; no vehicle-specific fitment or load rating is provided.
